Mayberry: 2017-04-11 13:15:00 (DOY 101)
Author: Daphne Szutu
Others: Elke Eichelmann, Isabel Reche

Summary: Regular data collection/cleaning, serviced water sensors

2017-04-11
Mayberry

We arrived at 13:15. It was cool, overcast, with a light breeze. The water level looks a little higher than last time. The two top water sensors are immersed. The grass and vegetation on the road are quite tall. We should probably get a 4WD next time.

We refilled the wash reservoir; it was 3/4 full.

We downloaded data from the water sensors: miniDOT and HOBO conductivity probes. Isabel put on the waders and got in the water to immerse the fluorometer and get the bubbles out.

Times that miniDOTS were turned off:
1219 bot - 12:48
1220 mid - 12:46
1221 top - 12:51

I collected met, GHG USB, and camera data. Elke cleaned the EC and radiation sensors.

LI7500 readings:
CO2 401.2 umol/mol
H2O 486.5 mmol/m3
T 20.8 Celsius
P 101.4 kPa
SS 102.1 -> 102.9 after cleaning

LI7700 readings:
CH4: 1.9
RSSI: 39.6 -> 79.5 after cleaning

We left at 14:15.

0 photos found

Graphs display:
11 sets found

7 MB_flux graphs found

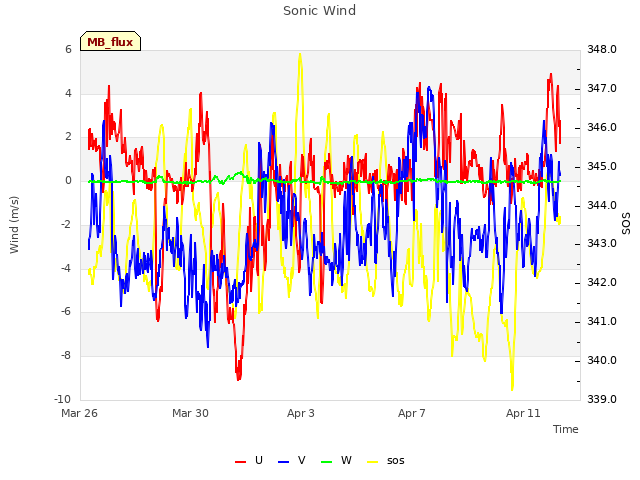

Explore the graph:Sonic Wind in a new window

Explore the graph:LI7700 mV signals in a new window

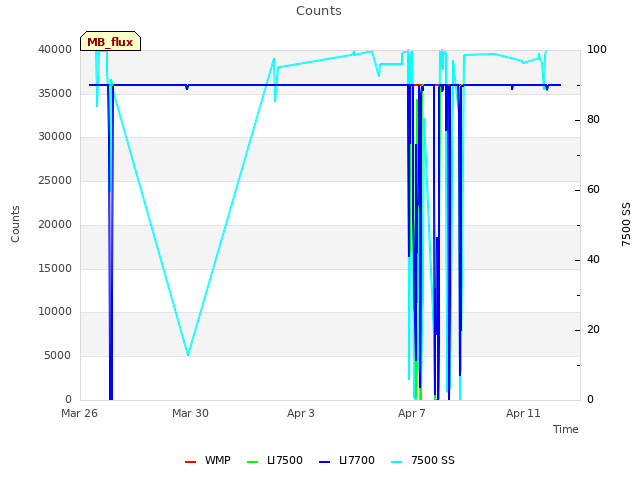

Explore the graph:Counts in a new window

Explore the graph:LI7700 CH4 from analog signal in a new window

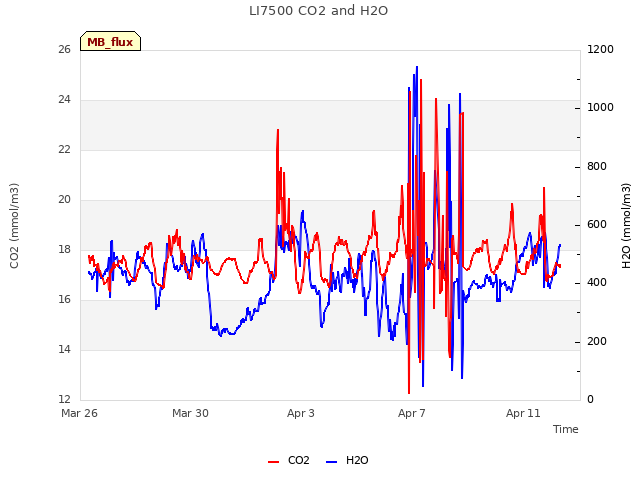

Explore the graph:LI7500 CO2 and H2O in a new window

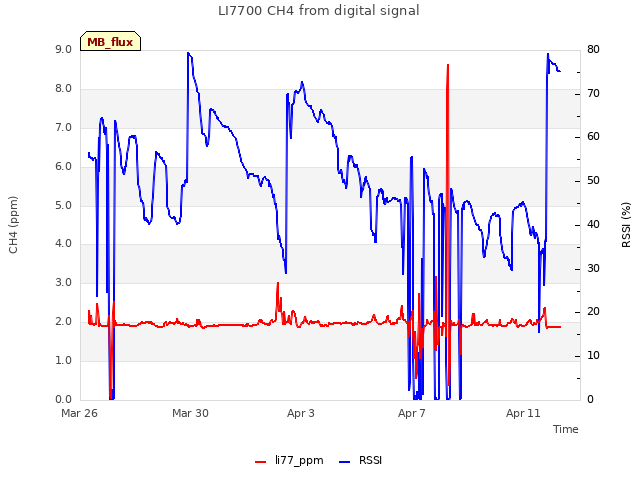

Explore the graph:LI7700 CH4 from digital signal in a new window

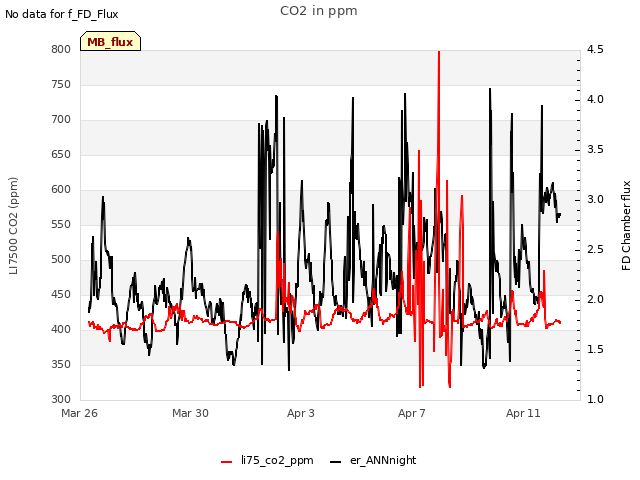

Explore the graph:CO2 in ppm in a new window

No data found for MB_met.
27 MB_tule graphs found

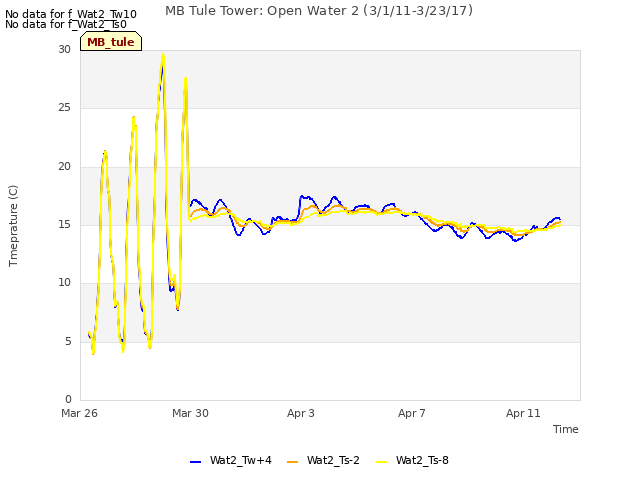

Explore the graph:MB Tule Tower: Open Water 2 (3/1/11-3/23/17) in a new window

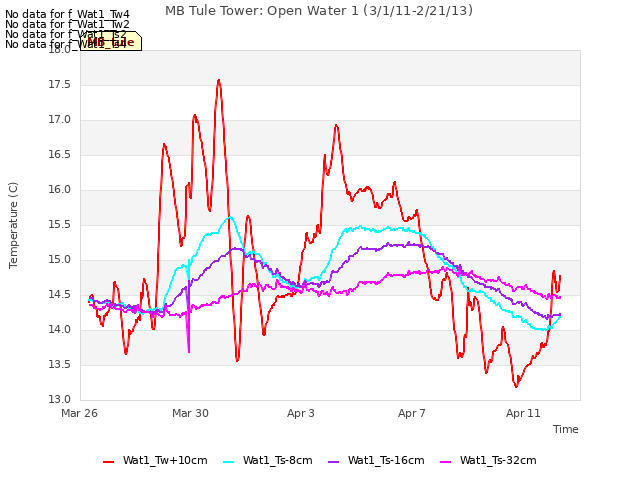

Explore the graph:MB Tule Tower: Open Water 1 (3/1/11-2/21/13) in a new window

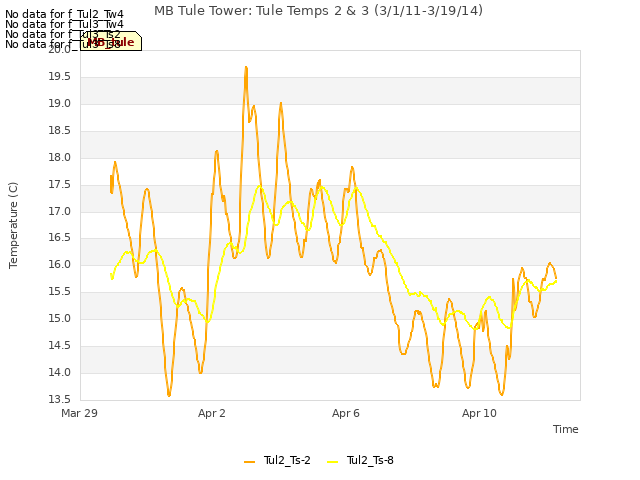

Explore the graph:MB Tule Tower: Tule Temps 2 & 3 (3/1/11-3/19/14) in a new window

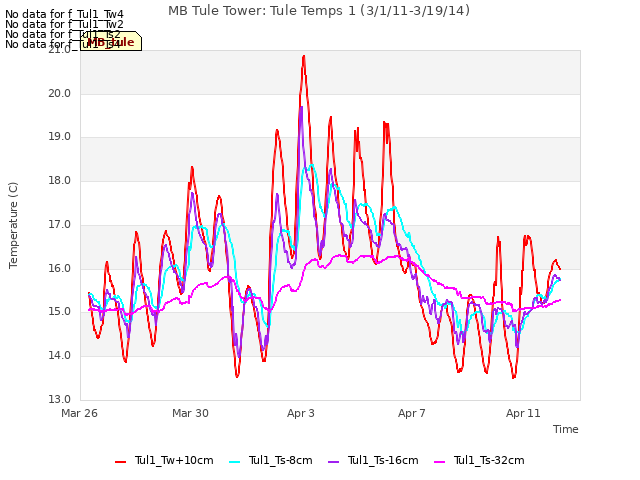

Explore the graph:MB Tule Tower: Tule Temps 1 (3/1/11-3/19/14) in a new window

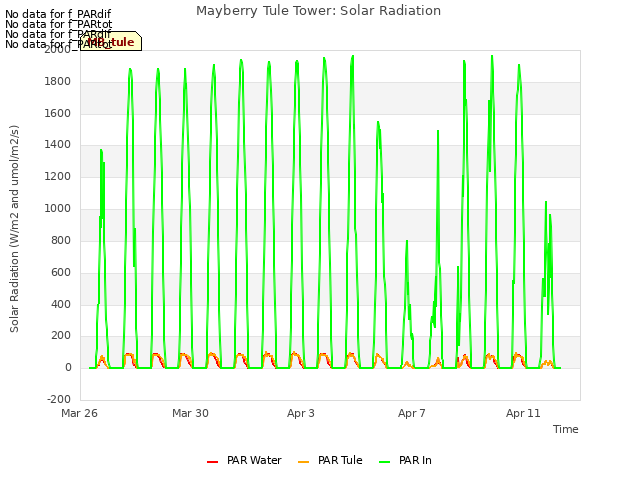

Explore the graph:Mayberry Tule Tower: Solar Radiation in a new window

Explore the graph:Mayberry Tule Tower: Disolved Oxygen in a new window

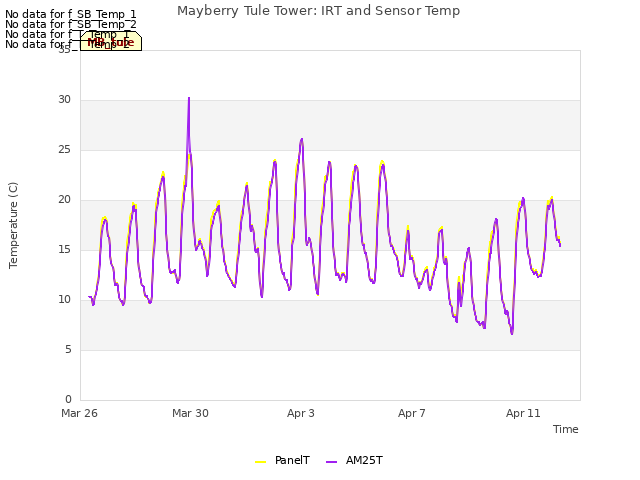

Explore the graph:Mayberry Tule Tower: IRT and Sensor Temp in a new window

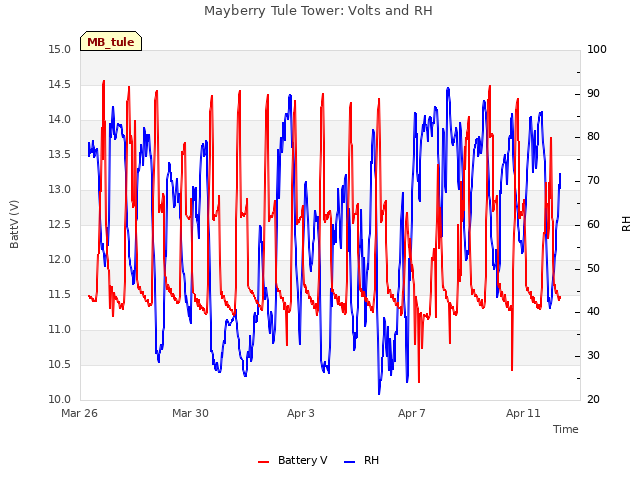

Explore the graph:Mayberry Tule Tower: Volts and RH in a new window

Explore the graph:LED NDVI Sensor in a new window

Explore the graph:Water CO2 in a new window

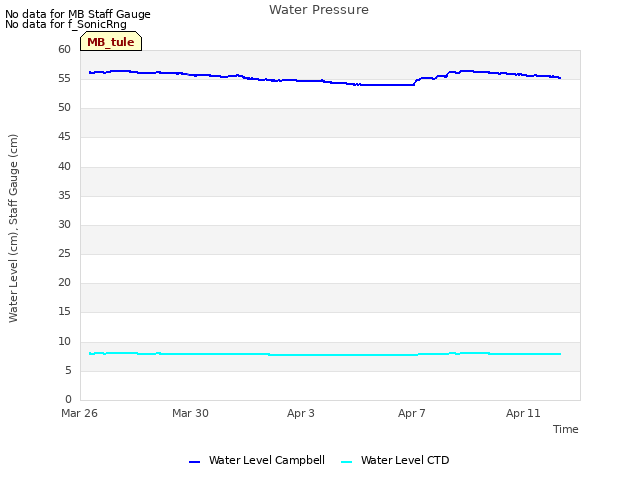

Explore the graph:Water Pressure in a new window

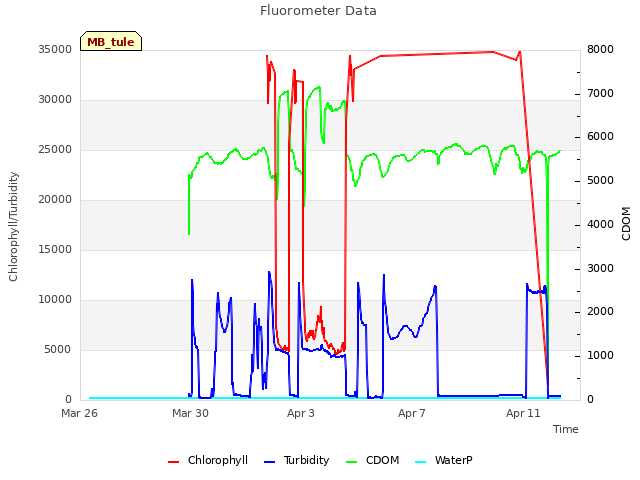

Explore the graph:Fluorometer Data in a new window

Explore the graph:Mayberry pCO2 Profile in a new window

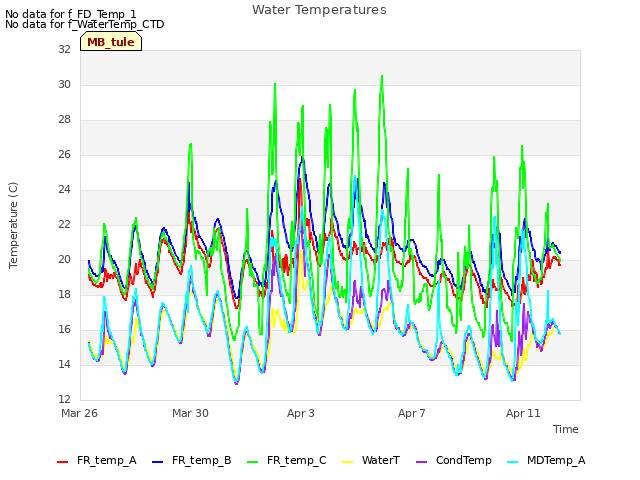

Explore the graph:Water Temperatures in a new window

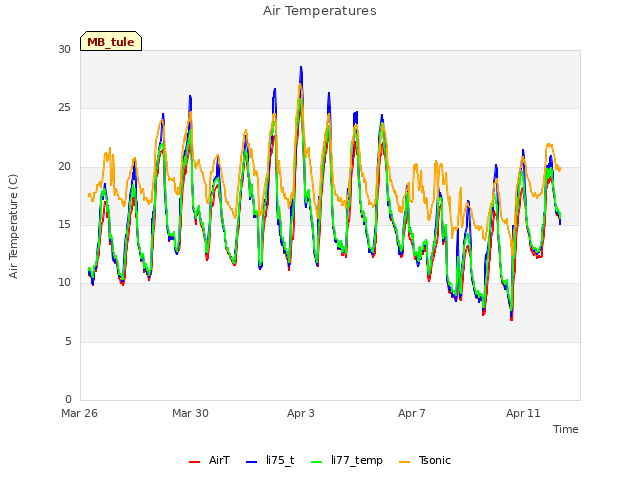

Explore the graph:Air Temperatures in a new window

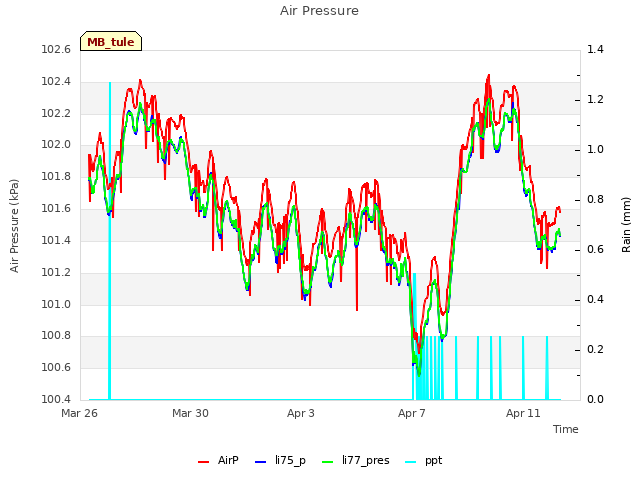

Explore the graph:Air Pressure in a new window

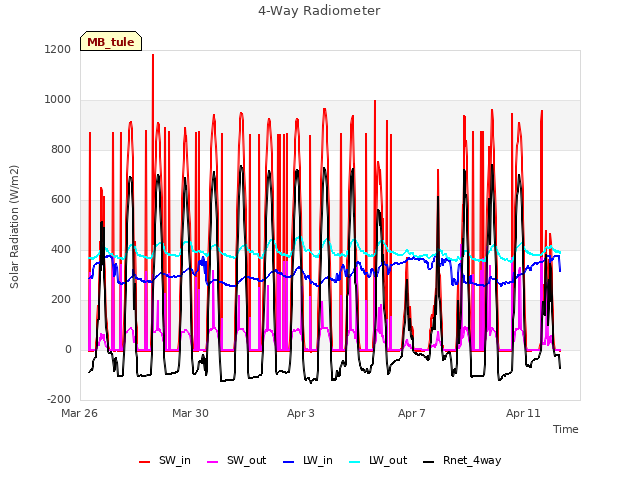

Explore the graph:4-Way Radiometer in a new window

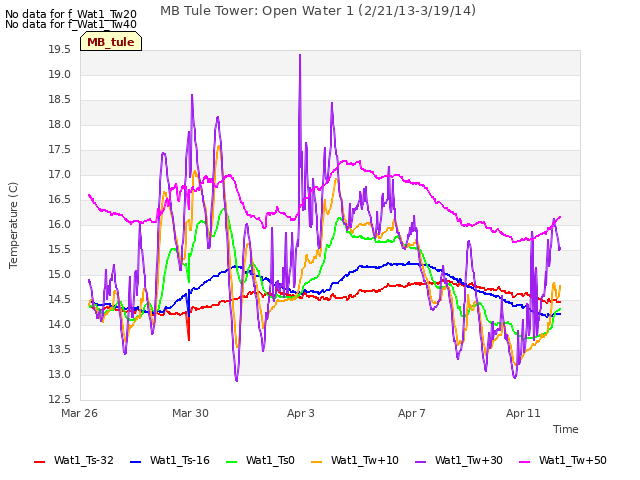

Explore the graph:MB Tule Tower: Open Water 1 (2/21/13-3/19/14) in a new window

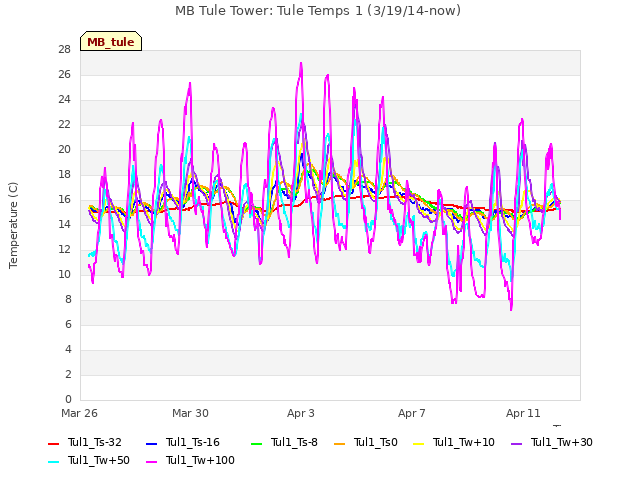

Explore the graph:MB Tule Tower: Tule Temps 1 (3/19/14-now) in a new window

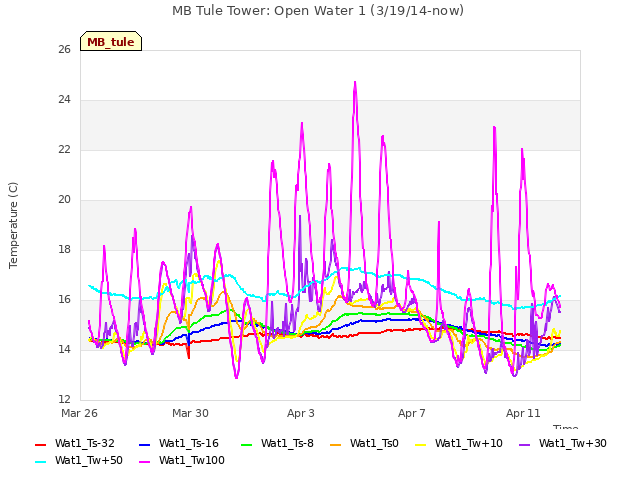

Explore the graph:MB Tule Tower: Open Water 1 (3/19/14-now) in a new window

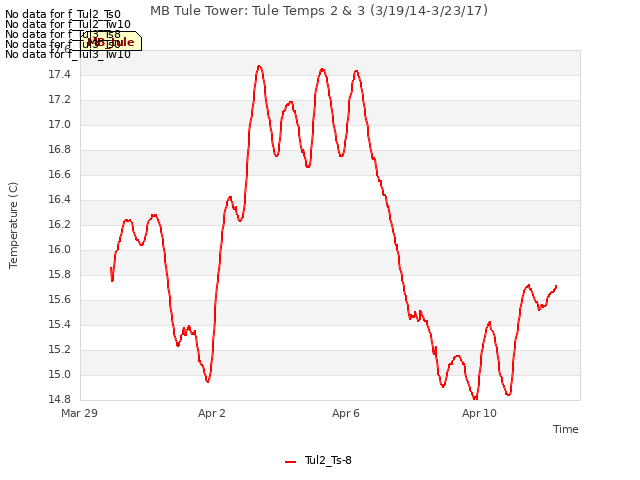

Explore the graph:MB Tule Tower: Tule Temps 2 & 3 (3/19/14-3/23/17) in a new window

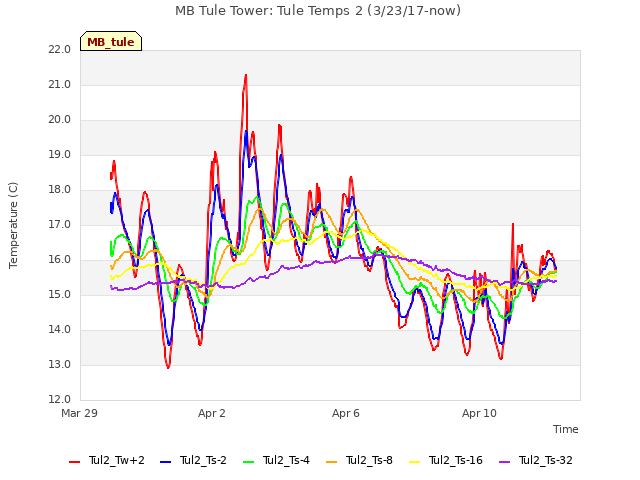

Explore the graph:MB Tule Tower: Tule Temps 2 (3/23/17-now) in a new window

Explore the graph:MB Tule Tower: Tule Temps 3 (3/23/17-now) in a new window

Explore the graph:SRS NDVI Channels in a new window

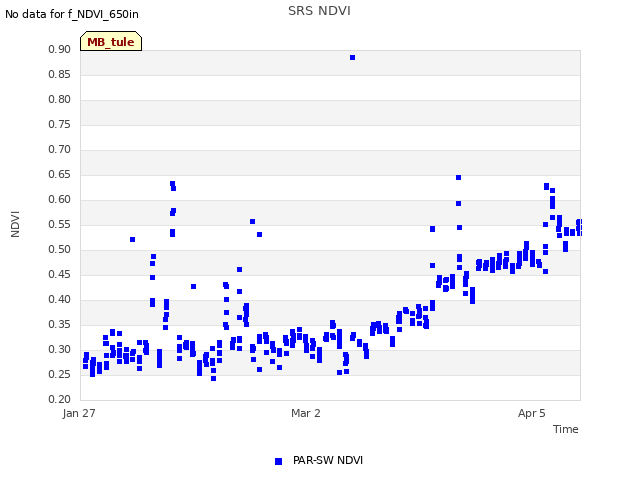

Explore the graph:SRS NDVI in a new window

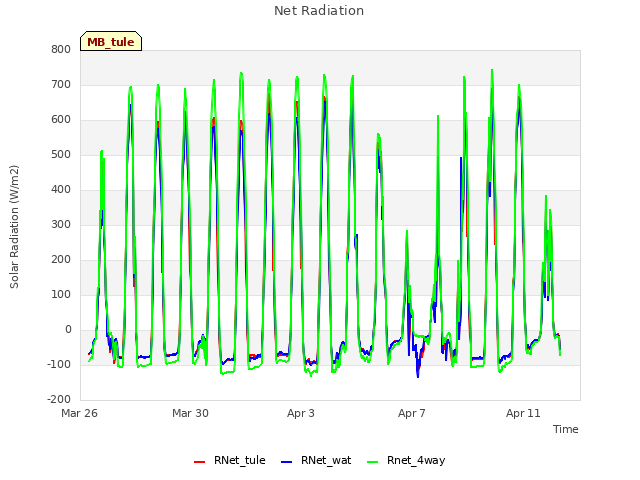

Explore the graph:Net Radiation in a new window

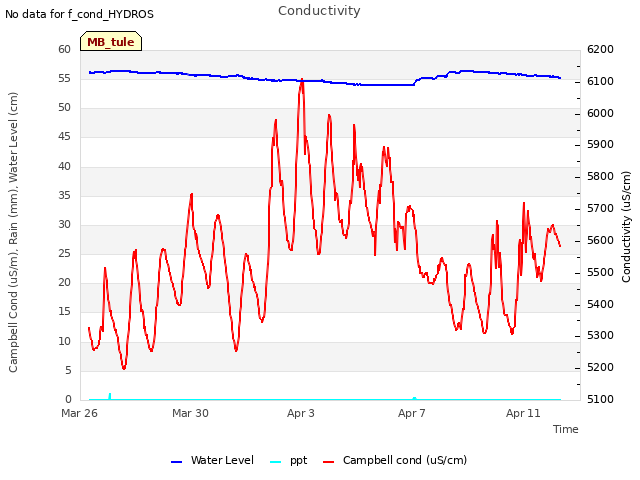

Explore the graph:Conductivity in a new window

Can't check MBWPEESWGT_mixed
1 MB_cam graphs found

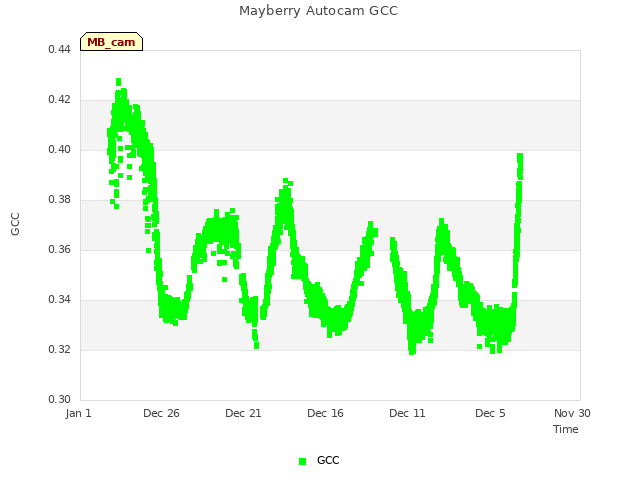

Explore the graph:Mayberry Autocam GCC in a new window

Can't check MBEEWPSWEPGT_cam
Can't check SIMBTWEE_met
1 MB_minidot graphs found

Explore the graph:Mayberry miniDot Dissolved Oxygen in a new window

Can't check MBSWEEWPBCBA
1 MB_processed graphs found

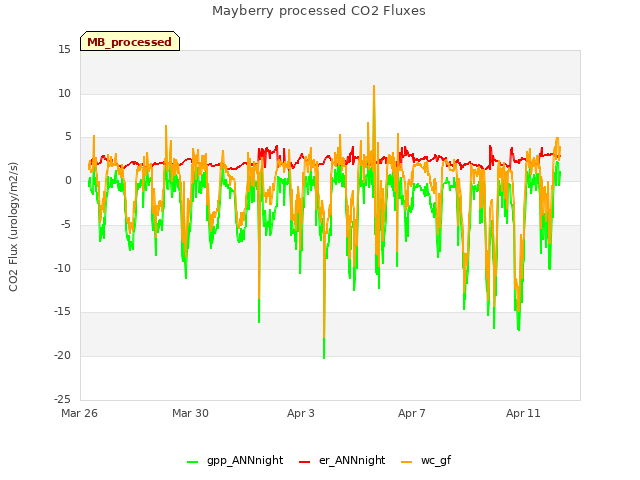

Explore the graph:Mayberry processed CO2 Fluxes in a new window
