Twitchell Alfalfa: 2017-04-11 10:50:00 (DOY 101)
Author: Daphne Szutu
Others: Elke Eichelmann, Isabel Reche

Summary: Regular data collection/cleaning, clip plots and veg height, re-set camera clock (was one hour off)

2017-04-11
Twitchell Alfalfa

We arrived at 10:50. It was overcast, windy, and lightly sprinkling. There were sheep southwest of the field, about 400 m away, by the intersection of the gravel road with Twitchell Island Ferry Road.

Isabel took clip plot samples and veg height measurements.

Elke took soil respiration measurements. We cleaned the EC and rad sensors and the camera enclosure window.

I downloaded met, soil CO2, and USB GHG data, and swapped camera cards. After I swapped the camera CF card, I synced the camera clock with the laptop clock using StarDot Tools. When the camera read 11:02, I set it to 10:11.

LI7500 readings:
CO2 554.7 umol/mol --> 427.3 after cleaning
H2O 477.3 mmol/m3 --> 543.2 after cleaning
T 16.7 Celsius
P 101.6 kPa
SS 77.5 -> 92.3 after cleaning

We left at 11:30.

Veg Height (cm): Tape measure from ground to top of plant
32, 34, 30, 32, 26, 40, 33, 40, 34, 36, 32, 32, 34, 29, 38, 42, 34, 34, 42, 37, avg = 34.6, stdev = 4.26

0 photos found

Graphs display:
7 sets found

Can't check TA_met
11 TA_met graphs found

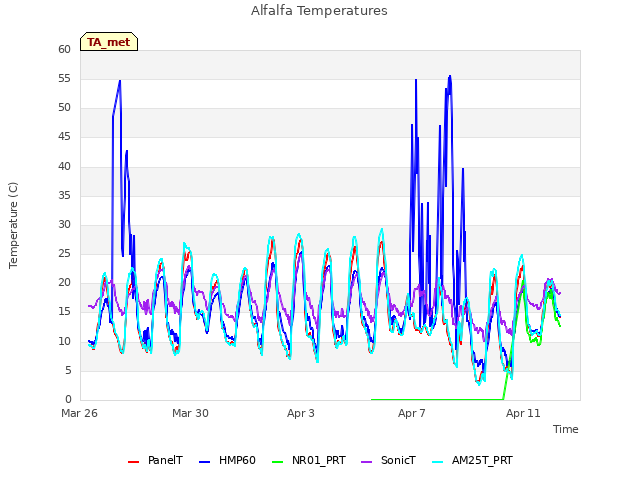

Explore the graph:Alfalfa Temperatures in a new window

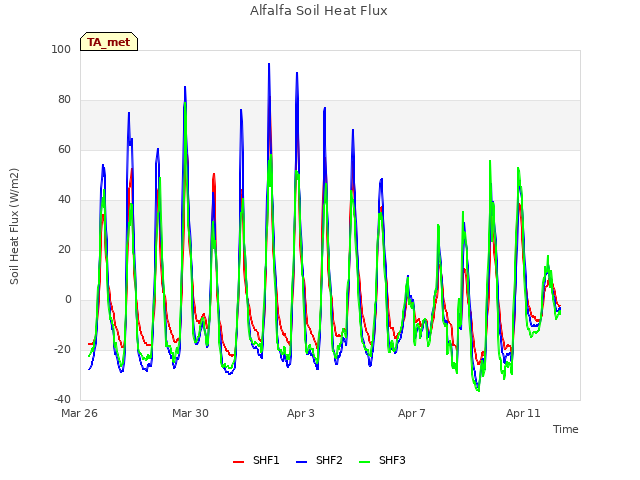

Explore the graph:Alfalfa Soil Heat Flux in a new window

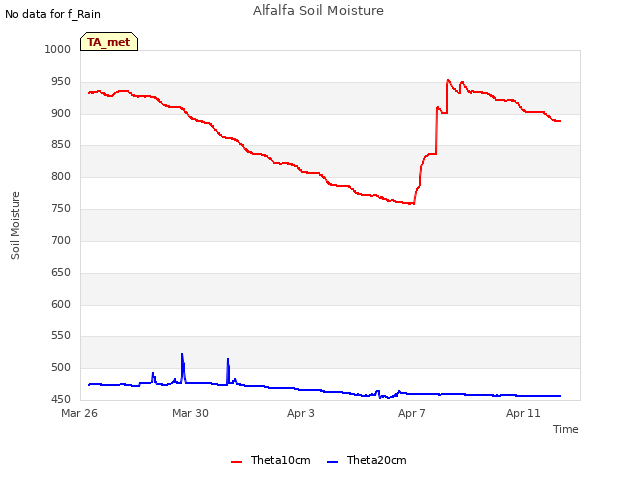

Explore the graph:Alfalfa Soil Moisture in a new window

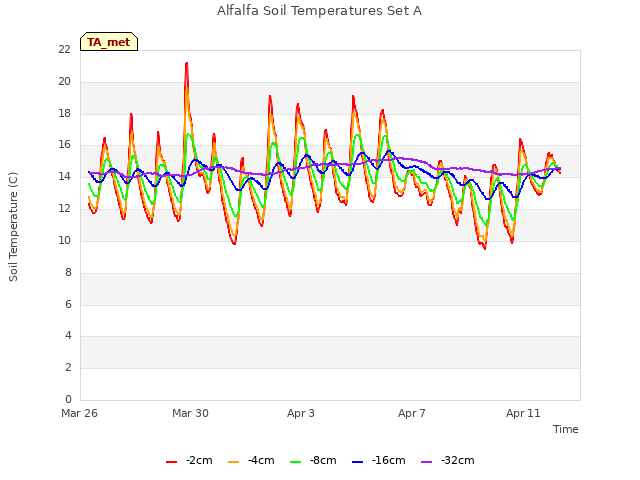

Explore the graph:Alfalfa Soil Temperatures Set A in a new window

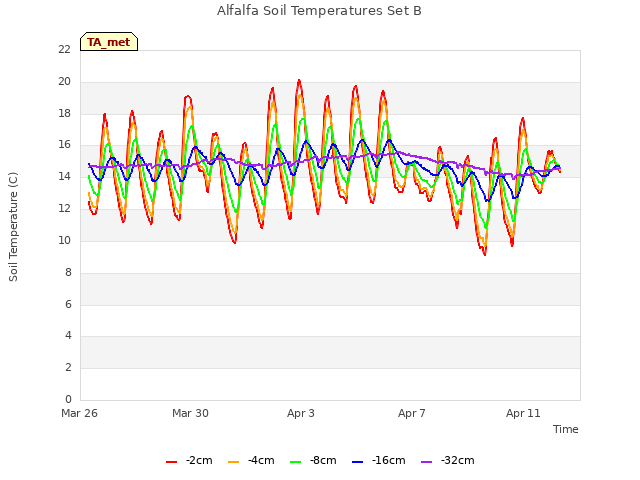

Explore the graph:Alfalfa Soil Temperatures Set B in a new window

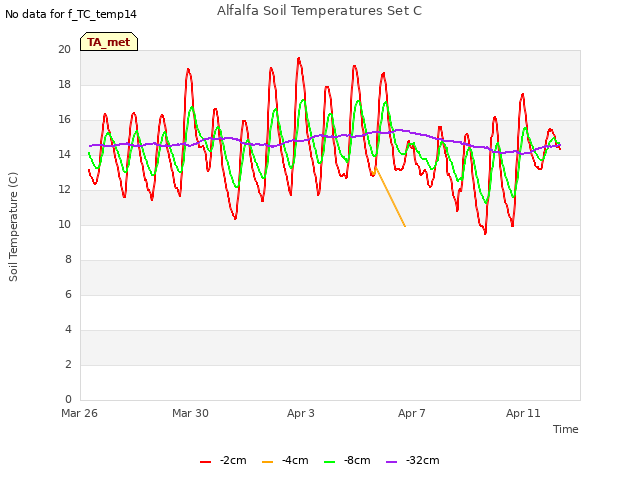

Explore the graph:Alfalfa Soil Temperatures Set C in a new window

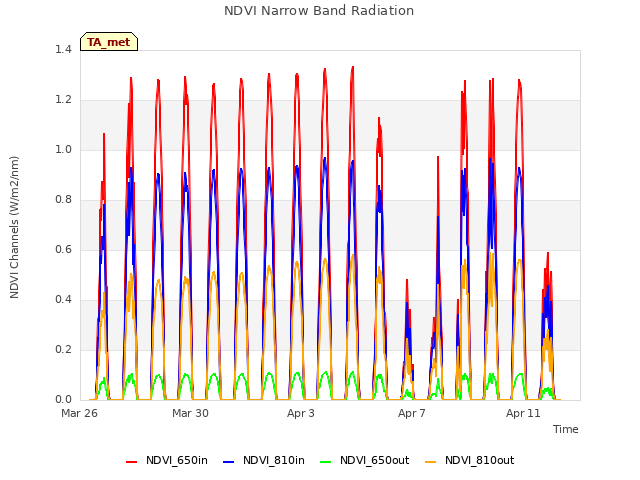

Explore the graph:NDVI Narrow Band Radiation in a new window

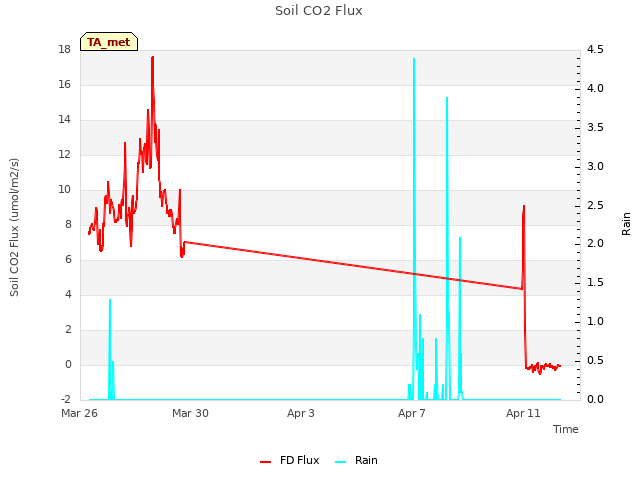

Explore the graph:Soil CO2 Flux in a new window

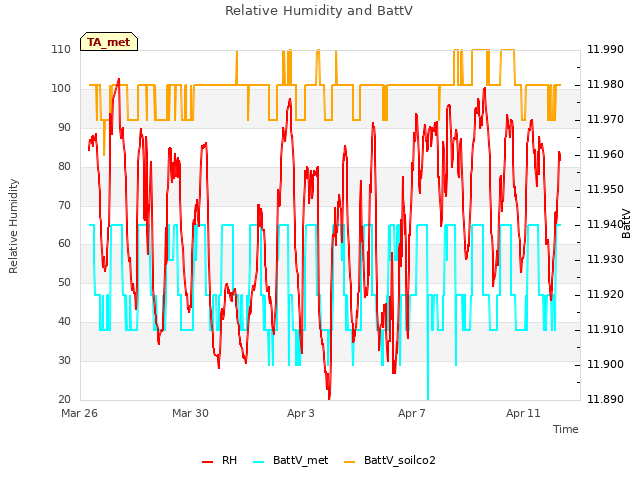

Explore the graph:Relative Humidity and BattV in a new window

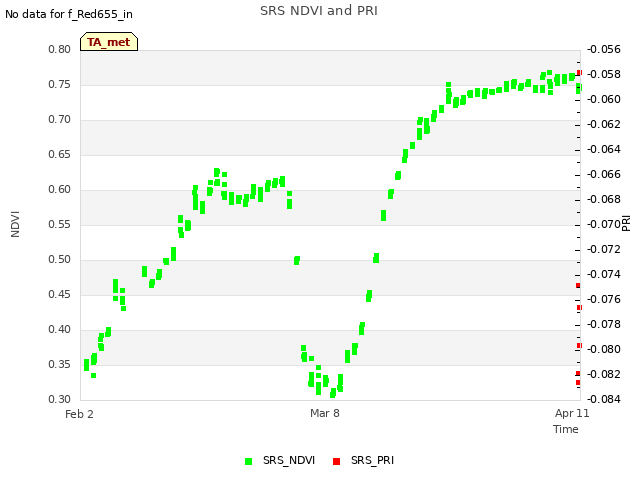

Explore the graph:SRS NDVI and PRI in a new window

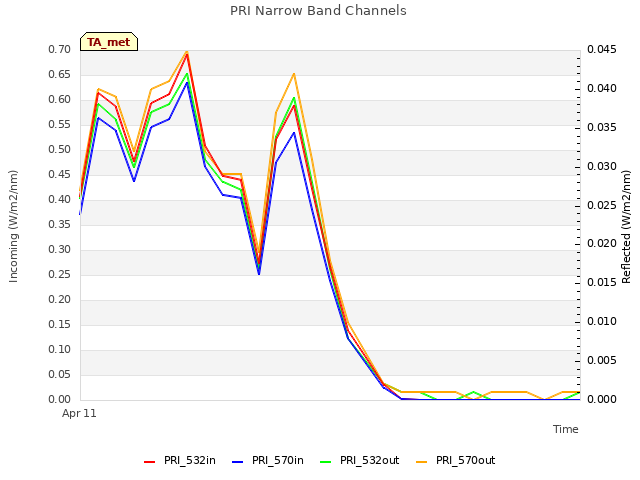

Explore the graph:PRI Narrow Band Channels in a new window

Can't check TA_rad
3 TA_rad graphs found

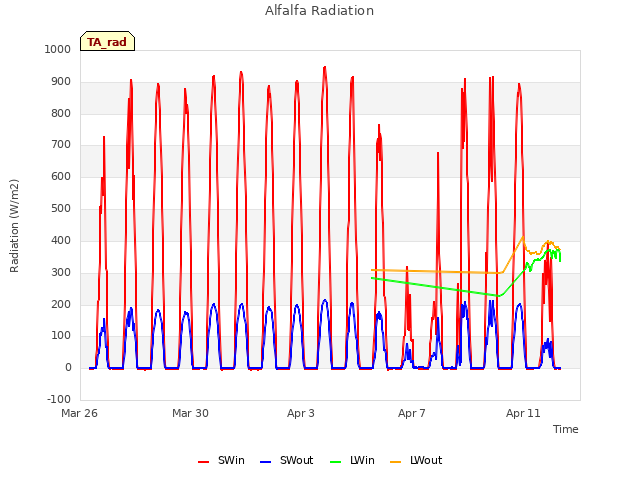

Explore the graph:Alfalfa Radiation in a new window

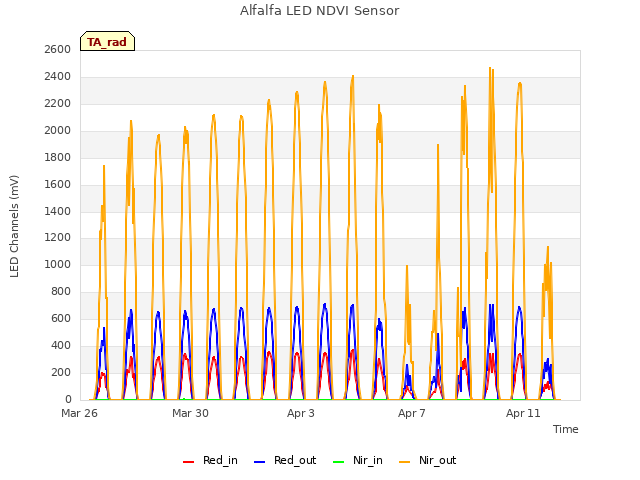

Explore the graph:Alfalfa LED NDVI Sensor in a new window

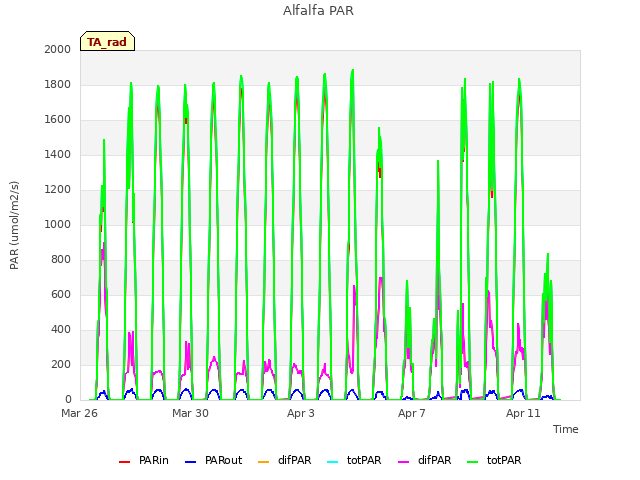

Explore the graph:Alfalfa PAR in a new window

Can't check TA_flux
5 TA_flux graphs found

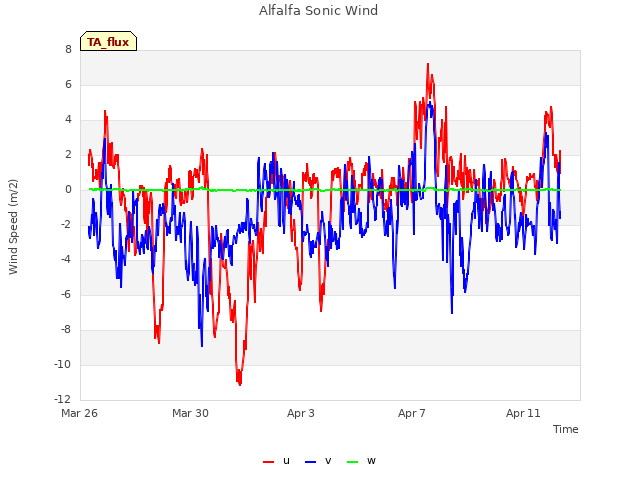

Explore the graph:Alfalfa Sonic Wind in a new window

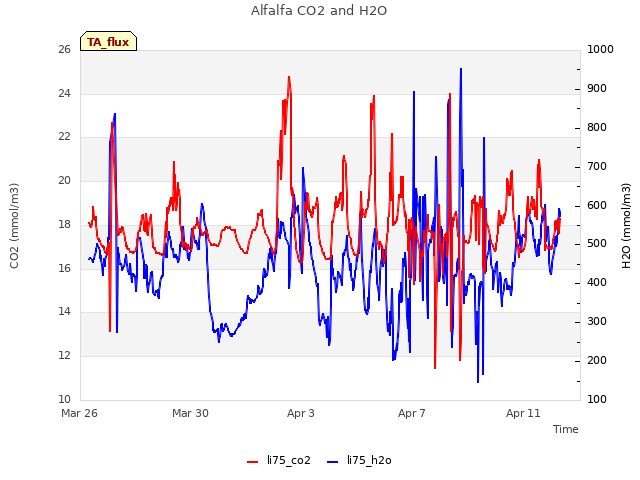

Explore the graph:Alfalfa CO2 and H2O in a new window

Explore the graph:Alfalfa Methane in a new window

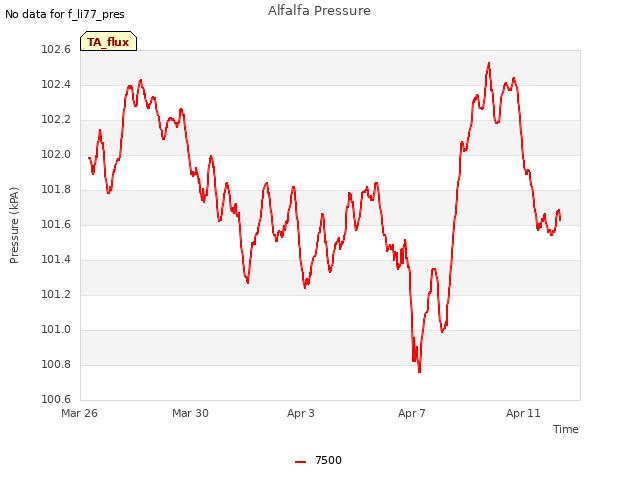

Explore the graph:Alfalfa Pressure in a new window

Explore the graph:Alfalfa Flux Data Counts in a new window

Can't check TA_soilco2
7 TA_soilco2 graphs found

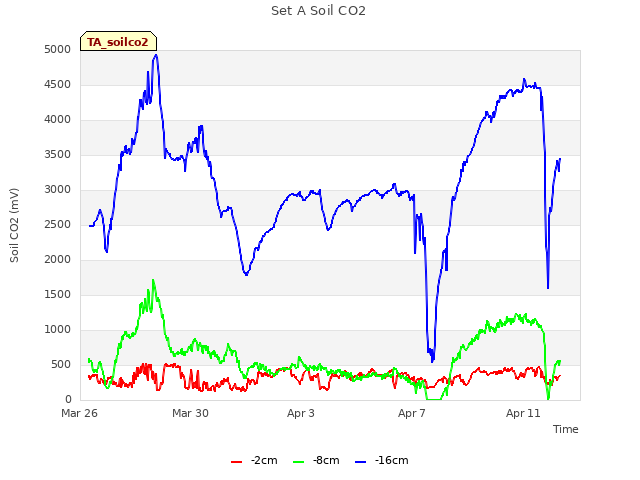

Explore the graph:Set A Soil CO2 in a new window

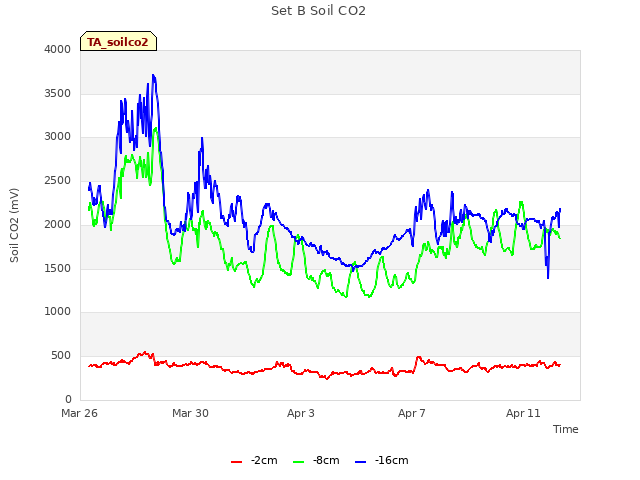

Explore the graph:Set B Soil CO2 in a new window

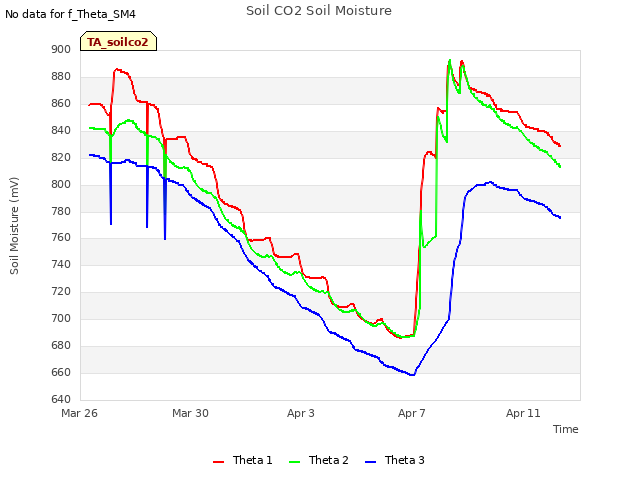

Explore the graph:Soil CO2 Soil Moisture in a new window

Explore the graph:Forced Diffusion CO2 in a new window

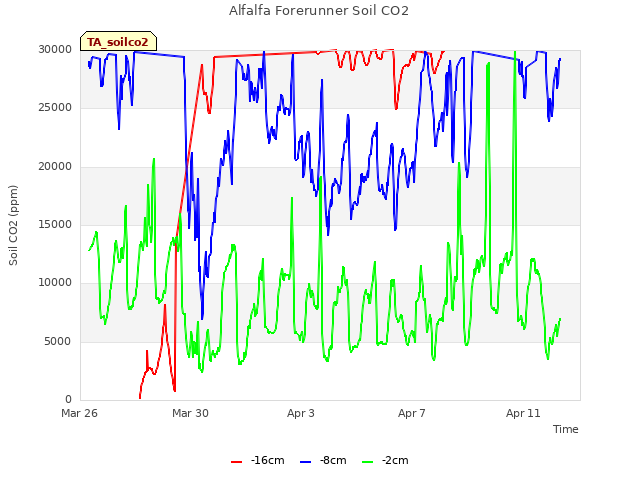

Explore the graph:Alfalfa Forerunner Soil CO2 in a new window

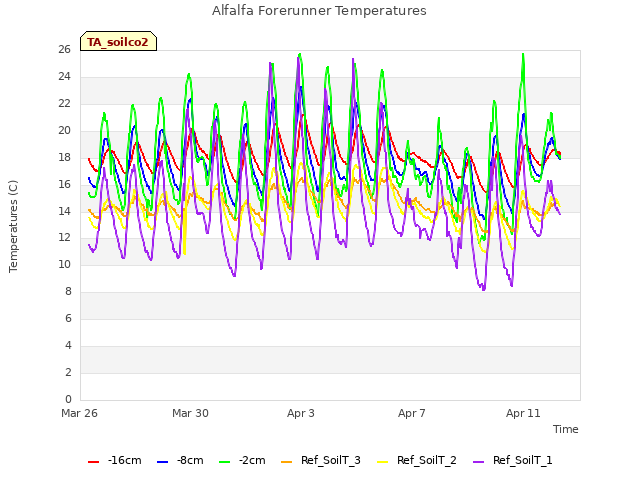

Explore the graph:Alfalfa Forerunner Temperatures in a new window

Explore the graph:Alfalfa Forerunner Probe RH in a new window

No data found for TA_arable.
1 TA_cam graphs found

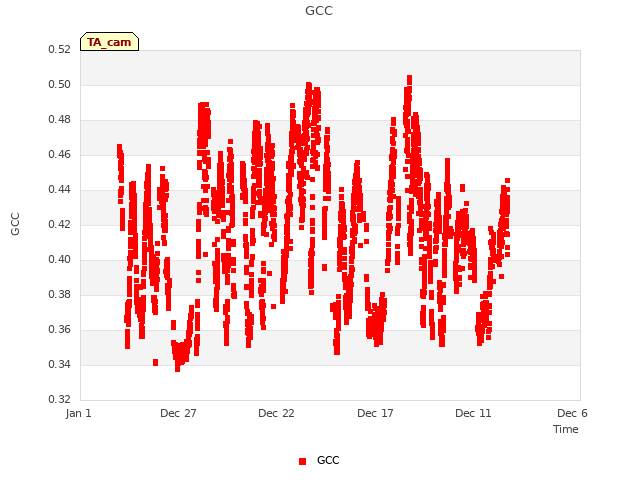

Explore the graph:GCC in a new window
