Twitchell Alfalfa: 2016-11-22 10:50:00 (DOY 327)
Author: Elke Eichelmann
Others: Kyle Hemmes, Sam Chamberlain

Summary: Regular data collection, soil bulk density sampling, sheep in tower footprint

Arrived at 10:50. It was overcast/cloudy and cool with no wind.

Tyler and Heather from Whendee Silver’s lab were at the site to collect soil samples for bulk density. The BD samples that were taken with the soil chemistry samples last time (Nov. 08) were taken at the wrong depth, so they had to resample. There was one pit dug to the North-West of the tower for bulk density samples. One set of bulk density samples was collected down to 60cm depth. The also cored down to 120cm and it was still all sand/clay at that depth (no peat).

There were sheep in the field in tower footprint, probably about 200m west of the tower.

We collected USB GHG data, collected met data, collected soilCO2 data, collected radiation data. The radiation CR10X datalogger was not running when I tried to connect to collect the data. It restarted itself after the data cable was reconnected a couple of times. The dataset stopped on DOY325 around 2am, so we lost about two days of data.

Swapped CF camera card. Collected 5 biomass samples and veg height:

Veg height in cm: 13, 30, 32, 24, 25, 31, 39, 40, 25, 30, 32, 28, 20, 23, 38, 45, 32, 22, 21, 22

Did soil respiration measurements.
Did not do spectral since it was too cloudy.

LI7500 readings:
CO2 431.50 umol/mol
H2O 660.3 mmol/m3
T 13.62 Celsius
P 102.07 kPa
SS 79.08 -> 85.9 after cleaning

Left at 11:25

Veg Height (cm): Tape measure from ground to top of plant
13, 30, 32, 24, 25, 31, 39, 40, 25, 30, 32, 28, 20, 23, 38, 45, 32, 22, 21, 22, avg = 28.6, stdev = 7.88

0 photos found

Graphs display:
7 sets found

Can't check TA_met
11 TA_met graphs found

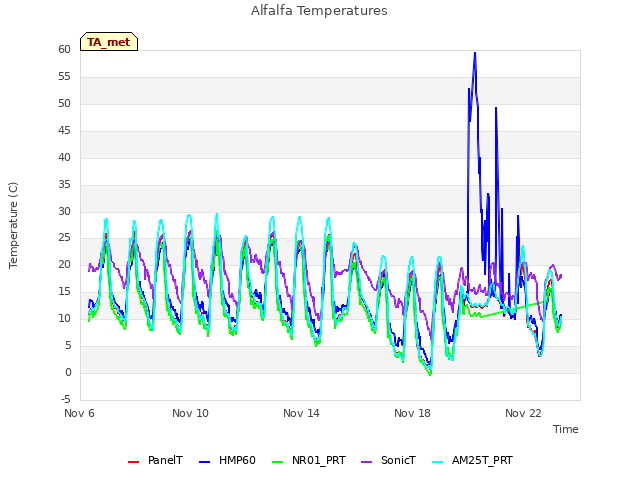

Explore the graph:Alfalfa Temperatures in a new window

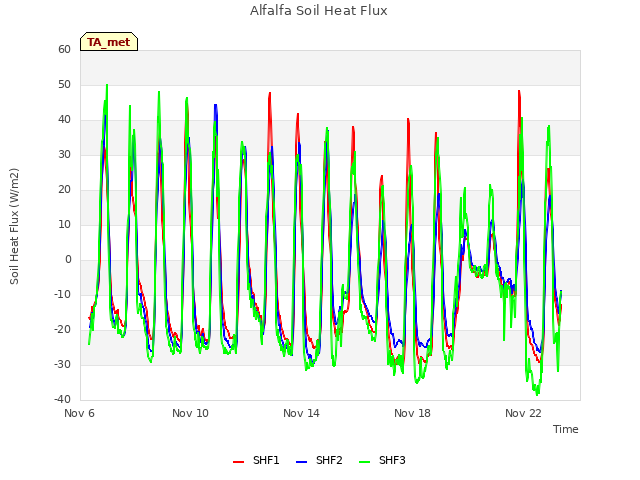

Explore the graph:Alfalfa Soil Heat Flux in a new window

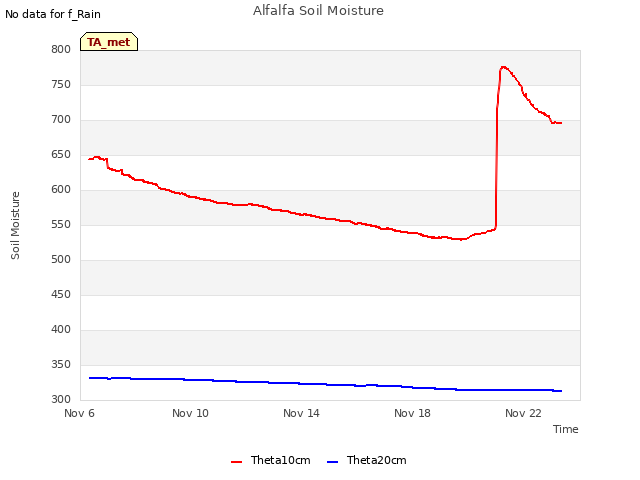

Explore the graph:Alfalfa Soil Moisture in a new window

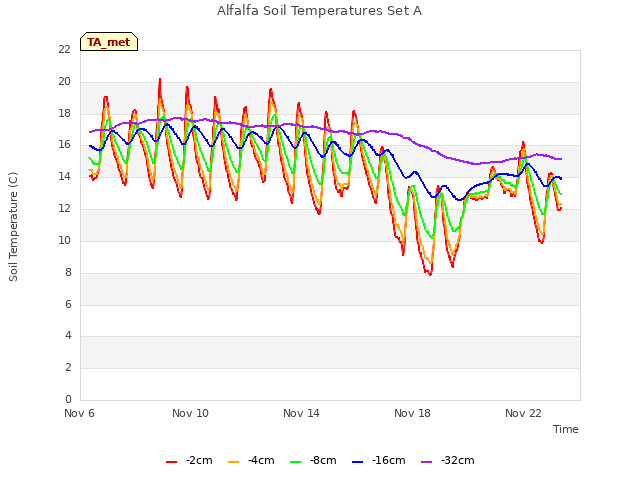

Explore the graph:Alfalfa Soil Temperatures Set A in a new window

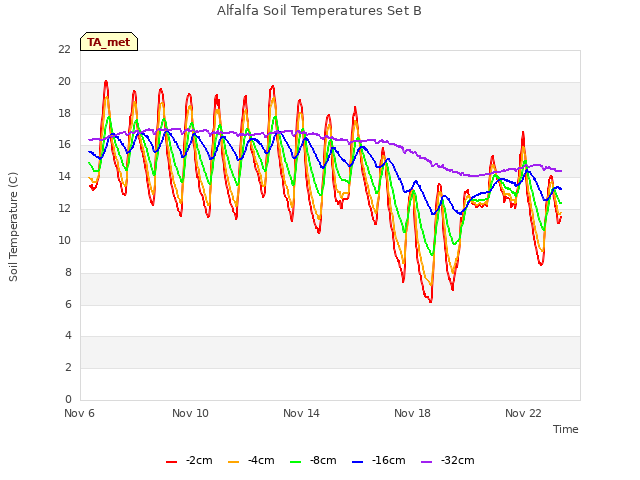

Explore the graph:Alfalfa Soil Temperatures Set B in a new window

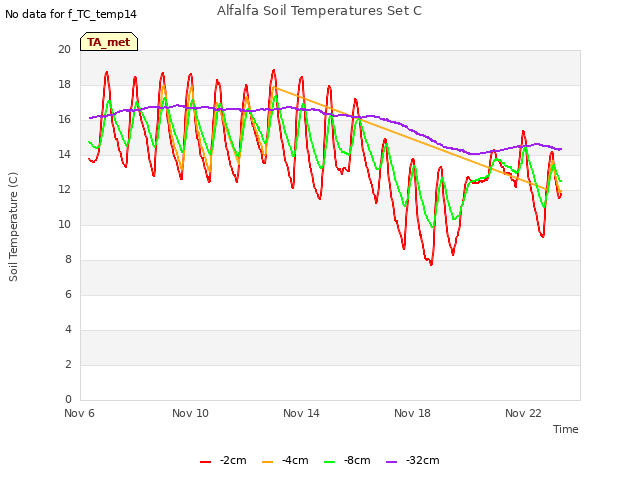

Explore the graph:Alfalfa Soil Temperatures Set C in a new window

Explore the graph:NDVI Narrow Band Radiation in a new window

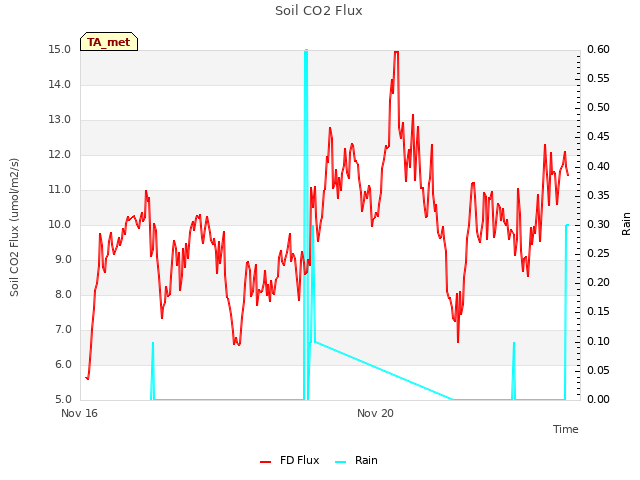

Explore the graph:Soil CO2 Flux in a new window

Explore the graph:Relative Humidity and BattV in a new window

Explore the graph:SRS NDVI and PRI in a new window

Explore the graph:PRI Narrow Band Channels in a new window

Can't check TA_rad
3 TA_rad graphs found

Explore the graph:Alfalfa Radiation in a new window

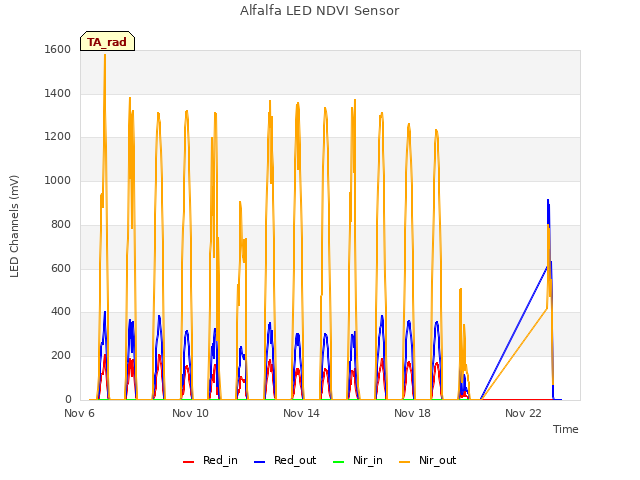

Explore the graph:Alfalfa LED NDVI Sensor in a new window

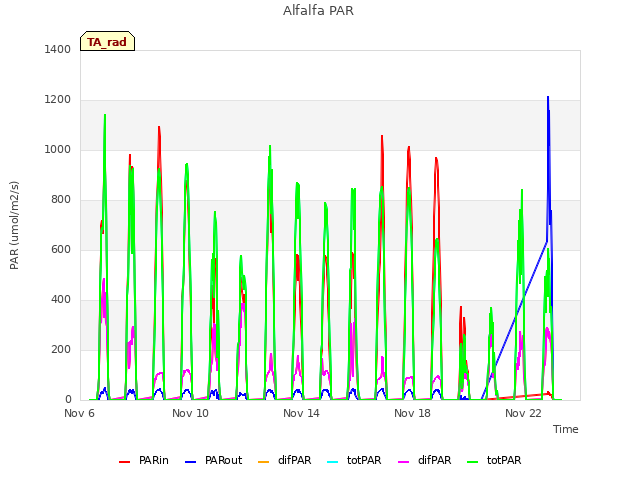

Explore the graph:Alfalfa PAR in a new window

Can't check TA_flux
5 TA_flux graphs found

Explore the graph:Alfalfa Sonic Wind in a new window

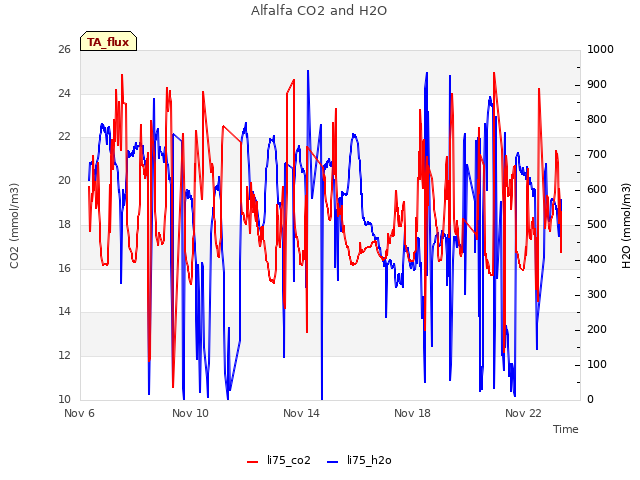

Explore the graph:Alfalfa CO2 and H2O in a new window

Explore the graph:Alfalfa Methane in a new window

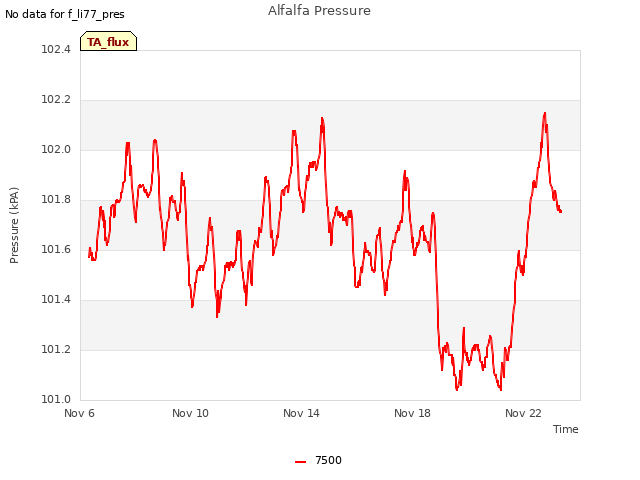

Explore the graph:Alfalfa Pressure in a new window

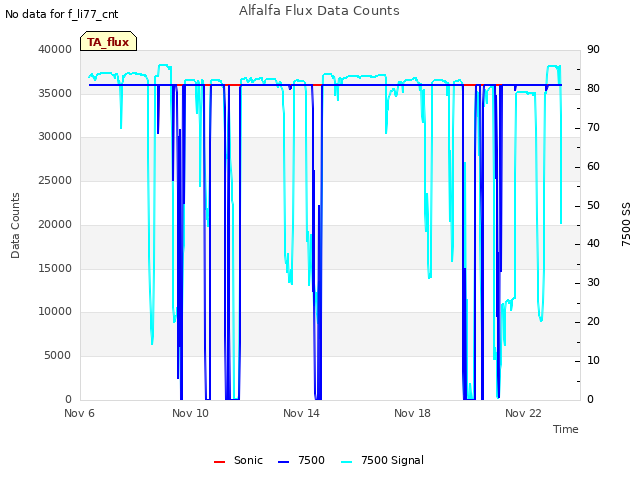

Explore the graph:Alfalfa Flux Data Counts in a new window

Can't check TA_soilco2
7 TA_soilco2 graphs found

Explore the graph:Set A Soil CO2 in a new window

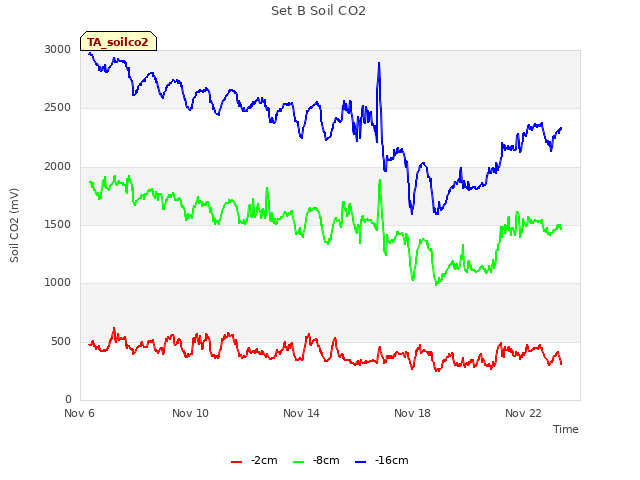

Explore the graph:Set B Soil CO2 in a new window

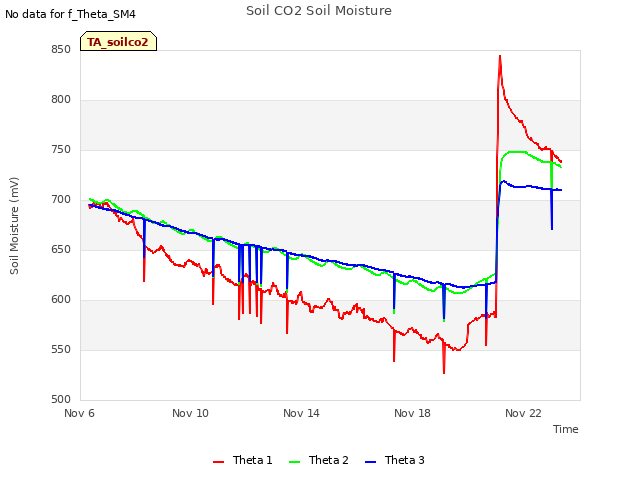

Explore the graph:Soil CO2 Soil Moisture in a new window

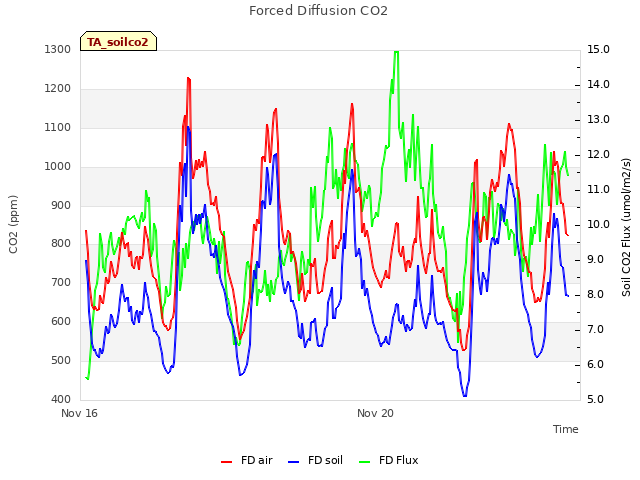

Explore the graph:Forced Diffusion CO2 in a new window

Explore the graph:Alfalfa Forerunner Soil CO2 in a new window

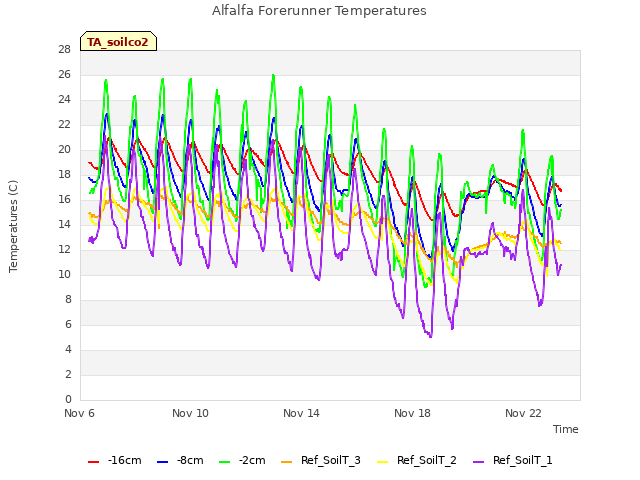

Explore the graph:Alfalfa Forerunner Temperatures in a new window

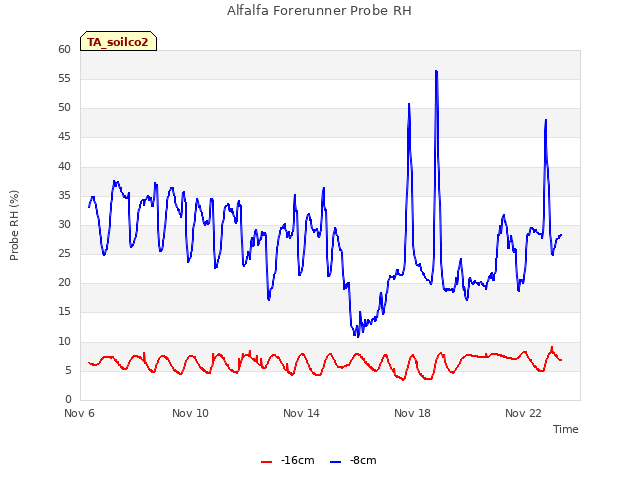

Explore the graph:Alfalfa Forerunner Probe RH in a new window

No data found for TA_arable.
1 TA_cam graphs found

Explore the graph:GCC in a new window

Can't check TATWBABCSB_cam
