Vaira: 2016-11-17 12:30:00 (DOY 322)
Author: Joe Verfaillie
Others: Siyan

Summary: Installed water pressure sensor at the pond, standard fieldwork.

Vaira 2016-11-17 I arrived about 12:30 with Siyan. It was clear, sunny and mild. The trees here still have some leaves. No puddles on the road but some water in the bottom of the water hole. The grass is getting long especially inside the fences and near the equipment. We went to the pond first. There I pounded in an eight foot length of 1-1/2” aluminum pipe near the top of the dam. It is in a steep section right of the staff gauges when facing the pond. The post ended up not being as high above the ground as I wanted and I might put an extension on it later. We put on a box with a CR10x sn 31307, solar charge controller and battery. A small solar panel went on the top and we ran the water pressure sensor sn 14011129 through PVC conduit down to the water. In the pond I pounded in a wooden stake and attached the conduit and pressure senor to it. I put it as deep as I could get it and ended up with some water in the waders. We also tied the conduit to the bottom staff gauge and to the ground with wire stakes. When it was running it read 0.94psi (2.17ft below the water surface or 11.75ft from the bottom of the pond) and the water level on the staff gauge was 13.92ft. Back at the tower, I collected data and Siyan did soil moisture and cleaned the radiometers. The computer did not wake up and I had to do a hard restart to get it to run. It has been sending data but not collecting or sending images. I left two lengths on PVC conduit here.

Field Data

No tank data

Well Depth

Date	Location	Depth (feet)
2016-11-17	TZ_floor	30.4
2016-11-17	TZ_road	38.3
2016-11-17	TZ_tower	34.8
2016-11-17	VR_pond	13.92

mode = both
Moisture Point Probes TZ
Array ( [0] => Tower_1 [1] => Floor_South_1 [2] => Floor_East_1 [3] => SoilCO2_1 [4] => Soil_Transect_4_1 [5] => Soil_Transect_3_1 [6] => Soil_Transect_2_1 [7] => Soil_Transect_1_1 [8] => SoilCO2_West_A_1 [9] => SoilCO2_West_B_1 [10] => SoilCO2_West_C_1 [11] => Tower_2 [12] => Floor_South_2 [13] => Floor_East_2 [14] => Floor_West_2 [15] => SoilCO2_2 [16] => Soil_Transect_4_2 [17] => Soil_Transect_3_2 [18] => Soil_Transect_2_2 [19] => Soil_Transect_1_2 [20] => SoilCO2_West_A_2 [21] => SoilCO2_West_B_2 [22] => SoilCO2_West_C_2 [23] => Tower_3 [24] => Floor_South_3 [25] => Floor_East_3 [26] => Floor_West_3 [27] => SoilCO2_3 [28] => Soil_Transect_4_3 [29] => Soil_Transect_3_3 [30] => Soil_Transect_2_3 [31] => Soil_Transect_1_3 [32] => SoilCO2_West_A_3 [33] => SoilCO2_West_B_3 [34] => SoilCO2_West_C_3 [35] => Tower_4 [36] => Floor_South_4 [37] => Floor_East_4 [38] => Floor_West_4 [39] => SoilCO2_4 [40] => Soil_Transect_4_4 [41] => Soil_Transect_3_4 [42] => Soil_Transect_2_4 [43] => Soil_Transect_1_4 [44] => SoilCO2_West_A_4 [45] => SoilCO2_West_B_4 [46] => SoilCO2_West_C_4 [47] => Floor_West_1 )

0000

Date	DOY	Rep	Depth	Tower_1	Floor_South_1	Floor_East_1	SoilCO2_1	Soil_Transect_4_1	Soil_Transect_3_1	Soil_Transect_2_1	Soil_Transect_1_1	SoilCO2_West_A_1	SoilCO2_West_B_1	SoilCO2_West_C_1	Tower_2	Floor_South_2	Floor_East_2	Floor_West_2	SoilCO2_2	Soil_Transect_4_2	Soil_Transect_3_2	Soil_Transect_2_2	Soil_Transect_1_2	SoilCO2_West_A_2	SoilCO2_West_B_2	SoilCO2_West_C_2	Tower_3	Floor_South_3	Floor_East_3	Floor_West_3	SoilCO2_3	Soil_Transect_4_3	Soil_Transect_3_3	Soil_Transect_2_3	Soil_Transect_1_3	SoilCO2_West_A_3	SoilCO2_West_B_3	SoilCO2_West_C_3	Tower_4	Floor_South_4	Floor_East_4	Floor_West_4	SoilCO2_4	Soil_Transect_4_4	Soil_Transect_3_4	Soil_Transect_2_4	Soil_Transect_1_4	SoilCO2_West_A_4	SoilCO2_West_B_4	SoilCO2_West_C_4	Floor_West_1	Avg	Spacial Count	Measurement Count
2016-11-17	322	0	nan	14.7	7.1	27.6	27.9	18.5	19.1	20.3	14.7	27.3	21.2	21.4	25.2	31	37.1	17.9	26.4	21.6	28.9	28	12.7	25.8	18.8	26.5	25.4	35.2	53.3	29.9	39.6	22.1	27.1	31	24.6	30.7	31.3	32.7	34	48.8	62.3	40.8	41.1	27.4	40.3	47.4	15	40.5	48.3	48.6
2016-11-17	322	1	nan	14.7	5.6	27.3	24.4	17.1	12.4	20.6	14.4	26.1	22.3	20.6	23.7	31.3	37.1	19.4	26.5	21.3	28.9	28	12.7	24.9	19.1	25.1	25.7	34.6	53	29.6	38.8	22.1	27.6	29.9	25.4	30.1	31.3	32.1	34.2	48.8	61.2	42.8	48.3	27.6	41.1	45.7	15	31.7	47.4	49.7	25.8
2016-11-17	322	Avg	0-15cm																																																		0
2016-11-17	322	Avg	15-30cm																																																		0
2016-11-17	322	Avg	30-45cm																																																		0
2016-11-17	322	Avg	45-60cm																																																		0

mode = both
Moisture Point Probes VR
Array ( [0] => Solar_Panels_1 [1] => Flux_Tower_1 [2] => Gate_1 [3] => Biomass_Cage_1 [4] => Solar_Panels_2 [5] => Flux_Tower_2 [6] => Gate_2 [7] => Biomass_Cage_2 [8] => Solar_Panels_3 [9] => Flux_Tower_3 [10] => Gate_3 [11] => Biomass_Cage_3 [12] => Solar_Panels_4 [13] => Flux_Tower_4 [14] => Gate_4 [15] => Biomass_Cage_4 )

0000

Date	DOY	Rep	Depth	Solar_Panels_1	Flux_Tower_1	Gate_1	Biomass_Cage_1	Solar_Panels_2	Flux_Tower_2	Gate_2	Biomass_Cage_2	Solar_Panels_3	Flux_Tower_3	Gate_3	Biomass_Cage_3	Solar_Panels_4	Flux_Tower_4	Gate_4	Biomass_Cage_4	Avg	Spacial Count	Measurement Count
2016-11-17	322	0	nan	19.7	16.5	13.5	7.7	26.8	26.9	14.8	17.9	26.5	13.1	19.5	28.2	40.8	26.8	17.9	29.4
2016-11-17	322	1	nan	19.4	16.2	13.2	7.4	26.8	26.5	14.5	18.5	27.4	13.7	19.5	28.5	41.1	25.1	17.6	29.1
2016-11-17	322	Avg	0-15cm																		0
2016-11-17	322	Avg	15-30cm																		0
2016-11-17	322	Avg	30-45cm																		0
2016-11-17	322	Avg	45-60cm																		0

No TZ grass heigth found

No VR grass heigth found

No VR Tree DBH found

No water potential data found

No VR Grass Biomass data found

No VR OakLeaves Biomass data found

No VR PineNeedles Biomass data found

1 photos found

Installed water pressure sensor at large pond northeast of our tower site. The Vairas need to report their water diversions to the state

Graphs display: days

9 sets found

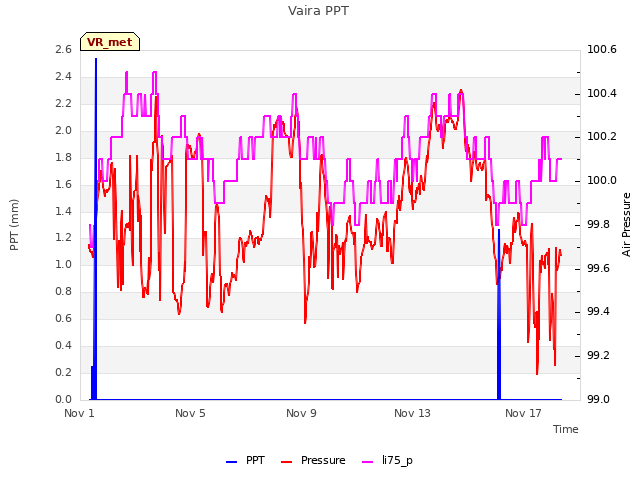

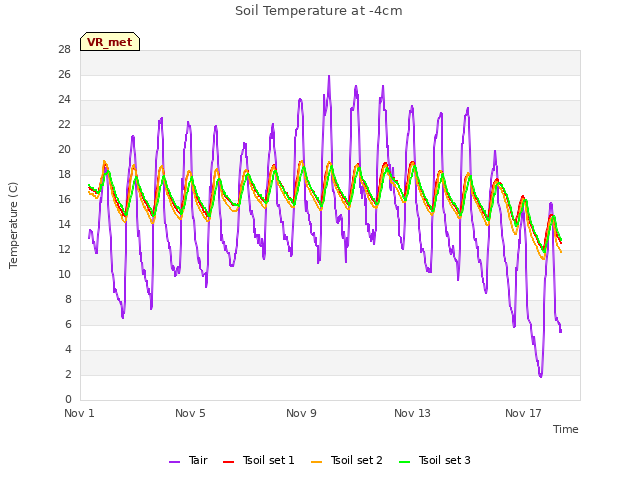

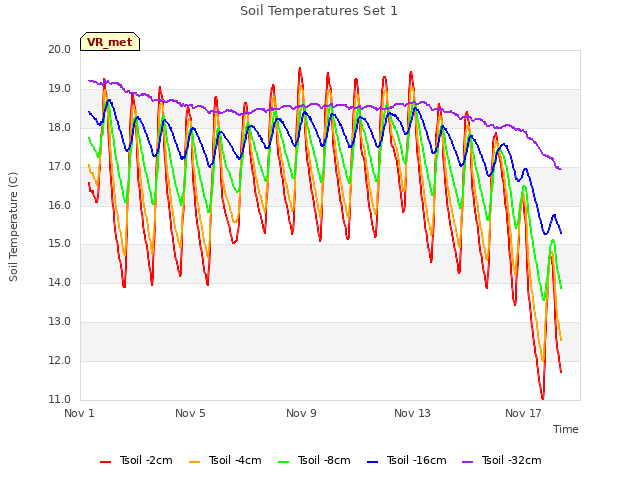

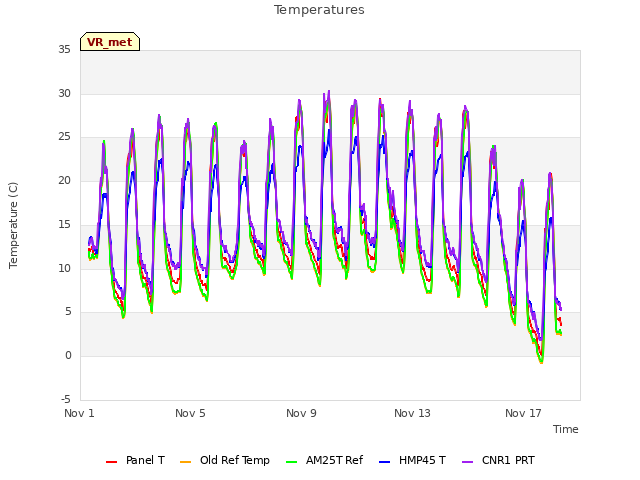

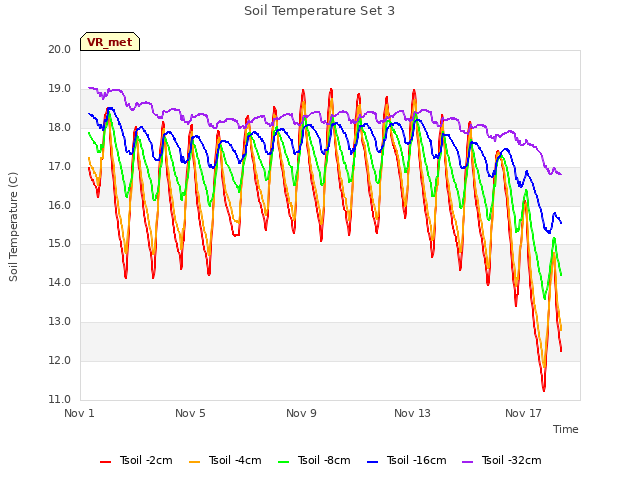

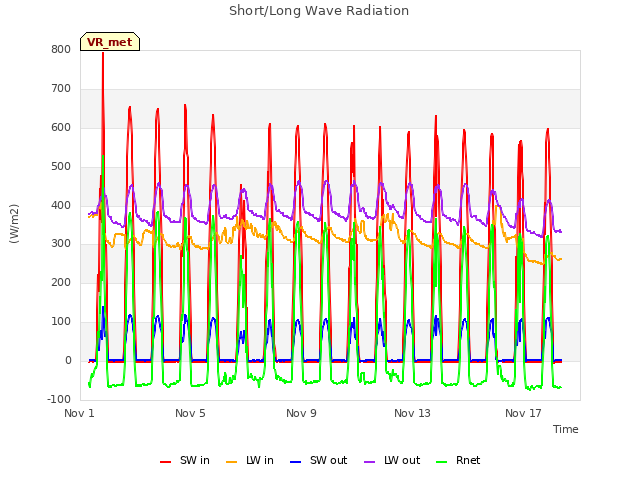

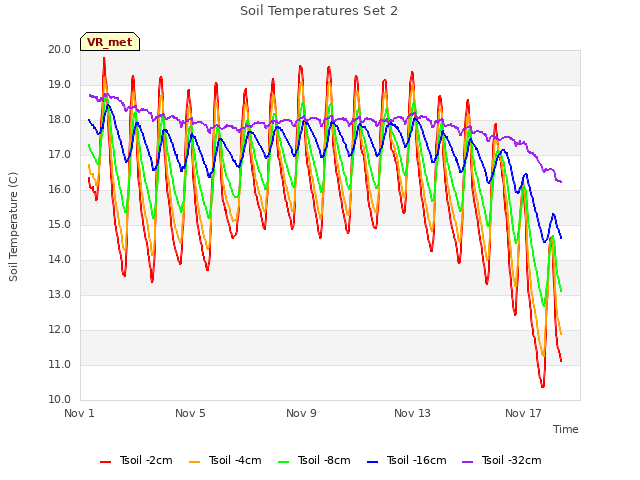

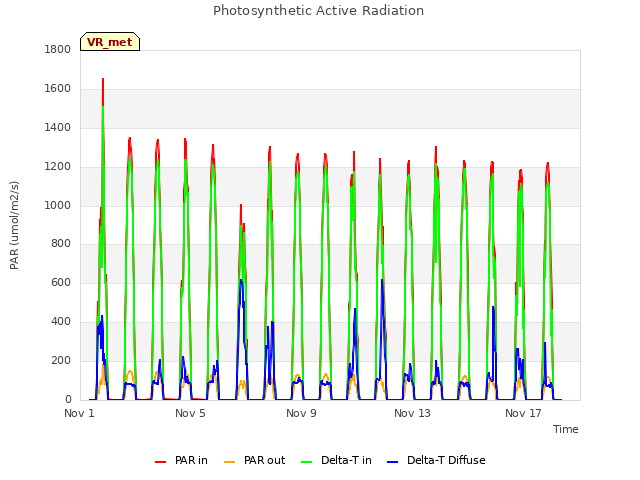

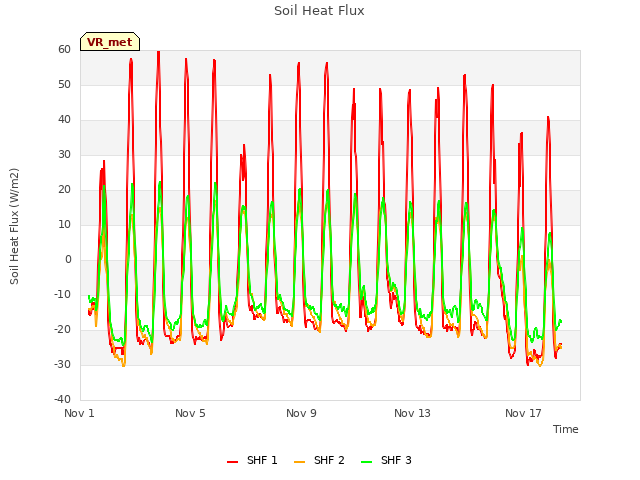

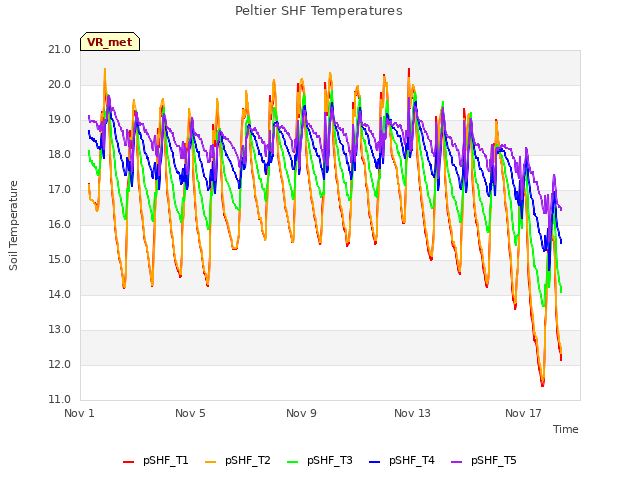

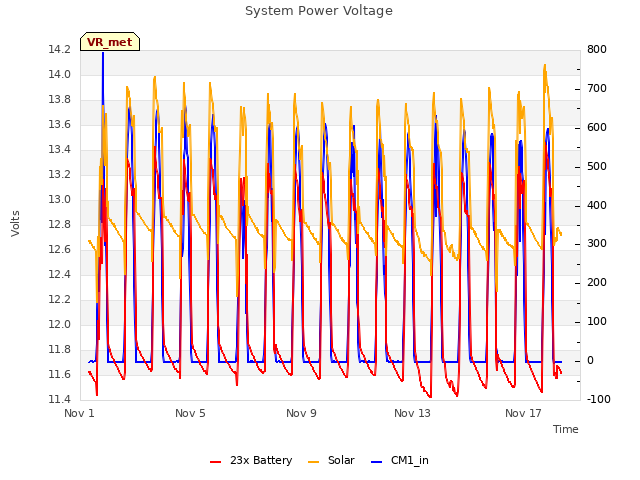

16 VR_met graphs found

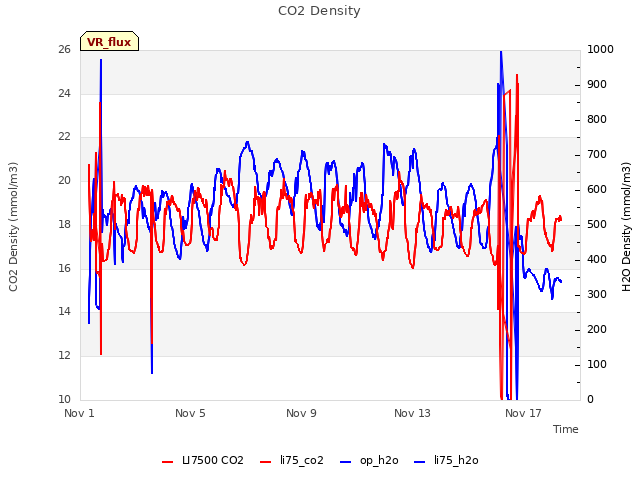

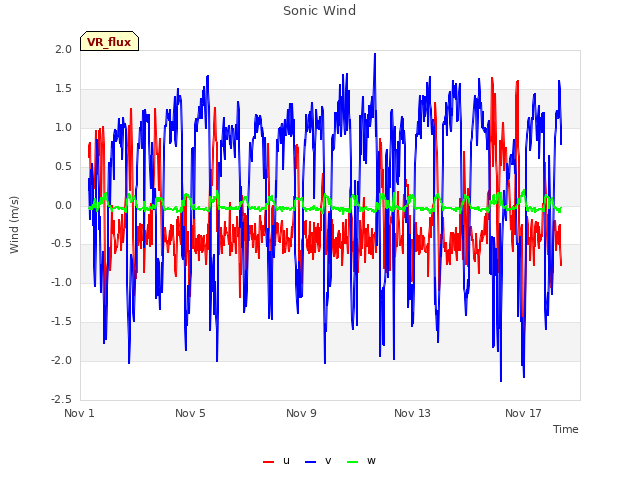

2 VR_flux graphs found

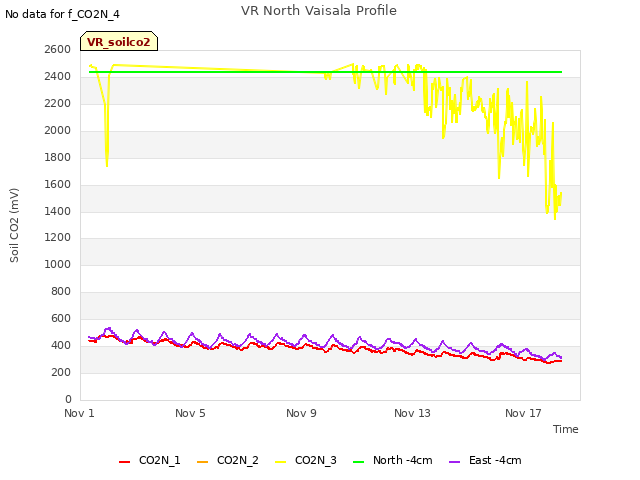

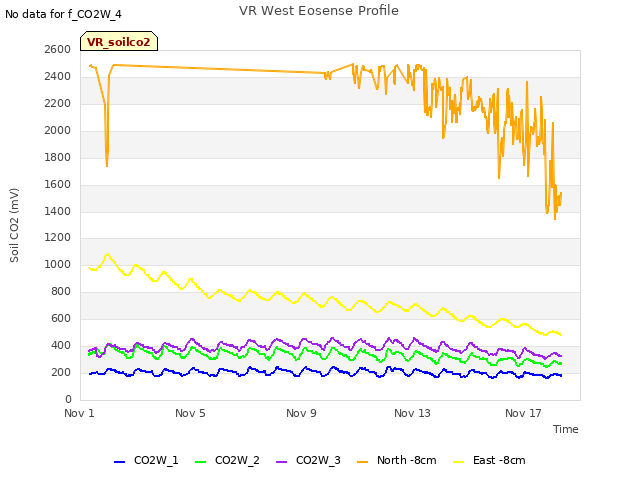

6 VR_soilco2 graphs found

No data found for VR_pond.
Can't check TZVR_mixed
No data found for VR_fd.
No data found for VR_processed.
No data found for VR_arable.
No data found for VR_soilvue.
