Tonzi: 2016-11-17 10:30:00 (DOY 322)
Author: Siyan Ma
Others: Joe

Summary: Standard fieldwork, put pressure sensor in Vaira pond, swapped Moisture Point probe near Tower.

When: Date: 11/18/2016 , Day: 111 , Watch Time: 10:30 am .

Where: Tonzi/Vaira Ranch

Who: Siyan, Joe

Weather: clear, sunny

Phenology: oak leaves dropped at Tonzai; some still on at Vaira.

Summary

Joe swapped memory cards of CR1000s at three sites, checked and downloaded phenocam images from PC.
Read dendrometers
Measured soil moisture
Measure groundwater well
Joe installed pressure sensor in the pond of Vaira.

Vaira_Grass Site

Joe swapped the memory cards of CR1000.
Checked the fans of air temp and relative humidity sensors at Vaira. YES!
All met, soil CO2 profile and average eddy data are sent to Berkeley every day.
Checked levels of Radiation sensors, clear up surfaces. YES!
Checked rain gage, make sure not clogged. YES!
Closed gate and set up fence. YES!

Screen shot of Vaira flux data logger table

Screen shot of Vaira met data logger table

Screen shot of Vaira soil co2 data logger table

Tonzi_Tower Site

Joe fixed the power of the fence.
Joe swapped the memory cards of CR1000.
Joe download Phenocam images. Yes!

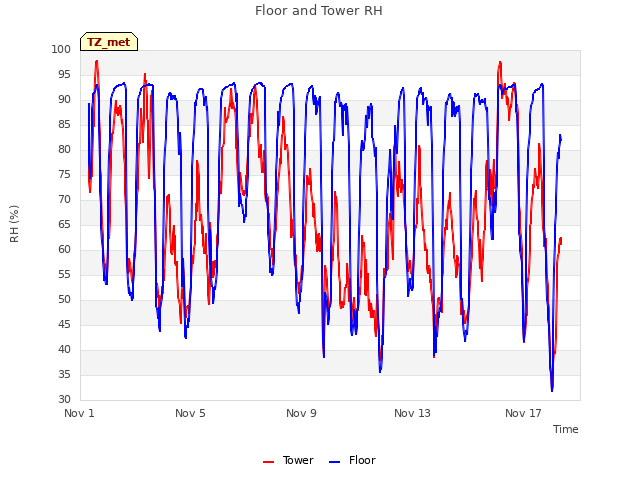

Checked the fans of air temp. and relative humidity sensors on the tower and the floor. YES!
Checked rain gage, make sure not clogged. YES!
Screens of met dataloggers:

CR23X3 â€“ floor-Met

CR23X6 â€“ tower-Met

CR10X2 â€“ floor-Met

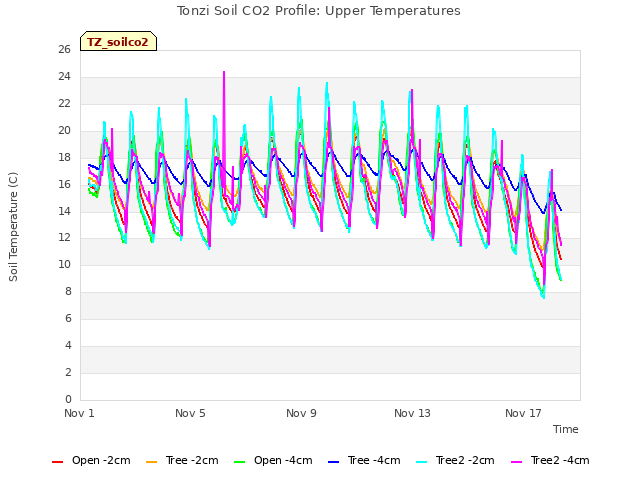

Soil CO₂ profile: CR23X5 â€“ soil CO₂ profile

Screen shot of tower flux data logger table

Screen shot of soil moisture data logger table

Screen shot of soil co2 data logger table

Screen shot of tower met data logger table

7. closed gate and set up fence. YES!

Toniz_Floor Site

Fence and gate power: 12 v.
Joe swapped the memory cards of CR1000.
Closed gate and set up fence. YES!

Field Data

No tank data

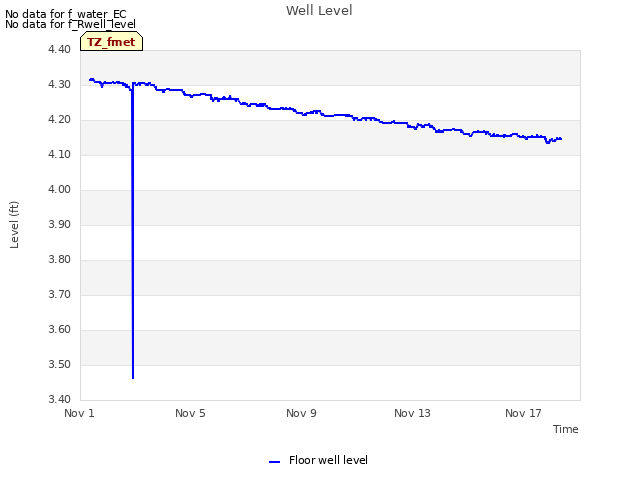

Well Depth

Date	Location	Depth (feet)
2016-11-17	TZ_floor	30.4
2016-11-17	TZ_road	38.3
2016-11-17	TZ_tower	34.8
2016-11-17	VR_pond	13.92

mode = both

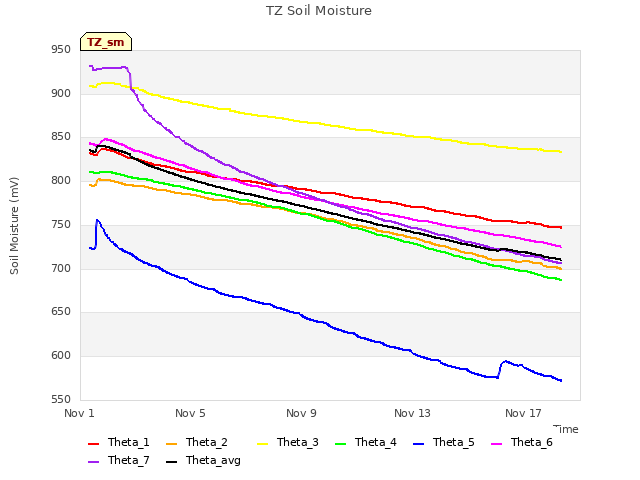

Moisture Point Probes TZ
Array ( [0] => Tower_1 [1] => Floor_South_1 [2] => Floor_East_1 [3] => SoilCO2_1 [4] => Soil_Transect_4_1 [5] => Soil_Transect_3_1 [6] => Soil_Transect_2_1 [7] => Soil_Transect_1_1 [8] => SoilCO2_West_A_1 [9] => SoilCO2_West_B_1 [10] => SoilCO2_West_C_1 [11] => Tower_2 [12] => Floor_South_2 [13] => Floor_East_2 [14] => Floor_West_2 [15] => SoilCO2_2 [16] => Soil_Transect_4_2 [17] => Soil_Transect_3_2 [18] => Soil_Transect_2_2 [19] => Soil_Transect_1_2 [20] => SoilCO2_West_A_2 [21] => SoilCO2_West_B_2 [22] => SoilCO2_West_C_2 [23] => Tower_3 [24] => Floor_South_3 [25] => Floor_East_3 [26] => Floor_West_3 [27] => SoilCO2_3 [28] => Soil_Transect_4_3 [29] => Soil_Transect_3_3 [30] => Soil_Transect_2_3 [31] => Soil_Transect_1_3 [32] => SoilCO2_West_A_3 [33] => SoilCO2_West_B_3 [34] => SoilCO2_West_C_3 [35] => Tower_4 [36] => Floor_South_4 [37] => Floor_East_4 [38] => Floor_West_4 [39] => SoilCO2_4 [40] => Soil_Transect_4_4 [41] => Soil_Transect_3_4 [42] => Soil_Transect_2_4 [43] => Soil_Transect_1_4 [44] => SoilCO2_West_A_4 [45] => SoilCO2_West_B_4 [46] => SoilCO2_West_C_4 [47] => Floor_West_1 )

0000

Date	DOY	Rep	Depth	Tower_1	Floor_South_1	Floor_East_1	SoilCO2_1	Soil_Transect_4_1	Soil_Transect_3_1	Soil_Transect_2_1	Soil_Transect_1_1	SoilCO2_West_A_1	SoilCO2_West_B_1	SoilCO2_West_C_1	Tower_2	Floor_South_2	Floor_East_2	Floor_West_2	SoilCO2_2	Soil_Transect_4_2	Soil_Transect_3_2	Soil_Transect_2_2	Soil_Transect_1_2	SoilCO2_West_A_2	SoilCO2_West_B_2	SoilCO2_West_C_2	Tower_3	Floor_South_3	Floor_East_3	Floor_West_3	SoilCO2_3	Soil_Transect_4_3	Soil_Transect_3_3	Soil_Transect_2_3	Soil_Transect_1_3	SoilCO2_West_A_3	SoilCO2_West_B_3	SoilCO2_West_C_3	Tower_4	Floor_South_4	Floor_East_4	Floor_West_4	SoilCO2_4	Soil_Transect_4_4	Soil_Transect_3_4	Soil_Transect_2_4	Soil_Transect_1_4	SoilCO2_West_A_4	SoilCO2_West_B_4	SoilCO2_West_C_4	Floor_West_1	Spacial Count
2016-11-17	322	0	nan	14.7	7.1	27.6	27.9	18.5	19.1	20.3	14.7	27.3	21.2	21.4	25.2	31	37.1	17.9	26.4	21.6	28.9	28	12.7	25.8	18.8	26.5	25.4	35.2	53.3	29.9	39.6	22.1	27.1	31	24.6	30.7	31.3	32.7	34	48.8	62.3	40.8	41.1	27.4	40.3	47.4	15	40.5	48.3	48.6
2016-11-17	322	1	nan	14.7	5.6	27.3	24.4	17.1	12.4	20.6	14.4	26.1	22.3	20.6	23.7	31.3	37.1	19.4	26.5	21.3	28.9	28	12.7	24.9	19.1	25.1	25.7	34.6	53	29.6	38.8	22.1	27.6	29.9	25.4	30.1	31.3	32.1	34.2	48.8	61.2	42.8	48.3	27.6	41.1	45.7	15	31.7	47.4	49.7	25.8
2016-11-17	322	Avg	0-15cm																																																	0
2016-11-17	322	Avg	15-30cm																																																	0
2016-11-17	322	Avg	30-45cm																																																	0
2016-11-17	322	Avg	45-60cm																																																	0

mode = both
Moisture Point Probes VR
Array ( [0] => Solar_Panels_1 [1] => Flux_Tower_1 [2] => Gate_1 [3] => Biomass_Cage_1 [4] => Solar_Panels_2 [5] => Flux_Tower_2 [6] => Gate_2 [7] => Biomass_Cage_2 [8] => Solar_Panels_3 [9] => Flux_Tower_3 [10] => Gate_3 [11] => Biomass_Cage_3 [12] => Solar_Panels_4 [13] => Flux_Tower_4 [14] => Gate_4 [15] => Biomass_Cage_4 )

0000

Date	DOY	Rep	Depth	Solar_Panels_1	Flux_Tower_1	Gate_1	Biomass_Cage_1	Solar_Panels_2	Flux_Tower_2	Gate_2	Biomass_Cage_2	Solar_Panels_3	Flux_Tower_3	Gate_3	Biomass_Cage_3	Solar_Panels_4	Flux_Tower_4	Gate_4	Biomass_Cage_4	Spacial Count
2016-11-17	322	0	nan	19.7	16.5	13.5	7.7	26.8	26.9	14.8	17.9	26.5	13.1	19.5	28.2	40.8	26.8	17.9	29.4
2016-11-17	322	1	nan	19.4	16.2	13.2	7.4	26.8	26.5	14.5	18.5	27.4	13.7	19.5	28.5	41.1	25.1	17.6	29.1
2016-11-17	322	Avg	0-15cm																	0
2016-11-17	322	Avg	15-30cm																	0
2016-11-17	322	Avg	30-45cm																	0
2016-11-17	322	Avg	45-60cm																	0

No TZ grass heigth found

No VR grass heigth found

Tree DBH

Date	Tag#	Reading (mm)
2016-11-17	1	25.5
2016-11-17	102	22.6
2016-11-17	2	19.3
2016-11-17	245	22.9
2016-11-17	3	23.8
2016-11-17	4	18.4
2016-11-17	5	20.2
2016-11-17	7	17.0
2016-11-17	72	23.5
2016-11-17	79	23.2
2016-11-17	8	20.1
