Vaira: 2016-12-07 11:00:00 (DOY 342)
Author: Joe Verfaillie
Others: Siyan, Daphne, Jorge Perez

Summary: Downloaded first set of pressure data from pond, fix software error for sending data, swapped 7500, Stardot date reset.

Vaira
2016-12-07

I arrived about 11:00 with Siyan, Daphne and Jorge Perez. It was cold and mostly cloudy with a light breeze. A few trees still have a few leaves but most have lost all their leaves. The grass is green and growing slowly. There were a couple of puddles in the road and the water hole was close to full.

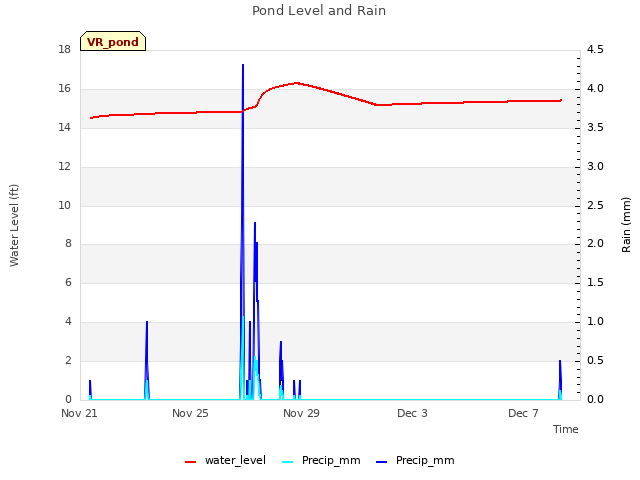

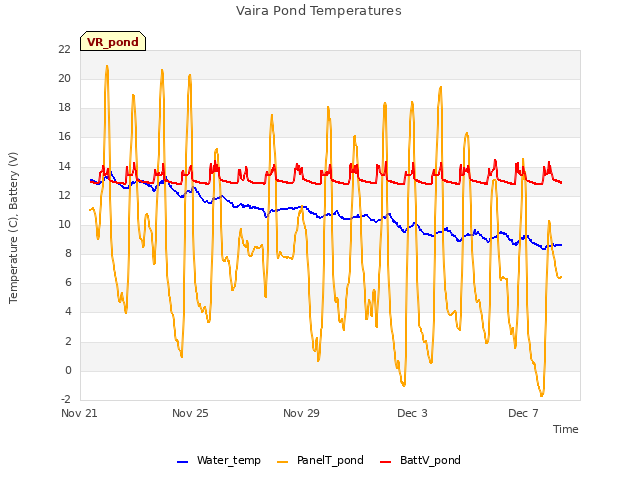

We went to the pond to download the pressure data first. A herd of hungry cows surrounded the truck at the creek both arriving and leaving. We almost did not get past a wet spot on the way up the hill on the other side. We may need four-wheel drive if the road is any wetter â€“ or walk. Everything looked fine at the pond. We downloaded the data and read the staff gauge 15.35ft.

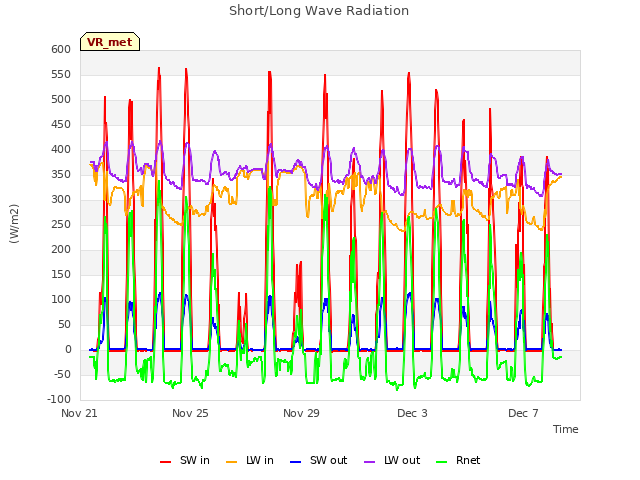

Back at the main tower, Jorge cleaned the radiation sensors, Siyan did the standard fieldwork and I downloaded data. This site had not been sending data because the wrong script was trying to run on the computer. I fixed this and manually ran it.

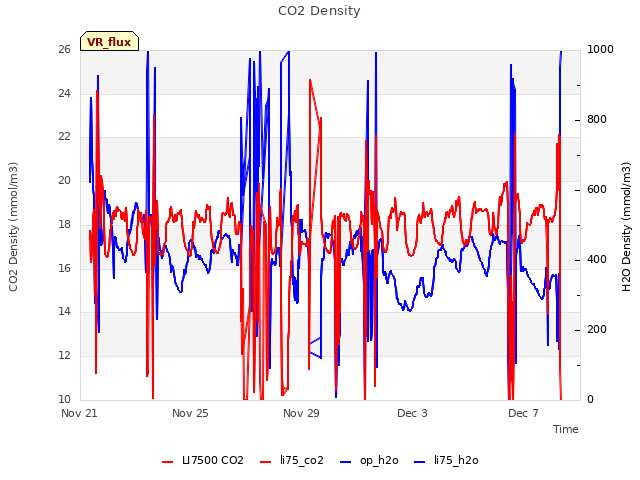

Daphne swapped the 7500 â€“ sn 0042 came off and sn 0041 went on.

Something happened to the Stardot date. On 2016-11-24 the data was reset to 2000-01-01. The time seems okay though.

Field Data

No tank data

Well Depth

Date	Location	Depth (feet)
2016-12-07	TZ_floor	30
2016-12-07	TZ_road	38.1
2016-12-07	TZ_tower	34.4
2016-12-07	VR_pond	15.35

mode = both
Moisture Point Probes TZ
Array ( [0] => Tower_1 [1] => Floor_South_1 [2] => Floor_East_1 [3] => Floor_West_1 [4] => SoilCO2_1 [5] => Soil_Transect_4_1 [6] => Soil_Transect_3_1 [7] => Soil_Transect_2_1 [8] => Soil_Transect_1_1 [9] => SoilCO2_West_A_1 [10] => SoilCO2_West_B_1 [11] => SoilCO2_West_C_1 [12] => Tower_2 [13] => Floor_South_2 [14] => Floor_East_2 [15] => Floor_West_2 [16] => SoilCO2_2 [17] => Soil_Transect_4_2 [18] => Soil_Transect_3_2 [19] => Soil_Transect_2_2 [20] => Soil_Transect_1_2 [21] => SoilCO2_West_A_2 [22] => SoilCO2_West_B_2 [23] => SoilCO2_West_C_2 [24] => Tower_3 [25] => Floor_South_3 [26] => Floor_East_3 [27] => Floor_West_3 [28] => SoilCO2_3 [29] => Soil_Transect_4_3 [30] => Soil_Transect_3_3 [31] => Soil_Transect_2_3 [32] => Soil_Transect_1_3 [33] => SoilCO2_West_A_3 [34] => SoilCO2_West_B_3 [35] => SoilCO2_West_C_3 [36] => Tower_4 [37] => Floor_South_4 [38] => Floor_East_4 [39] => Floor_West_4 [40] => Soil_Transect_4_4 [41] => Soil_Transect_3_4 [42] => Soil_Transect_2_4 [43] => Soil_Transect_1_4 [44] => SoilCO2_West_A_4 [45] => SoilCO2_West_B_4 [46] => SoilCO2_West_C_4 [47] => SoilCO2_4 )

0000

Date	DOY	Rep	Depth	Tower_1	Floor_South_1	Floor_East_1	Floor_West_1	SoilCO2_1	Soil_Transect_4_1	Soil_Transect_3_1	Soil_Transect_2_1	Soil_Transect_1_1	SoilCO2_West_A_1	SoilCO2_West_B_1	SoilCO2_West_C_1	Tower_2	Floor_South_2	Floor_East_2	Floor_West_2	SoilCO2_2	Soil_Transect_4_2	Soil_Transect_3_2	Soil_Transect_2_2	Soil_Transect_1_2	SoilCO2_West_A_2	SoilCO2_West_B_2	SoilCO2_West_C_2	Tower_3	Floor_South_3	Floor_East_3	Floor_West_3	SoilCO2_3	Soil_Transect_4_3	Soil_Transect_3_3	Soil_Transect_2_3	Soil_Transect_1_3	SoilCO2_West_A_3	SoilCO2_West_B_3	SoilCO2_West_C_3	Tower_4	Floor_South_4	Floor_East_4	Floor_West_4	Soil_Transect_4_4	Soil_Transect_3_4	Soil_Transect_2_4	Soil_Transect_1_4	SoilCO2_West_A_4	SoilCO2_West_B_4	SoilCO2_West_C_4	SoilCO2_4	Spacial Count
2016-12-07	342	0	nan	24.7	25.3	33.5	34.6	13.9	19.7	17.6	25	19.7	30.5	25	29.1	35.4	38.4	41.4	24.6	31.6	29.2	31.2	30.7	22.5	26.8	25.5	30.4	32.4	42.4	49.4	38.8	42.4	33.8	32.4	34.3	34.1	35.4	35.7	37.1	38.5	56	57.4	45.1	34.8	44.3	47.7	33.7	44	50.3	51.7
2016-12-07	342	1	nan	25	24.7	33.2	29.7	38.4	25.6	19.7	25.3	20	30.5	25.6	29.1	35.3	38.4	41.4	33.2	32.3	29.5	31.9	30.4	22.5	27.1	24.9	29.8	32.7	42.7	49.1	38.2	43.5	33.2	32.9	34.3	34.3	34.3	37.1	36.8	41.1	54.3	56.6	44.5	35.4	45.1	47.1	33.7	44	52.3	50	46
2016-12-07	342	Avg	0-15cm																																																	0
2016-12-07	342	Avg	15-30cm																																																	0
2016-12-07	342	Avg	30-45cm																																																	0
2016-12-07	342	Avg	45-60cm																																																	0

mode = both
Moisture Point Probes VR
Array ( [0] => Flux_Tower_1 [1] => Gate_1 [2] => Biomass_Cage_1 [3] => Solar_Panels_2 [4] => Flux_Tower_2 [5] => Gate_2 [6] => Biomass_Cage_2 [7] => Solar_Panels_3 [8] => Flux_Tower_3 [9] => Gate_3 [10] => Biomass_Cage_3 [11] => Solar_Panels_4 [12] => Flux_Tower_4 [13] => Gate_4 [14] => Biomass_Cage_4 [15] => Solar_Panels_1 )

0000

Date	DOY	Rep	Depth	Flux_Tower_1	Gate_1	Biomass_Cage_1	Solar_Panels_2	Flux_Tower_2	Gate_2	Biomass_Cage_2	Solar_Panels_3	Flux_Tower_3	Gate_3	Biomass_Cage_3	Solar_Panels_4	Flux_Tower_4	Gate_4	Biomass_Cage_4	Solar_Panels_1	Spacial Count
2016-12-07	342	0	nan	21.7	23.8	10.3	28.9	27.7	62.8	21.6	36.8	16.2	29.9	31	38.8	29.1	24.2	31.9
2016-12-07	342	1	nan	21.2	14.4	10	34.1	28	19.4	21.9	37.7	15.9	74.5	31.5	38.5	28.5	25.6	31.9	25.3
2016-12-07	342	Avg	0-15cm																	0
2016-12-07	342	Avg	15-30cm																	0
2016-12-07	342	Avg	30-45cm																	0
2016-12-07	342	Avg	45-60cm																	0
