Sherman Wetland: 2016-08-31 15:20:00 (DOY 244)
Author: Joe Verfaillie
Others: Elke
Summary: Standard data collection, some wasps in box, HMP60 fan needs replacing.
| Sherman Wetland 2016-08-31 I arrived about 15:20 with Elke. It was clear, sunny and dry. They have repaired the levee near the road where it had been worn down by vehicle passage – no more driving over the levee. There were some wasps in the data logger box. I’m not sure if they were left over from last time or have found a new way in. The 7700 read: 1.91ppm CH4, 49.5RSSI – 80.1 after cleaning, wash reservoir was full The 7500 read: 379.37ppm CO2, 809.5mmol/m3 H2O, 28.3C, 101.2kPa, 99.9SS – 102.3 after cleaning The wire for the HMP60 fan was broken. It looked like some animal had yanked on it. I repaired it but the fan did not work – need to replace next time. Looking at the camera images, the camera clock is at least one hour off, probably due to DST. |
0 photos found
7 sets found
Can't check MBWPEESWGT_mixed
Can't check MBEEWPSWEPGT_cam

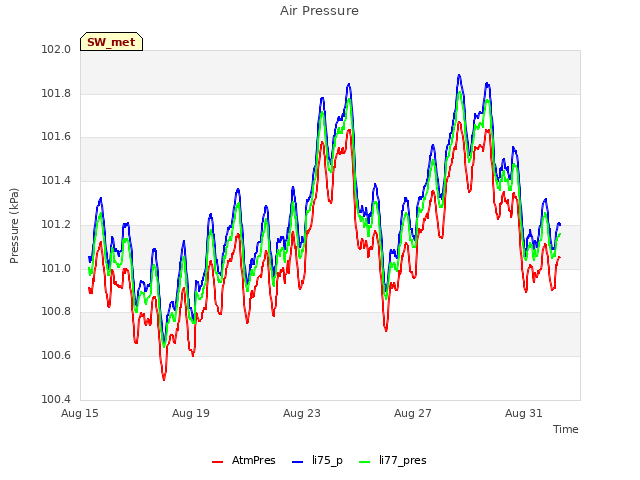

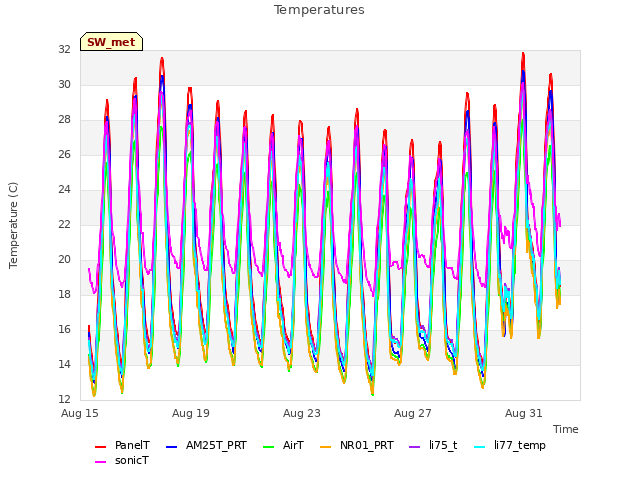

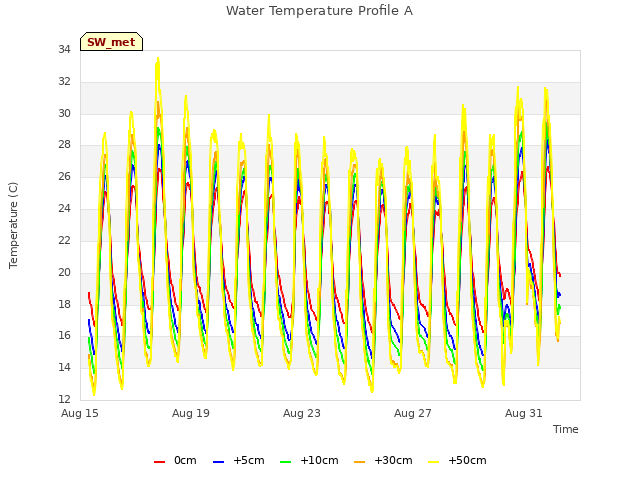

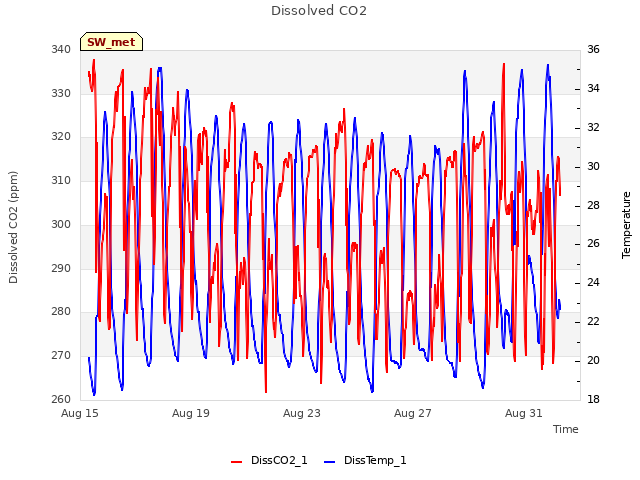

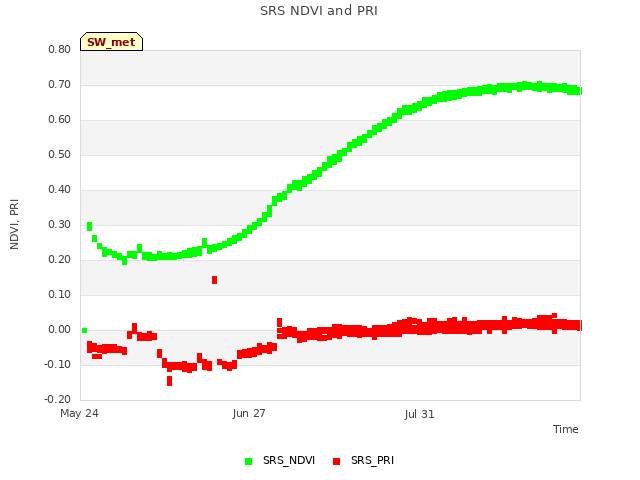

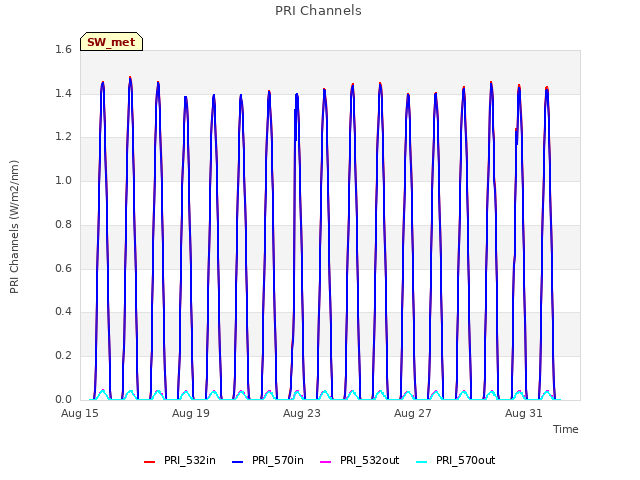

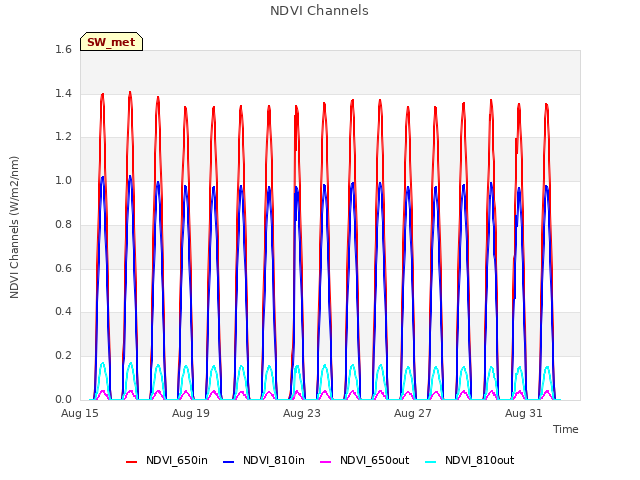

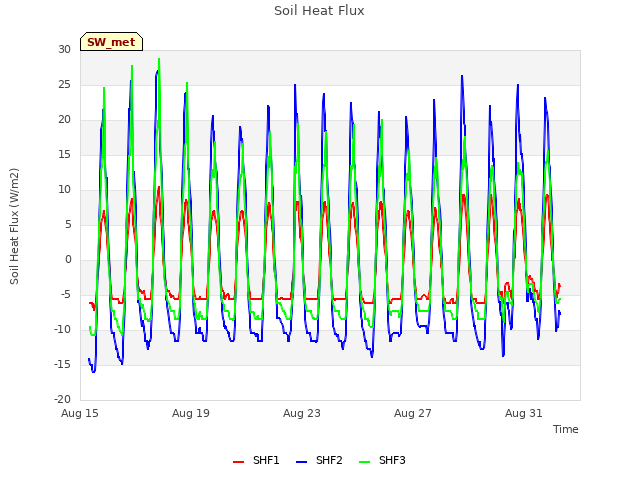

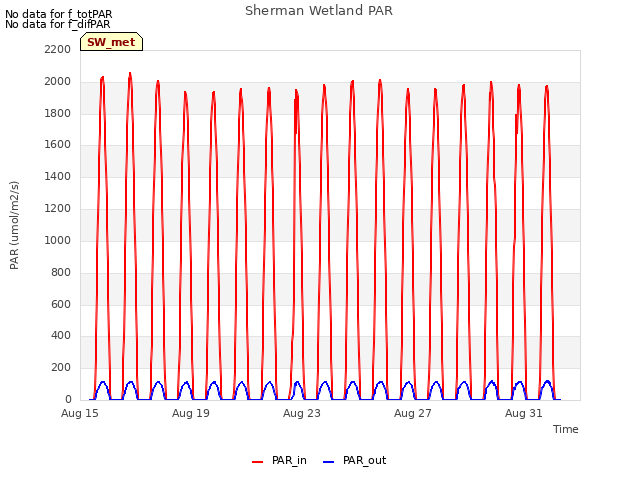

15 SW_met graphs found

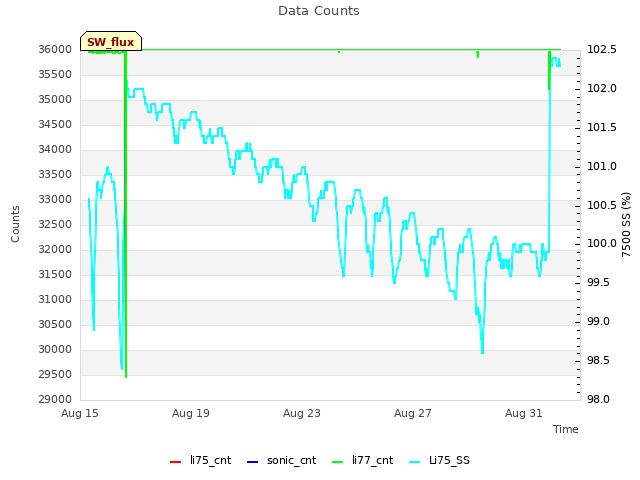

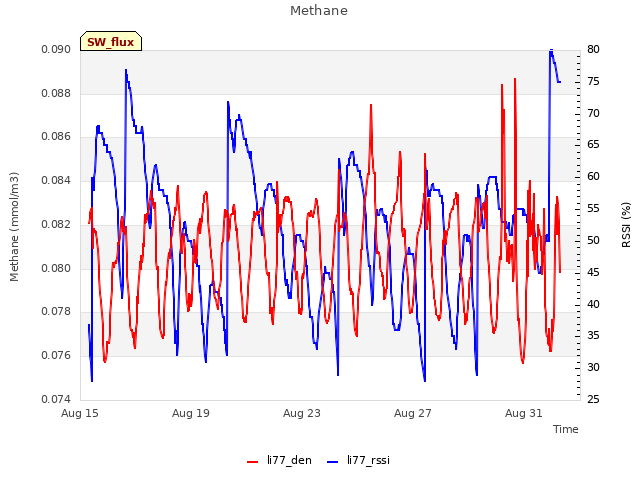

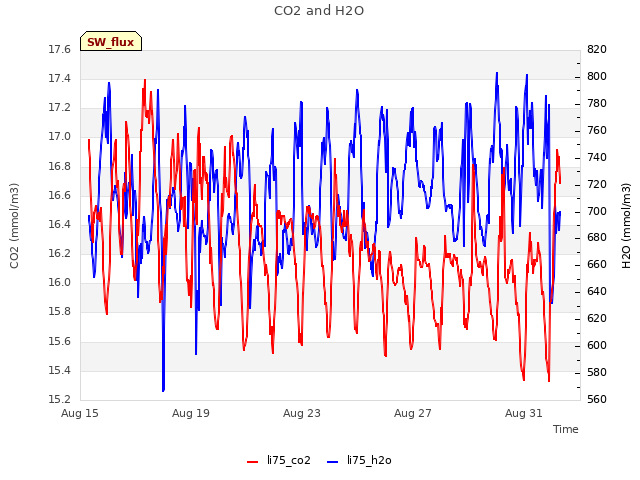

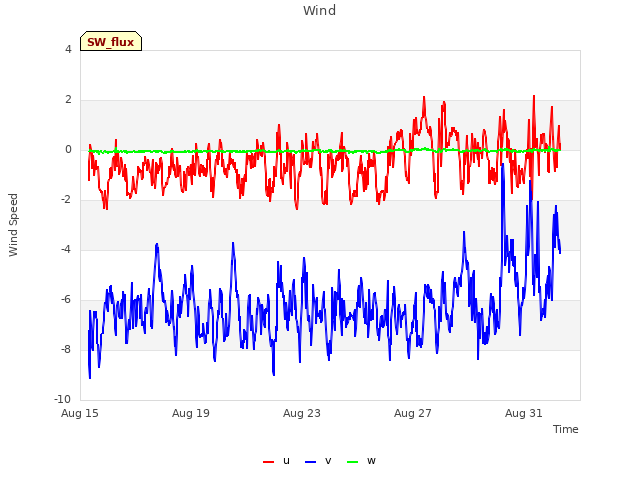

4 SW_flux graphs found
Can't check MBSWEEWPBCBA
Can't check SW_Temp

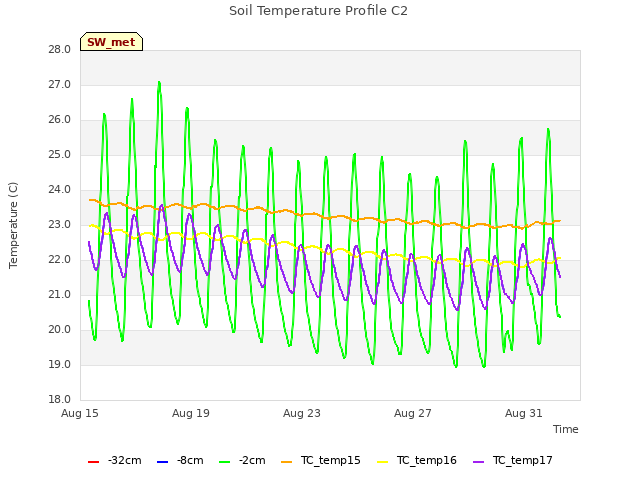

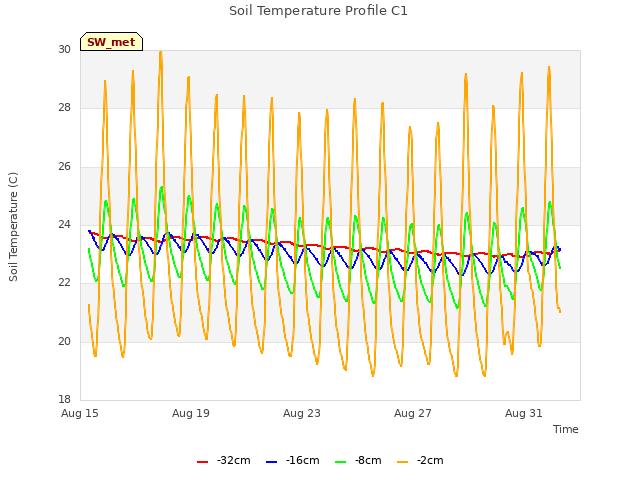

14 SW_Temp graphs found
No data found for SW_arable.
