Twitchell Alfalfa: 2016-08-31 13:10:00 (DOY 244)
Author: Joe Verfaillie
Others: Elke

Summary: Standard data collection, swapped 7500, collected FD data.

Twitchell Alfalfa
2016-08-31

I arrived at 13:10 with Elke. It was clear, sunny and warm. There was water in the ditches both north and south of the field. They had mowed the edges of the field to the south.

There are squirrel holes around the soil sensors. We put moth balls in the three biggest ones.

We swapped the 7500
sn 75H-2514 off: 370.3ppm CO2, 664.5mmol/m3 H2O, 24.4C, 101.1kPa, 97.7SS
sn 75H-2182 on: 396.5ppm CO2, 642.2mmol/m3 H2O, 26.3C, 101.0kPa, 86.19SS

I collected the data from the forced diffusion chamber. Again I had problems cycling the power on it. Almost seems like a bad connection at the connector on top of the chamber.

Elke did soil respiration, spectral measurement, veg height and we did clip plots.

1 photos found

Elke on site
Elke on site

Graphs display:
7 sets found

Can't check TA_met
11 TA_met graphs found

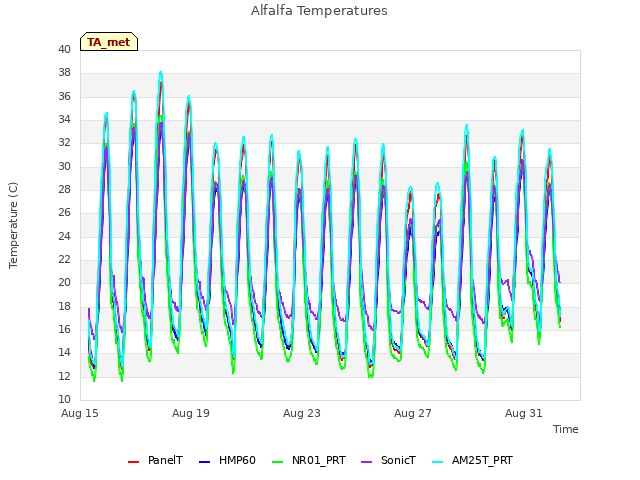

Explore the graph:Alfalfa Temperatures in a new window

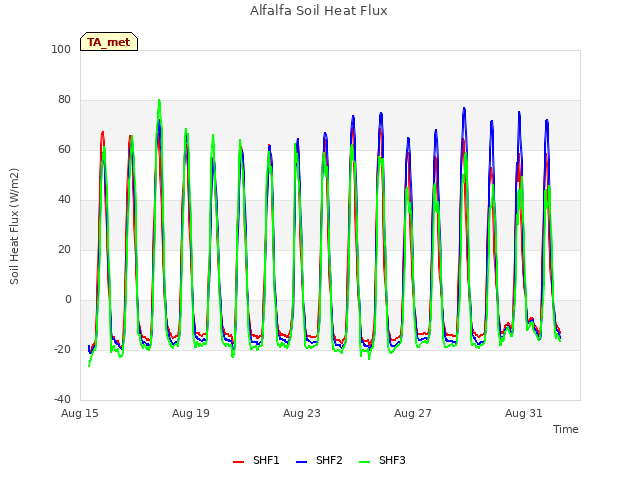

Explore the graph:Alfalfa Soil Heat Flux in a new window

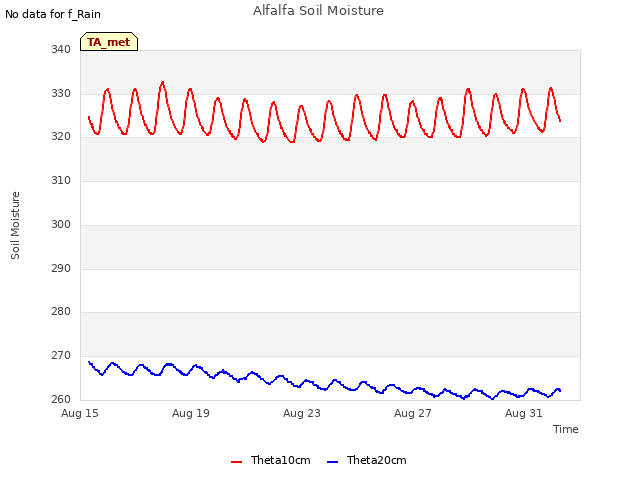

Explore the graph:Alfalfa Soil Moisture in a new window

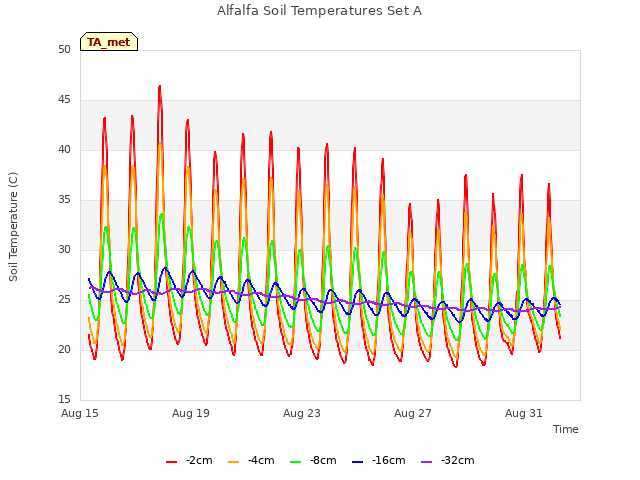

Explore the graph:Alfalfa Soil Temperatures Set A in a new window

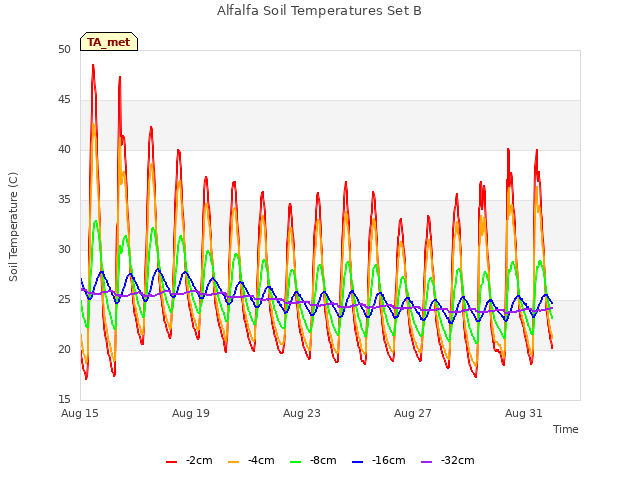

Explore the graph:Alfalfa Soil Temperatures Set B in a new window

Explore the graph:Alfalfa Soil Temperatures Set C in a new window

Explore the graph:NDVI Narrow Band Radiation in a new window

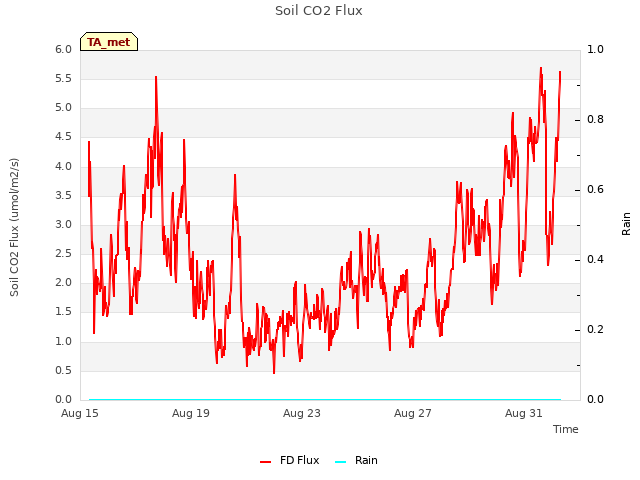

Explore the graph:Soil CO2 Flux in a new window

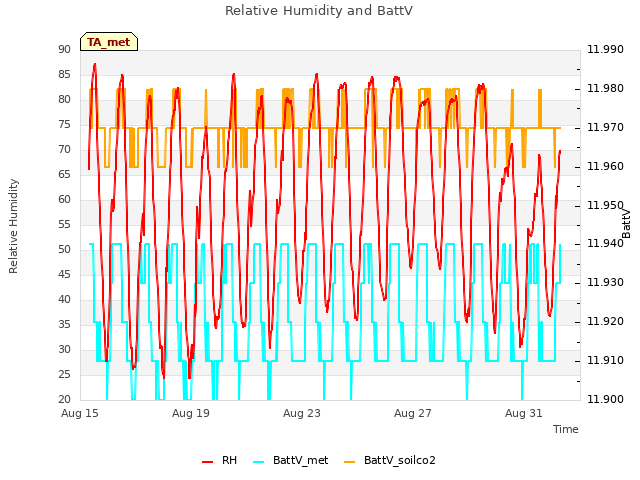

Explore the graph:Relative Humidity and BattV in a new window

Explore the graph:SRS NDVI and PRI in a new window

Explore the graph:PRI Narrow Band Channels in a new window

Can't check TA_rad
3 TA_rad graphs found

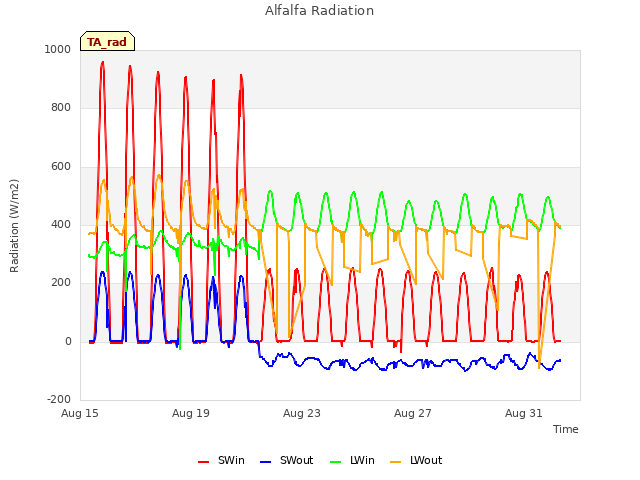

Explore the graph:Alfalfa Radiation in a new window

Explore the graph:Alfalfa LED NDVI Sensor in a new window

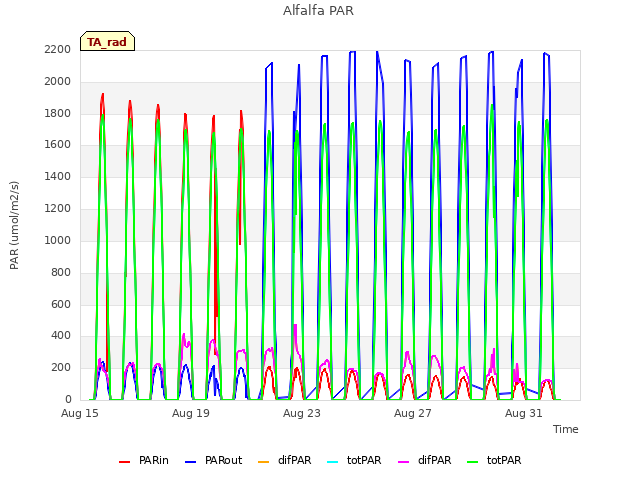

Explore the graph:Alfalfa PAR in a new window

Can't check TA_flux
5 TA_flux graphs found

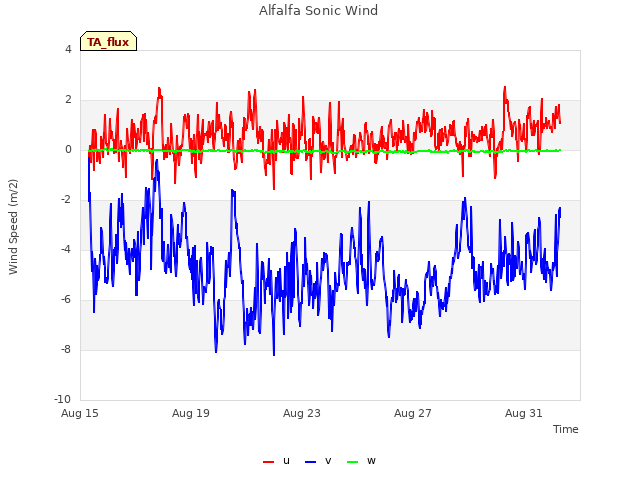

Explore the graph:Alfalfa Sonic Wind in a new window

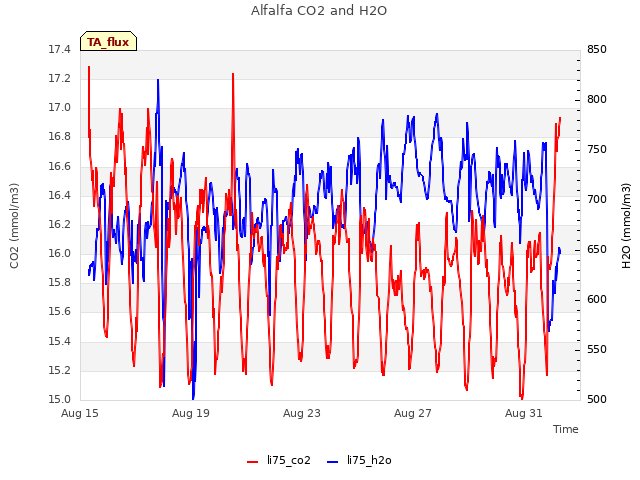

Explore the graph:Alfalfa CO2 and H2O in a new window

Explore the graph:Alfalfa Methane in a new window

Explore the graph:Alfalfa Pressure in a new window

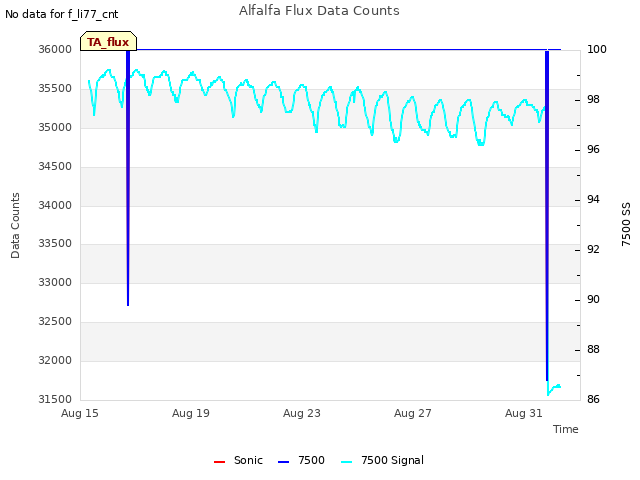

Explore the graph:Alfalfa Flux Data Counts in a new window

Can't check TA_soilco2
7 TA_soilco2 graphs found

Explore the graph:Set A Soil CO2 in a new window

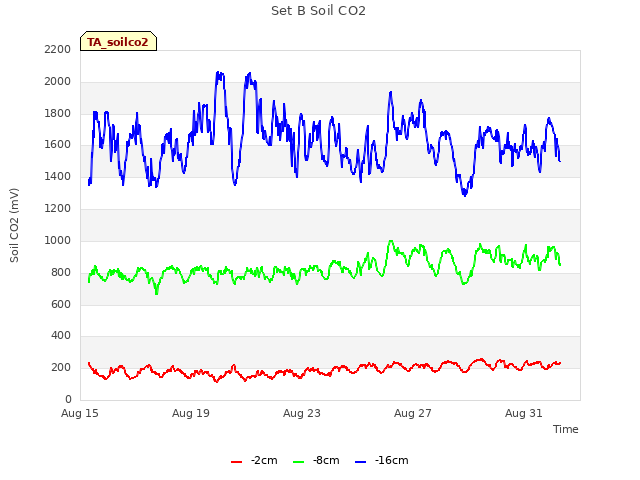

Explore the graph:Set B Soil CO2 in a new window

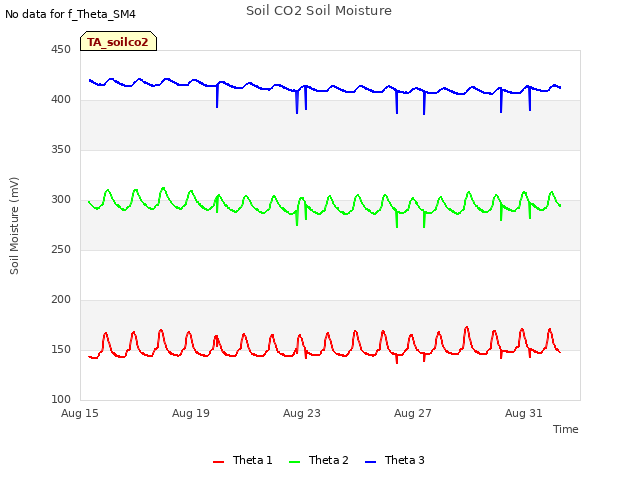

Explore the graph:Soil CO2 Soil Moisture in a new window

Explore the graph:Forced Diffusion CO2 in a new window

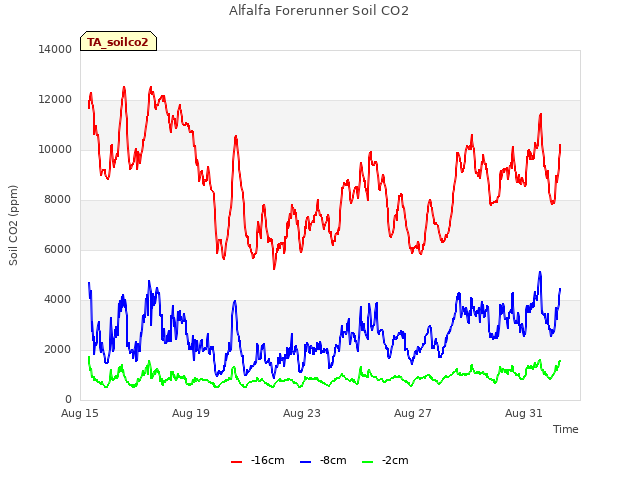

Explore the graph:Alfalfa Forerunner Soil CO2 in a new window

Explore the graph:Alfalfa Forerunner Temperatures in a new window

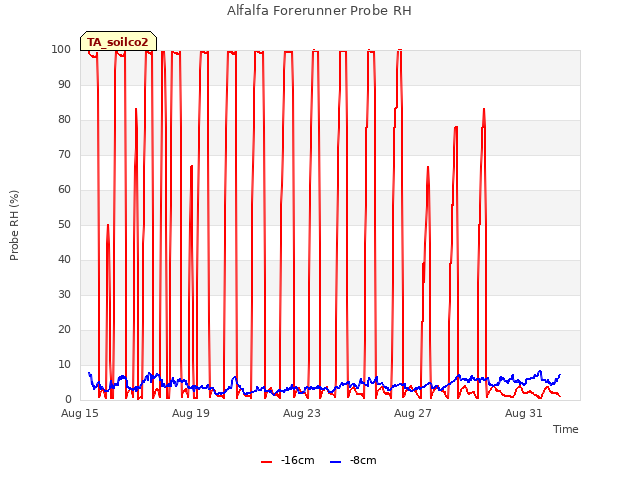

Explore the graph:Alfalfa Forerunner Probe RH in a new window

No data found for TA_arable.
1 TA_cam graphs found

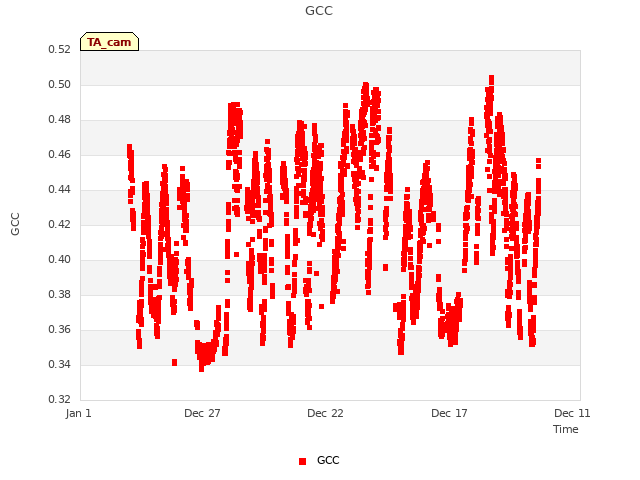

Explore the graph:GCC in a new window

Can't check TATWBABCSB_cam
