Sherman Wetland: 2016-09-15 15:15:00 (DOY 259)
Author: Elke Eichelmann
Others: Kyle Hemes, Dennis Baldocchi, Isabella Reche
Summary: Problem with 7700, fixed. Need to raise methane wash water reservoir. Normal data collection
| Arrived 15:15. Sunny, clear, with a light breeze. Field is still dry. Need to raise methane wash water reservoir. Saw new feldspar markers in the field, three to the west of the tower on other side of the pond, three to the east of the tower. Collected USB GHG data; collected met data from CR1000; swapped flash card “SW†out and put flashcard “SW†in. 7700 showed ‘triangle’ not synchronized. Reset box and it was reconciled. Did not switch LI7500, do next time. LI7500 readings CO2 383.57 H2O 541.9 T 23.78 P 101.69 ss 100.6 –> 102 after cleaning LI7700 CH4 1.97 rssi 63 ->84 after cleaning left: 15:40 |
0 photos found
7 sets found
Can't check MBWPEESWGT_mixed
Can't check MBEEWPSWEPGT_cam

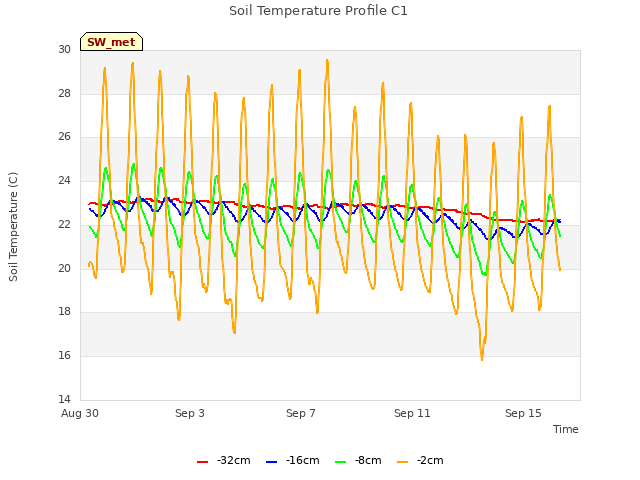

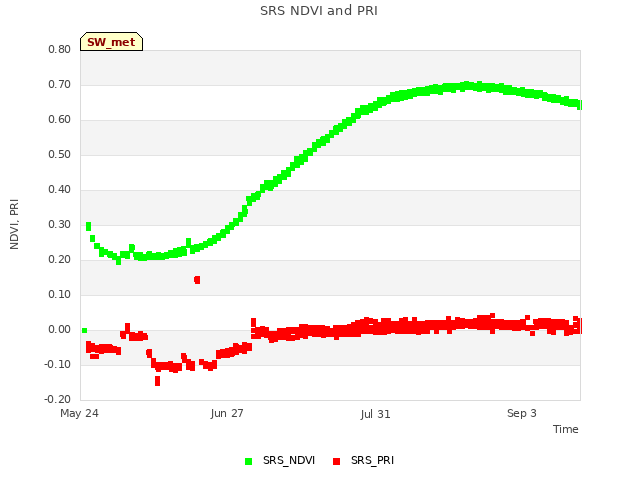

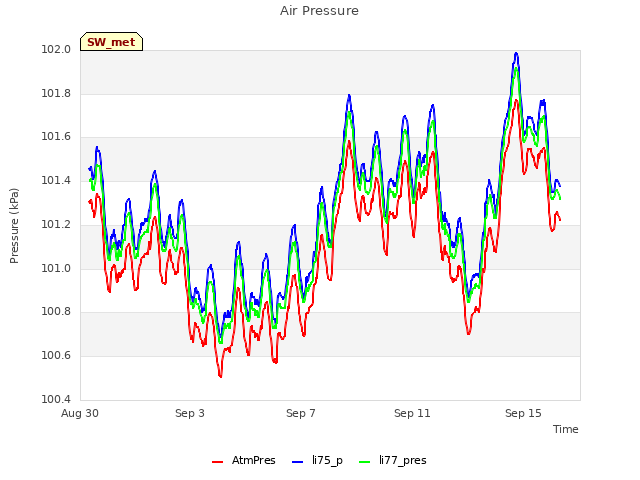

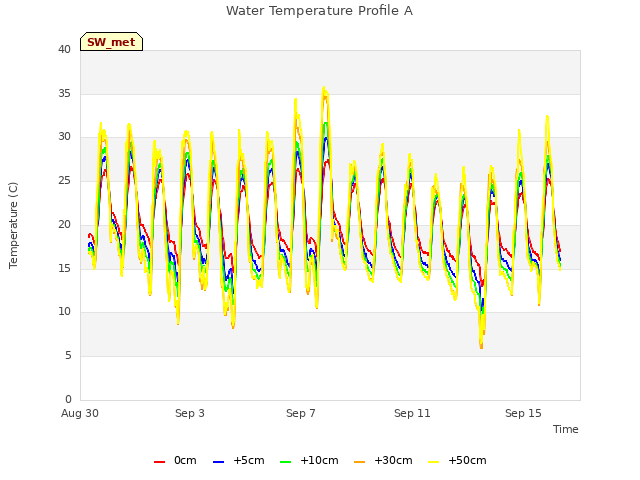

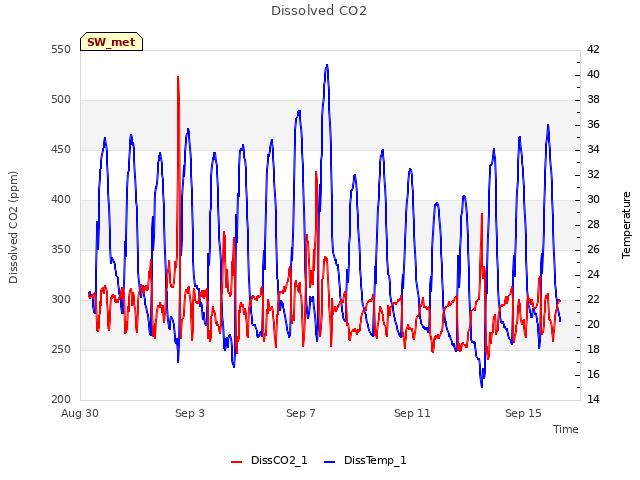

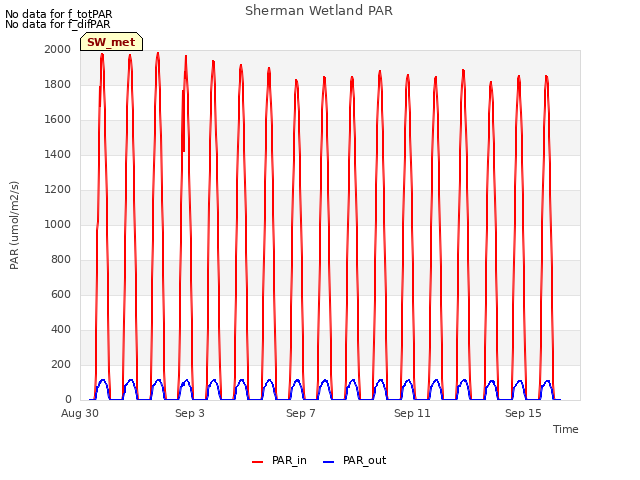

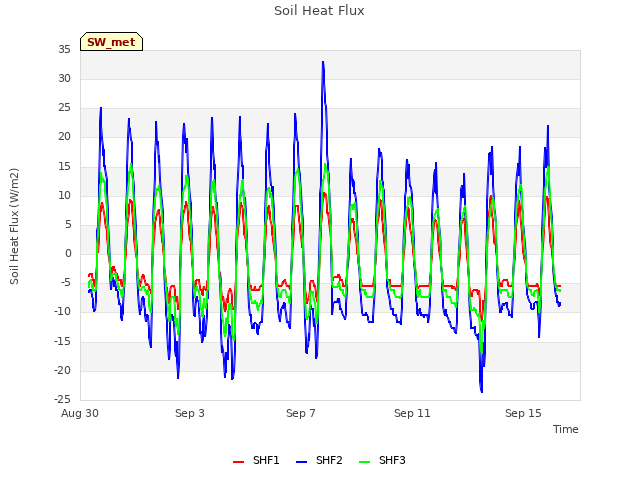

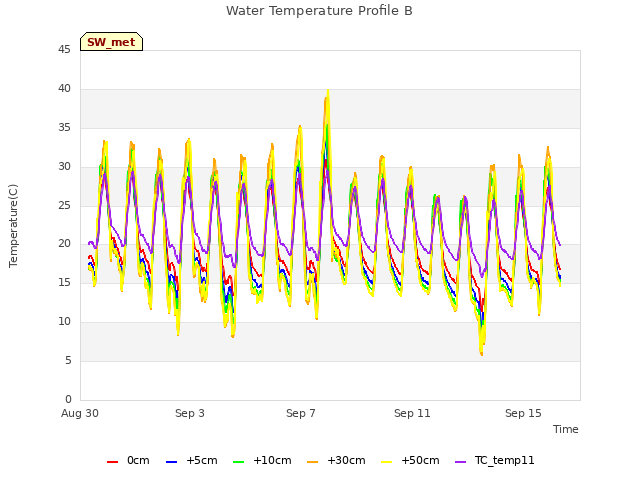

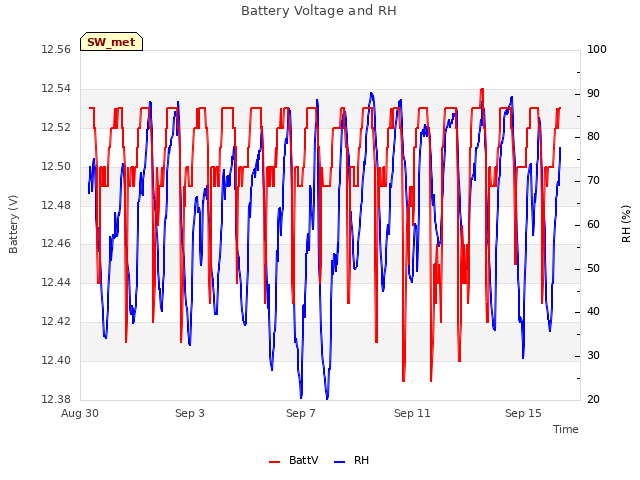

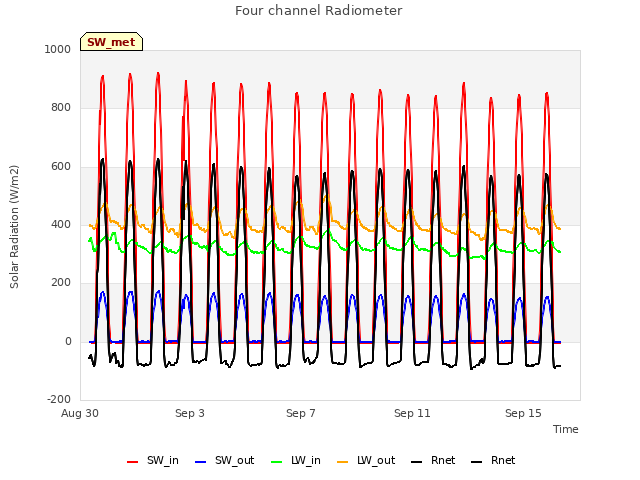

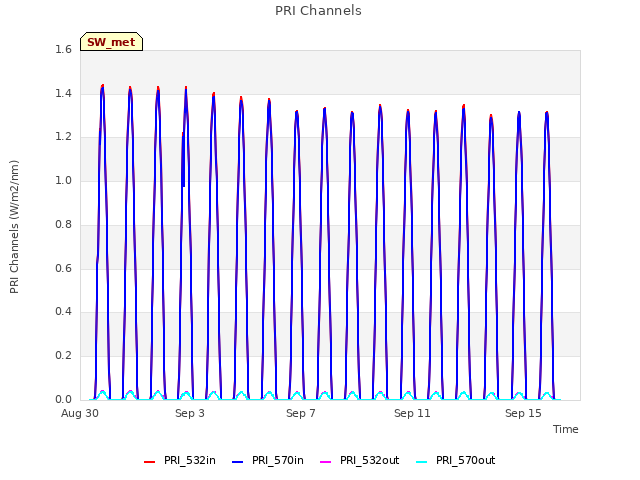

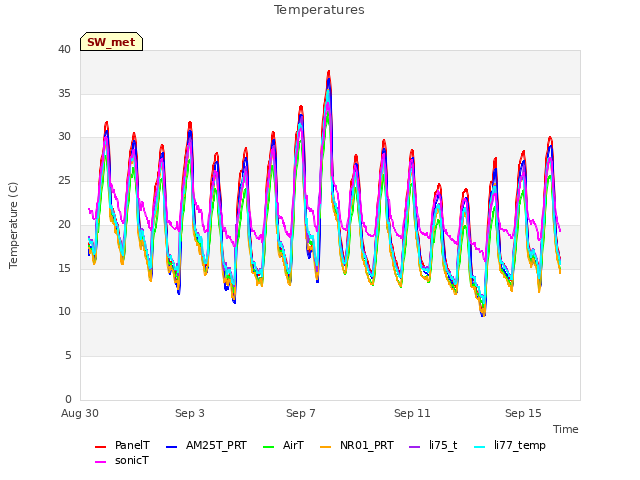

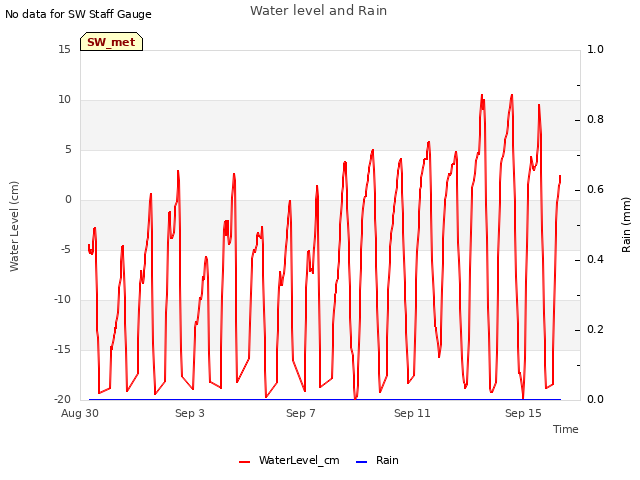

15 SW_met graphs found

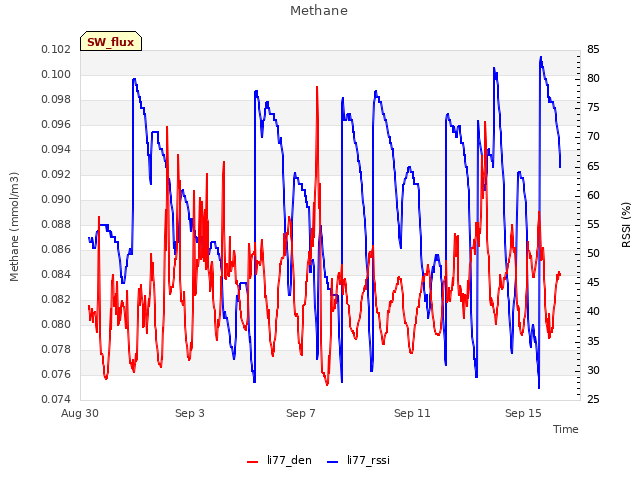

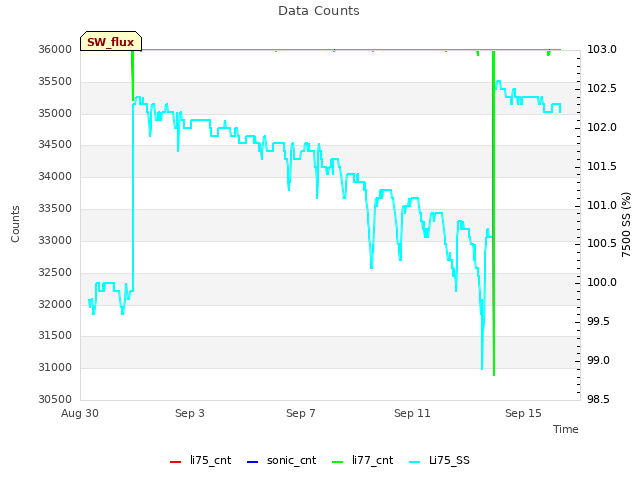

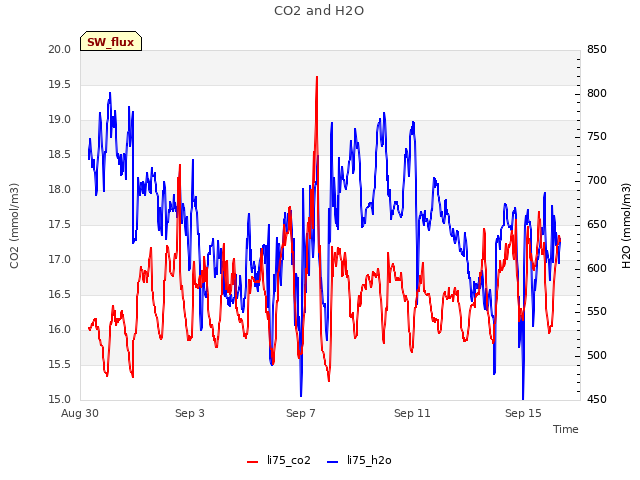

4 SW_flux graphs found
Can't check MBSWEEWPBCBA
Can't check SW_Temp
14 SW_Temp graphs found
No data found for SW_arable.
