Twitchell Alfalfa: 2015-12-28 13:08:00 (DOY 362)
Author: Joe Verfaillie
Others: Kyle, Ian

Summary: Ground squirrels active, two tone field. standard data collection

Alfalfa
2015-12-28

I arrived about 13:08 with Kyle and Ian. It was partly cloudy and cold. The western half of the field is relatively green with a short regrowth after the last mowing, but the eastern half of the field is much browner with less regrowth after the last mowing. There were a couple of weeks between the times that each half of the field was mowed last time. Ground squirrels are active. We saw several as we approached and they are visible in the auto photos. The holes we filled near the tower seem to remain mostly filled and not reopened. The ditches were wet and we drove on the field to the site.

The 7500 read: 393.7ppm CO2, 376.2mmol/m3 H2O, 99.9SS, 10.2C, 101.5kPa

I collected the rest of the data and Kyle did soil respiration. Ian washed the solar panels.

The diffuse PAR seemed to be working.

1 photos found

Ice
Ice

Graphs display:
7 sets found

Can't check TA_met
11 TA_met graphs found

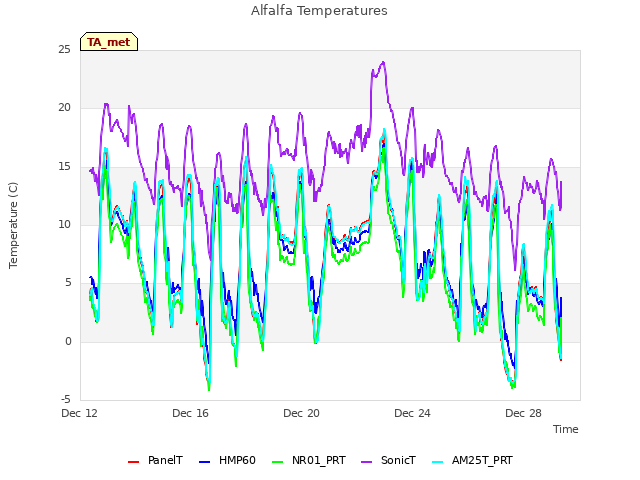

Explore the graph:Alfalfa Temperatures in a new window

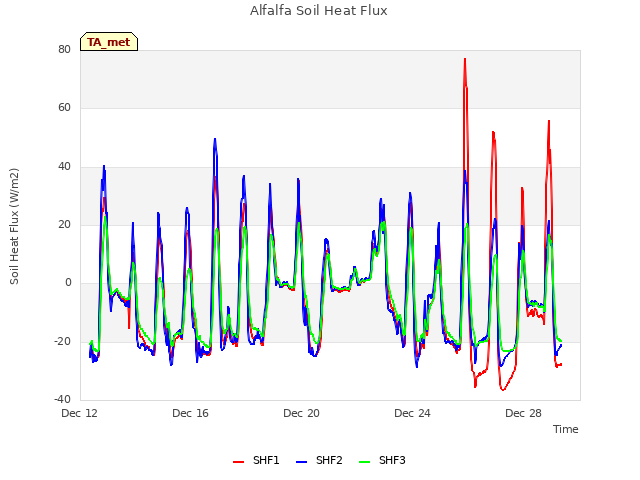

Explore the graph:Alfalfa Soil Heat Flux in a new window

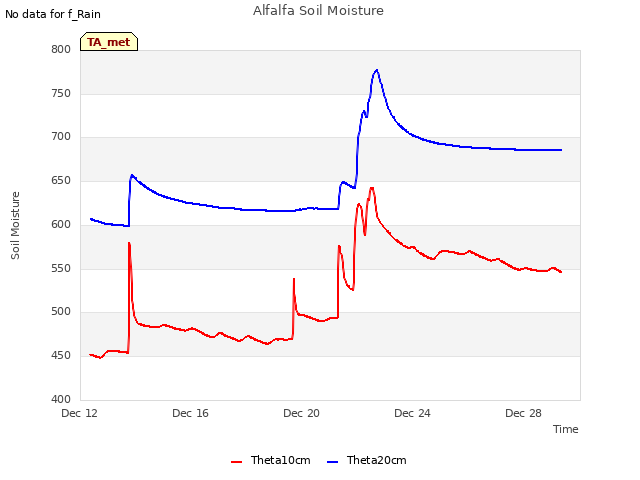

Explore the graph:Alfalfa Soil Moisture in a new window

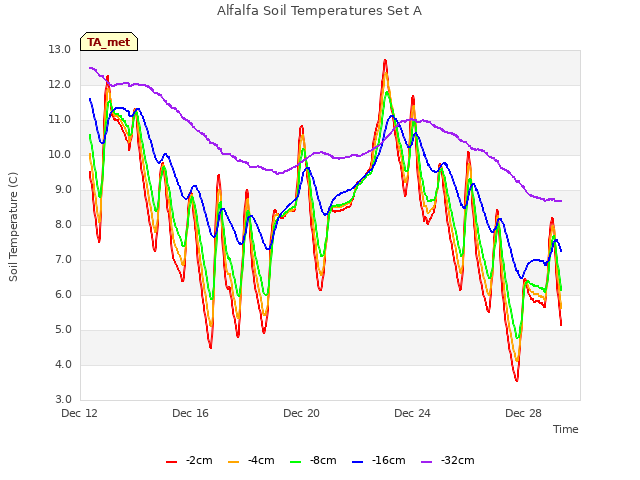

Explore the graph:Alfalfa Soil Temperatures Set A in a new window

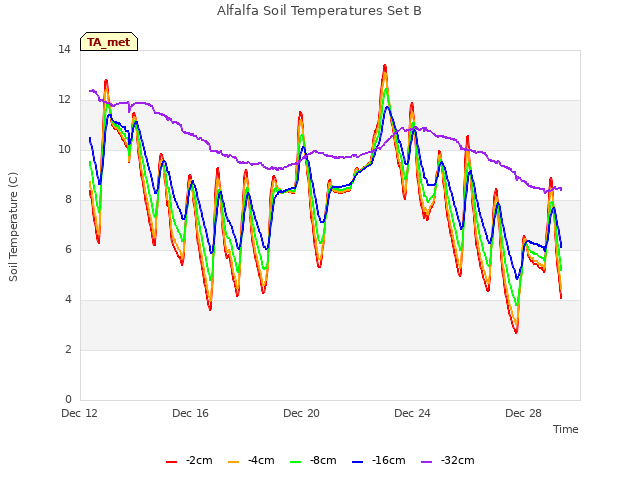

Explore the graph:Alfalfa Soil Temperatures Set B in a new window

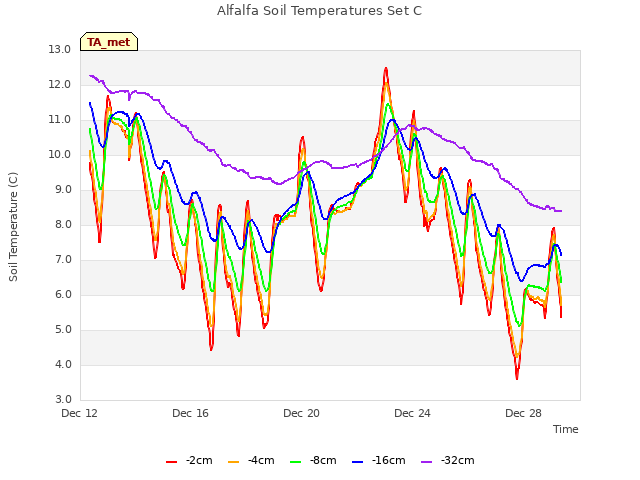

Explore the graph:Alfalfa Soil Temperatures Set C in a new window

Explore the graph:NDVI Narrow Band Radiation in a new window

Explore the graph:Soil CO2 Flux in a new window

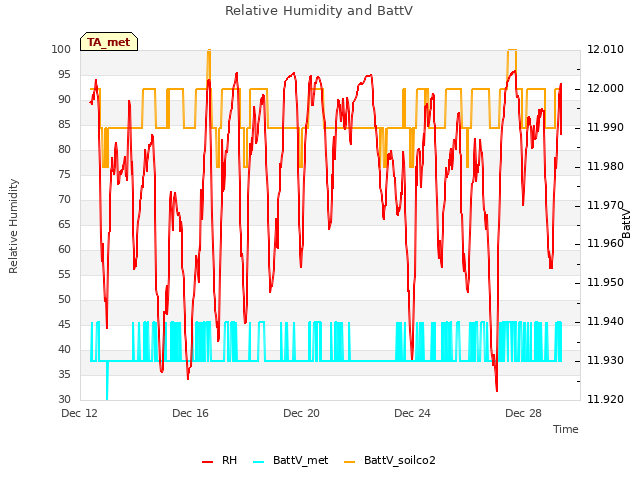

Explore the graph:Relative Humidity and BattV in a new window

Explore the graph:SRS NDVI and PRI in a new window

Explore the graph:PRI Narrow Band Channels in a new window

Can't check TA_rad
3 TA_rad graphs found

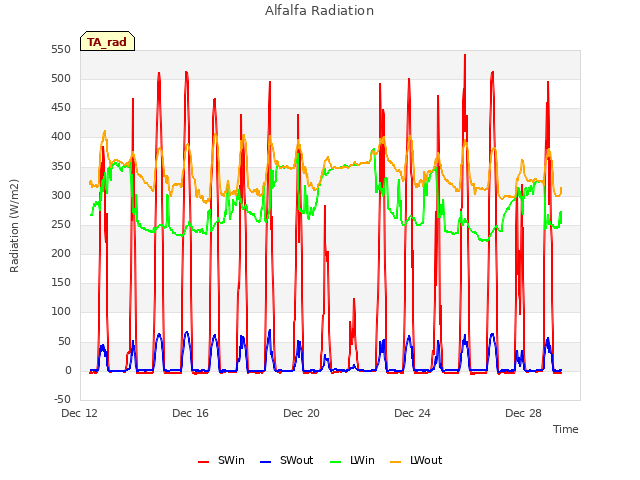

Explore the graph:Alfalfa Radiation in a new window

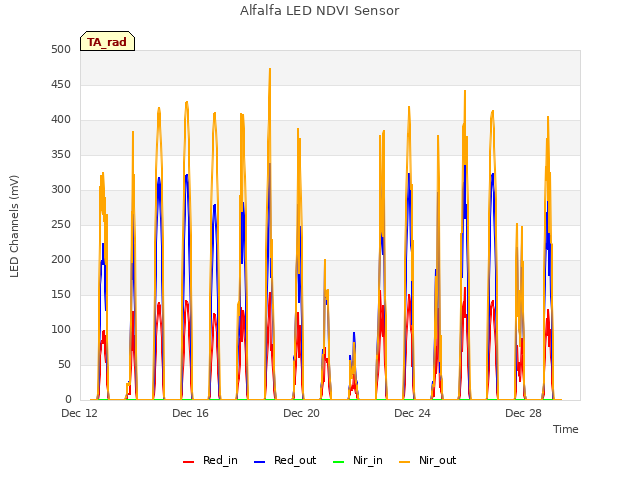

Explore the graph:Alfalfa LED NDVI Sensor in a new window

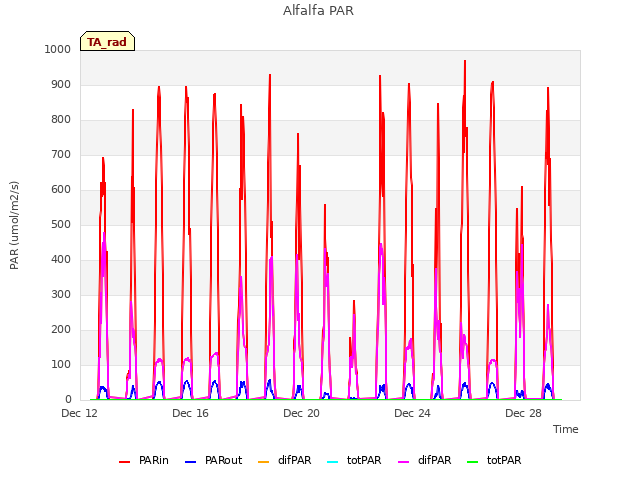

Explore the graph:Alfalfa PAR in a new window

Can't check TA_flux
5 TA_flux graphs found

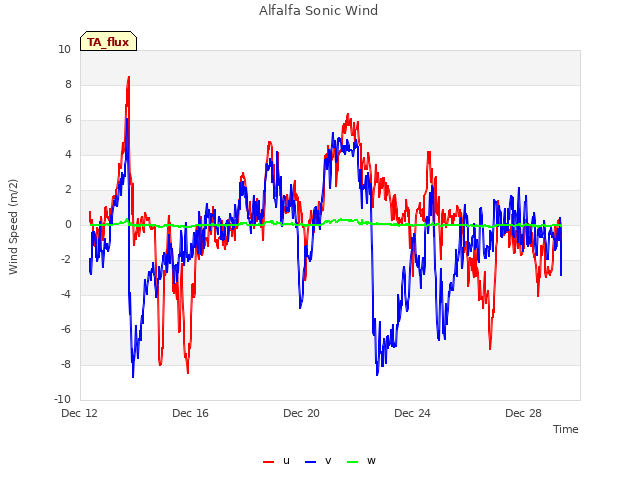

Explore the graph:Alfalfa Sonic Wind in a new window

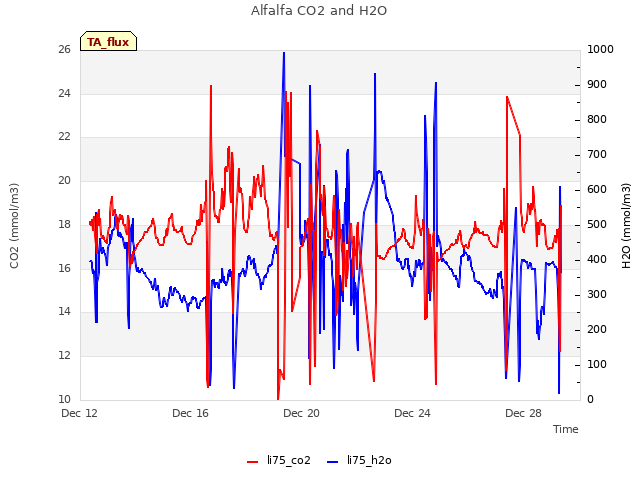

Explore the graph:Alfalfa CO2 and H2O in a new window

Explore the graph:Alfalfa Methane in a new window

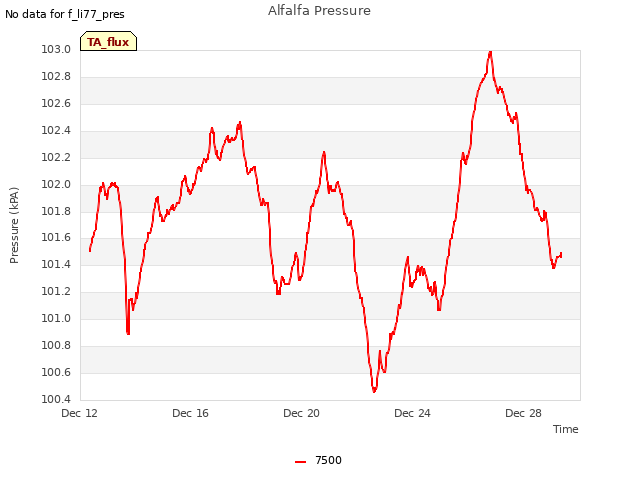

Explore the graph:Alfalfa Pressure in a new window

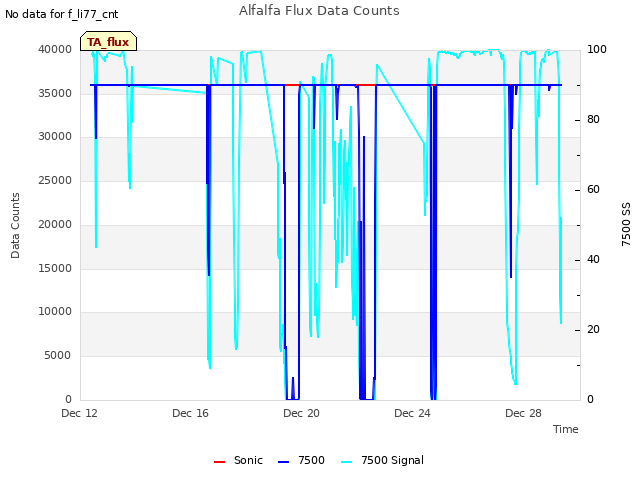

Explore the graph:Alfalfa Flux Data Counts in a new window

Can't check TA_soilco2
7 TA_soilco2 graphs found

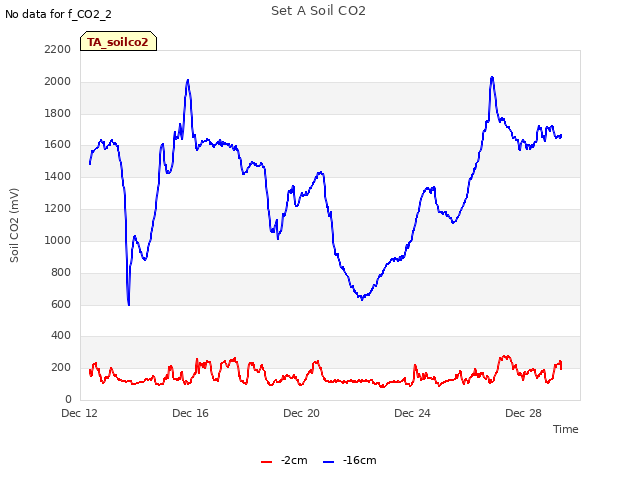

Explore the graph:Set A Soil CO2 in a new window

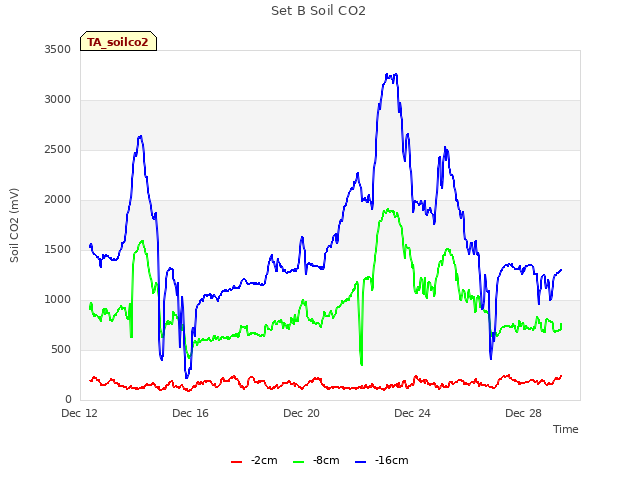

Explore the graph:Set B Soil CO2 in a new window

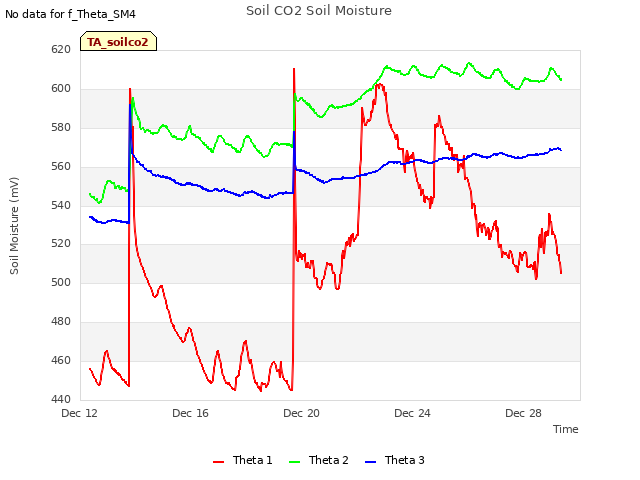

Explore the graph:Soil CO2 Soil Moisture in a new window

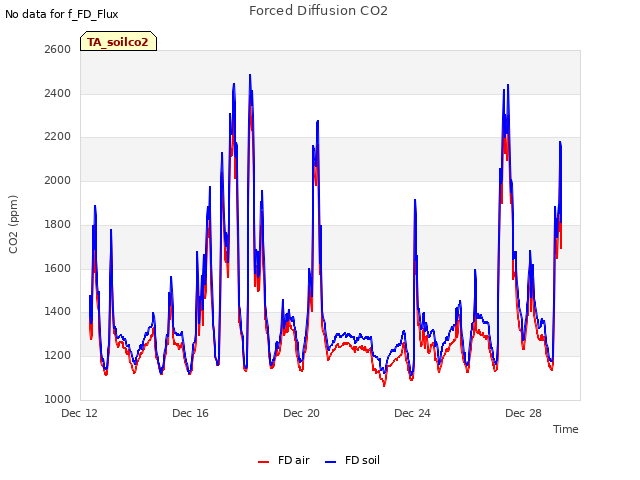

Explore the graph:Forced Diffusion CO2 in a new window

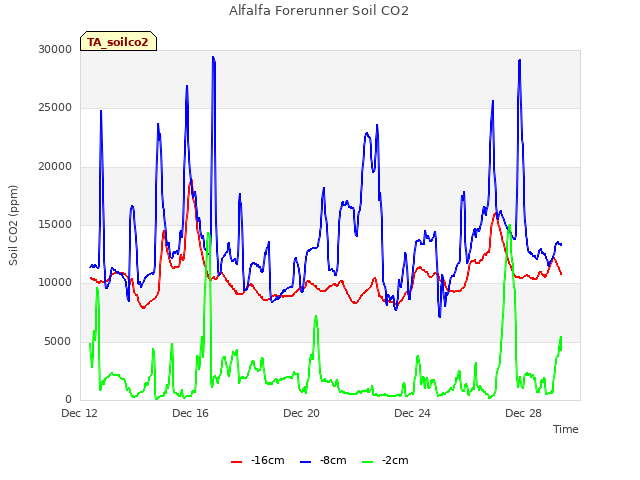

Explore the graph:Alfalfa Forerunner Soil CO2 in a new window

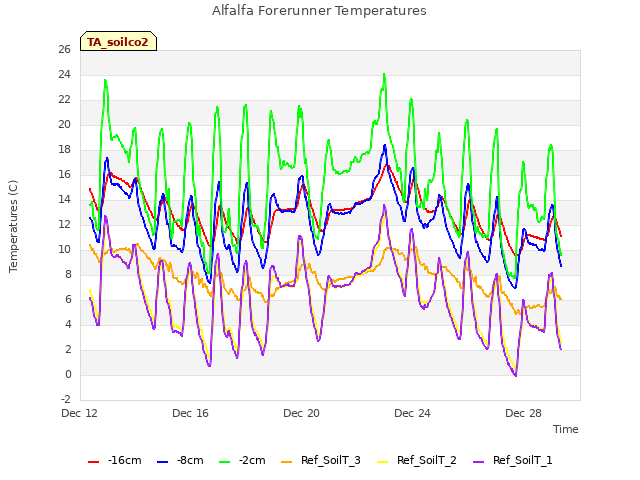

Explore the graph:Alfalfa Forerunner Temperatures in a new window

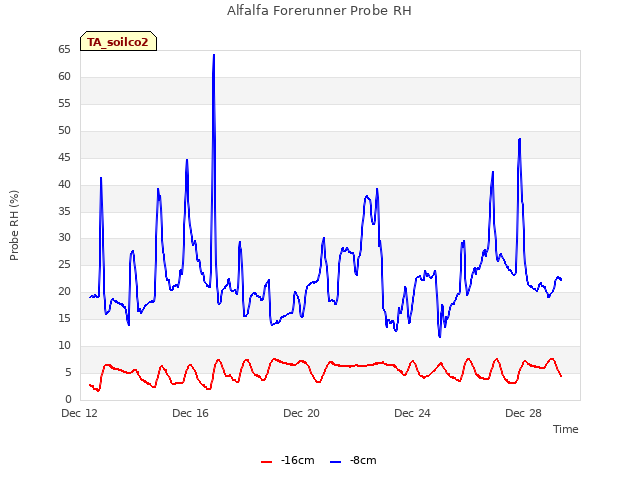

Explore the graph:Alfalfa Forerunner Probe RH in a new window

No data found for TA_arable.
1 TA_cam graphs found

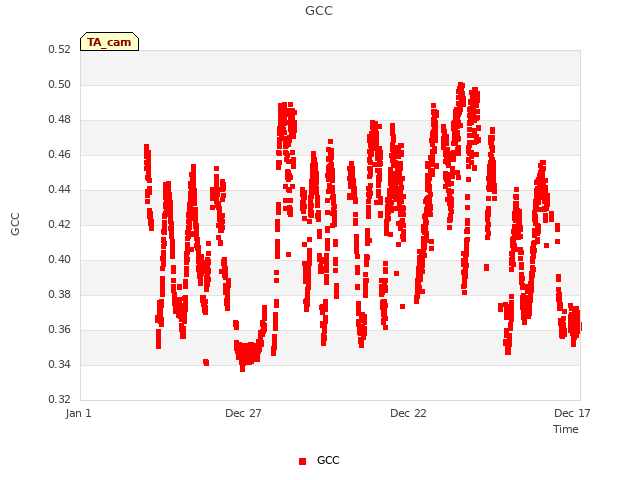

Explore the graph:GCC in a new window
