Field Notes

Sherman Island: 2014-06-17 09:30:00 (DOY 168)
Author: Patty Oikawa
Others: Sara Knox, Kathleen

Summary: Pepperweed looking brown. Standard field work. Heat flux plate 3 reading low.

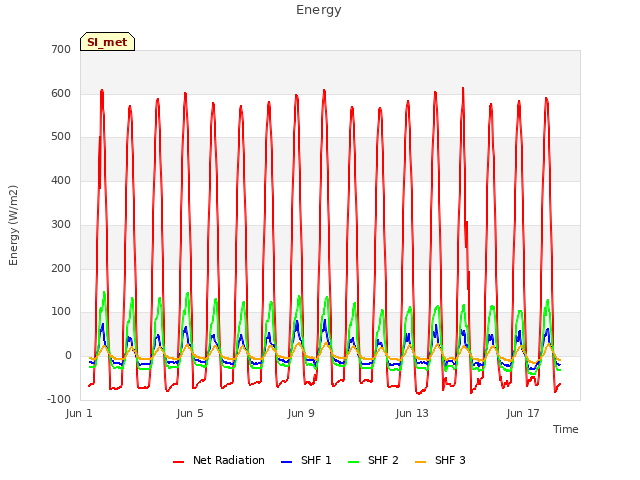

We arrived at 9:30, it was sunny with a nice breeze from the west. Sara checked the tower, collected moisture point, well depth and veg height. Sara noted that soil heat flux 3 is reading low.
Kathleen measured LAI.

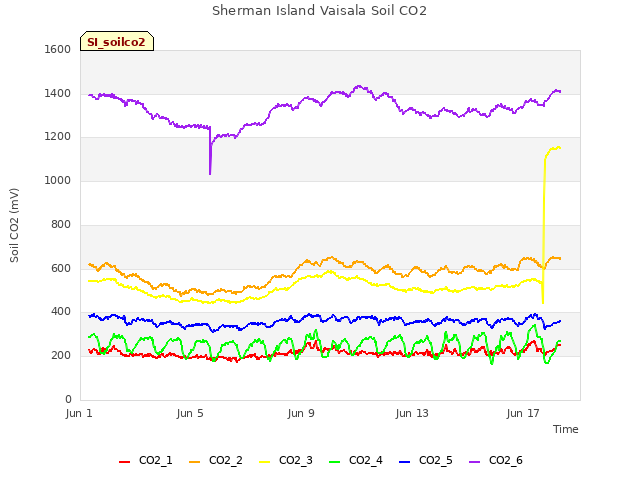

I measured soil respiration and replaced the probe (swapped sn K1340006 for sn G0150037 - both 3%) and box for profile A 16cm depth, which has been reading low lately. I noticed when removing the old box that the cable was loose which may have been the problem. mV values were looking a lot better after the box and probe were switched (from 541mV to 900mV). This new box uses 12V power and outputs in 0-5V. This should be noted in future processing of profile data.

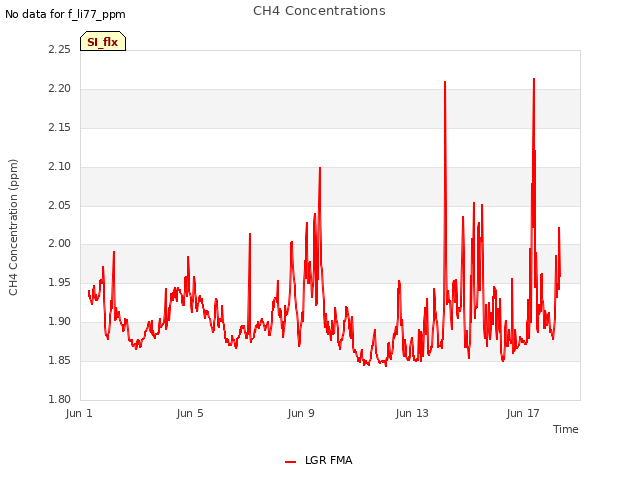

LGR readings: 1.92 ppm, 09:59, 22.20 C, 138.60 Torr, 14.72 us, 10 Hz

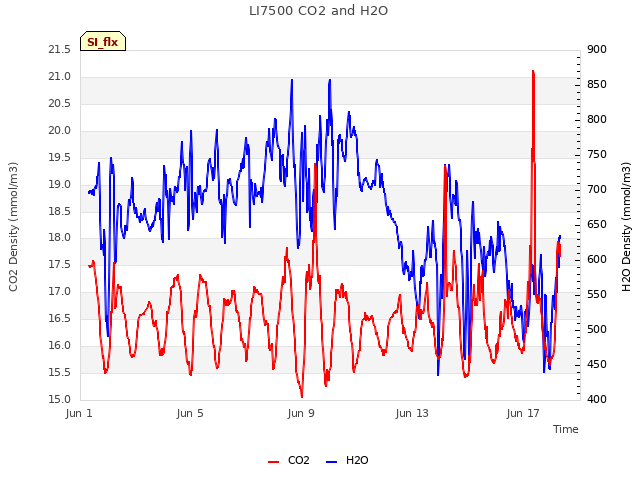

7500 readings:
CO2: 16.3 mmol m-3
H2O: 500 mmol m-3
P = 101.21 kPa
T = 23.34 C
Diag: 249
SOS:344.1

Met ok.

Veg Height (cm): Tape measure from ground to top of plant - pepperweed mostly dried out.Grass dry.
102, 76, 54, 67, 80, 10, 14, 101, 11, 15, 72, 82, 76, 88, 87, 104, 85, 82, 103, 108, avg = 70.9, stdev = 32.82

0 photos found

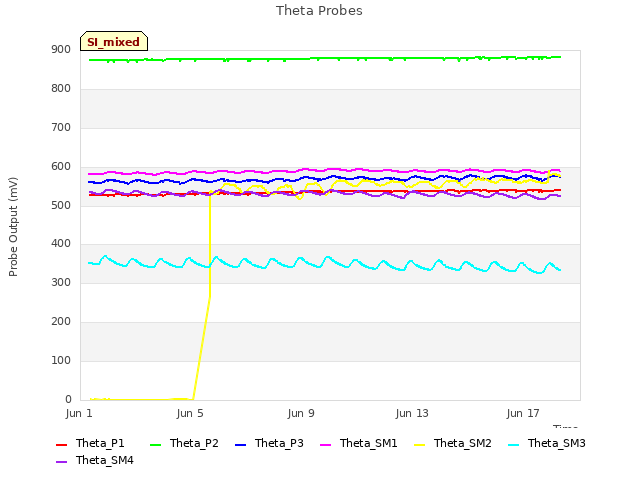

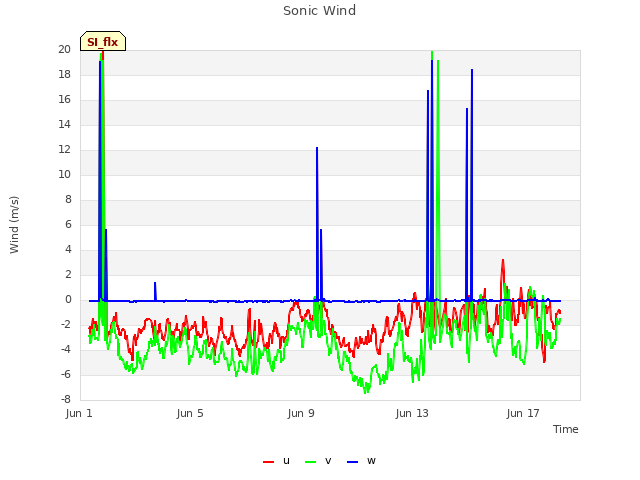

7 sets found

No data found for SI_mp.

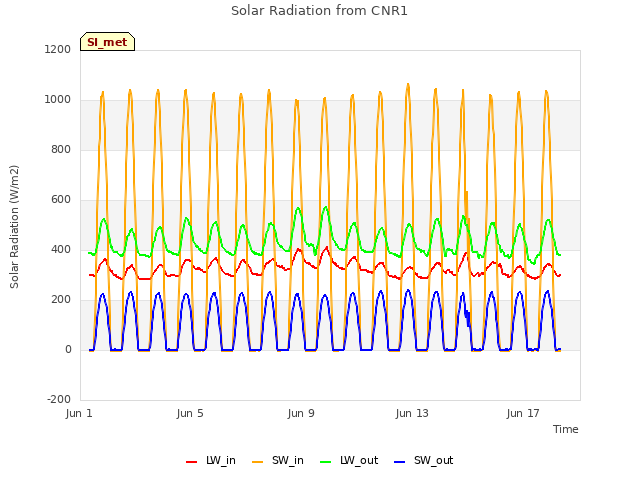

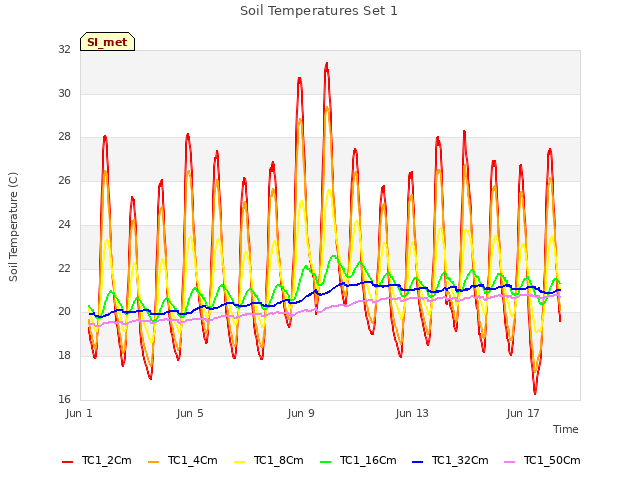

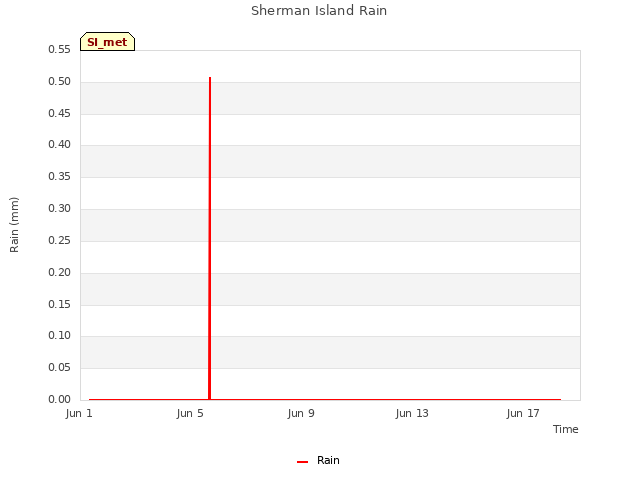

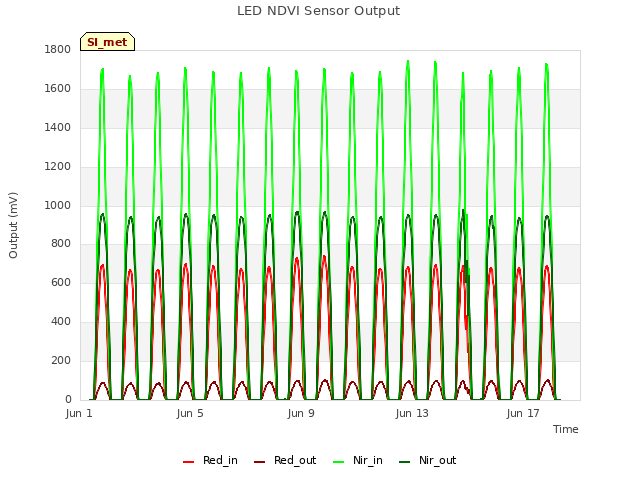

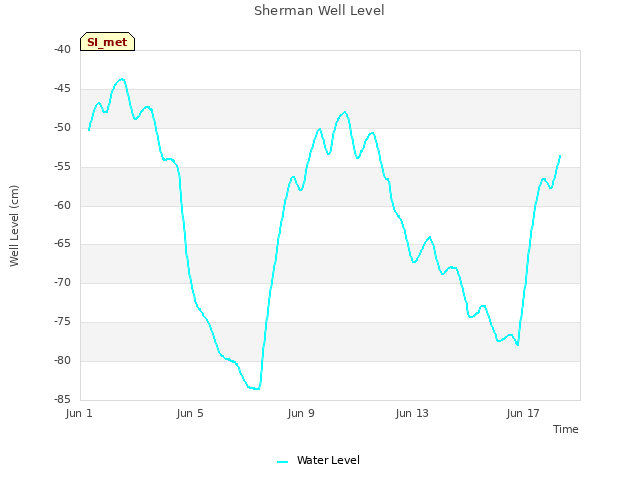

11 SI_met graphs found
