East End: 2014-06-17 12:40:00 (DOY 168)
Author: Patty Oikawa
Others: Sara Knox, Kathleen

Summary: Water was low. Lowered DO probe. Collected water samples. Otherwise all looking OK.

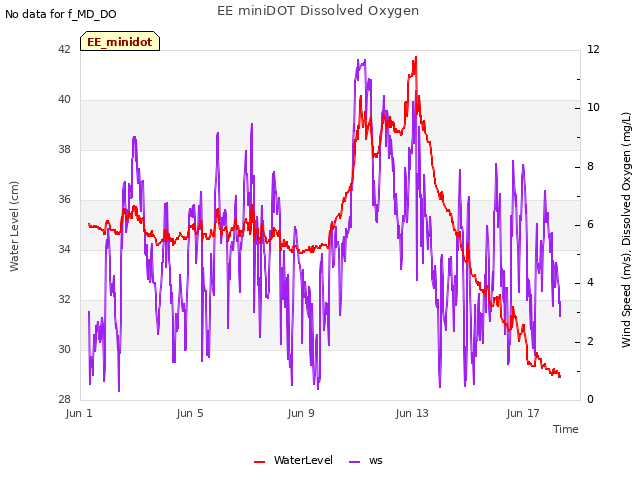

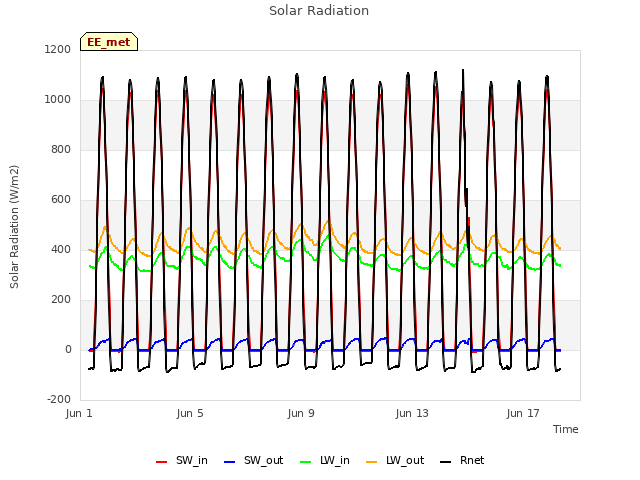

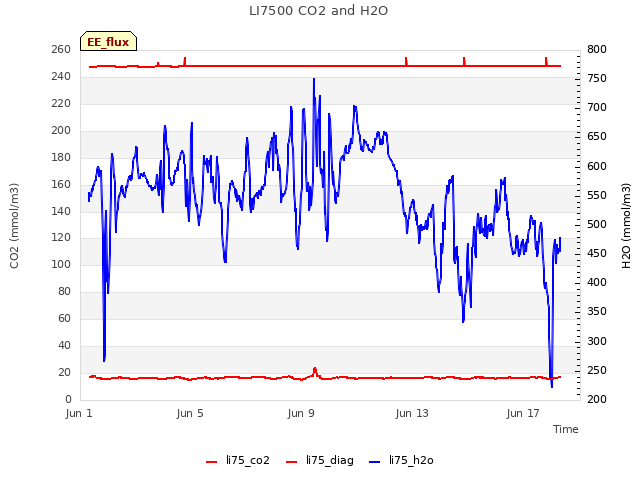

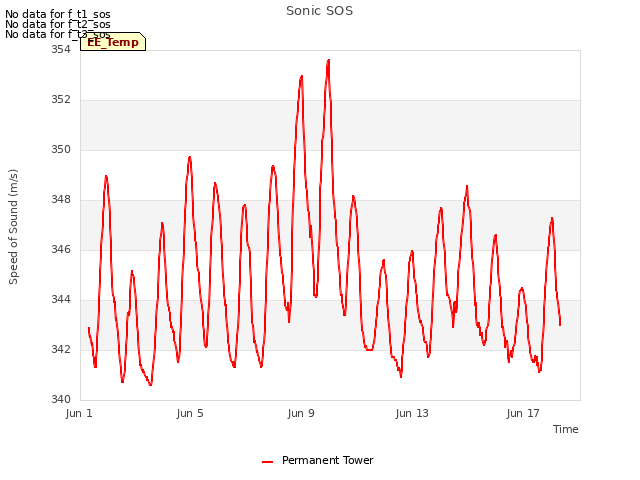

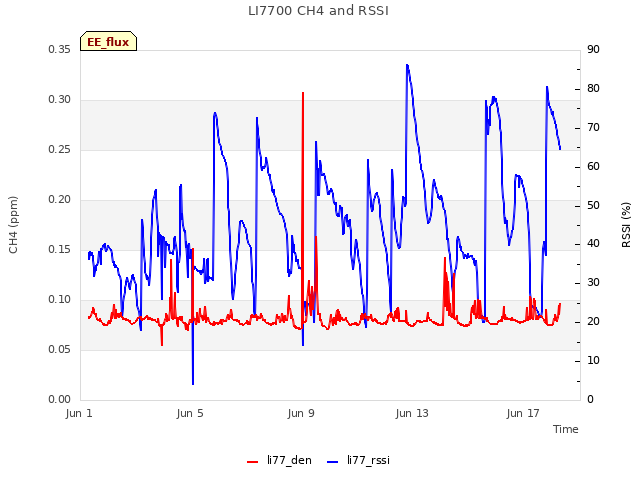

We arrived at 12:40, water was looking low. It was sunny and windy. Kathleen lowered the DO probe as it was almost out of the water. The conductivity probe was also out of the water but we could not lower it since it was already on the sediment. Kathleen collected water samples, I cleaned the radiation sensors and Sara checked the data. 7500 readings: CO2 = 15.94 mmol m-3 (same after cleaning) H2O = 400 mmol m-3 (same after cleaning) p = 101.15 kPa t = 24.01 C Diag: 248 (same after cleaning) Sos: 344 m s-1 7700 readings: CH4: 1.86 ppm RSSI: 36.9% (83% after cleaning) reservoir full. MET looks good.

0 photos found

Graphs display: days

11 sets found

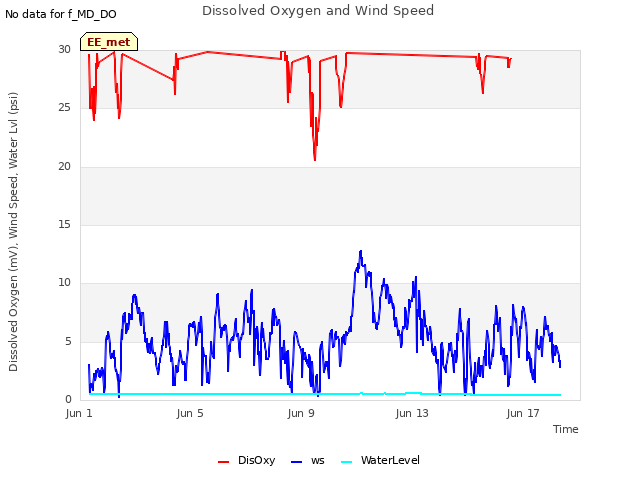

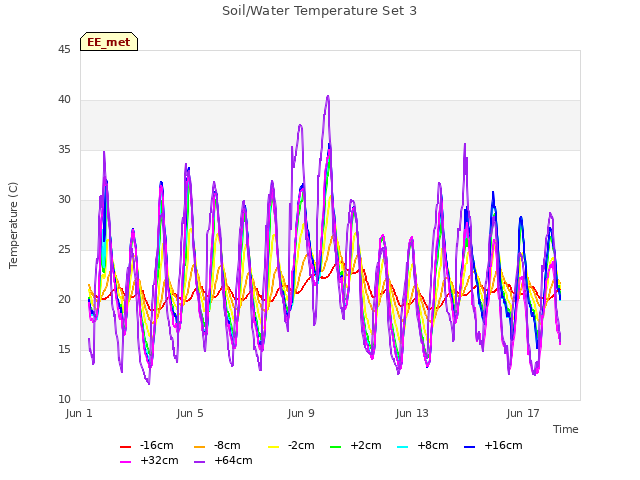

14 EE_met graphs found

Can't check EE_mixed
1 EE_mixed graphs found

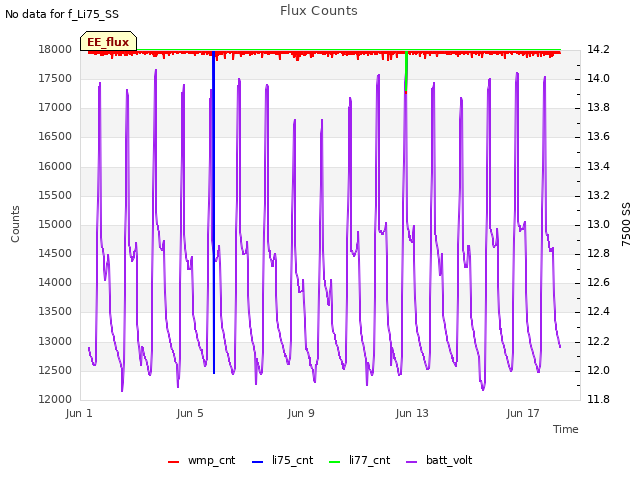

8 EE_flux graphs found

Can't check MBWPEESWGT_mixed
1 EE_cam graphs found

Can't check MBEEWPSWEPGT_cam
Can't check SIMBTWEE_met
Can't check EE_Temp
5 EE_Temp graphs found

Can't check EE_minidot
1 EE_minidot graphs found

Can't check MBSWEEWPBCBA

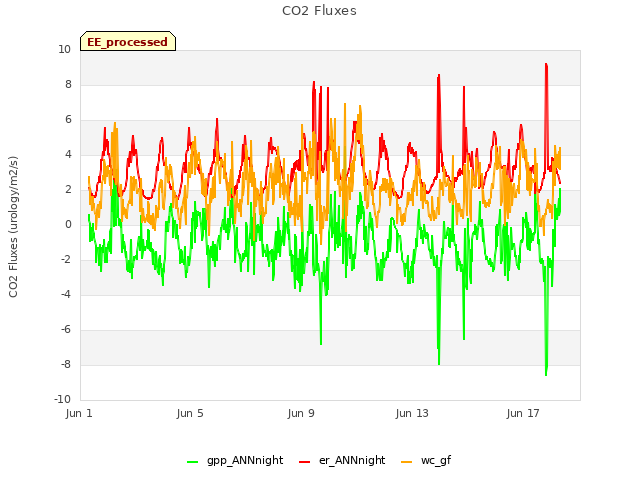

1 EE_processed graphs found
