Field Notes

Sherman Island: 2013-12-06 11:10:00 (DOY 340)
Author: Cove Sturtevant
Others: Sara, Joe

Summary: Power restored. Computer dead. Pulled Theta P2 - rotted tine. Heat flux plate out - reinstalled. Downloaded data. Swapped IRGA.

Sherman
2013-12-06

We arrived about 11:10 PST. It was sunny, cold but warming, and calm. After the recent rains a short green grass layer has sprouted. The energy bill was finally paid and the power restored to the site. The computer was dead on arrival -- we took it back to the lab. All data streams are okay, however. The camera was off due to the power failure.

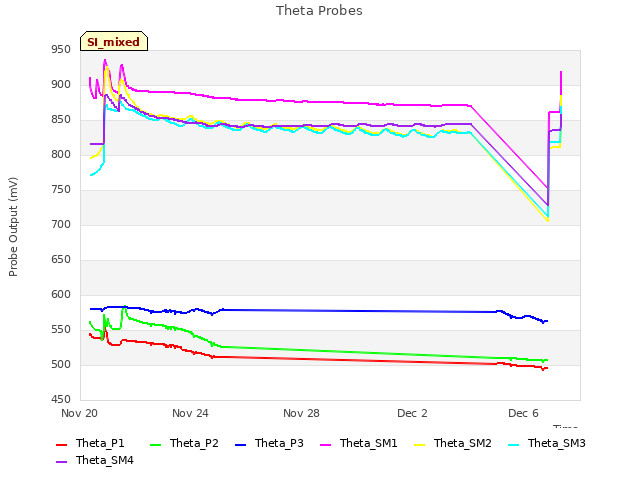

Theta P2 sn 70/020 was reading bad, and after digging it out (33 cm below surface) Joe found that a tine had rotted off in the soil. A heat flux plate was pulled out, reinstalled.

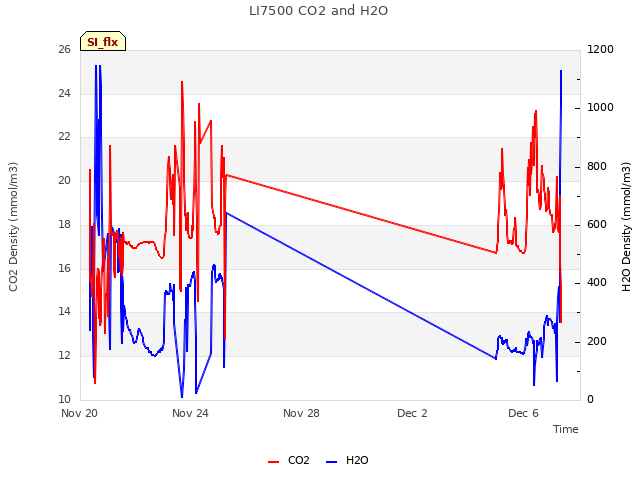

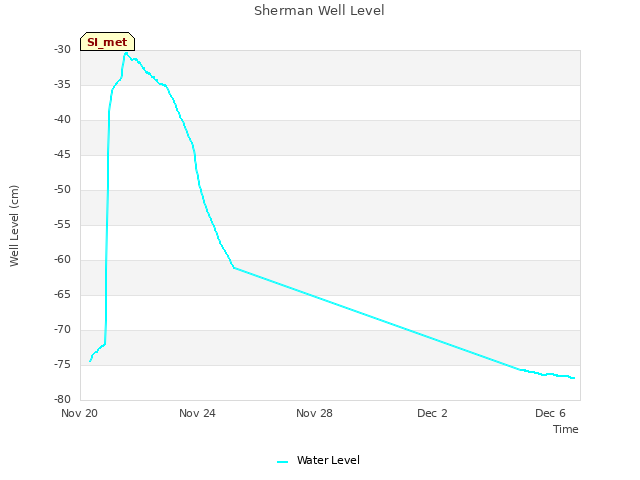

I downloaded data. Sara did well depth, and I think soil CO2 flux, moisture point, and spectral. We swapped the IRGA for a freshly calibrated one (removed sn 1594, installed 0418).

Readings before swap (sn 1594)
CO2: 18.75 mmol m-3 (19.8 after cleaning)
H2O: 302 mmol m-3 (242 after cleaning)
Diag: 248 (247 after cleaning)
P = 102.4 kPa
T = 9.5 C
Sos: 336.8 m s-1

Readings after swap (sn 0418)
CO2: 19.8 mmol m-3
H2O: 260 mmol m-3
Diag: 247
P = 102.4 kPa

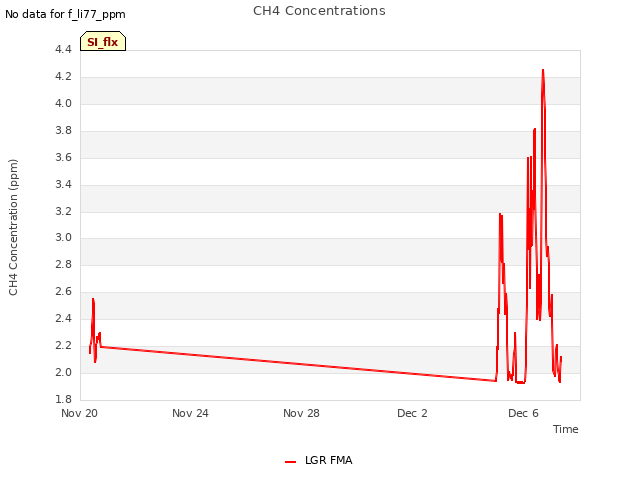

LGR readings: 2.86 ppm, 11:22, 22.02 C, 155.32 Torr (adjusted to 145.9 Torr)

0 photos found

7 sets found

No data found for SI_mp.

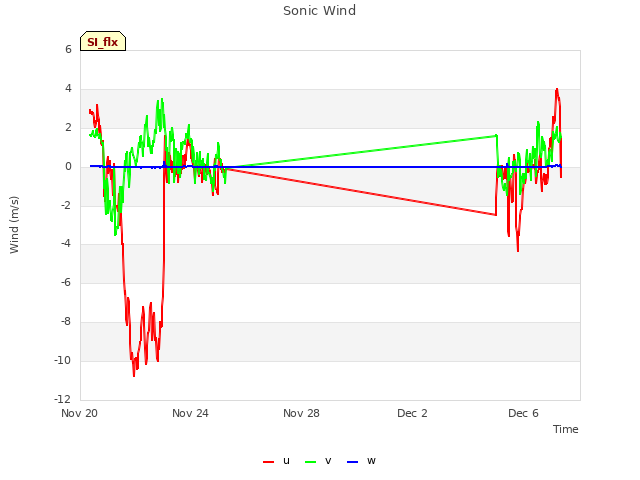

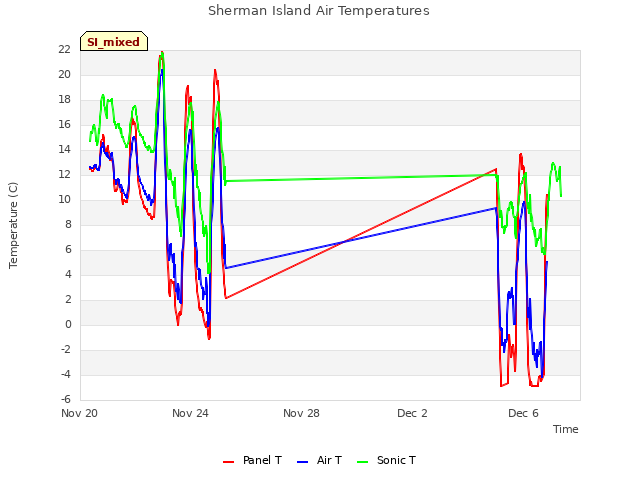

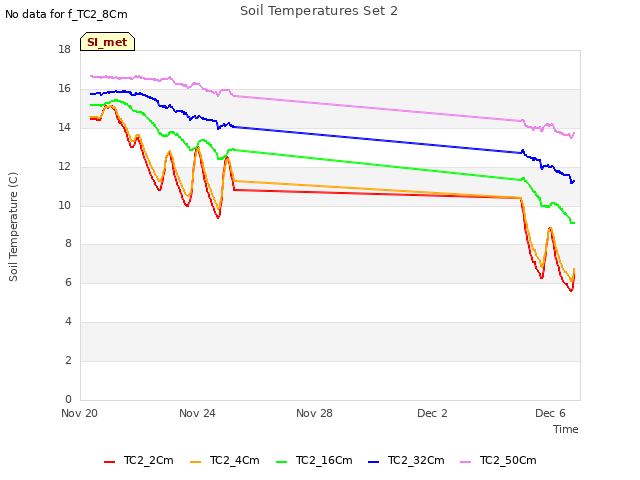

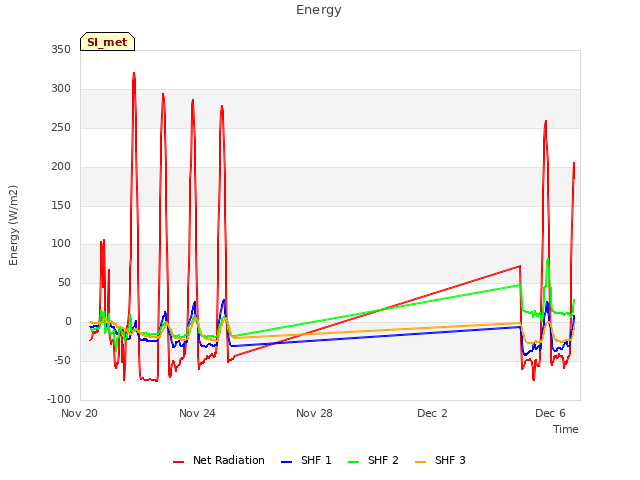

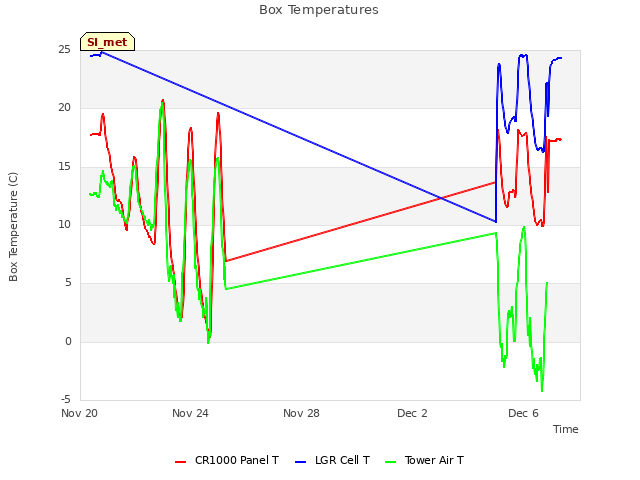

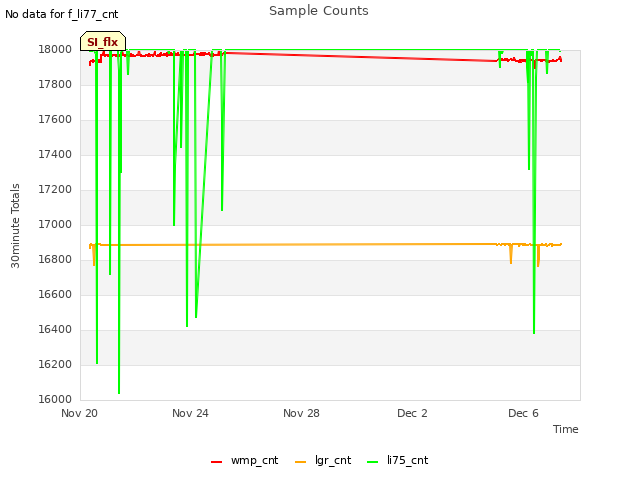

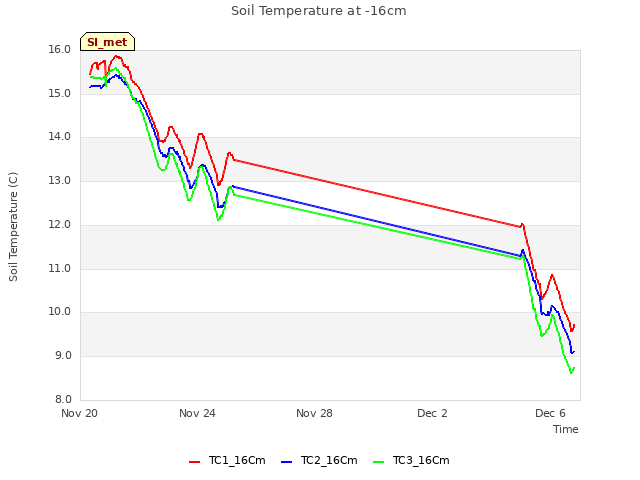

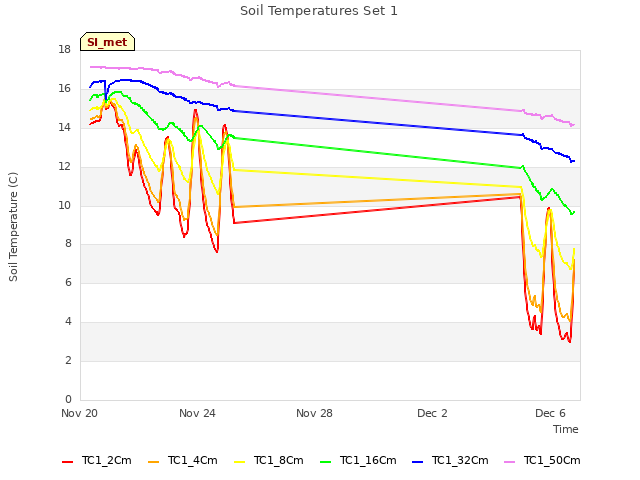

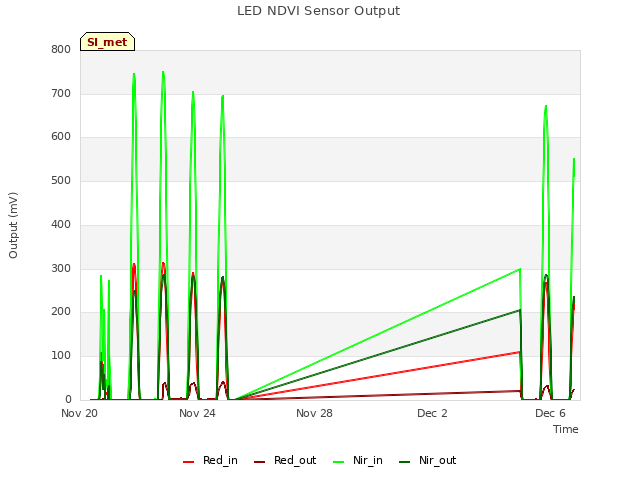

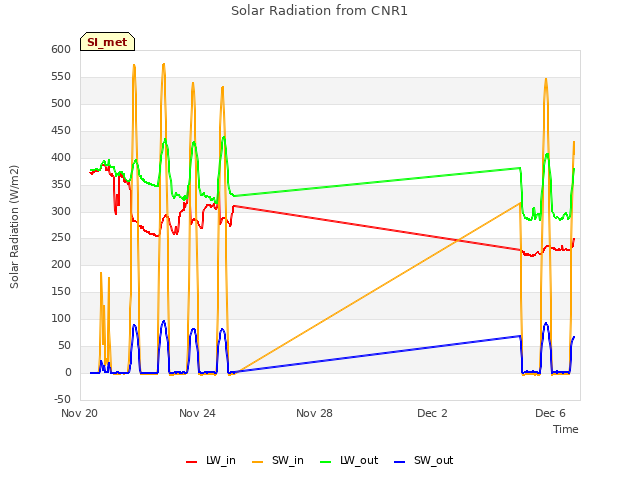

11 SI_met graphs found
