Twitchell Alfalfa: 2013-12-06 10:20:00 (DOY 340)
Author: Cove Sturtevant
Others: Sara, Joe

Summary: Alfalfa dormant. Need to replace LED sensor. Otherwise, good.

Twitchell Alfalfa
2013-12-06

We arrived about 10:20 PST. It was sunny, cold, and calm. The alfalfa is not growing. There were a ton of geese in the adjacent field.

I checked the tower and downloaded data while Sara did spectral and Joe clipped the remaining uncut alfalfa under the radiation boom.

7500 readings:
CO2 = 423 ppm (434 after cleaning)
H2O = 171 mmol m-3 (183 after cleaning)
SS = 70.9% (75.0% after cleaning)
T = 9.2 C
p = 102.3 kPa
sos = 336.0 m s-1

7700 readings:
CH4: 2.75 ppm (same ppm after cleaning)
RSSI: 24% (83% after cleaning)
Reservoir was full with some ice.

Cleaned radiation instruments. Rad measurements good except for LED sensor which we still need to figure out.

MET looked good. No water in the well.

0 photos found

Graphs display:
7 sets found

Can't check TA_met
11 TA_met graphs found

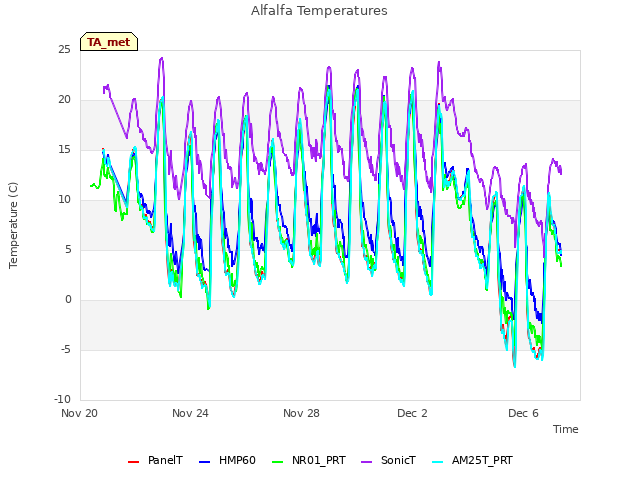

Explore the graph:Alfalfa Temperatures in a new window

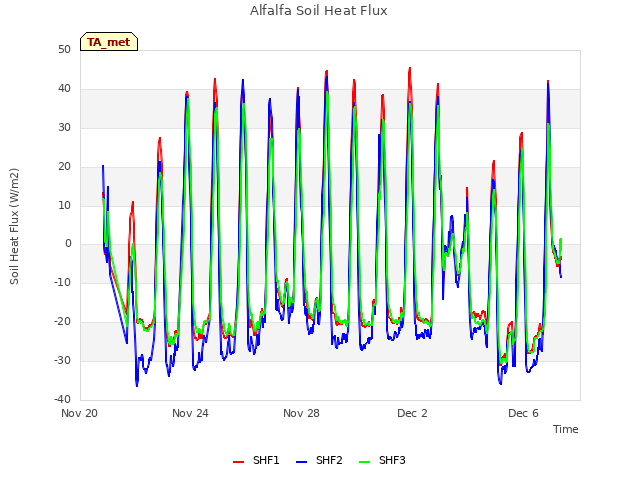

Explore the graph:Alfalfa Soil Heat Flux in a new window

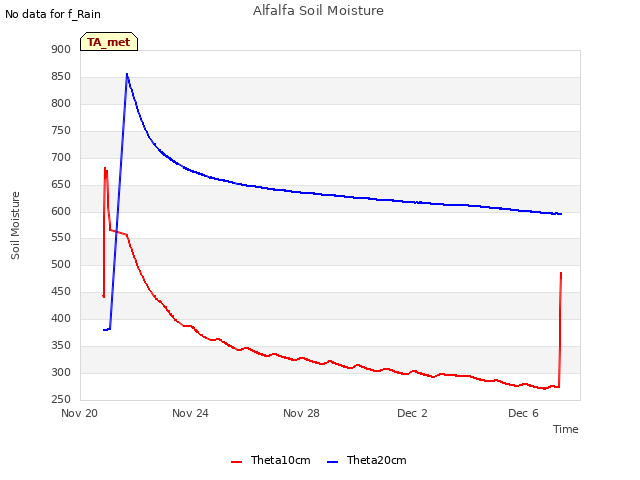

Explore the graph:Alfalfa Soil Moisture in a new window

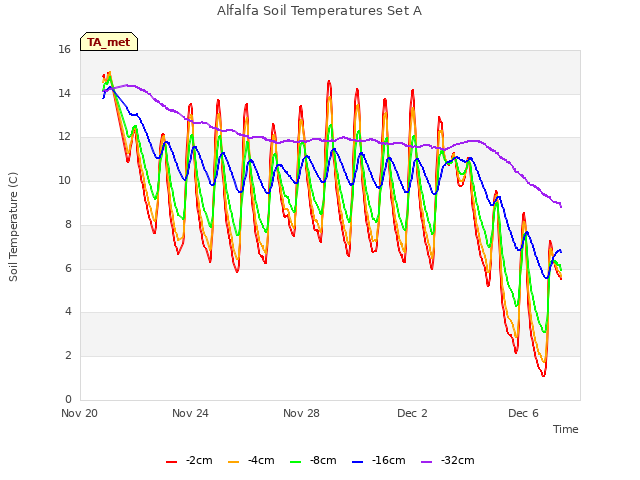

Explore the graph:Alfalfa Soil Temperatures Set A in a new window

Explore the graph:Alfalfa Soil Temperatures Set B in a new window

Explore the graph:Alfalfa Soil Temperatures Set C in a new window

Explore the graph:NDVI Narrow Band Radiation in a new window

Explore the graph:Soil CO2 Flux in a new window

Explore the graph:Relative Humidity and BattV in a new window

Explore the graph:SRS NDVI and PRI in a new window

Explore the graph:PRI Narrow Band Channels in a new window

Can't check TA_rad
3 TA_rad graphs found

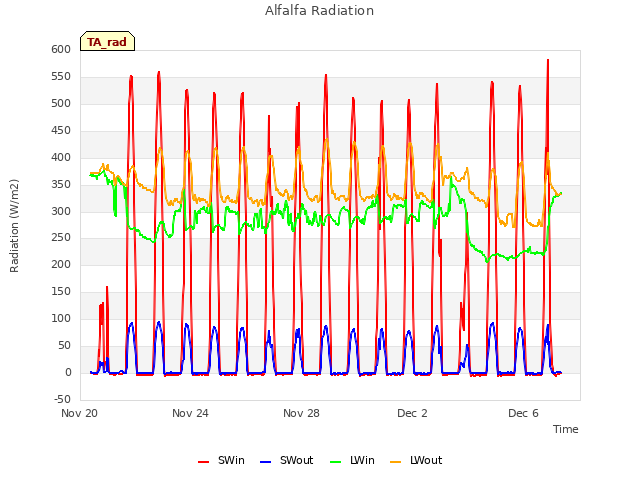

Explore the graph:Alfalfa Radiation in a new window

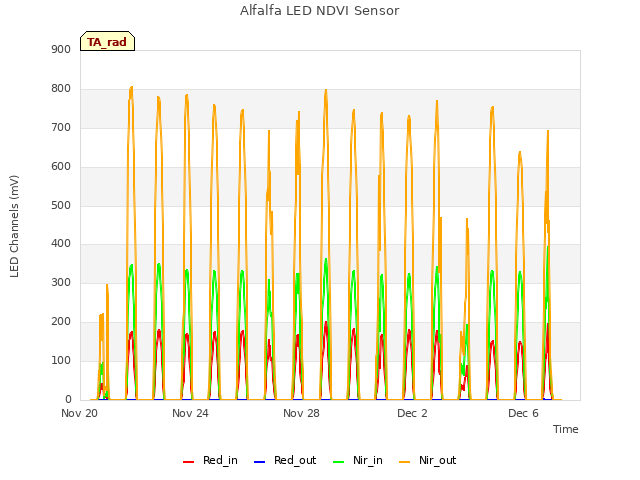

Explore the graph:Alfalfa LED NDVI Sensor in a new window

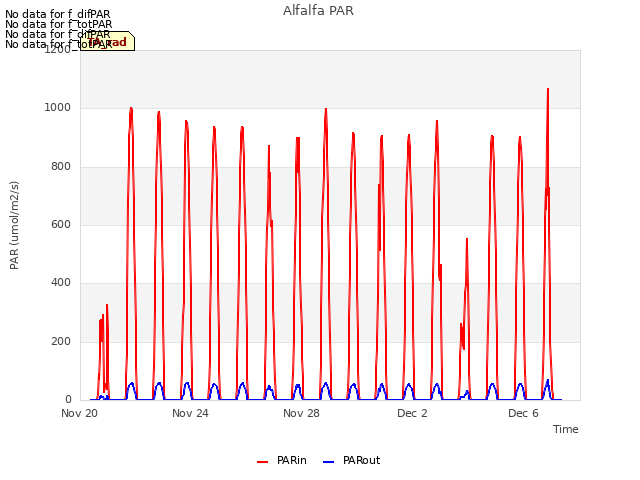

Explore the graph:Alfalfa PAR in a new window

Can't check TA_flux
5 TA_flux graphs found

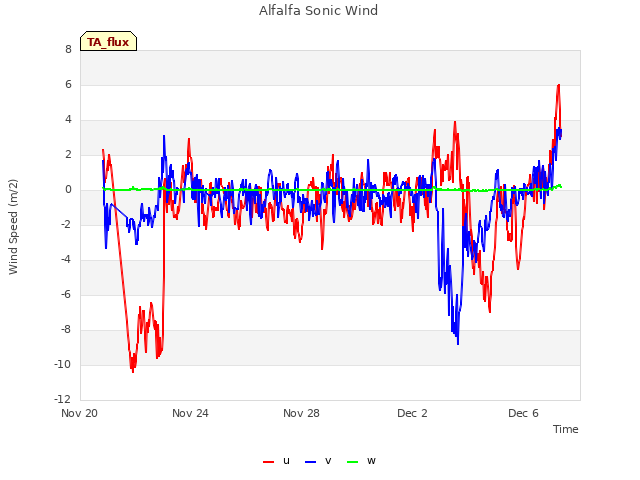

Explore the graph:Alfalfa Sonic Wind in a new window

Explore the graph:Alfalfa CO2 and H2O in a new window

Explore the graph:Alfalfa Methane in a new window

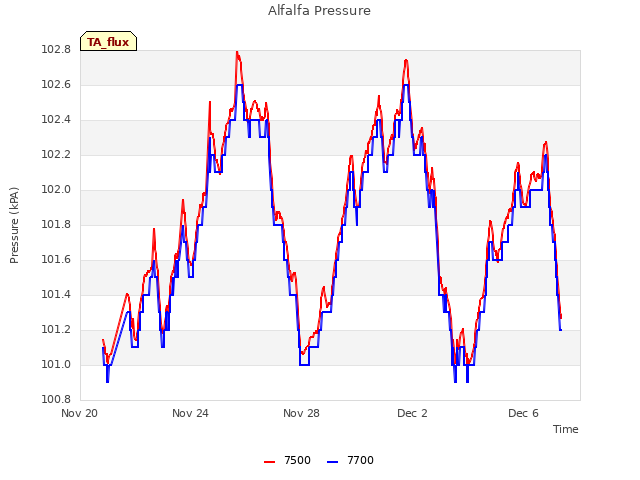

Explore the graph:Alfalfa Pressure in a new window

Explore the graph:Alfalfa Flux Data Counts in a new window

Can't check TA_soilco2
7 TA_soilco2 graphs found

Explore the graph:Set A Soil CO2 in a new window

Explore the graph:Set B Soil CO2 in a new window

Explore the graph:Soil CO2 Soil Moisture in a new window

Explore the graph:Forced Diffusion CO2 in a new window

Explore the graph:Alfalfa Forerunner Soil CO2 in a new window

Explore the graph:Alfalfa Forerunner Temperatures in a new window

Explore the graph:Alfalfa Forerunner Probe RH in a new window

No data found for TA_arable.
1 TA_cam graphs found

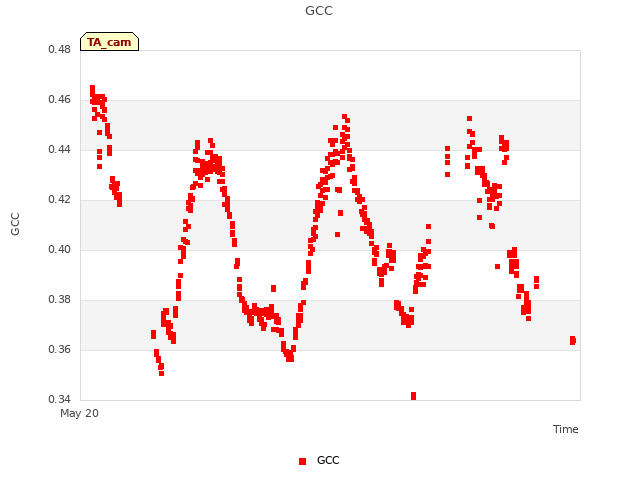

Explore the graph:GCC in a new window

Can't check TATWBABCSB_cam
