Sherman Island: 2012-11-08 09:15:00 (DOY 313)
Author: Cove Sturtevant
Others: Sara

Summary: Site is bare. All good.

Sherman
2012-11-08

We arrived about 09:15 PST. The weather was cool and breezy, about 14°C. The site has become very bare. The pepperweed plants are wispy husks of former bushy jubilance. There is, however, a new albeit sparse mat of short green grass. Joe’s electric fence around the power pole is performing grandly.

I checked the tower, cleaned the instruments, and downloaded the data and autocam pics. Sara did soil respiration and spectral. No LAI since the only living vegetation was about 3 cm tall.

LGR readings: 08:16, 23.62 °C, 142.0 Torr (not adjusted), 13.86 us, 10 Hz, 1.88 ppm

7500 readings:
CO2: 16.45 mmol m-3
H2O: 405 mmol m-3
P: 101.48 kPa
diag: 248 (247 after cleaning spider webs out of the path)

MET and SoilCO2 data streams looked good.

0 photos found

Graphs display:
7 sets found

No data found for SI_mp.
11 SI_met graphs found

Explore the graph:Solar Radiation in a new window

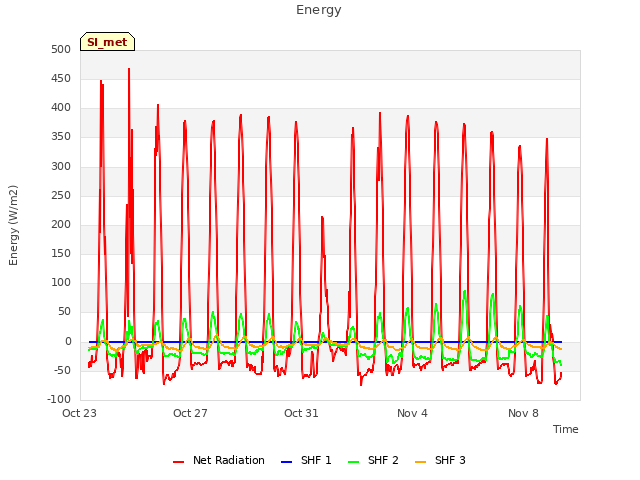

Explore the graph:Energy in a new window

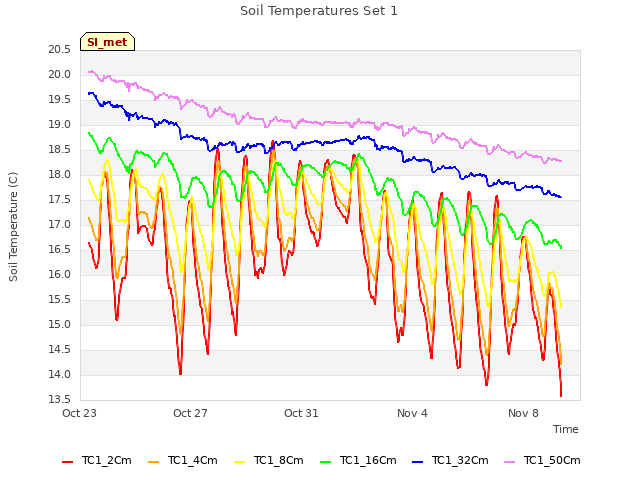

Explore the graph:Soil Temperatures Set 1 in a new window

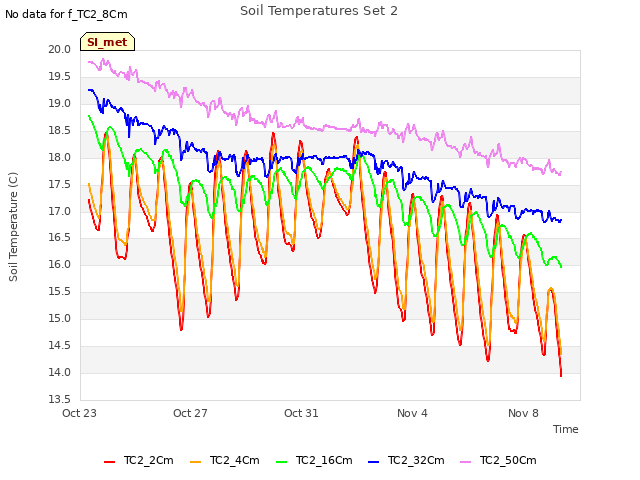

Explore the graph:Soil Temperatures Set 2 in a new window

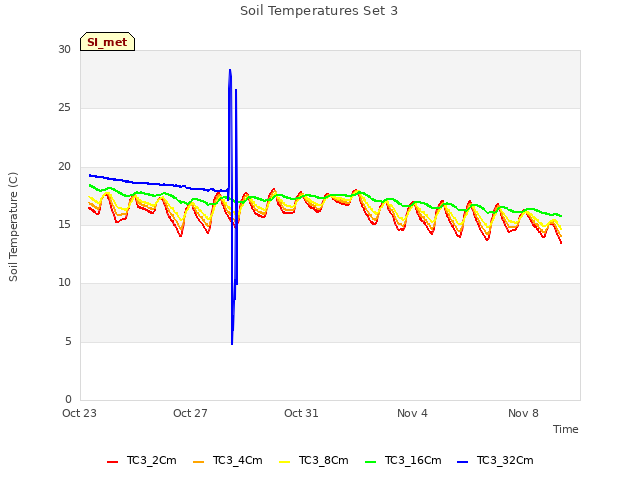

Explore the graph:Soil Temperatures Set 3 in a new window

Explore the graph:Soil Temperature at -16cm in a new window

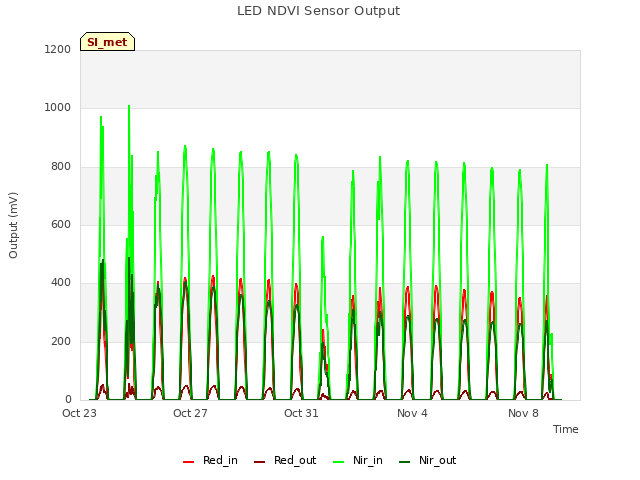

Explore the graph:LED NDVI Sensor Output in a new window

Explore the graph:Solar Radiation from CNR1 in a new window

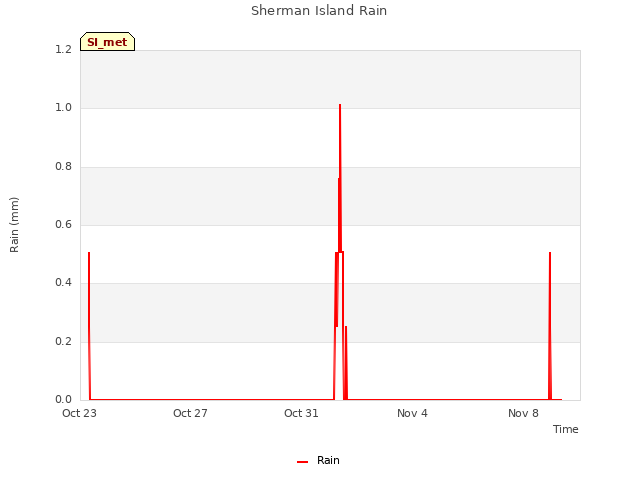

Explore the graph:Sherman Island Rain in a new window

Explore the graph:Sherman Well Level in a new window

Explore the graph:Box Temperatures in a new window

Can't check SI_mixed
2 SI_mixed graphs found

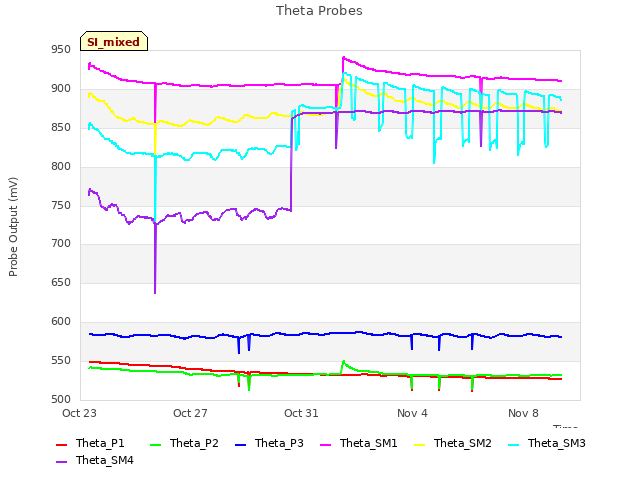

Explore the graph:Theta Probes in a new window

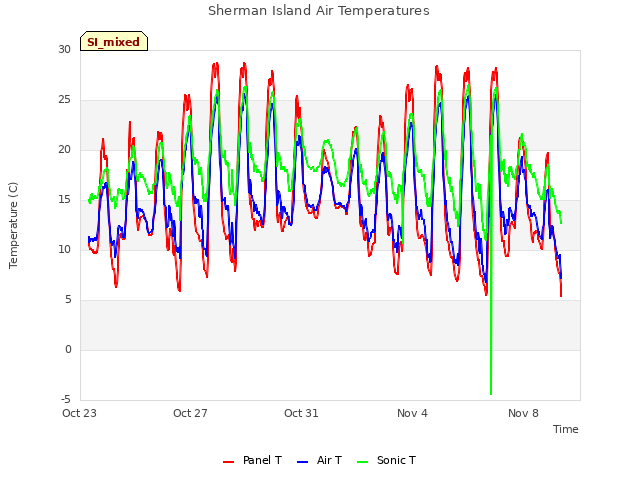

Explore the graph:Sherman Island Air Temperatures in a new window

4 SI_flx graphs found

Explore the graph:Sonic Wind in a new window

Explore the graph:CH4 Concentrations in a new window

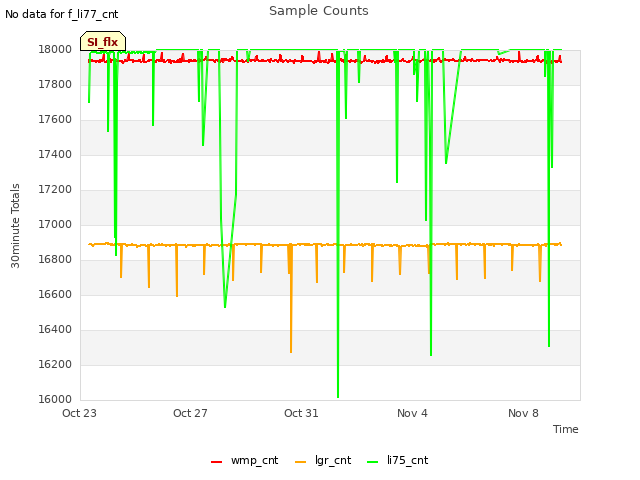

Explore the graph:Sample Counts in a new window

Explore the graph:LI7500 CO2 and H2O in a new window

3 SI_soilco2 graphs found

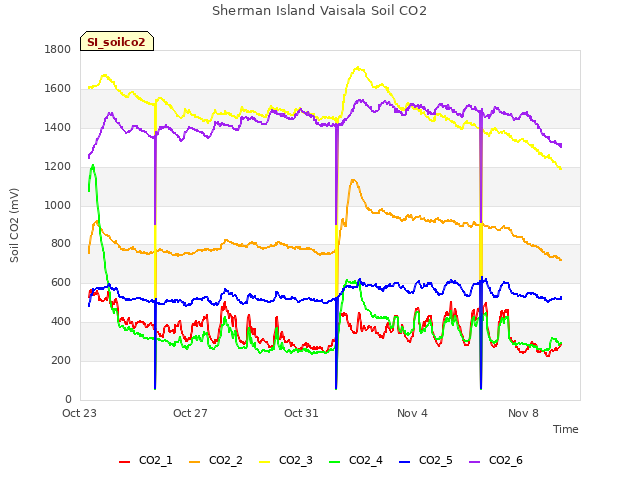

Explore the graph:Sherman Island Vaisala Soil CO2 in a new window

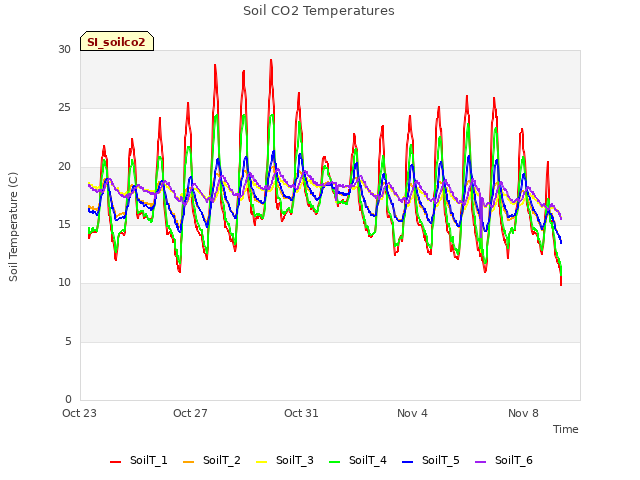

Explore the graph:Soil CO2 Temperatures in a new window

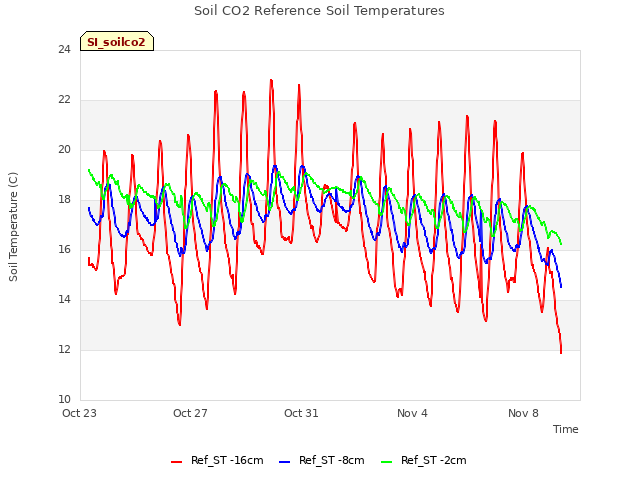

Explore the graph:Soil CO2 Reference Soil Temperatures in a new window

Can't check TWSI_mixed
Can't check SIMBTWEE_met
