Mayberry: 2012-05-17 09:00:00 (DOY 138)
Author: Joe Verfaillie
Others: Jaclyn, Emily G
Summary: Moved portable tower, checked main tower.
| Mayberry

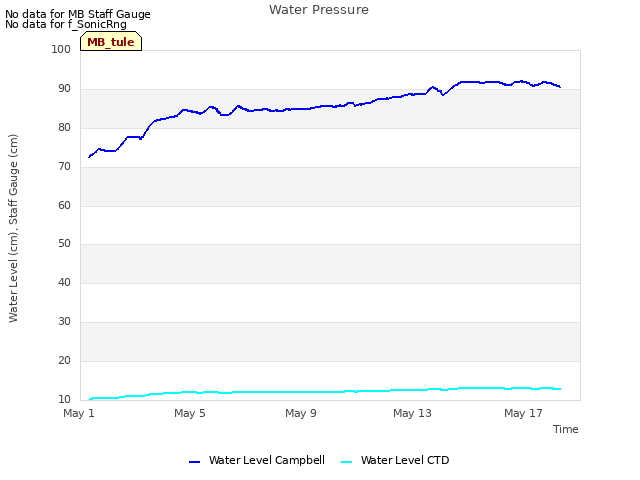

2012-05-17 I arrived about 9am with Jaclyn and Emily G. It was mostly sunny and mild with a gusty breeze from the west. The scattered pepper weed is blooming. The wetland plants continue to grow. The water level in our check is up another 8-10 cm making the total rise about 16cm. Bryan Brock said he may have added a 2x6 to the outlet. The portable tower was running and the battery voltage was about 12.2V, the panel (facing west) was give about 2A and the load was 1.7A. The 7700’s RSSI was about 40. We moved the truck to a spot just northwest of the center of the wet land. After the move the RSSI was about 20 and after cleaning the mirrors it was about 50. The wash reservoir only took a little water. Maybe I can do a better job cleaning the mirrors next time. We swapped the USB memory. We checked on things at the permanent tower. The RSSI there was about 20. After cleaning it was about 90. The wash reservoir was almost full. Jaclyn cleaned the radiation sensors and the DO sensors. Emily collect water samples. |
9 photos found
Sonic heading at the main tower
Moving the portable tower to a spot just northwest of the center of the wet land.
Sonic heading at the portable tower location #1
Sonic heading at the portable tower location #2
Footprint at the portable tower location #2
Portable tower location #2
Servicing the tule tower
Meadow Lark on Li7700
Joe on Site
11 sets found

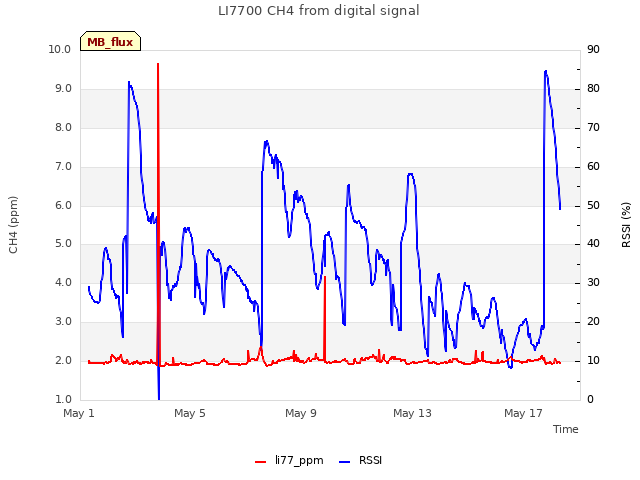

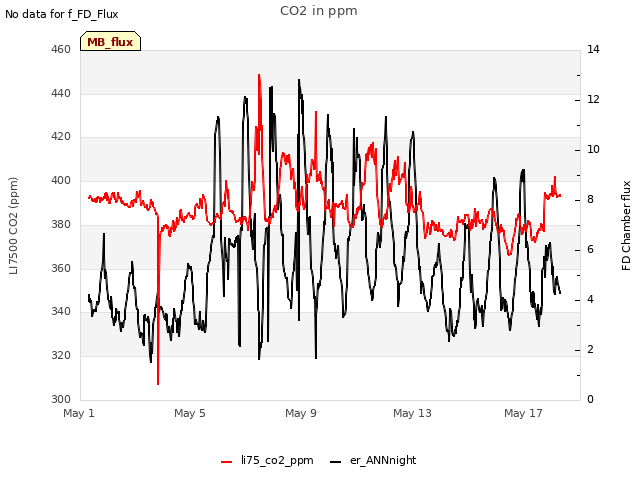

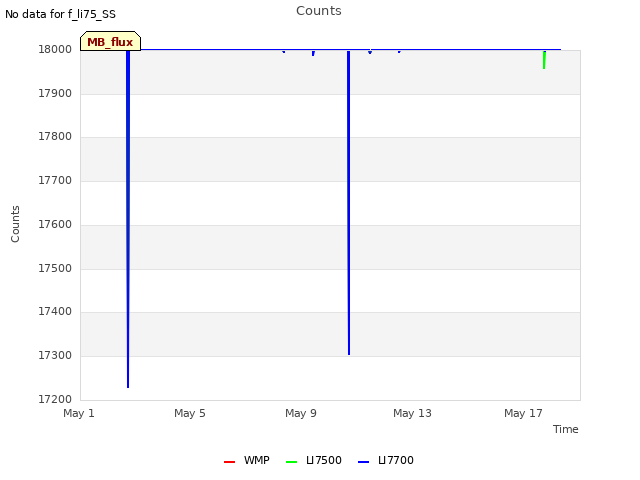

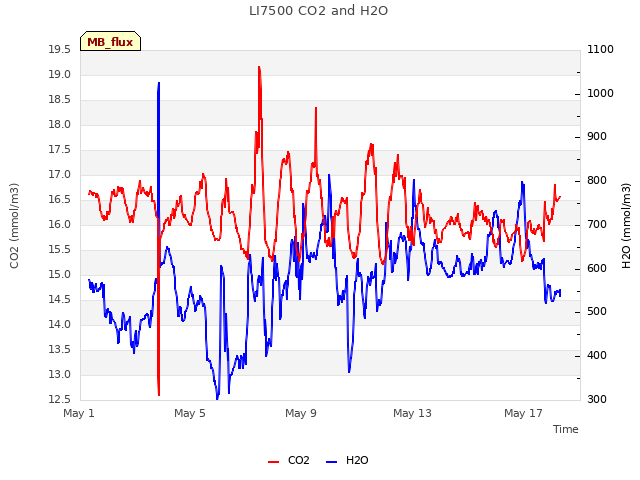

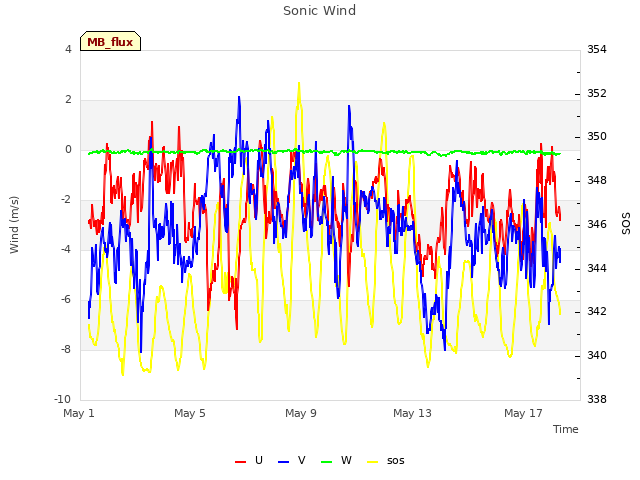

7 MB_flux graphs found
No data found for MB_met.

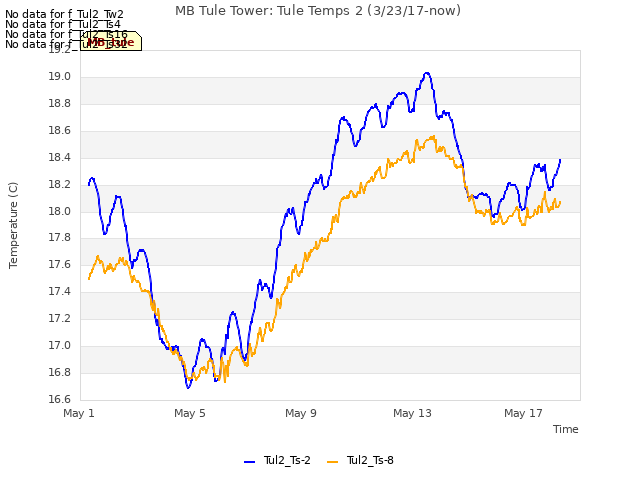

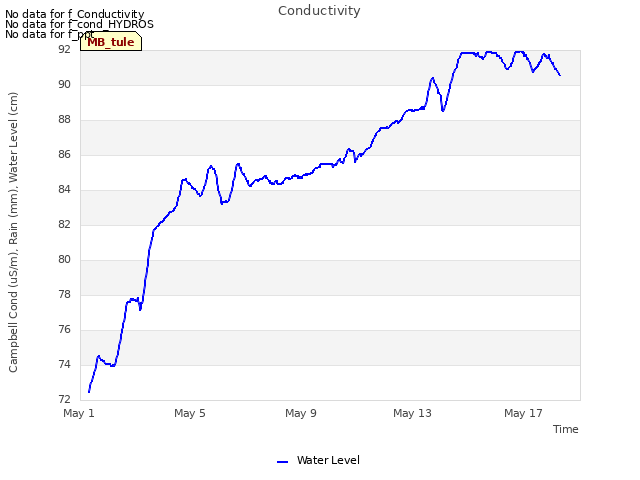

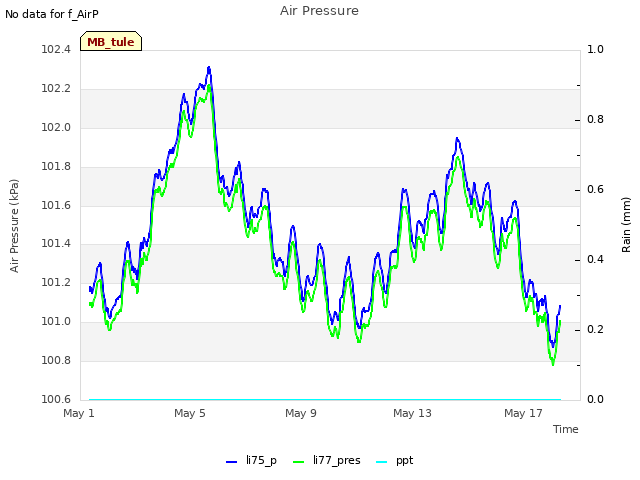

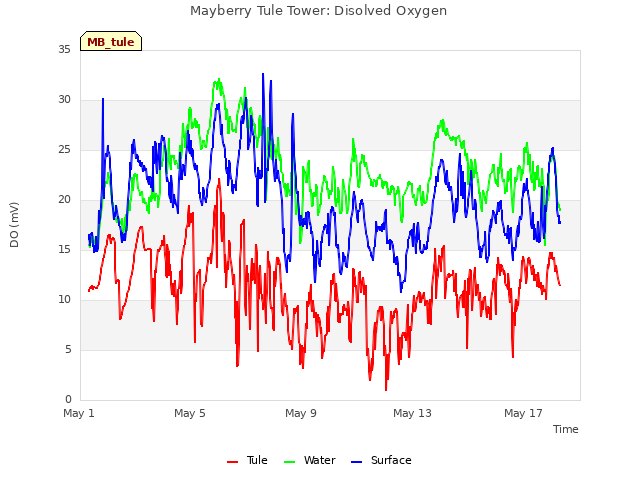

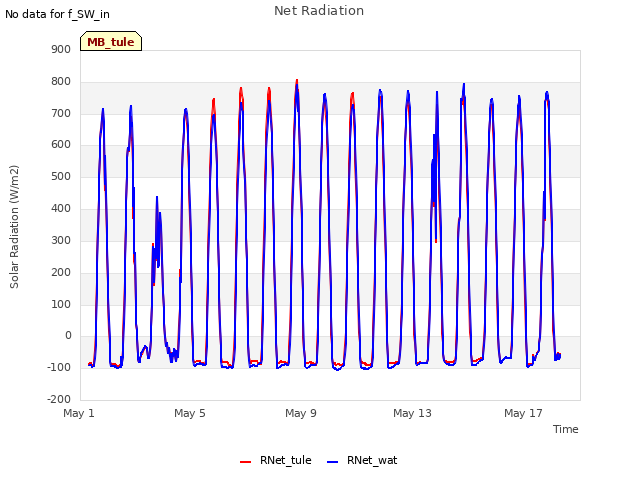

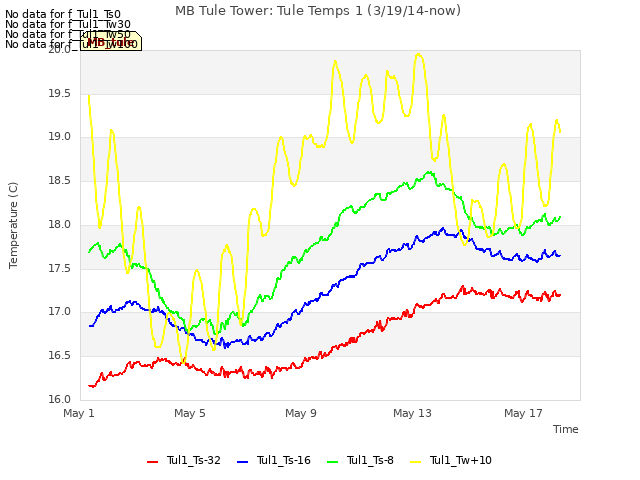

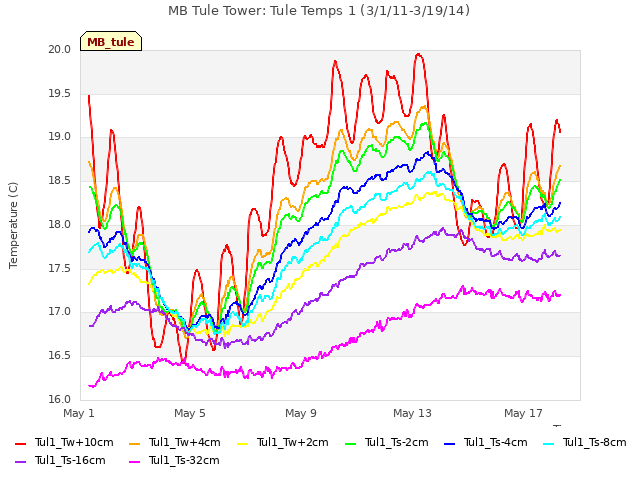

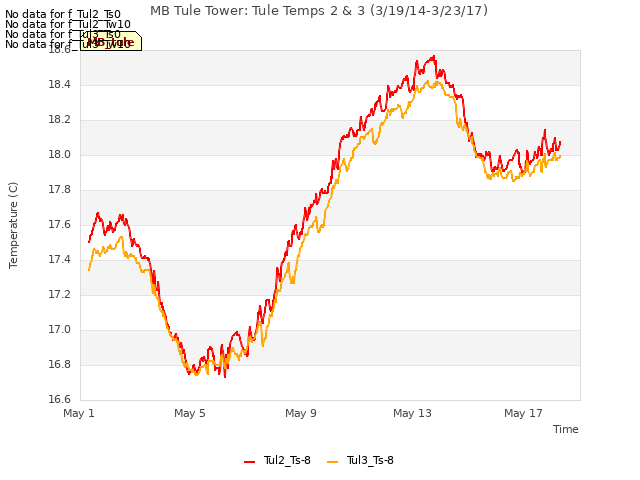

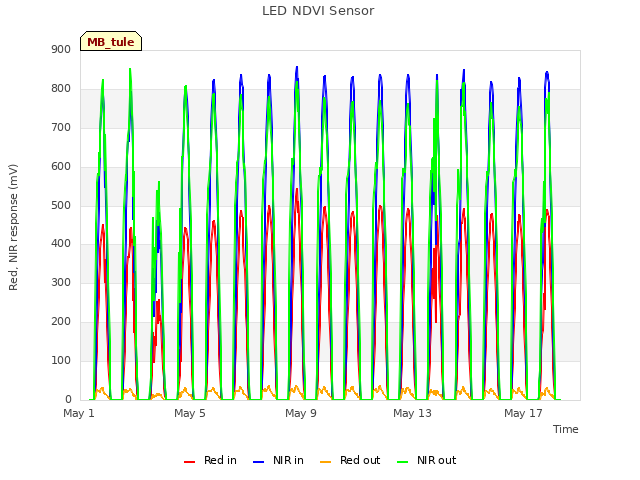

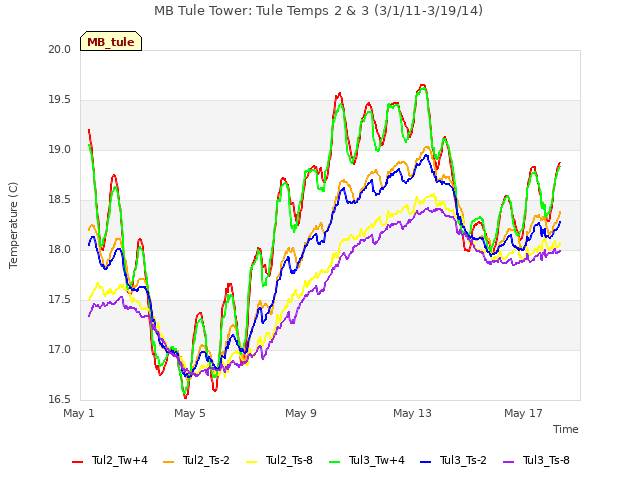

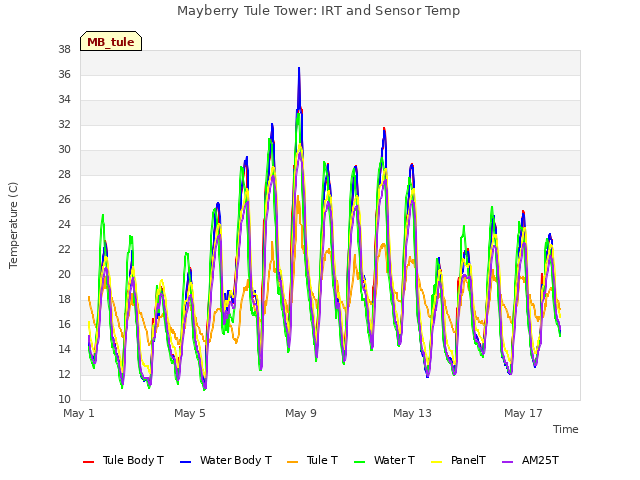

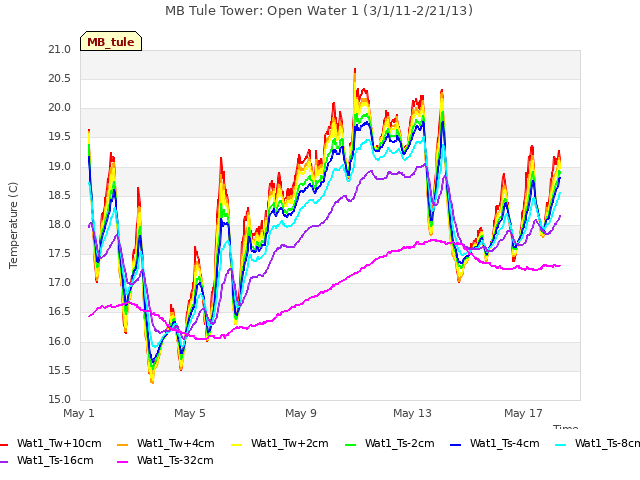

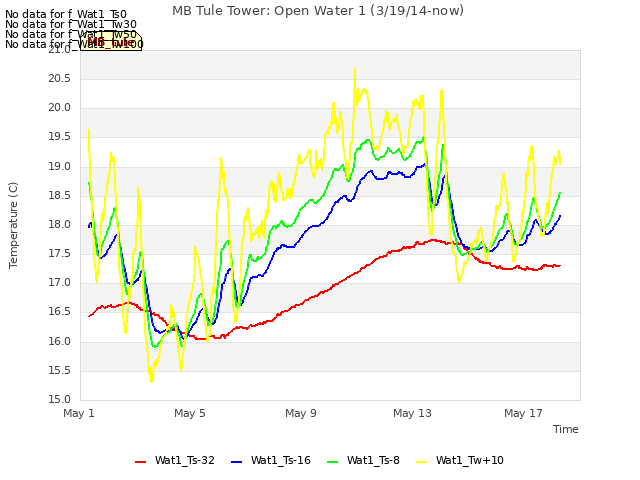

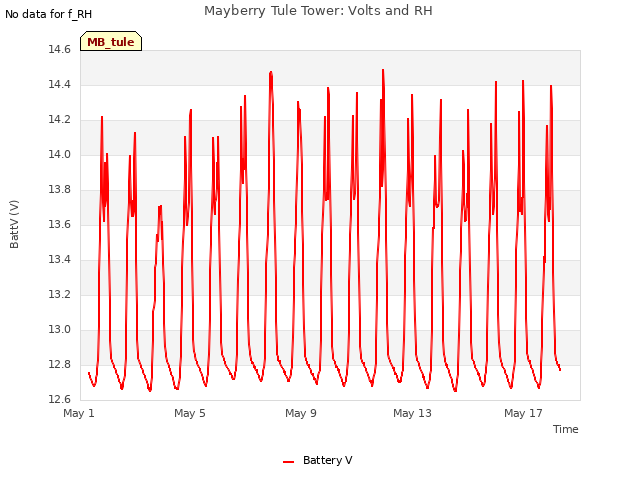

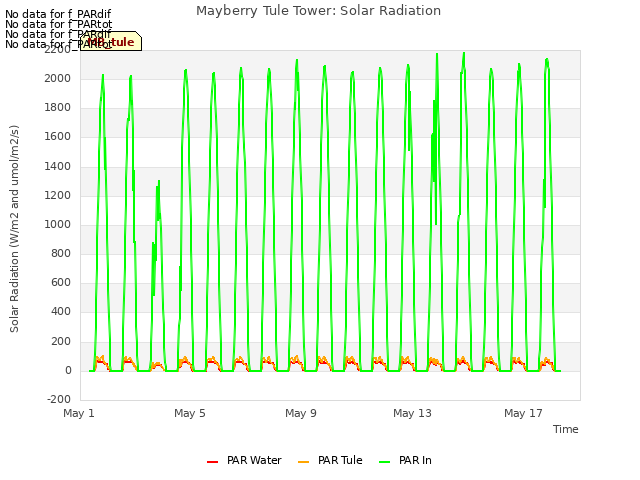

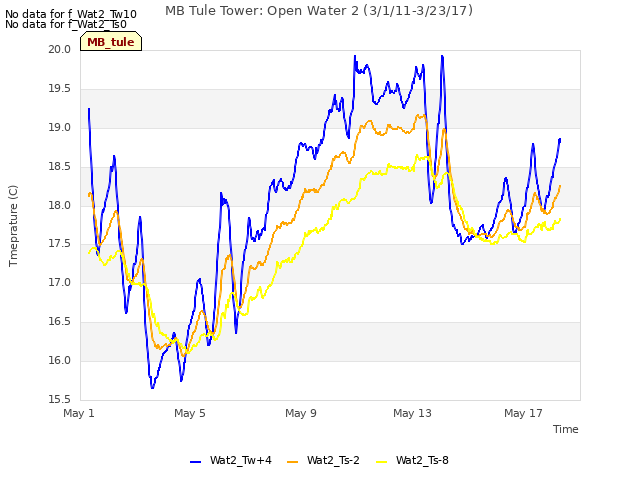

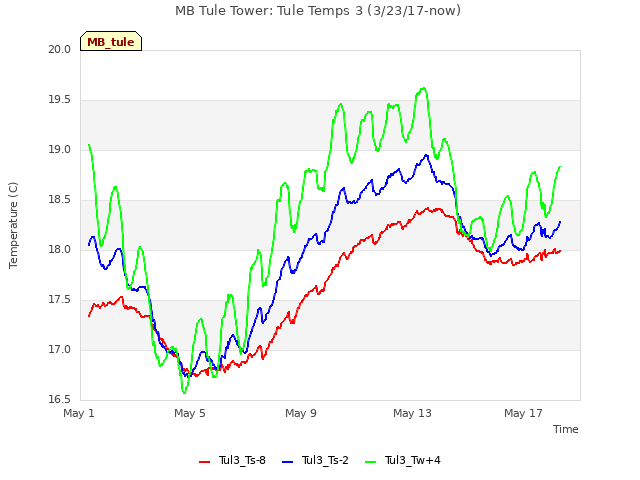

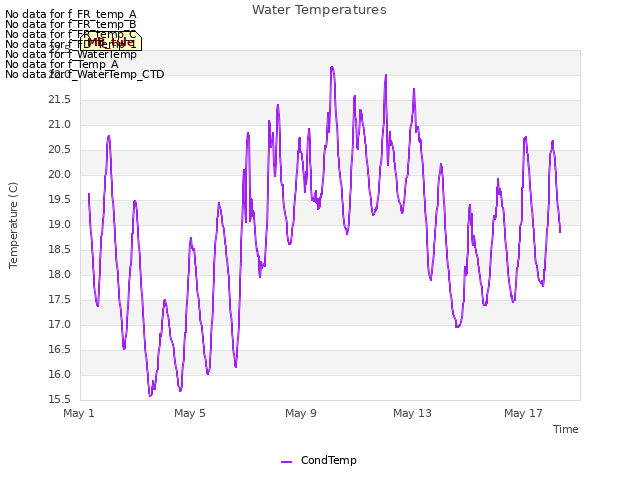

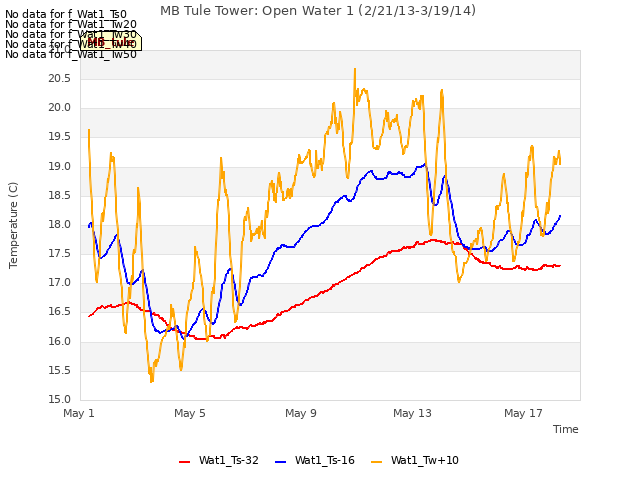

27 MB_tule graphs found
Can't check MBWPEESWGT_mixed

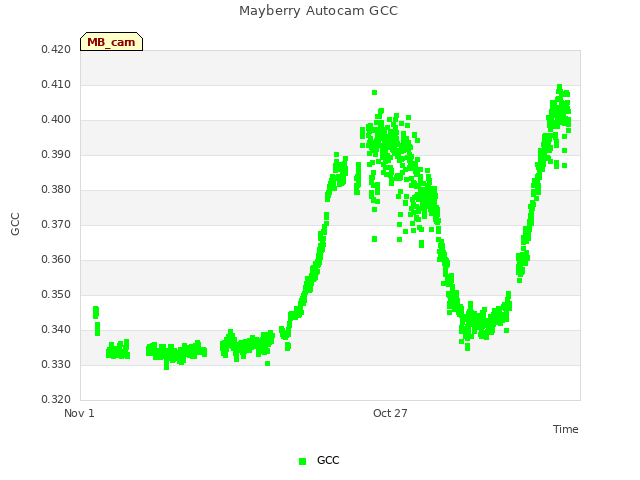

1 MB_cam graphs found
Can't check MBEEWPSWEPGT_cam
Can't check SIMBTWEE_met
No data found for MB_minidot.
Can't check MBSWEEWPBCBA

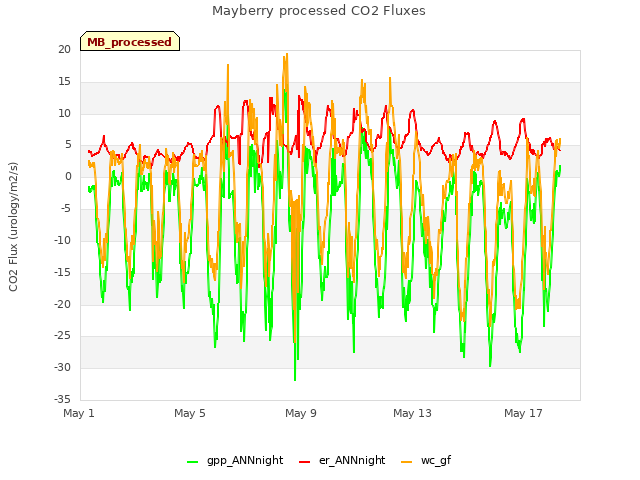

1 MB_processed graphs found
Can't check MB_fd
1 MB_fd graphs found
