Field Notes
<--2010-12-09 11:00:00 | 2011-02-22 00:00:00-->Other sites visited today: Mayberry | Tonzi
Phenocam link: Searching...
Vaira: 2011-02-03 11:15:00 (DOY 34)
Author: Joe Verfaillie
Others:
Summary: Collected data, spectra, moisture point. Some met channels seem bad.
| Varia

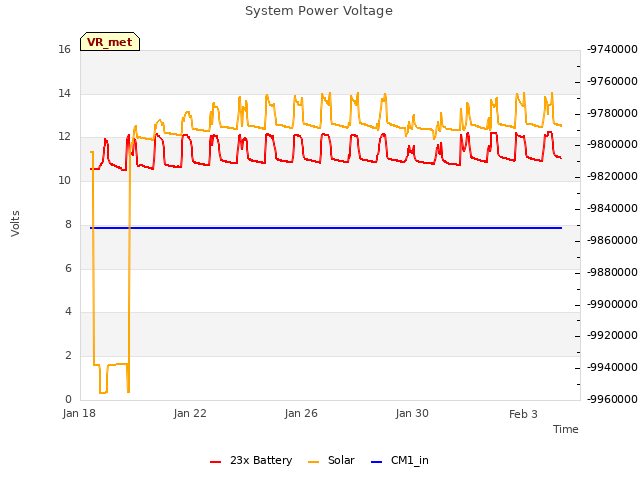

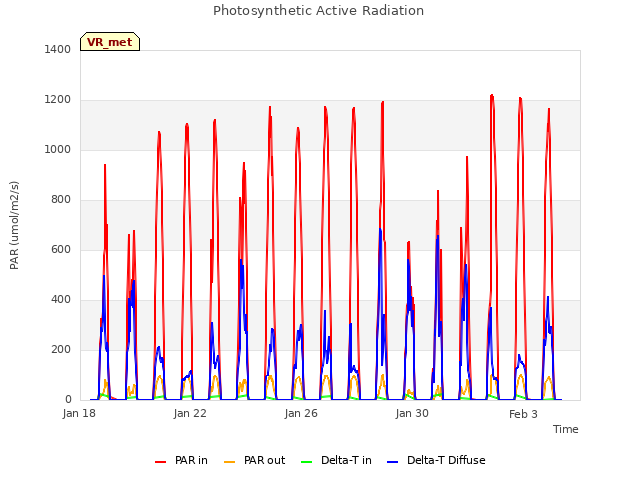

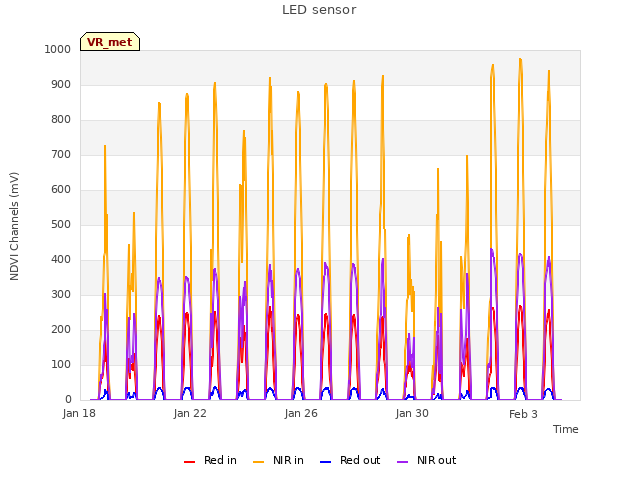

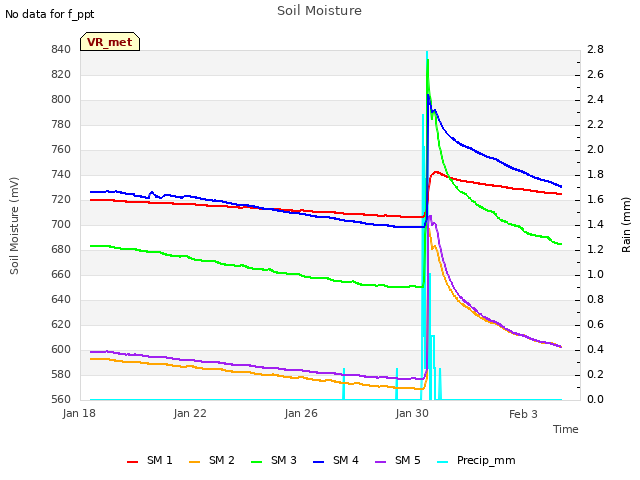

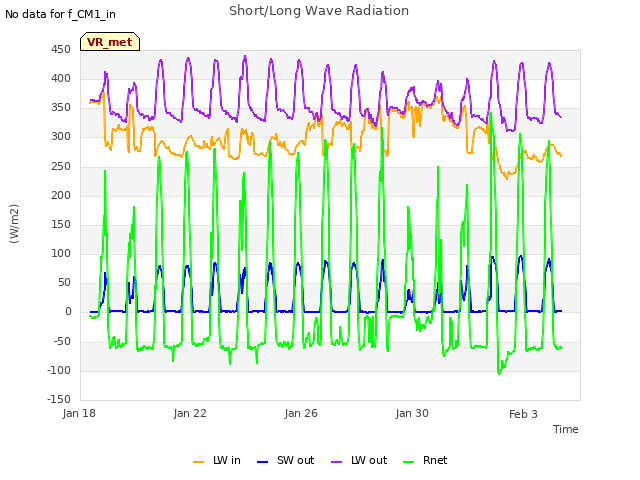

2/3/2011 I arrived about 11:15. There were some high thin clouds, but otherwise warm and sunny. There was a light breeze from the southwest. The field is still a mix of last year’s little and new green grass and herbs. No leaves on the trees. The solar system seemed okay: 13.9V, 16.4A solar, 3.0A load with screen. The computer only has 3.2 GB free and has data retained from 2006. Need a big drive to move some of that off. I collected data. The met data looked strange. Par out, Tair, RH, pressure, CG out and NIR out all seemed to have bad numbers. No obvious problems with the hardware. I need to check the data. I measured the moisture points: 7933FDE 39.9 29.8 39.6 41.4 Original between tower and solar 39.9 31.9 39.6 41.4 128B97F3 27.0 30.4 11.7 31.7 New by solar panels 27.3 30.7 10.3 30.8 128B7B90 7.7 15.8 29.6 23.6 New by gate 3.9 10.1 23.7 19.3 128BDDE8 4.5 10.0 30.7 33.1 New in biomass cage 4.5 9.7 29.3 33.7 I took six spectra. Radiometers and tipping bucket okay. I left for Tonzi about 12:00 |
Field Data
No tank data
No VR Well data found
No TZ Moisture Point data found
No VR Moisture Point data found
No TZ grass heigth found
No VR grass heigth found
No VR Tree DBH found
No water potential data found
No VR Grass Biomass data found
No VR OakLeaves Biomass data found
No VR PineNeedles Biomass data found
0 photos found
9 sets found

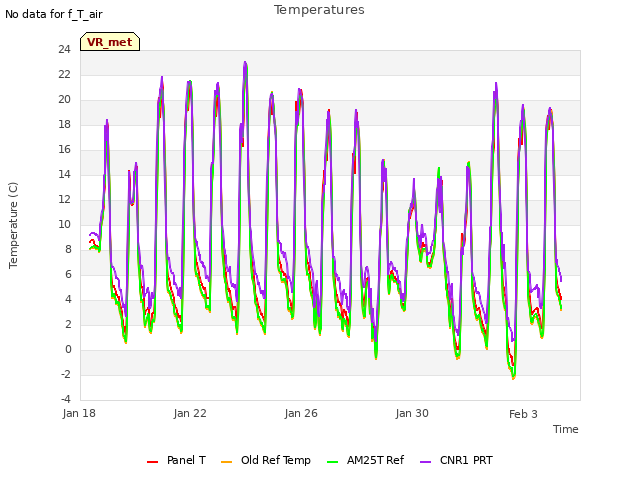

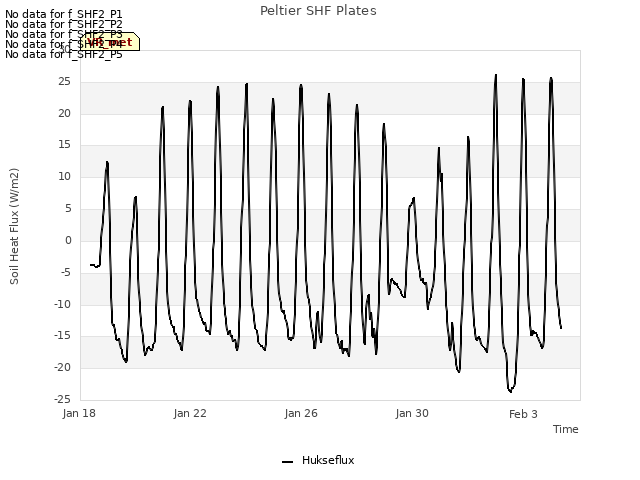

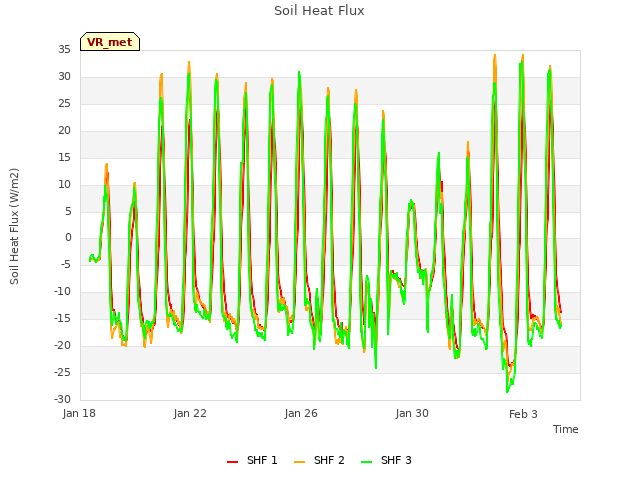

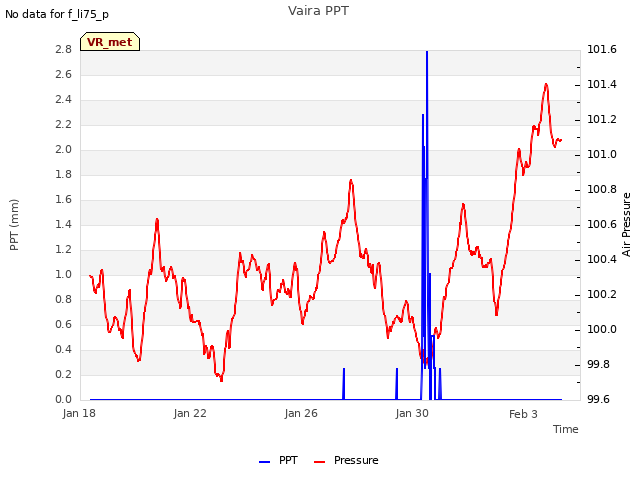

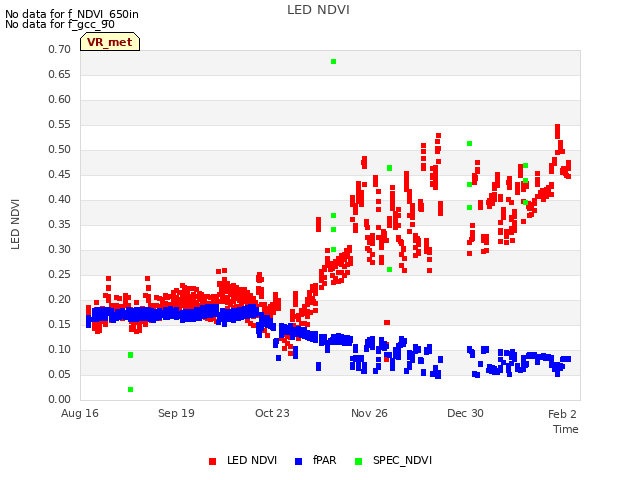

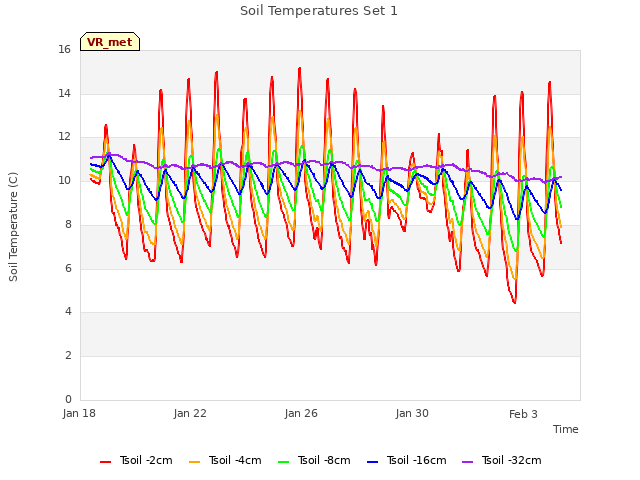

16 VR_met graphs found
No data found for VR_flux.
No data found for VR_soilco2.
No data found for VR_pond.
Can't check TZVR_mixed
No data found for VR_fd.
No data found for VR_processed.
No data found for VR_arable.
No data found for VR_soilvue.
