Tonzi: 2011-02-03 12:15:00 (DOY 34)
Author: Joe Verfaillie
Others:

Summary: Swapped tram battery, collected data, spectra, moisture point. Brought in floor supplimental sensors.

Tonzi
2/3/2011

I arrived from Vaira about 12:15.

The high thin clouds of the morning disappeared and the afternoon was sunny and warm with little wind. No leaves on the trees. Short green grass is everywhere. The ground is very wet with puddles in low places.

The tram was not running due to dead battery. I swapped the battery and it ran at 1pm and 2pm.

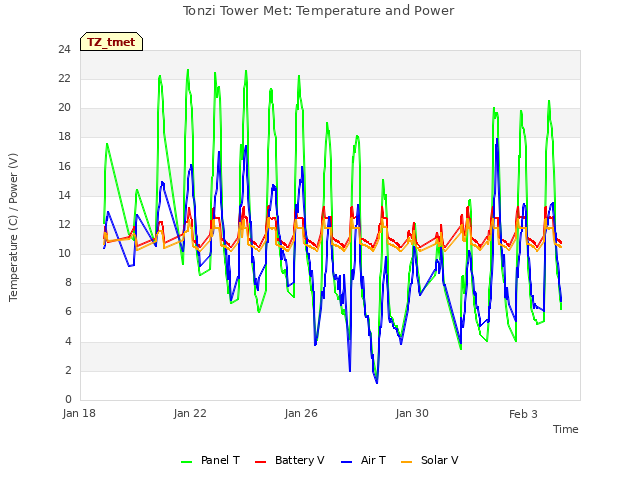

I collected data at the tower (7.8GB free here). Some missing data due to power, but I need to look at the data more closely to make a decision about swapping the batteries. The charge controller reported 13.4V and a load of 3.4A with the screen on and 2.6A without. The indicator light on the solar charger indicated that the batteries were fully charged.

I checked the z-cams and cleaned their windows. All were operational. I did not swap cards.

I copied data from the floor tower. Data seemed better here. The floor solar system reported 14.1V, 13.3A solar and 2.2A load.

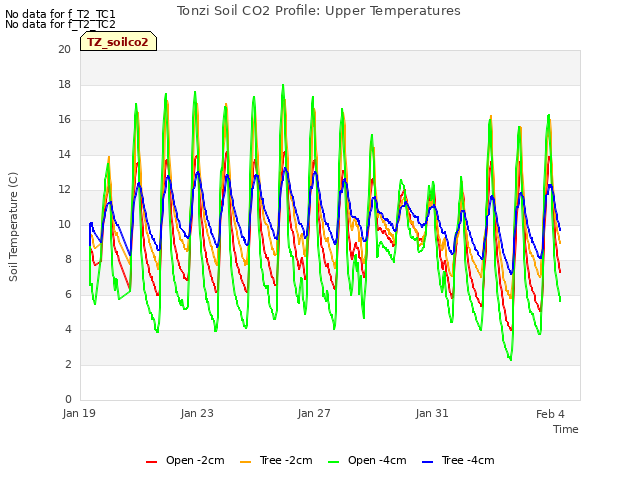

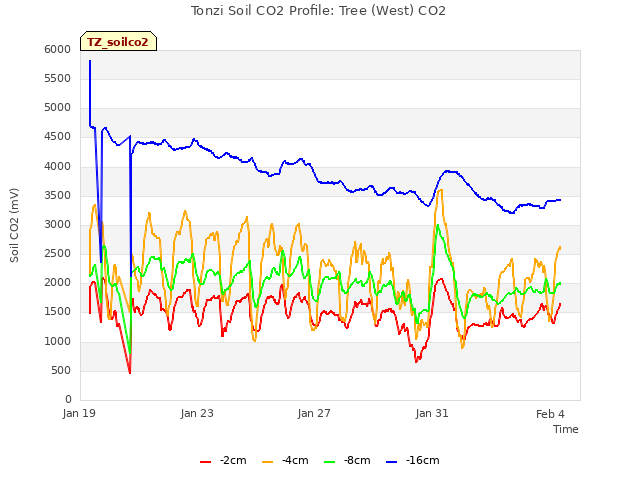

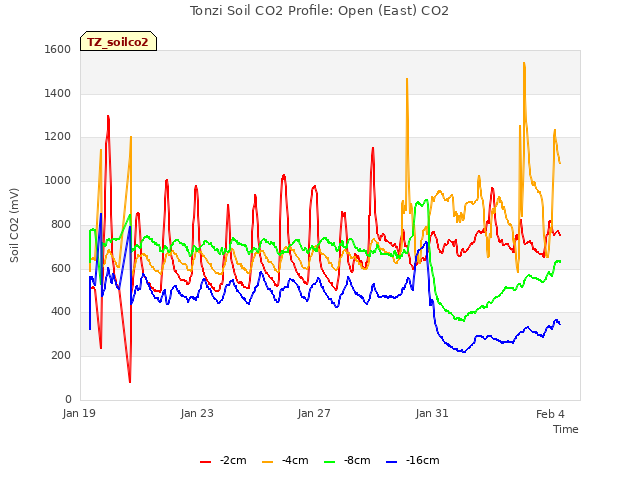

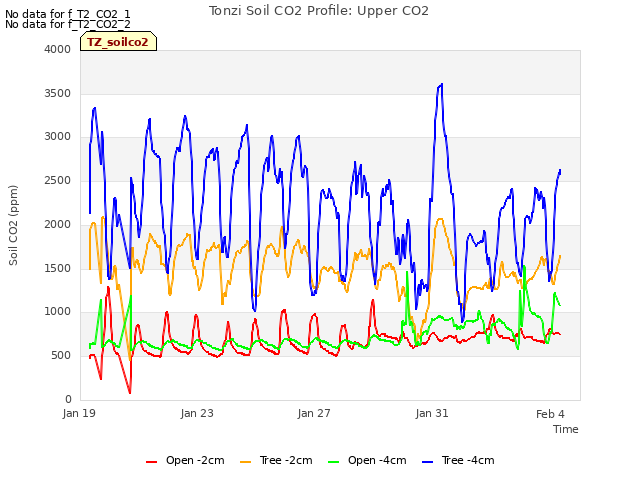

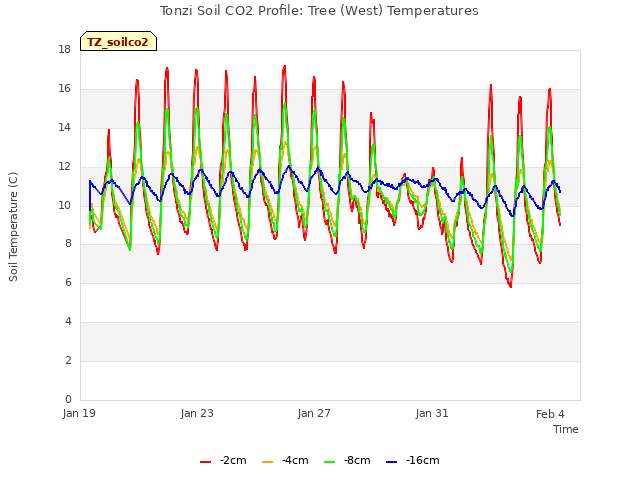

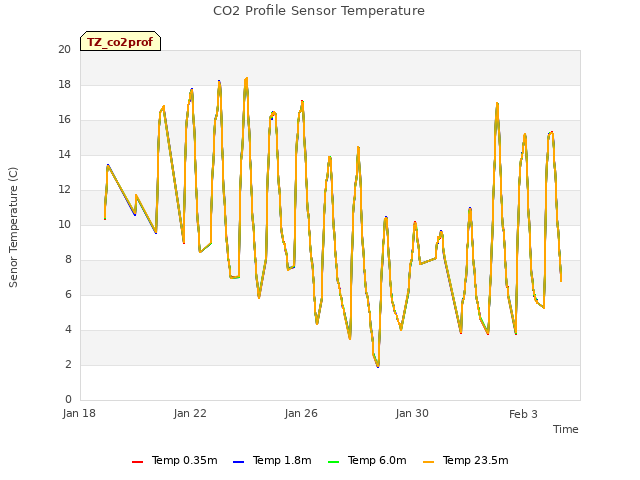

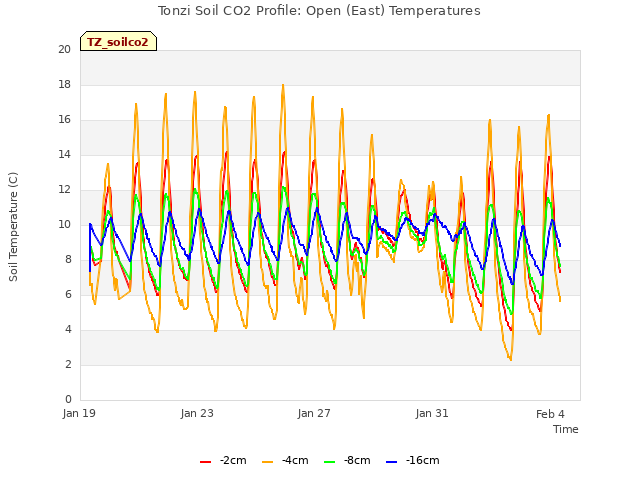

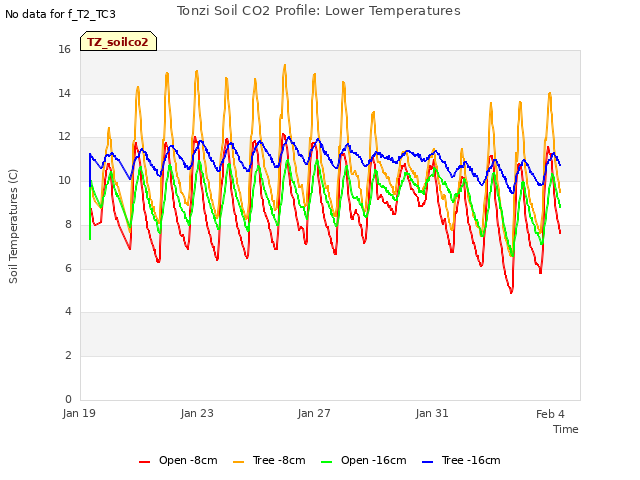

The soil CO2 system seemed to be running well. The solar here reported 26.9V, 4.1A solar and 0.4A load.

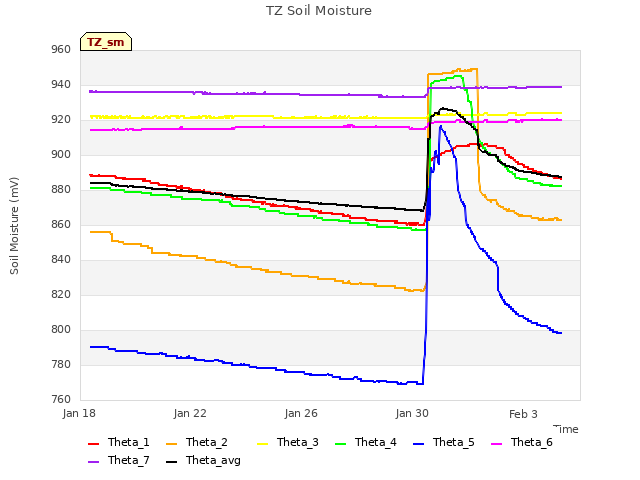

I measure the moisture points:
7931AFE 46.9 70.7 47.4 41.4 Near Tower
34.1 54.6 51.6 11.7
43.4 42.9 41.0 41.4
402165 31.1 43.6 46.0 54.9 Near Floor
30.5 42.9 45.5 56.0
402FF3 31.7 39.6 41.9 53.4 Near water potential table
31.7 38.7 42.1 45.7
97A432E 29.7 35.3 36.0 37.4 East of soil CO2
29.4 35.3 37.7 36.8
97A4AAA 24.7 24.6 33.5 31.9 Near Liukang’s tree
24.7 24.9 34.1 31.9
97A3B40 27.3 32.6 34.3 48.3
26.7 32.3 34.6 46.6
97A3C6E 29.7 35.3 38.0 40.5
22.0 37.4 39.9 38.8
A6D882B 28.8 28.3 37.4 44.8
28.8 28.3 36.6 44.3
A3D04E8 21.4 19.1 37.7 47.1
19.4 19.7 37.4 50.6
A6D72F5 30.5 32.9 37.1 50.3
32.0 31.0 39.1 49.7

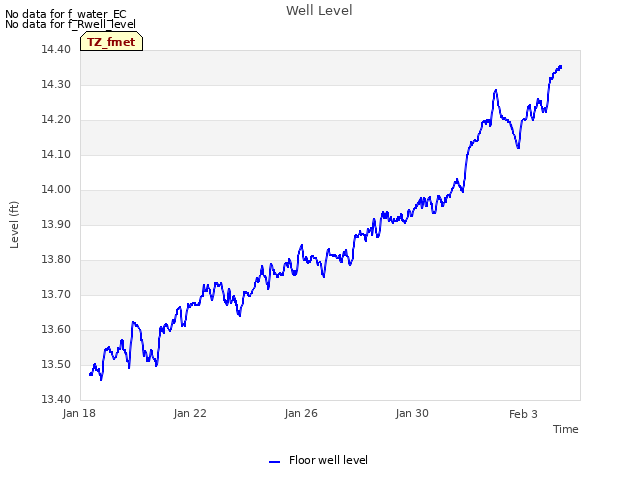

I measured the well depths in reference to the mark on the black thing:
Near floor 22.6ft
South hill 26.3ft
Near Road 31.0ft

I measured six spectra.

The sap flow system to the west of the tower had blown down some time before Siyan’s last visit. The data logger box had some water in it and condensation of the data logger and multiplexor. I propped up the box with its door open and facing down. Hopefully it will dry out and not get more water in it.

I brought in the additional radiation and heat flux sensors I set up near the floor site for Hideki.
CR10X sn 20140
AM416 sn 14049

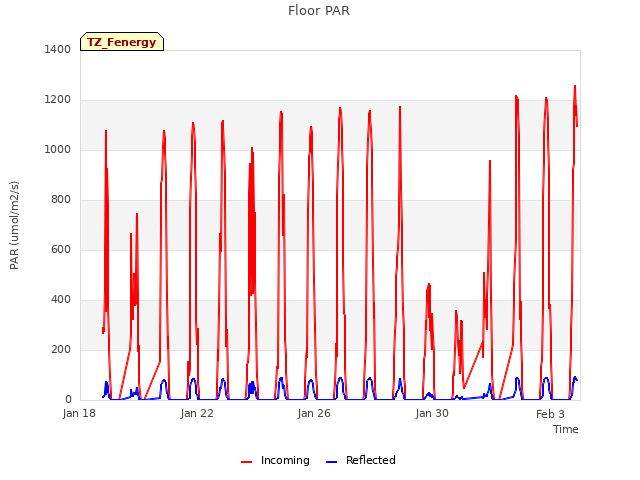

PAR in sn 010161 open
PAR out sn 010163 open

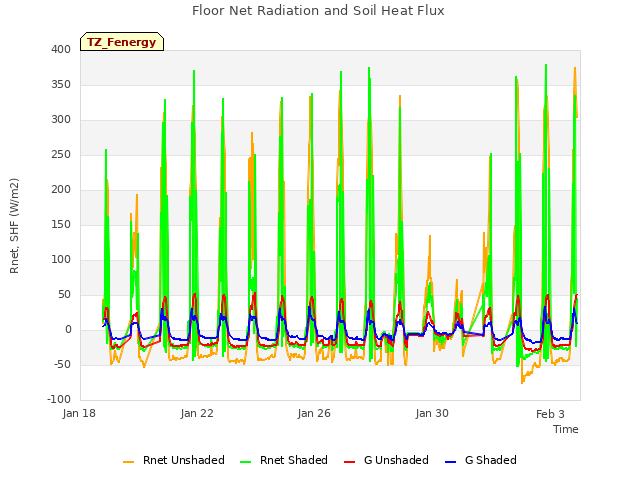

Rnet-Lite sn 041556 open
Rnet-Lite sn 990350 shade

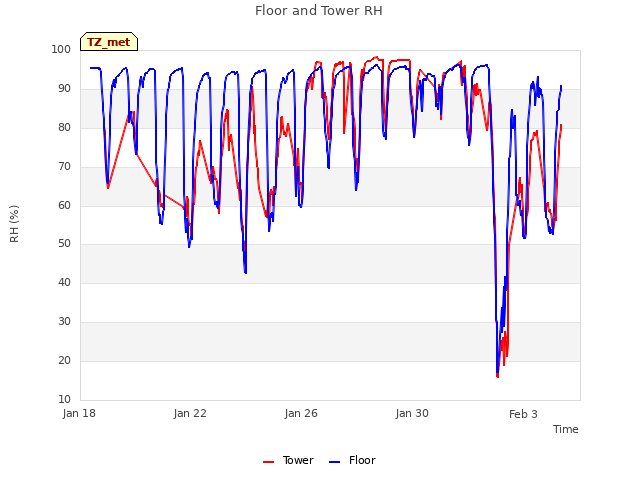

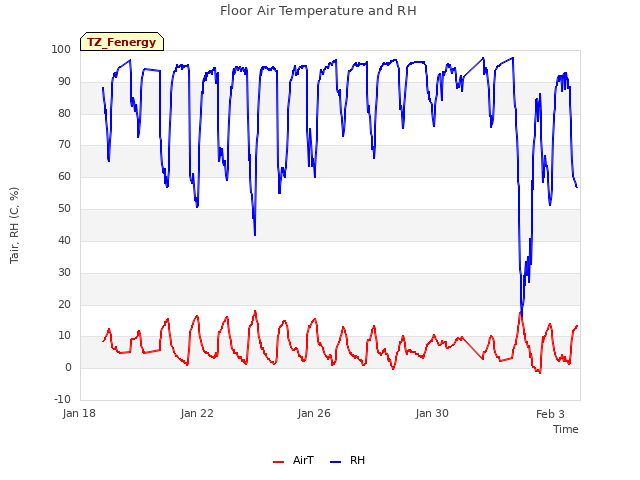

HMP45 sn W0510026 shade

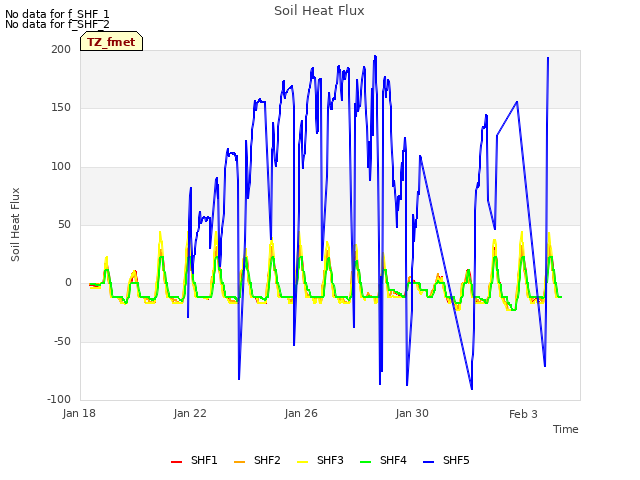

SHF sn 000141 open
SHF sn 00067 shade

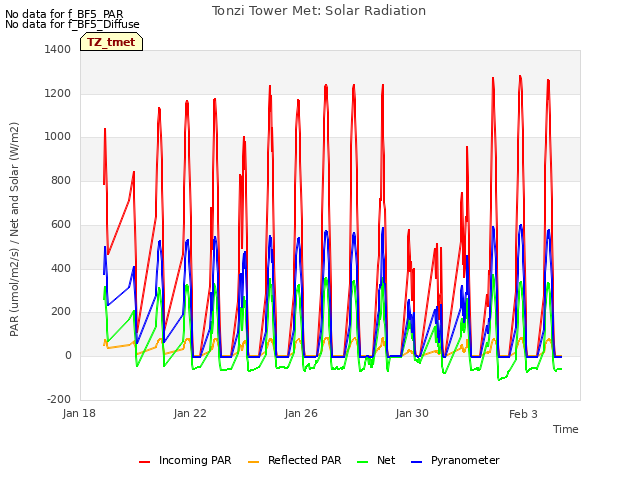

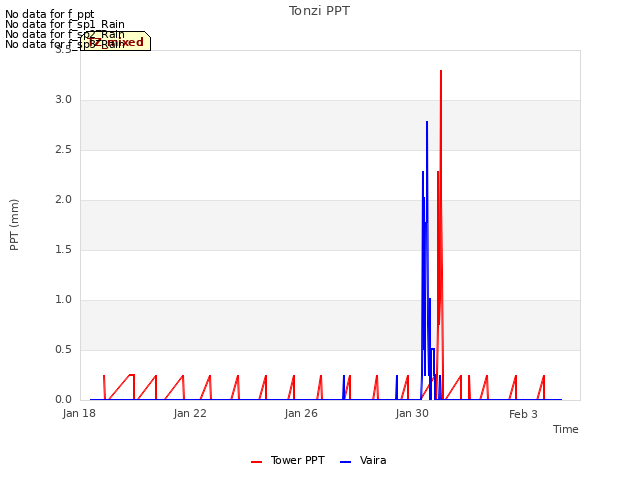

I cleaned the radiometers and tipping bucket at the top of the tower. The tipping bucket seems to have become a favorite perch. I need to figure out a deterrent.
