Mayberry: 2011-02-03 08:15:00 (DOY 34)
Author: Joe Verfaillie
Others:

Summary: Install LI7700 digital acquisition, swap Gill PCI, swap CR1000, swap LI7500 for calibration.

Mayberry
2/3/2011

I arrived about 8:15am. There was a little frost in protected spots, but no fog and warming quickly. There were some high thin clouds and only a breath of wind from the east. There was a huge flock of snow geese and from greater white-fronted geese on the fields along the entrance road.

I hung the new LI7700 on the tower with washer box. I swapped out the CR1000 for a new CR1000 and added a Quatech RS422 to 232 converter to talk to the sonic. I did not remove the Gill PCI, but it is now idle unpowered. I connected the enternet cable from the LI7700 directly to the CR1000. Data on the CR1000 looked good. The LI7700 had an RSSI of 89%.

I swapped the LI7500 for calibration. Sn 0042 went on and sn 0073 came off.

I collected data from the CR23x.

The solar charge controller read 14.7V, 9.1 A solar, and 1.3 A load before I left. I think this is about 0.8A less than when the LI7550 interface box, and possibly the Gill PCI were running previously.

I left for Ione about 9:30.

6 photos found

The sun reflected in the still water.
The sun reflected in the still water.

view of field site
view of field site

view of field site
view of field site

Ducks and coots
Ducks and coots

Joe installing new LI7700
Joe installing new LI7700

Joe installing new LI7700
Joe installing new LI7700

Graphs display:
11 sets found

7 MB_flux graphs found

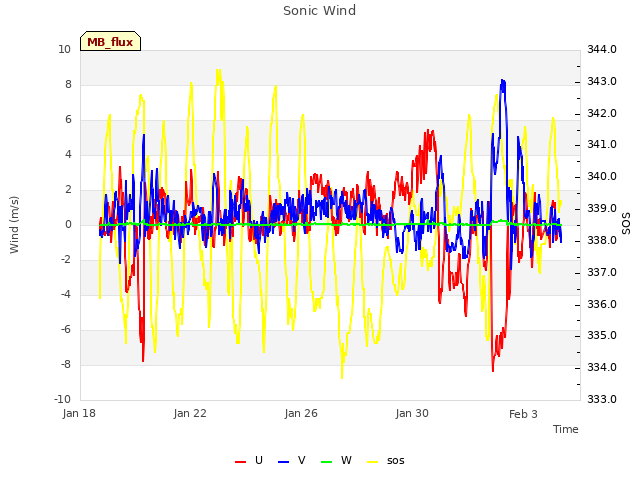

Explore the graph:Sonic Wind in a new window

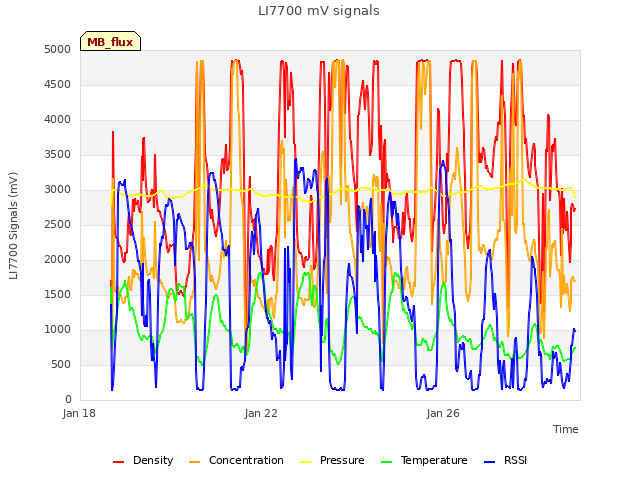

Explore the graph:LI7700 mV signals in a new window

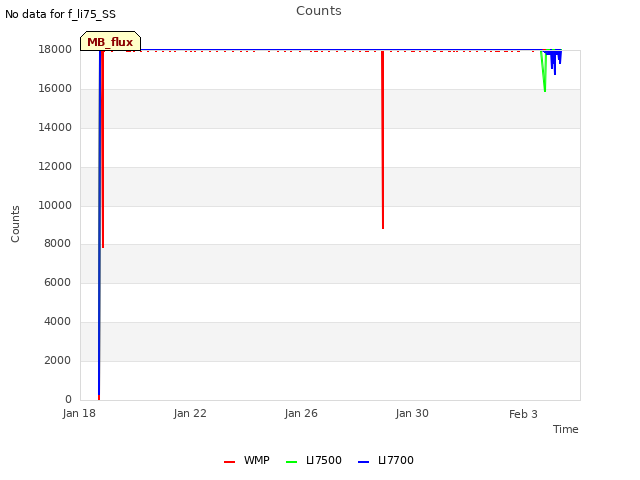

Explore the graph:Counts in a new window

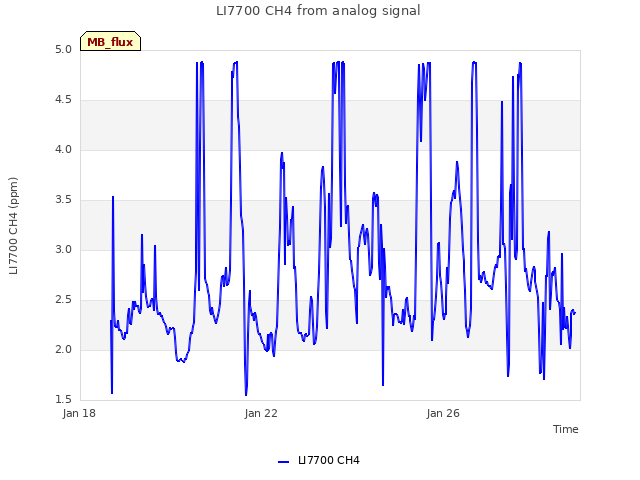

Explore the graph:LI7700 CH4 from analog signal in a new window

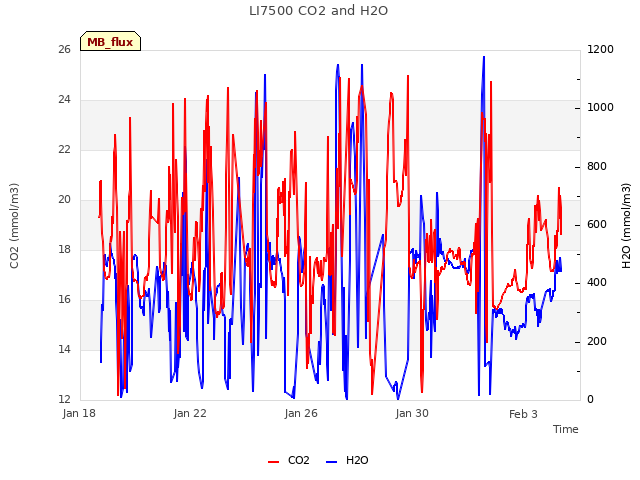

Explore the graph:LI7500 CO2 and H2O in a new window

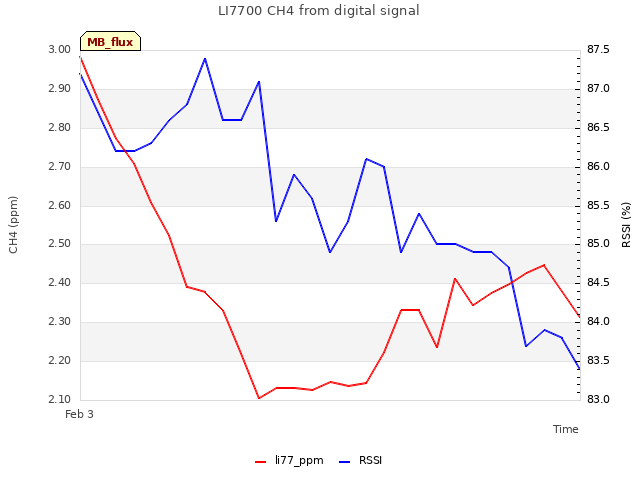

Explore the graph:LI7700 CH4 from digital signal in a new window

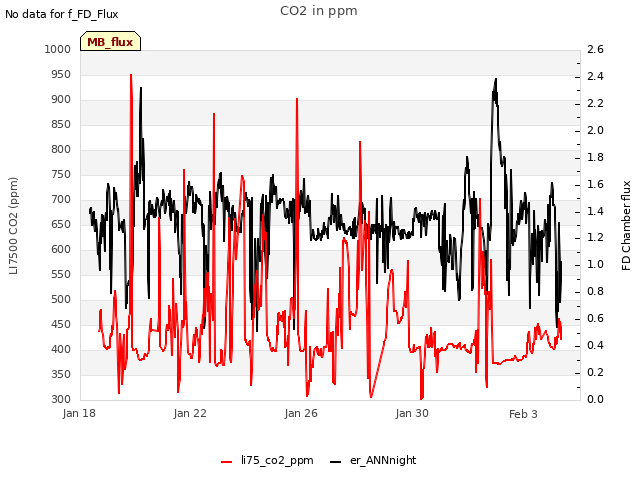

Explore the graph:CO2 in ppm in a new window

5 MB_met graphs found

Explore the graph:MB_met Battery Volts & Panel T in a new window

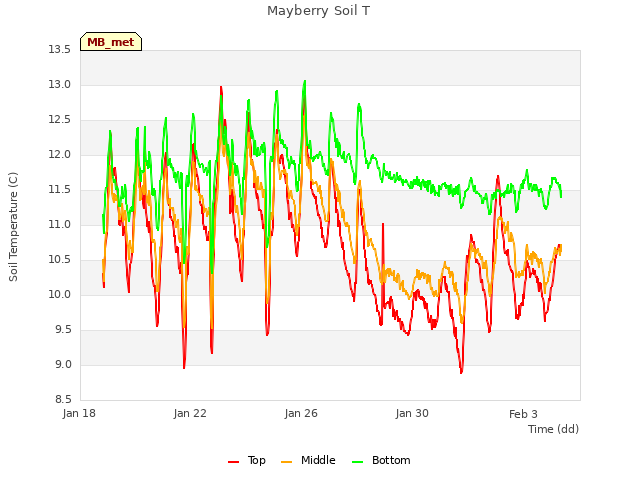

Explore the graph:Mayberry Soil T in a new window

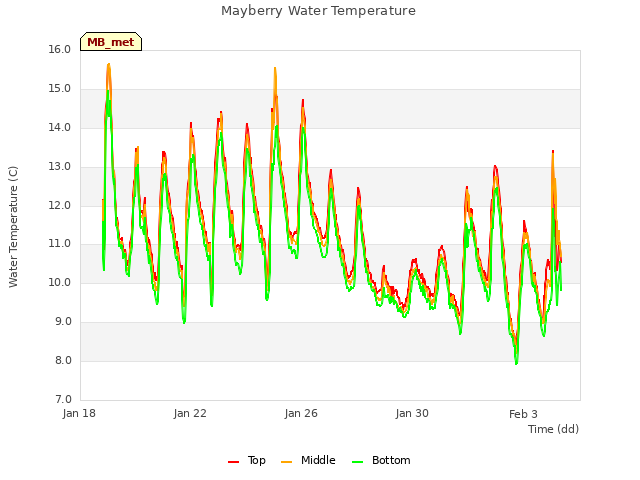

Explore the graph:Mayberry Water Temperature in a new window

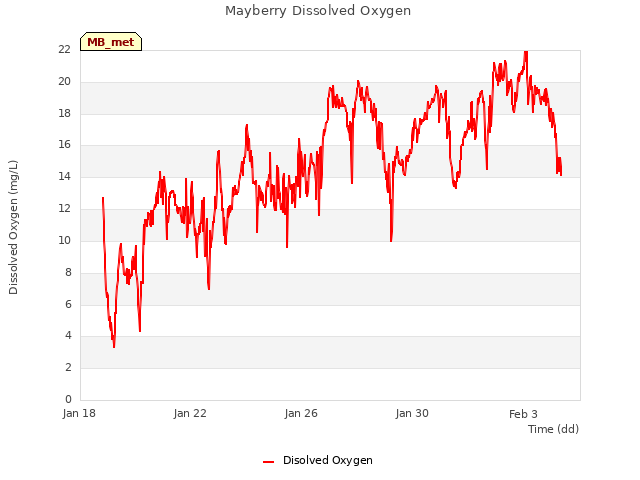

Explore the graph:Mayberry Dissolved Oxygen in a new window

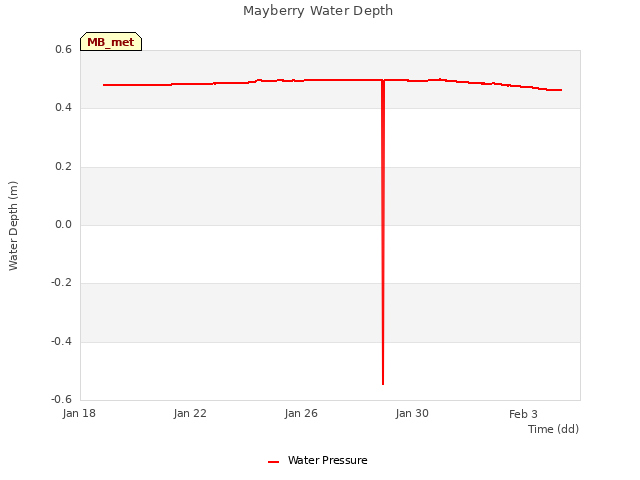

Explore the graph:Mayberry Water Depth in a new window

No data found for MB_tule.
Can't check MBWPEESWGT_mixed
1 MB_cam graphs found

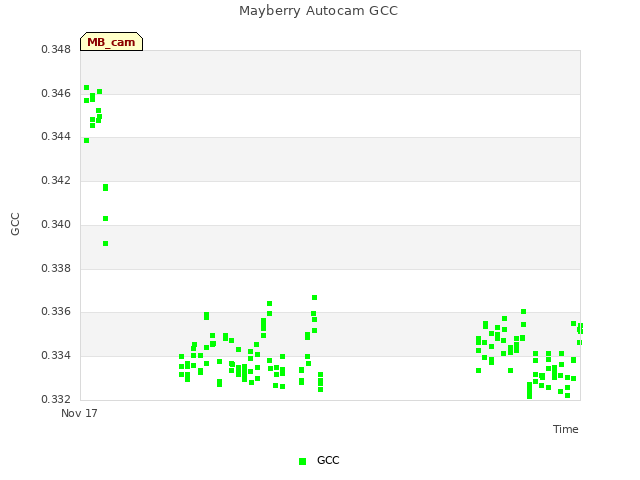

Explore the graph:Mayberry Autocam GCC in a new window

Can't check MBEEWPSWEPGT_cam
Can't check SIMBTWEE_met
No data found for MB_minidot.
Can't check MBSWEEWPBCBA
1 MB_processed graphs found

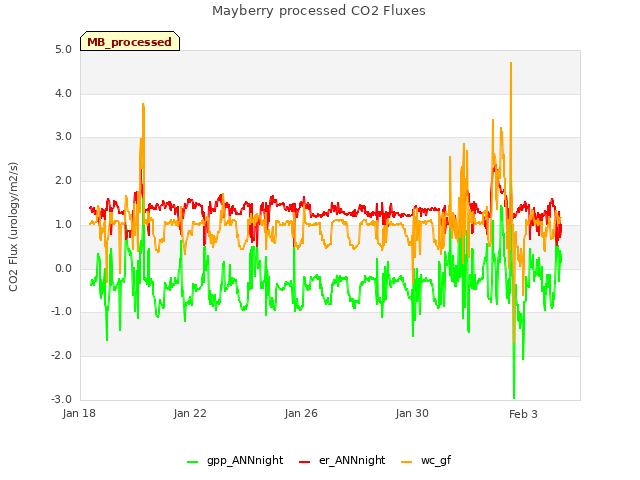

Explore the graph:Mayberry processed CO2 Fluxes in a new window

Can't check MB_fd
1 MB_fd graphs found

Explore the graph:Water Forced Diffusion CO2 Flux in a new window
