Vaira: 2011-02-22 00:00:00 (DOY 53)
Author: Siyan Ma
Others:
Summary: Fixed the problems of Ta&Rh and Pressure sensors
| It’s a beautiful sunny day. Grasses looked still weak. No tree leaf yet. See cows at Vaira.

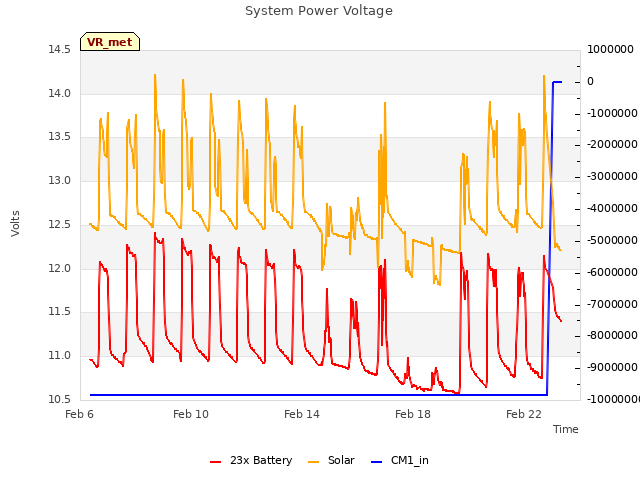

Vaira: Everything worked well. I downloaded data. Power status: 14.1, 13.8, 2.6. Fixed the problems of Ta&Rh and Pressure sensors at Vaira: the multiplexer was making click sound when I got there, but the readings of Ta (13.3), Rh (280), and Pressure (66.1) were not correct. I unplugged the wires of pressure sensor, and suddenly no power anymore. I traced power wire all the way to the solar panel regulator box and found the broken fuss. After I replaced it with a similar fuss stored in a plastic bag in Tonzi tower computer enclosure, the readings of Ta (14.1), Rh (38), and Pressure (99.4) were reasonable. |
Field Data
No tank data
Well Depth
| Date | Location | Depth (feet) |
|---|---|---|
| 2011-02-22 | TZ_floor | 20.4 |
| 2011-02-22 | TZ_road | 21 |
| 2011-02-22 | TZ_tower | 24 |
No TZ Moisture Point data found
No VR Moisture Point data found
No TZ grass heigth found
No VR grass heigth found
No VR Tree DBH found
No water potential data found
No VR Grass Biomass data found
No VR OakLeaves Biomass data found
No VR PineNeedles Biomass data found
3 photos found
New grass at the Vaira site
Dirt road to the east of the Vaira site
Dirt road and big tree at the Vaira site
9 sets found

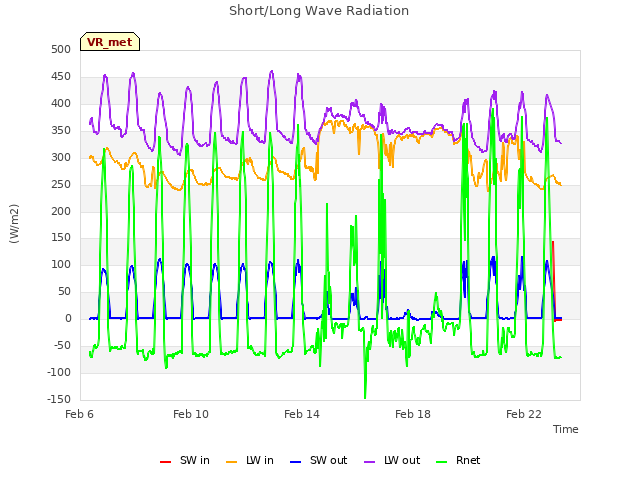

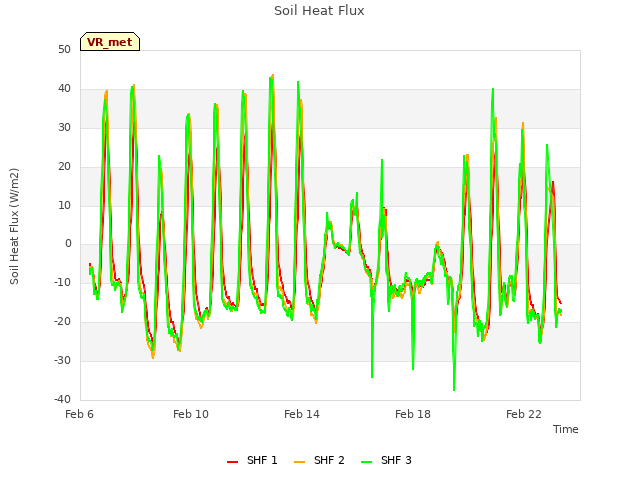

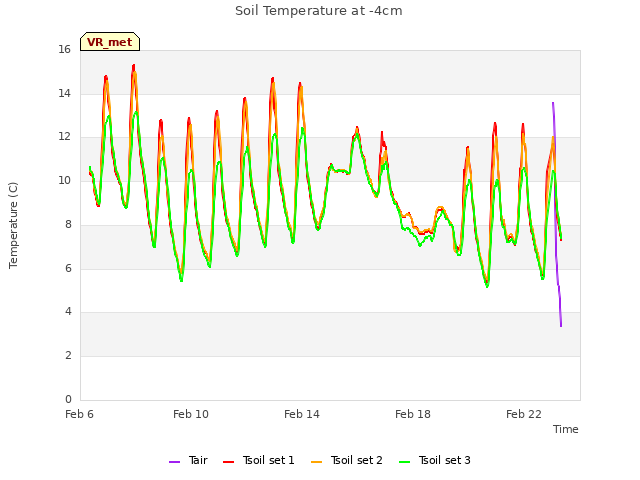

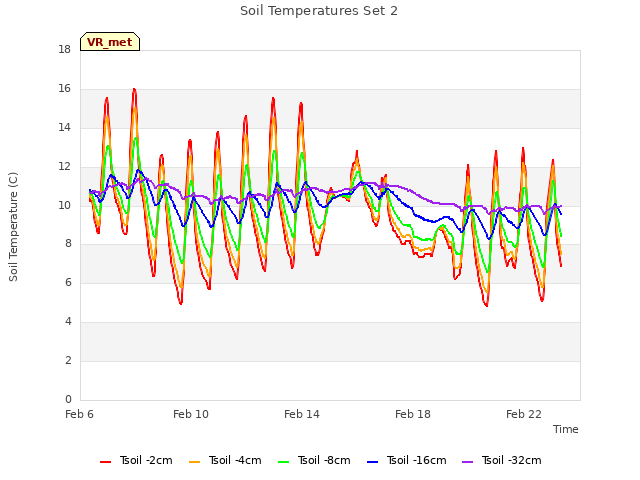

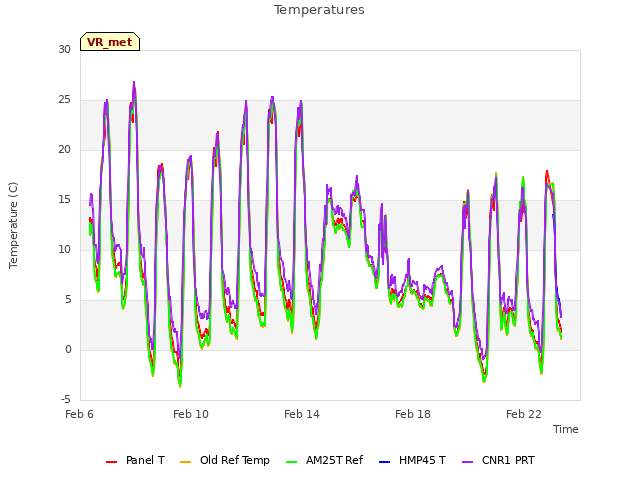

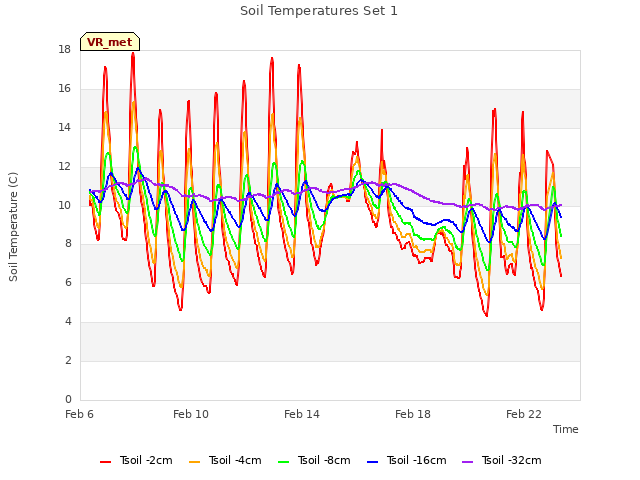

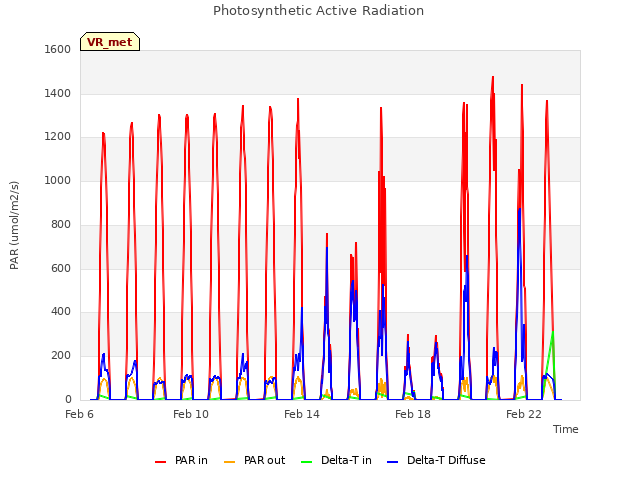

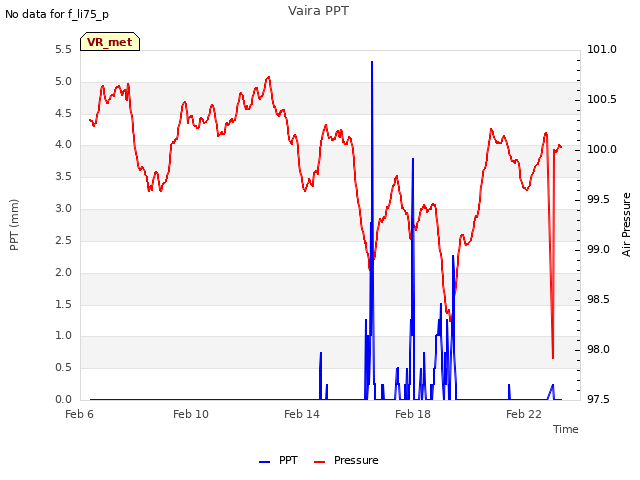

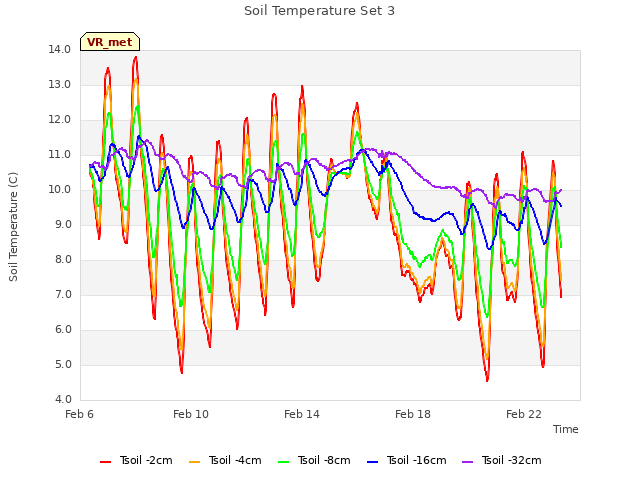

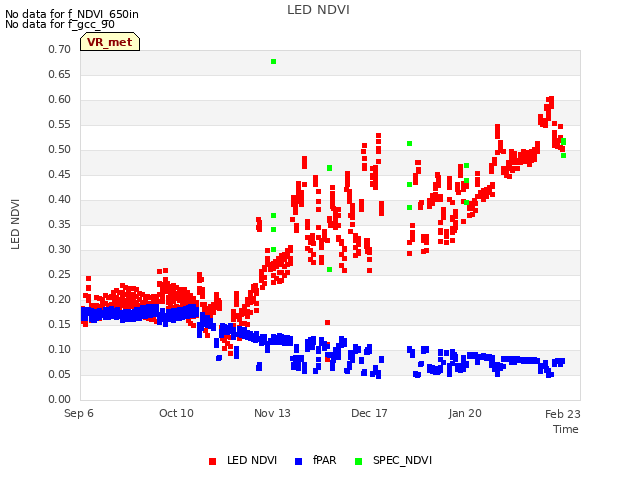

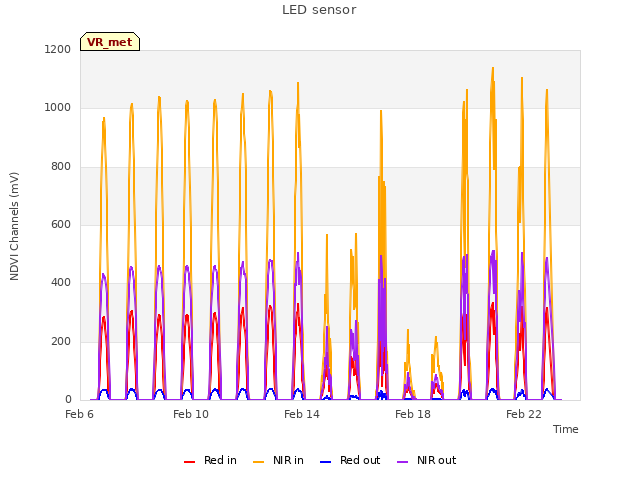

16 VR_met graphs found
No data found for VR_flux.
No data found for VR_soilco2.
No data found for VR_pond.
Can't check TZVR_mixed
No data found for VR_fd.
No data found for VR_processed.
No data found for VR_arable.
No data found for VR_soilvue.
