Bouldin Corn: 2022-05-11 13:45:00 (DOY 131)
Author: Daphne Szutu
Others: Carlos

Summary: Regular data collection/cleaning, corn may be planted, changed eddy clock +1min, removed some weeds from under/around the tower, reset 7500 SS from 106 to 100

2022-05-11
Bouldin Corn

Carlos and I arrived at 13:45 PDT. It was breezy, mild, and partly cloudy with mostly cumulus clouds. Many clouds over the Sierras. The field has furrows, so I think the corn is planted. No corn coming back up yet though.

I collected met, cam, and USB GHG data. I downloaded the PA data and cycled its power. I downloaded the FD data and cleared its memory. I downloaded the IRT data by swapping the microSD card and using CardConvert to convert the fast data to TOB1 and the slow data to TOA5.

I changed the eddy clock +1min from 13:14 PST to 13:15 PST to match the laptop time and restarted logging afterwards. I also changed the phenocam clock +1min from 13:20 PST to 13:21 PST to match the laptop time.

LI-7500 readings: CO2 370ppm, H2O 613ppm, T 21.5C, P 102.2kPa, SS 103 --> 106 after cleaning (reset to 100)
LI7700 readings: CH4 1.9ppm, RSSI 31 --> 74 after cleaning

Carlos cleaned flux and rad sensors. The reservoir was ½ full; refilled.

I thought the FD chamber needed to be further stabilized today, but it actually seemed ok so we didn’t make changes.

Carlos dug up some weeds from under and around the tower. The upper boardwalk had blown to the east side of the tower; we pushed it back to the west side.

Tyler arrived shortly before we left to check on the field and organize some of the tubing and wires in prep for training a new graduate student on the project.

We left at 14:40 PDT.

0 photos found

Graphs display:
6 sets found

17 BC_met graphs found

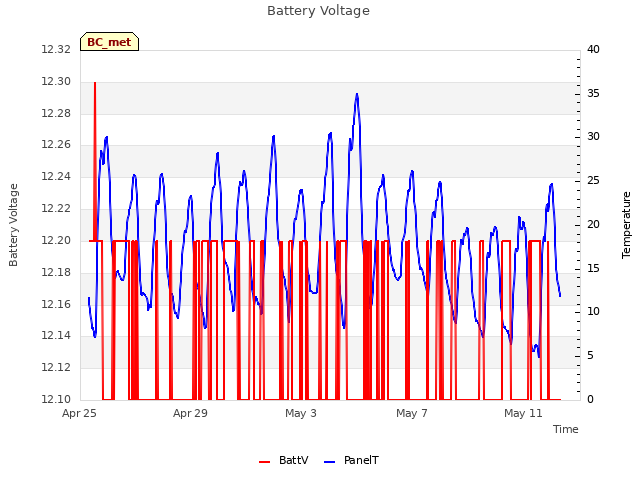

Explore the graph:Battery Voltage in a new window

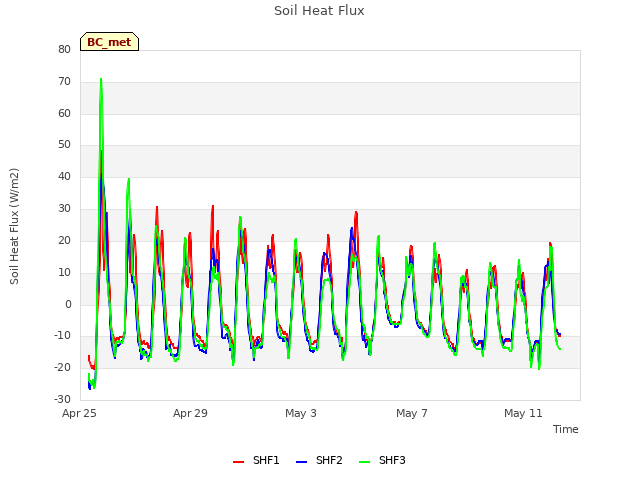

Explore the graph:Soil Heat Flux in a new window

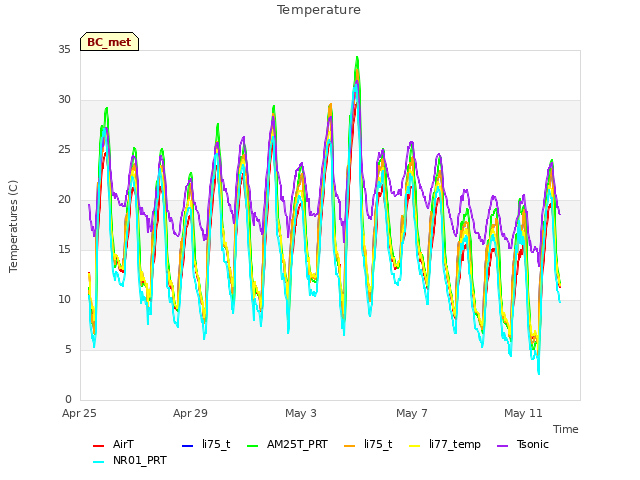

Explore the graph:Temperature in a new window

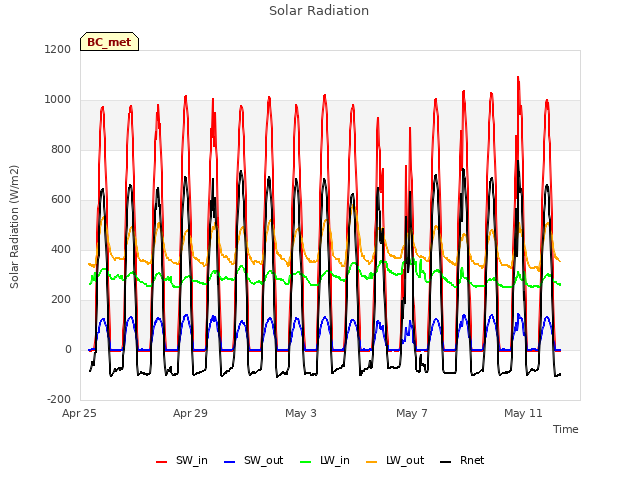

Explore the graph:Solar Radiation in a new window

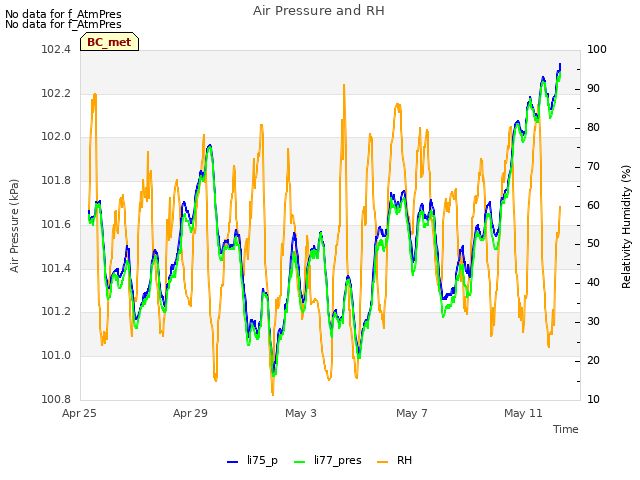

Explore the graph:Air Pressure and RH in a new window

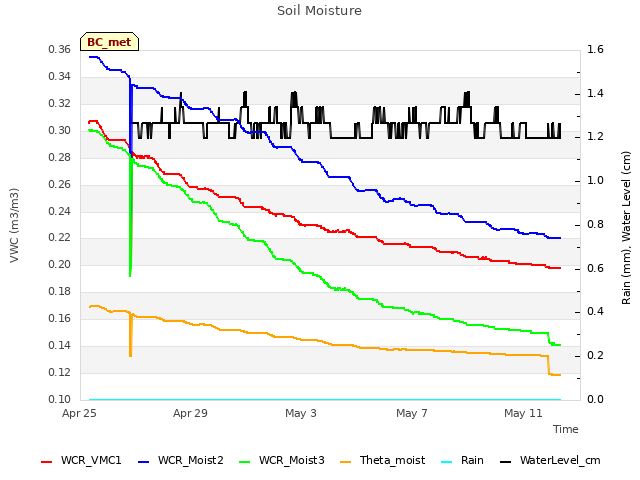

Explore the graph:Soil Moisture in a new window

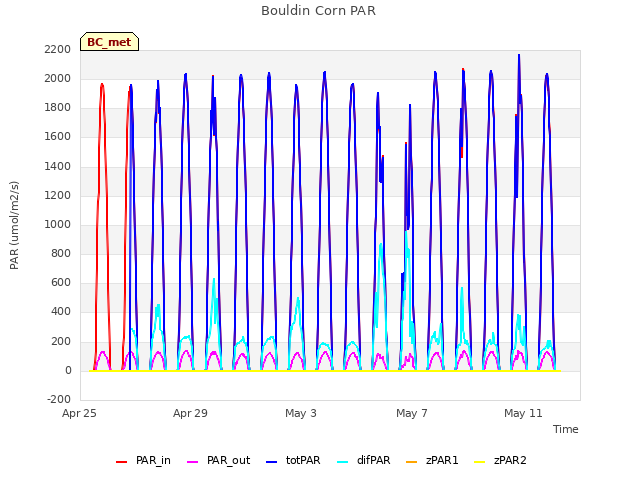

Explore the graph:Bouldin Corn PAR in a new window

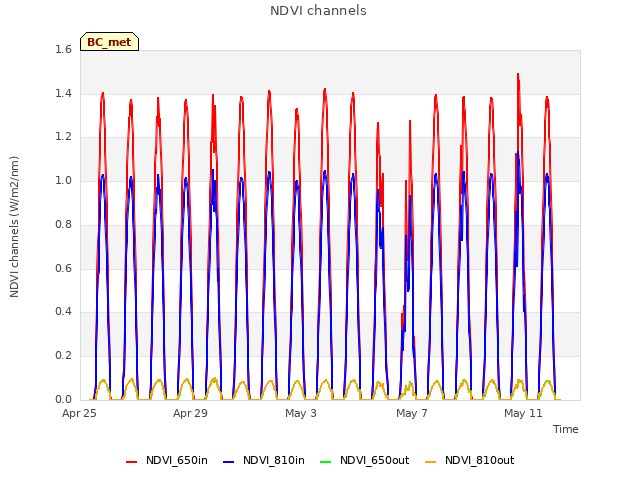

Explore the graph:NDVI channels in a new window

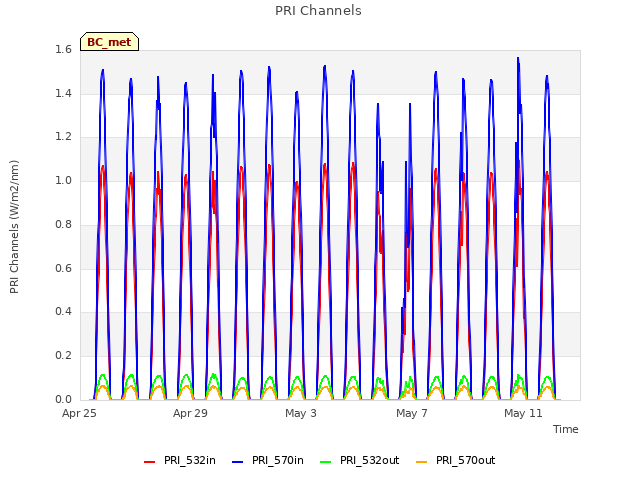

Explore the graph:PRI Channels in a new window

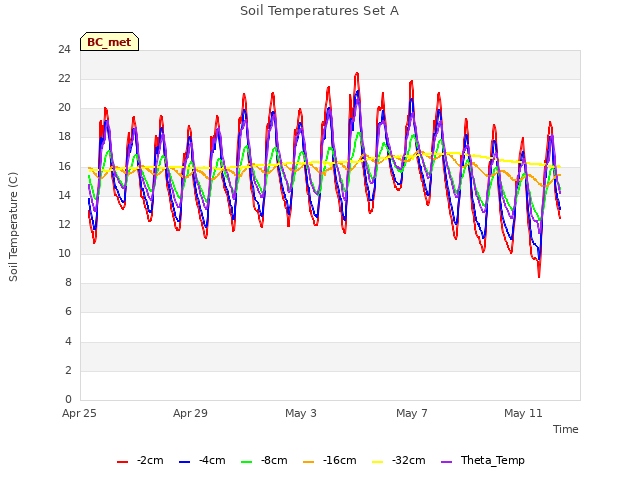

Explore the graph:Soil Temperatures Set A in a new window

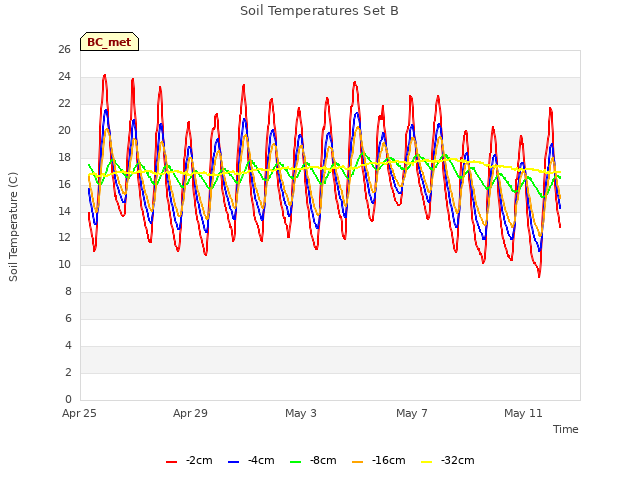

Explore the graph:Soil Temperatures Set B in a new window

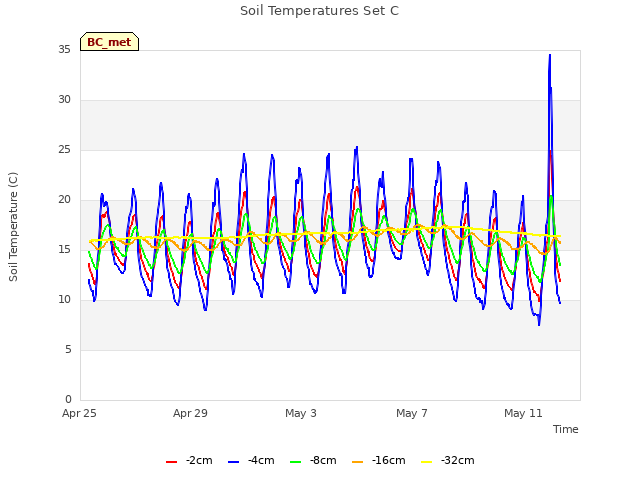

Explore the graph:Soil Temperatures Set C in a new window

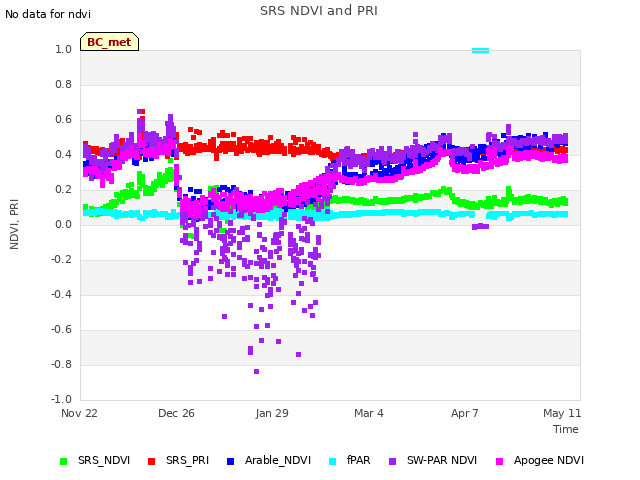

Explore the graph:SRS NDVI and PRI in a new window

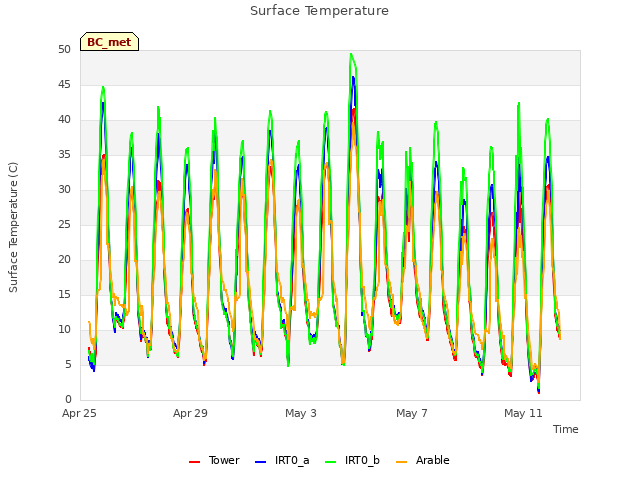

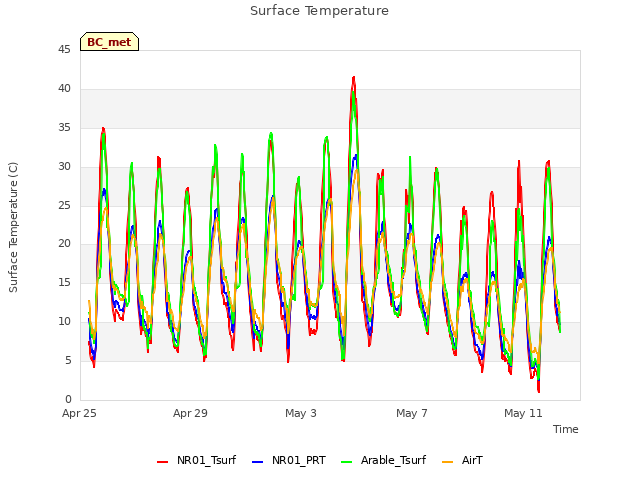

Explore the graph:Surface Temperature in a new window

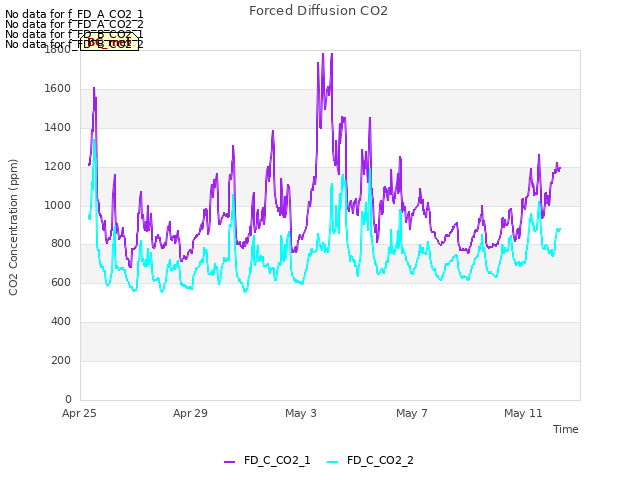

Explore the graph:Forced Diffusion CO2 in a new window

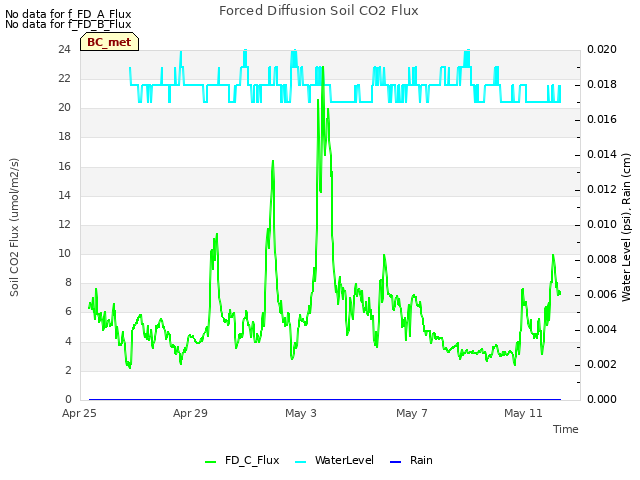

Explore the graph:Forced Diffusion Soil CO2 Flux in a new window

Explore the graph:Surface Temperature in a new window

5 BC_flux graphs found

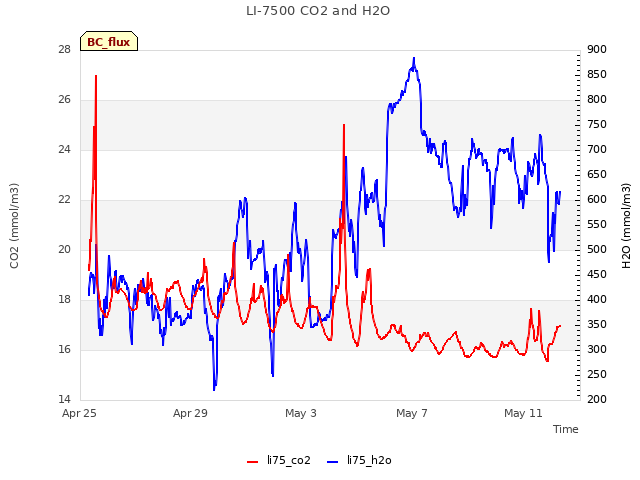

Explore the graph:LI-7500 CO2 and H2O in a new window

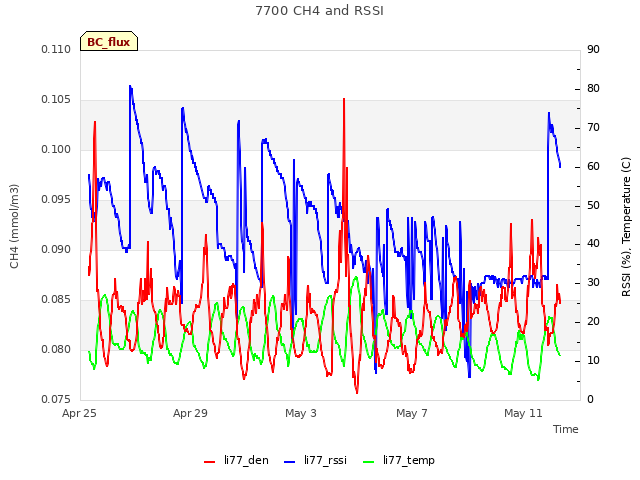

Explore the graph:7700 CH4 and RSSI in a new window

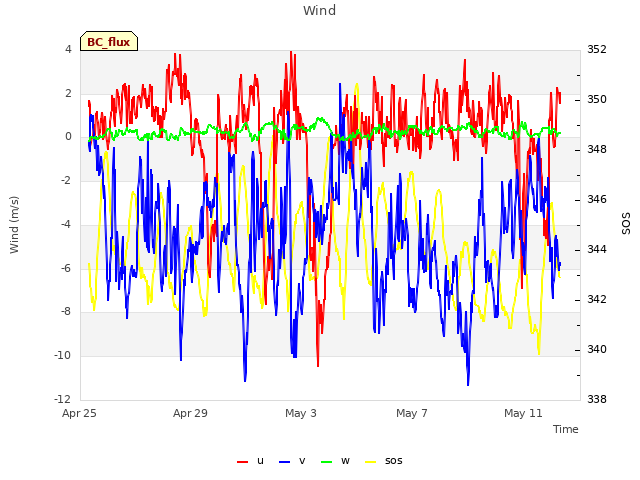

Explore the graph:Wind in a new window

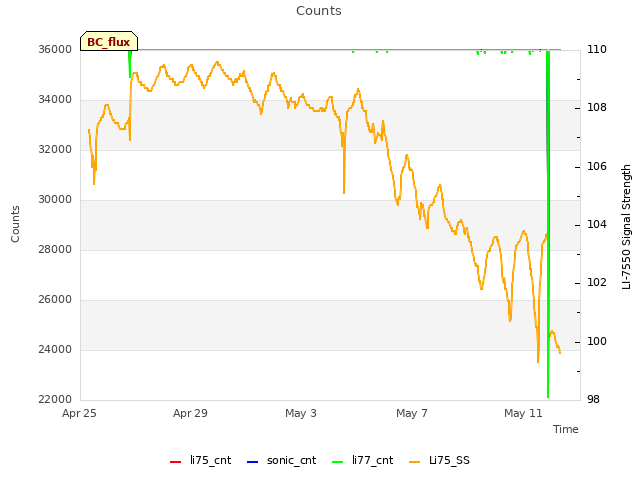

Explore the graph:Counts in a new window

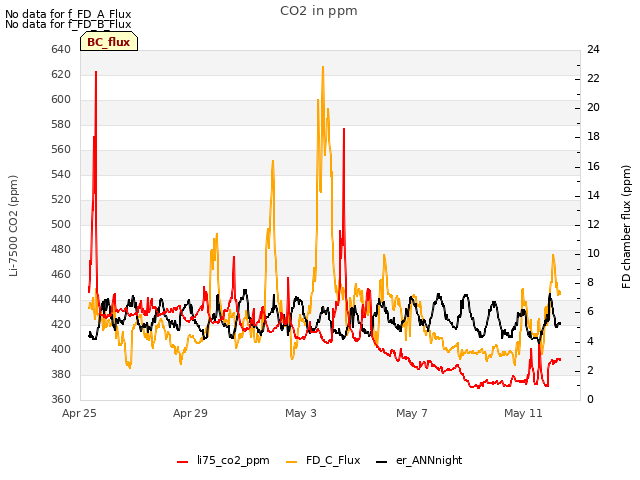

Explore the graph:CO2 in ppm in a new window

Can't check TATWBABCSB_cam
Can't check MBSWEEWPBCBA
2 BC_pa graphs found

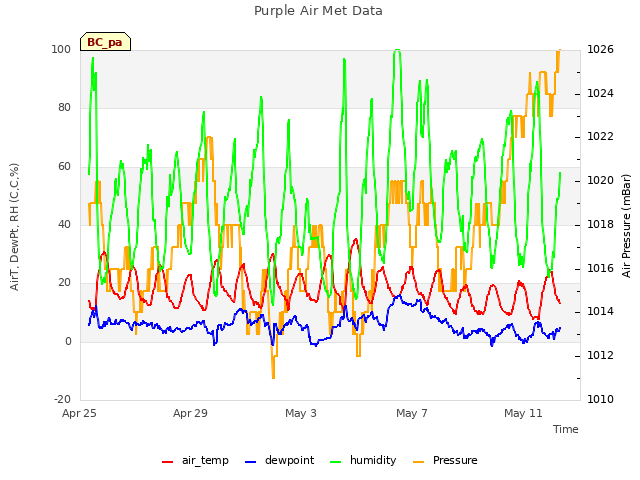

Explore the graph:Purple Air Met Data in a new window

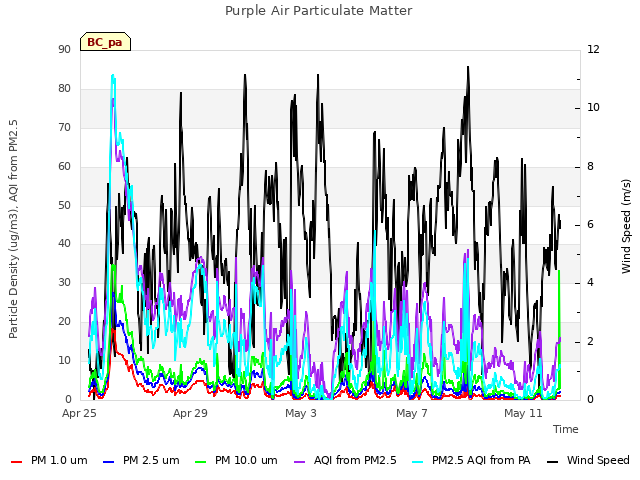

Explore the graph:Purple Air Particulate Matter in a new window

1 BC_arable graphs found

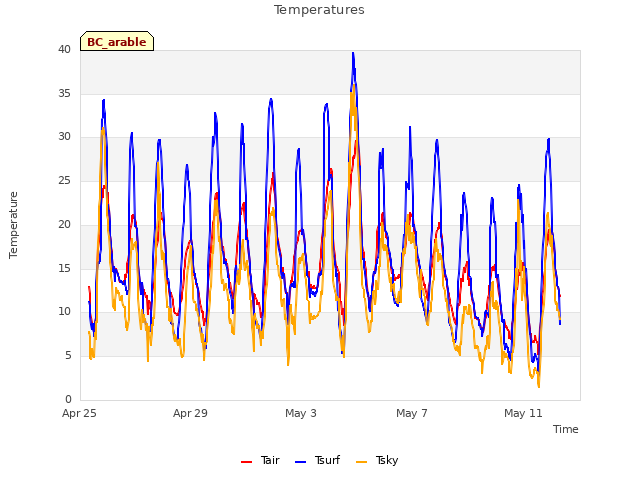

Explore the graph:Temperatures in a new window
