Gilbert Tract: 2022-03-01 10:30:00 (DOY 60)
Author: Daphne Szutu
Others: Koong

Summary: Regular data collection/cleaning, one Ottercam out of batteries, first data download from SonTek flowmeter, Koong's first time to Delta sites

2022-03-01
Gilbert Tract

Koong and I arrived at 10:30 PST. This was Koong’s first time visiting the Delta field sites. It was a mild and calm day with good visibility and some high thin clouds—perfect weather for a first visit.

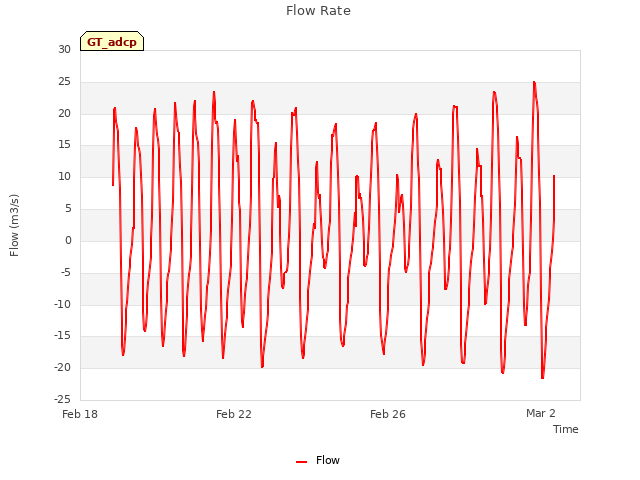

We stopped at the breach site first to download data from the SonTek Side-Looker. A field crew was setting up more irrigation lines on the disturbed soil between the levee road and the channel banks. I downloaded data from the Side-Looker. The tide was coming in and the estimated flow was 6 m3/s. I forgot to stop logging before collecting the data. The software said that there was still 99.9% of recorder space available, so I did not reformat or delete the data. Plots of the 2 week’s of data seemed reasonable. We pulled the sensor up and there was some slight fouling on the upward facing sensor, which I was able to wipe off easily.

We then headed to the tower. The tide was low but rising. I showed Koong how to clean the flux and rad sensors. We topped off the wash reservoir. I downloaded met, camera, USB GHG, and miniDOT data.

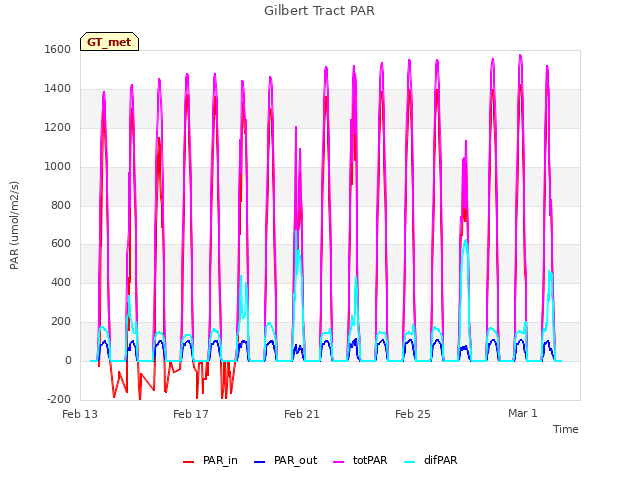

There are no spikes in the PARin data since we changed its mux channel, so there must have been a problem with the mux channel causing the data spikes.

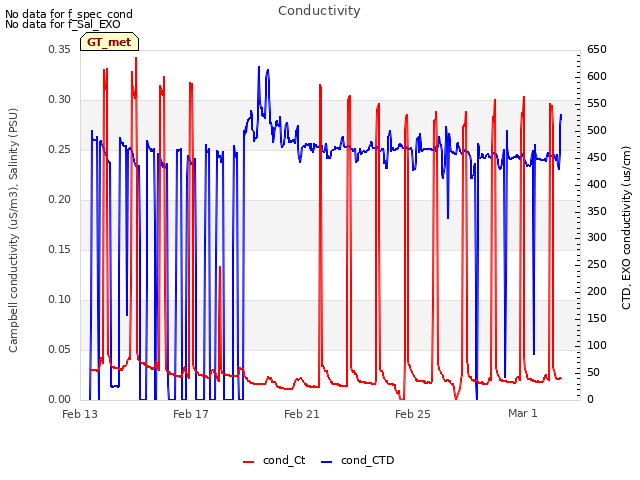

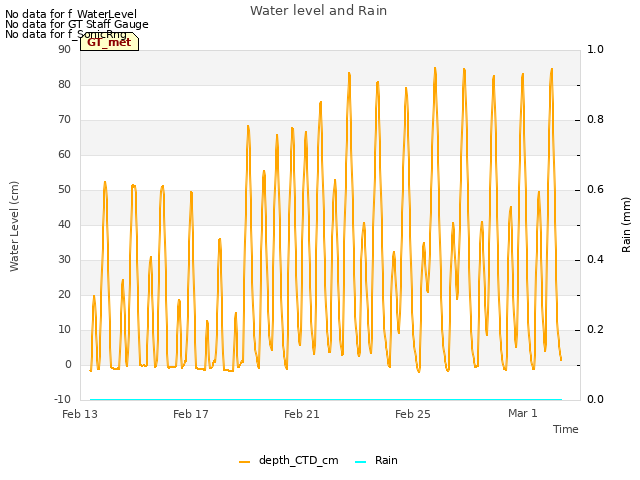

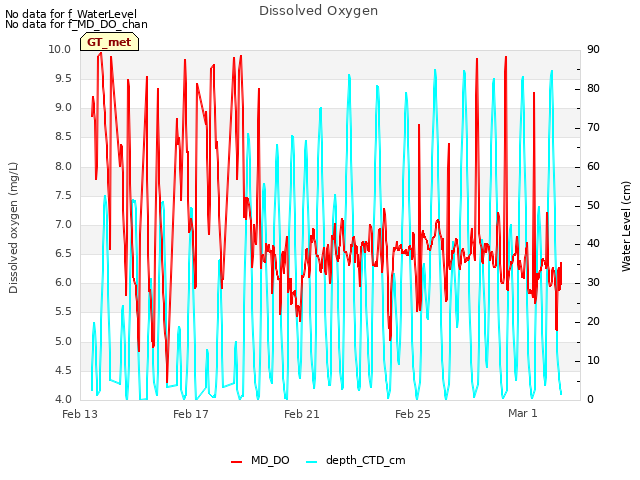

The miniDOT was underwater, and the other water sensors I assume were also underwater because I did not see any visible sensors hanging off of the boardwalk. Looking at the data back in the lab, the HYDROS21 conductivity value is still dropping towards 0 at low tide, so I think it still needs to be moved to deeper waters. Joe has materials to make an additional boardwalk length and we can extend the HYDROS21 and eosGP cables.

I downloaded data from the 2 Ottercams. The Ottercam north of the tower was out of batteries and it had a few video files on its card, but the files were all 0 size. The Ottercam south of the tower was facing downward because the stake was loose. I pushed the stake farther into the soft ground to correct the camera’s view, but maybe it’s a little low now. This camera had more than 500 video clips, 3 of which were Dennis collecting soil samples, and 1 of an otter entering the water. The other videos were of grass waving around in the wind. I will bring spare batteries next time.

LI-7500 readings:
CO2 450ppm
H2O 350ppm
T 21.0C
P 102.2kPa

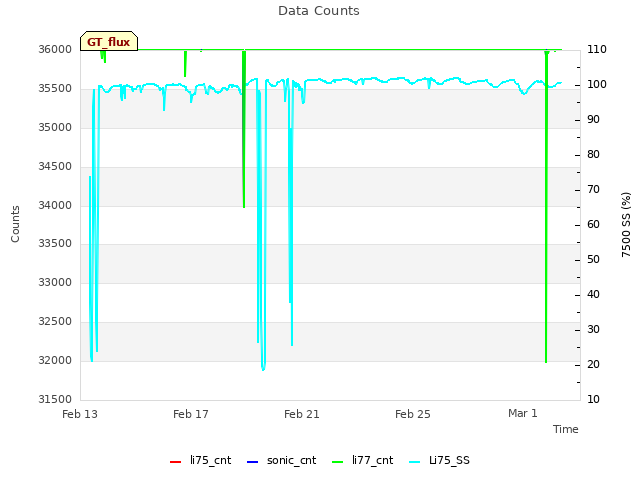

SS 99 --> 100 after cleaning
LI7700 readings:

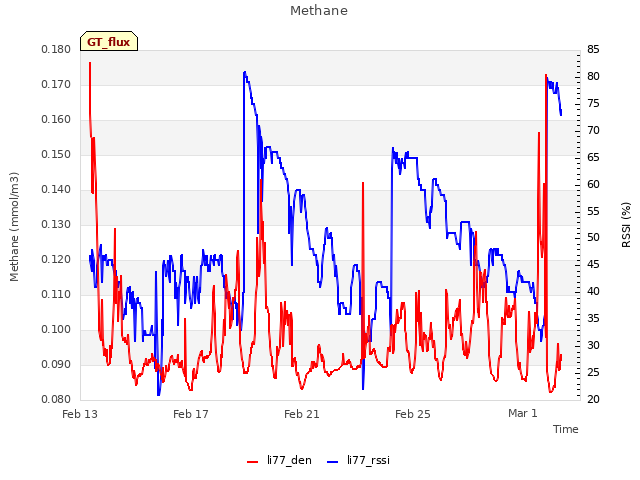

CH4 2.23ppm
RSSI 37 --> 80 after cleaning

We left at 11:20 PST.

3 photos found

Fouling check after the SonTek Side-Looker was installed for 2 weeks. The upper/vertical sensor has some fouling but the horizontal ones have hardly any.

Screenshot of the SonTek Side-Looker interface. Available recorder space was 99.9%, so I didn't delete/reformat the data storage.

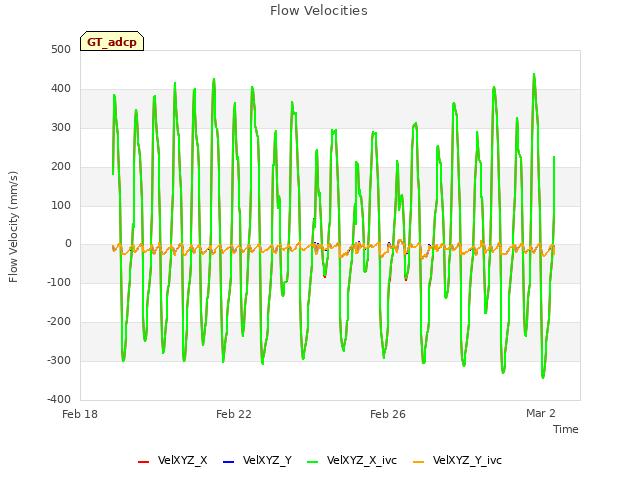

Screenshot of the SonTek Side-Looker interface showing the last 2 weeks of data. Seems reasonable at first glance with a clear tidal signal.

8 sets found

Can't check MBWPEESWGT_mixed
Can't check MBEEWPSWEPGT_cam

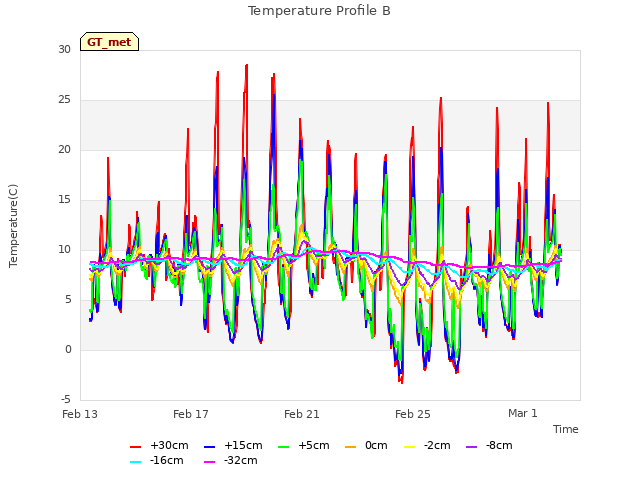

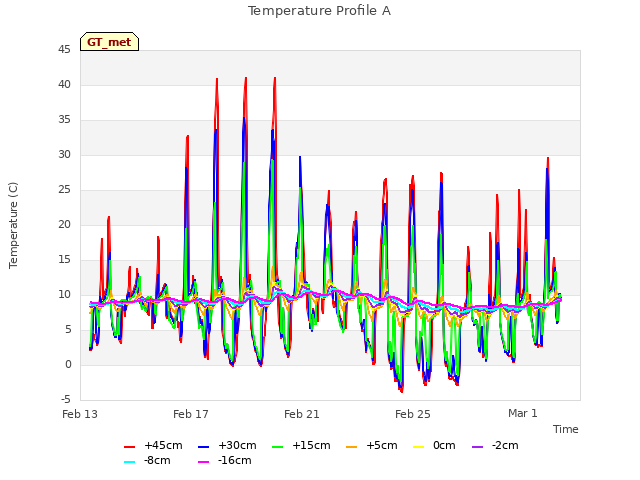

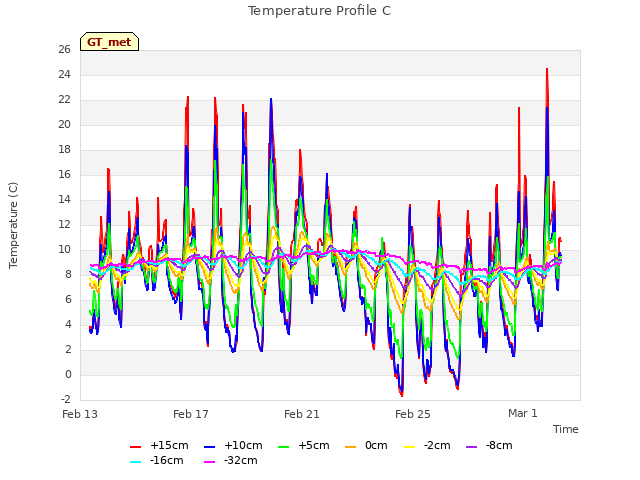

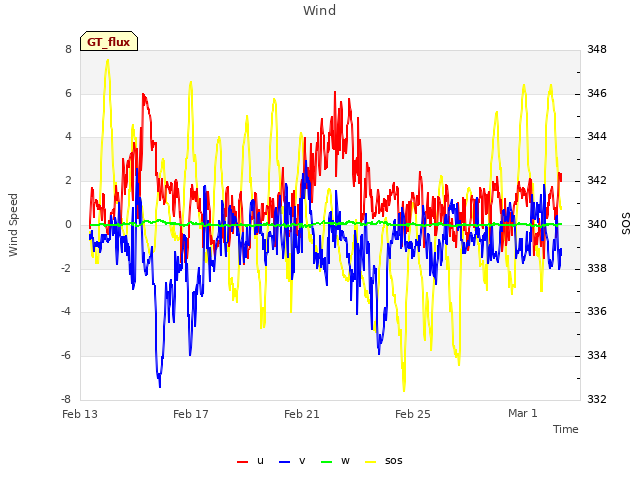

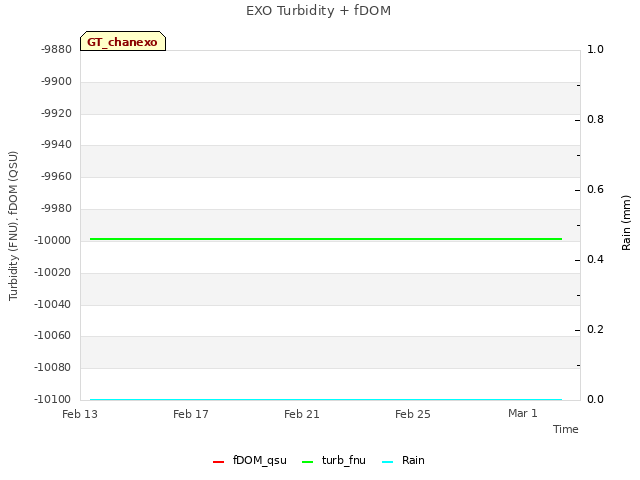

16 GT_met graphs found
