Mayberry: 2022-03-01 10:30:00 (DOY 60)
Author: Daphne Szutu
Others: Koong
Summary: Regular data collection/cleaning, radiometer boom no longer bolts down--needs more attention next time, Koong's first visit to the Delta

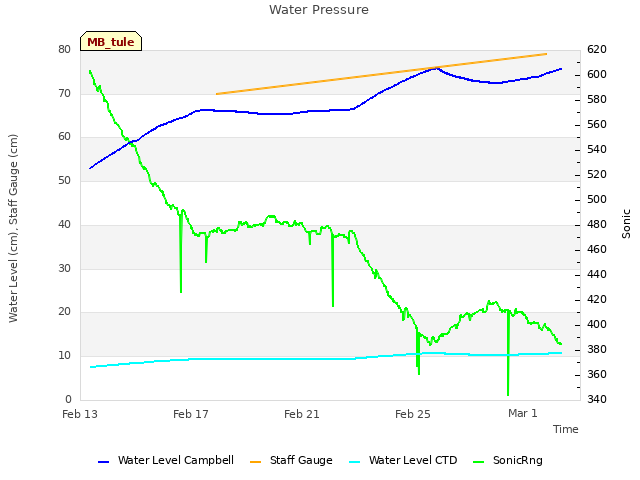

2022-03-01 Mayberry Koong and I arrived at 10:30 PST. This was Koong’s first time visiting the Delta field sites. It was a mild and calm day with some high thin clouds—perfect weather for a first visit. The water level is still going up and the staff gauge read 79cm. We passed PG&E on the road by the gas pipeline; they’re finally painting it. I collected met, cam, and USB GHG data. Koong cleaned flux and rad sensors and the precip funnel. We did something weird to the rad boom where the bolt will no longer bite into the threads of the L-bracket holding the boom in place. We might have stripped the threads on this hole over time. I downloaded the miniDOT data and changed the desiccant for the miniDOT and water level sensor. The dfPAR that was spiky in the past seems ok this time. The wash reservoir was mostly full and there were a few wasps in the box, so we left it as is. LI-7500 readings: CO2 402 ppm H2O 420 ppm T 22.8C P 101.6kPa SS 95 --> 100 LI7700 readings: CH4 2.0 RSSI 72 --> 85 after cleaning We left at 12:35 PST. |
5 photos found
We had to ziptie the radiometer boom back in place because the bolt on the end was not biting into the threads below anymore.
Koong's first site visit to the Delta
Cormorant on the radiometer boom
Koong on site
Cormorant on boom
11 sets found

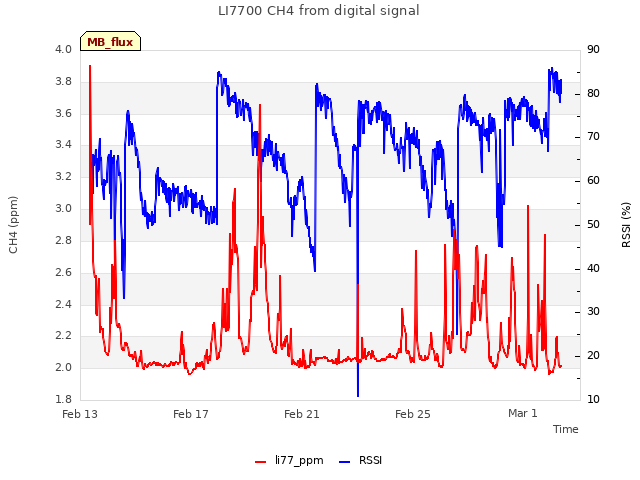

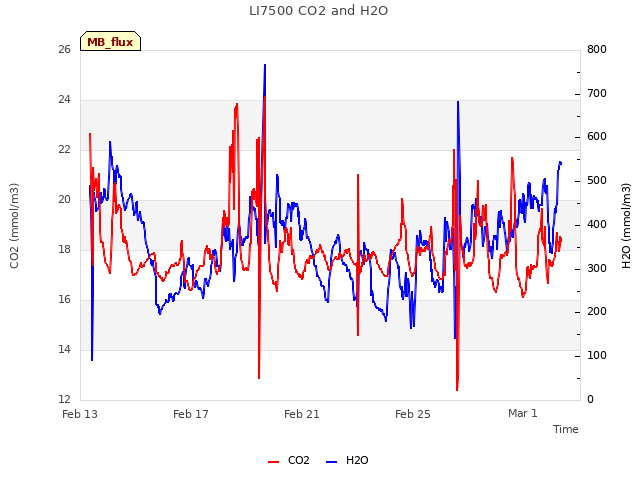

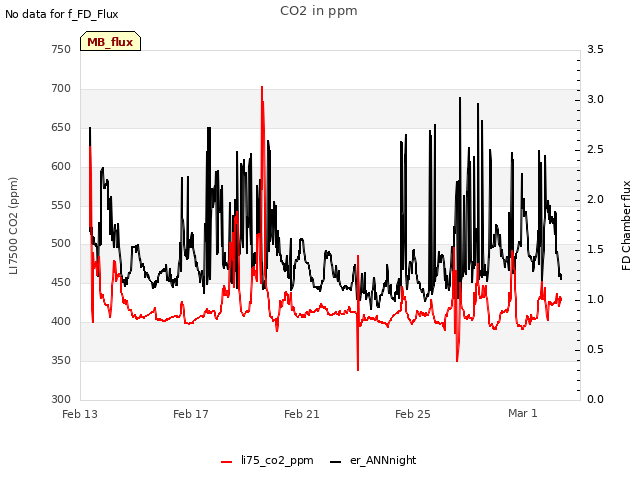

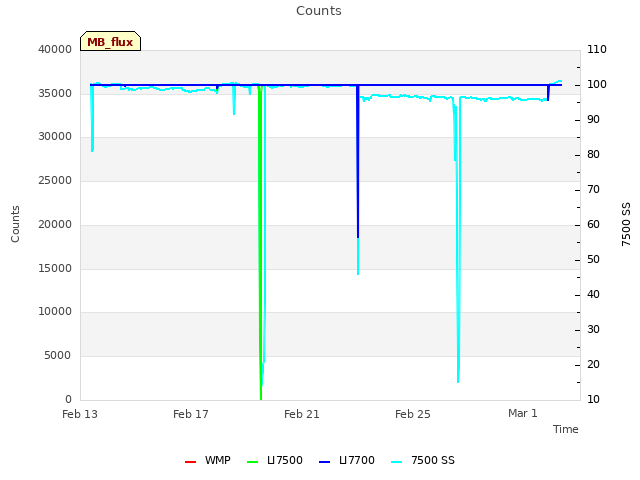

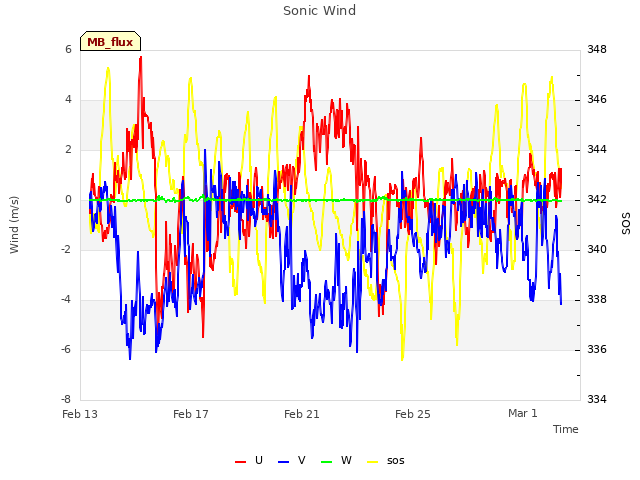

7 MB_flux graphs found
No data found for MB_met.

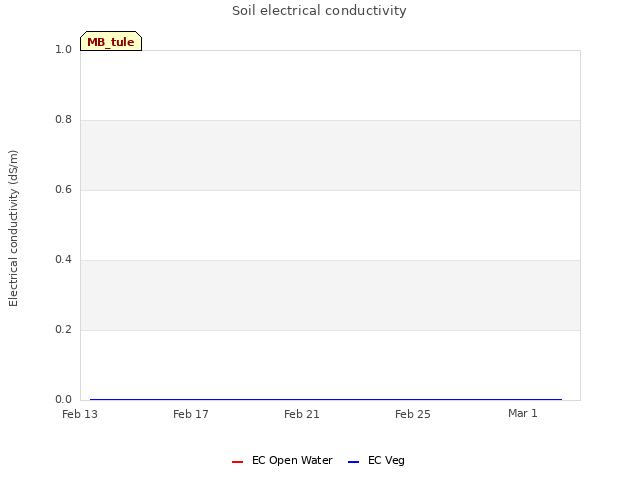

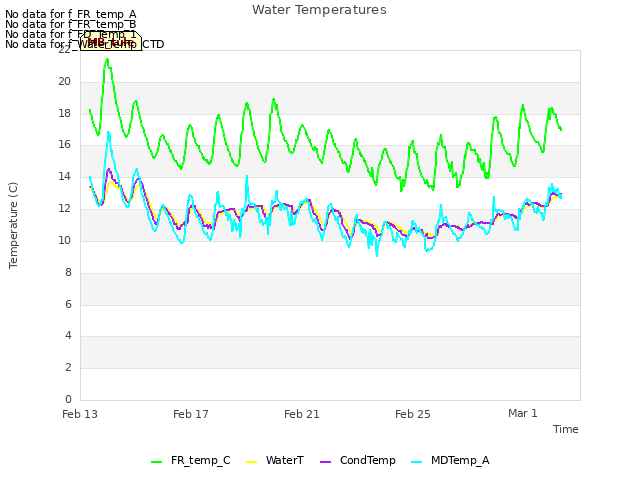

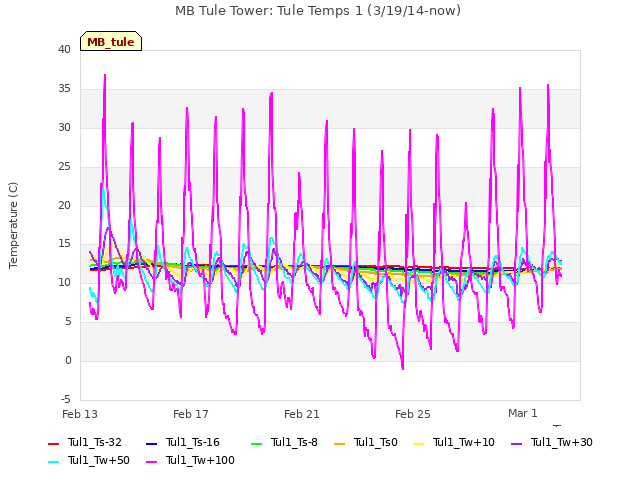

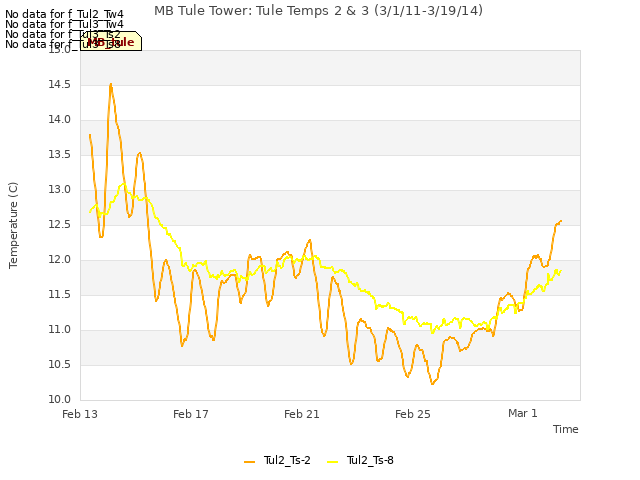

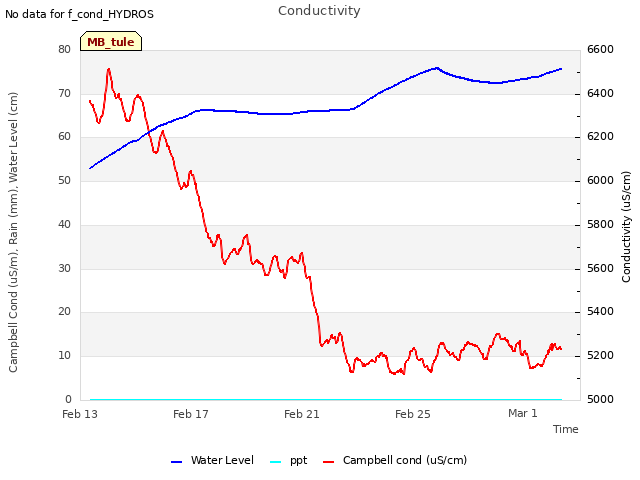

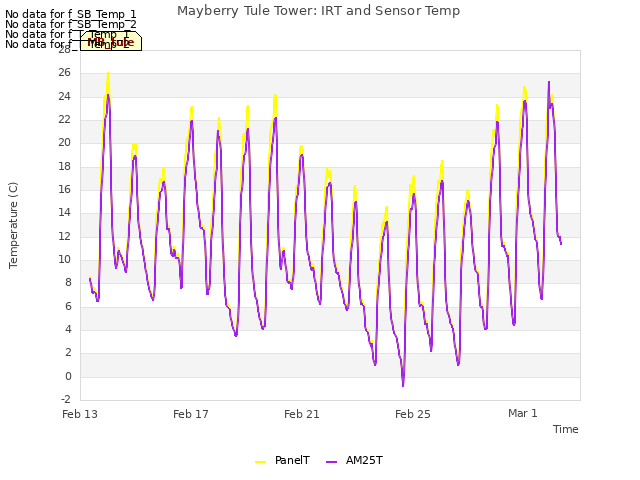

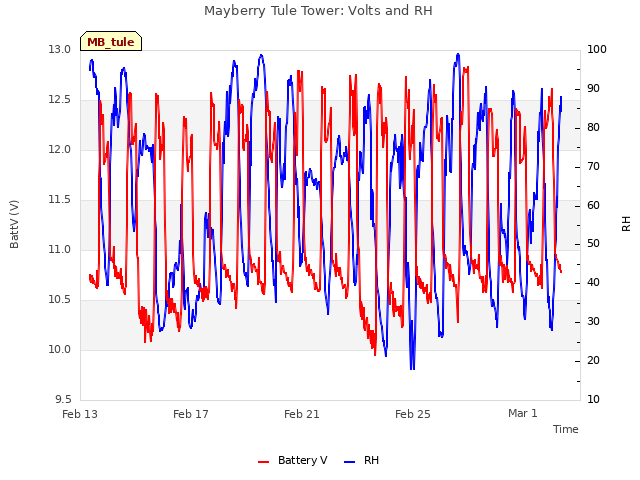

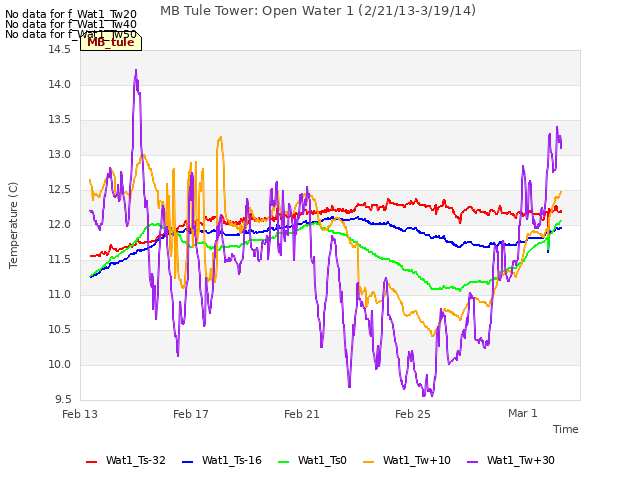

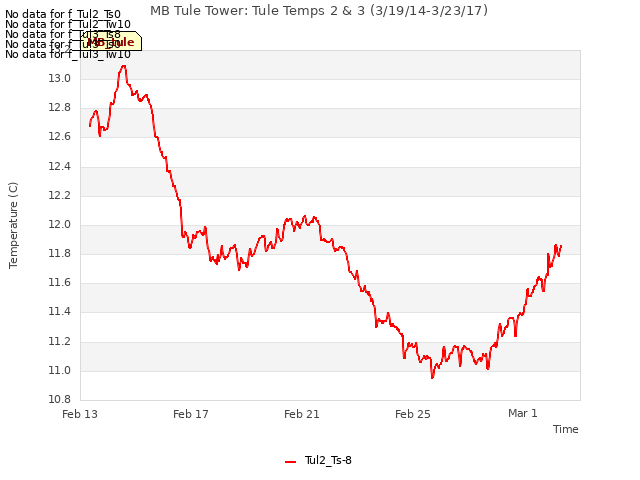

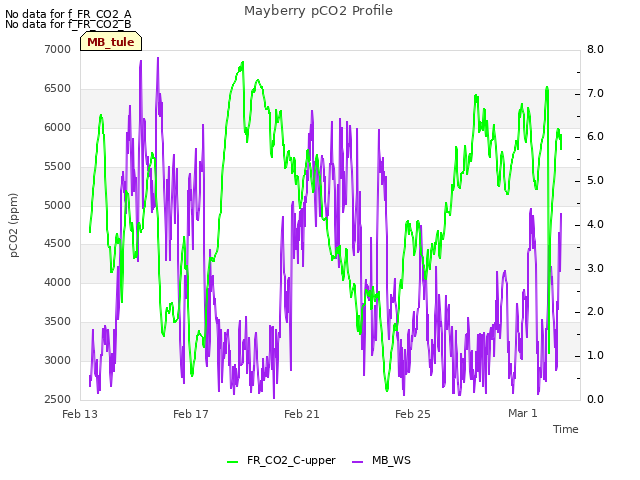

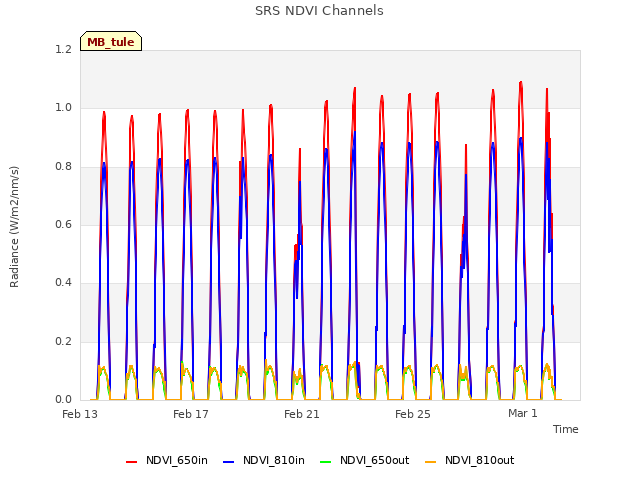

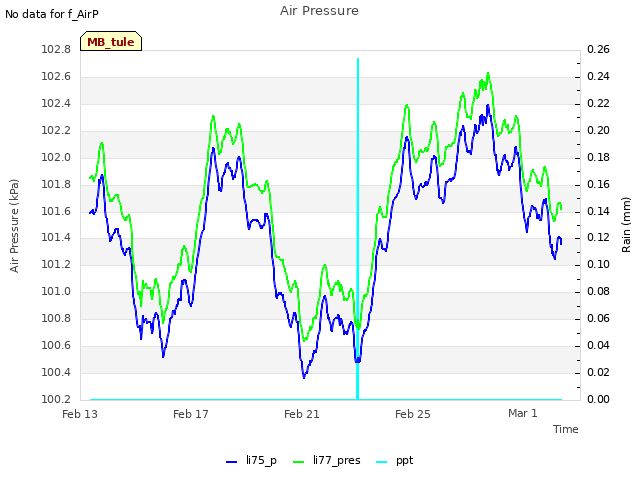

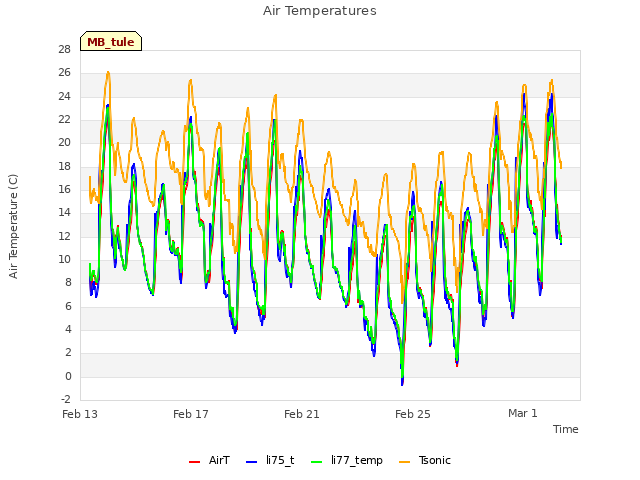

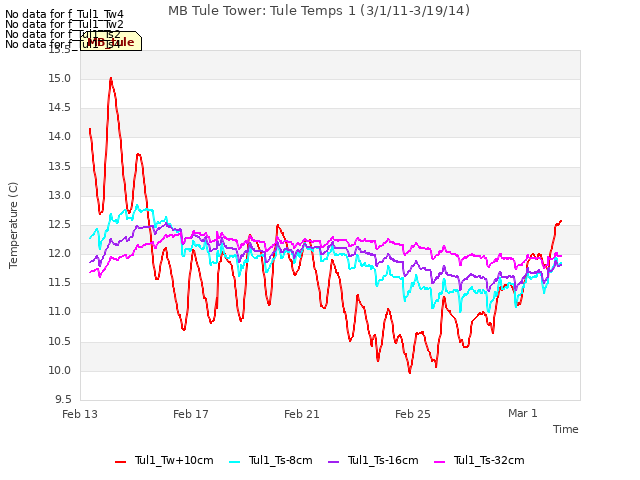

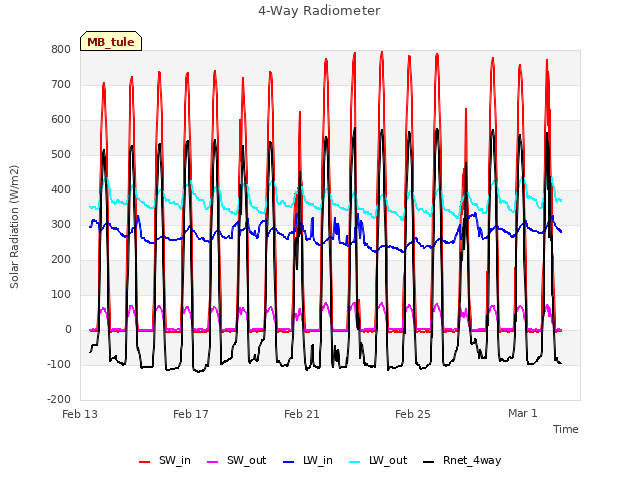

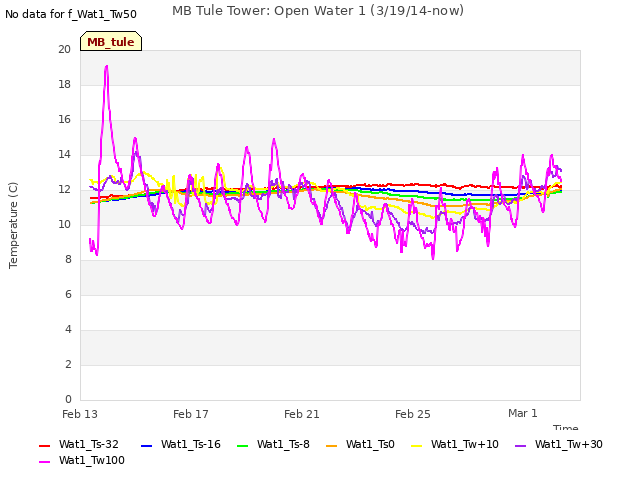

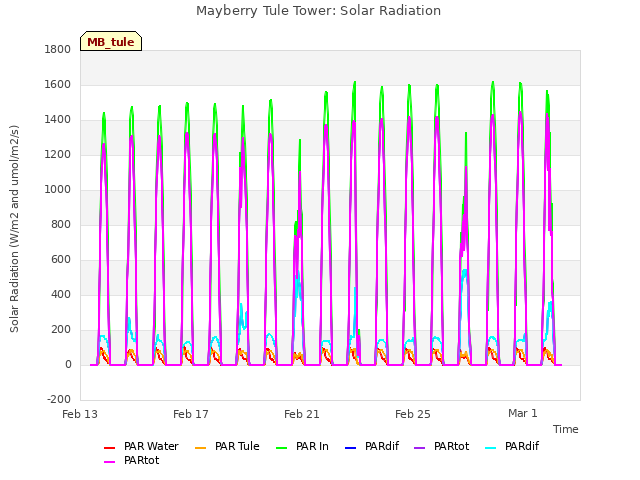

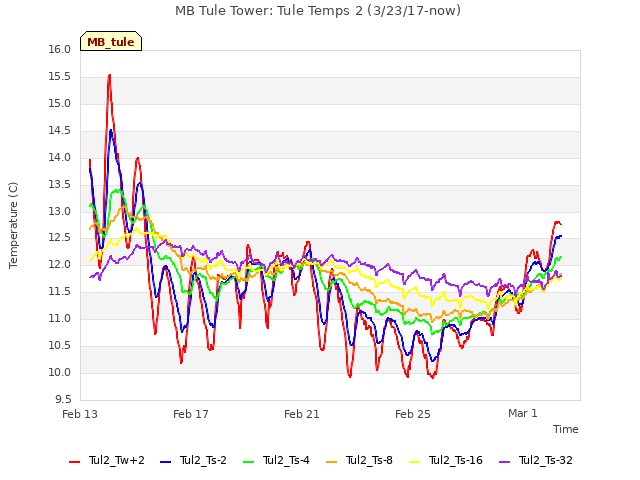

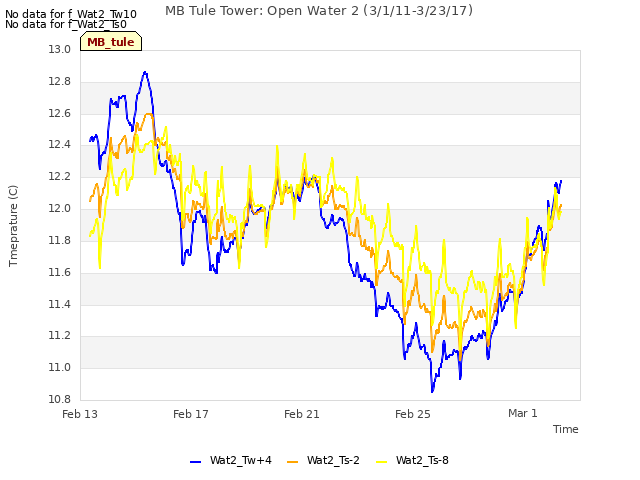

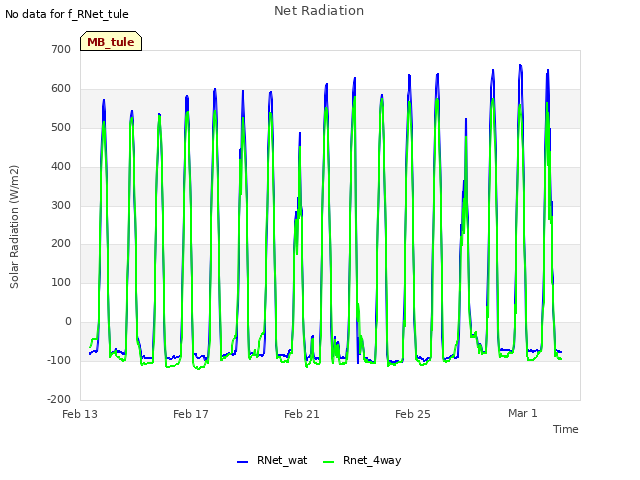

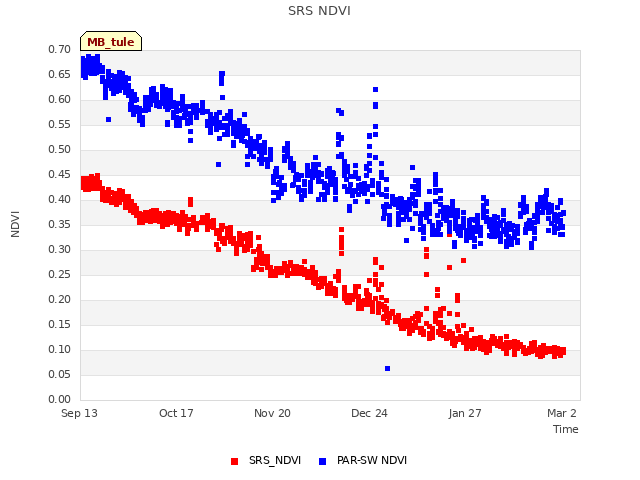

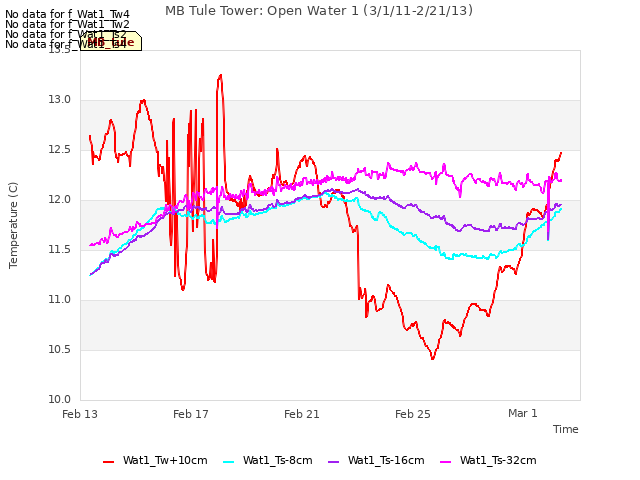

27 MB_tule graphs found
Can't check MBWPEESWGT_mixed

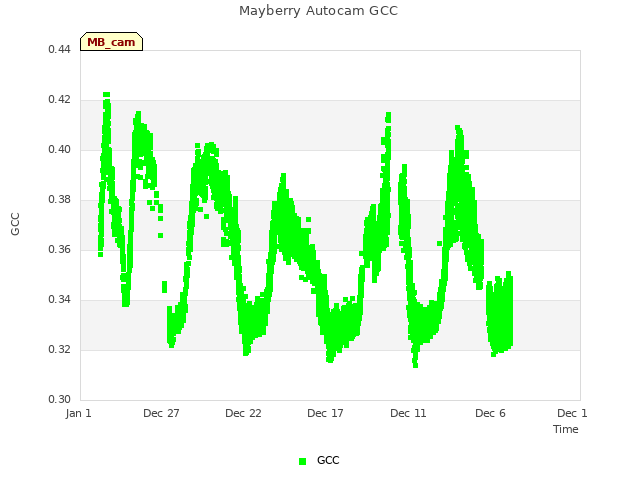

1 MB_cam graphs found
Can't check MBEEWPSWEPGT_cam
Can't check SIMBTWEE_met

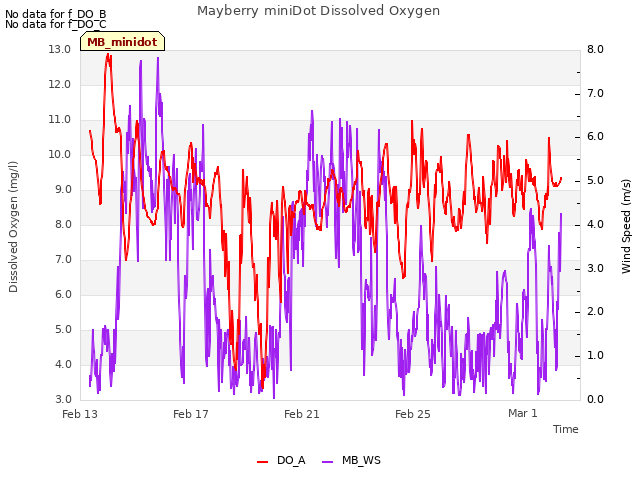

1 MB_minidot graphs found
Can't check MBSWEEWPBCBA

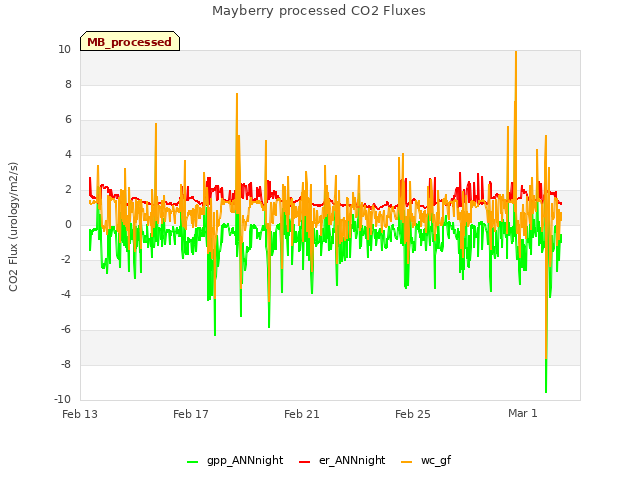

1 MB_processed graphs found
Can't check MB_fd
1 MB_fd graphs found
