Vaira: 2021-03-02 10:00:00 (DOY 61)
Author: Joe Verfaillie
Others:

Summary: Nice day, swapped 7500s, added collar to north FD chamber and increased its measurement frequency.

Vaira
2021-03-02

I arrived at about 10:00. It was mild with patchy high thin clouds and a cool breeze. There are still some puddles on the road and the water hole is now full. The grass is dense but mostly 1-2cm probably due to grazing. Inside the fences the tallest grasses are more like 10-15cm but it is patchy and competing with more standing litter.

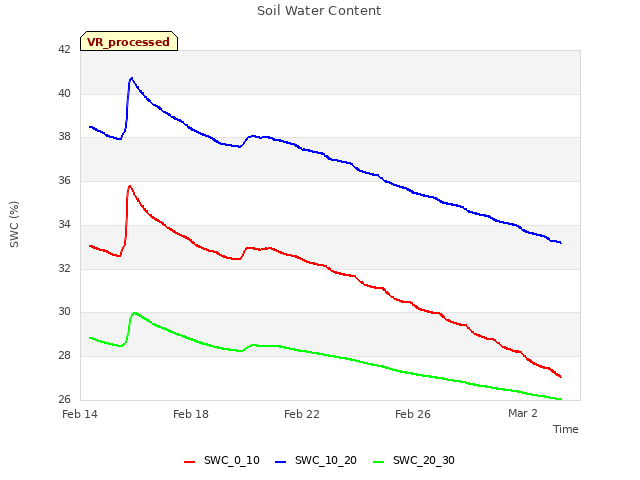

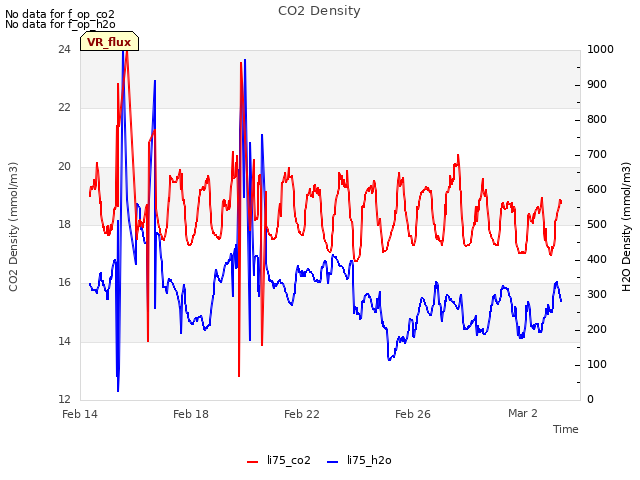

I did the well, Moisture Point and spectra measurements. The light was a little variable so there are some up/down pairs of spectra. I collected the eddy, met, FD chamber and camera data. I swapped the 7500: sn 0418 came off and sn 75H-2667 went on. Pressure coefficients were update and the 7550 box reset.

0418 read: 436.8ppm CO2, 230.9mmol/m3 H2O, 23.6C, 99.5kPa
2667 read: 431.0ppm CO2, 271.4mmol/m3 H2O, 23.6C, 99.7kPa

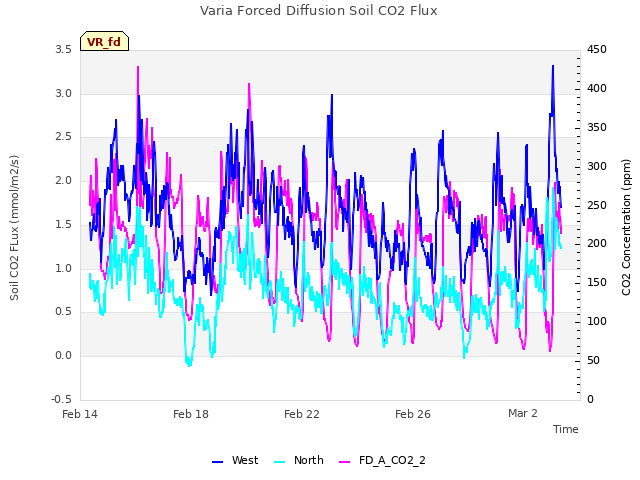

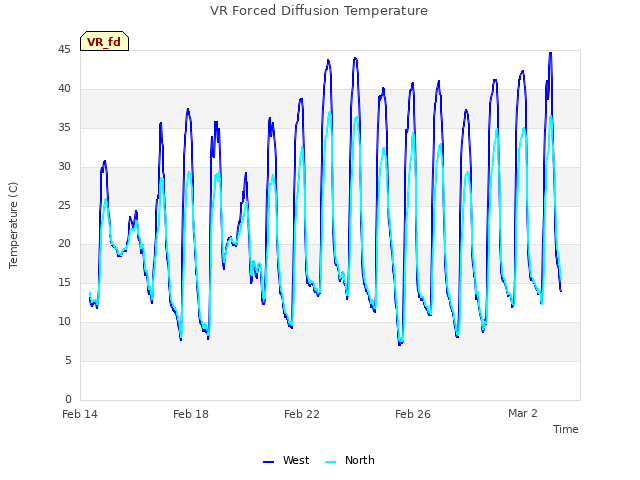

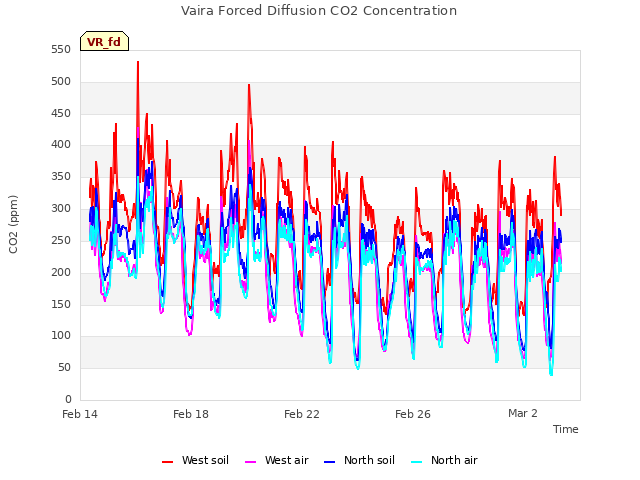

I added a collar to the new FD chamber near the old North soil CO2 profile. There was one green sprout coming up here inside the collar â€“ I should check the other FD collars next time. I also change the measurement frequency from once every 10min to once every 5min. This chamberâ€™s pump is a lot quieter than the others so it was hard to hear that it was working.

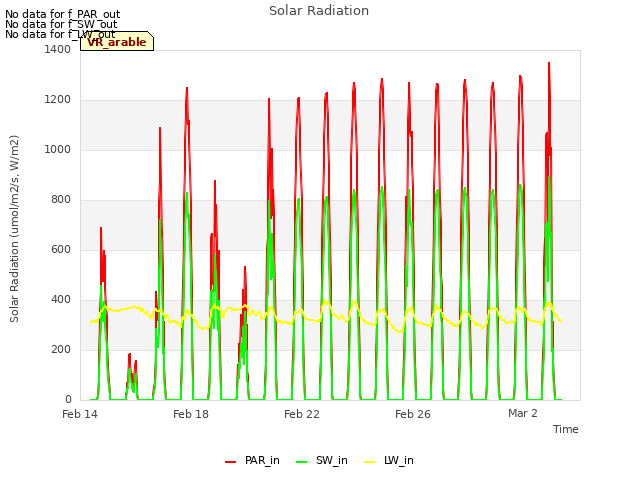

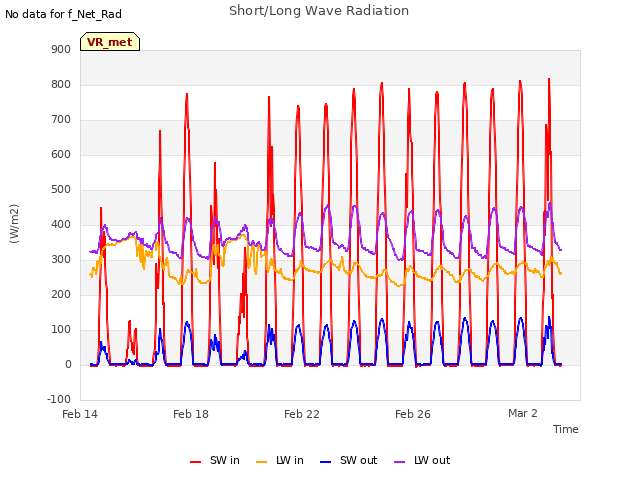

I cleaned the radiometers â€“ the incoming LW and SW were dirty with bird poop.

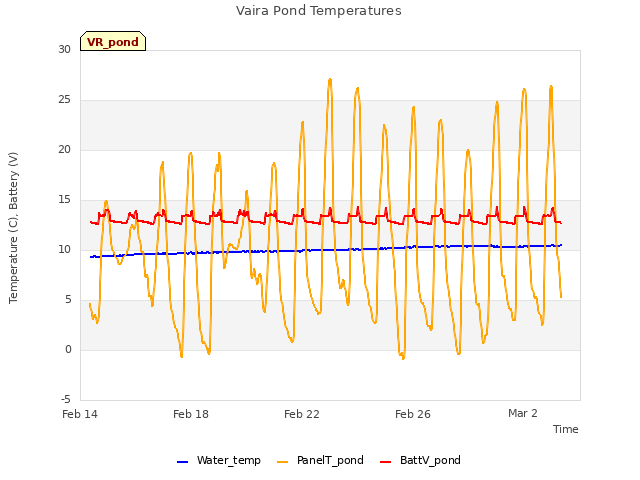

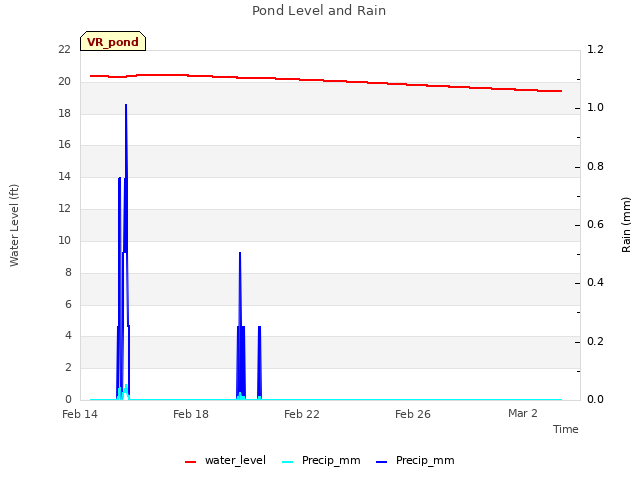

I did not go to the pond.

I left at 11:30

Field Data

No tank data

Well Depth

Date	Location	Depth (feet)
2021-03-02	VR_well	57.1
2021-03-02	TZ_floor	31
2021-03-02	TZ_road	38.65
2021-03-02	TZ_tower	36.9

mode = both
Moisture Point Probes TZ
Array ( [0] => Tower_1 [1] => Floor_South_1 [2] => Soil_Transect_4_1 [3] => Soil_Transect_3_1 [4] => Soil_Transect_2_1 [5] => Soil_Transect_1_1 [6] => SoilCO2_West_A_1 [7] => SoilCO2_West_C_1 [8] => Tower_2 [9] => Floor_South_2 [10] => Soil_Transect_4_2 [11] => Soil_Transect_3_2 [12] => Soil_Transect_2_2 [13] => Soil_Transect_1_2 [14] => SoilCO2_West_A_2 [15] => SoilCO2_West_B_2 [16] => SoilCO2_West_C_2 [17] => Tower_3 [18] => Floor_South_3 [19] => Soil_Transect_4_3 [20] => Soil_Transect_3_3 [21] => Soil_Transect_2_3 [22] => Soil_Transect_1_3 [23] => SoilCO2_West_A_3 [24] => SoilCO2_West_B_3 [25] => SoilCO2_West_C_3 [26] => Tower_4 [27] => Floor_South_4 [28] => Soil_Transect_4_4 [29] => Soil_Transect_3_4 [30] => Soil_Transect_2_4 [31] => Soil_Transect_1_4 [32] => SoilCO2_West_A_4 [33] => SoilCO2_West_B_4 [34] => SoilCO2_West_C_4 [35] => SoilCO2_West_B_1 )

0000

Date	DOY	Rep	Depth	Tower_1	Floor_South_1	Soil_Transect_4_1	Soil_Transect_3_1	Soil_Transect_2_1	Soil_Transect_1_1	SoilCO2_West_A_1	SoilCO2_West_C_1	Tower_2	Floor_South_2	Soil_Transect_4_2	Soil_Transect_3_2	Soil_Transect_2_2	Soil_Transect_1_2	SoilCO2_West_A_2	SoilCO2_West_B_2	SoilCO2_West_C_2	Tower_3	Floor_South_3	Soil_Transect_4_3	Soil_Transect_3_3	Soil_Transect_2_3	Soil_Transect_1_3	SoilCO2_West_A_3	SoilCO2_West_B_3	SoilCO2_West_C_3	Tower_4	Floor_South_4	Soil_Transect_4_4	Soil_Transect_3_4	Soil_Transect_2_4	Soil_Transect_1_4	SoilCO2_West_A_4	SoilCO2_West_B_4	SoilCO2_West_C_4	SoilCO2_West_B_1	Spacial Count
2021-03-02	61	0	nan	33.8	23.5	16.2	17.1	18.8	15.9	27.6	23.2	31.9	25.8	26.5	29.5	30.7	18.2	24.3	17.3	29.5	31	38.8	26.8	31.3	33.5	33.2	34.3	22.3	37.7	42	52	33.1	43.1	46.8	34	43.4	58.6	48.8
2021-03-02	61	1	nan	34.1	23.5	16.8		18.5	15.6	26.1	23.2	31.3	25.5	24.6	29.8	30.4	18.8	24	17.6	30.4	31.5	39.6	27.9	31	34.3	32.9	32.7	23.5	36.6	42	52.6	31.9		47.7	34	43.7	60	48	24.4
2021-03-02	61	2	nan				22.3								29.2									31.3									40.8
2021-03-02	61	Avg	0-15cm																																					0
2021-03-02	61	Avg	15-30cm																																					0
2021-03-02	61	Avg	30-45cm																																					0
2021-03-02	61	Avg	45-60cm																																					0

mode = both
Moisture Point Probes VR
Array ( [0] => Biomass_Cage_1 [1] => Flux_Tower_2 [2] => Biomass_Cage_2 [3] => Flux_Tower_3 [4] => Biomass_Cage_3 [5] => Flux_Tower_4 [6] => Biomass_Cage_4 [7] => Flux_Tower_1 )

0000

Date	DOY	Rep	Depth	Biomass_Cage_1	Flux_Tower_2	Biomass_Cage_2	Flux_Tower_3	Biomass_Cage_3	Flux_Tower_4	Biomass_Cage_4	Flux_Tower_1	Spacial Count
2021-03-02	61	0	nan	8	28.3	16.7	15.4	27.4	26.2	29.4
2021-03-02	61	1	nan	7.4	28.6	17.3	14.8	26.8	26.5	29.1	10.3
2021-03-02	61	Avg	0-15cm									0
2021-03-02	61	Avg	15-30cm									0
2021-03-02	61	Avg	30-45cm									0
2021-03-02	61	Avg	45-60cm									0
