Vaira: 2021-02-10 13:50:00 (DOY 41)
Author: Joe Verfaillie
Others:

Summary: Water levels coming up after last storm, installed FD chamber, lots of pushy cows around, went to the pond.

Vaira
2021-02-10

I arrived at about 13:50. It was clear sunny and warm with little to no wind. There was a big storm about two weeks ago that brought lots of rain and wind. The road was nearly dry in most places but the water hole was almost full having been dry three weeks ago. Lots of mama and young cows around. A big tan mama cow followed me inside the cow fence. I had to clap my hands and yell at her to chase her back out. Then she stood just outside the fence glaring at me. The grass is still only about 5cm tall on average but might be denser than last time. The cows are maybe helping to keep it shorter but even inside the fences itâ€™s mostly not very tall.

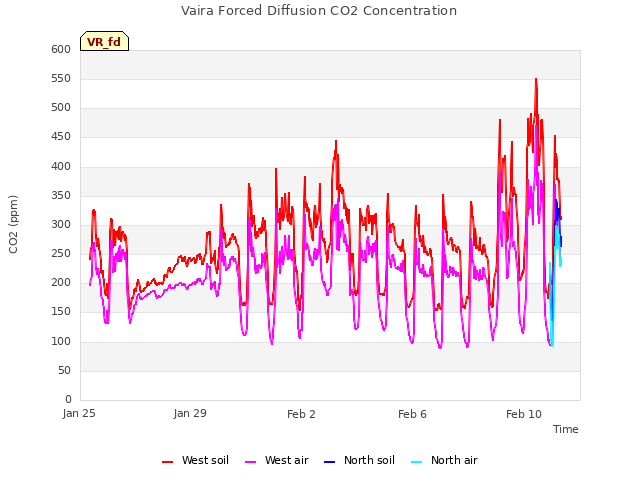

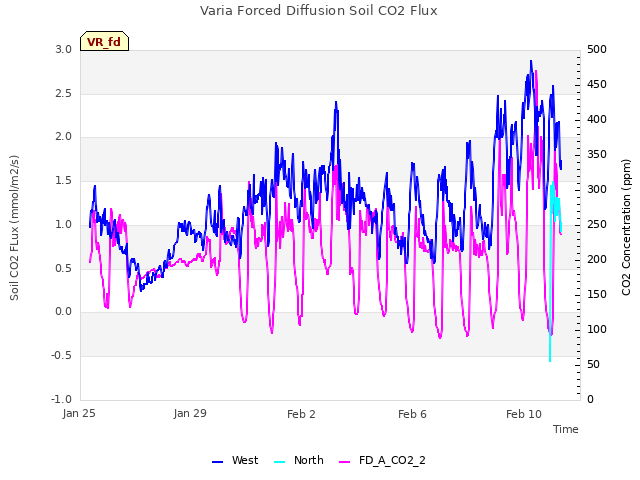

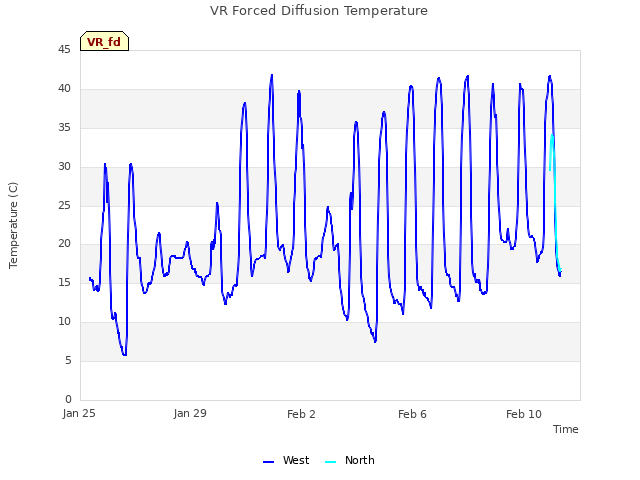

I installed FD Chamber sn FD20200001 near the old north soil CO2 profile. I have made a solar shade for this chamber from plastic drain pipe and a piece of mirrored Mylar. We will see how its temperature compares to the existing unshielded one. I forgot the plastic collar so this chamber is just pressed to the bare ground.

I collect the Eddy, met, FD, camera, well, spectra and moisture point data.

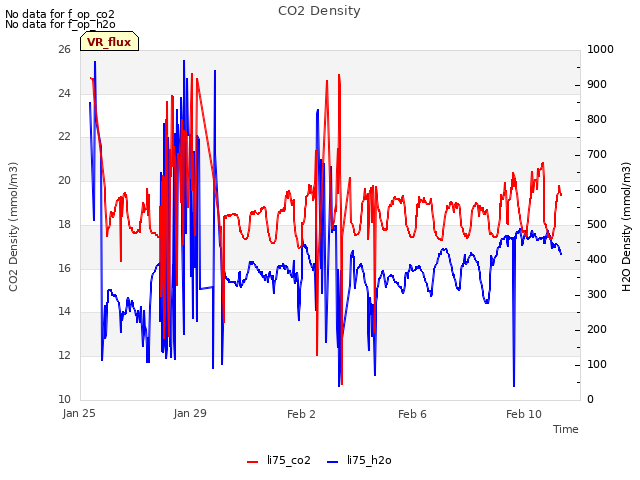

The 7500 read: 431.2ppm CO2, 461.0mmol/m3 H2O, 24.2C, 99.8kPa, 100.6SS

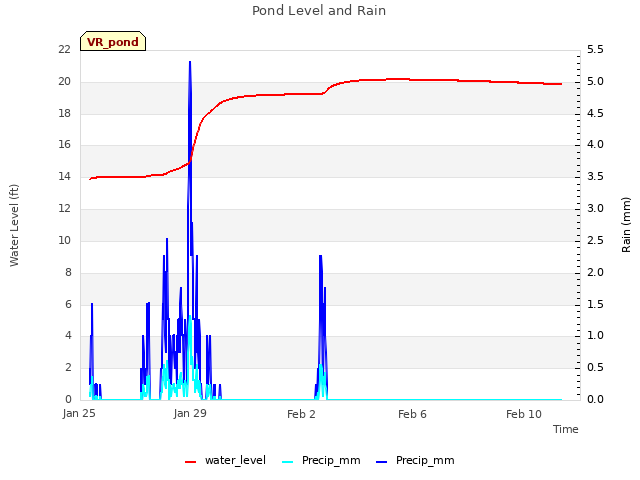

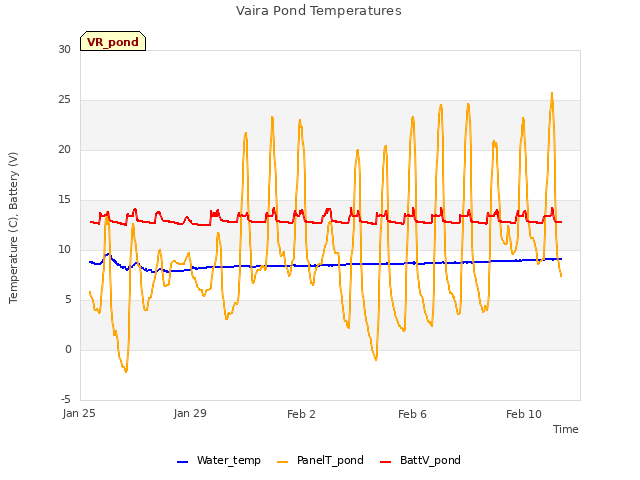

I went to the pond. The stream was full but the road was dry and easily passable in my small car. The pond level has come up by about a meter.

I left at about 15:20

Field Data

No tank data

Well Depth

Date	Location	Depth (feet)
2021-02-10	TZ_floor	31.4
2021-02-10	TZ_road	38.9
2021-02-10	TZ_tower	36.05
2021-02-10	VR_well	59.15
2021-02-10	VR_pond	20.04

mode = both
Moisture Point Probes TZ
Array ( [0] => Tower_1 [1] => Floor_South_1 [2] => Soil_Transect_4_1 [3] => Soil_Transect_2_1 [4] => Soil_Transect_1_1 [5] => SoilCO2_West_A_1 [6] => SoilCO2_West_B_1 [7] => SoilCO2_West_C_1 [8] => Tower_2 [9] => Floor_South_2 [10] => Soil_Transect_4_2 [11] => Soil_Transect_3_2 [12] => Soil_Transect_2_2 [13] => Soil_Transect_1_2 [14] => SoilCO2_West_A_2 [15] => SoilCO2_West_B_2 [16] => SoilCO2_West_C_2 [17] => Tower_3 [18] => Floor_South_3 [19] => Soil_Transect_4_3 [20] => Soil_Transect_3_3 [21] => Soil_Transect_2_3 [22] => Soil_Transect_1_3 [23] => SoilCO2_West_A_3 [24] => SoilCO2_West_B_3 [25] => SoilCO2_West_C_3 [26] => Tower_4 [27] => Floor_South_4 [28] => Soil_Transect_4_4 [29] => Soil_Transect_3_4 [30] => Soil_Transect_2_4 [31] => Soil_Transect_1_4 [32] => SoilCO2_West_A_4 [33] => SoilCO2_West_B_4 [34] => SoilCO2_West_C_4 [35] => Soil_Transect_3_1 )

0000

Date	DOY	Rep	Depth	Tower_1	Floor_South_1	Soil_Transect_4_1	Soil_Transect_2_1	Soil_Transect_1_1	SoilCO2_West_A_1	SoilCO2_West_B_1	SoilCO2_West_C_1	Tower_2	Floor_South_2	Soil_Transect_4_2	Soil_Transect_3_2	Soil_Transect_2_2	Soil_Transect_1_2	SoilCO2_West_A_2	SoilCO2_West_B_2	SoilCO2_West_C_2	Tower_3	Floor_South_3	Soil_Transect_4_3	Soil_Transect_3_3	Soil_Transect_2_3	Soil_Transect_1_3	SoilCO2_West_A_3	SoilCO2_West_B_3	SoilCO2_West_C_3	Tower_4	Floor_South_4	Soil_Transect_4_4	Soil_Transect_3_4	Soil_Transect_2_4	Soil_Transect_1_4	SoilCO2_West_A_4	SoilCO2_West_B_4	SoilCO2_West_C_4	Soil_Transect_3_1	Spacial Count
2021-02-10	41	0	nan	33.8	22.3	14.7	22.9	17.1	28.8	27.9	26.1	34.1	34.1	28	31	31.6	20.6	24.3	21	33.8	33.2	41	33.8	32.9	34.6	34.9	35.4	29	38.2	41.4	51.7	34.5	43.7	47.2	37.4	40	57.4	48.8
2021-02-10	41	1	nan	34.9	21.7	14.4	22.3	17.3	31.4	27.9	27.9	33.5	34.7	28.9	30.7	32.3	21	24.6	20.3	31.9	33.2	40.2	34.3	33.8	34.6	34.6	34.9	24.6	38.5	42.8	50.9	34.2	44	46.6	36.8	40.5	11.1	48.3	20.3
2021-02-10	41	Avg	0-15cm																																					0
2021-02-10	41	Avg	15-30cm																																					0
2021-02-10	41	Avg	30-45cm																																					0
2021-02-10	41	Avg	45-60cm																																					0

mode = both
Moisture Point Probes VR
Array ( [0] => Flux_Tower_1 [1] => Flux_Tower_2 [2] => Flux_Tower_3 [3] => Biomass_Cage_3 [4] => Flux_Tower_4 [5] => Biomass_Cage_4 [6] => Biomass_Cage_1 [7] => Biomass_Cage_2 )

0000

Date	DOY	Rep	Depth	Flux_Tower_1	Flux_Tower_2	Flux_Tower_3	Biomass_Cage_3	Flux_Tower_4	Biomass_Cage_4	Biomass_Cage_1	Biomass_Cage_2	Spacial Count
2021-02-10	41	0	nan	12.1	30.7	17	29	29.1	27.4
2021-02-10	41	1	nan	13.8	31	16.8	31	28.8	31.4	9.1	19.7
2021-02-10	41	2	nan				30.7		32.2	9.4	20
2021-02-10	41	Avg	0-15cm									0
2021-02-10	41	Avg	15-30cm									0
2021-02-10	41	Avg	30-45cm									0
2021-02-10	41	Avg	45-60cm									0
