Tonzi: 2021-03-02 11:30:00 (DOY 61)
Author: Joe Verfaillie
Others:
Summary: Nice day, swapped 7500s, fixed minor issues with zcams, remove calibration kit from Tower top
Tonzi 2021-03-02 I arrived at about 11:30. It was mild with patchy high thin clouds and a cool breeze – warm in the sun cool in the shade. The road is mostly dry except the usual puddles near the tower. The pond may have even gone down a tiny bit. The grass is somewhat yellow probably due to cold weather as the soil is mostly damp – saturated at the bottom almost dry at the very surface. I swapped the 7500s for calibration. At the Tower sn 75H-2180 came down and sn 75H-2150 went up. At the Floor sn 0035 came down and sn 75H-2176 went up. Pressure coefficients were update and the 7550 boxes reset. 2180 read: 420.1ppm CO2, 244.0mmol/m3 H2O, 16.4C, 98.8kPa 2150 read: 420.4ppm CO2, 219.3mmol/m3 H2O, 15.9C, 98.8kPa 0035 read: 428.2ppm CO2, 269.8mmol/m3 H2O, 18.3C, 98.8kPa 2176 read: 434.8ppm CO2, 257.7mmol/m3 H2O, 19.9C, 98.8kPa I removed the calibration kit from the top of the tower. The following equipment came off HMP155 sn S3410851 METER ATMOS14 PAR sn 060831 (Ameriflux) CR1000 sn 4190 Sonic sn 153805 I collected data from the other data loggers (IRT CR1000 still needed reset to send data) and the FD chambers. I did the Moisture Point, DBH and manual well measurements. I serviced the z-cams. Cam 3 had lost its time just before my last visit. This time I replaced its clock battery with a new CR1225 lithium coin cell. Last time I put the lid on z-cam1 backwards so the window did not line up with the lens. All the photos from z-cam 1 this time are trash. However the trees have been leafless for the entire period so little real data was lost. I left at 14:30 |
Field Data
No tank data

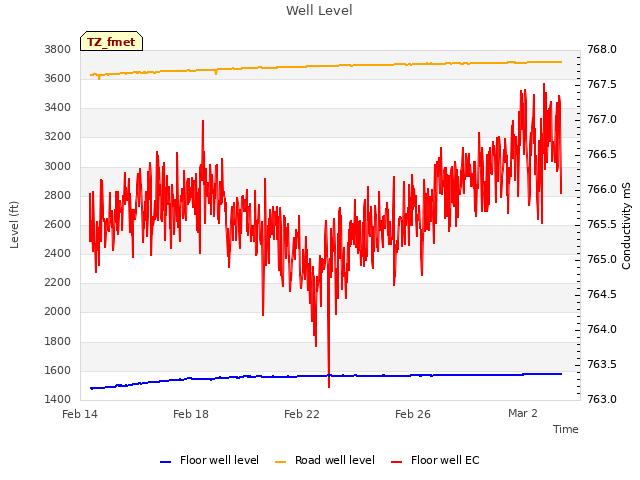

Well Depth
Date | Location | Depth (feet) |
---|---|---|
2021-03-02 | VR_well | 57.1 |
2021-03-02 | TZ_floor | 31 |
2021-03-02 | TZ_road | 38.65 |
2021-03-02 | TZ_tower | 36.9 |
mode = both
Moisture Point Probes TZ
Array
(
[0] => Tower
[1] => Floor_South
[2] => Soil_Transect_4
[3] => Soil_Transect_3
[4] => Soil_Transect_2
[5] => Soil_Transect_1
[6] => SoilCO2_West_A
[7] => SoilCO2_West_C
[8] => SoilCO2_West_B
)
Date | DOY | Rep | Depth | Tower |
Floor_South |
Soil_Transect_4 |
Soil_Transect_3 |
Soil_Transect_2 |
Soil_Transect_1 |
SoilCO2_West_A |
SoilCO2_West_C |
SoilCO2_West_B |
Avg | Spacial Count |
Measurement Count |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
2021-03-02 | 61 | 0 | 0-15cm | 33.8 | 23.5 | 16.2 | 17.1 | 18.8 | 15.9 | 27.6 | 23.2 | ||||
2021-03-02 | 61 | 0 | 15-30cm | 31.9 | 25.8 | 26.5 | 29.5 | 30.7 | 18.2 | 24.3 | 29.5 | 17.3 | |||
2021-03-02 | 61 | 0 | 30-45cm | 31 | 38.8 | 26.8 | 31.3 | 33.5 | 33.2 | 34.3 | 37.7 | 22.3 | |||
2021-03-02 | 61 | 0 | 45-60cm | 42 | 52 | 33.1 | 43.1 | 46.8 | 34 | 43.4 | 48.8 | 58.6 | |||
2021-03-02 | 61 | 1 | 0-15cm | 34.1 | 23.5 | 16.8 | 18.5 | 15.6 | 26.1 | 23.2 | 24.4 | ||||
2021-03-02 | 61 | 1 | 15-30cm | 31.3 | 25.5 | 24.6 | 29.8 | 30.4 | 18.8 | 24 | 30.4 | 17.6 | |||
2021-03-02 | 61 | 1 | 30-45cm | 31.5 | 39.6 | 27.9 | 31 | 34.3 | 32.9 | 32.7 | 36.6 | 23.5 | |||
2021-03-02 | 61 | 1 | 45-60cm | 42 | 52.6 | 31.9 | 47.7 | 34 | 43.7 | 48 | 60 | ||||
2021-03-02 | 61 | 2 | 0-15cm | 22.3 | |||||||||||
2021-03-02 | 61 | 2 | 15-30cm | 29.2 | |||||||||||
2021-03-02 | 61 | 2 | 30-45cm | 31.3 | |||||||||||
2021-03-02 | 61 | 2 | 45-60cm | 40.8 | |||||||||||
2021-03-02 | 61 | Avg | 0-15cm | 33.95 | 23.5 | 16.5 | 19.7 | 18.65 | 15.75 | 26.85 | 23.2 | 24.4 | 22.5 | 9 | 17 |
2021-03-02 | 61 | Avg | 15-30cm | 31.6 | 25.65 | 25.55 | 29.5 | 30.55 | 18.5 | 24.15 | 29.95 | 17.45 | 25.88 | 9 | 19 |
2021-03-02 | 61 | Avg | 30-45cm | 31.25 | 39.2 | 27.35 | 31.2 | 33.9 | 33.05 | 33.5 | 37.15 | 22.9 | 32.17 | 9 | 19 |
2021-03-02 | 61 | Avg | 45-60cm | 42 | 52.3 | 32.5 | 41.95 | 47.25 | 34 | 43.55 | 48.4 | 59.3 | 44.58 | 9 | 18 |
mode = both
Moisture Point Probes VR
Array
(
[0] => Biomass_Cage
[1] => Flux_Tower
)
Date | DOY | Rep | Depth | Biomass_Cage |
Flux_Tower |
Avg | Spacial Count |
Measurement Count |
---|---|---|---|---|---|---|---|---|
2021-03-02 | 61 | 0 | 0-15cm | 8 | ||||
2021-03-02 | 61 | 0 | 15-30cm | 16.7 | 28.3 | |||
2021-03-02 | 61 | 0 | 30-45cm | 27.4 | 15.4 | |||
2021-03-02 | 61 | 0 | 45-60cm | 29.4 | 26.2 | |||
2021-03-02 | 61 | 1 | 0-15cm | 7.4 | 10.3 | |||
2021-03-02 | 61 | 1 | 15-30cm | 17.3 | 28.6 | |||
2021-03-02 | 61 | 1 | 30-45cm | 26.8 | 14.8 | |||
2021-03-02 | 61 | 1 | 45-60cm | 29.1 | 26.5 | |||
2021-03-02 | 61 | Avg | 0-15cm | 7.7 | 10.3 | 9 | 2 | 3 |
2021-03-02 | 61 | Avg | 15-30cm | 17 | 28.45 | 22.73 | 2 | 4 |
2021-03-02 | 61 | Avg | 30-45cm | 27.1 | 15.1 | 21.1 | 2 | 4 |
2021-03-02 | 61 | Avg | 45-60cm | 29.25 | 26.35 | 27.8 | 2 | 4 |
No TZ grass heigth found
No VR grass heigth found
Tree DBH
Date | Tag# | Reading (mm) |
---|---|---|
2021-03-02 | 1 | 11.5 |
2021-03-02 | 102 | 7.1 |
2021-03-02 | 2 | 11.3 |
2021-03-02 | 245 | 13.2 |
2021-03-02 | 3 | 17.3 |
2021-03-02 | 4 | 11.2 |
2021-03-02 | 5 | 4.3 |
2021-03-02 | 6 | 16.9 |
2021-03-02 | 7 | 19.5 |
2021-03-02 | 72 | 11.2 |
2021-03-02 | 79 | 10.5 |
No water potential data found
No TZ Grass Biomass data found
No TZ OakLeaves Biomass data found
No TZ PineNeedles Biomass data found
0 photos found
16 sets found
No data found for TZ_Fenergy.

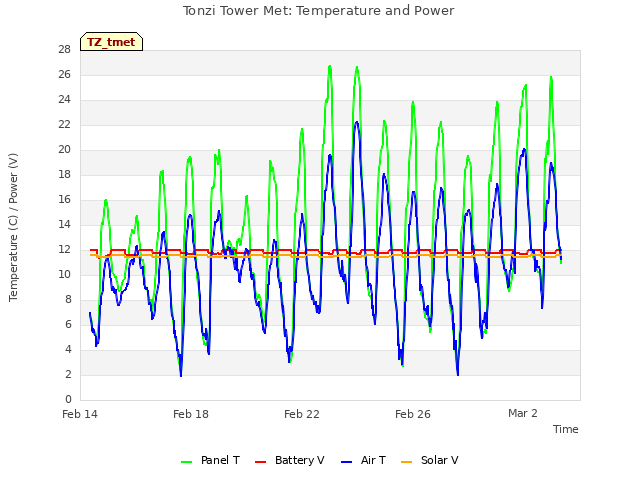

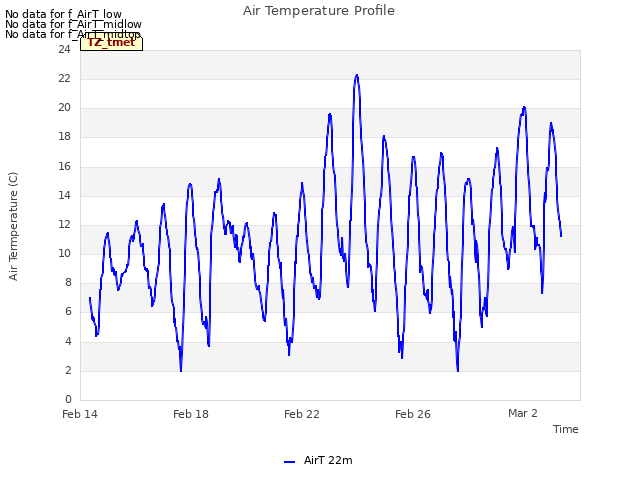

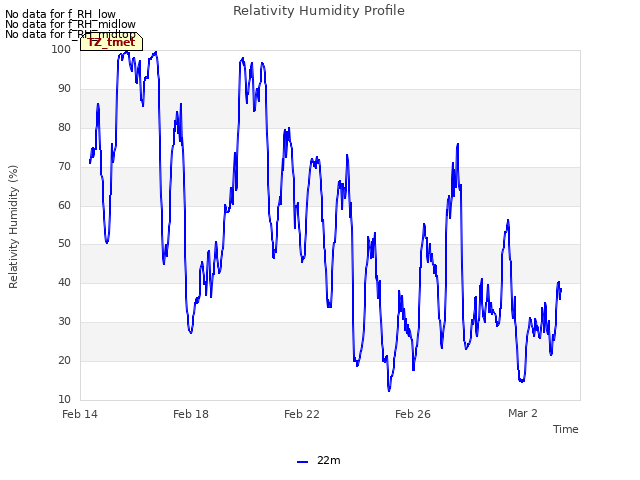

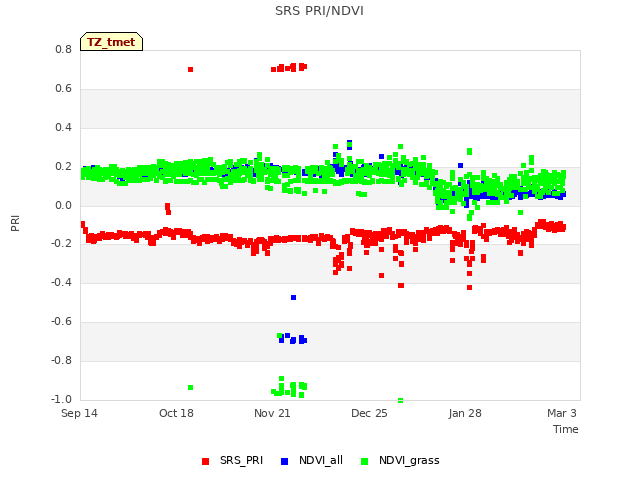

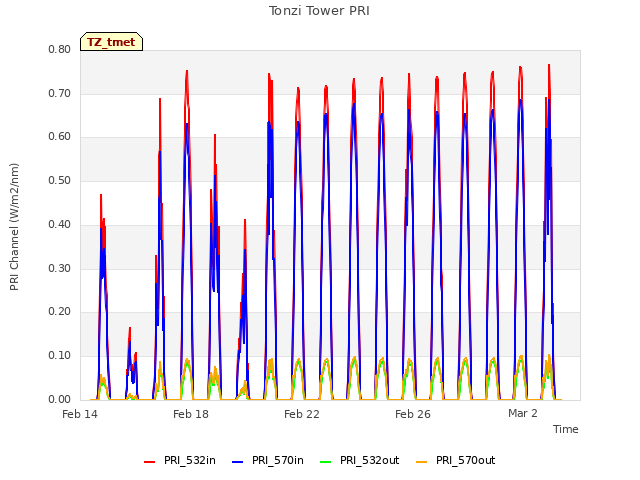

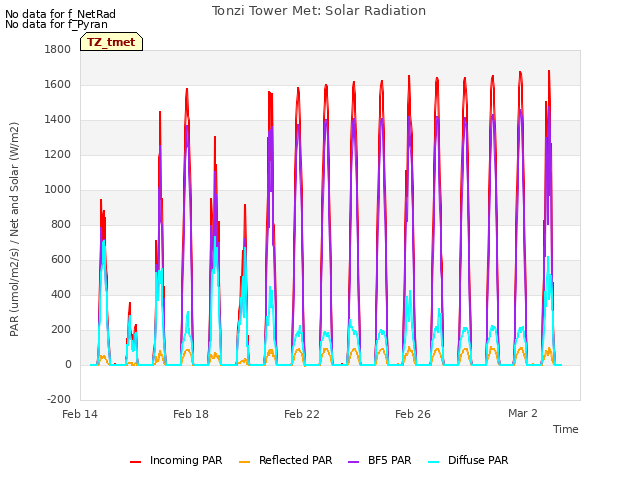

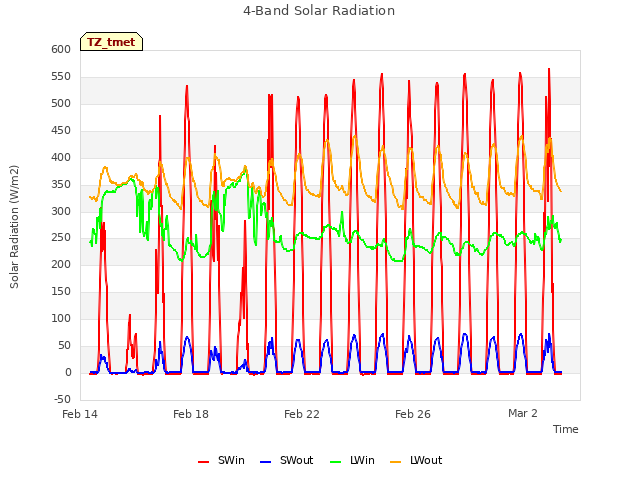

11 TZ_tmet graphs found

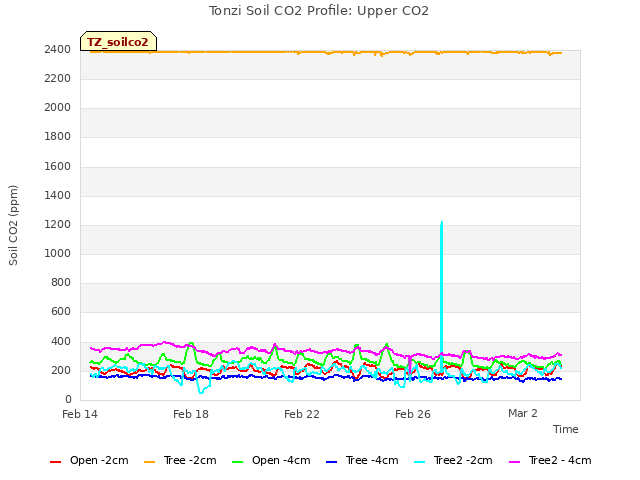

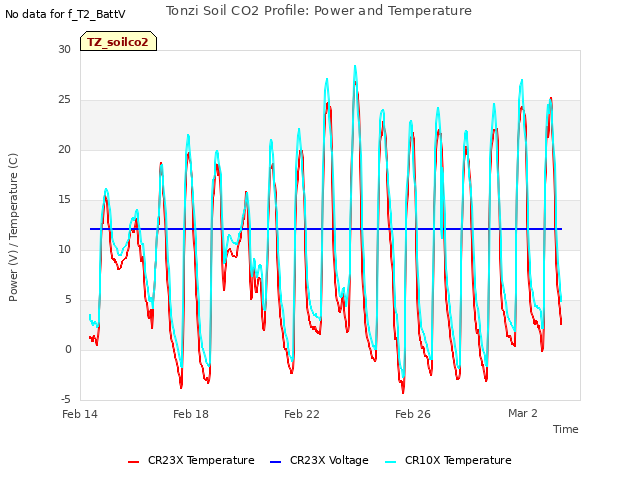

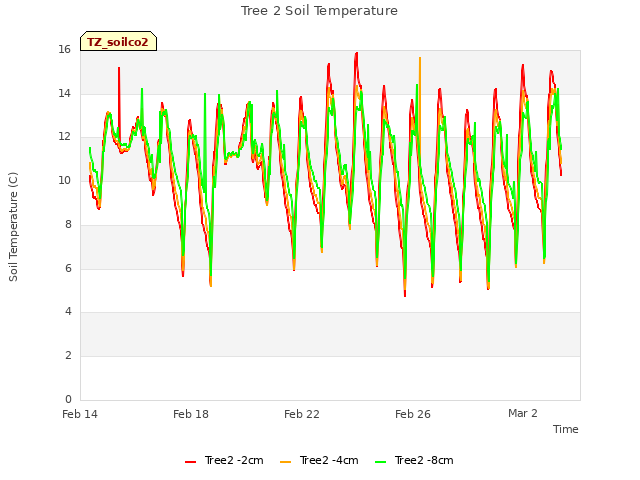

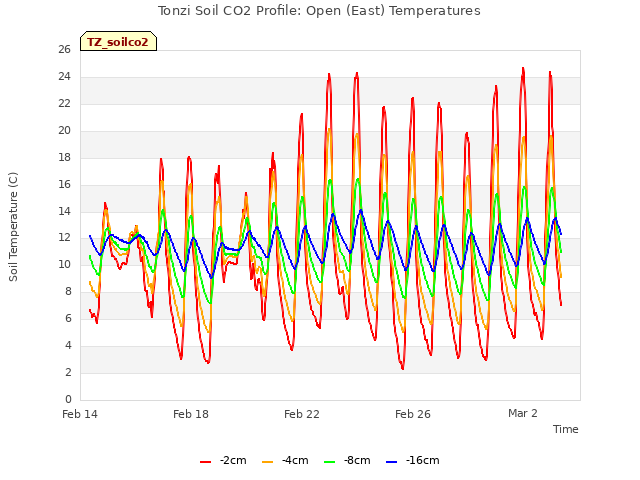

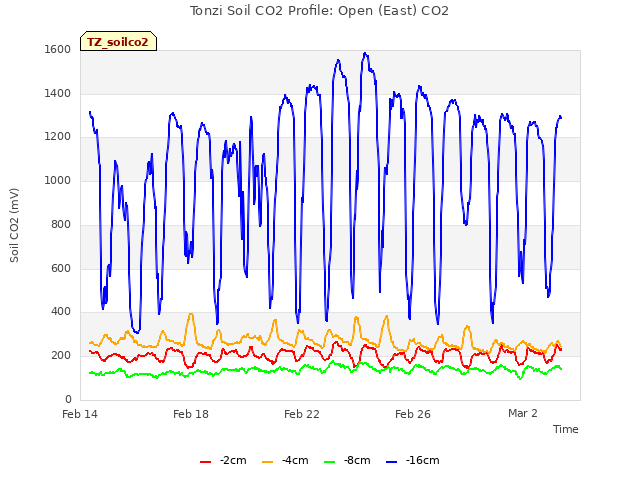

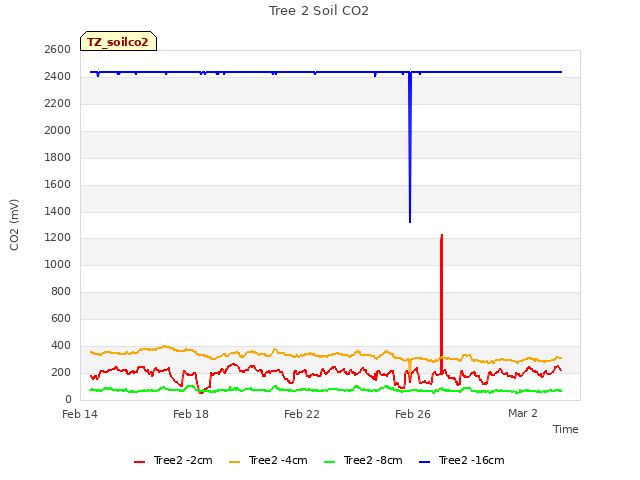

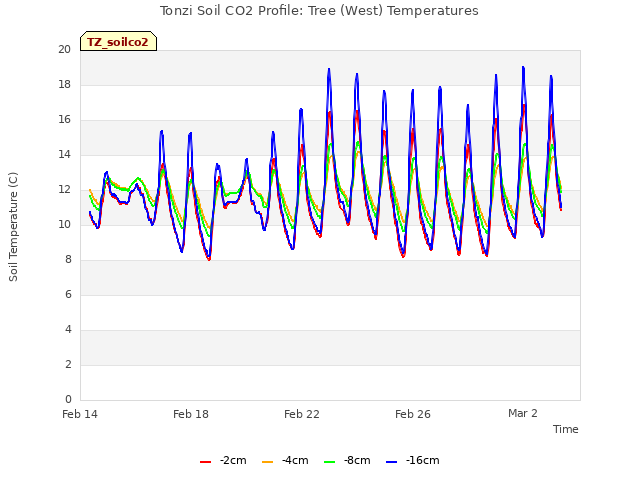

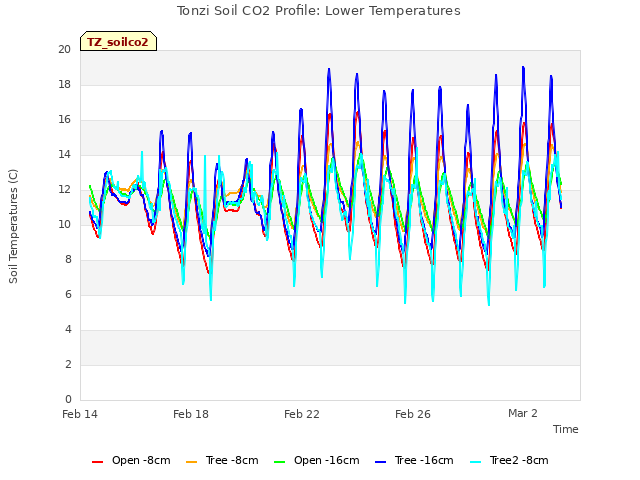

11 TZ_soilco2 graphs found
Can't check TZ_mixed

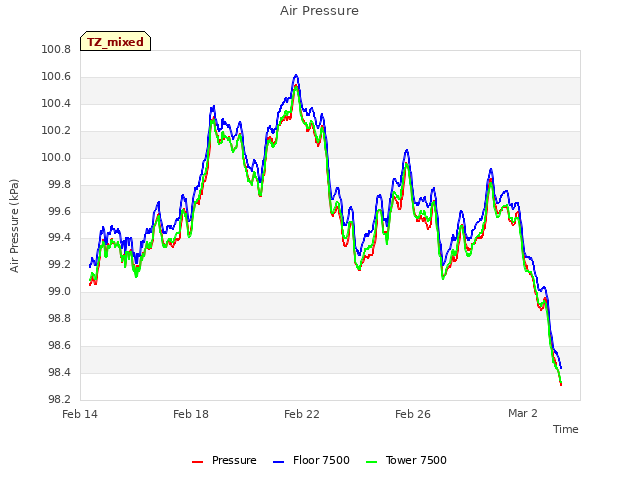

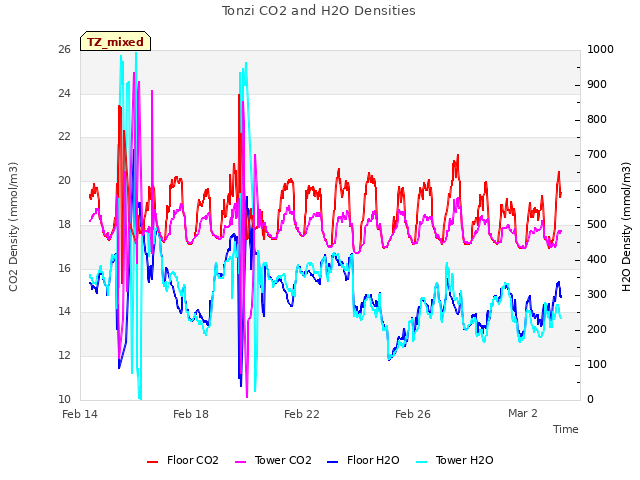

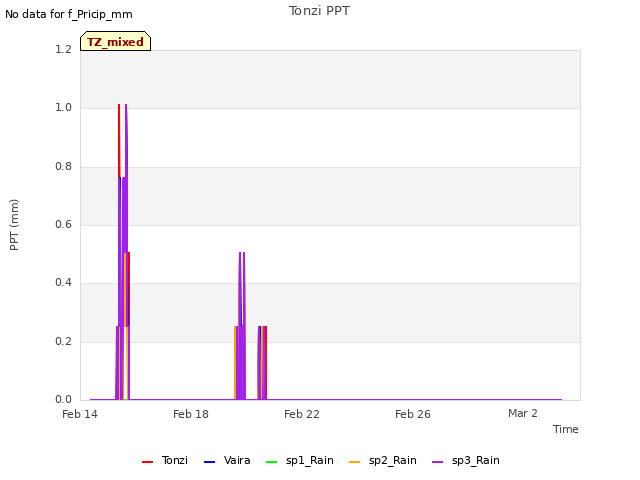

3 TZ_mixed graphs found

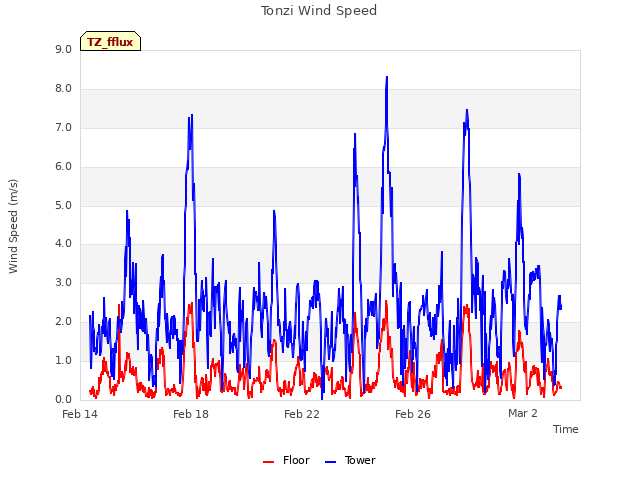

1 TZ_fflux graphs found

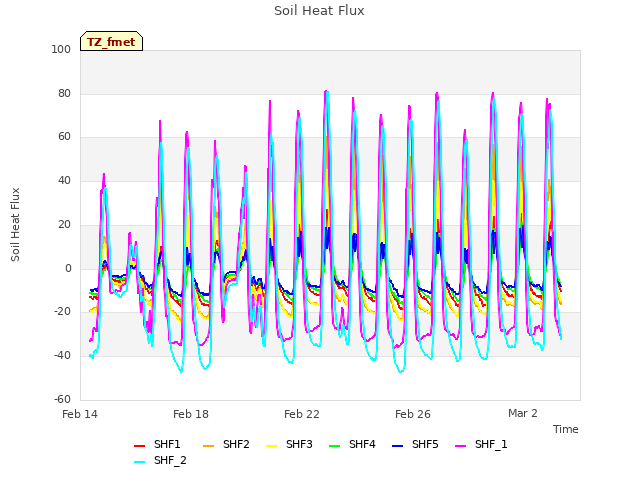

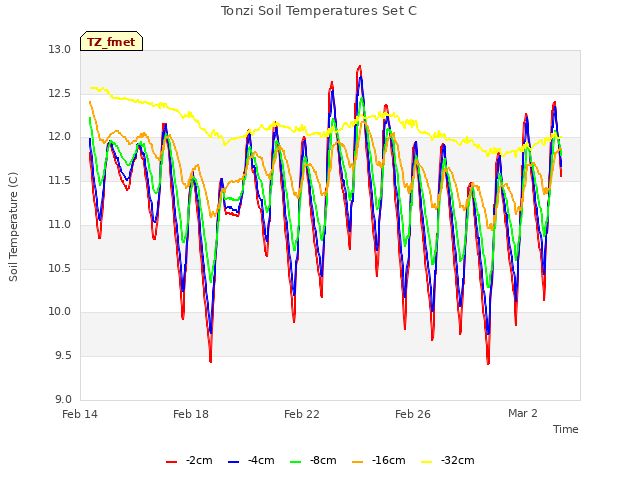

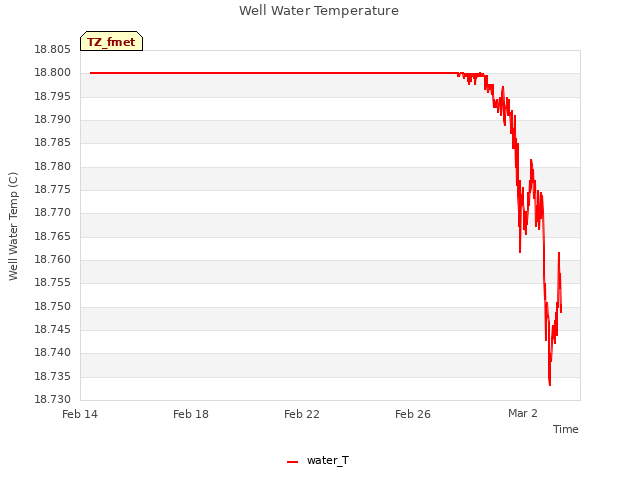

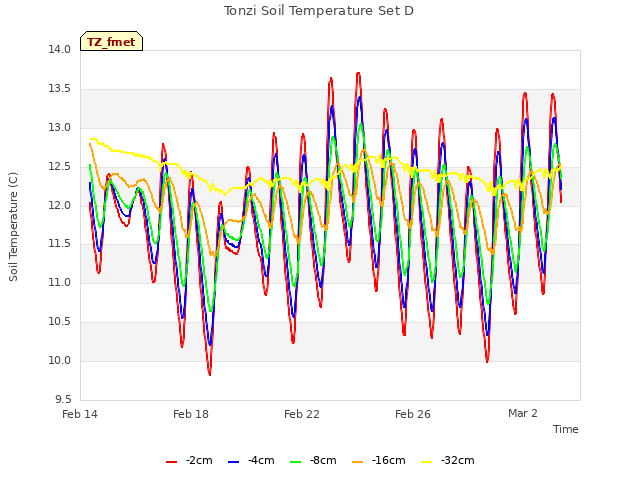

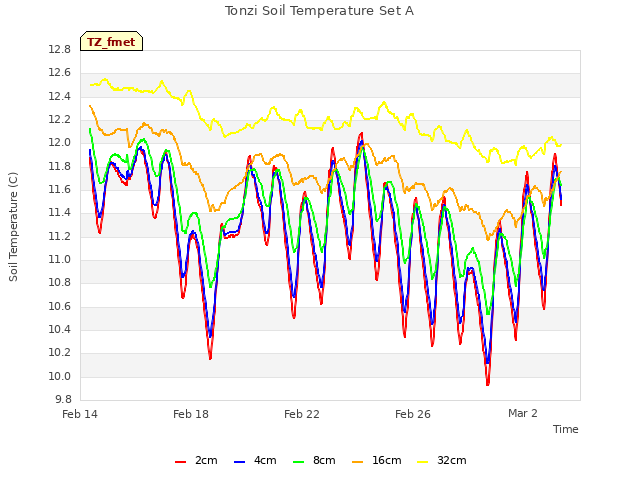

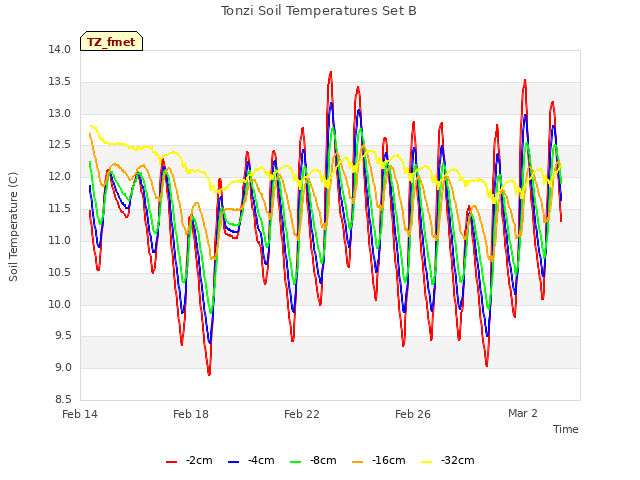

8 TZ_fmet graphs found
No data found for TZ_tram.

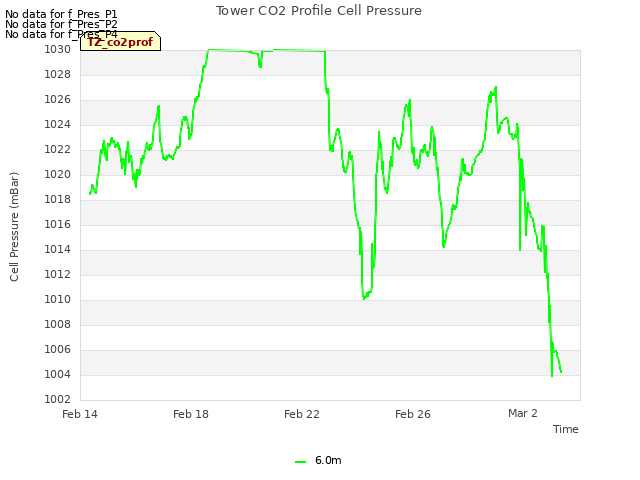

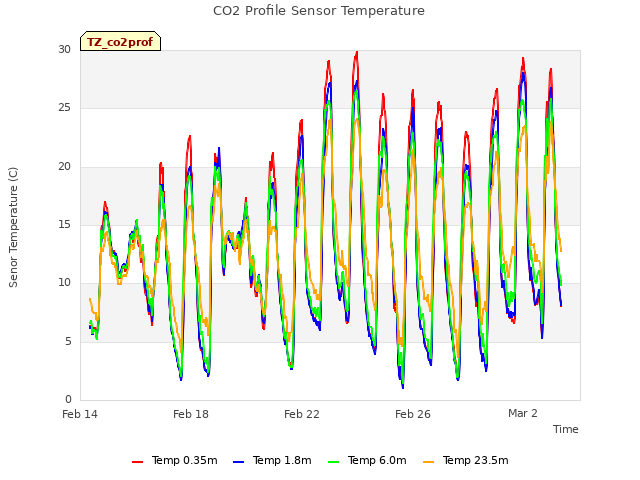

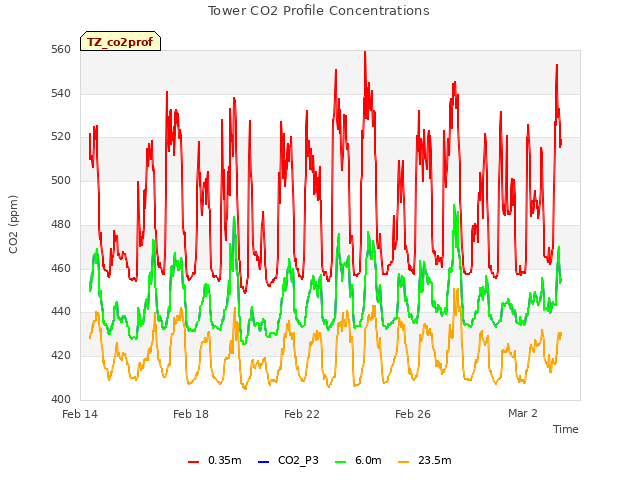

3 TZ_co2prof graphs found

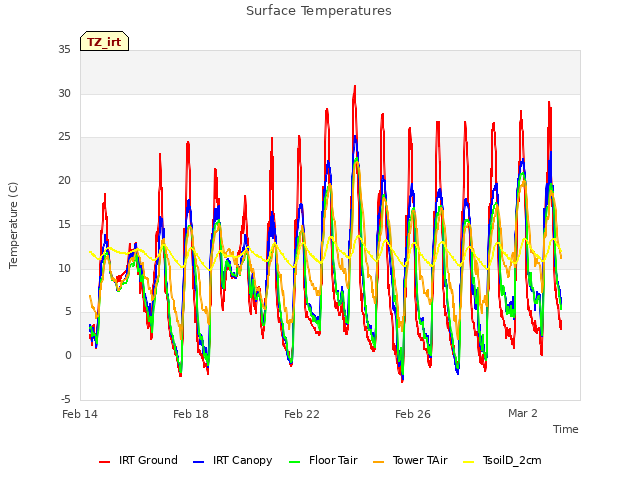

1 TZ_irt graphs found
No data found for TZ_windprof.

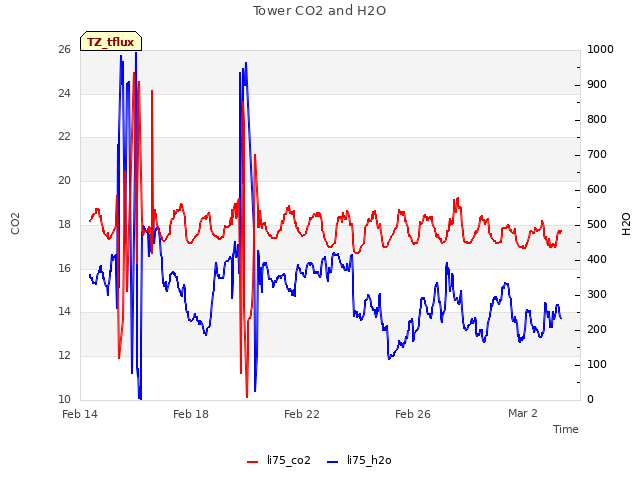

1 TZ_tflux graphs found

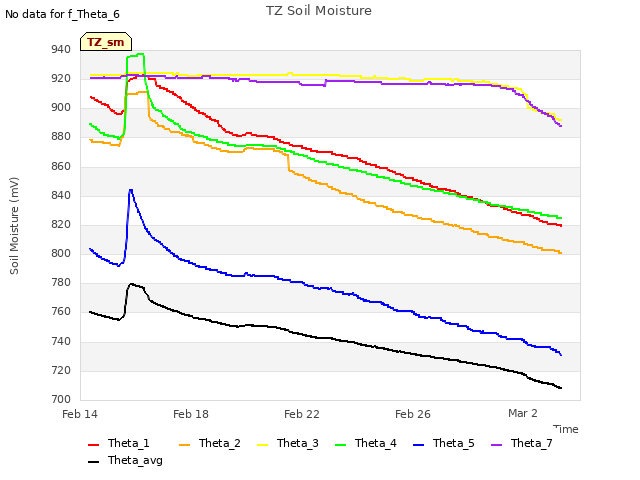

2 TZ_sm graphs found
Can't check TZ_met

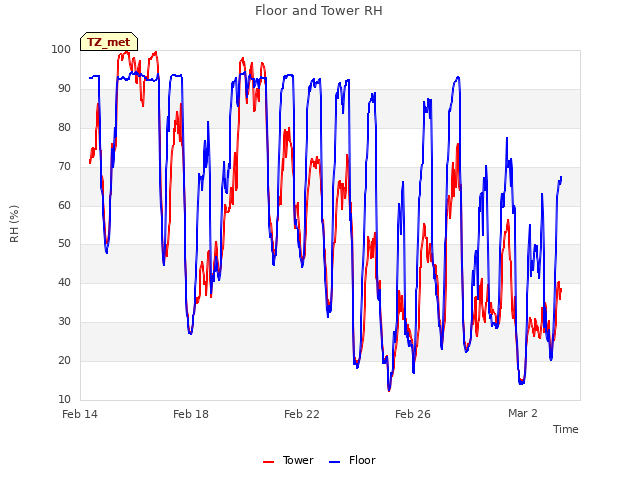

1 TZ_met graphs found
Can't check TZVR_mixed

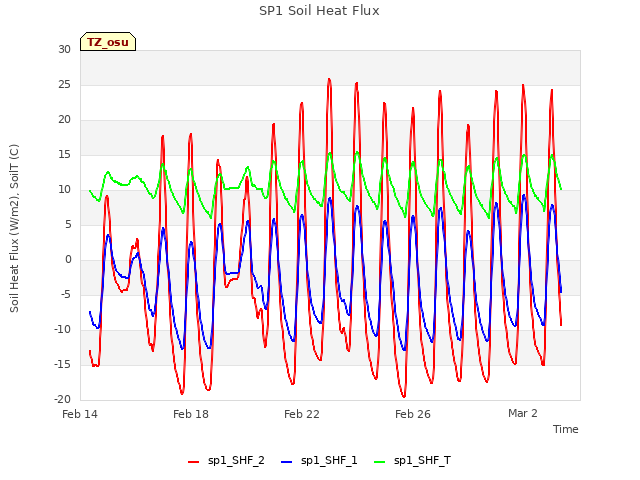

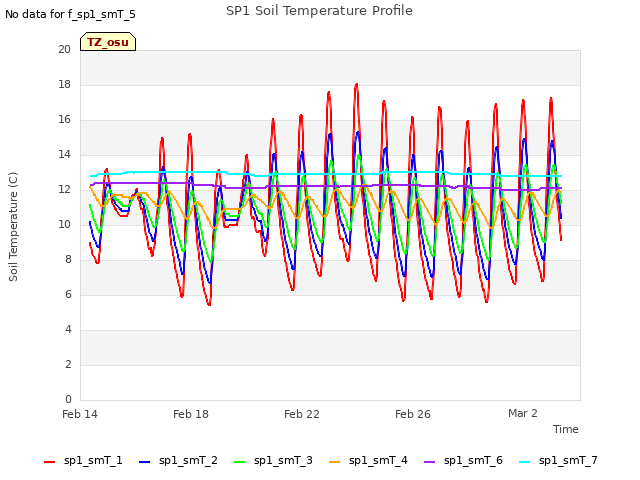

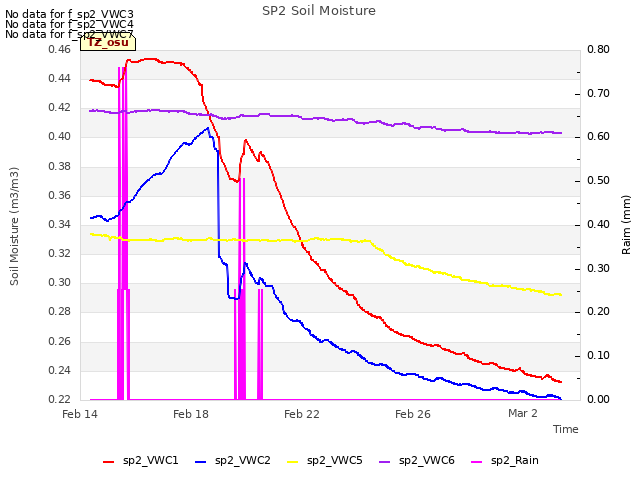

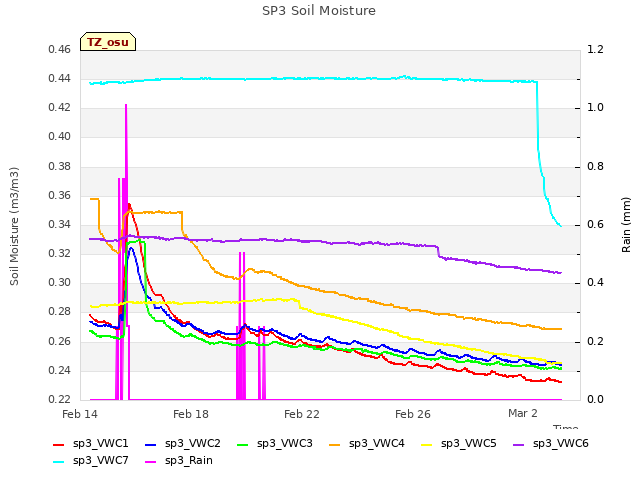

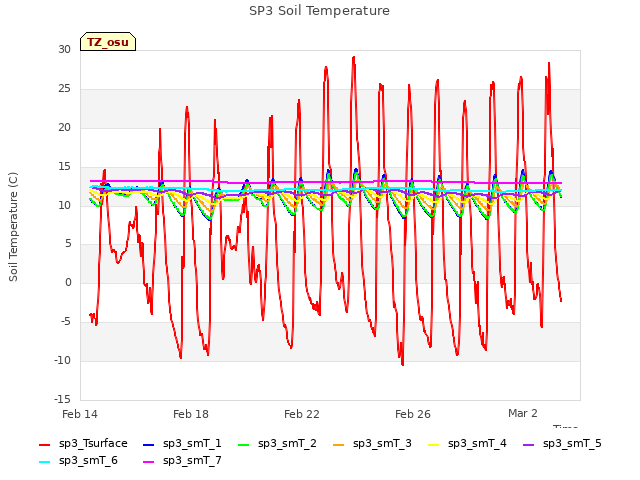

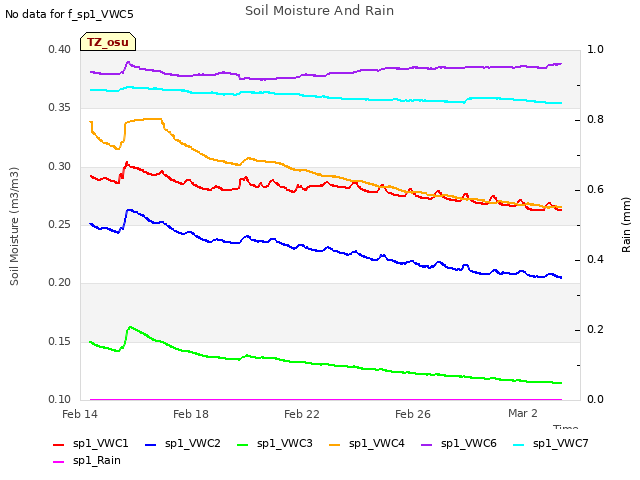

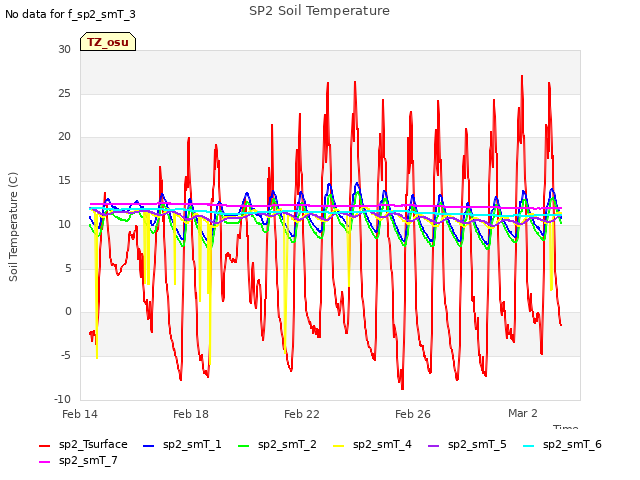

8 TZ_osu graphs found

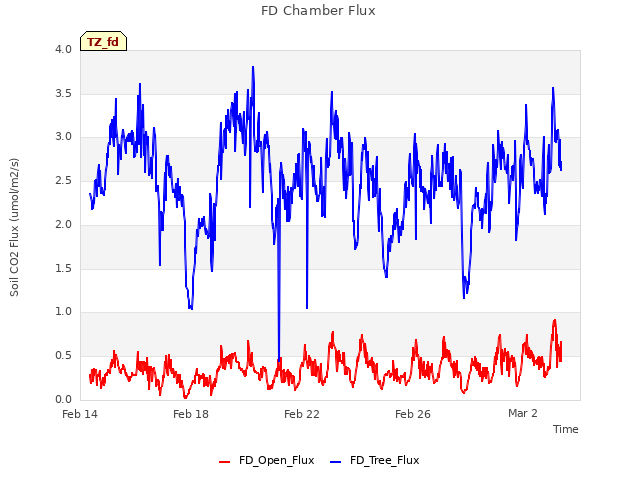

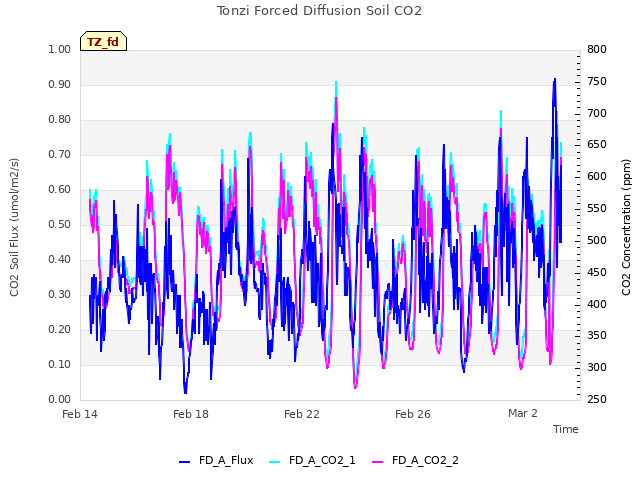

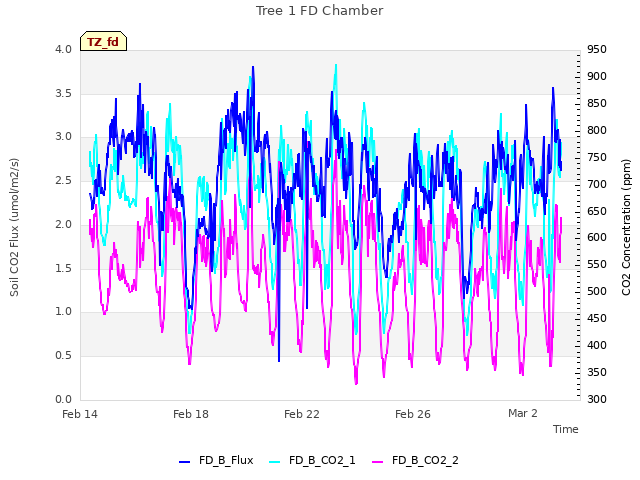

3 TZ_fd graphs found
Tonzi Z-cam data
