Bouldin Corn: 2020-07-01 11:10:00 (DOY 183)
Author: Daphne Szutu
Others:

Summary: Regular data collection/cleaning, new game cameras from Arable, no data on PA card, LAI, veg height, biomass samples

2020-07-01
Bouldin Corn

I arrived at 11:10 PDT. It was a warm and breezy day. As I arrived, a farm employee (Ben?) stopped and said they would start irrigating soon via the spud ditches. Most of the corn plants look good; the volunteer area has shorter plants with skinnier leaves and brown tips on the leaves.

The wash reservoir was mostly full; I topped it off. I saw two new game cameras on the tower, installed by Arable. One is looking out toward the horizon and one is looking down toward the ground. I cleaned flux and rad sensors.

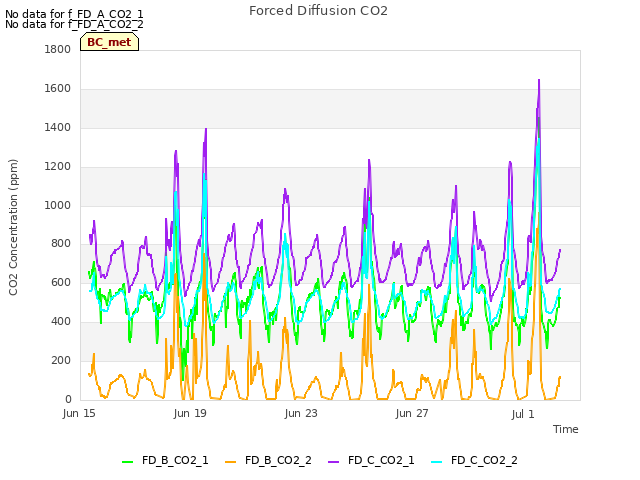

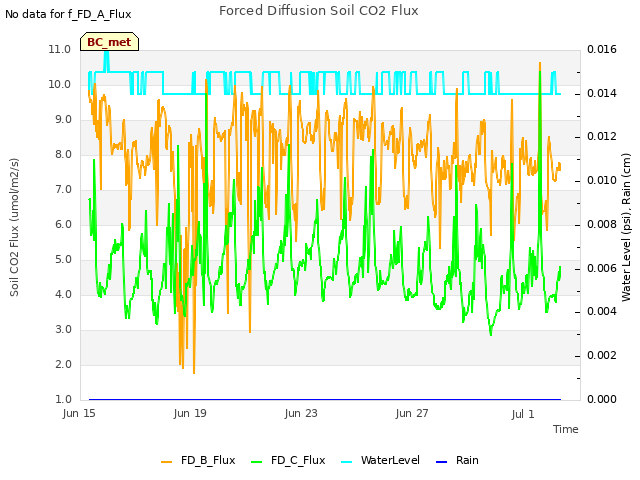

I downloaded met, camera, USB GHG, zcams, and FD data. I cleared both FD chambers after downloading them. I also took 5 clip plots samples, veg height measurements, and 2-wand LAI measurements.

There were no data on the PA card. I added a new microSD cable, but it was hard to confirm that the cable plugged in securely. I took the PA down from its hose clamps to check that the cable was plugged in and left it on the boardwalk for about 20 minutes. I saw a few log files on the card so the new cable works. However, I might have jostled the cable when I clamped the PA back onto the tower, so hopefully there will be data on the card next time.

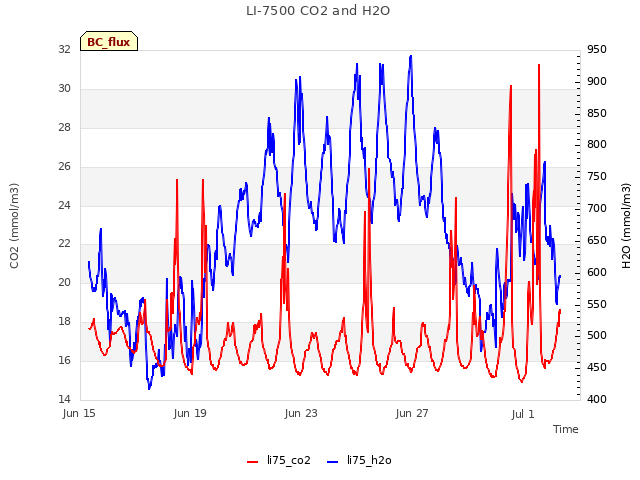

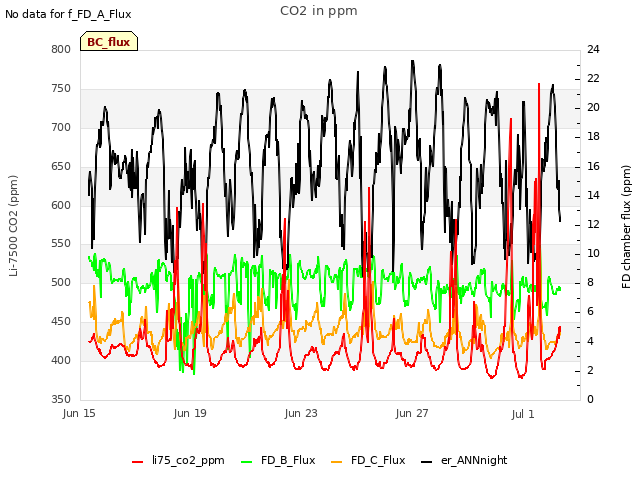

LI-7500 readings:
CO2 386ppm
H2O 790ppm
T 26.6C
P 100.2kPa

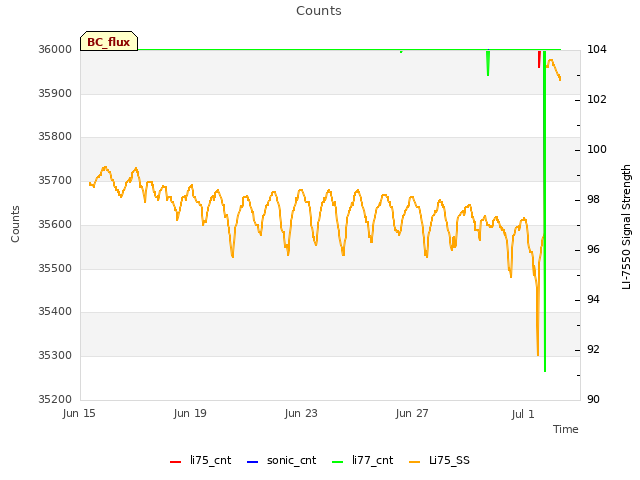

SS 96-->103 after cleaning

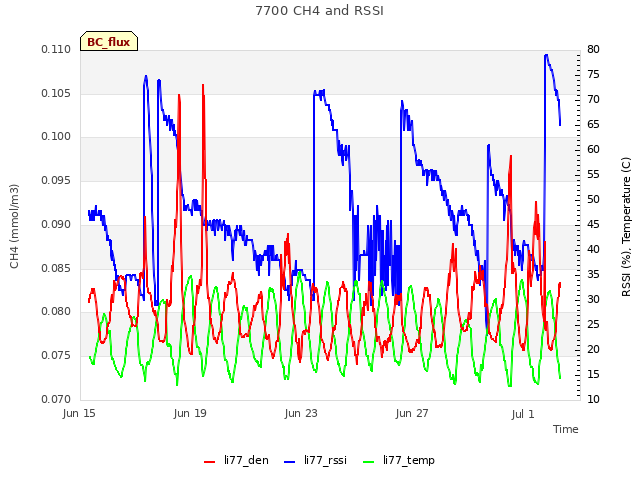

LI7700 readings:
CH4 1.96ppm
RSSI 37-->77 after cleaning

I left at 13:30 PDT.

Veg Height (cm): Tape measure from ground to top of plant
184, 197, 216, 195, 202, 215, 185, 193, 209, 209, 200, 193, avg = 199.8, stdev = 10.7

3 photos found

Corn plants look good, except for the dense area with volunteer plants. The volunteers are shorter, lighter green, and have thinner leaves with browning tips.

Excess cable tied up with a ziptie on the PurpleAir sensor

Two new game cameras on the tower, installed by Arable. Hopefully we can access the real-time photos.
