Bouldin Alfalfa: 2019-12-17 10:50:00 (DOY 351)
Author: Joe Verfaillie
Others:

Summary: Standard data collection, forgot to get the phenocam images.

Bouldin Alfalfa
2019-12-17

I arrived at 10:50. It was cool with low patchy clouds burning off to high thin over cast. The alfalfa looks pretty healthy. The road to the field was in good condition with only a little mud at the turn over the ditch.

The 7500 read: 442ppm CO2, 415mmol/m3 H2O, 11.6C, 102.6kPa, 99.4SS – 101.0 after cleaning.
The 7700 read: 2.49ppm CH4, 17RSSI – 2.37ppm CH4, 79.5RSSI after cleaning
The wash reservoir was about empty – refilled. The CH4 was varying smoothly from 2.37 to 2.4 almost like plumes were passing. I didn’t have a spare USB stick so I moved the eddy data off of the USB stick and replaced it.

There were very cold ants in the data logger box. I blew them off the equipment with canned air and left them some moth balls.

I did not have a camera card to swap and seems I forgot to collect the images with the card reader. Look for accumulated images next time.

I downloaded the FD chamber. We should try adding a soil collar to the chamber.

I did spectral measurements, single wand LAI and veg height.

I left at 11:44

Next Mowing: 2020-01-18

Veg Height (cm): Tape measure from ground to top of plant
28, 26, 35, 33, 27, 25, 28, 38, 40, 31, 26, 30, 43, 30, 38, 32, avg = 31.9, stdev = 5.5

0 photos found

Graphs display:
7 sets found

5 BA_flux graphs found

Explore the graph:Wind in a new window

Explore the graph:LI-7500 CO2 and H2O in a new window

Explore the graph:7700 CH4 and RSSI in a new window

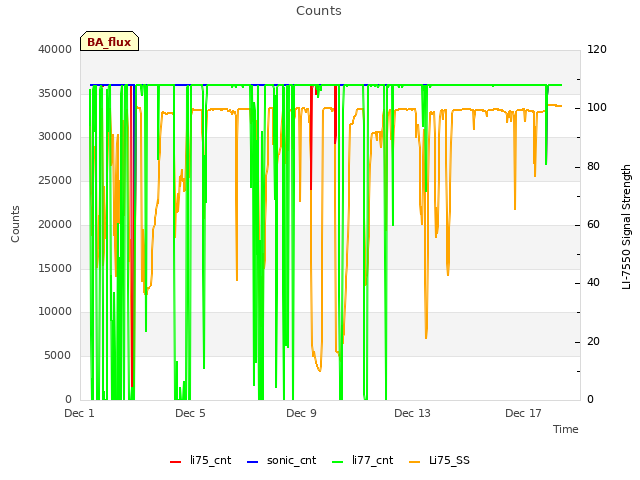

Explore the graph:Counts in a new window

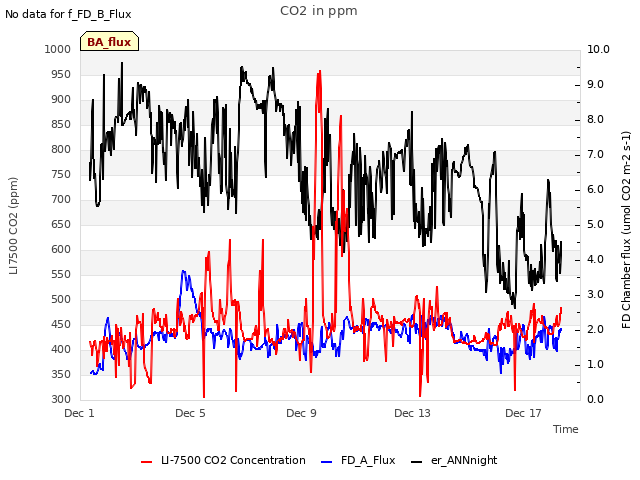

Explore the graph:CO2 in ppm in a new window

21 BA_met graphs found

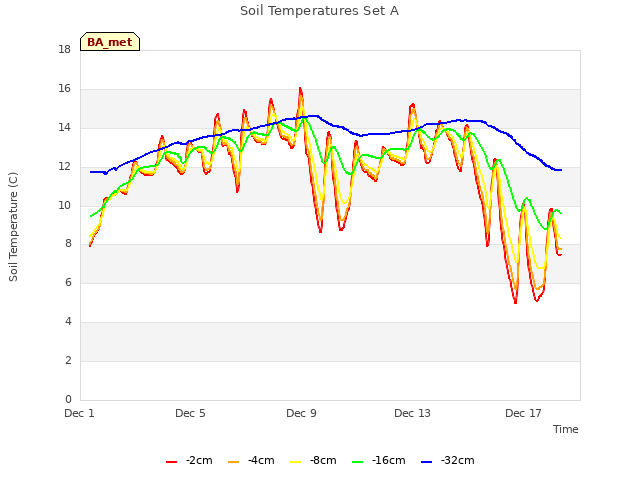

Explore the graph:Soil Temperatures Set A in a new window

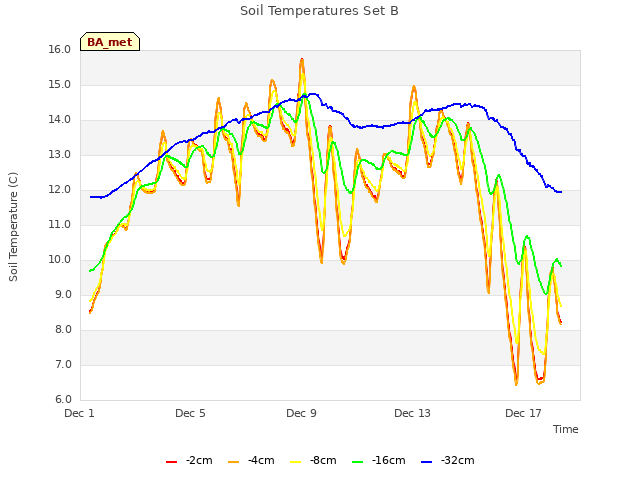

Explore the graph:Soil Temperatures Set B in a new window

Explore the graph:Soil Temperatures Set C in a new window

Explore the graph:Soil Heat Flux in a new window

Explore the graph:Temperature in a new window

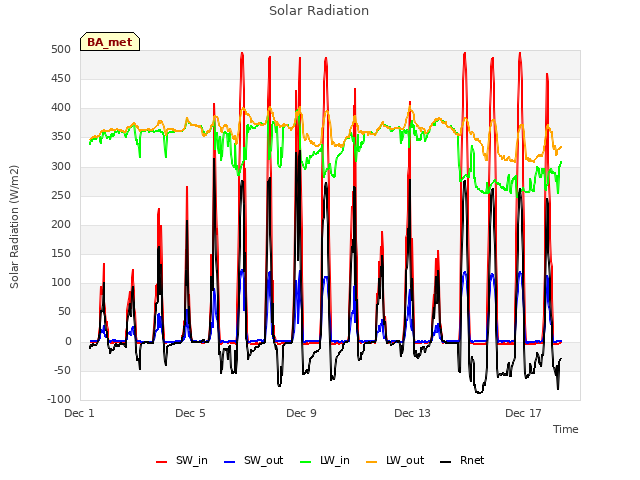

Explore the graph:Solar Radiation in a new window

Explore the graph:Air Pressure and RH in a new window

Explore the graph:Soil Moisture in a new window

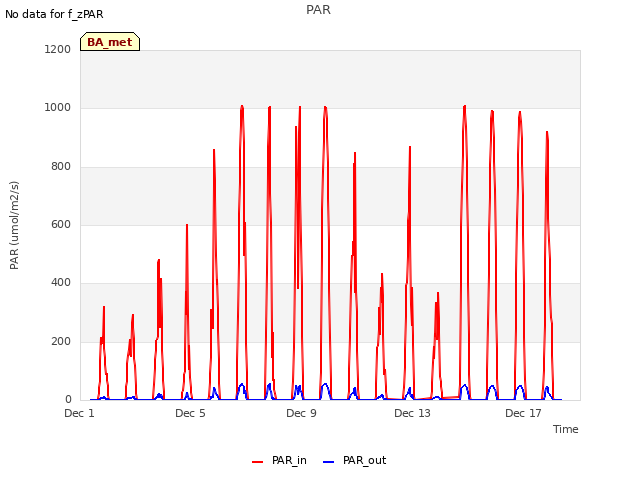

Explore the graph:PAR in a new window

Explore the graph:PRI Channels in a new window

Explore the graph:NDVI channels in a new window

Explore the graph:Battery Voltage in a new window

Explore the graph:NDVI and PRI in a new window

Explore the graph:Apogee NDVI in a new window

Explore the graph:FD Chamber A CO2 and Temp in a new window

Explore the graph:FD Chamber B CO2 and Temperature in a new window

Explore the graph:Surface Temperature in a new window

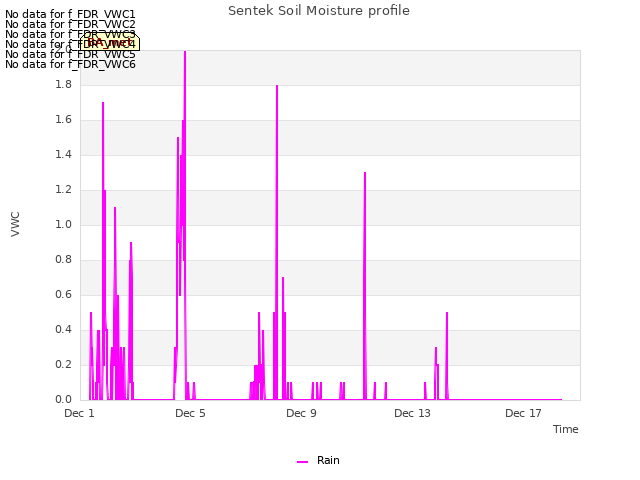

Explore the graph:Sentek Soil Moisture profile in a new window

Explore the graph:Sentek Soil Temperature profile in a new window

Explore the graph:Sentek Soil Salinity profile in a new window

Explore the graph:Forced Diffusion Soil CO2 Flux in a new window

6 BA_arable graphs found

Explore the graph:Incoming Solar Bands in a new window

Explore the graph:Reflected Solar Bands in a new window

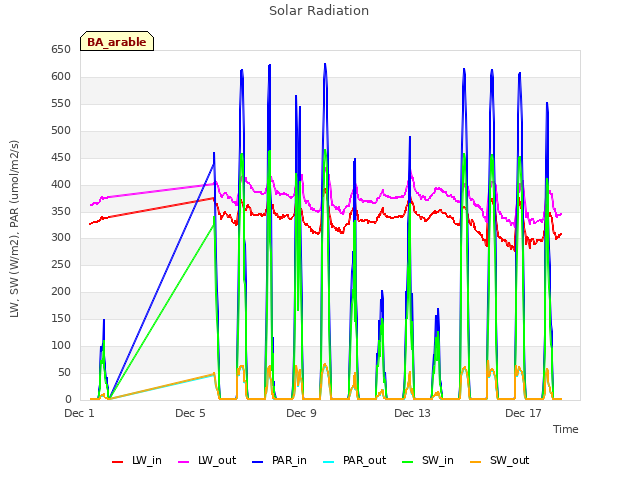

Explore the graph:Solar Radiation in a new window

Explore the graph:Temperatures, PPT in a new window

Explore the graph:Sentek Deep Soil Moisture in a new window

Explore the graph:Pressure, RH in a new window

Can't check TATWBABCSB_cam
Can't check MBSWEEWPBCBA
2 BA_processed graphs found

Explore the graph:Energy in a new window

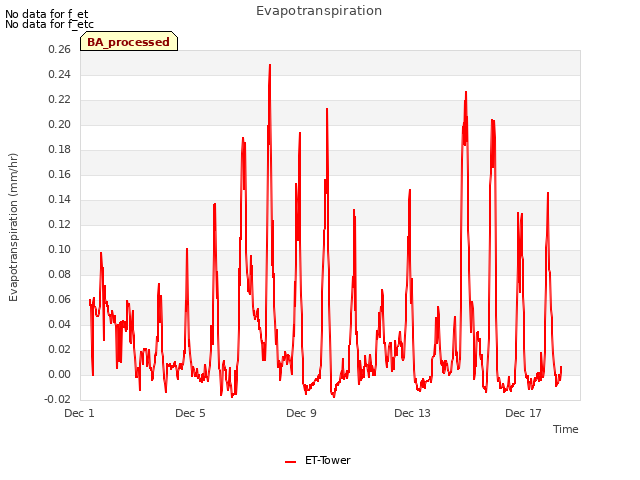

Explore the graph:Evapotranspiration in a new window

No data found for BA_adex.
