Bouldin Alfalfa: 2019-12-02 14:55:00 (DOY 336)
Author: Daphne Szutu
Others: Joe

Summary: Checking site after wind knocked over BC tower, data download/cleaning

2019-12-02
Bouldin Alfalfa

Joe and I arrived around 14:55. It was a cool and overcast day and had been raining for the past 2-3 days. We came from disassembling the Bouldin Corn tower, which had fallen down with the high winds a week before. We wanted to check on all the towers to make sure they were still standing. Since the roads were wet and we didn't have a 4x4 truck, we parked on the levee road and walked down.

The tower and solar panels looked good. The alfalfa was short (20-30 cm tall) and full of intercepted rain. I downloaded met and flux data. I did not download camera or FD data. Joe cleaned the flux and rad sensors. The wash reservoir was 1/2 full; we didn't bring water to refill it. I changed the 7700 spray from 30 seconds to 10 seconds.

LI-7500 readings:
CO2 441ppm
H2O 574ppm
T 13.3C
P 101.8kPa
SS ??--> 100 after cleaning
LI7700 readings:
CH4 1.84ppm
RSSI 33-->68 after cleaning

We left at 15:25 to check on the Twitchell and Sherman Island sites. All other sites (BA, WP, EP, EE, SW, and MB) had standing towers and solar panels. We did not visit SB, but Tyler visited the same day and did not tell us about any apparent destruction.

Next Mowing: 2020-01-18

0 photos found

Graphs display:
7 sets found

5 BA_flux graphs found

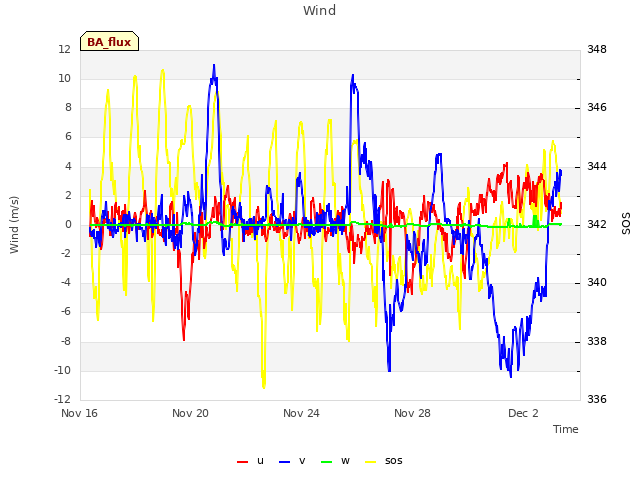

Explore the graph:Wind in a new window

Explore the graph:LI-7500 CO2 and H2O in a new window

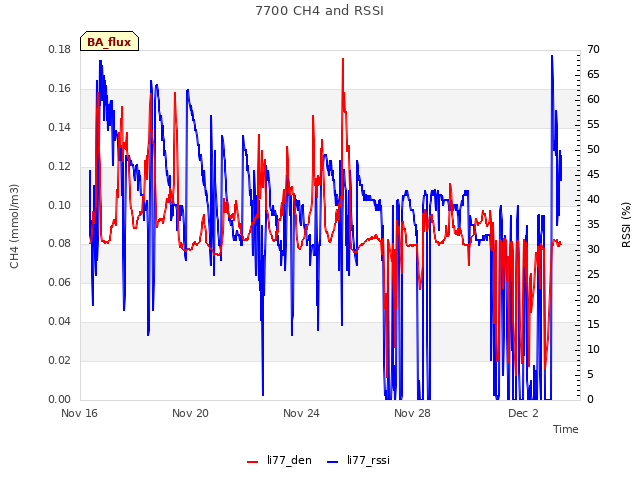

Explore the graph:7700 CH4 and RSSI in a new window

Explore the graph:Counts in a new window

Explore the graph:CO2 in ppm in a new window

21 BA_met graphs found

Explore the graph:Soil Temperatures Set A in a new window

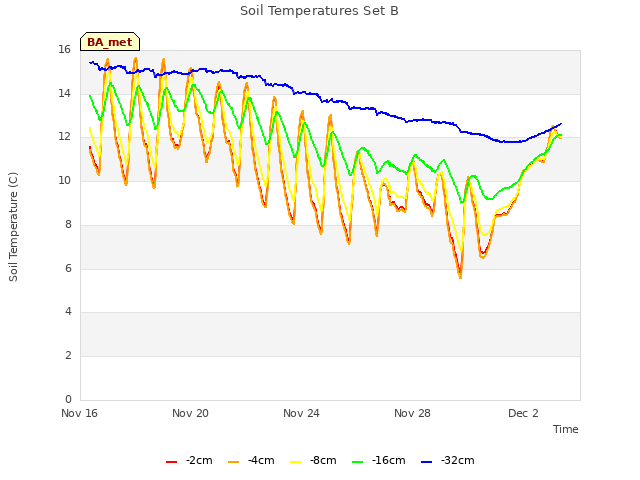

Explore the graph:Soil Temperatures Set B in a new window

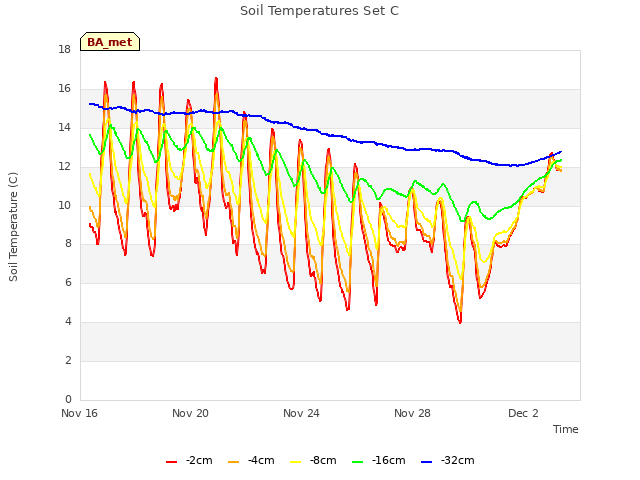

Explore the graph:Soil Temperatures Set C in a new window

Explore the graph:Soil Heat Flux in a new window

Explore the graph:Temperature in a new window

Explore the graph:Solar Radiation in a new window

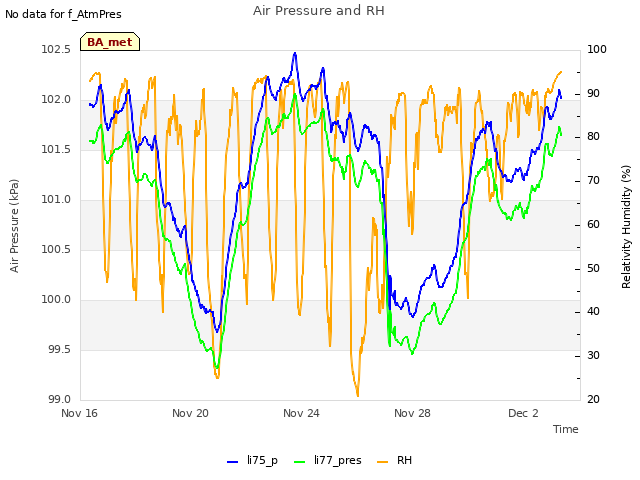

Explore the graph:Air Pressure and RH in a new window

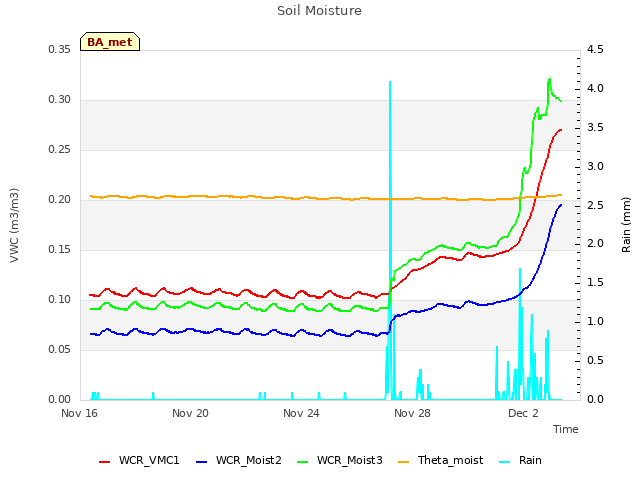

Explore the graph:Soil Moisture in a new window

Explore the graph:PAR in a new window

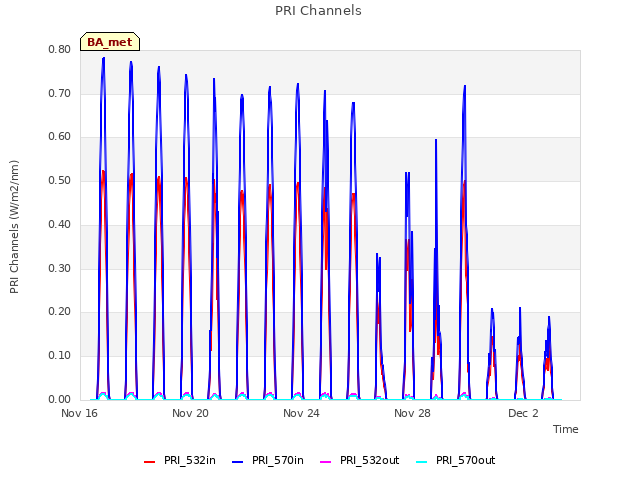

Explore the graph:PRI Channels in a new window

Explore the graph:NDVI channels in a new window

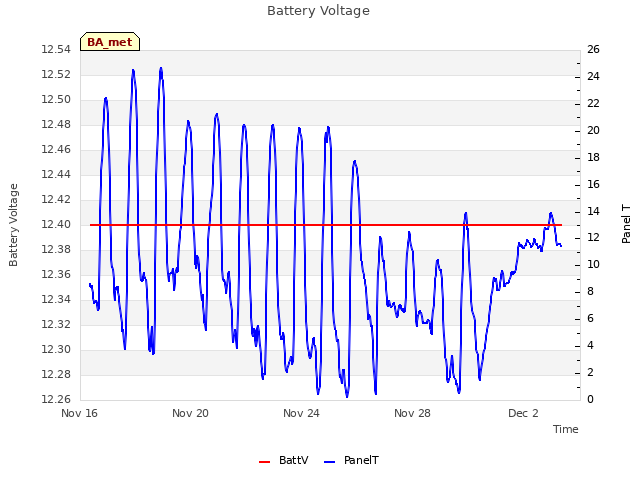

Explore the graph:Battery Voltage in a new window

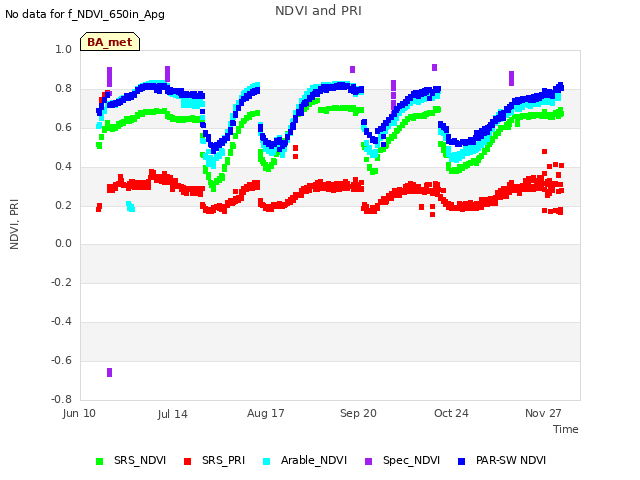

Explore the graph:NDVI and PRI in a new window

Explore the graph:Apogee NDVI in a new window

Explore the graph:FD Chamber A CO2 and Temp in a new window

Explore the graph:FD Chamber B CO2 and Temperature in a new window

Explore the graph:Surface Temperature in a new window

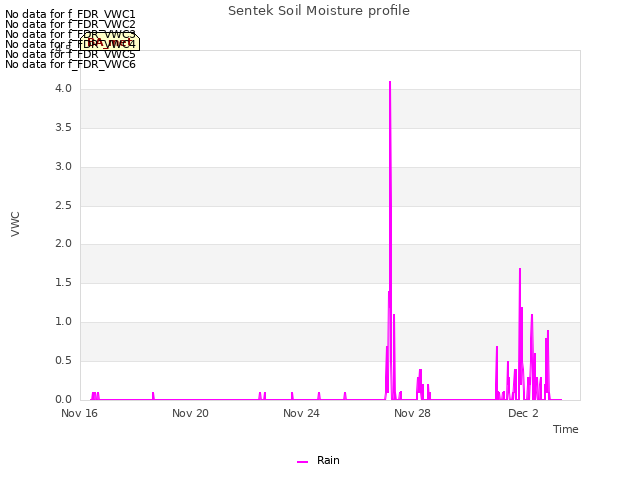

Explore the graph:Sentek Soil Moisture profile in a new window

Explore the graph:Sentek Soil Temperature profile in a new window

Explore the graph:Sentek Soil Salinity profile in a new window

Explore the graph:Forced Diffusion Soil CO2 Flux in a new window

6 BA_arable graphs found

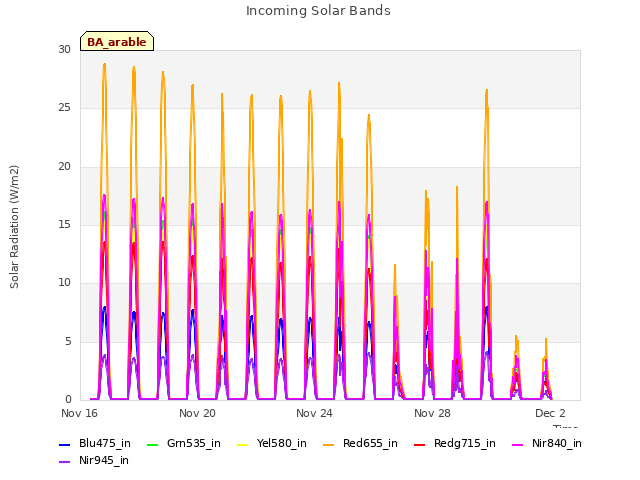

Explore the graph:Incoming Solar Bands in a new window

Explore the graph:Reflected Solar Bands in a new window

Explore the graph:Solar Radiation in a new window

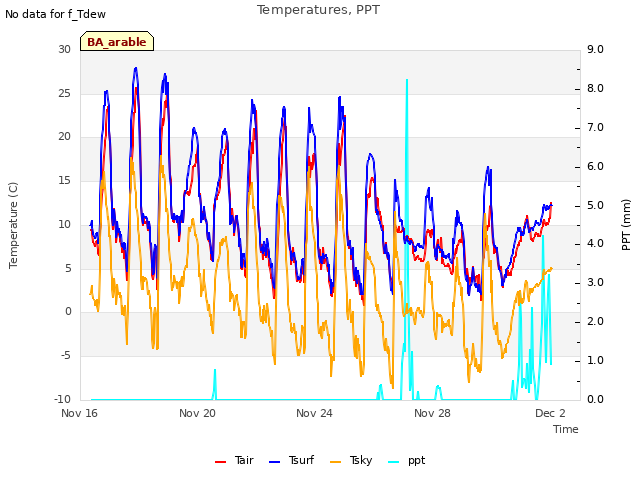

Explore the graph:Temperatures, PPT in a new window

Explore the graph:Sentek Deep Soil Moisture in a new window

Explore the graph:Pressure, RH in a new window

Can't check TATWBABCSB_cam
Can't check MBSWEEWPBCBA
2 BA_processed graphs found

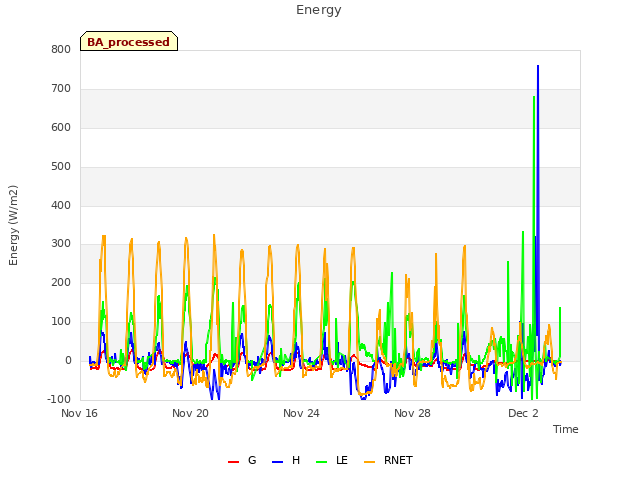

Explore the graph:Energy in a new window

Explore the graph:Evapotranspiration in a new window

No data found for BA_adex.
