Field Notes

<--2019-11-19 12:15:00 | 2019-12-16 00:00:00-->
Other sites visited today: Vaira
Phenocam link: Searching...

Tonzi: 2019-12-03 09:30:00 (DOY 337)
Author: Joe Verfaillie
Others: Ana

Summary: First rains of the wet season, Ana collected emissivity samples, brought in FLIR camera, first FD Chamber data

Tonzi
2019-12-03

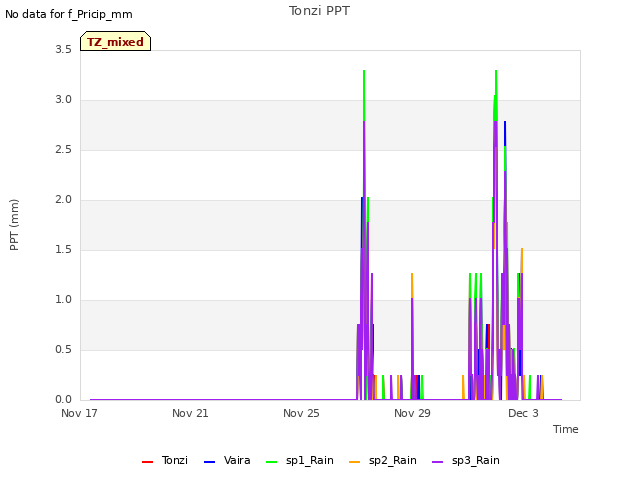

Ana and I arrived at 9:30. It was partly sunny and mild with no wind and low overcast moving in from the west. There have been several days of rain and more to come. The ground surface is wet but there are few puddles and the ground water level is still going down. The trees have more leaves than I would expect after the recent storms and there were more green leaves on the ground. I did not notice any sprouting grass or herbs. We heard and saw a large limb (>20cm diameter) fall from a tree south of the road near Liu Kangâ€™s tree. There was also another oak down near the gate on Irish Hill Road.

Ana collected samples for measuring emissivity in the lab â€“ soil, dead grass, oak leaves, pine needles, bark. We also removed the FLIR thermal camera from its case for use in the lab. Ana also did the soil moisture measurements and serviced the z-cams.

I collected the data from the eddy systems, the tower computer and assorted data loggers. The Tower 7500 had wet windows. I lowered the post and cleaned the windows. Also the Tower 7550 box door was open. There was very little water in the box, no evidence of corrosion and the system was running. I wiped out what water there was and put in a desiccant pack from the JPL box.

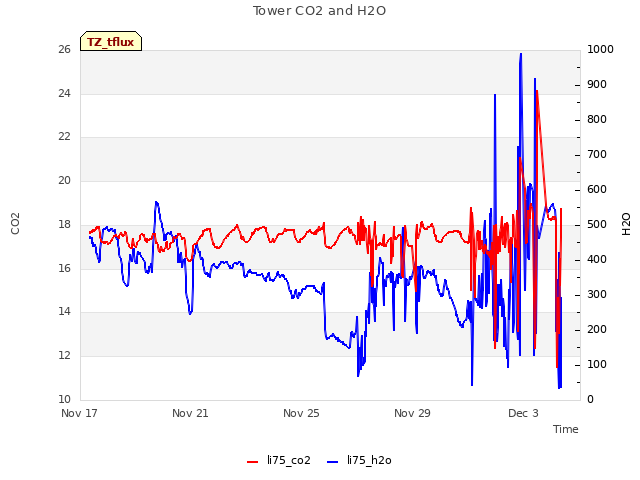

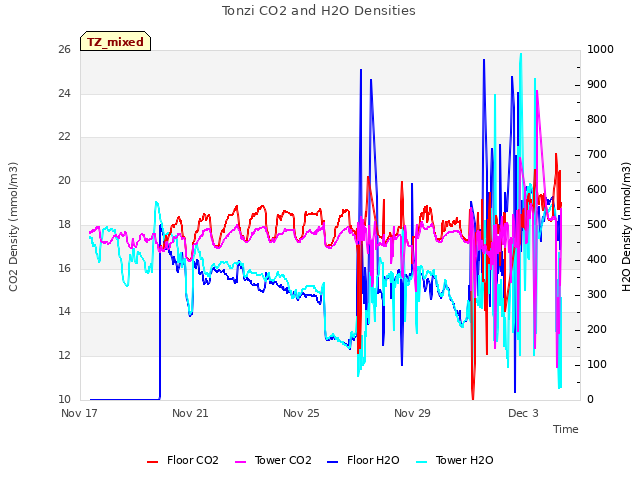

Tower: 463.7ppm CO2, 556.5mmol/m3 H2O, 99.4kPa, 17.6C, 101.1SS
Floor: 451.2ppm CO2, 582.0mmol/m3 H2O, 99.6kPa, 12.1C, 94.8SS

I pulled the Moisture Point probe sn 000000574B4B that was near the Floor solar panels. This probe has three broken pins and hasn't be used for a while but this is the first time the ground has been wet enough to pull it by hand.

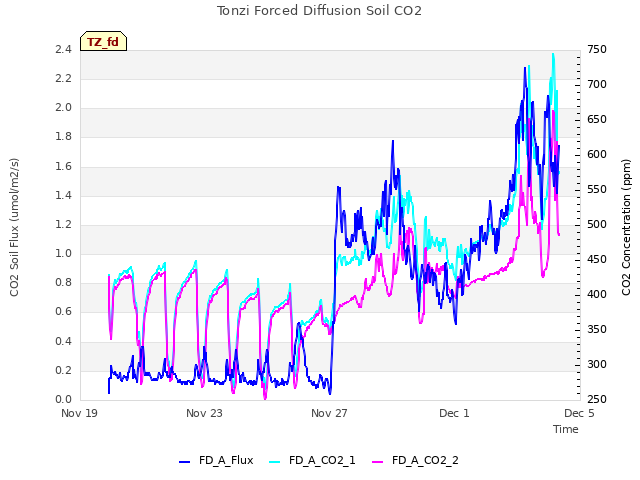

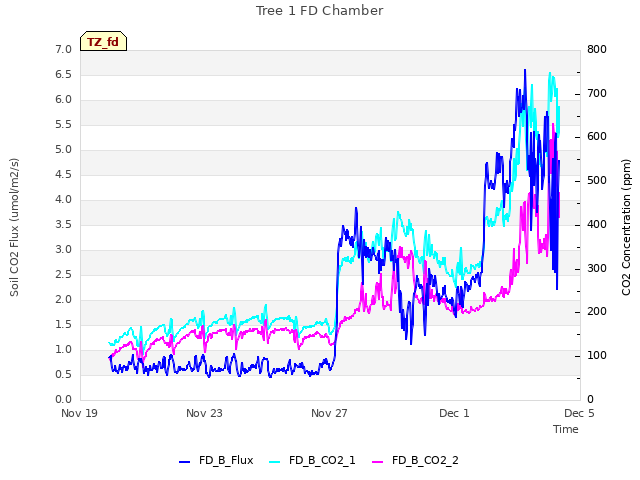

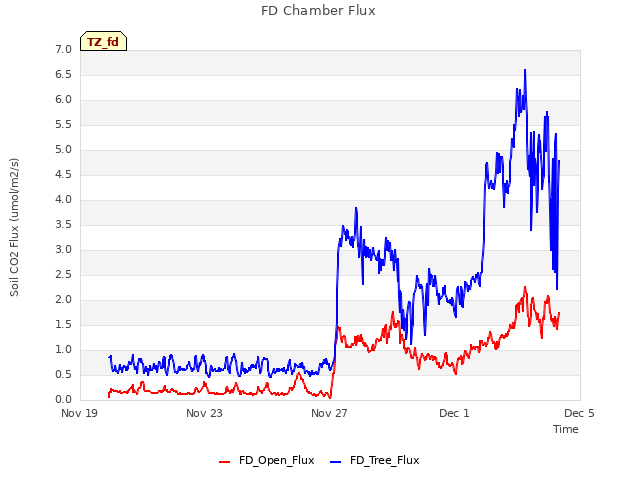

I wanted to collect the data from the Forced Diffusion chambers but didnâ€™t leave a serial adapter in the box and didnâ€™t have one with me. I ended up cutting off the circular connectors and using the screw terminal to DB9 adapter from the Tower sonic. This worked well.

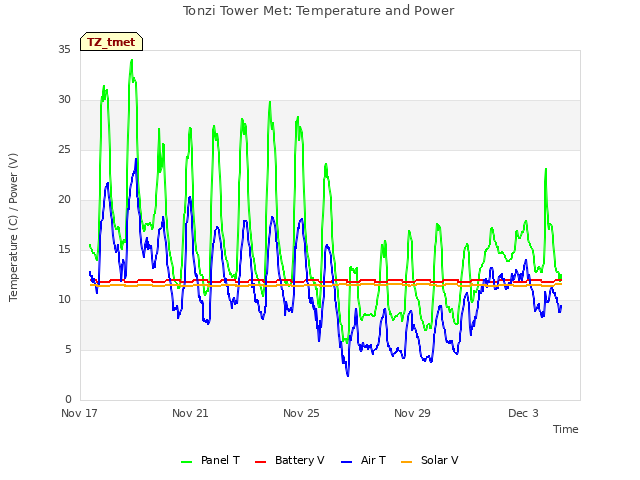

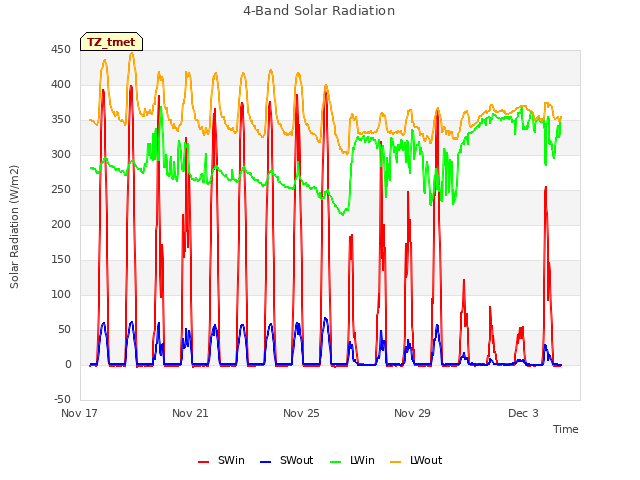

I also read the dendrometers and measured the road and tower wells. I cleaned the radiometers and the phenocam. The tower HMP45 fan was not running initially but after wiggling wires a bit it started running again. I cleaned the Phenocam window inside and out â€“ the FOV might change a little.

Field Data

No tank data

Well Depth

Date	Location	Depth (feet)
2019-12-03	TZ_road	37.4
2019-12-03	TZ_tower	33.8
2019-12-03	TZ_floor	29
2019-12-03	VR_well	59.7

mode = both

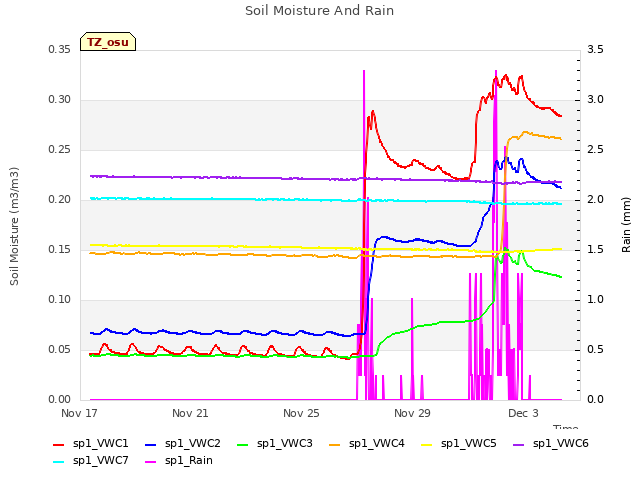

Moisture Point Probes TZ
Array ( [0] => Tower_1 [1] => Floor_South_1 [2] => Floor_West_1 [3] => Soil_Transect_3_1 [4] => Soil_Transect_2_1 [5] => Soil_Transect_1_1 [6] => SoilCO2_West_A_1 [7] => SoilCO2_West_B_1 [8] => SoilCO2_West_C_1 [9] => Tower_2 [10] => Floor_South_2 [11] => Floor_West_2 [12] => Soil_Transect_3_2 [13] => Soil_Transect_2_2 [14] => Soil_Transect_1_2 [15] => SoilCO2_West_A_2 [16] => SoilCO2_West_B_2 [17] => SoilCO2_West_C_2 [18] => Tower_3 [19] => Floor_South_3 [20] => Floor_West_3 [21] => Soil_Transect_3_3 [22] => Soil_Transect_2_3 [23] => Soil_Transect_1_3 [24] => SoilCO2_West_A_3 [25] => SoilCO2_West_B_3 [26] => SoilCO2_West_C_3 [27] => Tower_4 [28] => Floor_South_4 [29] => Floor_West_4 [30] => Soil_Transect_3_4 [31] => Soil_Transect_2_4 [32] => Soil_Transect_1_4 [33] => SoilCO2_West_A_4 [34] => SoilCO2_West_B_4 [35] => SoilCO2_West_C_4 )

0000

Date	DOY	Rep	Depth	Tower_1	Floor_South_1	Floor_West_1	Soil_Transect_3_1	Soil_Transect_2_1	Soil_Transect_1_1	SoilCO2_West_A_1	SoilCO2_West_B_1	SoilCO2_West_C_1	Tower_2	Floor_South_2	Floor_West_2	Soil_Transect_3_2	Soil_Transect_2_2	Soil_Transect_1_2	SoilCO2_West_A_2	SoilCO2_West_B_2	SoilCO2_West_C_2	Tower_3	Floor_South_3	Floor_West_3	Soil_Transect_3_3	Soil_Transect_2_3	Soil_Transect_1_3	SoilCO2_West_A_3	SoilCO2_West_B_3	SoilCO2_West_C_3	Tower_4	Floor_South_4	Floor_West_4	Soil_Transect_3_4	Soil_Transect_2_4	Soil_Transect_1_4	SoilCO2_West_A_4	SoilCO2_West_B_4	SoilCO2_West_C_4	Spacial Count
2019-12-03	337	0	nan	25.3	18.8	21.7	14.4	21.7	9.7	24.1	28.5	7.4	15.8	16.1	28.6	31	25.2	10.3	25.5	11.2	28.6	13.1	7.6	11.1	14	14.8	17.9	19.3	18.4	13.4	15.9	8.2	3.3	15.3	22.2	11.6	14.8	16.2	22.5
2019-12-03	337	1	nan	25		29.4	15	21.7	10.3	24.1	31.5	7.7	16.1	16.1	27.7	31.6	25.8	11.2	25.5	11.5	28.6	14	7	12.9	11.7	15.4	18.4	19.3	18.7	12.6	15	8.5	8.7	17	22.2	11.9	13.9	16.5	21.9
2019-12-03	337	2	nan											16.1									6.4									8.5
2019-12-03	337	Avg	0-15cm																																					0
2019-12-03	337	Avg	15-30cm																																					0
2019-12-03	337	Avg	30-45cm																																					0
2019-12-03	337	Avg	45-60cm																																					0

mode = both
Moisture Point Probes VR
Array ( [0] => Solar_Panels_1 [1] => Flux_Tower_1 [2] => Biomass_Cage_1 [3] => Solar_Panels_2 [4] => Flux_Tower_2 [5] => Biomass_Cage_2 [6] => Solar_Panels_3 [7] => Flux_Tower_3 [8] => Biomass_Cage_3 [9] => Solar_Panels_4 [10] => Flux_Tower_4 [11] => Biomass_Cage_4 )

0000

Date	DOY	Rep	Depth	Solar_Panels_1	Flux_Tower_1	Biomass_Cage_1	Solar_Panels_2	Flux_Tower_2	Biomass_Cage_2	Solar_Panels_3	Flux_Tower_3	Biomass_Cage_3	Solar_Panels_4	Flux_Tower_4	Biomass_Cage_4	Spacial Count
2019-12-03	337	0	nan	14.7	26.1	12.1	26.5	24.6	20.6	11.7	22.1	30.4	15.3	28.5	23.6
2019-12-03	337	1	nan	14.4	25.8	11.5	27.4	25.2	21	11.5	22.1	29.9	15.6	28.5	22.8
2019-12-03	337	Avg	0-15cm													0
2019-12-03	337	Avg	15-30cm													0
2019-12-03	337	Avg	30-45cm													0
2019-12-03	337	Avg	45-60cm													0

No TZ grass heigth found

No VR grass heigth found

Tree DBH

Date	Tag#	Reading (mm)
2019-12-03	1	21.7
2019-12-03	102	12.8
2019-12-03	2	20.3
2019-12-03	245	12.3
2019-12-03	3	13.5
2019-12-03	4	5.8
2019-12-03	6	15.3
2019-12-03	7	18.9
2019-12-03	72	5.2
2019-12-03	79	16.8
2019-12-03	8	7.1
