Field Notes

Tonzi: 2019-11-19 12:15:00 (DOY 323)
Author: Joe Verfaillie
Others: Siyan

Summary: Swapped Tower 7500, replace Floor 7500, Removed DFRobot IRT looking at grass, installed two FD chambers at soil co2.

Tonzi
2019-11-19

Siyan and I arrived at about 12:15. It was mostly overcast and cool with a variable breeze from the south. It is still very dry here but there is a forecast for thunder storms in Tahoe and Reno today.

I swapped the 7500s for calibration. On the Tower sn 0065 came down and sn 75H-2182 went up. At the Floor, last time we stole the IRGA to use at Varia because sn 0418 there was not reporting values. After testing 0418 in the lab for a week and calibrating it with no problems I put it back on the Floor Tower.

0065 read: 415.8ppm CO2, 534.4mmol/m3 H2O, 98.1kPa, 18.5C, 113.1SS
2181 read: 415.6ppm CO2, 525.4mmol/m3 H2O, 98.0kPa, 17.5C, 101.7SS

0418 read: 417.8ppm CO2, 511.0mmol/m3 H2O, 98.1kPa, 18.8C, 92.6SS
I didnâ€™t have the latest config file for 0418 (must not have saved it in the lab), but I had an older config file and was able to get the latest coefficients from our web site and entered them manually. I think all should be well and the numbers looked good. Maybe the â€˜last calâ€™ date might be wrong.

The Tower computer seemed okay and the FLIR images were okay.

I collected data from the FLIR cal panel CR23X and then removed the DF Robot IRT sn TS01-001 looking at the grass. I initially disconnected the Apogee sensor looking at the grass but was able to rewire it and disconnect the DFR instead.

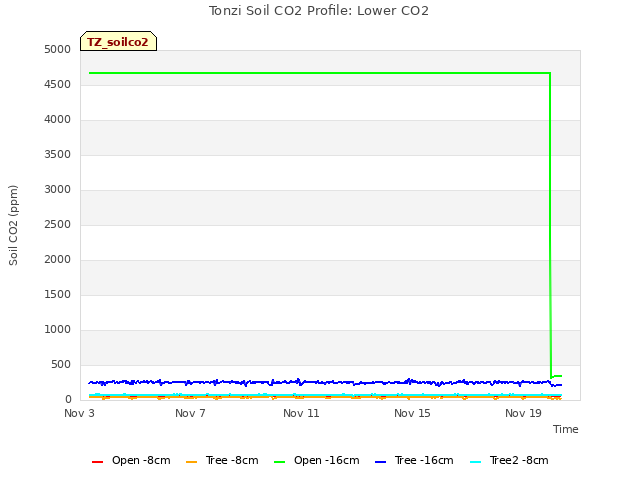

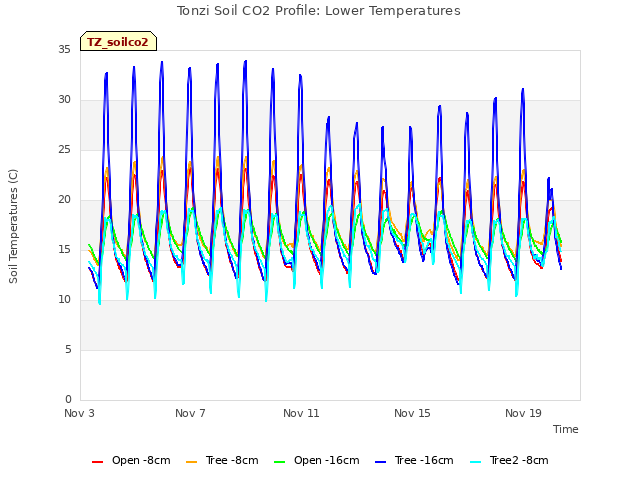

I installed two forced diffusion chambers at the soil co2 plots. Chamber sn FD20180068 is under the tree and sn FD20180026 is in the open. The chambers installed as planned and seemed to be running. At the open plot the deepest Vaisala probe was railed. I removed sn G0150037 (3%) and installed sn K1310102 (1%).

Field Data

No tank data

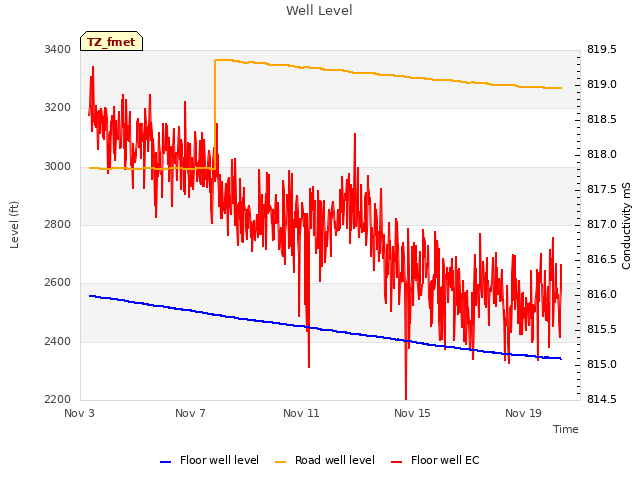

Well Depth

Date	Location	Depth (feet)
2019-11-19	SW	2.85
2019-11-19	MB	0.13
2019-11-19	VR_well	59.2
2019-11-19	VR_pond	13.68
2019-11-19	TZ_floor	28.5
2019-11-19	TZ_tower	33.3
2019-11-19	TZ_road	37.1

mode = both
Moisture Point Probes TZ
Array ( [0] => Tower_1 [1] => Floor_South_1 [2] => Floor_West_1 [3] => Soil_Transect_4_1 [4] => Soil_Transect_3_1 [5] => Soil_Transect_2_1 [6] => Soil_Transect_1_1 [7] => SoilCO2_West_A_1 [8] => SoilCO2_West_B_1 [9] => Tower_2 [10] => Floor_South_2 [11] => Floor_West_2 [12] => Soil_Transect_4_2 [13] => Soil_Transect_3_2 [14] => Soil_Transect_2_2 [15] => Soil_Transect_1_2 [16] => SoilCO2_West_A_2 [17] => SoilCO2_West_C_2 [18] => Tower_3 [19] => Floor_South_3 [20] => Soil_Transect_4_3 [21] => Soil_Transect_3_3 [22] => Soil_Transect_2_3 [23] => Soil_Transect_1_3 [24] => SoilCO2_West_A_3 [25] => SoilCO2_West_B_3 [26] => SoilCO2_West_C_3 [27] => Tower_4 [28] => Soil_Transect_4_4 [29] => Soil_Transect_3_4 [30] => Soil_Transect_2_4 [31] => Soil_Transect_1_4 [32] => SoilCO2_West_A_4 [33] => SoilCO2_West_B_4 [34] => SoilCO2_West_C_4 )

0000

Date	DOY	Rep	Depth	Tower_1	Floor_South_1	Floor_West_1	Soil_Transect_4_1	Soil_Transect_3_1	Soil_Transect_2_1	Soil_Transect_1_1	SoilCO2_West_A_1	SoilCO2_West_B_1	Tower_2	Floor_South_2	Floor_West_2	Soil_Transect_4_2	Soil_Transect_3_2	Soil_Transect_2_2	Soil_Transect_1_2	SoilCO2_West_A_2	SoilCO2_West_C_2	Tower_3	Floor_South_3	Soil_Transect_4_3	Soil_Transect_3_3	Soil_Transect_2_3	Soil_Transect_1_3	SoilCO2_West_A_3	SoilCO2_West_B_3	SoilCO2_West_C_3	Tower_4	Soil_Transect_4_4	Soil_Transect_3_4	Soil_Transect_2_4	Soil_Transect_1_4	SoilCO2_West_A_4	SoilCO2_West_B_4	SoilCO2_West_C_4	Spacial Count
2019-11-19	323	0	nan	3.6	0.7	4.7	3.7	1.5	3.6	1	5	5	11.2	5.1	6.6	8.4	13.8	12.8	4.2	8.4	11.8	12.3	6.4	9.5	11.5	16.5	13.4	16.2	15.4	11.7	17	10.5	18.8	22.8	11.9	13.3	16.2	25.7
2019-11-19	323	1	nan	3.6	1	4.2	3.7	1.2	2.7	0.7	3.9		10.6	5.7	7.8	8.1	13.9	11.8	4.2	8.9	11.2	12.3	7.6	9.8	13.1	15.9	13.4	16.5	14.5	12.3	17	10.7	18.8	23.1	11.9	14.2	16.5	25.8
2019-11-19	323	Avg	0-15cm																																				0
2019-11-19	323	Avg	15-30cm																																				0
2019-11-19	323	Avg	30-45cm																																				0
2019-11-19	323	Avg	45-60cm																																				0

mode = both
Moisture Point Probes VR
Array ( [0] => Solar_Panels_1 [1] => Flux_Tower_1 [2] => Biomass_Cage_1 [3] => Solar_Panels_2 [4] => Flux_Tower_2 [5] => Biomass_Cage_2 [6] => Solar_Panels_3 [7] => Flux_Tower_3 [8] => Biomass_Cage_3 [9] => Solar_Panels_4 [10] => Flux_Tower_4 [11] => Biomass_Cage_4 )

0000

Date	DOY	Rep	Depth	Solar_Panels_1	Flux_Tower_1	Biomass_Cage_1	Solar_Panels_2	Flux_Tower_2	Biomass_Cage_2	Solar_Panels_3	Flux_Tower_3	Biomass_Cage_3	Solar_Panels_4	Flux_Tower_4	Biomass_Cage_4	Spacial Count
2019-11-19	323	0	nan	2.1	3	0.6	11.2	12.4	7	16.5	6.4	15.6	27.9	15.6	19.3
2019-11-19	323	1	nan		2.7	0.6		12.7	8.1		6.2	16.5	27.6	16.5	18.8
2019-11-19	323	Avg	0-15cm													0
2019-11-19	323	Avg	15-30cm													0
2019-11-19	323	Avg	30-45cm													0
2019-11-19	323	Avg	45-60cm													0

No TZ grass heigth found

No VR grass heigth found

Tree DBH

Date	Tag#	Reading (mm)
2019-11-19	1	19.1
2019-11-19	102	9.1
2019-11-19	2	12.9
2019-11-19	245	10.2
2019-11-19	3	18.9
2019-11-19	4	5.0
2019-11-19	5	15.4
2019-11-19	7	19.0
2019-11-19	72	3.6
2019-11-19	79	15.9
2019-11-19	8	7.2
