Field Notes
<--2019-12-03 09:30:00 | 2019-12-19 11:00:00-->Other sites visited today: Sherman Barn | Sherman Wetland | West Pond | East End | East Pond | Mayberry
Phenocam link: Searching...
Tonzi: 2019-12-16 00:00:00 (DOY 350)
Author: Ana Andreu Mendez
Others: Miriam Johnston
Summary: Thermal camara re-install, crown diameters from oak and pine taken
| Miriam and Ana went to Tonzi to re-install the thermocamera (with similar FOV than before).At 12:45 (camera time) the FOV was changed to the final possible. Black body temperatures were also taken. Measurements of 20 QUDO & 20 PISA crown diameters (in 2 directions, not necessarily perpendicular) and DBHs were conducted. The purpose of data collection was to get a general idea of DBH~crown diameter allometry, but note that these trees were chosen in an ad-hoc manner and were not a random sample. DBH measured with a tape; crown width measured by two people with a tape, looking up to position the ends of the tape appropriately. GPS points from Ana's phone, IDOL alcatel, with the 'GPS coordinates' app. |
Field Data
No tank data
Well Depth
| Date | Location | Depth (feet) |
|---|---|---|
| 2019-12-16 | SW | 2.62 |
| 2019-12-16 | WP | 0.89 |
| 2019-12-16 | EE | 1.25 |
| 2019-12-16 | EP | 1.97 |
| 2019-12-16 | MB | 0.66 |
No TZ Moisture Point data found
No VR Moisture Point data found
No TZ grass heigth found
No VR grass heigth found
No TZ Tree DBH found
No water potential data found
No TZ Grass Biomass data found
No TZ OakLeaves Biomass data found
No TZ PineNeedles Biomass data found
0 photos found
16 sets found
No data found for TZ_Fenergy.

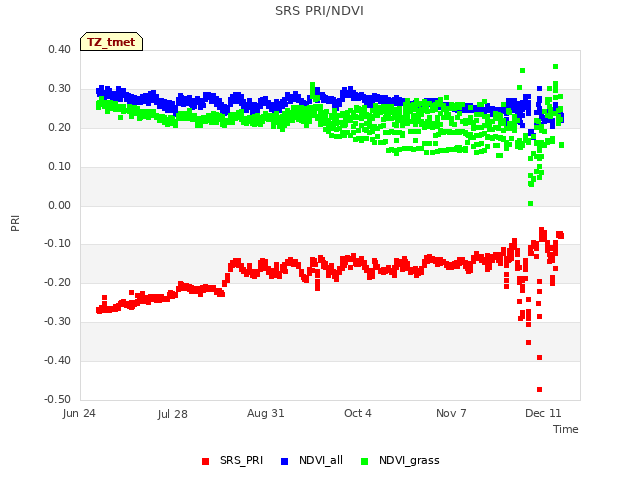

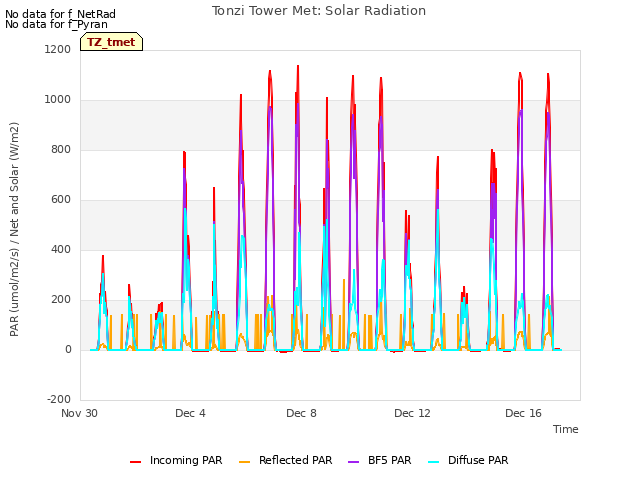

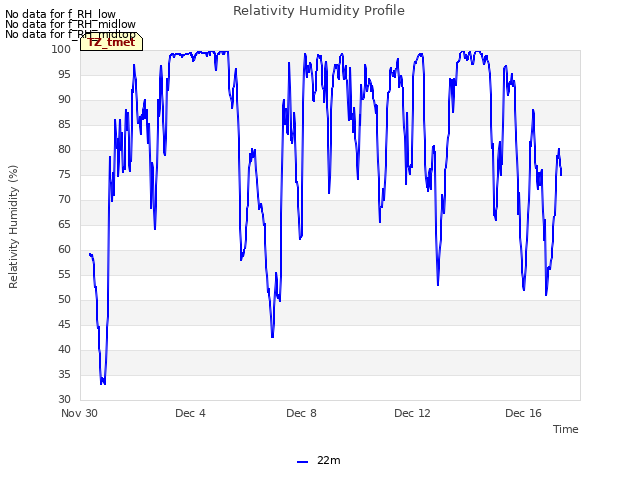

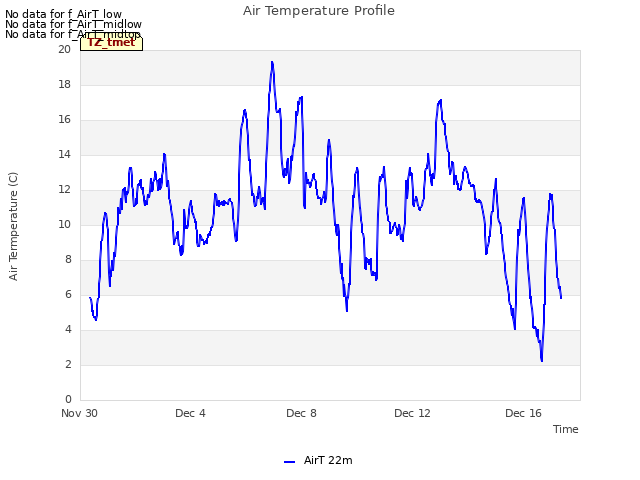

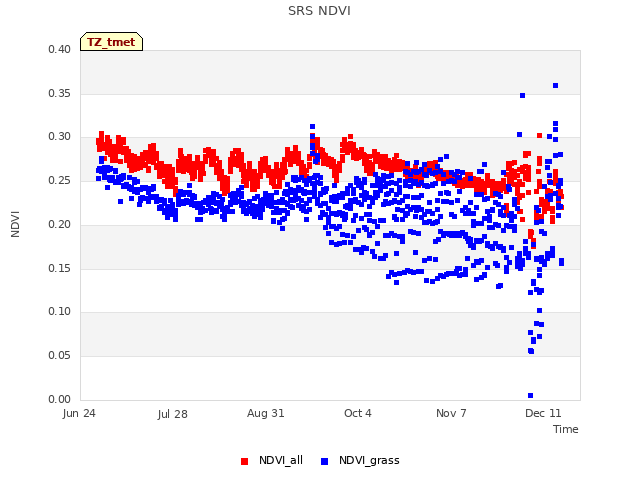

11 TZ_tmet graphs found

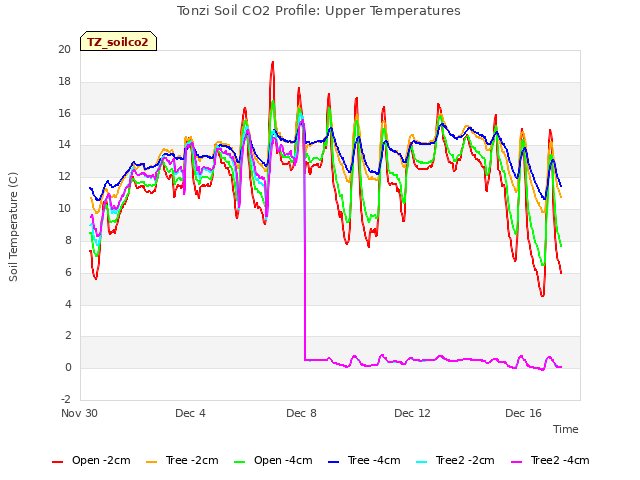

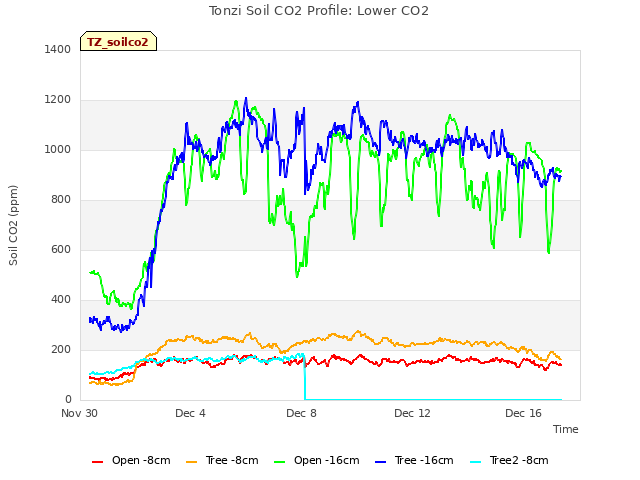

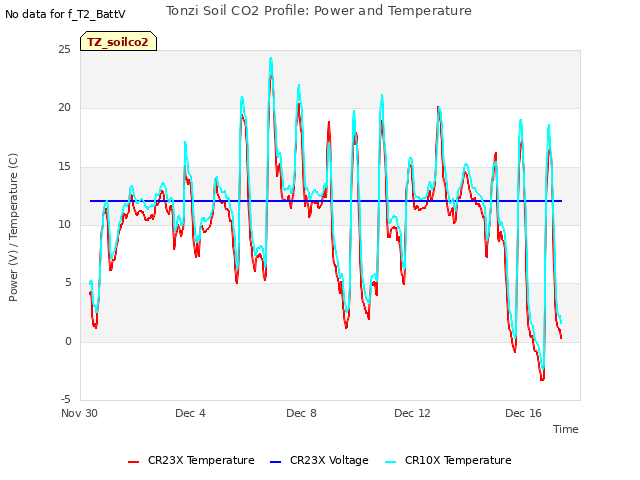

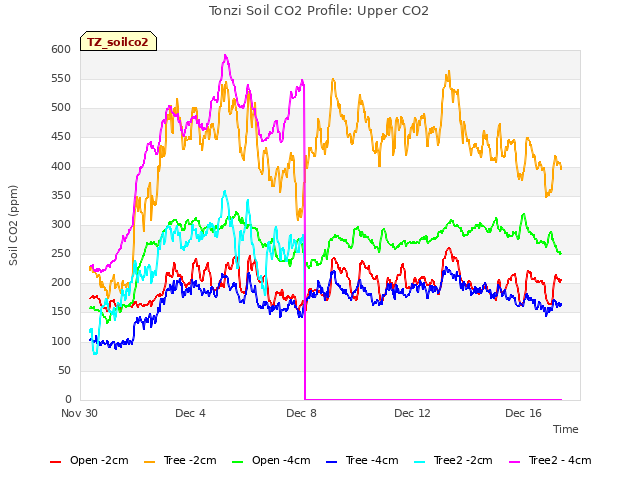

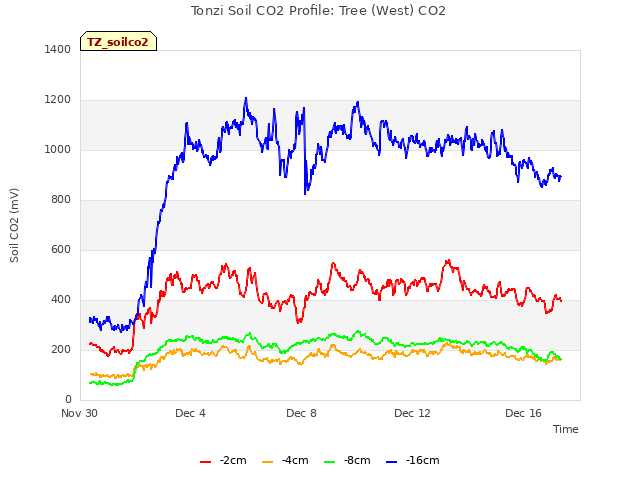

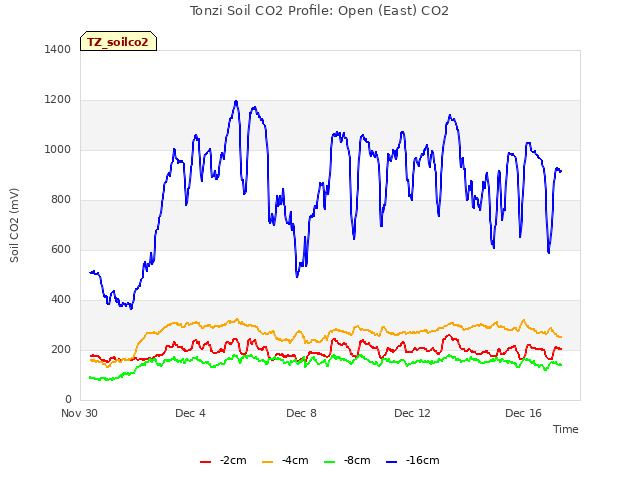

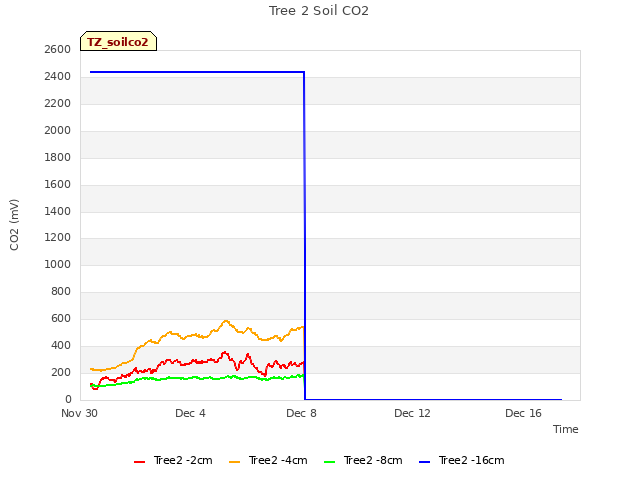

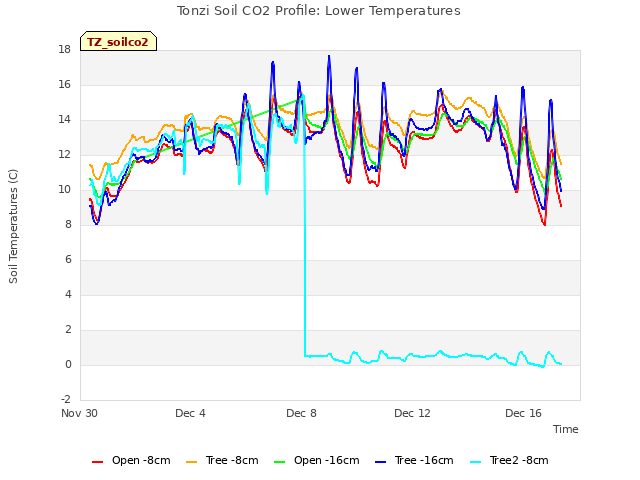

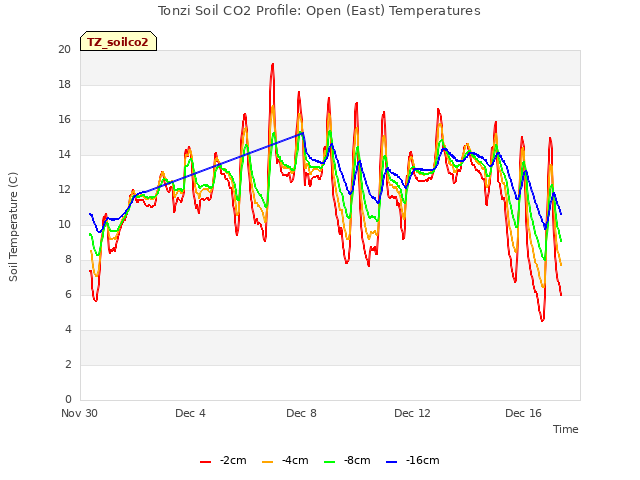

11 TZ_soilco2 graphs found
Can't check TZ_mixed

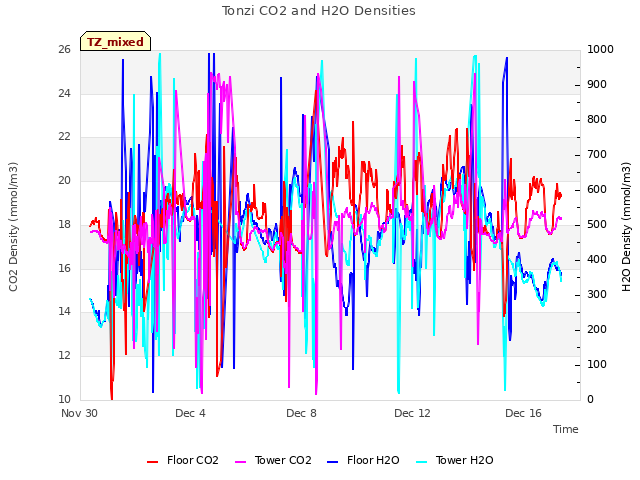

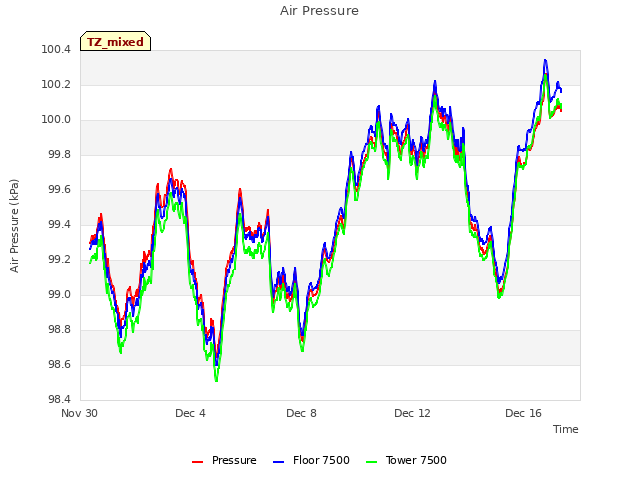

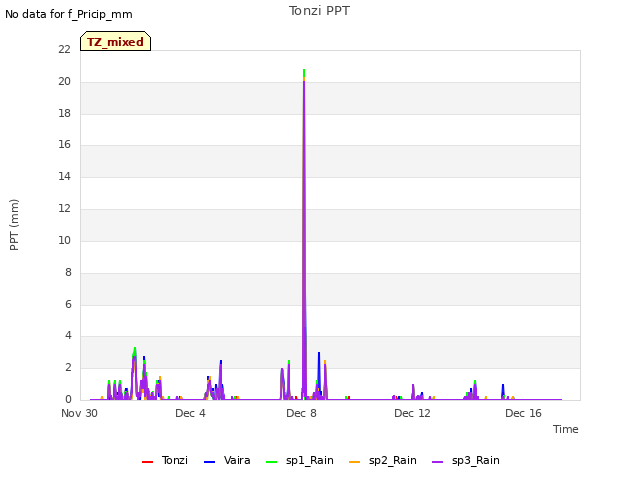

3 TZ_mixed graphs found
1 TZ_fflux graphs found

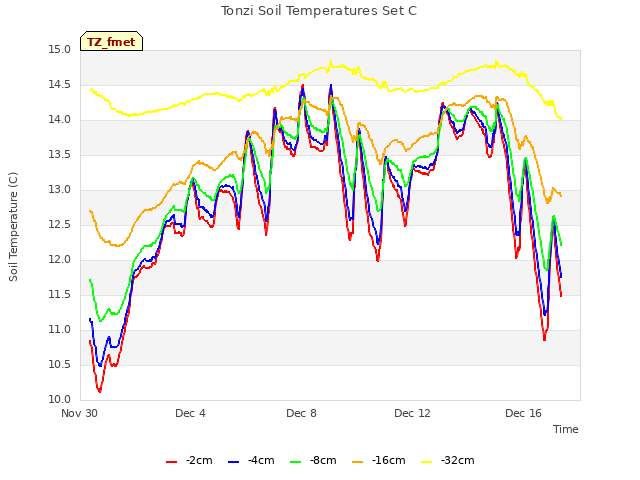

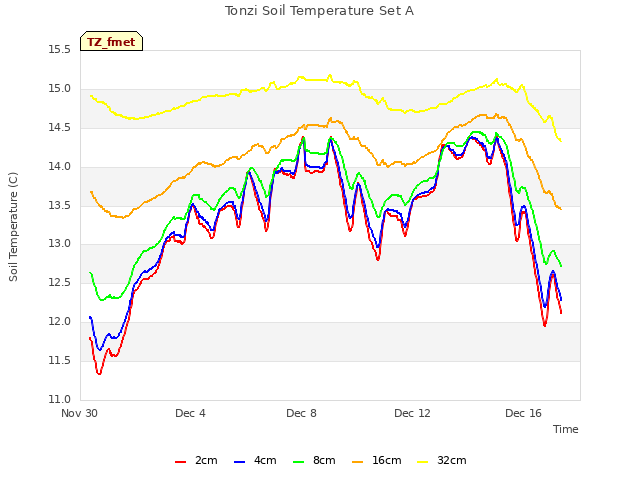

8 TZ_fmet graphs found
No data found for TZ_tram.

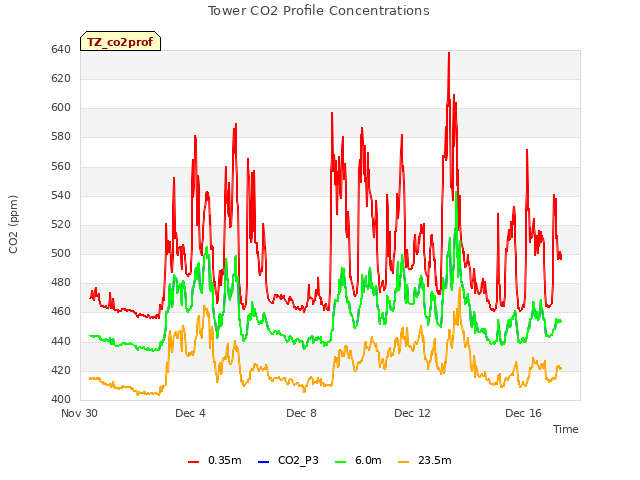

3 TZ_co2prof graphs found
1 TZ_irt graphs found
No data found for TZ_windprof.

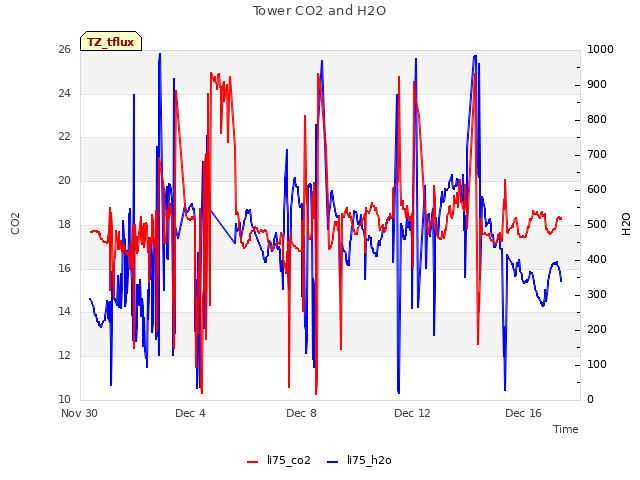

1 TZ_tflux graphs found

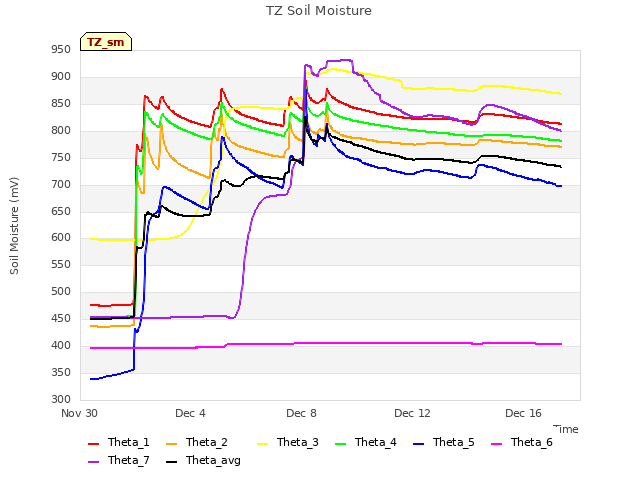

2 TZ_sm graphs found
Can't check TZ_met
1 TZ_met graphs found
Can't check TZVR_mixed

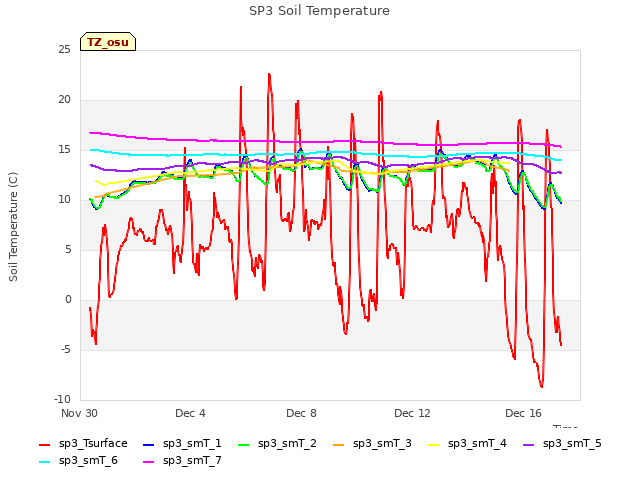

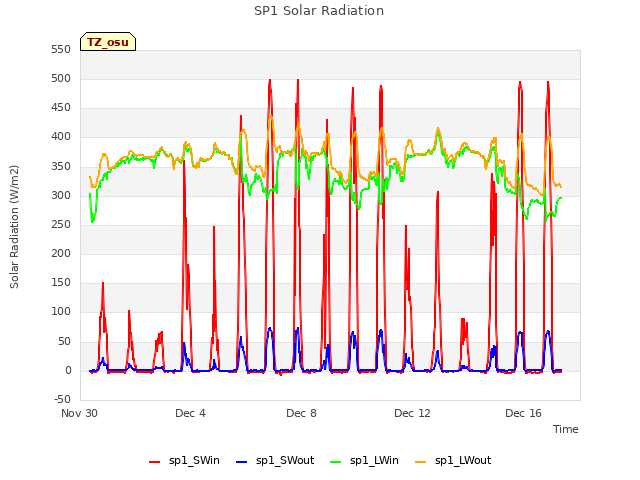

8 TZ_osu graphs found
3 TZ_fd graphs found
Tonzi Z-cam data
