Field Notes

<--2019-11-19 11:00:00 | 2019-12-19 11:00:00-->
Other sites visited today: Tonzi
Phenocam link: Searching...

Vaira: 2019-12-03 12:30:00 (DOY 337)
Author: Joe Verfaillie
Others: Ana

Summary: First rains of the wet season, grasses have just sprouted

Vaira
2019-12-03

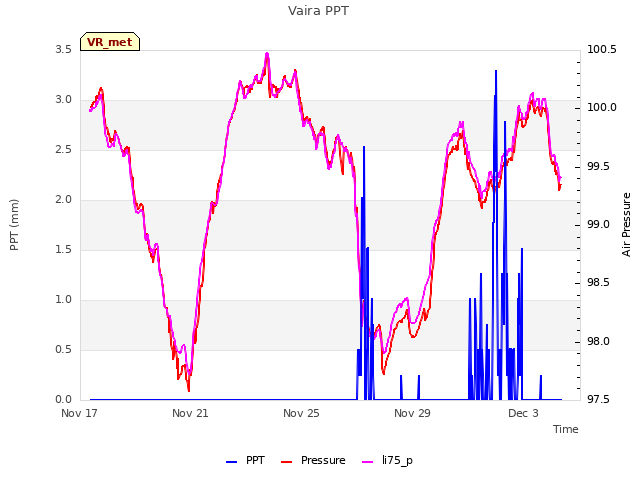

Ana and I arrived at 12:30. It was cool with a low overcast and no wind. There have been several days of rain and some more to come. There are no puddles but the water hole did have some water in it. The trees still look pretty good with the remaining leaves still mostly green. The grass and herbs have sprouted under last yearâ€™s litter but look pale and scraggly.

I collected the data â€“ all looked well. Ana did the soil moisture and well measurements. I think she also collected some soil for emissivity.

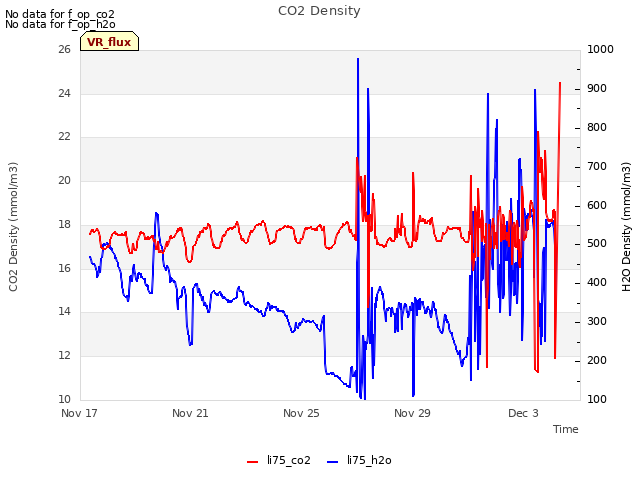

The 7500 read: 431.9ppm CO2, 541.4mmol/m3 H2O, 100.1kPa, 12.0C, 100.7SS

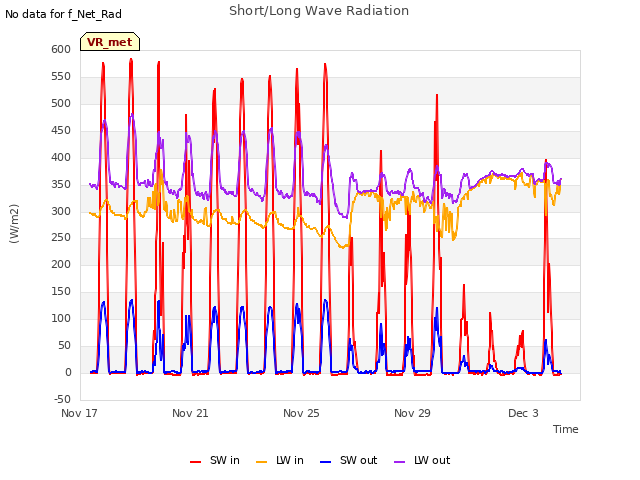

I cleaned the Phenocam window inside and out. The window is loose in its setting and may be held in place by the camera lens. I also cleaned the radiometers and Arables.

I took some spectrums with the Jaz.

Field Data

No tank data

Well Depth

Date	Location	Depth (feet)
2019-12-03	TZ_road	37.4
2019-12-03	TZ_tower	33.8
2019-12-03	TZ_floor	29
2019-12-03	VR_well	59.7

mode = both
Moisture Point Probes TZ
Array ( [0] => Tower_1 [1] => Floor_South_1 [2] => Floor_West_1 [3] => Soil_Transect_3_1 [4] => Soil_Transect_2_1 [5] => Soil_Transect_1_1 [6] => SoilCO2_West_A_1 [7] => SoilCO2_West_B_1 [8] => SoilCO2_West_C_1 [9] => Tower_2 [10] => Floor_South_2 [11] => Floor_West_2 [12] => Soil_Transect_3_2 [13] => Soil_Transect_2_2 [14] => Soil_Transect_1_2 [15] => SoilCO2_West_A_2 [16] => SoilCO2_West_B_2 [17] => SoilCO2_West_C_2 [18] => Tower_3 [19] => Floor_South_3 [20] => Floor_West_3 [21] => Soil_Transect_3_3 [22] => Soil_Transect_2_3 [23] => Soil_Transect_1_3 [24] => SoilCO2_West_A_3 [25] => SoilCO2_West_B_3 [26] => SoilCO2_West_C_3 [27] => Tower_4 [28] => Floor_South_4 [29] => Floor_West_4 [30] => Soil_Transect_3_4 [31] => Soil_Transect_2_4 [32] => Soil_Transect_1_4 [33] => SoilCO2_West_A_4 [34] => SoilCO2_West_B_4 [35] => SoilCO2_West_C_4 )

0000

Date	DOY	Rep	Depth	Tower_1	Floor_South_1	Floor_West_1	Soil_Transect_3_1	Soil_Transect_2_1	Soil_Transect_1_1	SoilCO2_West_A_1	SoilCO2_West_B_1	SoilCO2_West_C_1	Tower_2	Floor_South_2	Floor_West_2	Soil_Transect_3_2	Soil_Transect_2_2	Soil_Transect_1_2	SoilCO2_West_A_2	SoilCO2_West_B_2	SoilCO2_West_C_2	Tower_3	Floor_South_3	Floor_West_3	Soil_Transect_3_3	Soil_Transect_2_3	Soil_Transect_1_3	SoilCO2_West_A_3	SoilCO2_West_B_3	SoilCO2_West_C_3	Tower_4	Floor_South_4	Floor_West_4	Soil_Transect_3_4	Soil_Transect_2_4	Soil_Transect_1_4	SoilCO2_West_A_4	SoilCO2_West_B_4	SoilCO2_West_C_4	Spacial Count
2019-12-03	337	0	nan	25.3	18.8	21.7	14.4	21.7	9.7	24.1	28.5	7.4	15.8	16.1	28.6	31	25.2	10.3	25.5	11.2	28.6	13.1	7.6	11.1	14	14.8	17.9	19.3	18.4	13.4	15.9	8.2	3.3	15.3	22.2	11.6	14.8	16.2	22.5
2019-12-03	337	1	nan	25		29.4	15	21.7	10.3	24.1	31.5	7.7	16.1	16.1	27.7	31.6	25.8	11.2	25.5	11.5	28.6	14	7	12.9	11.7	15.4	18.4	19.3	18.7	12.6	15	8.5	8.7	17	22.2	11.9	13.9	16.5	21.9
2019-12-03	337	2	nan											16.1									6.4									8.5
2019-12-03	337	Avg	0-15cm																																					0
2019-12-03	337	Avg	15-30cm																																					0
2019-12-03	337	Avg	30-45cm																																					0
2019-12-03	337	Avg	45-60cm																																					0

mode = both
Moisture Point Probes VR
Array ( [0] => Solar_Panels_1 [1] => Flux_Tower_1 [2] => Biomass_Cage_1 [3] => Solar_Panels_2 [4] => Flux_Tower_2 [5] => Biomass_Cage_2 [6] => Solar_Panels_3 [7] => Flux_Tower_3 [8] => Biomass_Cage_3 [9] => Solar_Panels_4 [10] => Flux_Tower_4 [11] => Biomass_Cage_4 )

0000

Date	DOY	Rep	Depth	Solar_Panels_1	Flux_Tower_1	Biomass_Cage_1	Solar_Panels_2	Flux_Tower_2	Biomass_Cage_2	Solar_Panels_3	Flux_Tower_3	Biomass_Cage_3	Solar_Panels_4	Flux_Tower_4	Biomass_Cage_4	Spacial Count
2019-12-03	337	0	nan	14.7	26.1	12.1	26.5	24.6	20.6	11.7	22.1	30.4	15.3	28.5	23.6
2019-12-03	337	1	nan	14.4	25.8	11.5	27.4	25.2	21	11.5	22.1	29.9	15.6	28.5	22.8
2019-12-03	337	Avg	0-15cm													0
2019-12-03	337	Avg	15-30cm													0
2019-12-03	337	Avg	30-45cm													0
2019-12-03	337	Avg	45-60cm													0
