East End: 2019-05-02 11:45:00 (DOY 122)
Author: Daphne Szutu
Others: Alex, Kuno, Ariane
Summary: Regular data collection/cleaning, swapped LI-7500 for calibration, downloaded miniDOT

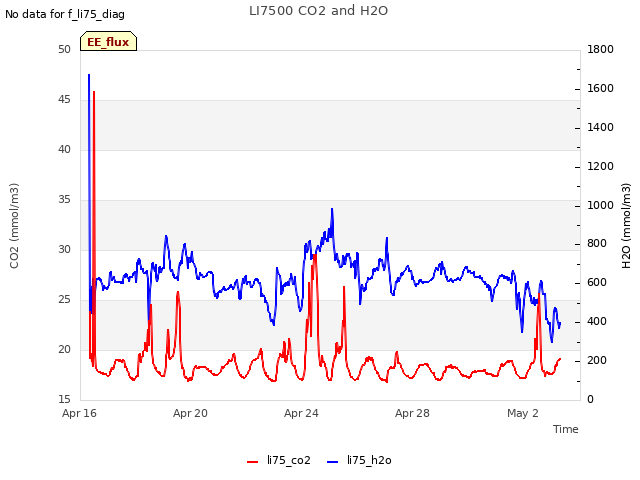

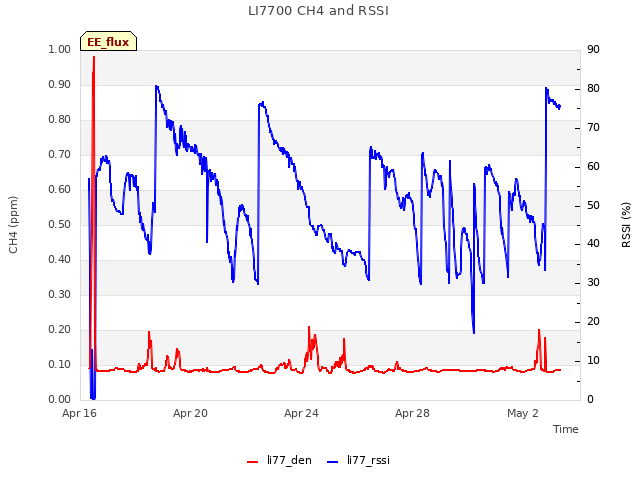

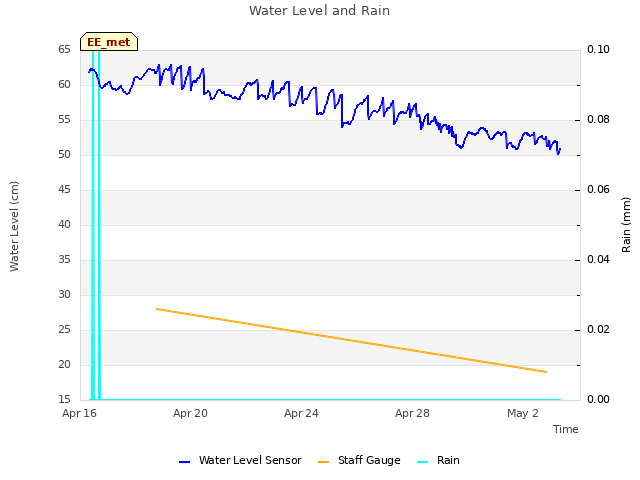

| 2019-05-02 East End Alex, Kuno, Ariane, and I arrived at 11:45. It was a sunny and breezy day with blue skies. The wetland is about 20% green. The water level was 19 cm (lower than before). The wash reservoir was nearly empty; we refilled it. Alex swapped the 7500 for calibration: sn 75H-2667 came off and sn 0035 went up. Ariane cleaned flux and rad sensors. Kuno downloaded met, camera, USB GHG, and miniDOT data. After the 7500 swap, we uploaded a new config file, updated the pressure coefficients, and reset the box. LI-7500 readings (sn 75H-2667 --> sn 0035): CO2 421ppm --> 433 H2O 597ppm --> 451 T 24.6C --> 24 P 101.5kPa --> 101.6 SS 100.4 --> 98 LI7700 readings: CH4 2.01ppm RSSI 43--> 80 after cleaning We left at 12:15. |
0 photos found
11 sets found

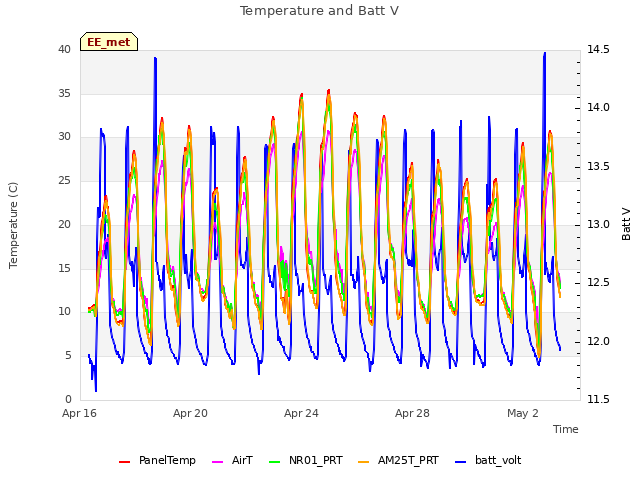

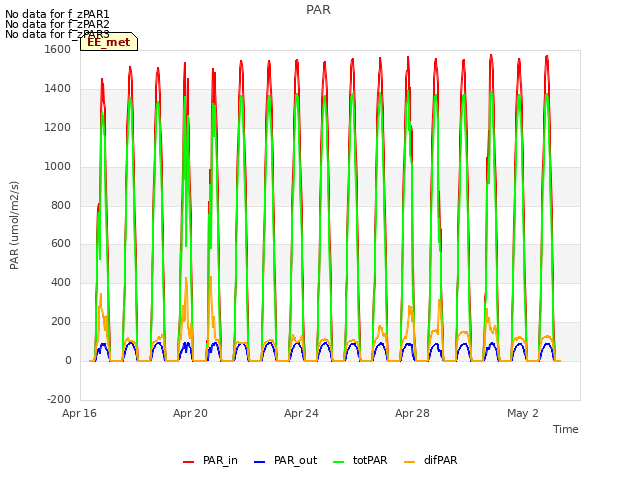

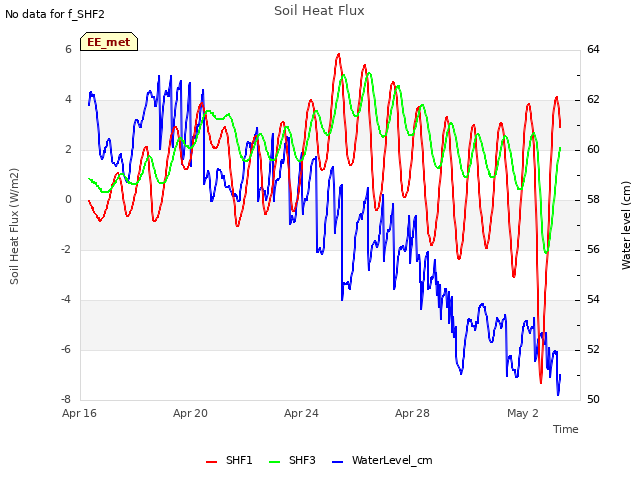

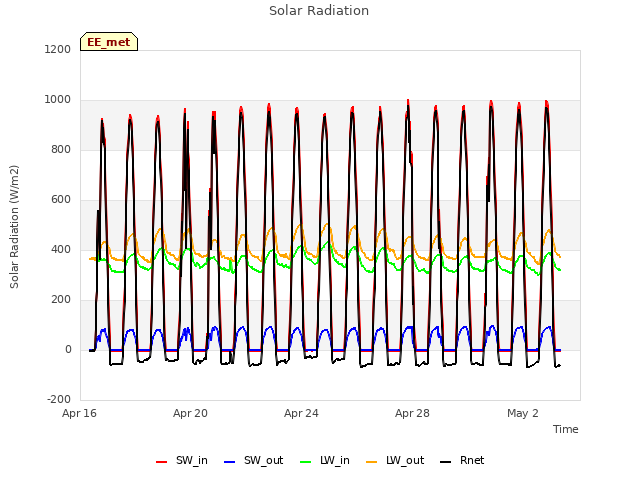

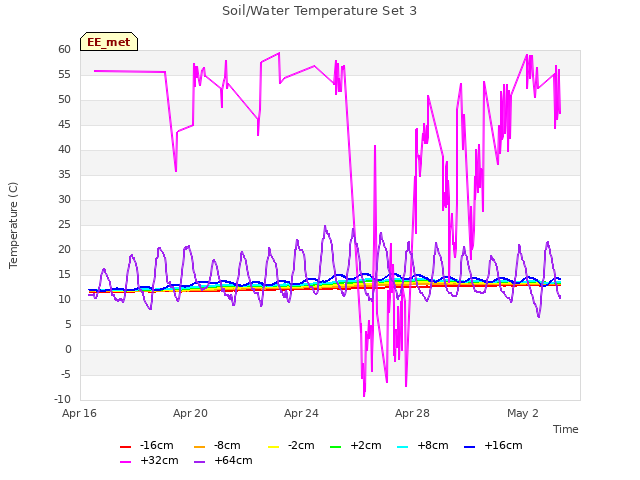

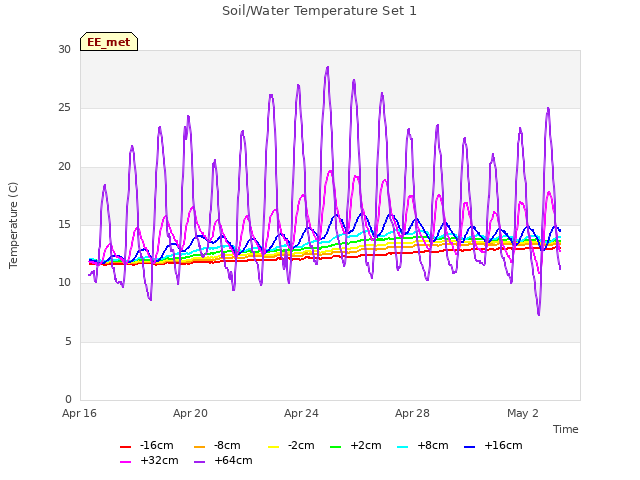

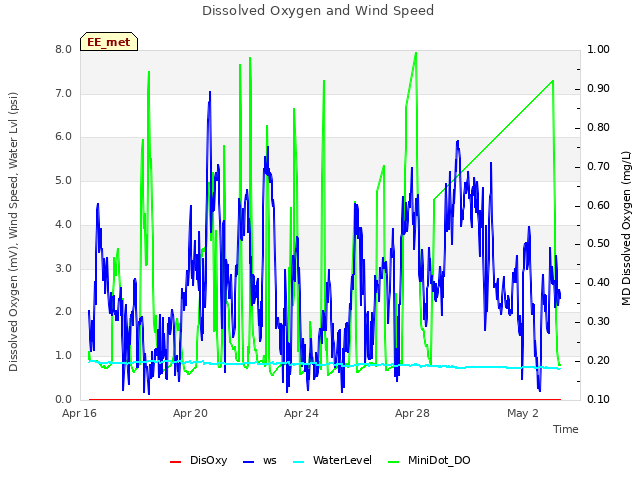

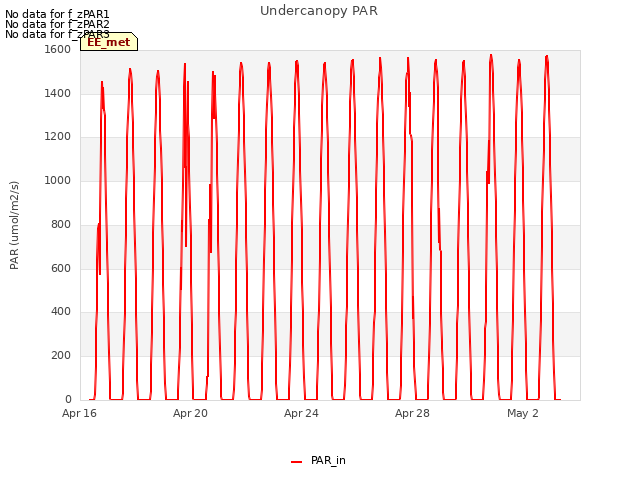

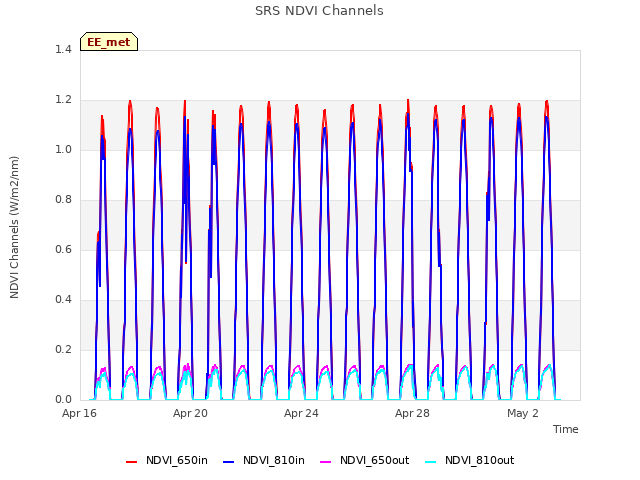

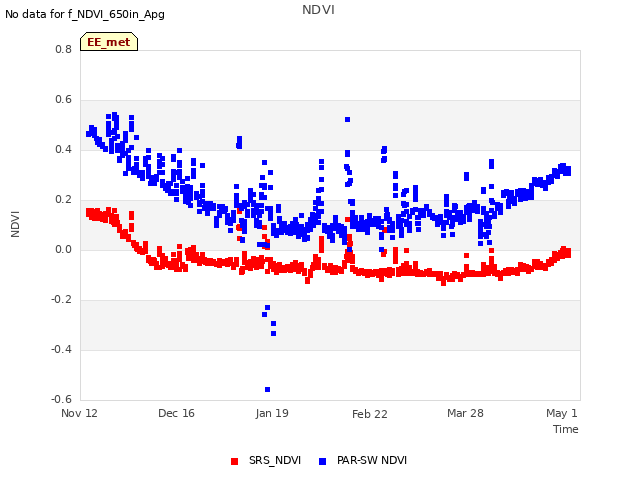

14 EE_met graphs found
Can't check EE_mixed

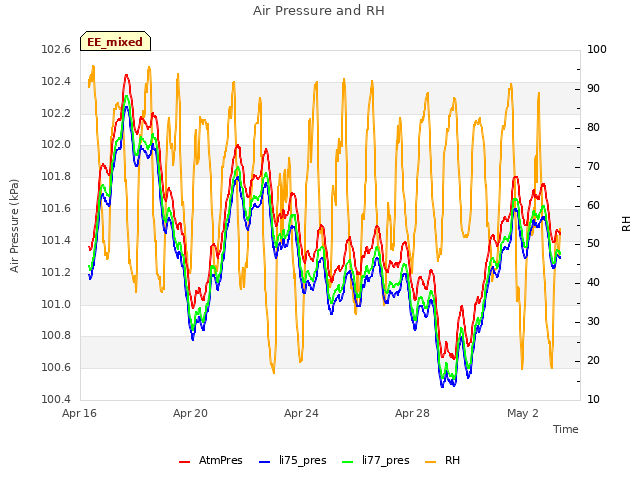

1 EE_mixed graphs found

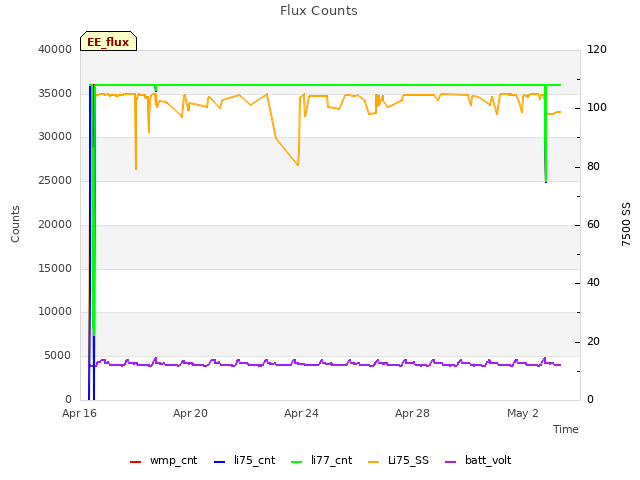

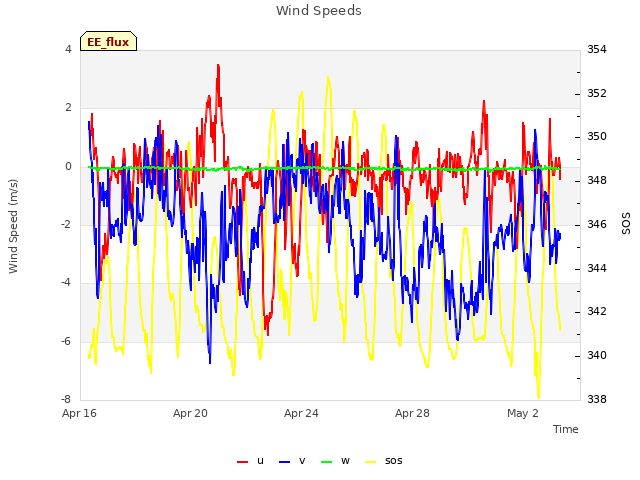

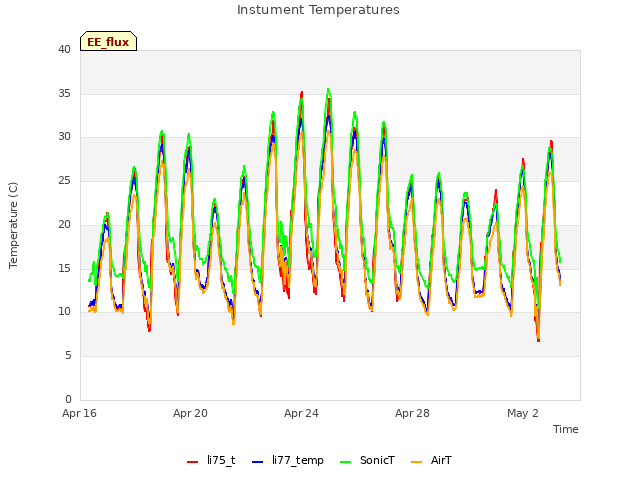

8 EE_flux graphs found
Can't check MBWPEESWGT_mixed

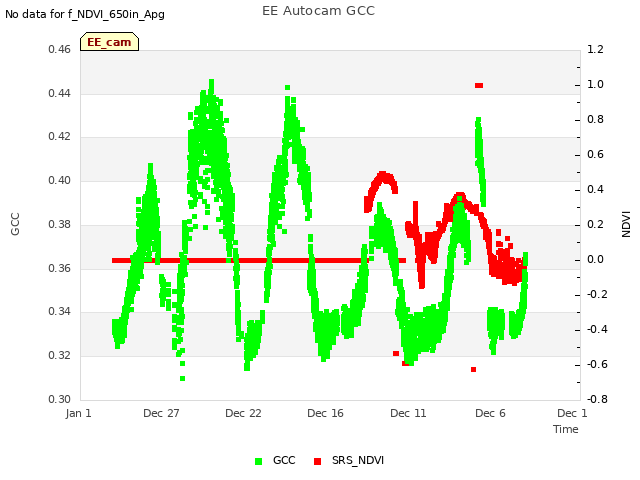

1 EE_cam graphs found
Can't check MBEEWPSWEPGT_cam
Can't check SIMBTWEE_met
Can't check EE_Temp

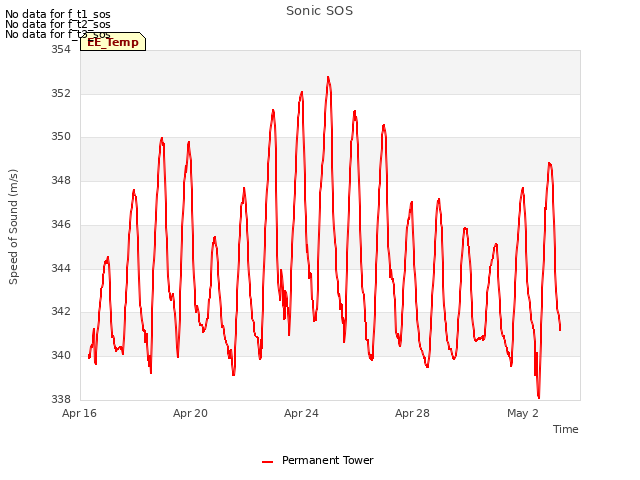

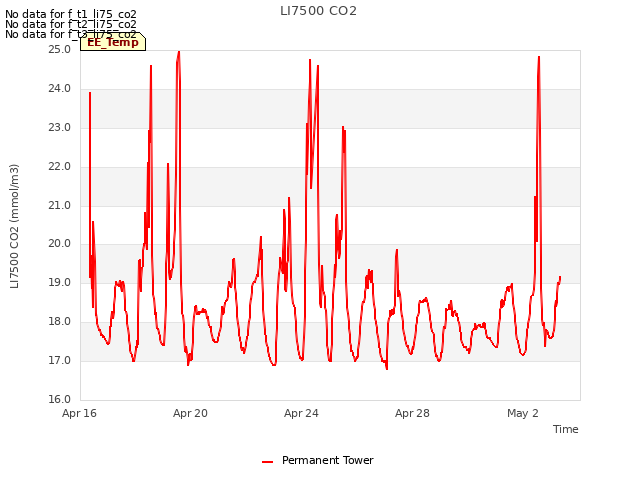

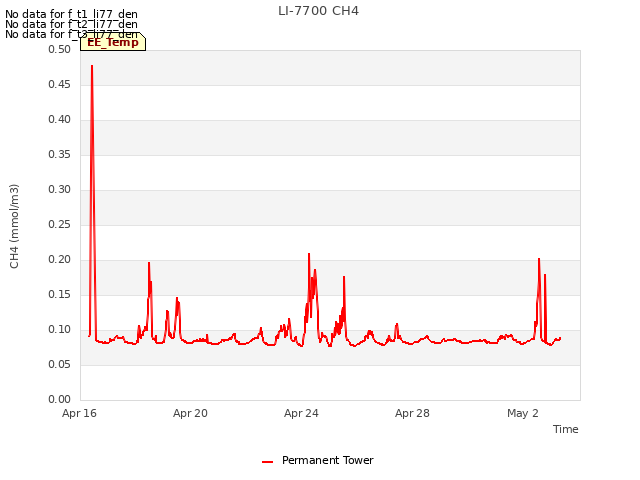

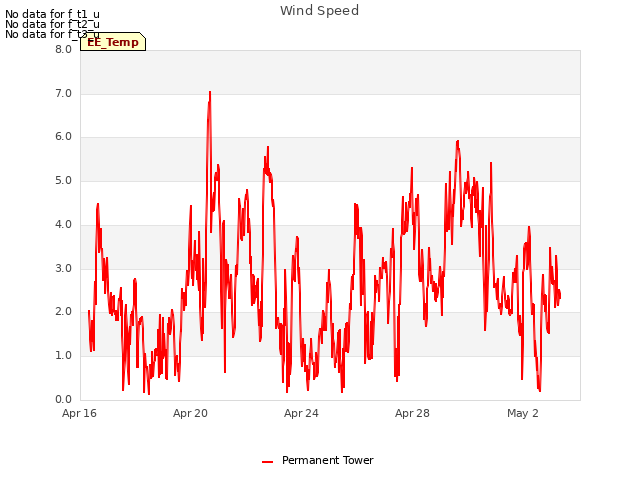

5 EE_Temp graphs found
Can't check EE_minidot
1 EE_minidot graphs found
Can't check MBSWEEWPBCBA

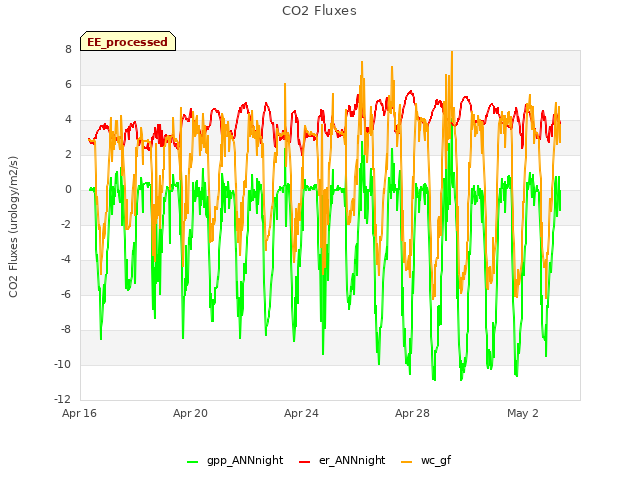

1 EE_processed graphs found
