Field Notes
<--2019-04-25 12:15:00 | 2019-05-23 14:45:00-->Other sites visited today: Bouldin Alfalfa | Bouldin Corn | East End | East Pond | Sherman Wetland | Mayberry | Sherman Barn
Phenocam link: Searching...
West Pond: 2019-05-02 13:40:00 (DOY 122)
Author: Daphne Szutu
Others: Alex, Kuno, Ariane
Summary: Regular data collection/cleaning, downloaded miniDOT, wetland still dry, checked outlet, well pipe measurements
| 2019-05-02 West Pond Alex, Kuno, Ariane, and I arrived at 13:40. It was a warm and sunny day with blue skies. The levee roads look like they have been heavily grazed. The wetland is still mostly brown and dry, and the water level was 19 cm. Kuno downloaded met, camera, USB GHG, and miniDOT data. Ariane cleaned flux and rad sensors. The wash reservoir was ¼ full; Alex refilled it. Kuno left some mothballs at the met box. I tried to install the Raspberry Pi cam, but need a pole 1-2’ shorter if I want to attach it to the boardwalk post. Alex took some measurements of the well next to the boardwalk: 120 cm until some resistance, 150 cm until muck bottom (tape was wet until about 40 cm). LI-7500 readings: CO2 401ppm H2O 5352ppm T 27.6C P 101.5kPa SS 95--> 97 after cleaning LI7700 readings: CH4 1.97ppm RSSI 44-->76 after cleaning We left at 14:20. On the way out, we checked out the outlet. The boards have been put back in, but we didn’t see any obvious signs of peat harvesting. |
0 photos found
8 sets found
Can't check WP_DO
1 WP_DO graphs found

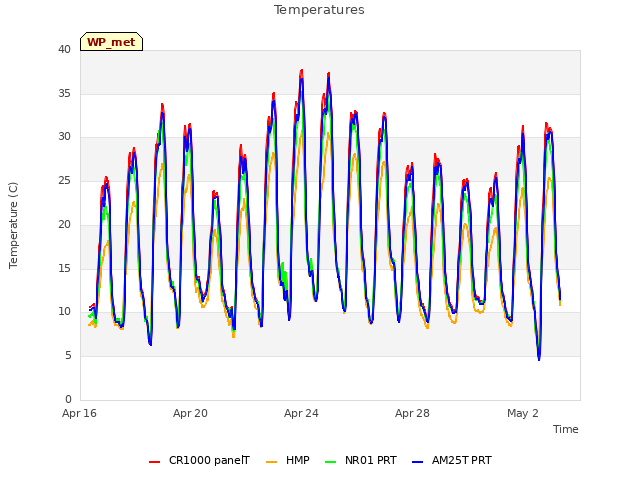

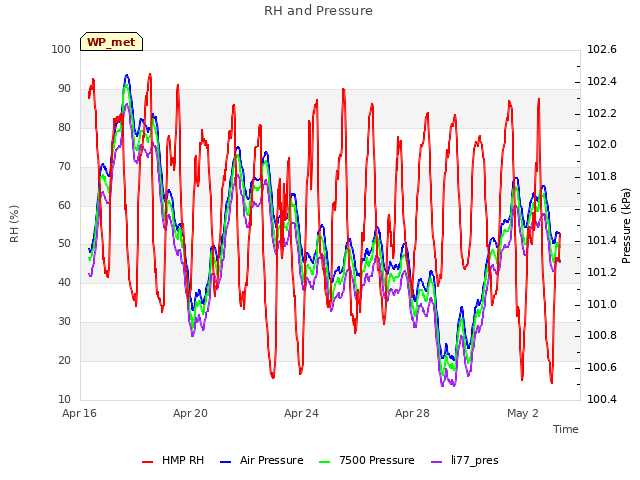

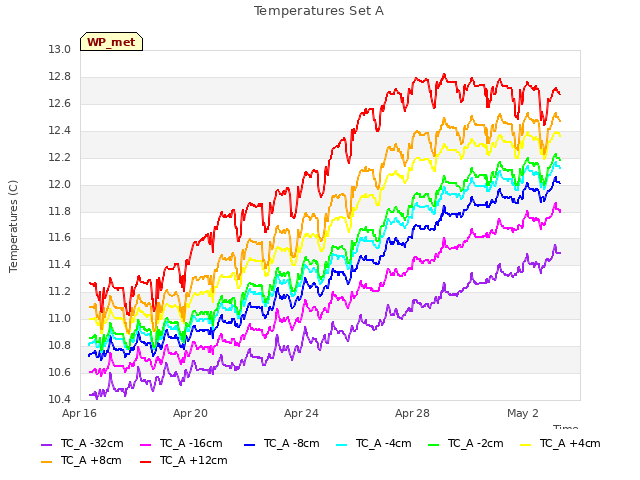

14 WP_met graphs found
5 WP_flux graphs found
Can't check MBWPEESWGT_mixed
Can't check MBEEWPSWEPGT_cam
Can't check MBSWEEWPBCBA

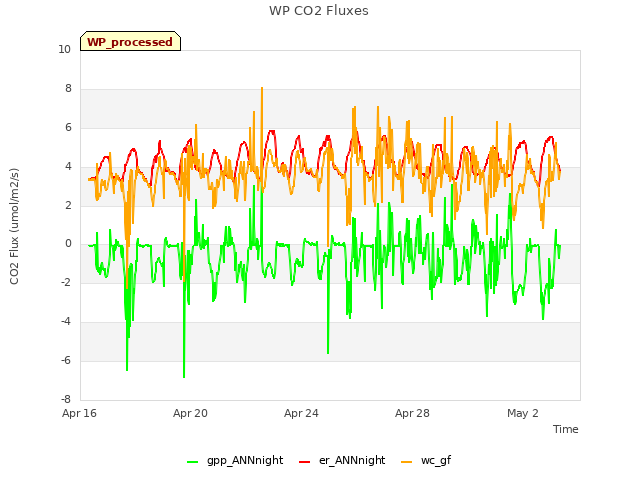

1 WP_processed graphs found
No data found for WP_arable.
