Bouldin Alfalfa: 2019-05-02 10:20:00 (DOY 122)
Author: Daphne Szutu
Others: Alex, Kuno, Ariane

Summary: Regular data download/cleaning, spectral, alfalfa mowed, HMP air temperature bad for a few days

2019-05-02
Bouldin Alfalfa

Alex, Kuno, Ariane, and I arrived at 10:20. It was a breezy and sunny day with blue skies. The alfalfa had been mowed (but not baled), and we trimmed the alfalfa under the tower.

Alex took spectral measurements (1-10 cut alfalfa, 11-21 drying hay on field), using putty for the dark reference. Kuno added a bolt to the phenocam mount to prevent it from slipping. I downloaded met, cam, USB GHG, and FD data. Ariane cleaned flux and rad sensors. The wash reservoir was mostly full, so we did not refill it.

LI-7500 readings:
CO2 421ppm
H2O 405ppm
T 20.9C
P 101.6kPa
SS 97--> forgot to write after cleaning
LI7700 readings:
CH4 1.99ppm
RSSI 51--> forgot to write after cleaning

We left at 10:50.

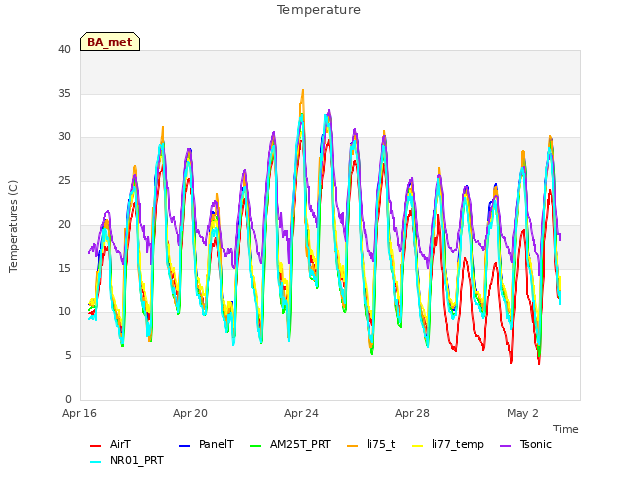

Looking at the data back in the lab, the HMP air temperature data seems too low/suspect starting 2019-04-28. It probably needs to be gap-filled from 2019-04-28 through 2019-05-01. Not sure what caused to it to drift or revert.

Next Mowing: 2019-06-08

0 photos found

Graphs display:
7 sets found

5 BA_flux graphs found

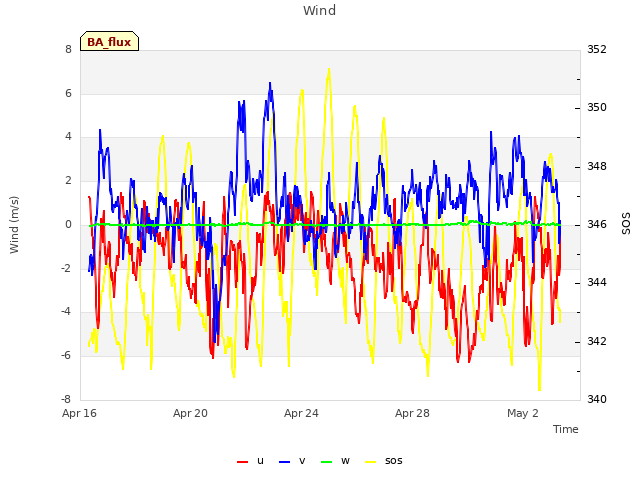

Explore the graph:Wind in a new window

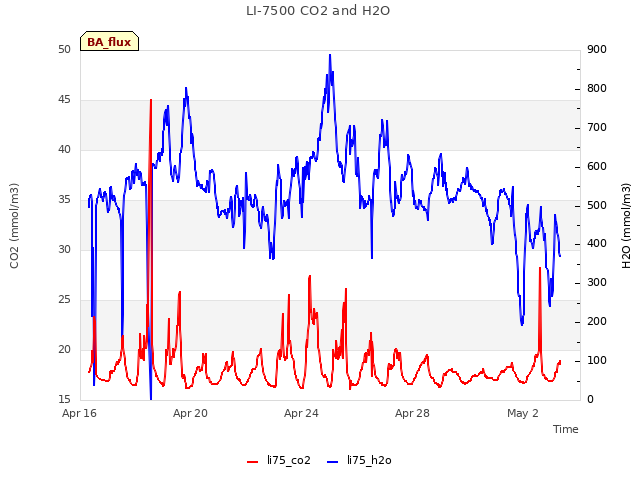

Explore the graph:LI-7500 CO2 and H2O in a new window

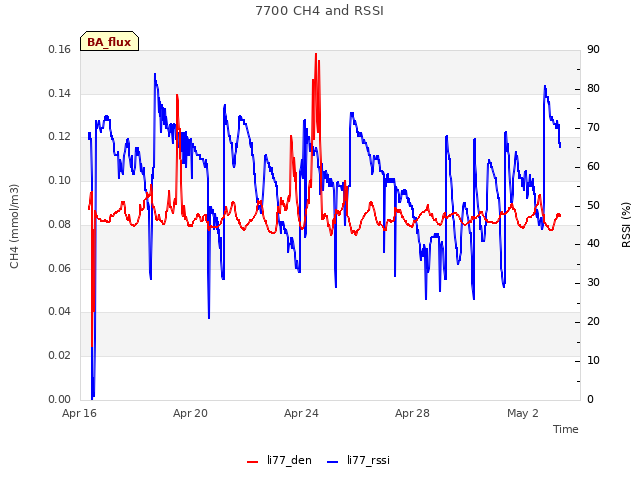

Explore the graph:7700 CH4 and RSSI in a new window

Explore the graph:Counts in a new window

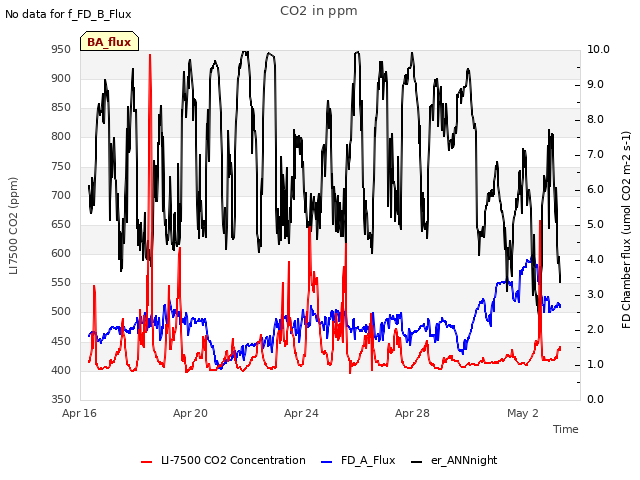

Explore the graph:CO2 in ppm in a new window

21 BA_met graphs found

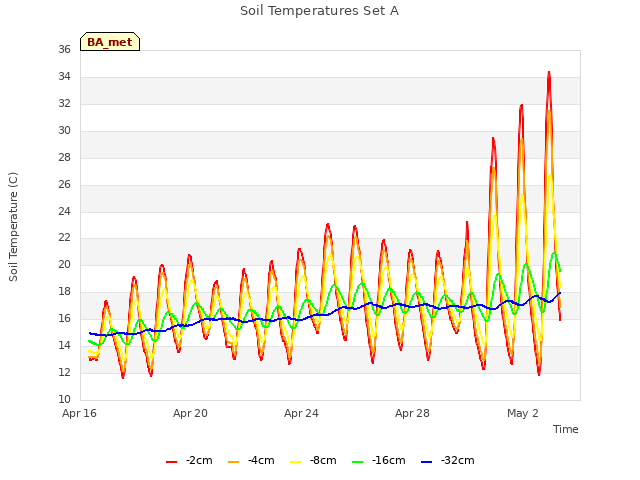

Explore the graph:Soil Temperatures Set A in a new window

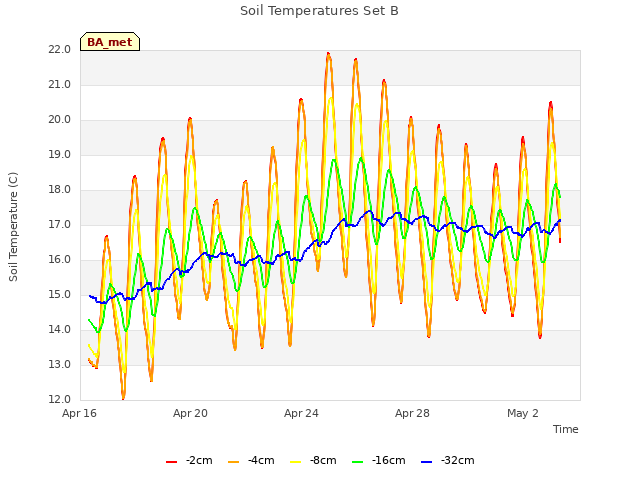

Explore the graph:Soil Temperatures Set B in a new window

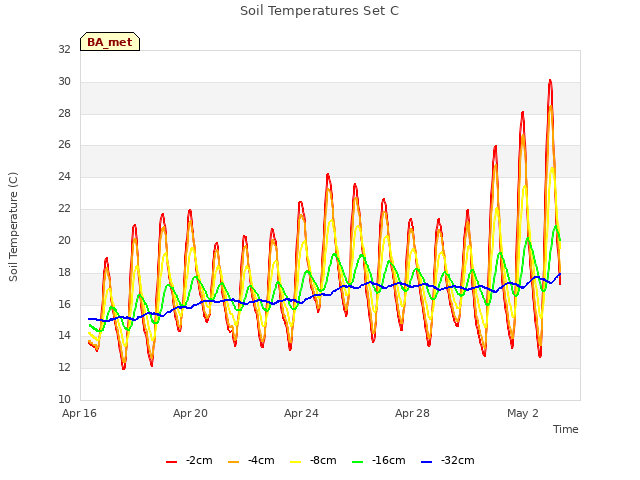

Explore the graph:Soil Temperatures Set C in a new window

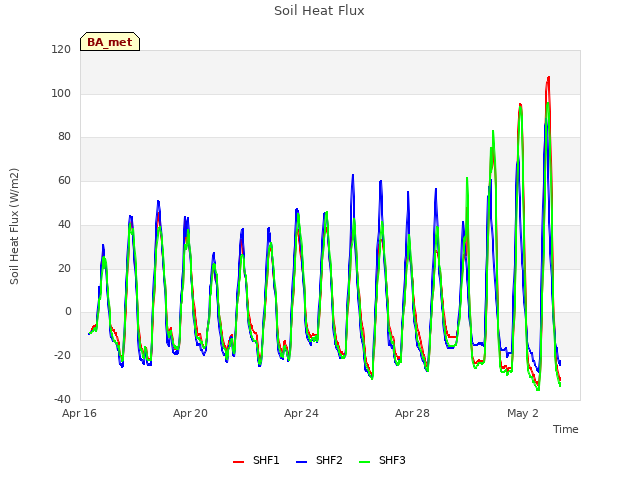

Explore the graph:Soil Heat Flux in a new window

Explore the graph:Temperature in a new window

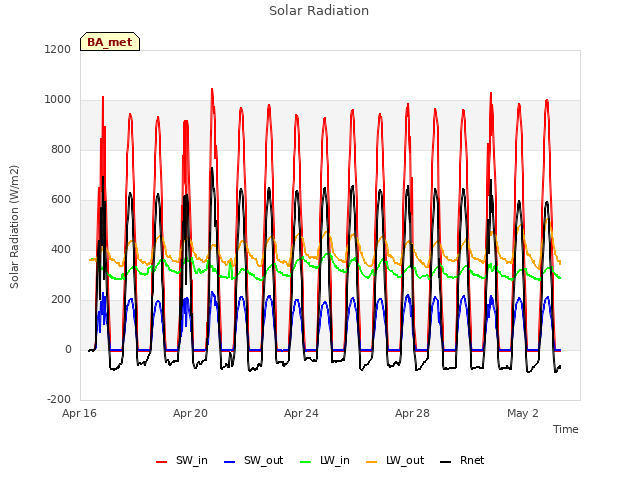

Explore the graph:Solar Radiation in a new window

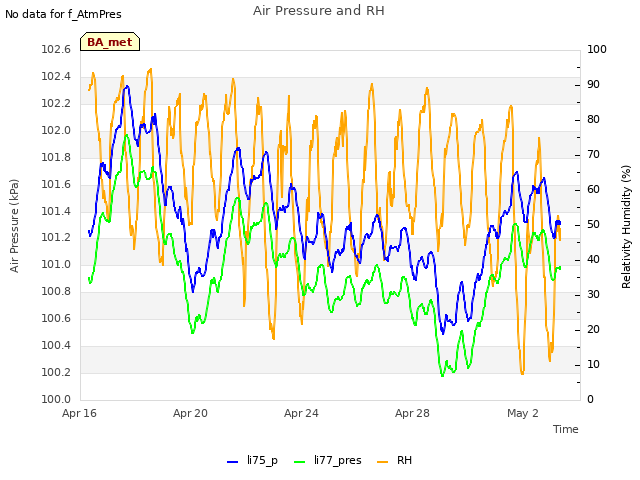

Explore the graph:Air Pressure and RH in a new window

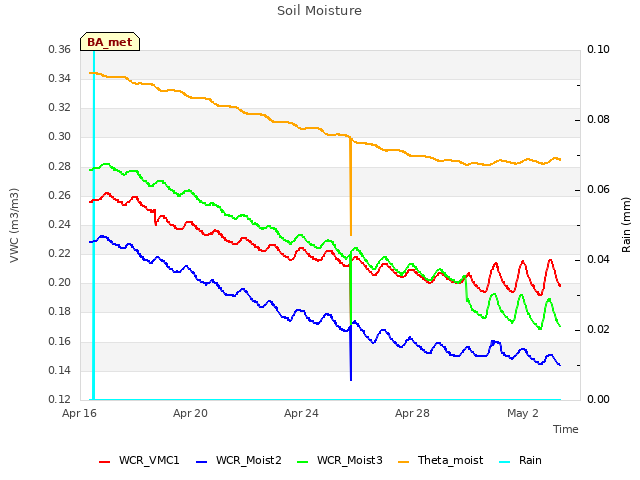

Explore the graph:Soil Moisture in a new window

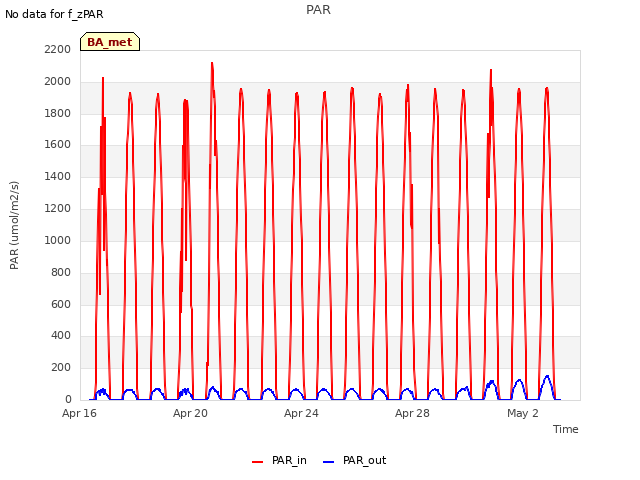

Explore the graph:PAR in a new window

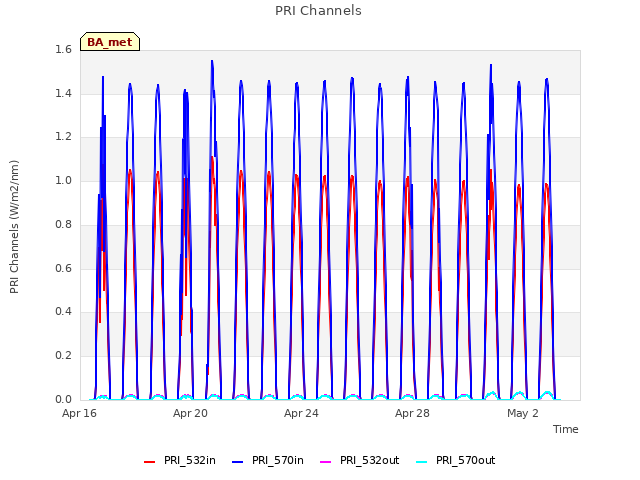

Explore the graph:PRI Channels in a new window

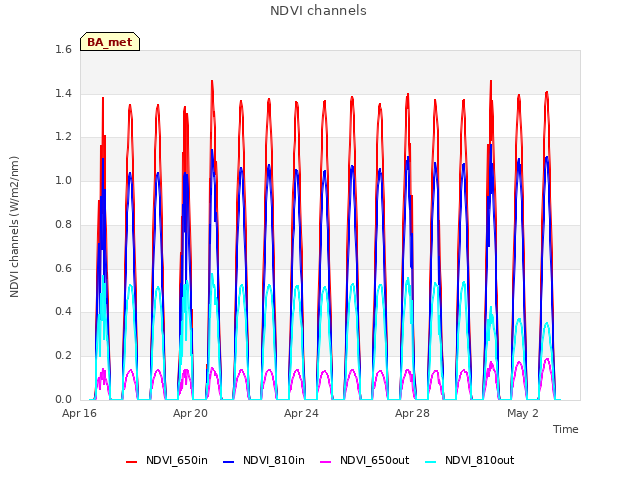

Explore the graph:NDVI channels in a new window

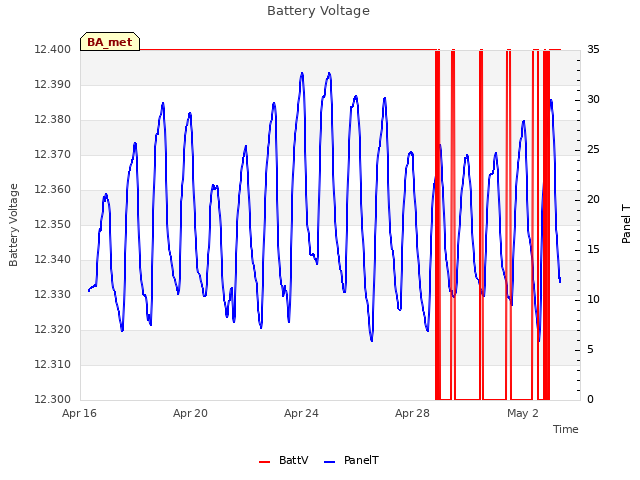

Explore the graph:Battery Voltage in a new window

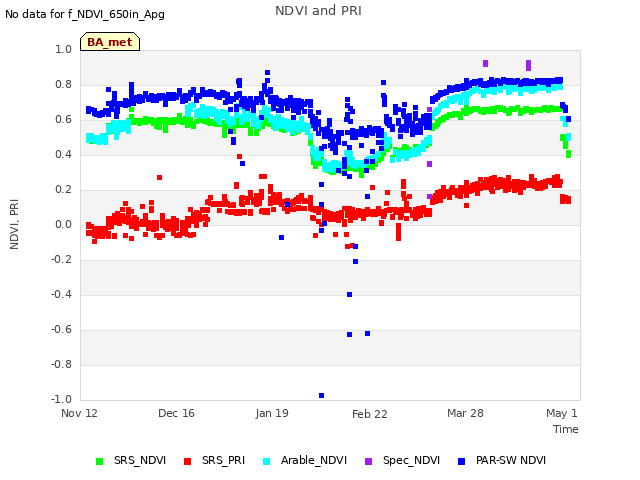

Explore the graph:NDVI and PRI in a new window

Explore the graph:Apogee NDVI in a new window

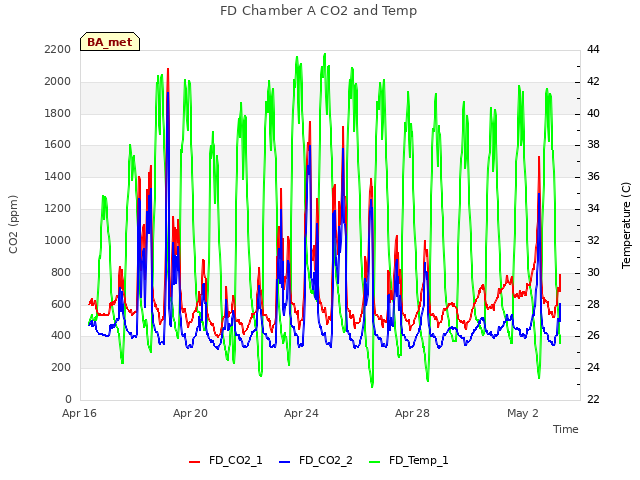

Explore the graph:FD Chamber A CO2 and Temp in a new window

Explore the graph:FD Chamber B CO2 and Temperature in a new window

Explore the graph:Surface Temperature in a new window

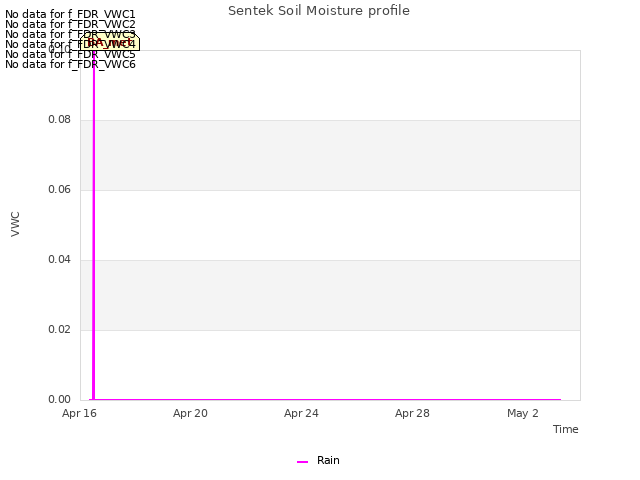

Explore the graph:Sentek Soil Moisture profile in a new window

Explore the graph:Sentek Soil Temperature profile in a new window

Explore the graph:Sentek Soil Salinity profile in a new window

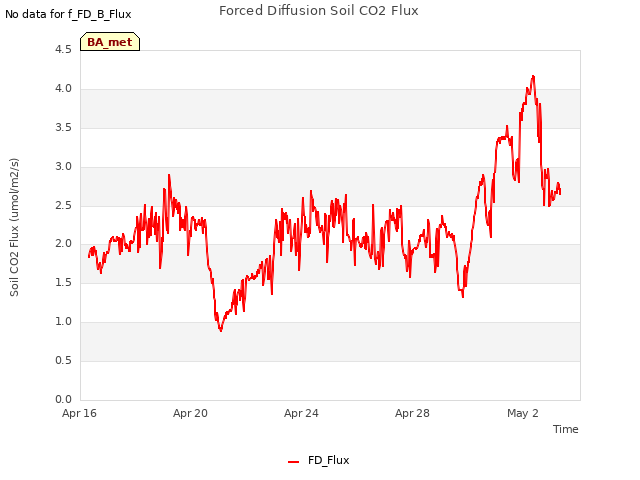

Explore the graph:Forced Diffusion Soil CO2 Flux in a new window

6 BA_arable graphs found

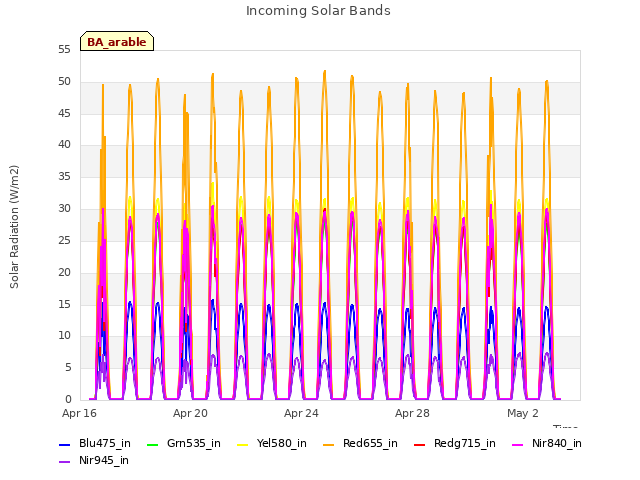

Explore the graph:Incoming Solar Bands in a new window

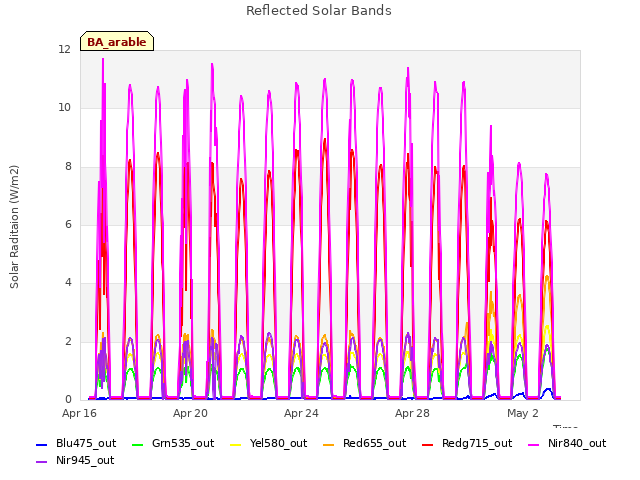

Explore the graph:Reflected Solar Bands in a new window

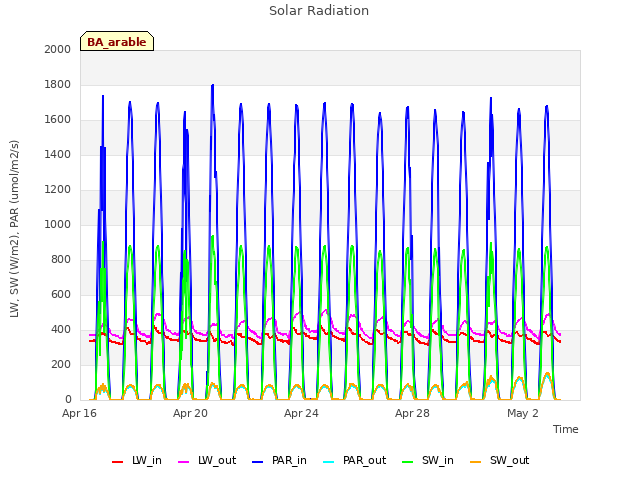

Explore the graph:Solar Radiation in a new window

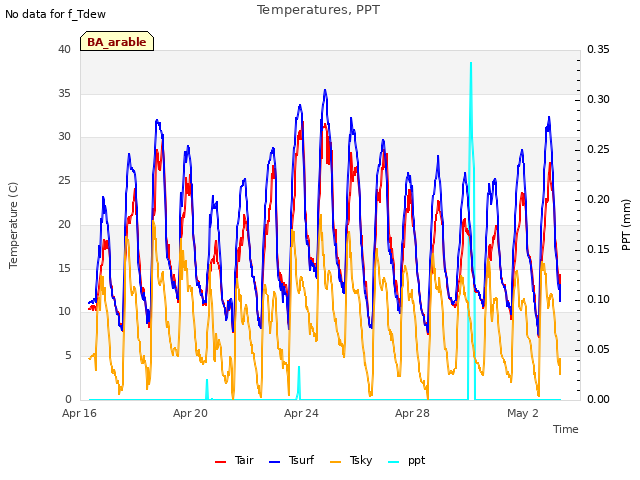

Explore the graph:Temperatures, PPT in a new window

Explore the graph:Sentek Deep Soil Moisture in a new window

Explore the graph:Pressure, RH in a new window

Can't check TATWBABCSB_cam
Can't check MBSWEEWPBCBA
2 BA_processed graphs found

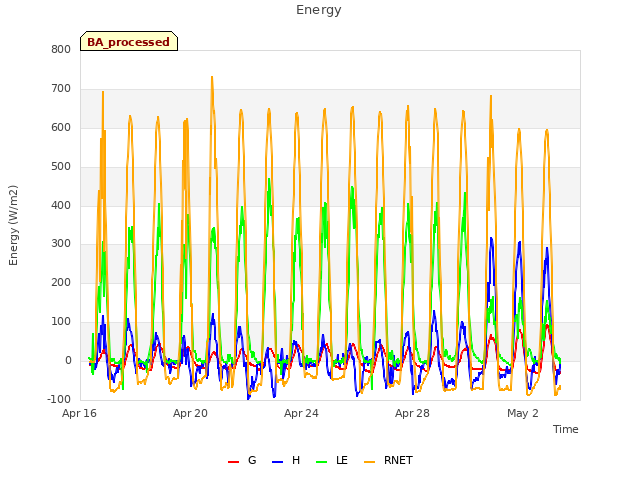

Explore the graph:Energy in a new window
