East End: 2019-05-23 13:35:00 (DOY 143)
Author: Daphne Szutu
Others: Alex, Jiangong

Summary: Regular data collection/cleaning, did not collect camera data, disconnected one thermocouple

2019-05-23
East End

Alex, Jiangong, and I arrived at 13:35. It was mostly cloudy (cumulus clouds) and breezy. It was warm in the sun but mild if the cloud happened to be passing over. The water level was 20 cm, and the wetland was 70% green.

Jiangong cleaned flux and rad sensors. I downloaded met, USB GHG, and miniDOT data. Alex swapped desiccant for the miniDOT and the water level pressure sensors. I didn’t collect the camera data because the SD card slot on the laptop was not working after a Windows 10 upgrade, but Alex restarted the camera because we’ve had time issues in the past when the camera ran for much more than 2 weeks. I disconnected TC23, which was been NAN/spiky.

LI-7500 readings:
CO2 432ppm
H2O 620ppm
T 26.1C
P 100.7kPa
SS 95--> 97
LI7700 readings:
CH4 2.0ppm
RSSI 22--> 81 after cleaning

We left at 13:55.

0 photos found

Graphs display:
11 sets found

14 EE_met graphs found

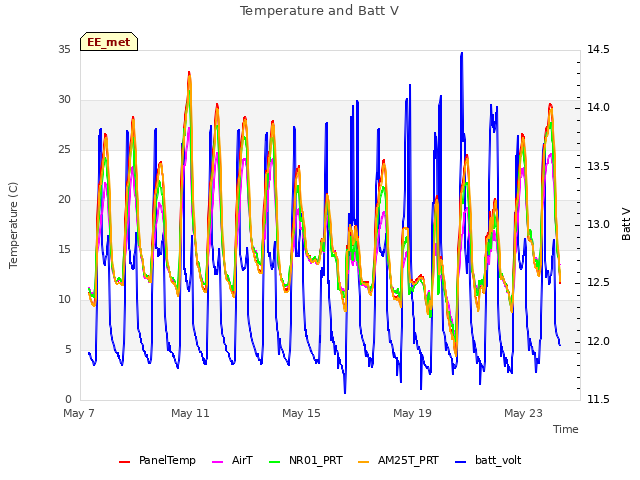

Explore the graph:Temperature and Batt V in a new window

Explore the graph:Soil Moisture and Well Pressure in a new window

Explore the graph:Solar Radiation in a new window

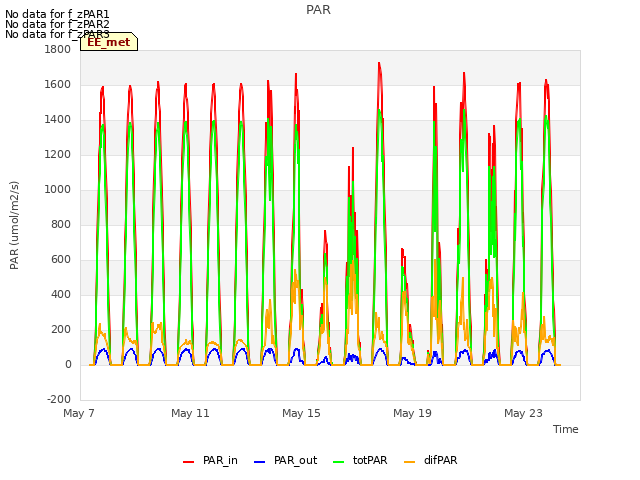

Explore the graph:PAR in a new window

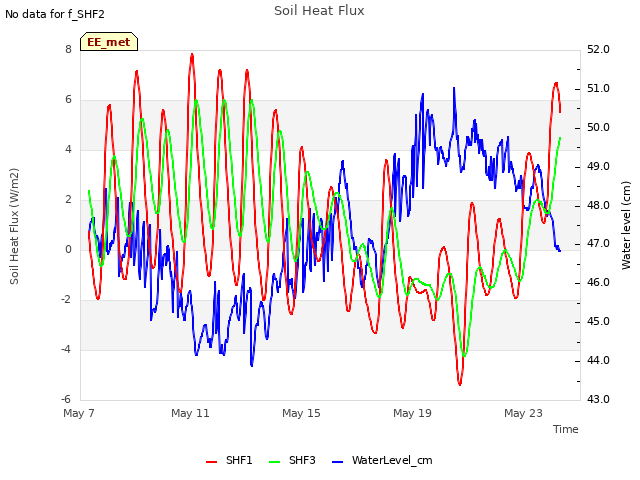

Explore the graph:Soil Heat Flux in a new window

Explore the graph:Water Level and Rain in a new window

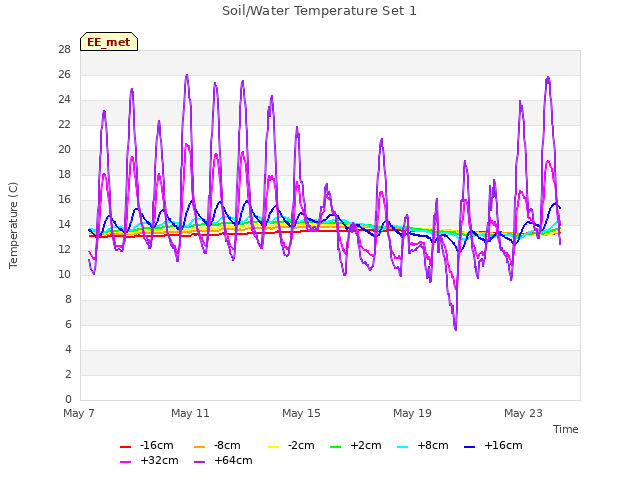

Explore the graph:Soil/Water Temperature Set 1 in a new window

Explore the graph:Soil/Water Temperature Set 2 in a new window

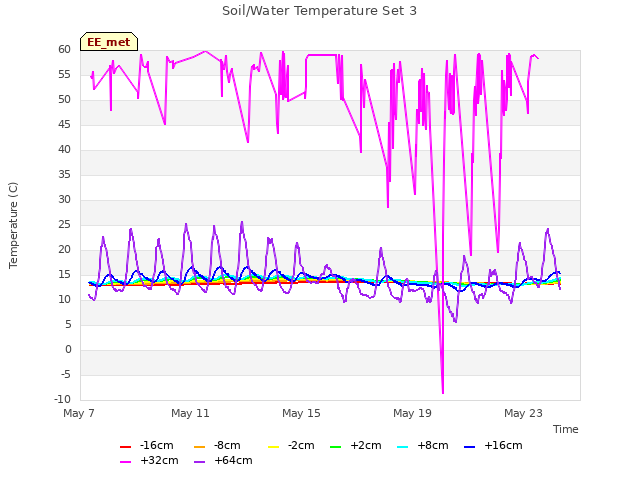

Explore the graph:Soil/Water Temperature Set 3 in a new window

Explore the graph:Dissolved Oxygen and Wind Speed in a new window

Explore the graph:SRS NDVI Channels in a new window

Explore the graph:Apogee NDVI in a new window

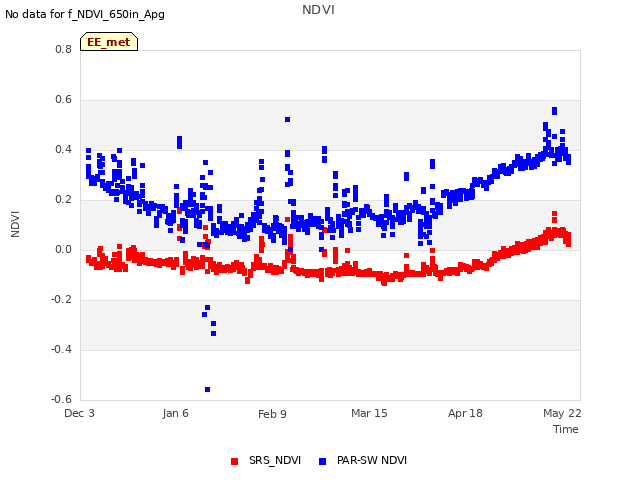

Explore the graph:NDVI in a new window

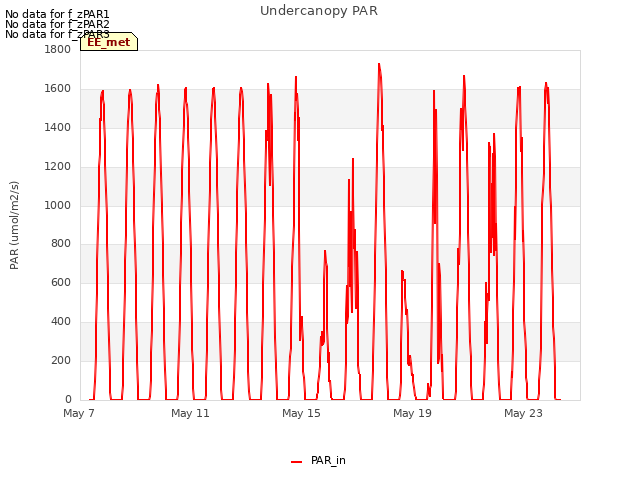

Explore the graph:Undercanopy PAR in a new window

Can't check EE_mixed
1 EE_mixed graphs found

Explore the graph:Air Pressure and RH in a new window

8 EE_flux graphs found

Explore the graph:Wind Speeds in a new window

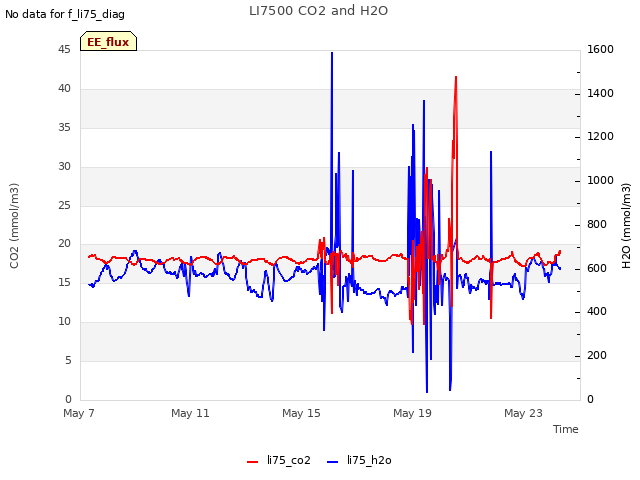

Explore the graph:LI7500 CO2 and H2O in a new window

Explore the graph:LI7700 CH4 and RSSI in a new window

Explore the graph:Flux Counts in a new window

Explore the graph:Instument Temperatures in a new window

Explore the graph:Temp Tower 3 (Mixed Veg) in a new window

Explore the graph:Temp Tower 3 (Mixed Veg) in a new window

Explore the graph:Temp Tower 3 (Mixed Veg) in a new window

Can't check MBWPEESWGT_mixed
1 EE_cam graphs found

Explore the graph:EE Autocam GCC in a new window

Can't check MBEEWPSWEPGT_cam
Can't check SIMBTWEE_met
Can't check EE_Temp
5 EE_Temp graphs found

Explore the graph:Sonic SOS in a new window

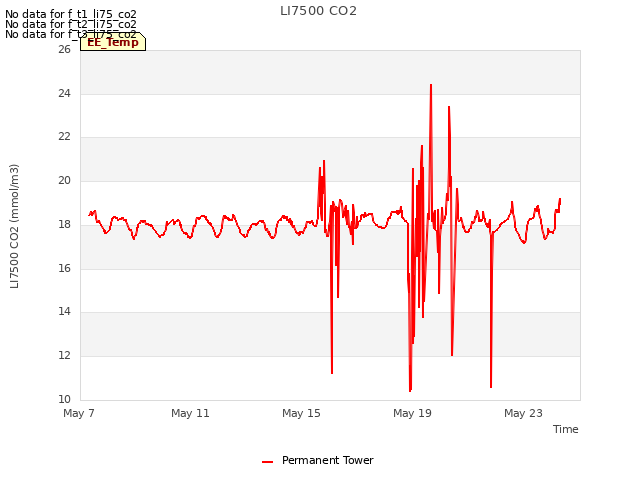

Explore the graph:LI7500 CO2 in a new window

Explore the graph:Water Level in a new window

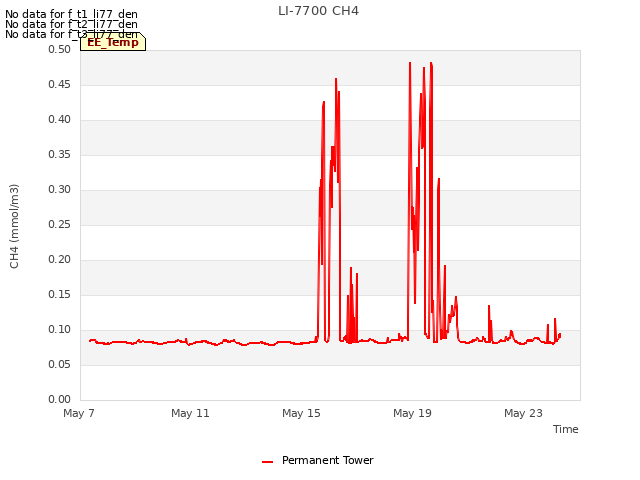

Explore the graph:LI-7700 CH4 in a new window

Explore the graph:Wind Speed in a new window

Can't check EE_minidot
1 EE_minidot graphs found

Explore the graph:EE miniDOT Dissolved Oxygen in a new window

Can't check MBSWEEWPBCBA
1 EE_processed graphs found

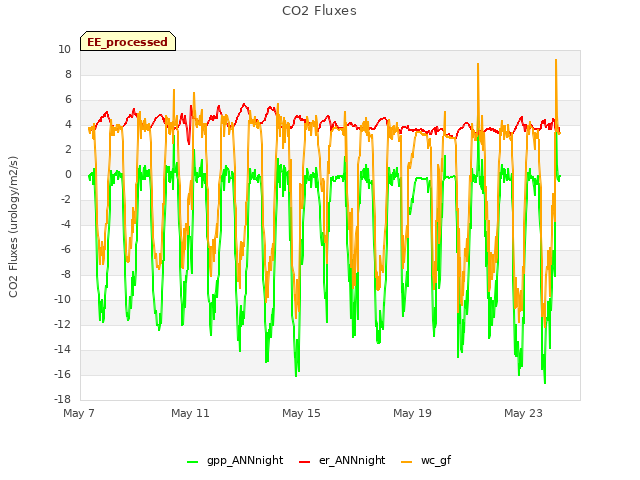

Explore the graph:CO2 Fluxes in a new window
