West Pond: 2019-04-25 12:15:00 (DOY 115)
Author: Joe Verfaillie
Others: Daphne, Loreli and Mikaela from Arable

Summary: Updated 7700 firmware and IP address, swapped 7500 for calibration, still no water

West Pond
2019-04-25

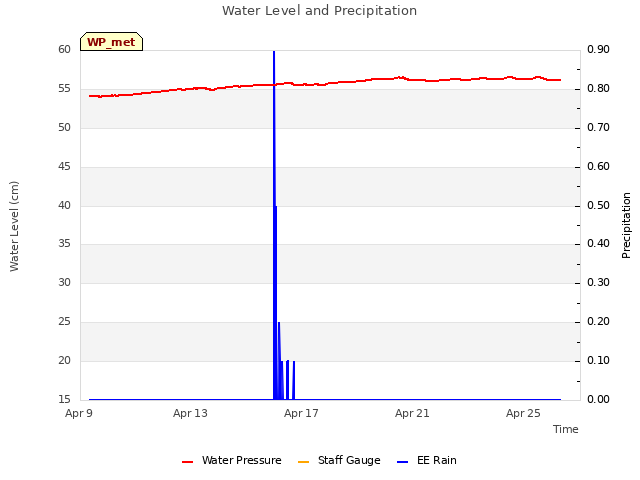

I arrived at about 12:15 with Daphne and Loreli and Mikaela from Arable. It was hot and sunny with only a little breeze. The wetland is still mostly brown but tules are poking through the thatch. Still no standing water in the wetland and the inlet was not running. Loreli and Mikaela were along to see some of our field sites and install new devices on Bouldin.

Daphne updated the 7700 sn TG1-0224 firmware from v1.0.21 to v1.0.27. She changed the LI-7700 IP address from 192.168.13.51 to 192.168.2.77.

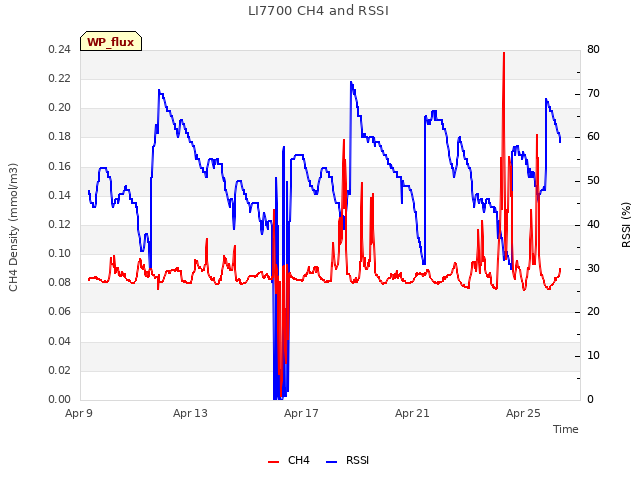

The 7700 read: 1.94ppm CH4, 49RSSI

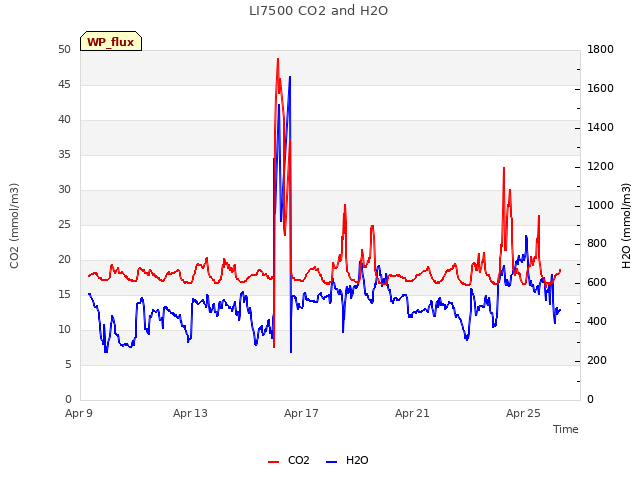

We swapped the 7500 sn 75H-2668 came off and sn 0418 went up. The new config file was uploaded, pressure coefficients updated and the box was reset.
2668 dirty: 412ppm CO2, 544mmol/m3 H2O, 29.9C, 101.3kPa, 99SS
2668 clean: 413ppm CO2, 557mmol/m3 H2O, 30.0C, 101.2kPa, 100SS
0418 clean: 418ppm CO2, 633mmol/m3 H2O, 30.5C, 101.2kPa, 93SS

We left a SS carabiner on the plastic chain for the miniDot for future height adjustments.

We were planning to install a picam to test as an upward looking gap fraction image but the glue holding the boards came loose, the mounting pole we had was too short and the software needs updating to calculate sunrise and sunset.

We left at 12:55

0 photos found

8 sets found

Can't check WP_DO
1 WP_DO graphs found
