Vaira: 2018-10-12 09:30:00 (DOY 285)
Author: Joe Verfaillie
Others: Siyan

Summary: IRGA not reporting CO2 or H2O, Standard fieldwork

Vaira
2018-10-12

I arrived at about 9:30 with Siyan. It is still dry and dusty but the litter was knocked down a little and it is not so crispy due to a little rain about a week ago. The trees look better because their dead leaves were knocked off by the rain.

I collected the data and Siyan did the regular fieldwork including clip plots.

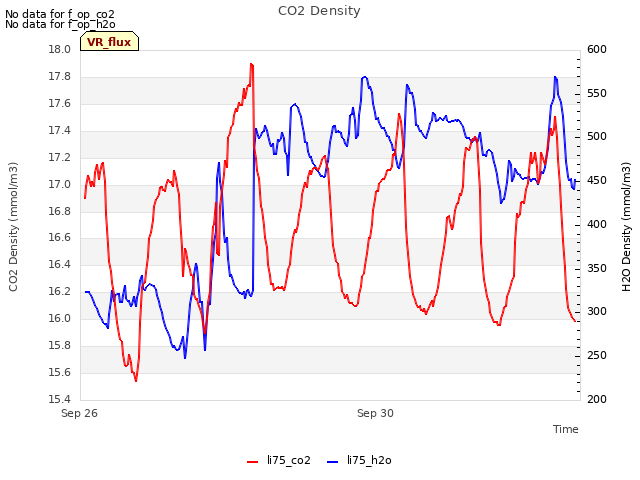

The 7500 read: **.** CO2, **.** H2O, 99.34kPa, 16.54C, 0.00SS
I tried reseating the cable to the IRGA head and it read reasonable numbers for a few minutes before falling back to the null values. I didnâ€™t see anything else wrong â€“ no errors reported. Maybe a dead source lamp? Iâ€™ll try to get out next week to swap it out.

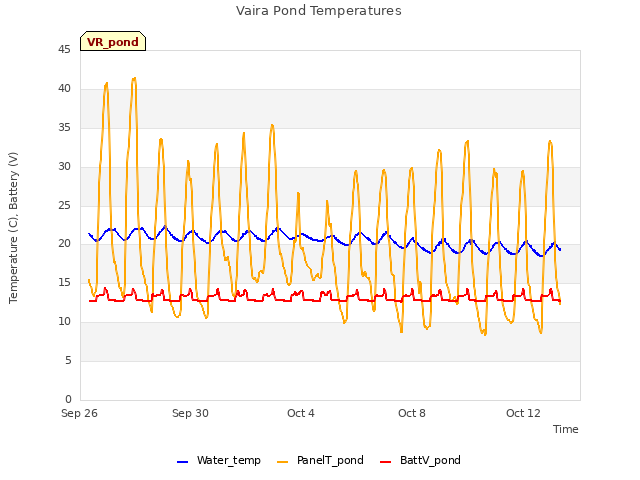

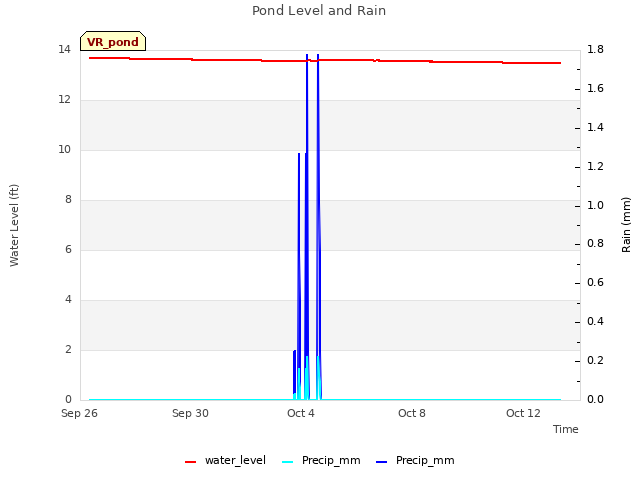

We went to the pond. The water level is below the last staff gauge. Iâ€™ll also try to put in one more lower gauge before it rains again. Cows have been working over the edge of the pond.

Field Data

No tank data

Well Depth

Date	Location	Depth (feet)
2018-10-12	TZ_floor	28
2018-10-12	TZ_tower	32.6
2018-10-12	TZ_road	36.7

mode = both
Moisture Point Probes TZ
Array ( [0] => Tower_1 [1] => Floor_South_1 [2] => Floor_West_1 [3] => Soil_Transect_4_1 [4] => Soil_Transect_3_1 [5] => Soil_Transect_2_1 [6] => Soil_Transect_1_1 [7] => SoilCO2_West_A_1 [8] => SoilCO2_West_B_1 [9] => SoilCO2_West_C_1 [10] => Tower_2 [11] => Floor_South_2 [12] => Floor_West_2 [13] => Soil_Transect_4_2 [14] => Soil_Transect_3_2 [15] => Soil_Transect_2_2 [16] => Soil_Transect_1_2 [17] => SoilCO2_West_A_2 [18] => SoilCO2_West_B_2 [19] => SoilCO2_West_C_2 [20] => Tower_3 [21] => Floor_South_3 [22] => Floor_West_3 [23] => Soil_Transect_4_3 [24] => Soil_Transect_3_3 [25] => Soil_Transect_2_3 [26] => Soil_Transect_1_3 [27] => SoilCO2_West_A_3 [28] => SoilCO2_West_B_3 [29] => SoilCO2_West_C_3 [30] => Tower_4 [31] => Floor_South_4 [32] => Floor_West_4 [33] => Soil_Transect_4_4 [34] => Soil_Transect_3_4 [35] => Soil_Transect_2_4 [36] => Soil_Transect_1_4 [37] => SoilCO2_West_A_4 [38] => SoilCO2_West_B_4 [39] => SoilCO2_West_C_4 )

0000

Date	DOY	Rep	Depth	Tower_1	Floor_South_1	Floor_West_1	Soil_Transect_4_1	Soil_Transect_3_1	Soil_Transect_2_1	Soil_Transect_1_1	SoilCO2_West_A_1	SoilCO2_West_B_1	SoilCO2_West_C_1	Tower_2	Floor_South_2	Floor_West_2	Soil_Transect_4_2	Soil_Transect_3_2	Soil_Transect_2_2	Soil_Transect_1_2	SoilCO2_West_A_2	SoilCO2_West_B_2	SoilCO2_West_C_2	Tower_3	Floor_South_3	Floor_West_3	Soil_Transect_4_3	Soil_Transect_3_3	Soil_Transect_2_3	Soil_Transect_1_3	SoilCO2_West_A_3	SoilCO2_West_B_3	SoilCO2_West_C_3	Tower_4	Floor_South_4	Floor_West_4	Soil_Transect_4_4	Soil_Transect_3_4	Soil_Transect_2_4	Soil_Transect_1_4	SoilCO2_West_A_4	SoilCO2_West_B_4	SoilCO2_West_C_4	Spacial Count
2018-10-12	285	0	nan	6.5	1	8.3	5.9	6.2	6.2	0.3	9.4	8.8	0.3	10.3	4.2	8.1	8.1	12.7	10.6	4.5	7.5	0.9	10.9	13.1	5.3	17.6	9.5	11.7	15.6	13.4	15.9	14.3	11.7	13.2	8.7	23.4	10.7	19.9	24.5	11.9	15.3	15.9	21.9
2018-10-12	285	1	nan	6.2	0.9	8.6	5.9	6.5	5.9	0.1	9.1	8.8	1.2	10.9	4.8	7.5	7.5	13.3	10.9	4.2	7.8	1.5	11.2	12.9	5.9	12	9.8	11.7	16.2	13.1	16.8	14.5	11.7		8.7	21.6	11	18.5	24.5	11.6	14.8	15.6	21.6
2018-10-12	285	Avg	0-15cm																																									0
2018-10-12	285	Avg	15-30cm																																									0
2018-10-12	285	Avg	30-45cm																																									0
2018-10-12	285	Avg	45-60cm																																									0

mode = both
Moisture Point Probes VR
Array ( [0] => Flux_Tower_1 [1] => Gate_1 [2] => Biomass_Cage_1 [3] => Solar_Panels_2 [4] => Flux_Tower_2 [5] => Gate_2 [6] => Biomass_Cage_2 [7] => Solar_Panels_3 [8] => Flux_Tower_3 [9] => Gate_3 [10] => Biomass_Cage_3 [11] => Solar_Panels_4 [12] => Flux_Tower_4 [13] => Gate_4 [14] => Biomass_Cage_4 [15] => Solar_Panels_1 )

0000

Date	DOY	Rep	Depth	Flux_Tower_1	Gate_1	Biomass_Cage_1	Solar_Panels_2	Flux_Tower_2	Gate_2	Biomass_Cage_2	Solar_Panels_3	Flux_Tower_3	Gate_3	Biomass_Cage_3	Solar_Panels_4	Flux_Tower_4	Gate_4	Biomass_Cage_4	Solar_Panels_1	Spacial Count
2018-10-12	285	0	nan	3.9	11.5	3.6	7.2	7.5	4.5	5.4	14.5	4.5	6.7	14.5	26.8	14.8	20.8	18.2
2018-10-12	285	1	nan	2.7	10.9	3.6	7.2	7.2	4.5	5.1	13.4	5	7.3	15.9	26.5	14.5	20.5	18.5	2.1
2018-10-12	285	Avg	0-15cm																	0
2018-10-12	285	Avg	15-30cm																	0
2018-10-12	285	Avg	30-45cm																	0
2018-10-12	285	Avg	45-60cm																	0
