Vaira: 2018-09-27 09:25:00 (DOY 270)
Author: Joe Verfaillie
Others: Daphne

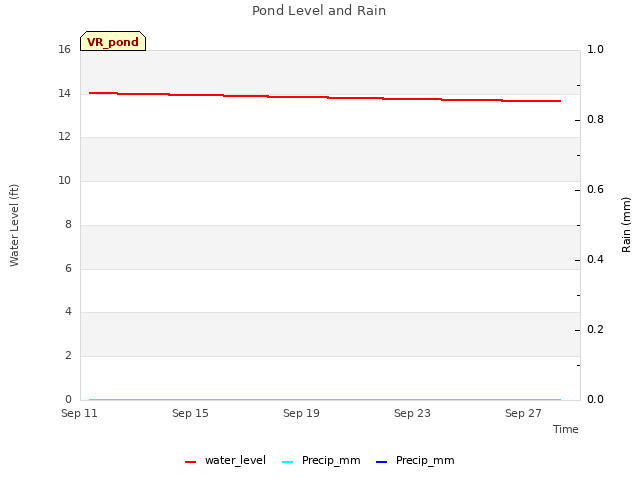

Summary: Regular fieldwork, swapped 7500, did not go to the pond.

Vaira
2018-09-27

I arrived at 9:25 with Daphne. It was sunny and warm with wispy clouds and little to no wind. Everything is still very dry and dusty. Even the trees look dusty.

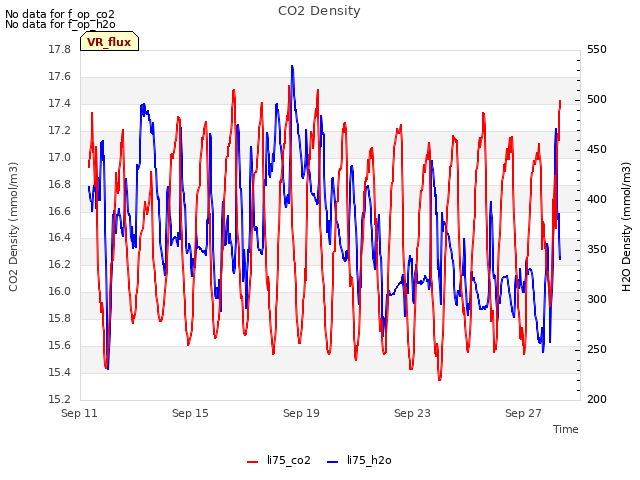

I collected the data and swapped the 7500 for calibration â€“ sn 1594 came off and sn 0065 went on.
1594 read: 409.2ppm CO2, 275.0mmol/m3 H2O, 99.45kPa, 29.5C, 97.3SS
0065 read: 418.8ppm CO2, 241.1mmol/m4 H2O, 99.42kPa, 29.7C, 100.6SS
Before restarting the box after the swap, I changed the network name to VR-1870 â€“ this will be reflected in the file names.

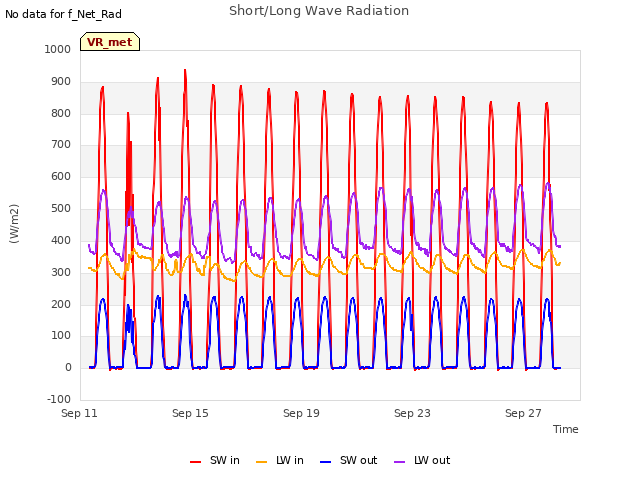

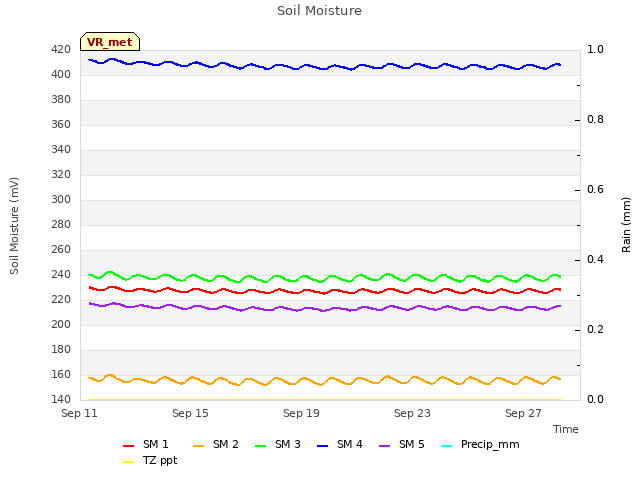

Daphne did the Moisture Point measurements. And we cleaned the radiometers.

We left at 9:55

Field Data

No tank data

Well Depth

Date	Location	Depth (feet)
2018-09-27	TZ_floor	27.3
2018-09-27	TZ_tower	31.85
2018-09-27	TZ_road	36.15

mode = both
Moisture Point Probes TZ
Array ( [0] => Tower_1 [1] => Floor_South_1 [2] => Floor_West_1 [3] => Soil_Transect_4_1 [4] => Soil_Transect_3_1 [5] => Soil_Transect_2_1 [6] => Soil_Transect_1_1 [7] => SoilCO2_West_B_1 [8] => SoilCO2_West_C_1 [9] => Tower_2 [10] => Floor_South_2 [11] => Floor_West_2 [12] => Soil_Transect_4_2 [13] => Soil_Transect_3_2 [14] => Soil_Transect_2_2 [15] => Soil_Transect_1_2 [16] => SoilCO2_West_A_2 [17] => SoilCO2_West_B_2 [18] => SoilCO2_West_C_2 [19] => Tower_3 [20] => Floor_South_3 [21] => Floor_West_3 [22] => Soil_Transect_4_3 [23] => Soil_Transect_3_3 [24] => Soil_Transect_2_3 [25] => Soil_Transect_1_3 [26] => SoilCO2_West_A_3 [27] => SoilCO2_West_B_3 [28] => SoilCO2_West_C_3 [29] => Tower_4 [30] => Floor_South_4 [31] => Soil_Transect_4_4 [32] => Soil_Transect_3_4 [33] => Soil_Transect_2_4 [34] => Soil_Transect_1_4 [35] => SoilCO2_West_A_4 [36] => SoilCO2_West_B_4 [37] => SoilCO2_West_C_4 [38] => SoilCO2_West_A_1 [39] => Floor_West_4 )

0000

Date	DOY	Rep	Depth	Tower_1	Floor_South_1	Floor_West_1	Soil_Transect_4_1	Soil_Transect_3_1	Soil_Transect_2_1	Soil_Transect_1_1	SoilCO2_West_B_1	SoilCO2_West_C_1	Tower_2	Floor_South_2	Floor_West_2	Soil_Transect_4_2	Soil_Transect_3_2	Soil_Transect_2_2	Soil_Transect_1_2	SoilCO2_West_A_2	SoilCO2_West_B_2	SoilCO2_West_C_2	Tower_3	Floor_South_3	Floor_West_3	Soil_Transect_4_3	Soil_Transect_3_3	Soil_Transect_2_3	Soil_Transect_1_3	SoilCO2_West_A_3	SoilCO2_West_B_3	SoilCO2_West_C_3	Tower_4	Floor_South_4	Soil_Transect_4_4	Soil_Transect_3_4	Soil_Transect_2_4	Soil_Transect_1_4	SoilCO2_West_A_4	SoilCO2_West_B_4	SoilCO2_West_C_4	SoilCO2_West_A_1	Floor_West_4	Spacial Count
2018-09-27	270	0	nan	3.9	1.3	8.3	1.6	1.2	2.4	0.7	4.2	2.2	11.5	10.9	6.6	8.4	13.6	11.8	3.9	7.8	0.6	11.2	13.4	9.8	11.2	10.1	11.5	15.6	13.7	16.5	14.3	12.3	16.5	3.6	10.7	17	25.9	11.6	15.6	16.5	22.5
2018-09-27	270	1	nan	3	1	10	1.9	0.3	2.7	1	4.7	2.5	11.5	11.5	6.3	8.4	13.9	11.5	3.5	7.8	1.2	11.8	14.3	10.3	12.3	9.8	13.1	16.2	13.1	16.5	14.8	12	17	3.9	11	16.8	25.6	11.3	16.2	16.8	23.1	4.5	19.6
2018-09-27	270	2	nan			2.4		0.1			4.7				7.2		13.9			8.4	1.2				12.3		12.6			16.8	14.3					17			15.9	17		2.5	17.9
2018-09-27	270	3	nan			8		0.3							6.9		13.6								12.9		12.6									16.8							16.8
2018-09-27	270	Avg	0-15cm																																									0
2018-09-27	270	Avg	15-30cm																																									0
2018-09-27	270	Avg	30-45cm																																									0
2018-09-27	270	Avg	45-60cm																																									0

mode = both
Moisture Point Probes VR
Array ( [0] => Solar_Panels_1 [1] => Flux_Tower_1 [2] => Gate_1 [3] => Biomass_Cage_1 [4] => Solar_Panels_2 [5] => Flux_Tower_2 [6] => Gate_2 [7] => Biomass_Cage_2 [8] => Solar_Panels_3 [9] => Flux_Tower_3 [10] => Gate_3 [11] => Biomass_Cage_3 [12] => Solar_Panels_4 [13] => Flux_Tower_4 [14] => Gate_4 [15] => Biomass_Cage_4 )

0000

Date	DOY	Rep	Depth	Solar_Panels_1	Flux_Tower_1	Gate_1	Biomass_Cage_1	Solar_Panels_2	Flux_Tower_2	Gate_2	Biomass_Cage_2	Solar_Panels_3	Flux_Tower_3	Gate_3	Biomass_Cage_3	Solar_Panels_4	Flux_Tower_4	Gate_4	Biomass_Cage_4	Spacial Count
2018-09-27	270	0	nan	0.1	1.5	7.1	0.3	6.9	7.8	4.2	5.1	5.6	14.3	7.8	16.2	14.8	27.1	21.3	19.3
2018-09-27	270	1	nan	0.7	2.1	6.5	0.9	6.3	8.1	3.9	5.1	7	13.7	8.4	16.5	14.8	27.6	21.3	19.3
2018-09-27	270	2	nan	0.7			0.3	6			5.7	5.9			16.8	14.2			19.3
2018-09-27	270	Avg	0-15cm																	0
2018-09-27	270	Avg	15-30cm																	0
2018-09-27	270	Avg	30-45cm																	0
2018-09-27	270	Avg	45-60cm																	0
