Field Notes
<--2018-09-27 10:10:00 | 2018-10-17 11:30:00-->Other sites visited today: Vaira
Tonzi: 2018-10-12 10:30:00 (DOY 285)
Author: Joe Verfaillie
Others: Siyan
Summary: Standard fieldwork - all seems well
Tonzi 2018-10-12 I arrived at about 10:30 with Siyan. It was a mild fall day with good visibility – Mt Diablo was just visible from the tower top. There was a little rain last week, but everything is pretty brown here. I collected the data and Siyan did the regular fieldwork. The Tower read: 412.1ppm CO2, 518.8mmol/m3 H2O, 98.8kPa, 19.5C, 98.8SS The Floor read: 408.7ppm CO2, 560.9mmol/m3 H2O, 99.0kPa, 20.7C, 99.3SS The FLIR camera was running but the computer was hung up with some strange error. There were only about two days of images. I restarted the computer and it seemed to be running properly. I used the Nikon range finder to get a few readings on points in the FOV but need a photo to annotate. Everything else seemed okay. The battery on the IRT seems to be dying. |
Field Data
No tank data

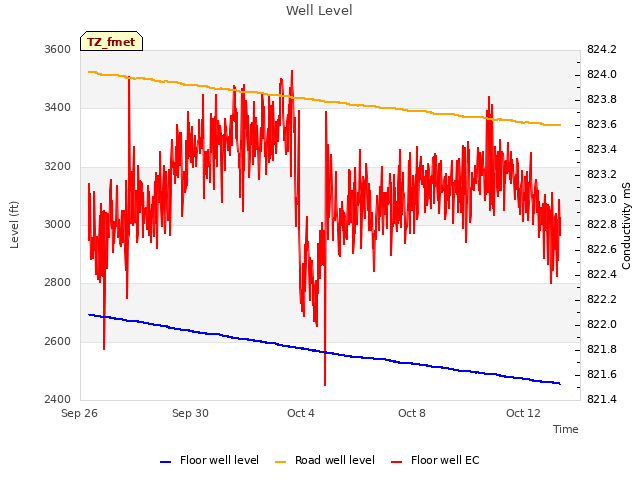

Well Depth
Date | Location | Depth (feet) |
---|---|---|
2018-10-12 | TZ_floor | 28 |
2018-10-12 | TZ_tower | 32.6 |
2018-10-12 | TZ_road | 36.7 |
mode = both
Moisture Point Probes TZ
Array
(
[0] => Tower
[1] => Floor_South
[2] => Floor_West
[3] => Soil_Transect_4
[4] => Soil_Transect_3
[5] => Soil_Transect_2
[6] => Soil_Transect_1
[7] => SoilCO2_West_A
[8] => SoilCO2_West_B
[9] => SoilCO2_West_C
)
Date | DOY | Rep | Depth | Tower |
Floor_South |
Floor_West |
Soil_Transect_4 |
Soil_Transect_3 |
Soil_Transect_2 |
Soil_Transect_1 |
SoilCO2_West_A |
SoilCO2_West_B |
SoilCO2_West_C |
Avg | Spacial Count |
Measurement Count |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
2018-10-12 | 285 | 0 | 0-15cm | 6.5 | 1 | 8.3 | 5.9 | 6.2 | 6.2 | 0.3 | 9.4 | 8.8 | 0.3 | |||
2018-10-12 | 285 | 0 | 15-30cm | 10.3 | 4.2 | 8.1 | 8.1 | 12.7 | 10.6 | 4.5 | 7.5 | 0.9 | 10.9 | |||
2018-10-12 | 285 | 0 | 30-45cm | 13.1 | 5.3 | 17.6 | 9.5 | 11.7 | 15.6 | 13.4 | 15.9 | 14.3 | 11.7 | |||
2018-10-12 | 285 | 0 | 45-60cm | 13.2 | 8.7 | 23.4 | 10.7 | 19.9 | 24.5 | 11.9 | 15.3 | 15.9 | 21.9 | |||
2018-10-12 | 285 | 1 | 0-15cm | 6.2 | 0.9 | 8.6 | 5.9 | 6.5 | 5.9 | 0.1 | 9.1 | 8.8 | 1.2 | |||
2018-10-12 | 285 | 1 | 15-30cm | 10.9 | 4.8 | 7.5 | 7.5 | 13.3 | 10.9 | 4.2 | 7.8 | 1.5 | 11.2 | |||
2018-10-12 | 285 | 1 | 30-45cm | 12.9 | 5.9 | 12 | 9.8 | 11.7 | 16.2 | 13.1 | 16.8 | 14.5 | 11.7 | |||
2018-10-12 | 285 | 1 | 45-60cm | 8.7 | 21.6 | 11 | 18.5 | 24.5 | 11.6 | 14.8 | 15.6 | 21.6 | ||||
2018-10-12 | 285 | Avg | 0-15cm | 6.35 | 0.95 | 8.45 | 5.9 | 6.35 | 6.05 | 0.2 | 9.25 | 8.8 | 0.75 | 5.31 | 10 | 20 |
2018-10-12 | 285 | Avg | 15-30cm | 10.6 | 4.5 | 7.8 | 7.8 | 13 | 10.75 | 4.35 | 7.65 | 1.2 | 11.05 | 7.87 | 10 | 20 |
2018-10-12 | 285 | Avg | 30-45cm | 13 | 5.6 | 14.8 | 9.65 | 11.7 | 15.9 | 13.25 | 16.35 | 14.4 | 11.7 | 12.64 | 10 | 20 |
2018-10-12 | 285 | Avg | 45-60cm | 13.2 | 8.7 | 22.5 | 10.85 | 19.2 | 24.5 | 11.75 | 15.05 | 15.75 | 21.75 | 16.33 | 10 | 19 |
mode = both
Moisture Point Probes VR
Array
(
[0] => Flux_Tower
[1] => Gate
[2] => Biomass_Cage
[3] => Solar_Panels
)
Date | DOY | Rep | Depth | Flux_Tower |
Gate |
Biomass_Cage |
Solar_Panels |
Avg | Spacial Count |
Measurement Count |
---|---|---|---|---|---|---|---|---|---|---|
2018-10-12 | 285 | 0 | 0-15cm | 3.9 | 11.5 | 3.6 | ||||
2018-10-12 | 285 | 0 | 15-30cm | 7.5 | 4.5 | 5.4 | 7.2 | |||
2018-10-12 | 285 | 0 | 30-45cm | 4.5 | 6.7 | 14.5 | 14.5 | |||
2018-10-12 | 285 | 0 | 45-60cm | 14.8 | 20.8 | 18.2 | 26.8 | |||
2018-10-12 | 285 | 1 | 0-15cm | 2.7 | 10.9 | 3.6 | 2.1 | |||
2018-10-12 | 285 | 1 | 15-30cm | 7.2 | 4.5 | 5.1 | 7.2 | |||
2018-10-12 | 285 | 1 | 30-45cm | 5 | 7.3 | 15.9 | 13.4 | |||
2018-10-12 | 285 | 1 | 45-60cm | 14.5 | 20.5 | 18.5 | 26.5 | |||
2018-10-12 | 285 | Avg | 0-15cm | 3.3 | 11.2 | 3.6 | 2.1 | 5.05 | 4 | 7 |
2018-10-12 | 285 | Avg | 15-30cm | 7.35 | 4.5 | 5.25 | 7.2 | 6.08 | 4 | 8 |
2018-10-12 | 285 | Avg | 30-45cm | 4.75 | 7 | 15.2 | 13.95 | 10.23 | 4 | 8 |
2018-10-12 | 285 | Avg | 45-60cm | 14.65 | 20.65 | 18.35 | 26.65 | 20.08 | 4 | 8 |
No TZ grass heigth found
No VR grass heigth found
Tree DBH
Date | Tag# | Reading (mm) |
---|---|---|
2018-10-12 | 1 | 7.8 |
2018-10-12 | 12 | 10.9 |
2018-10-12 | 2 | 5.2 |
2018-10-12 | 245 | 8.2 |
2018-10-12 | 3 | 7.2 |
2018-10-12 | 4 | 9.2 |
2018-10-12 | 5 | 7.6 |
2018-10-12 | 7 | 5.1 |
2018-10-12 | 72 | 15.9 |
2018-10-12 | 79 | 12.6 |
2018-10-12 | 8 | 5.9 |
No water potential data found
No TZ Grass Biomass data found
No TZ OakLeaves Biomass data found
No TZ PineNeedles Biomass data found
0 photos found
16 sets found
No data found for TZ_Fenergy.

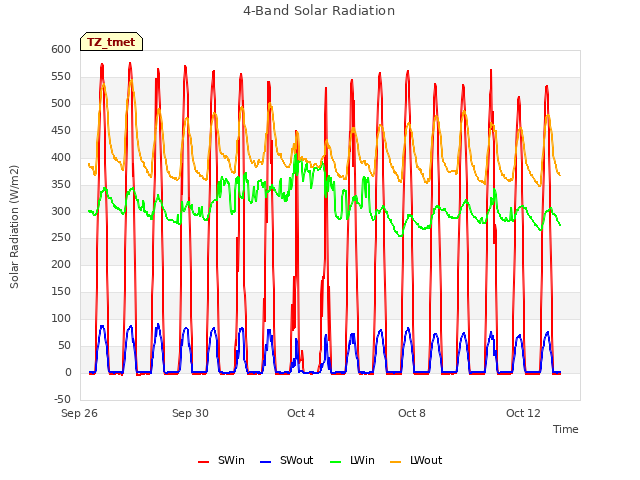

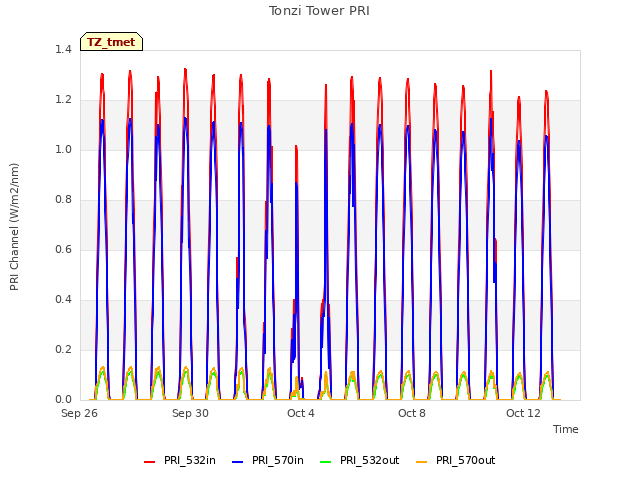

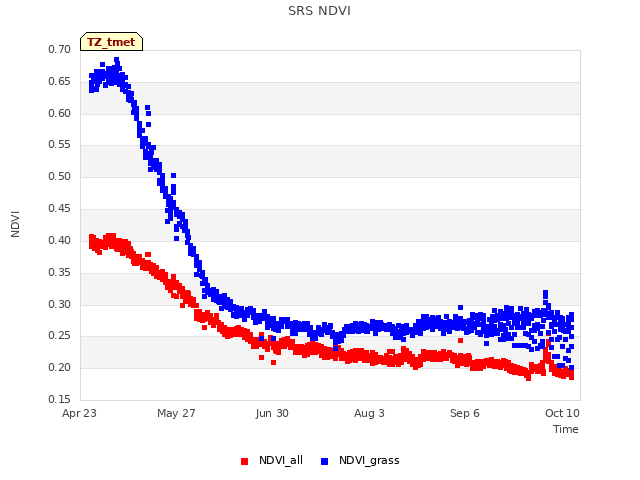

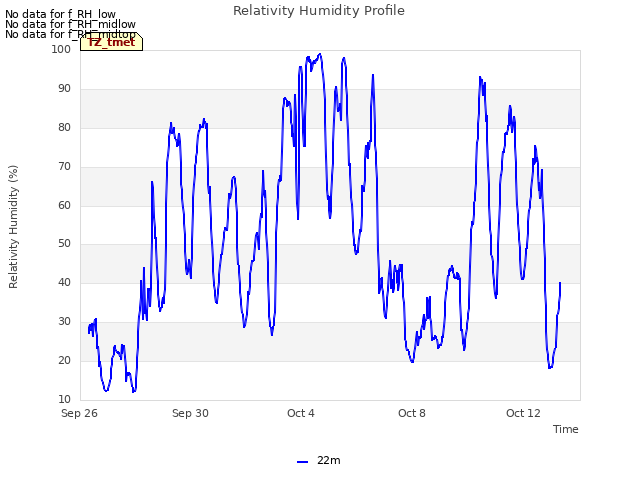

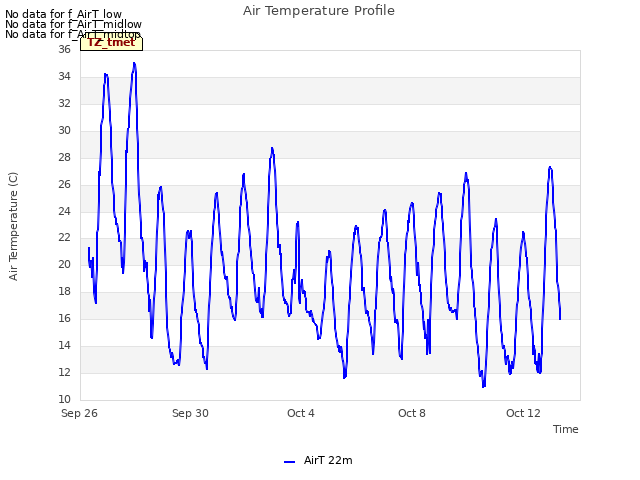

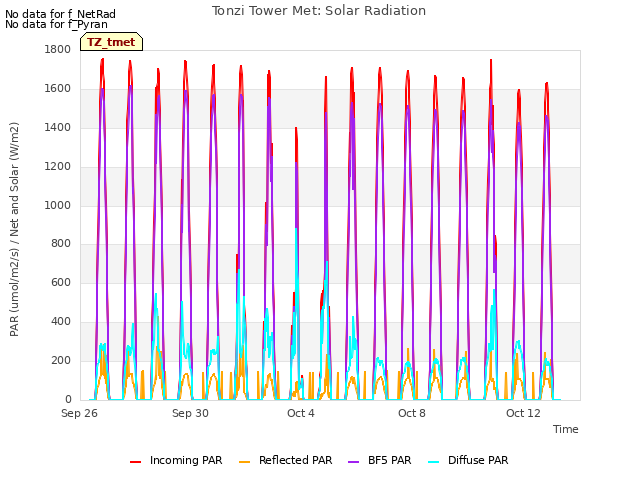

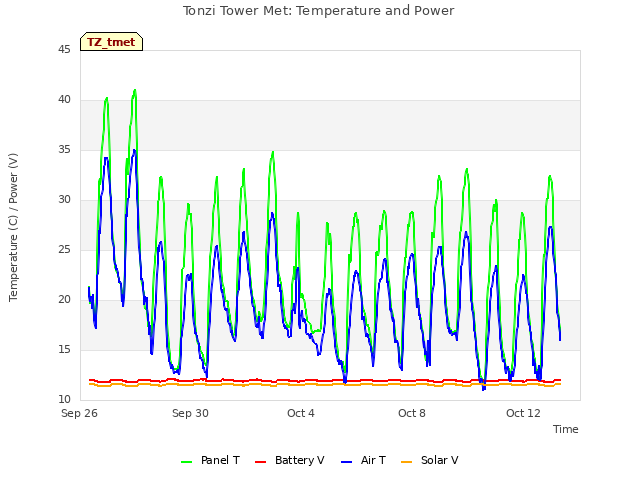

11 TZ_tmet graphs found

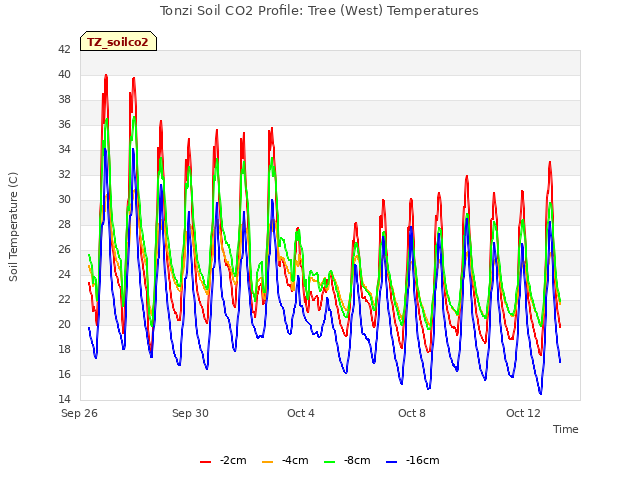

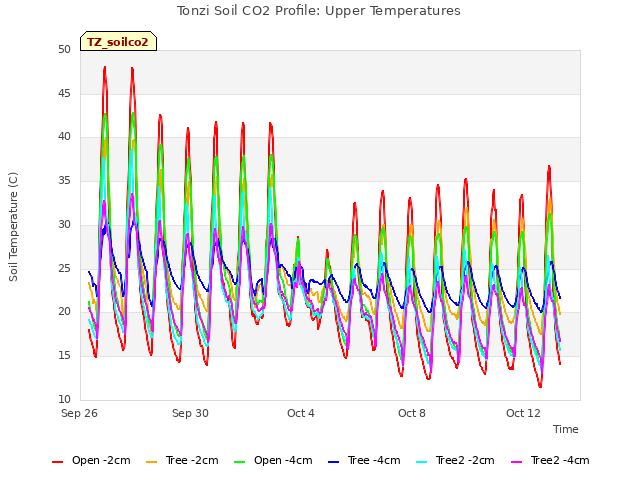

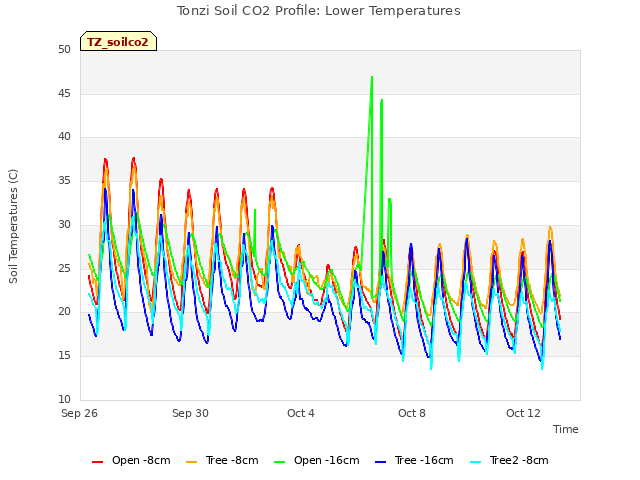

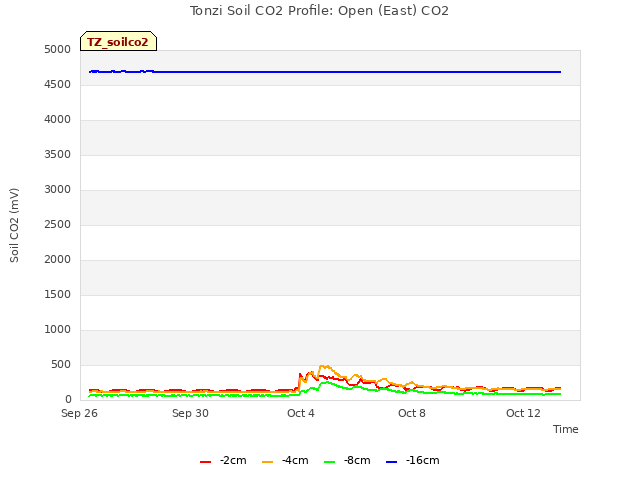

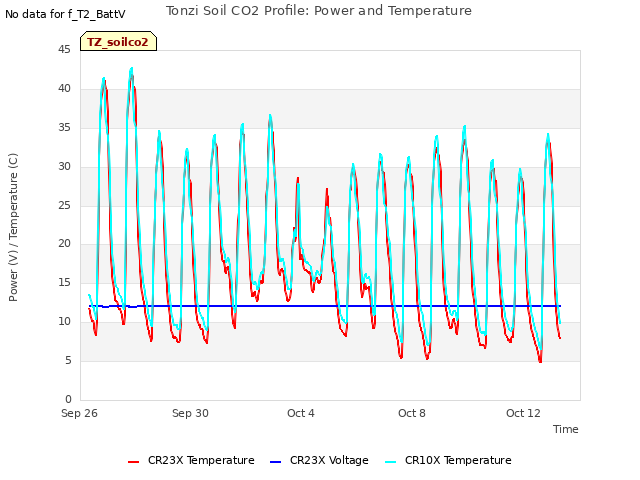

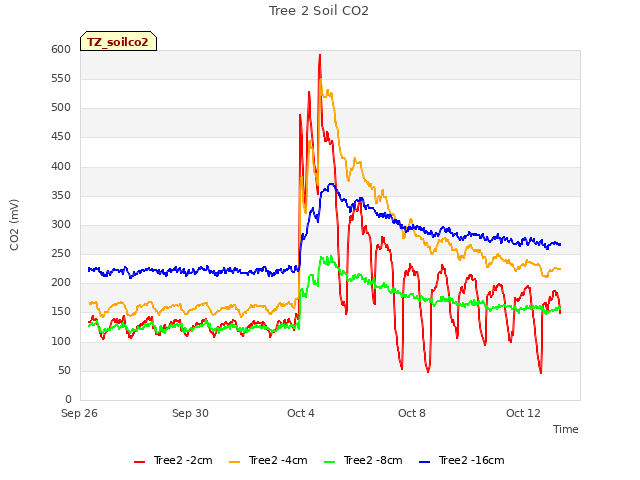

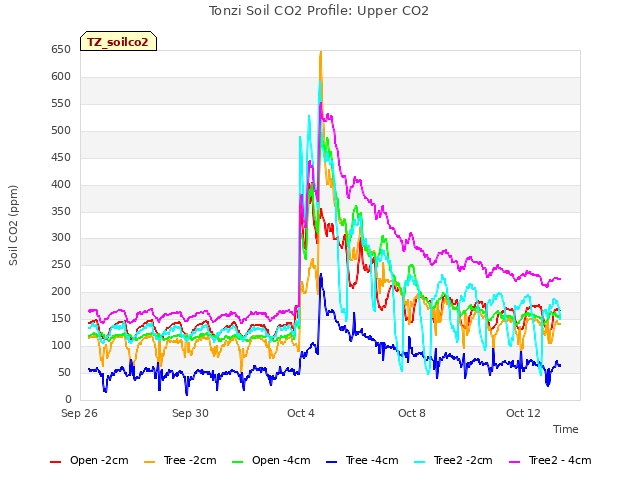

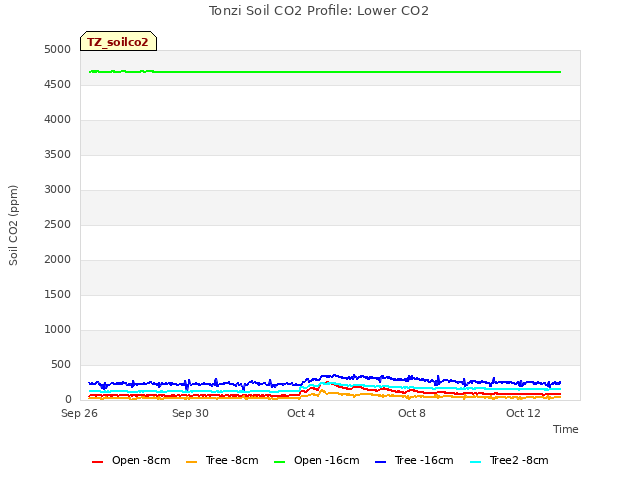

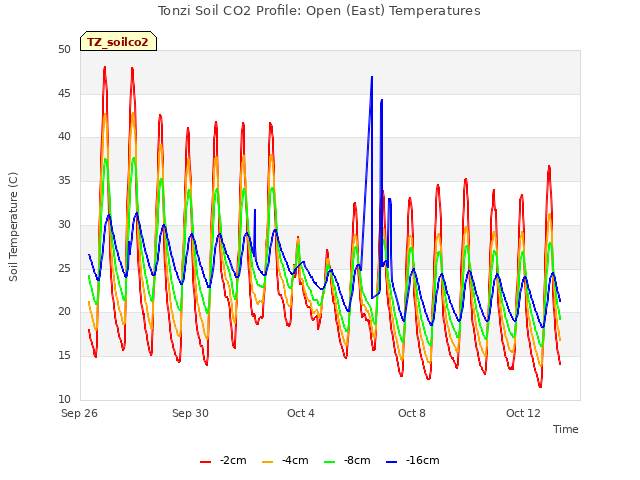

11 TZ_soilco2 graphs found
Can't check TZ_mixed

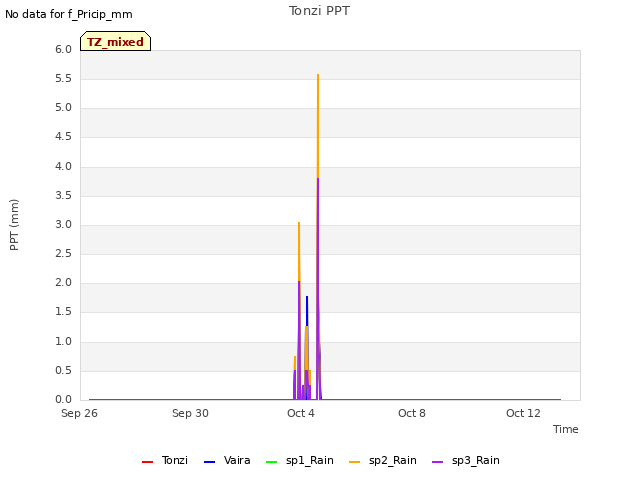

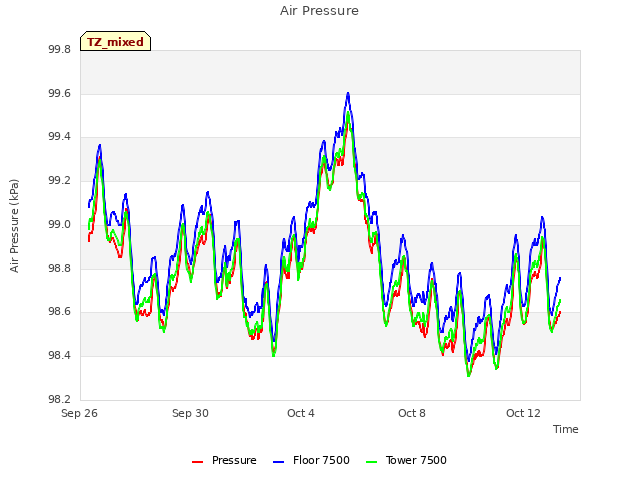

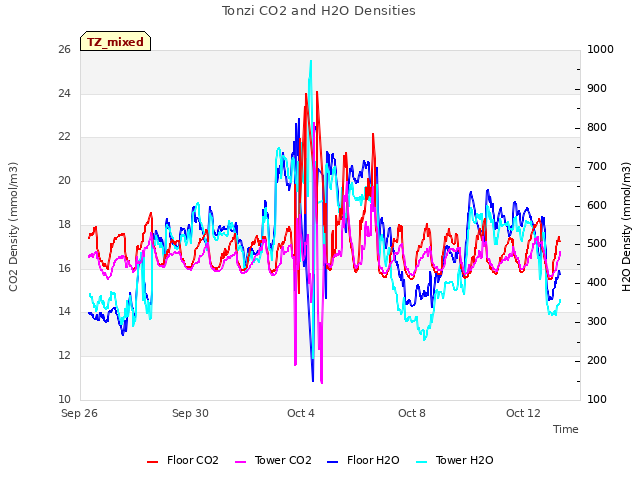

3 TZ_mixed graphs found

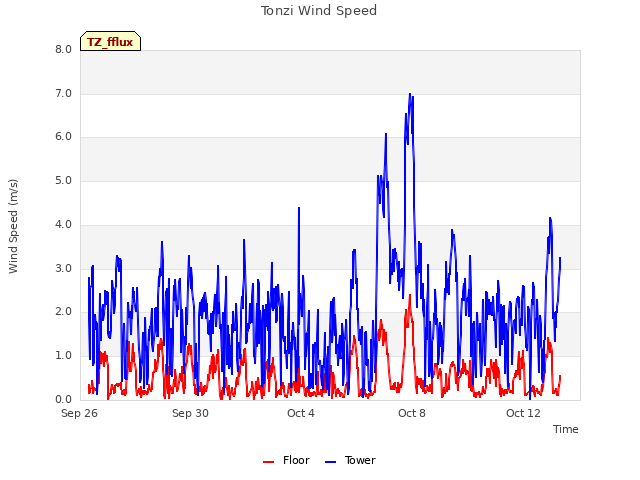

1 TZ_fflux graphs found

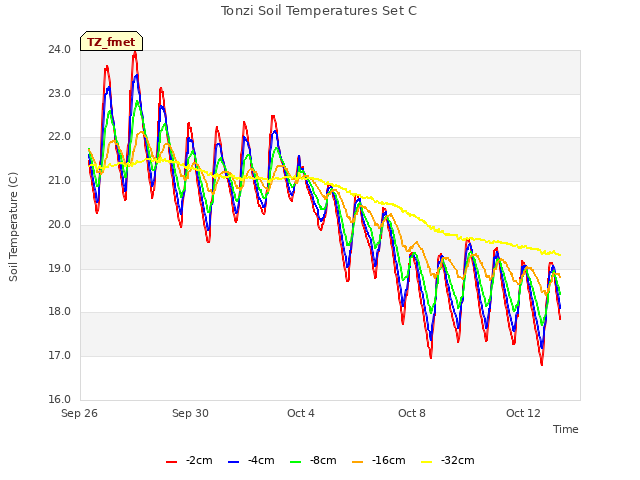

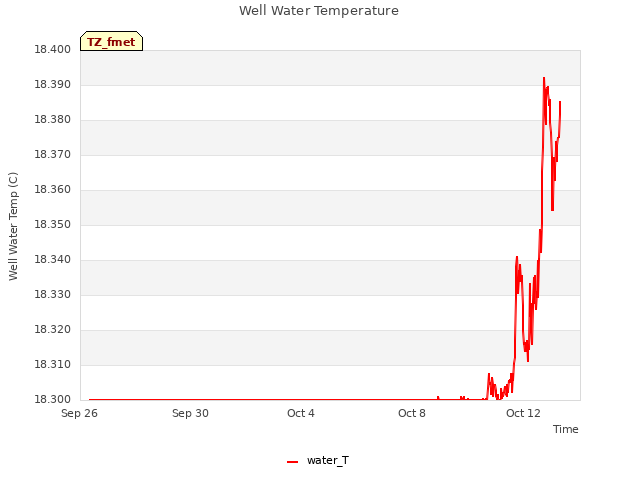

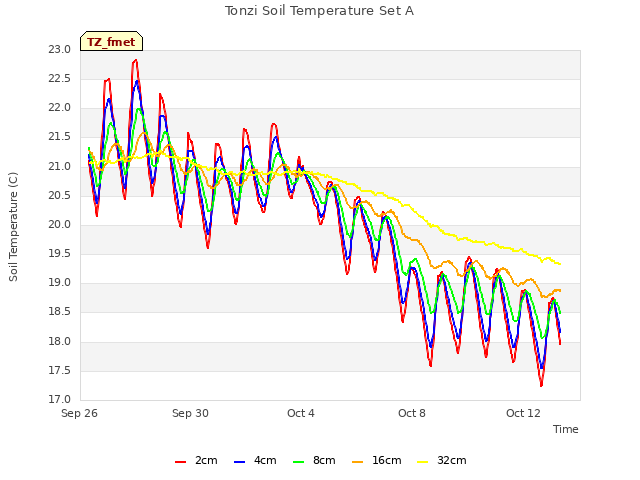

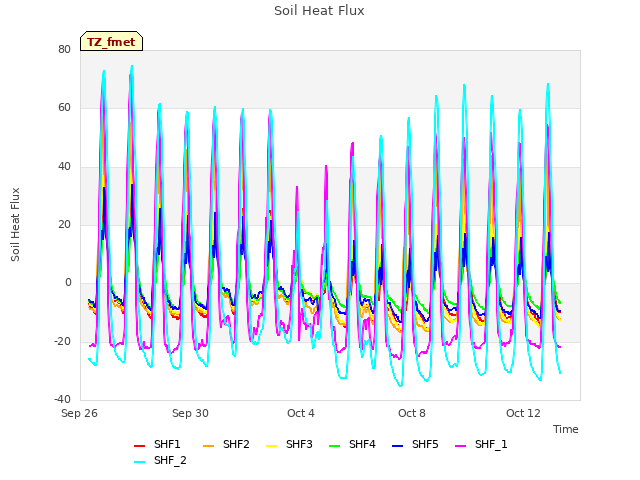

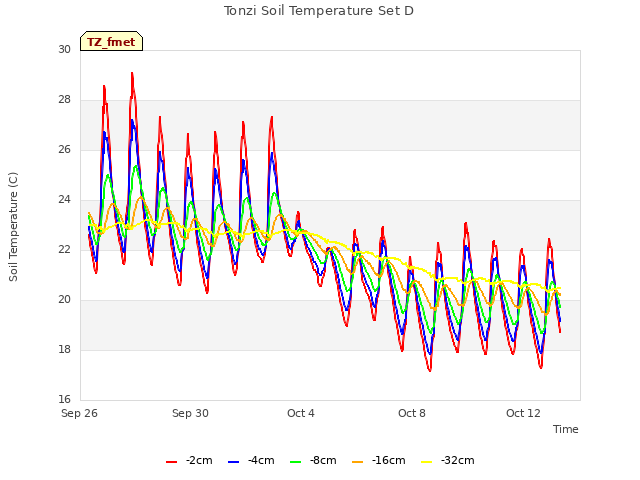

8 TZ_fmet graphs found
No data found for TZ_tram.

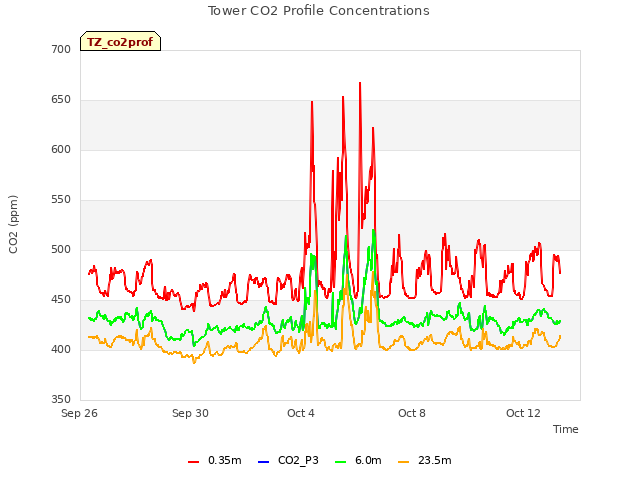

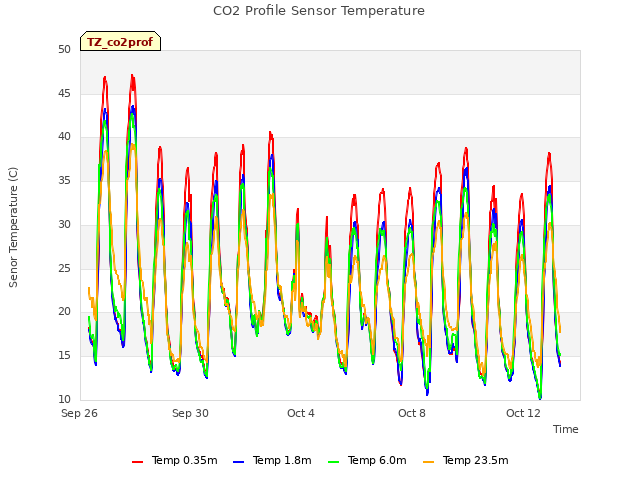

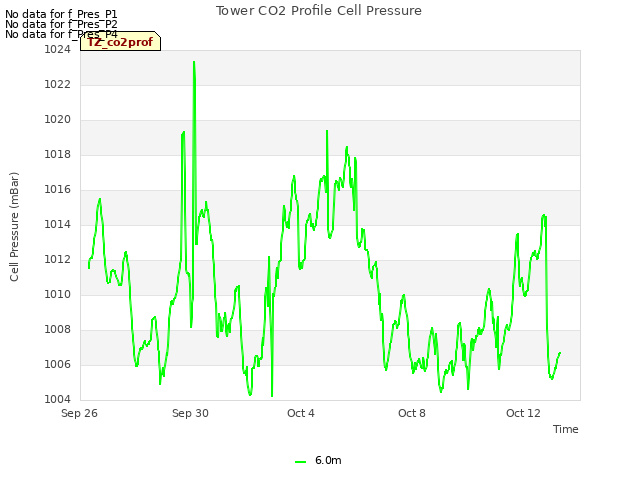

3 TZ_co2prof graphs found

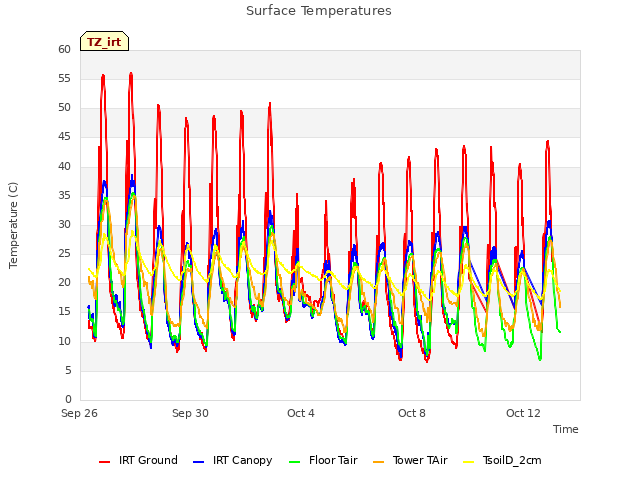

1 TZ_irt graphs found
No data found for TZ_windprof.
1 TZ_tflux graphs found

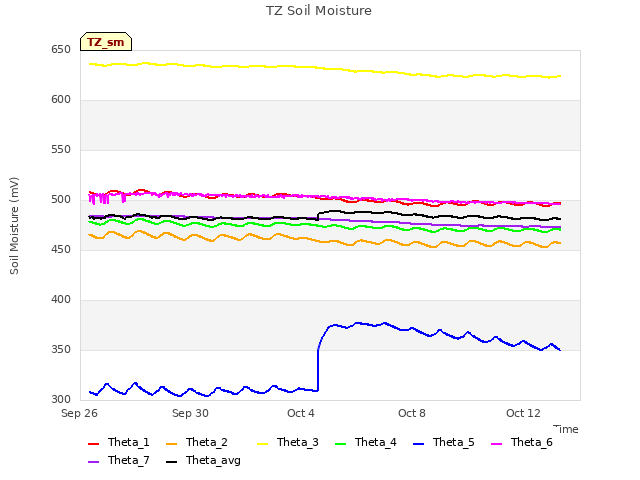

2 TZ_sm graphs found
Can't check TZ_met

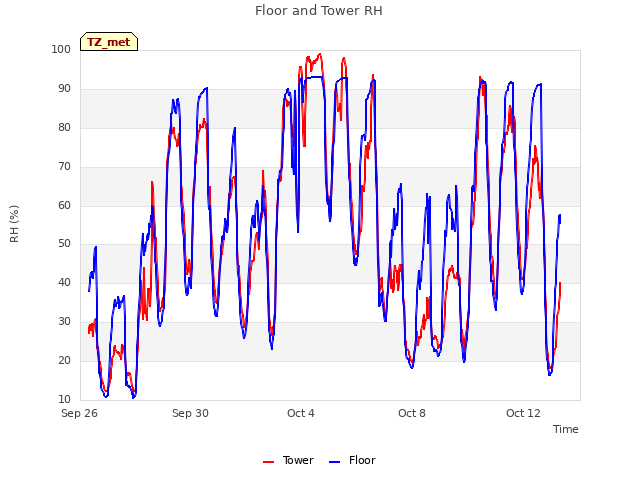

1 TZ_met graphs found
Can't check TZVR_mixed

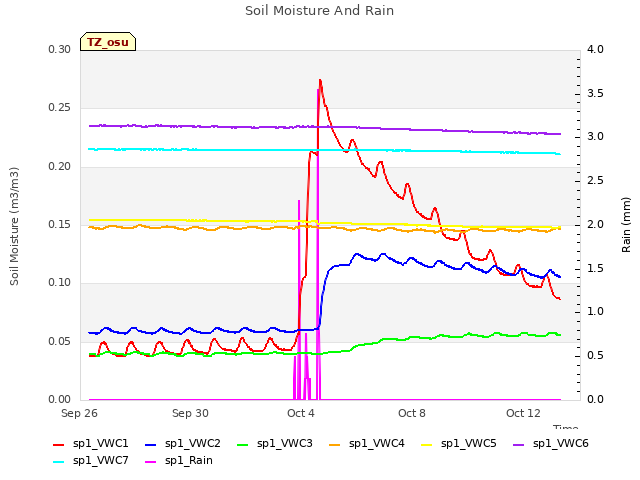

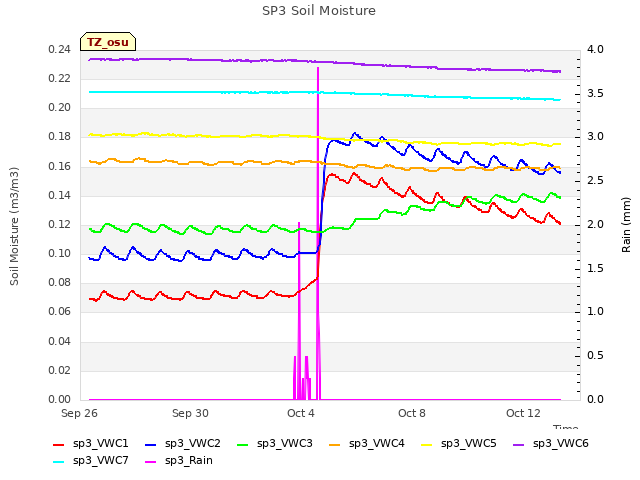

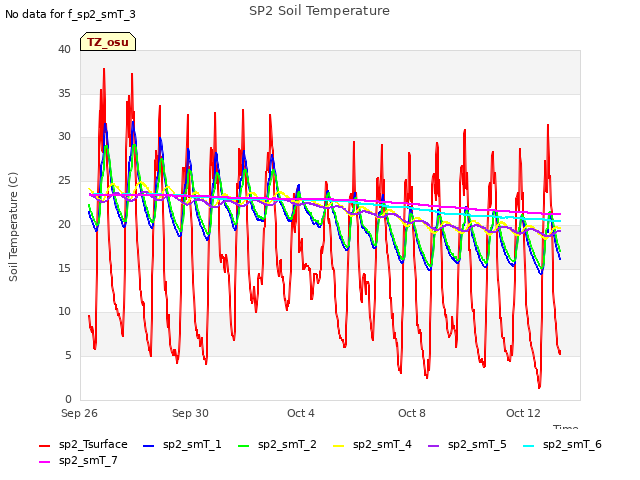

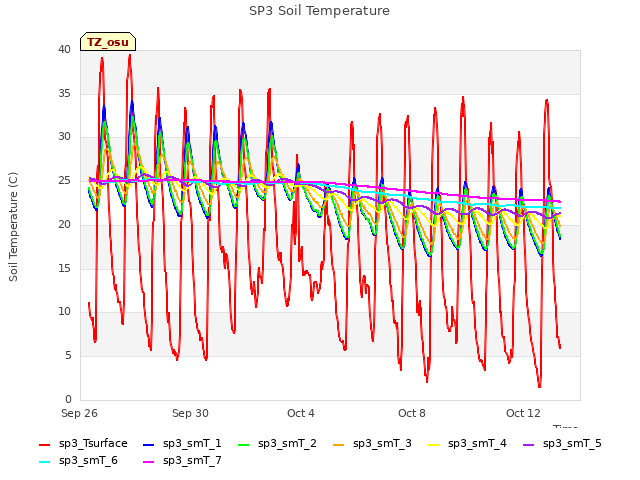

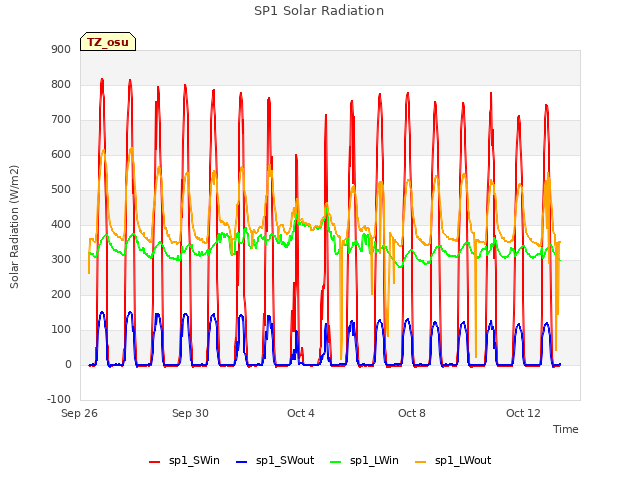

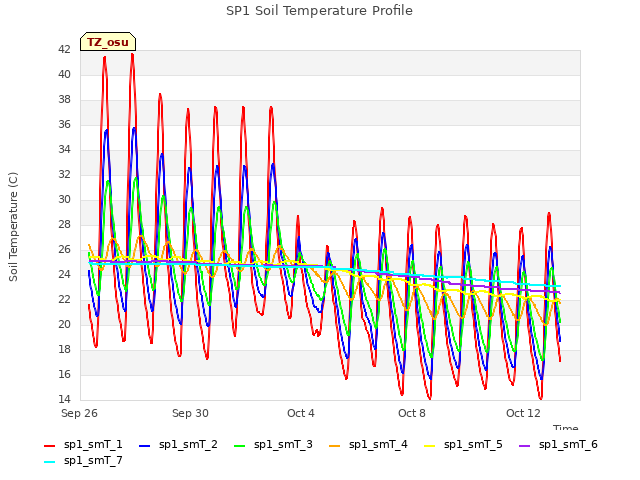

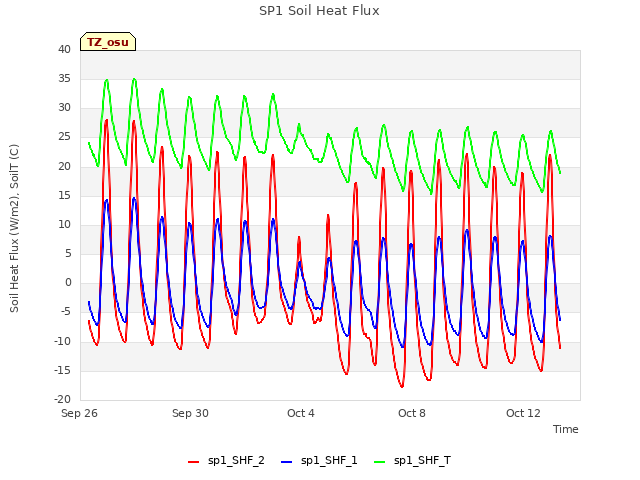

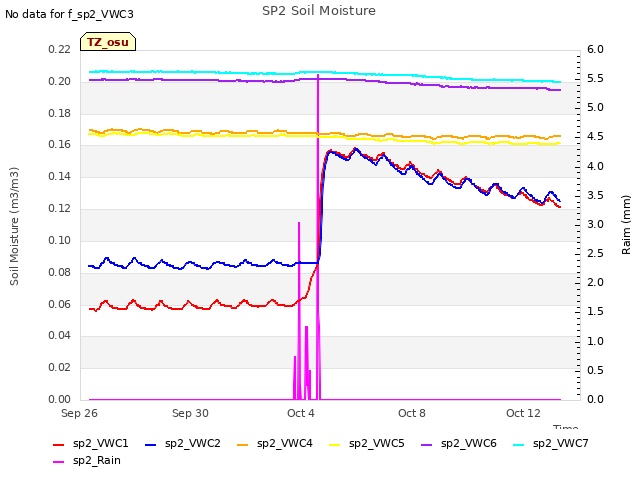

8 TZ_osu graphs found
No data found for TZ_fd.
Tonzi Z-cam data
