East End: 2018-09-05 10:55:00 (DOY 248)
Author: Daphne Szutu
Others: Sam, Alex

Summary: Camera theft! Regular data collection/cleaning

2018-09-05
East End

We arrived at 10:55. It was sunny and clear with hazy horizons.

The Phenocam Stardot camera sn 0030F4D214A3 and camera enclosure were stolen with the power cable cut and the ethernet cable disconnected. The datalogger enclosure was open. The ethernet switch was also taken, but everything else seems present. The camera power cable was cut inside the box, but I didn’t see the live cable that I expected. The CR1000 was loose, so I put it back on the mounting plate.

We brought the camera cables and NL115 back to the lab. Alex e-mailed Bryan to report the theft, and I filed a police report with Sacramento County the following day. Based on the photos on the card, the camera was taken on the night of 2018-08-29. As we were leaving, Alex picked up a silver folding pocket knife on the road by the boardwalk.

The water level was 17 cm. The miniDOT was barely in the water, and Sam lowered it.

I collected met, camera, USB GHG and miniDOT data. Sam cleaned the flux and rad sensors.

Looking at the data back in the lab, it looks like we need to check the water level and dissolved oxygen (not the miniDOT) sensor.

LI-7500 readings:
CO2 408ppm
H2O 740ppm
T 21.5C
P 101.3kPa
SS 100-->102

LI7700 readings
CH4 1.97ppm
RSSI 58ppm --> 81ppm after cleaning

We left at 11:20.

1 photos found

The datalogger enclosure was open. The ethernet switch was taken, along with the camera/enclosure up on the scaffolding, but everything else seems present.
The datalogger enclosure was open. The ethernet switch was taken, along with the camera/enclosure up on the scaffolding, but everything else seems present.

Graphs display:
11 sets found

14 EE_met graphs found

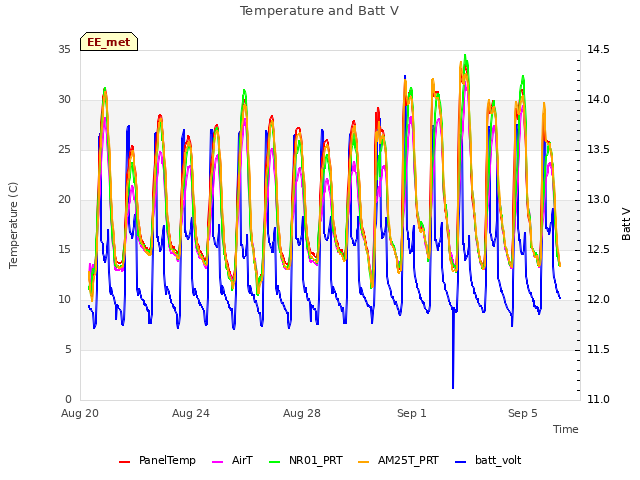

Explore the graph:Temperature and Batt V in a new window

Explore the graph:Soil Moisture and Well Pressure in a new window

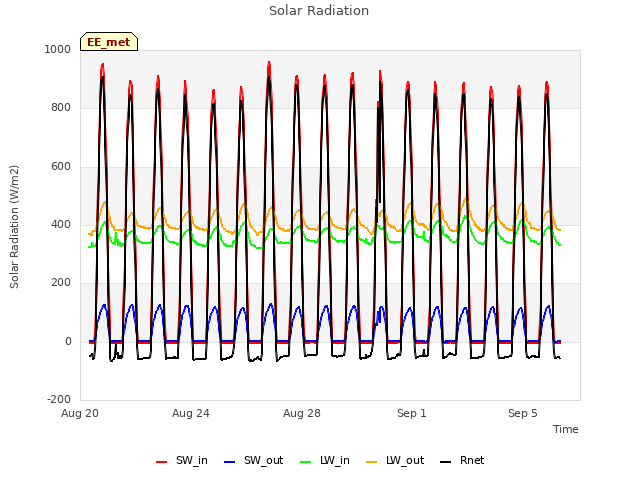

Explore the graph:Solar Radiation in a new window

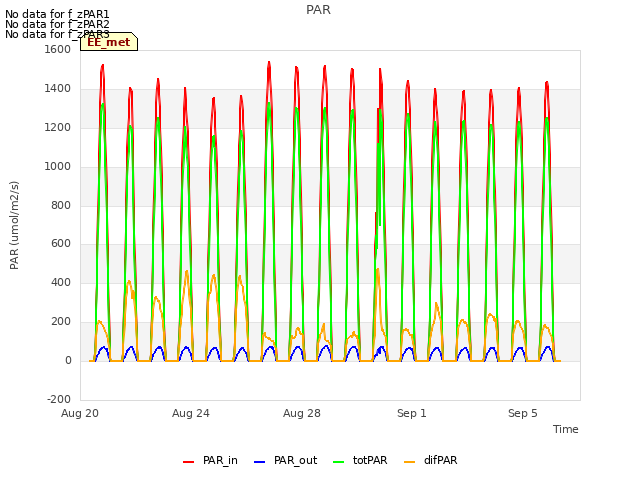

Explore the graph:PAR in a new window

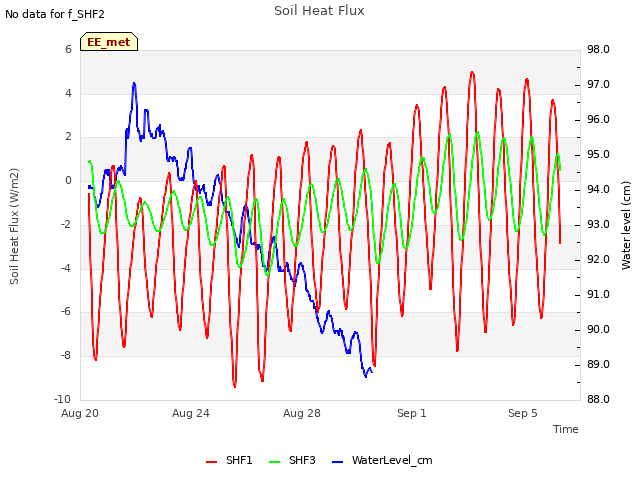

Explore the graph:Soil Heat Flux in a new window

Explore the graph:Water Level and Rain in a new window

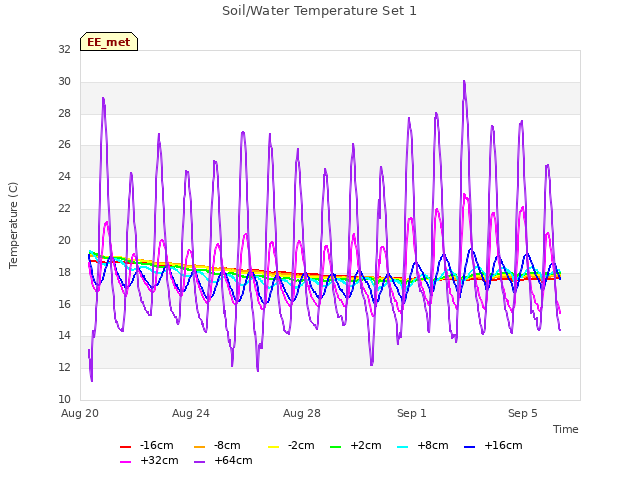

Explore the graph:Soil/Water Temperature Set 1 in a new window

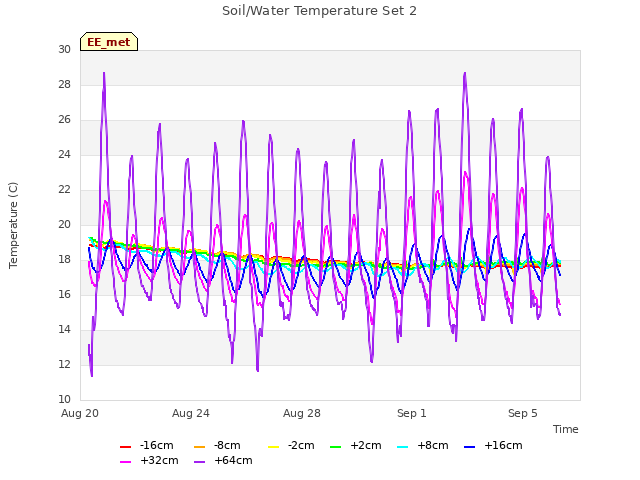

Explore the graph:Soil/Water Temperature Set 2 in a new window

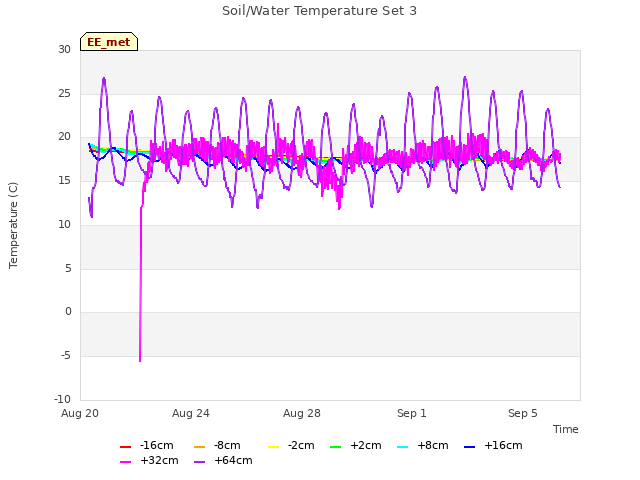

Explore the graph:Soil/Water Temperature Set 3 in a new window

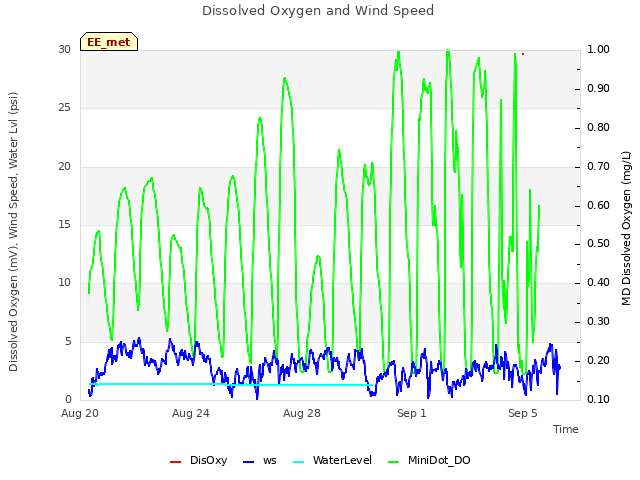

Explore the graph:Dissolved Oxygen and Wind Speed in a new window

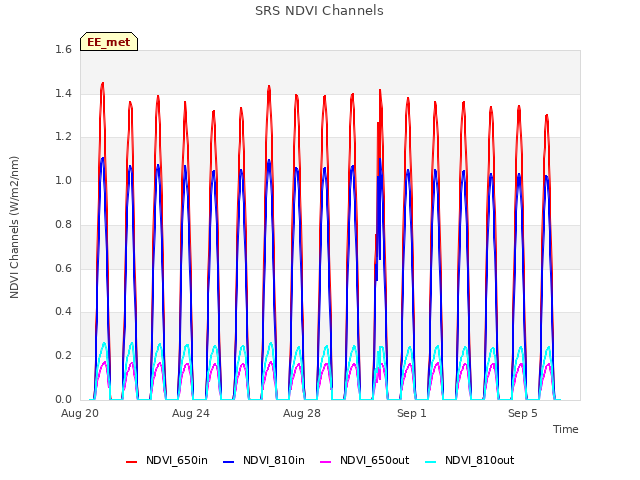

Explore the graph:SRS NDVI Channels in a new window

Explore the graph:Apogee NDVI in a new window

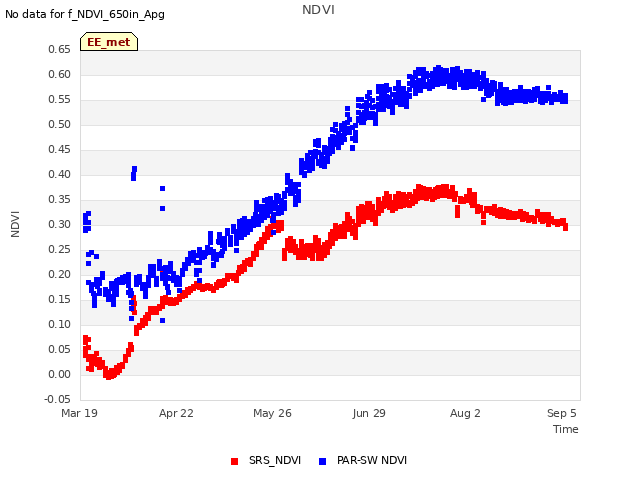

Explore the graph:NDVI in a new window

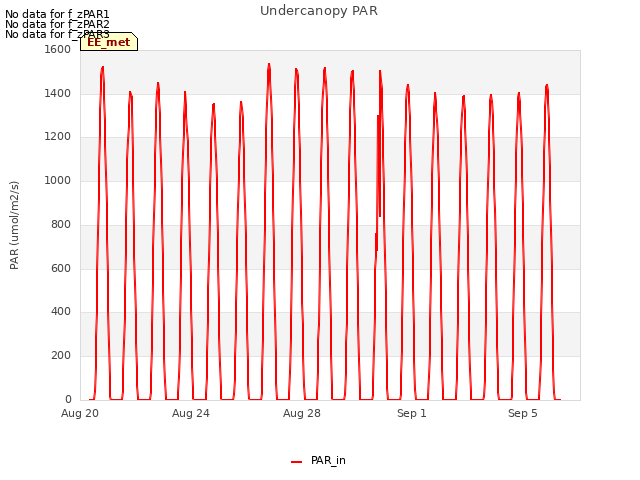

Explore the graph:Undercanopy PAR in a new window

Can't check EE_mixed
1 EE_mixed graphs found

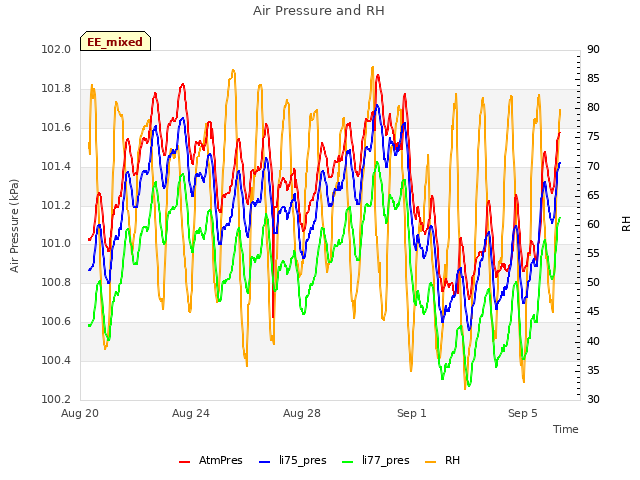

Explore the graph:Air Pressure and RH in a new window

8 EE_flux graphs found

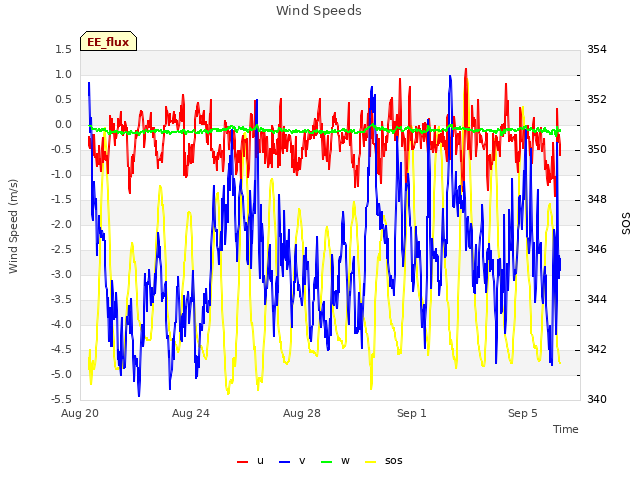

Explore the graph:Wind Speeds in a new window

Explore the graph:LI7500 CO2 and H2O in a new window

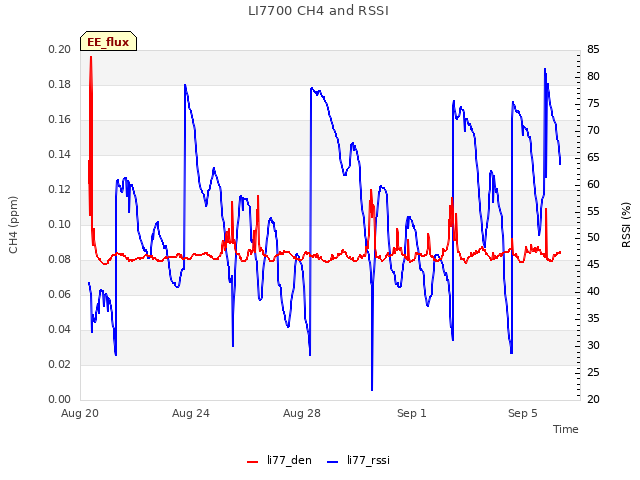

Explore the graph:LI7700 CH4 and RSSI in a new window

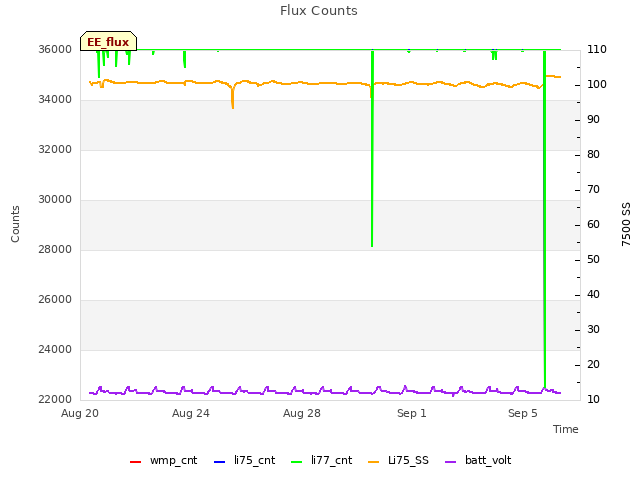

Explore the graph:Flux Counts in a new window

Explore the graph:Instument Temperatures in a new window

Explore the graph:Temp Tower 3 (Mixed Veg) in a new window

Explore the graph:Temp Tower 3 (Mixed Veg) in a new window

Explore the graph:Temp Tower 3 (Mixed Veg) in a new window

Can't check MBWPEESWGT_mixed
1 EE_cam graphs found

Explore the graph:EE Autocam GCC in a new window

Can't check MBEEWPSWEPGT_cam
Can't check SIMBTWEE_met
Can't check EE_Temp
5 EE_Temp graphs found

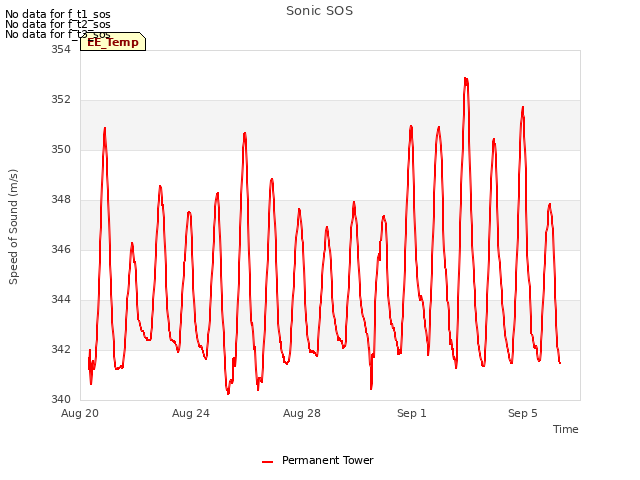

Explore the graph:Sonic SOS in a new window

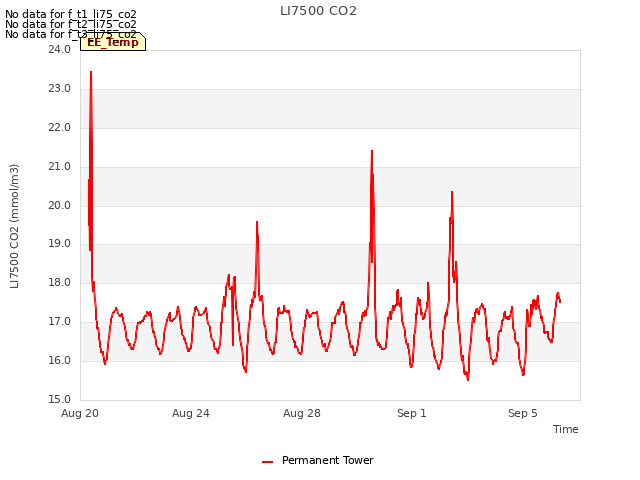

Explore the graph:LI7500 CO2 in a new window

Explore the graph:Water Level in a new window

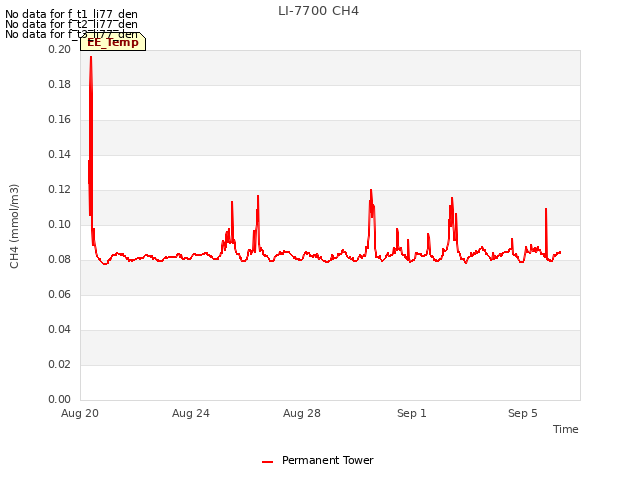

Explore the graph:LI-7700 CH4 in a new window

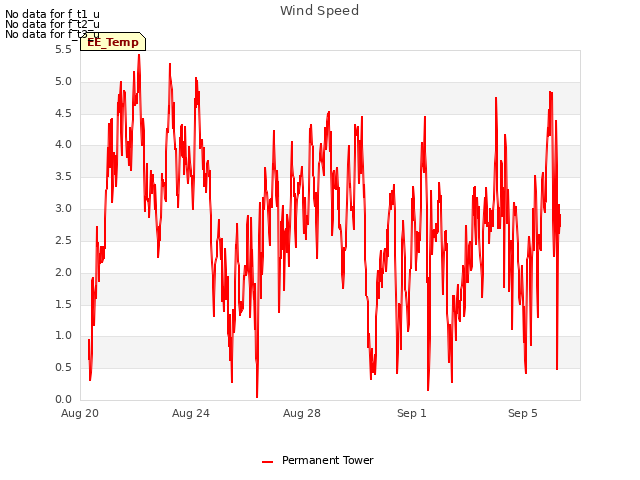

Explore the graph:Wind Speed in a new window

Can't check EE_minidot
1 EE_minidot graphs found

Explore the graph:EE miniDOT Dissolved Oxygen in a new window

Can't check MBSWEEWPBCBA
1 EE_processed graphs found

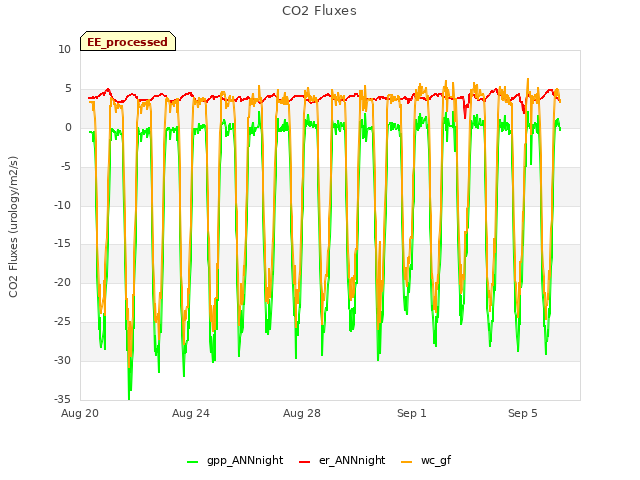

Explore the graph:CO2 Fluxes in a new window
