West Pond: 2017-08-16 12:20:00 (DOY 228)
Author: Joe Verfaillie
Others: Ada, Daphne

Summary: Reinstalled water CO2, tall veg in sensors, tractor work on levees.

West Pond
2017-08-16

Ada, Daphne and I arrived at about 12:20. It was warm and sunny. They are still working on raising the levees on the north and east side on the pond. There is new dirt on both of those levees. The water inlets were running. The site is very green and the vegetation is tall. Some of the tules reach the radiometers and the 7700. I broke off the tules that I could reach. The solar panels are again in danger of being shadowed by vegetation.

Standard data collection. No problems with insects, but we added some fresh mothballs to the boxes.
The 7500 read: 384.2ppm CO2, 744.5mmol/m3 H2O, 25.6C, 100.9kPa, 94.9SS -> 98.3 after cleaning
The 7700 read: 1.97ppm CH4, 52.3RSSI – 84.7 after cleaning.

We installed a new Eosense water CO2 probe sn GP20140018.

We left at about 1pm.

[Notes added 2017-10-24 by Daphne: We upgraded LI-7550 sn AIU-0666 from 8.0.0 to 8.7.5, skipping 8.5.0.]

0 photos found

Graphs display:
8 sets found

Can't check WP_DO
1 WP_DO graphs found

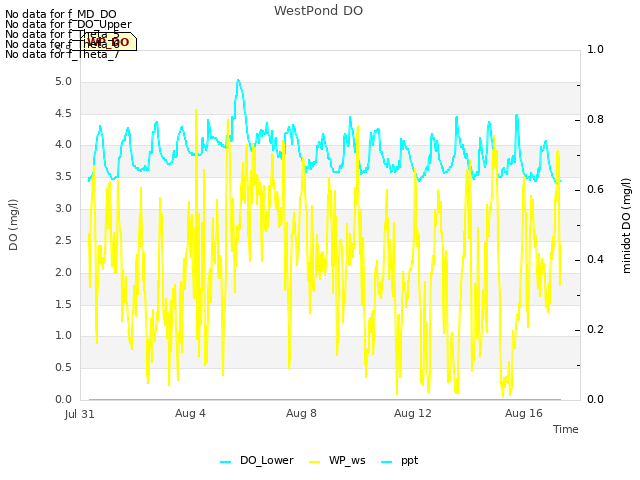

Explore the graph:WestPond DO in a new window

14 WP_met graphs found

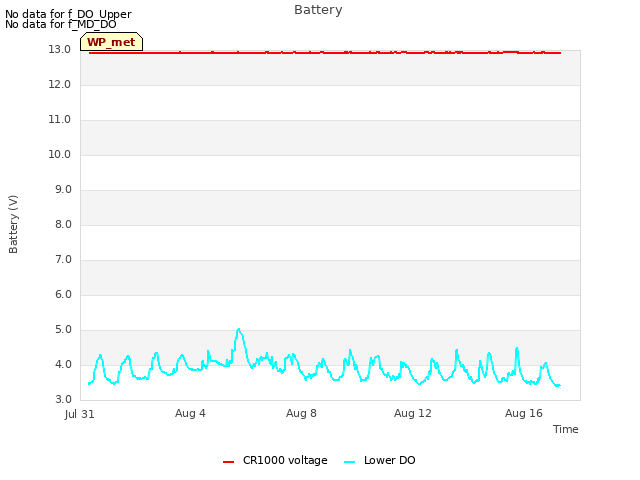

Explore the graph:Battery in a new window

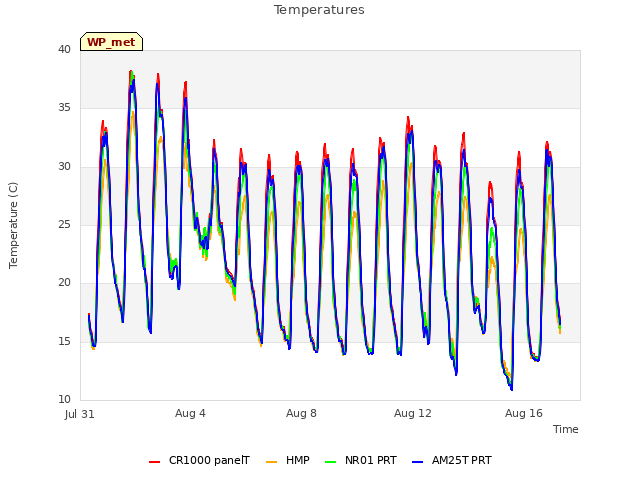

Explore the graph:Temperatures in a new window

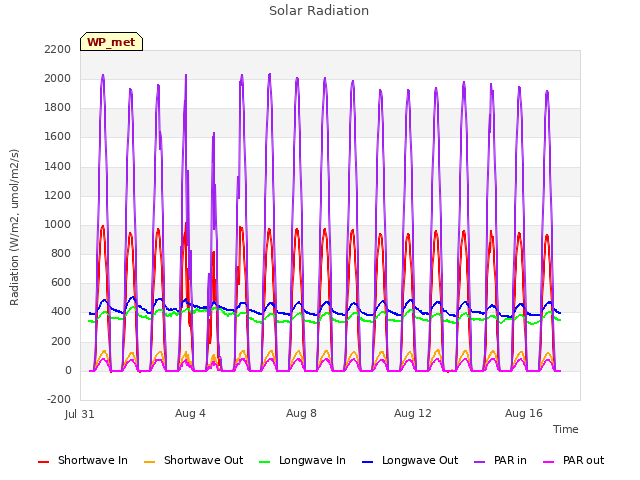

Explore the graph:Solar Radiation in a new window

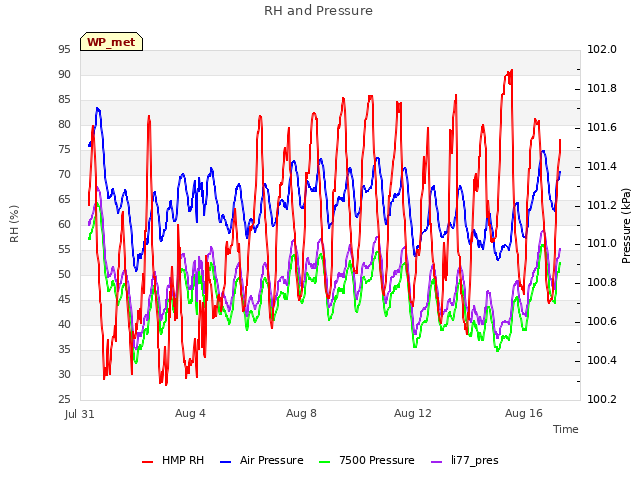

Explore the graph:RH and Pressure in a new window

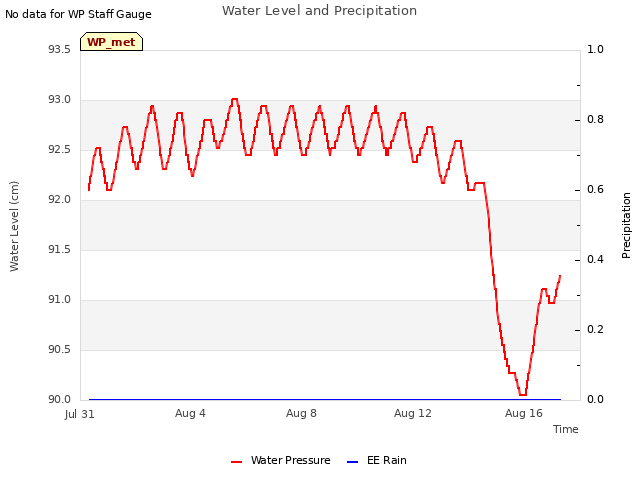

Explore the graph:Water Level and Precipitation in a new window

Explore the graph:Conductivity in a new window

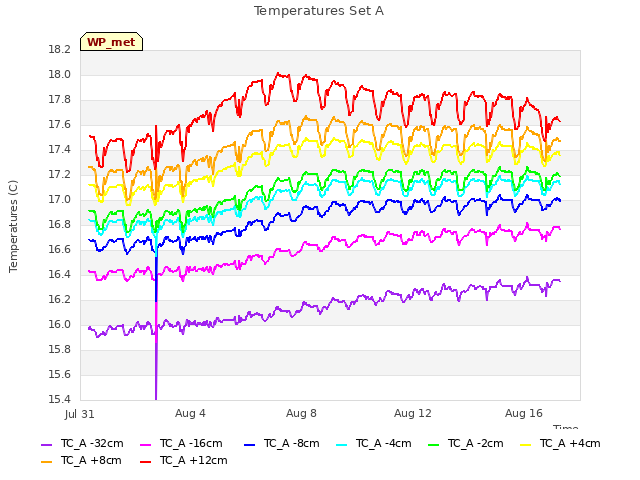

Explore the graph:Temperatures Set A in a new window

Explore the graph:Temperatures Set B in a new window

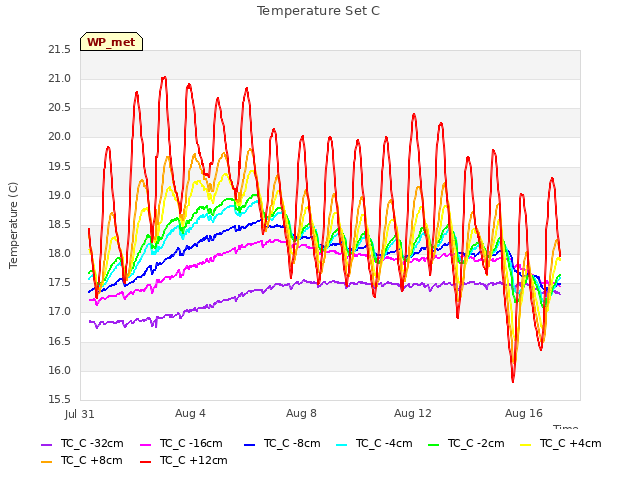

Explore the graph:Temperature Set C in a new window

Explore the graph:Water CO2 and Temp in a new window

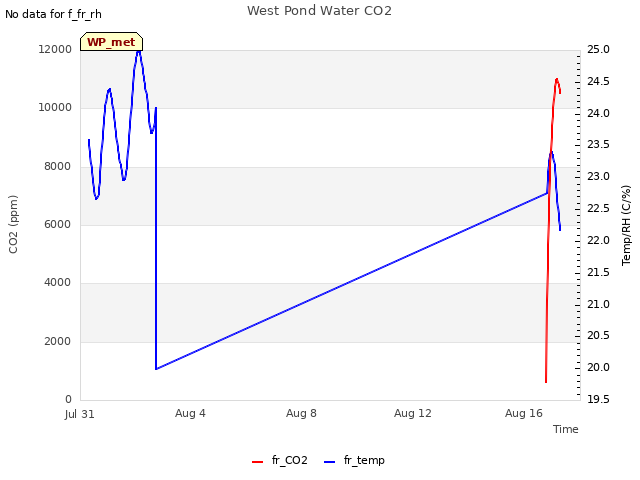

Explore the graph:West Pond Water CO2 in a new window

Explore the graph:WP miniDOT Dissolved Oxygen in a new window

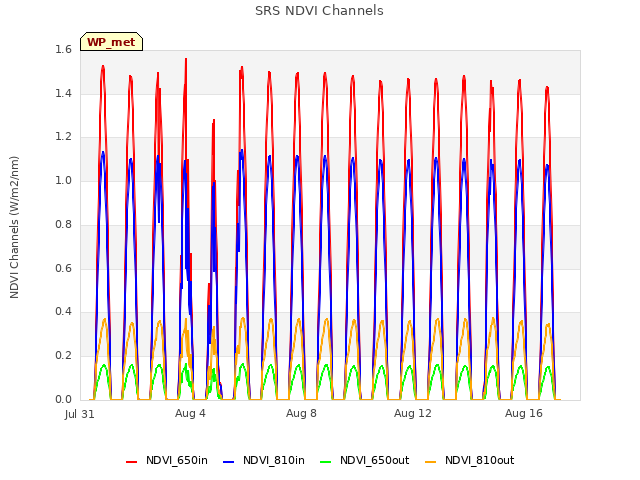

Explore the graph:SRS NDVI Channels in a new window

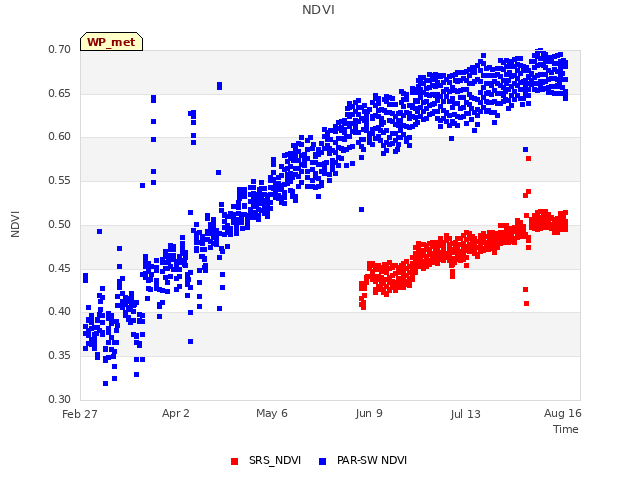

Explore the graph:NDVI in a new window

5 WP_flux graphs found

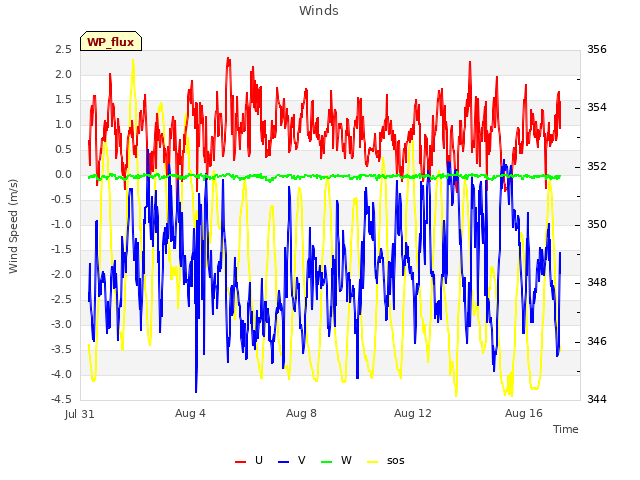

Explore the graph:Winds in a new window

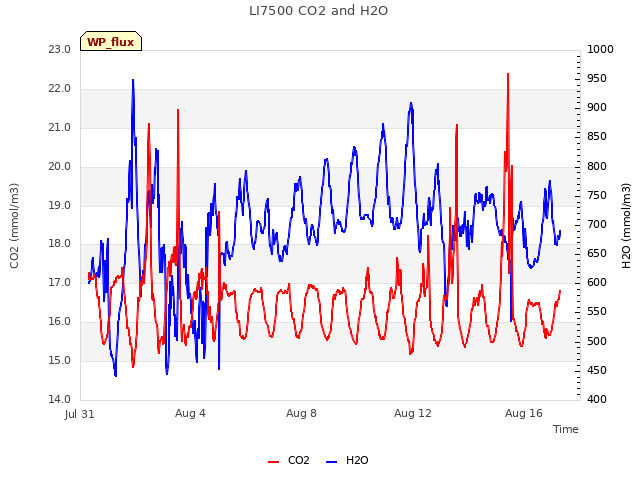

Explore the graph:LI7500 CO2 and H2O in a new window

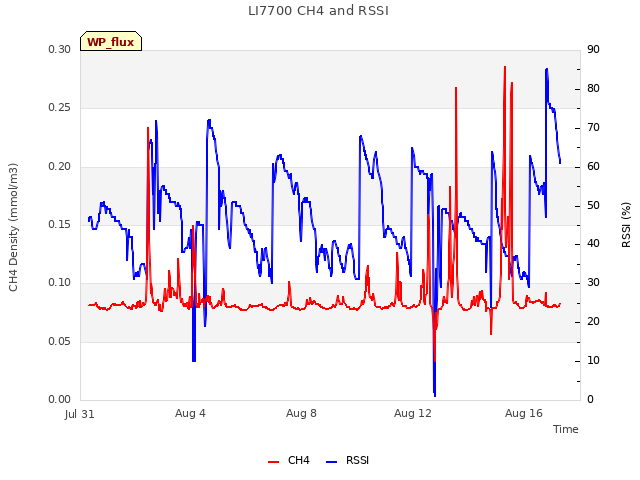

Explore the graph:LI7700 CH4 and RSSI in a new window

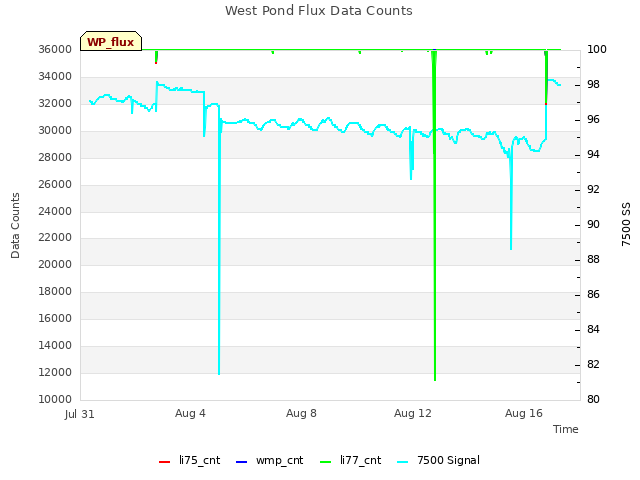

Explore the graph:West Pond Flux Data Counts in a new window

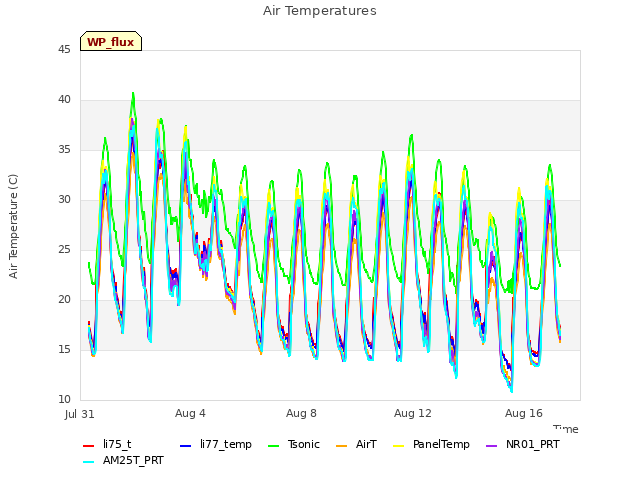

Explore the graph:Air Temperatures in a new window

Can't check MBWPEESWGT_mixed
Can't check MBEEWPSWEPGT_cam
Can't check MBSWEEWPBCBA
1 WP_processed graphs found

Explore the graph:WP CO2 Fluxes in a new window

No data found for WP_arable.
