Sherman Wetland: 2017-08-02 13:10:00 (DOY 214)
Author: Ada Chang
Others: Daphne Szutu, Sam Chamberlain
Summary: Swapped 7500.

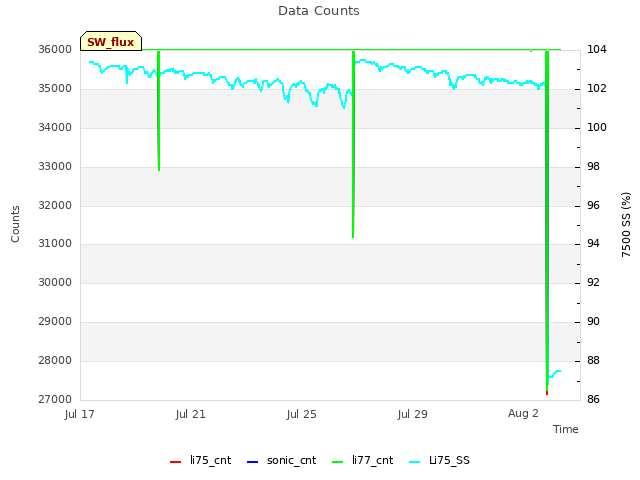

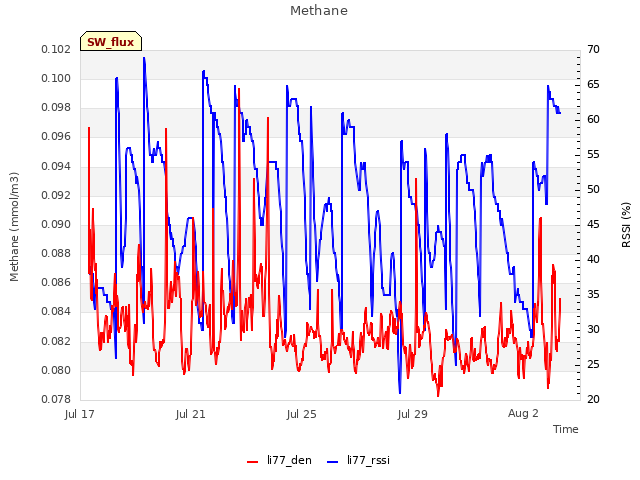

| Arrived at 13:10. The weather was sunny, clear and very windy. The 7500 was swapped due to suspect H20 measurements. 7500 Serial Numbers Going up: sn 75H-2182 (not freshly calibrated) Coming down: sn 75H-2514 Uploaded new configuration file and pressure coefficients. LI7500 readings: CO2 404.1 -> 405.5 (new 7500) H2O 446.6 -> 703.8 T 28.1 -> 28.2 P 101.1 -> 101.7 SS 102.2 -> 86.4 (new 7500) -> 87.4 (after cleaning) LI7700 readings: CH4 1.94 RSSI 47.6 -> 65.5 Left at 13:42. |
0 photos found
7 sets found
Can't check MBWPEESWGT_mixed
Can't check MBEEWPSWEPGT_cam

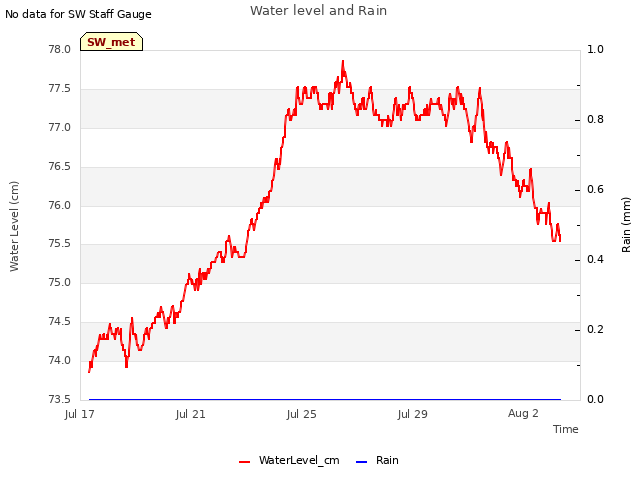

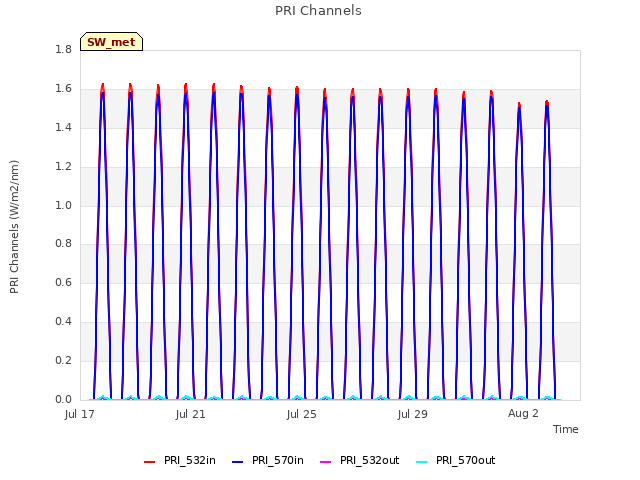

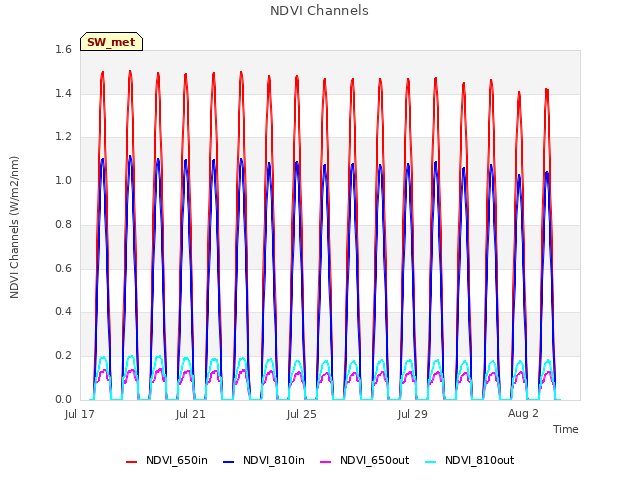

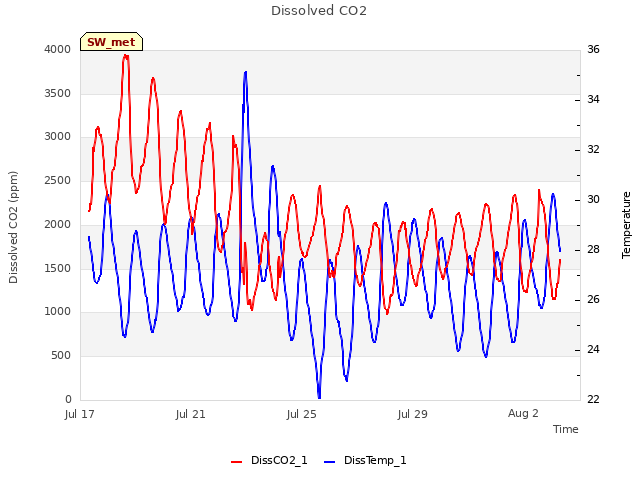

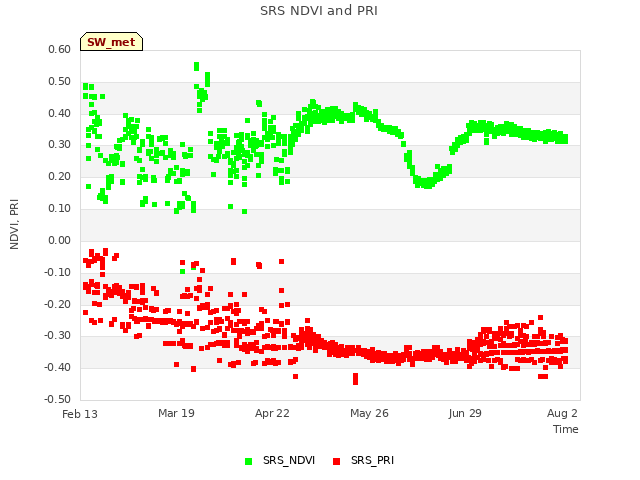

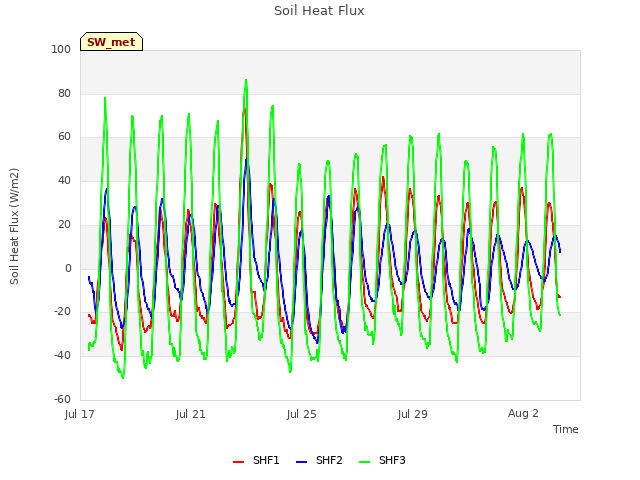

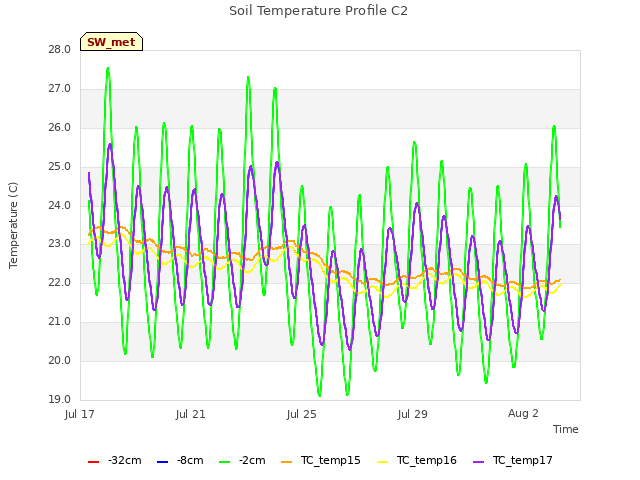

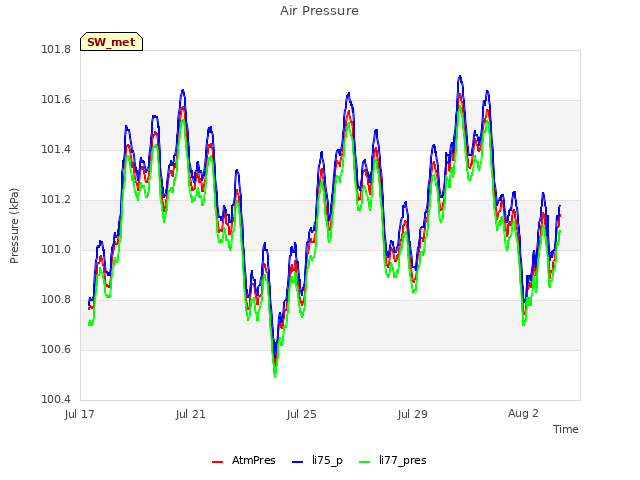

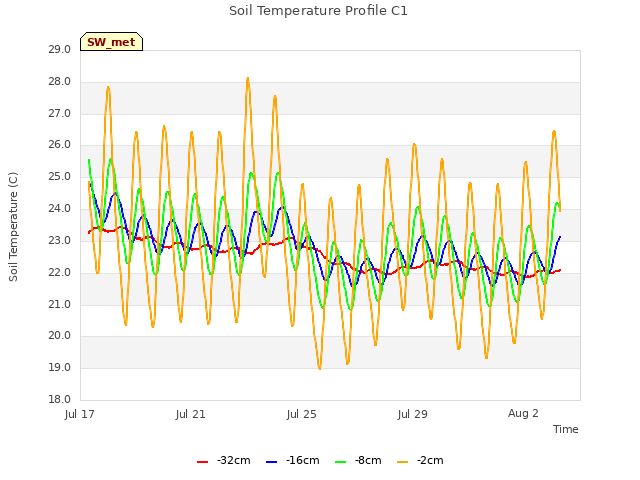

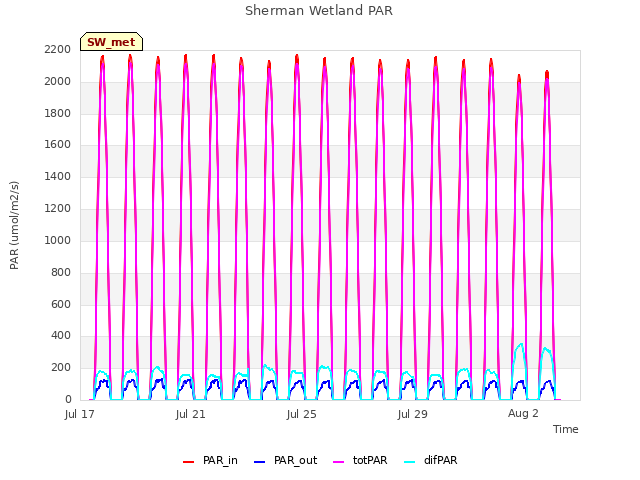

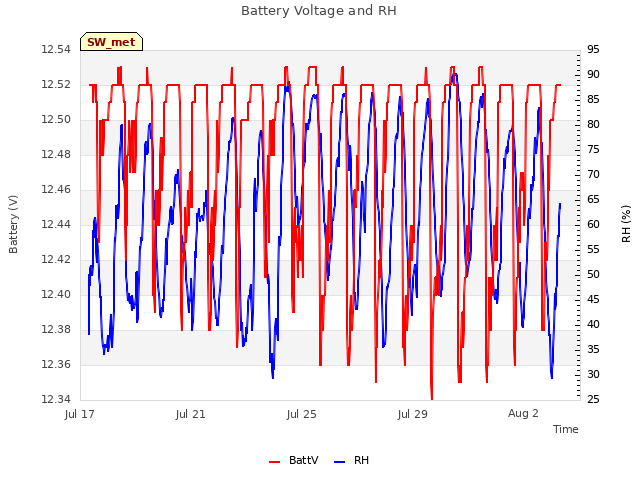

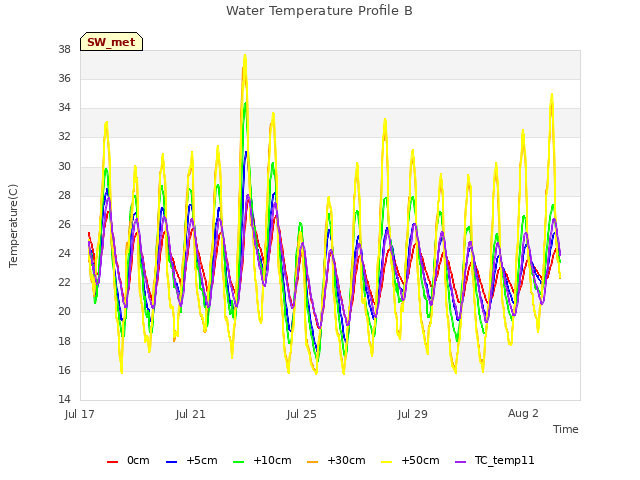

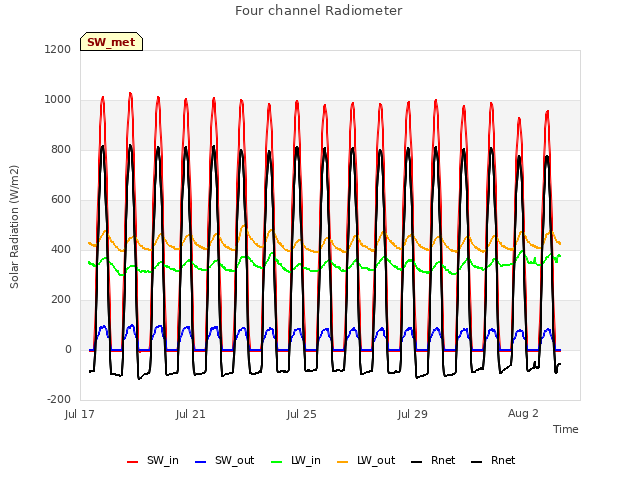

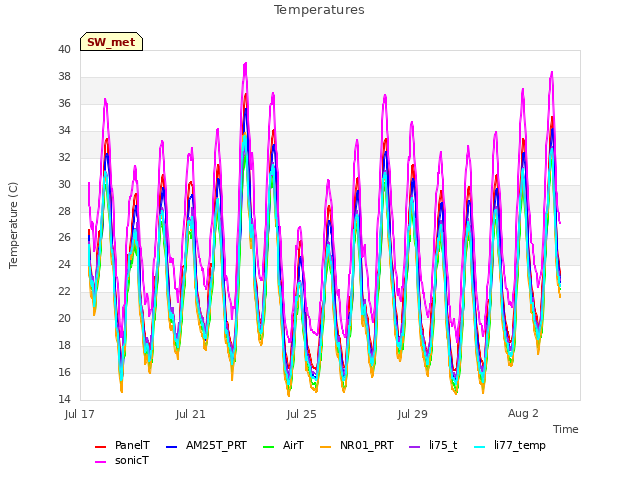

15 SW_met graphs found

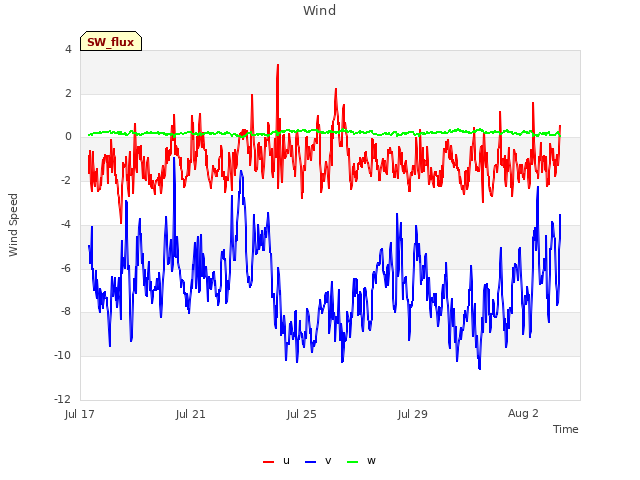

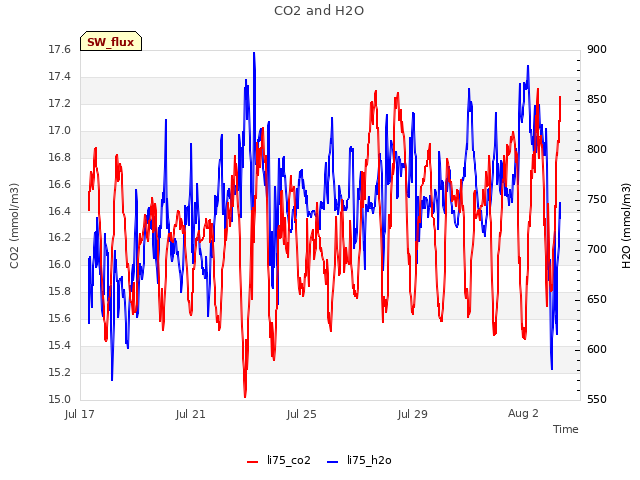

4 SW_flux graphs found
Can't check MBSWEEWPBCBA
Can't check SW_Temp
14 SW_Temp graphs found
No data found for SW_arable.
