Field Notes

<--2017-07-19 09:45:00 | 2017-08-04 14:00:00-->
Other sites visited today: East End | Mayberry | Sherman Wetland
Phenocam link: Searching...

West Pond: 2017-08-02 11:36:00 (DOY 214)
Author: Ada Chang
Others: Daphne Szutu, Sam Chamberlain

Summary: There was an ant explosion.

Arrived at 11:36. The weather was sunny and hot. The wash reservoir was mostly full and was refilled. The camera angle was adjusted. The Eosense CO2 sensor sn GP20140017 was maxed-out out of water. The T was in the middle of the range at 3000mV. It was not responding to being in or out of the water so it was disconnected.

LI7500 readings:
CO2 406.5
H2O 863.1
T 31.2
P 100.8
SS 96.9 -> 98.3

LI7700 readings:
CH4 2.1
RSSI 60.3 -> 73.5

There were a lot of ants in the 7550 box. Try bringing a new ant trap to the site next time. To get rid of the ants, Sam tried spraying them with compressed air which resulted in a monumental explosion of living ants and dead ant carcasses. It is probably a temporary solution, as a queen seems to be lodged in the back of the box, so the back of the box should probably be removed to better clean them out.

Left at 12:10.

0 photos found

Graphs display:
8 sets found

Can't check WP_DO
1 WP_DO graphs found

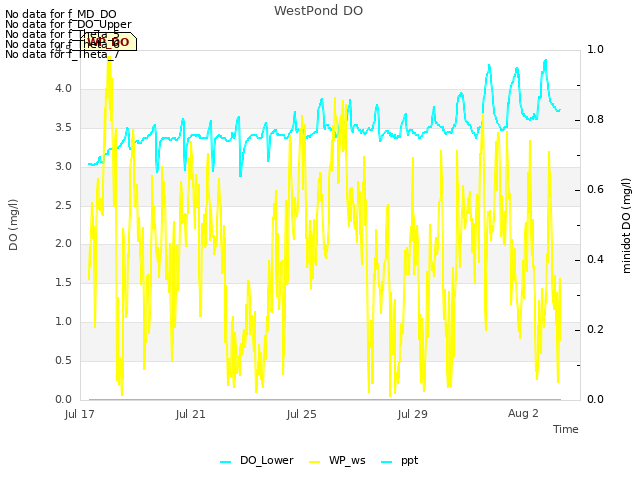

Explore the graph:WestPond DO in a new window

14 WP_met graphs found

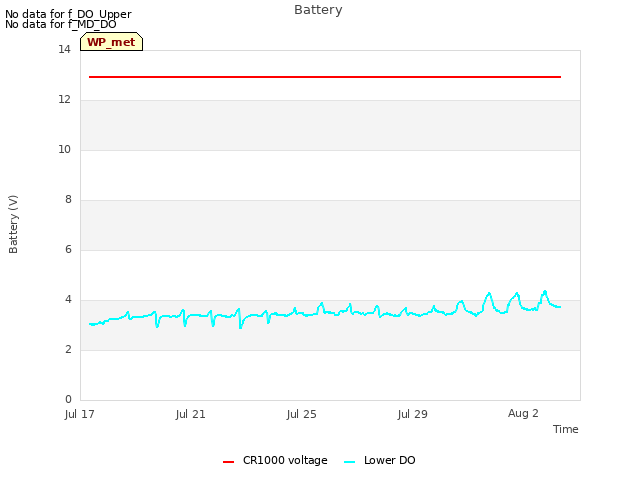

Explore the graph:Battery in a new window

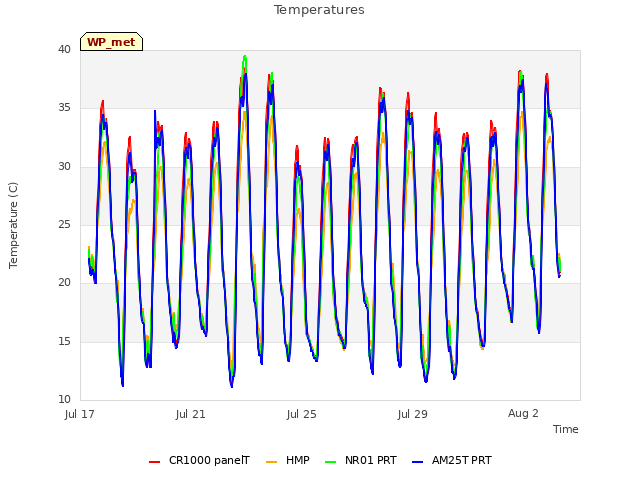

Explore the graph:Temperatures in a new window

Explore the graph:Solar Radiation in a new window

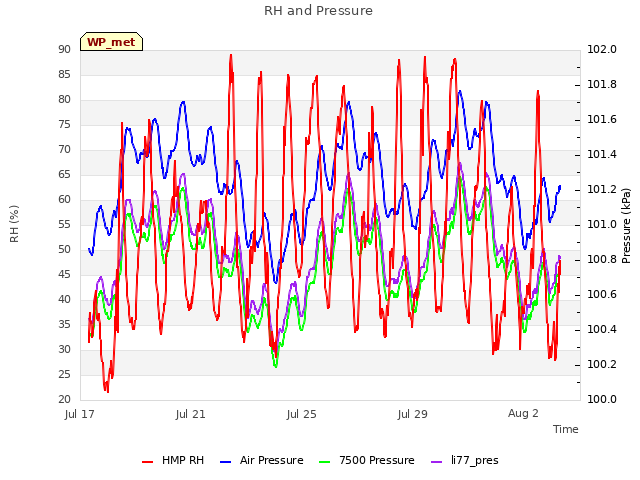

Explore the graph:RH and Pressure in a new window

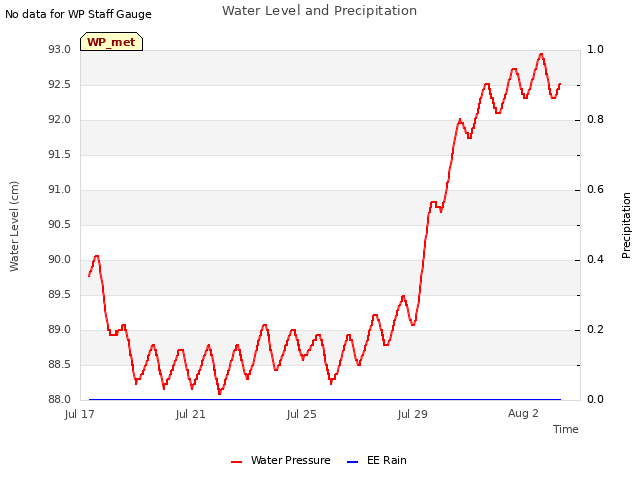

Explore the graph:Water Level and Precipitation in a new window

Explore the graph:Conductivity in a new window

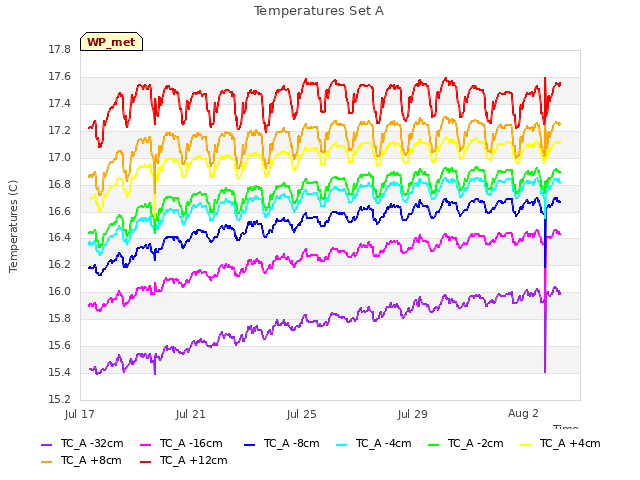

Explore the graph:Temperatures Set A in a new window

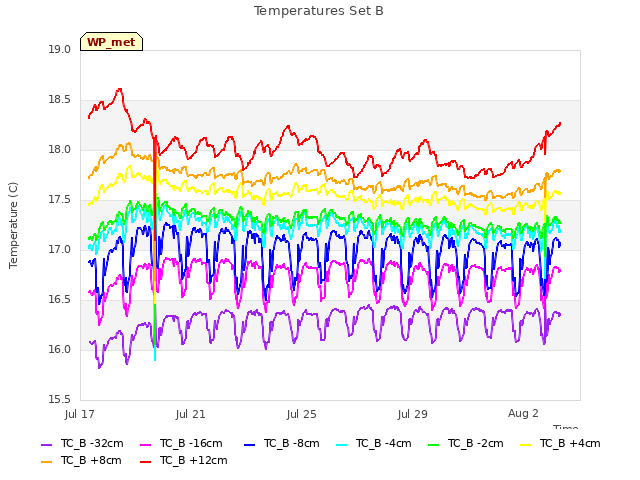

Explore the graph:Temperatures Set B in a new window

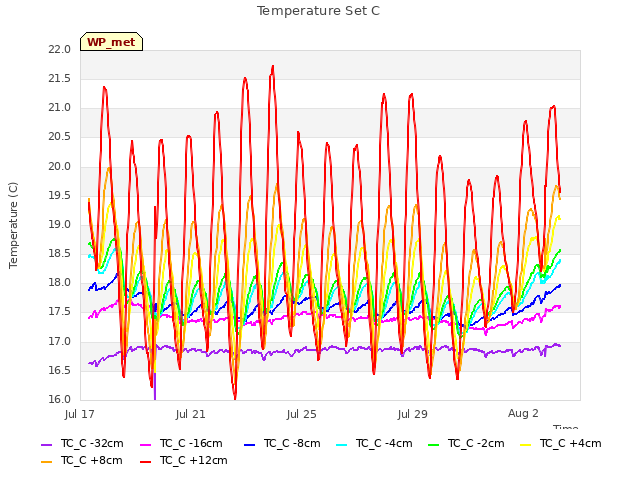

Explore the graph:Temperature Set C in a new window

Explore the graph:Water CO2 and Temp in a new window

Explore the graph:West Pond Water CO2 in a new window

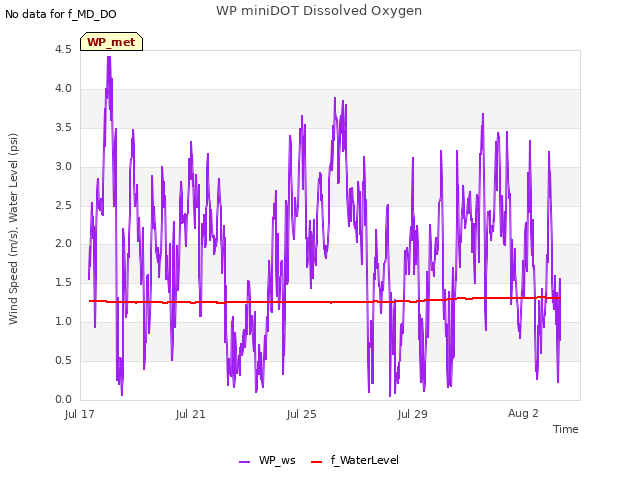

Explore the graph:WP miniDOT Dissolved Oxygen in a new window

Explore the graph:SRS NDVI Channels in a new window

Explore the graph:NDVI in a new window

5 WP_flux graphs found

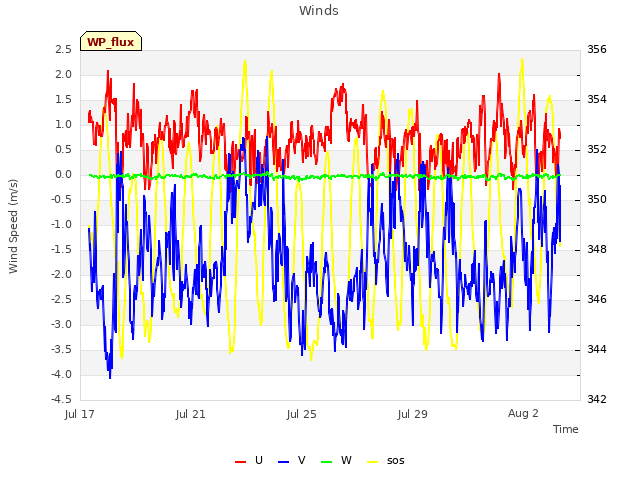

Explore the graph:Winds in a new window

Explore the graph:LI7500 CO2 and H2O in a new window

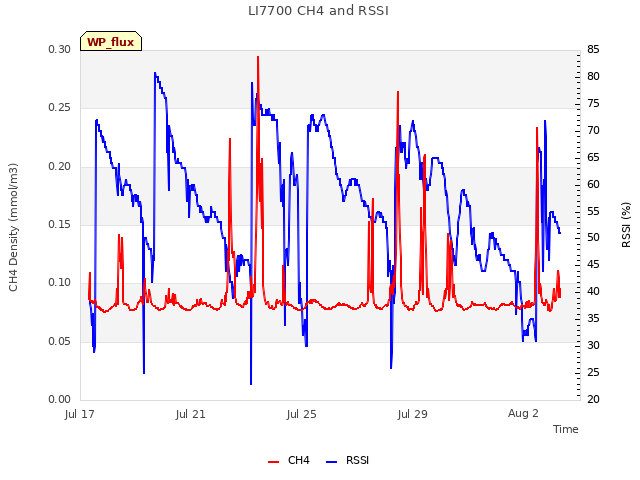

Explore the graph:LI7700 CH4 and RSSI in a new window

Explore the graph:West Pond Flux Data Counts in a new window

Explore the graph:Air Temperatures in a new window

Can't check MBWPEESWGT_mixed
Can't check MBEEWPSWEPGT_cam
Can't check MBSWEEWPBCBA
1 WP_processed graphs found

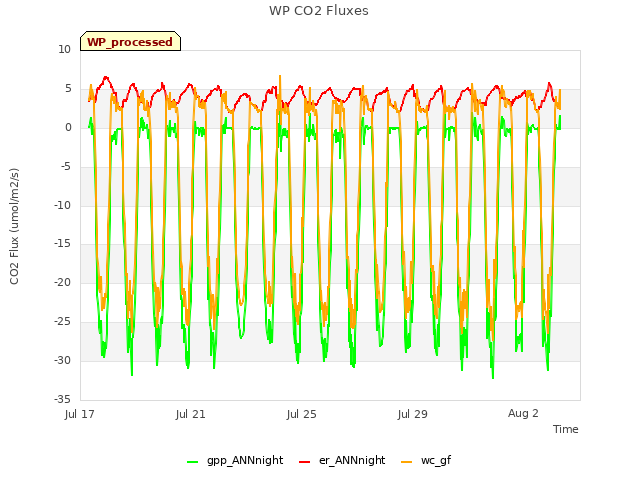

Explore the graph:WP CO2 Fluxes in a new window

No data found for WP_arable.
