Vaira: 2017-01-17 10:30:00 (DOY 17)
Author: Joe Verfaillie
Others: Siyan, Miriam Johnston
Summary: Very wet, standard data collection, computer not sending data for unknown reason, did not go to pond
Vaira 2017-01-17 I arrived about 10:30 with Siyan and Miriam Johnston. Miriam is a PhD student visiting from the Moorcroft lab at Harvard University. She will be running a model using Tonzi/Vaira data. Things are very wet and I noticed a couple of trees that had fallen over. The Delta and Central Valley were foggy but here it’s just hazy and cool with a breeze from the north. The Sacramento River is running high with some flooding on the river side of the levees. The Cosumnes is a little bit lower than two weeks ago. We collected data. Siyan did soil moisture and spectral measurements. The computer has not been sending data, but I could not see anything wrong with it. The task scheduler said the task have been running, but no entries in the log file. I ran everything manually and crossed my fingers. We did not go to the pond today. |
Field Data
No tank data
Well Depth
Date | Location | Depth (feet) |
---|---|---|
2017-01-17 | TZ_floor | 23.9 |
2017-01-17 | TZ_road | 31.1 |
2017-01-17 | TZ_tower | 27 |
mode = both
Moisture Point Probes TZ
Array
(
[0] => Tower
[1] => Floor_South
[2] => Floor_West
[3] => SoilCO2
[4] => Soil_Transect_4
[5] => Soil_Transect_3
[6] => Soil_Transect_2
[7] => Soil_Transect_1
[8] => SoilCO2_West_A
[9] => SoilCO2_West_B
[10] => SoilCO2_West_C
)
Date | DOY | Rep | Depth | Tower |
Floor_South |
Floor_West |
SoilCO2 |
Soil_Transect_4 |
Soil_Transect_3 |
Soil_Transect_2 |
Soil_Transect_1 |
SoilCO2_West_A |
SoilCO2_West_B |
SoilCO2_West_C |
Avg | Spacial Count |
Measurement Count |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
2017-01-17 | 17 | 0 | 0-15cm | 36.7 | 32.9 | 37.9 | 38.4 | 32.6 | 22.3 | 29.1 | 33.8 | 33.8 | 32 | 35.5 | |||
2017-01-17 | 17 | 0 | 15-30cm | 44.8 | 43.9 | 39.6 | 39.9 | 39.9 | 34.1 | 33 | 28.6 | 32.9 | 30.4 | 34.4 | |||
2017-01-17 | 17 | 0 | 30-45cm | 38.8 | 42.7 | 41.9 | 46 | 38.8 | 35.4 | 36.8 | 37.4 | 36.6 | 39.6 | 37.4 | |||
2017-01-17 | 17 | 0 | 45-60cm | 39.5 | 57.2 | 45.4 | 41.7 | 35.7 | 45.4 | 47.1 | 39.4 | 45.4 | 50 | 49.1 | |||
2017-01-17 | 17 | 1 | 0-15cm | 37 | 37.6 | 32.3 | 23.8 | 28.2 | 34.1 | 33.8 | |||||||
2017-01-17 | 17 | 1 | 15-30cm | 44.8 | 39.9 | 39.1 | 33.8 | 33.2 | 28.3 | 33.2 | |||||||
2017-01-17 | 17 | 1 | 30-45cm | 39.4 | 41.3 | 39.1 | 34.9 | 36 | 36.8 | 36.8 | |||||||
2017-01-17 | 17 | 1 | 45-60cm | 38.8 | 44.8 | 35.7 | 44.8 | 48.6 | 39.1 | 44.3 | |||||||
2017-01-17 | 17 | Avg | 0-15cm | 36.85 | 32.9 | 37.75 | 38.4 | 32.45 | 23.05 | 28.65 | 33.95 | 33.8 | 32 | 35.5 | 33.21 | 11 | 18 |
2017-01-17 | 17 | Avg | 15-30cm | 44.8 | 43.9 | 39.75 | 39.9 | 39.5 | 33.95 | 33.1 | 28.45 | 33.05 | 30.4 | 34.4 | 36.47 | 11 | 18 |
2017-01-17 | 17 | Avg | 30-45cm | 39.1 | 42.7 | 41.6 | 46 | 38.95 | 35.15 | 36.4 | 37.1 | 36.7 | 39.6 | 37.4 | 39.15 | 11 | 18 |
2017-01-17 | 17 | Avg | 45-60cm | 39.15 | 57.2 | 45.1 | 41.7 | 35.7 | 45.1 | 47.85 | 39.25 | 44.85 | 50 | 49.1 | 45 | 11 | 18 |
mode = both
Moisture Point Probes VR
Array
(
[0] => Solar_Panels
[1] => Flux_Tower
[2] => Gate
[3] => Biomass_Cage
)
Date | DOY | Rep | Depth | Solar_Panels |
Flux_Tower |
Gate |
Biomass_Cage |
Avg | Spacial Count |
Measurement Count |
---|---|---|---|---|---|---|---|---|---|---|
2017-01-17 | 17 | 0 | 0-15cm | 34.1 | 18.5 | 37.9 | 12.7 | |||
2017-01-17 | 17 | 0 | 15-30cm | 69.2 | 21.3 | 25.8 | ||||
2017-01-17 | 17 | 0 | 30-45cm | 31.6 | 26.8 | 26.2 | 32.9 | |||
2017-01-17 | 17 | 0 | 45-60cm | 43.8 | 26.2 | 23.1 | 33.1 | |||
2017-01-17 | 17 | 1 | 0-15cm | 33.8 | 28.2 | 37.3 | 13 | |||
2017-01-17 | 17 | 1 | 15-30cm | 31 | 31.6 | 21.9 | 24.6 | |||
2017-01-17 | 17 | 1 | 30-45cm | 31.8 | 27.4 | 26.9 | 32.9 | |||
2017-01-17 | 17 | 1 | 45-60cm | 42.5 | 24.8 | 23.4 | 33.1 | |||
2017-01-17 | 17 | Avg | 0-15cm | 33.95 | 23.35 | 37.6 | 12.85 | 26.94 | 4 | 8 |
2017-01-17 | 17 | Avg | 15-30cm | 31 | 50.4 | 21.6 | 25.2 | 32.05 | 4 | 7 |
2017-01-17 | 17 | Avg | 30-45cm | 31.7 | 27.1 | 26.55 | 32.9 | 29.56 | 4 | 8 |
2017-01-17 | 17 | Avg | 45-60cm | 43.15 | 25.5 | 23.25 | 33.1 | 31.25 | 4 | 8 |
No TZ grass heigth found
No VR grass heigth found
Tree DBH
Date | Tag# | Reading (mm) |
---|
No water potential data found
No VR Grass Biomass data found
No VR OakLeaves Biomass data found
No VR PineNeedles Biomass data found
0 photos found
9 sets found

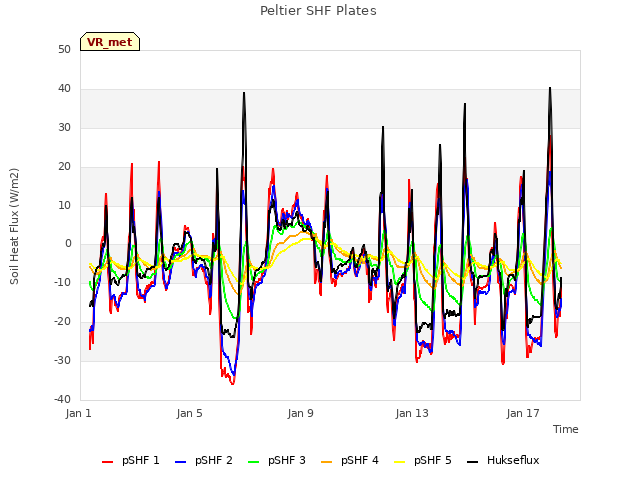

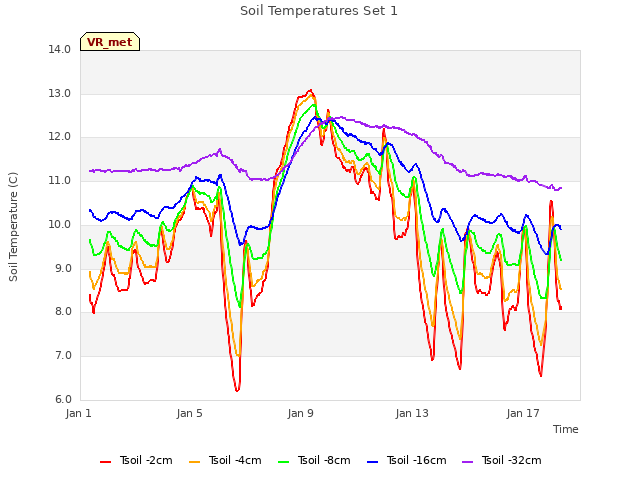

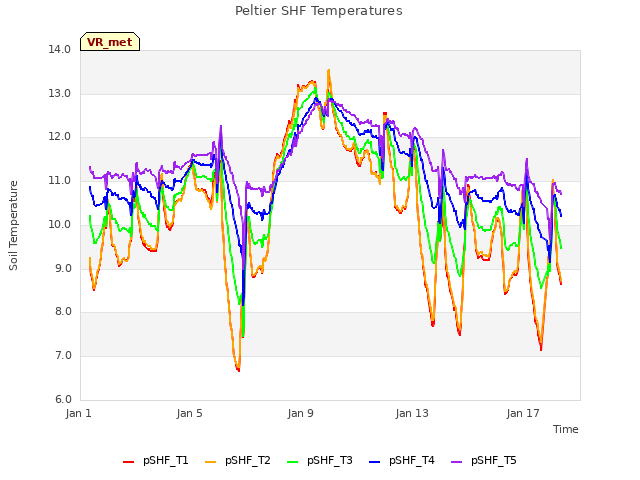

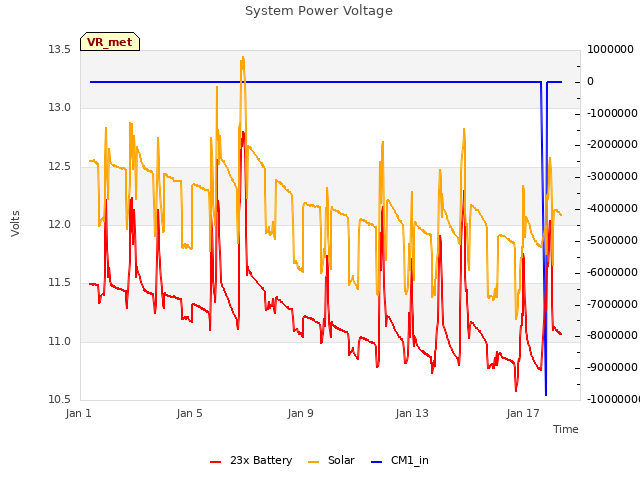

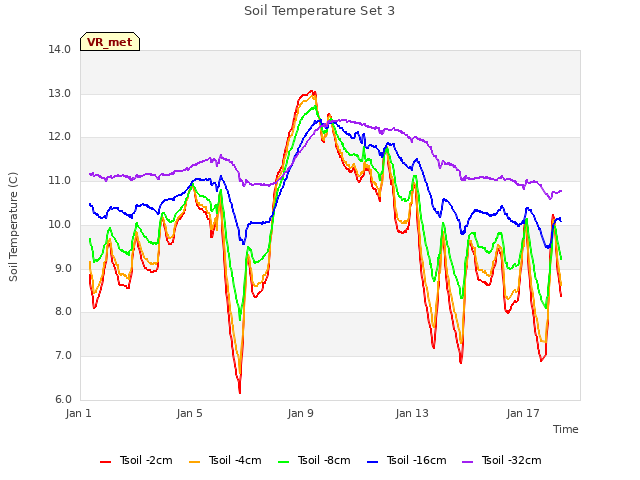

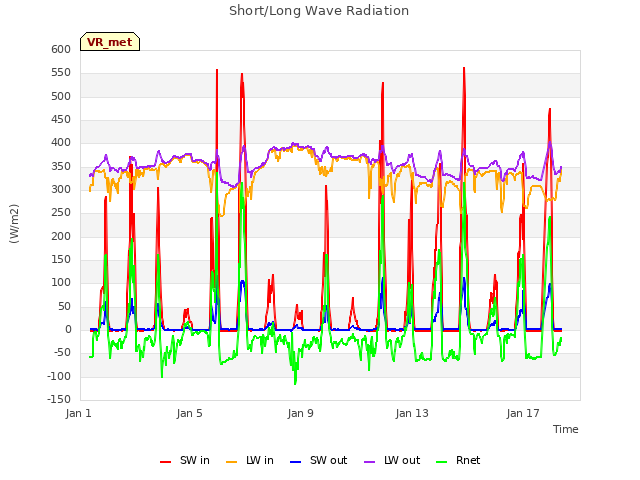

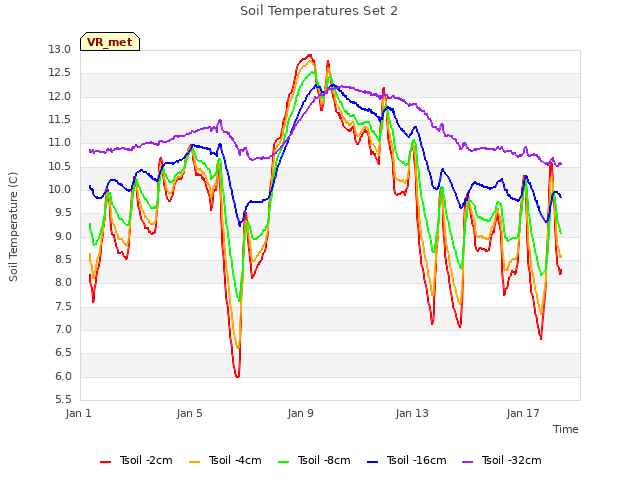

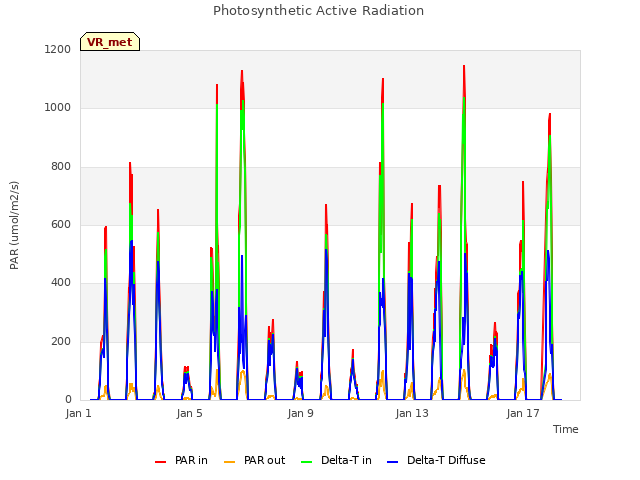

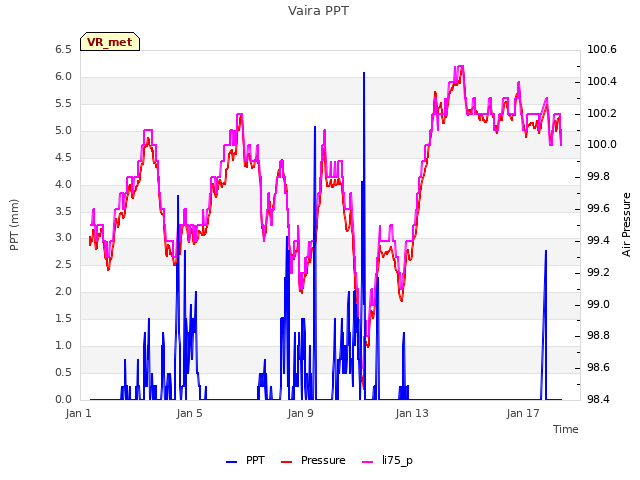

16 VR_met graphs found

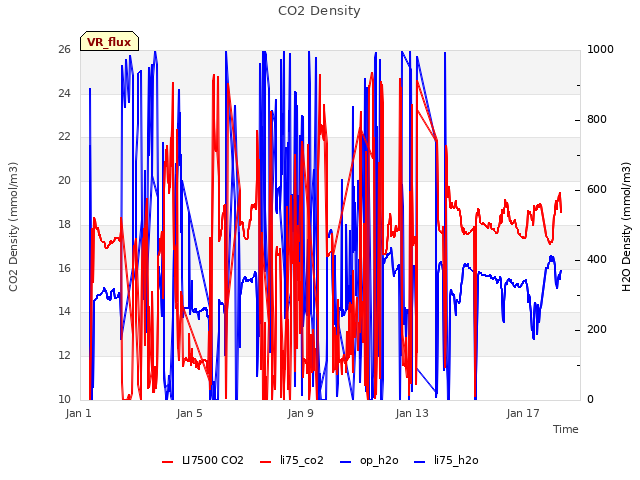

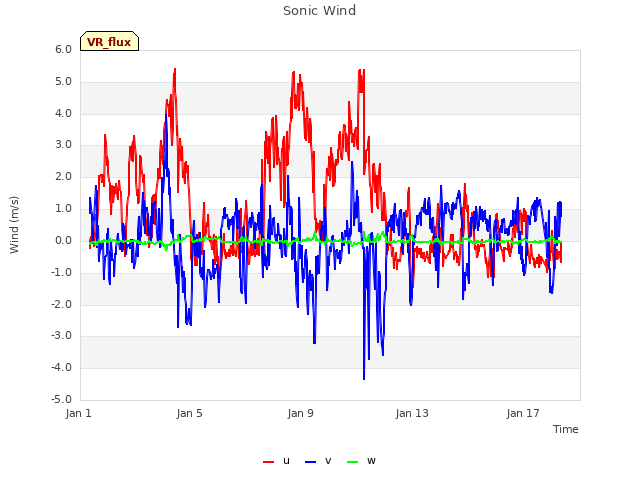

2 VR_flux graphs found

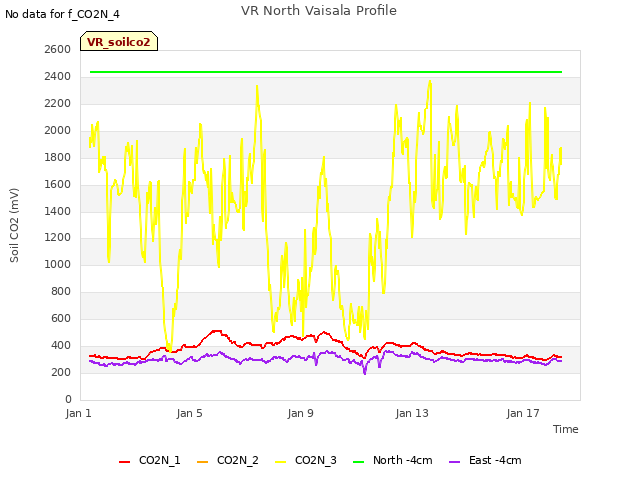

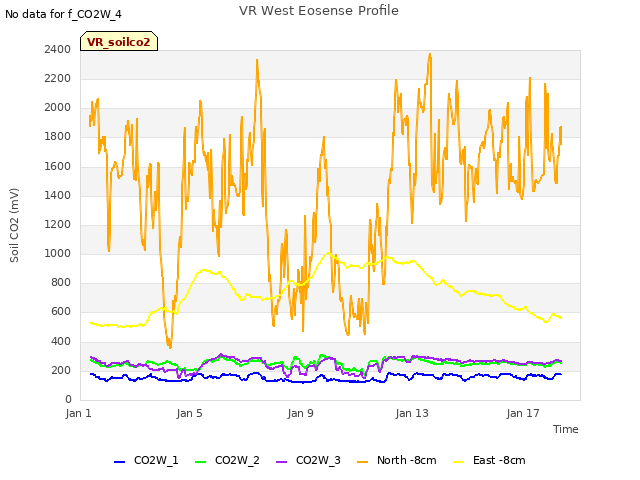

6 VR_soilco2 graphs found
2 VR_pond graphs found
Can't check TZVR_mixed
No data found for VR_fd.
No data found for VR_processed.
No data found for VR_arable.
No data found for VR_soilvue.
