Bouldin Alfalfa: 2017-01-17 15:00:00 (DOY 17)
Author: Daphne Szutu
Others: Elke Eichelmann, Kyle Hemes

Summary: Regular data collection, alfalfa tall enough to take veg heights

We arrived at 15:00. It was overcast/foggy, cool, with a light breeze. We drove on the levee around to the south(?) side of the field; we parked the car on the levee and walked down to the tower. The alfalfa was taller than we expected.

I collected met and GHG USB data and swapped the camera CF card. Elke refilled the wash reservoir and Kyle cleaned the eddy flux and radiation sensors.

Elke took alfalfa veg height measurements (cm): 24, 12, 10, 16, 11, 18, 17, 20, 17, 23, 23, 20, 19, 18, 25, 12, 17, 11, 12, 9.

The LI7700 had a "time not synchronized" error message. Elke reset the Licor box and the error message went away.

LI7500 readings:
CO2 425.8 ppm
H2O 413.2 mmol/m3
T 9.9 C
P 101.9 kPa
SS 78.0 -> 78.4 after cleaning

LI7700 readings:
CH4: 2.13 ppm
RSSI: 44.5 -> 78.8 after cleaning

We left around 15:15.

Next time: Bring a bird spike for the LI7500

Next Mowing: 2017-04-24

0 photos found

Graphs display:
7 sets found

5 BA_flux graphs found

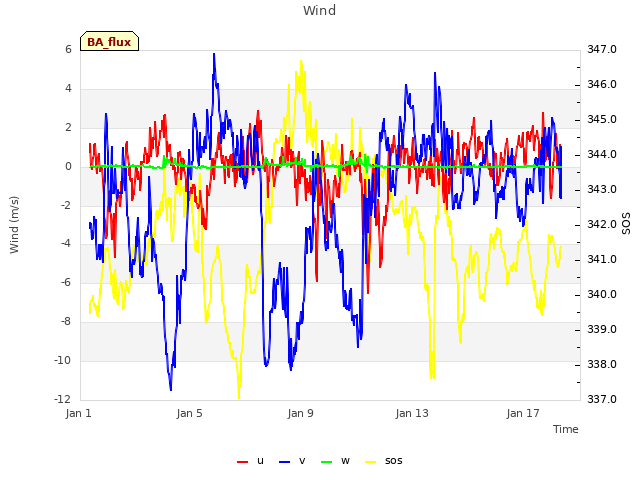

Explore the graph:Wind in a new window

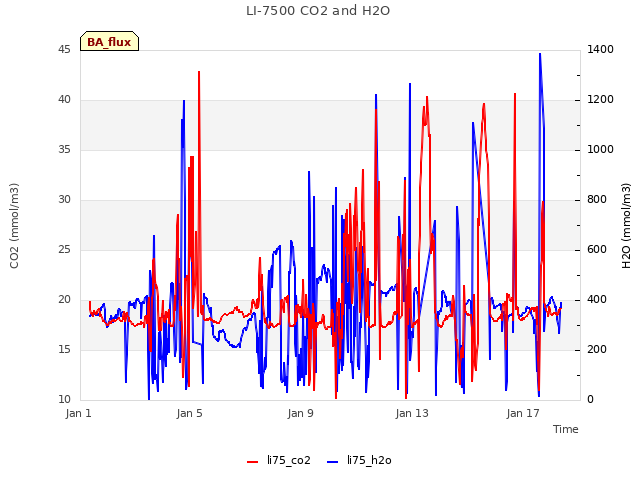

Explore the graph:LI-7500 CO2 and H2O in a new window

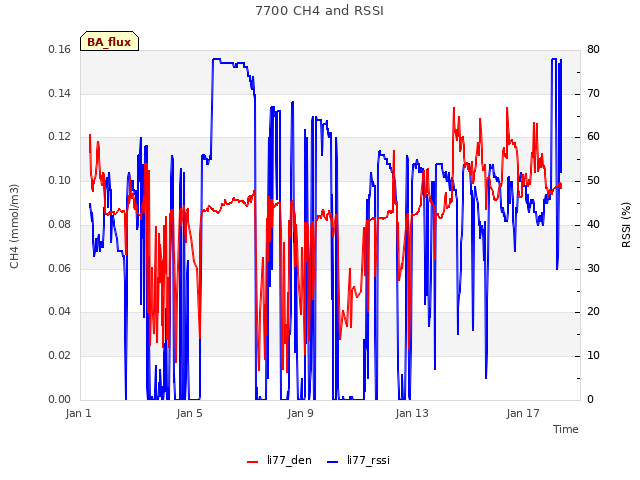

Explore the graph:7700 CH4 and RSSI in a new window

Explore the graph:Counts in a new window

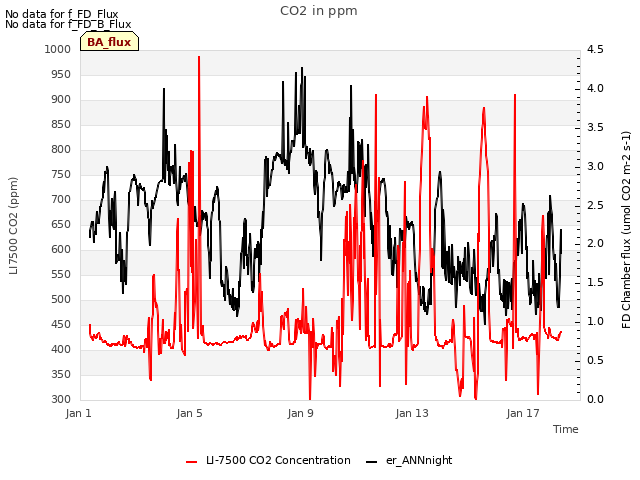

Explore the graph:CO2 in ppm in a new window

21 BA_met graphs found

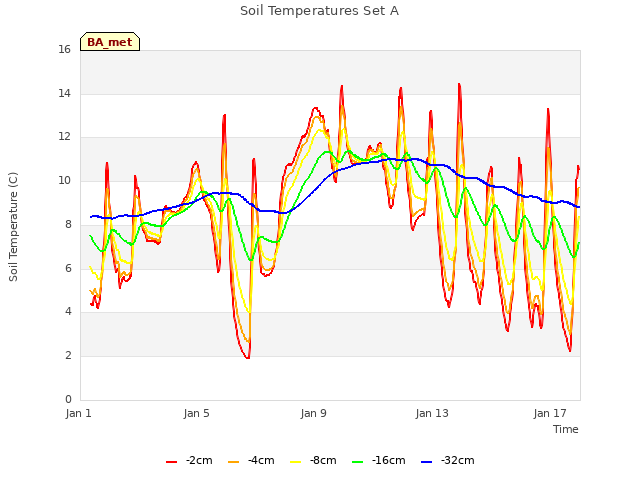

Explore the graph:Soil Temperatures Set A in a new window

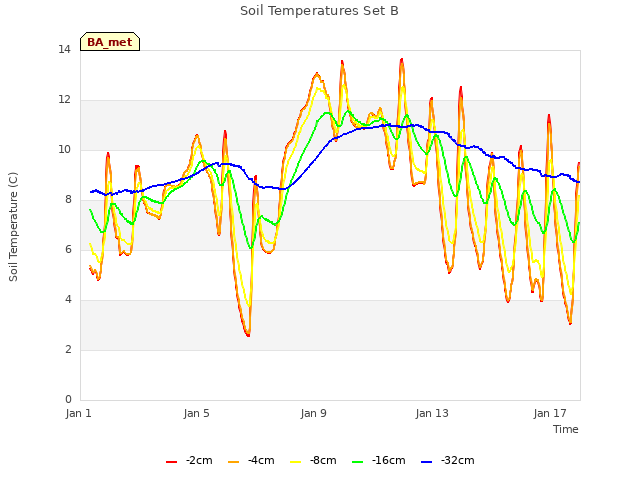

Explore the graph:Soil Temperatures Set B in a new window

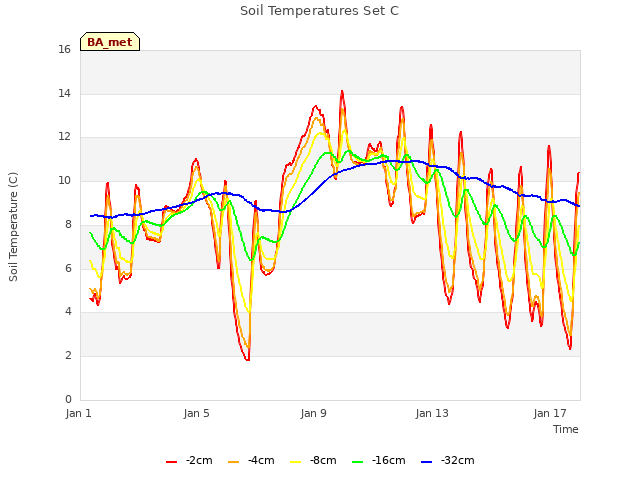

Explore the graph:Soil Temperatures Set C in a new window

Explore the graph:Soil Heat Flux in a new window

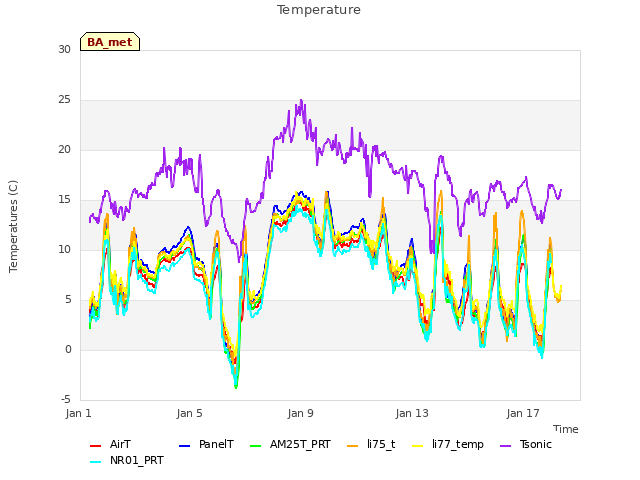

Explore the graph:Temperature in a new window

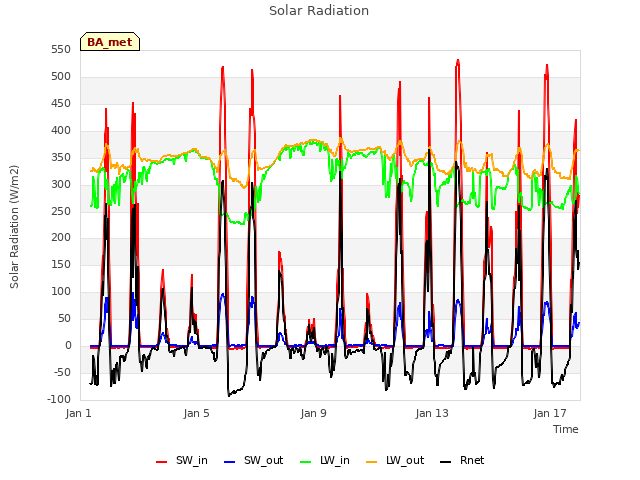

Explore the graph:Solar Radiation in a new window

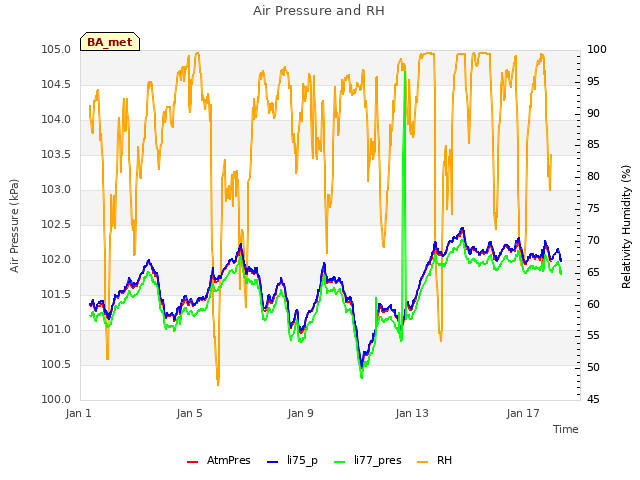

Explore the graph:Air Pressure and RH in a new window

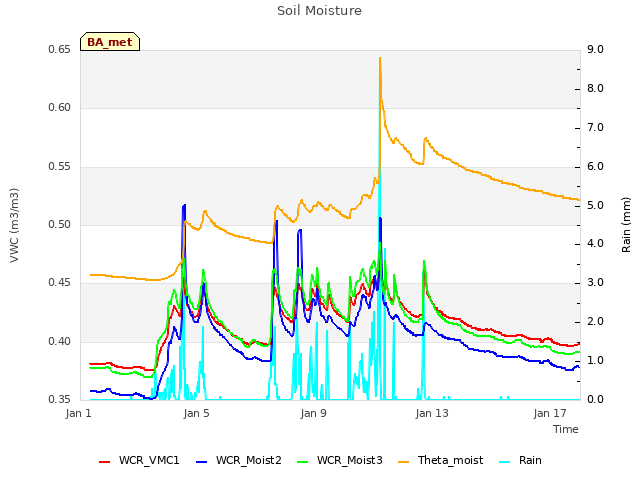

Explore the graph:Soil Moisture in a new window

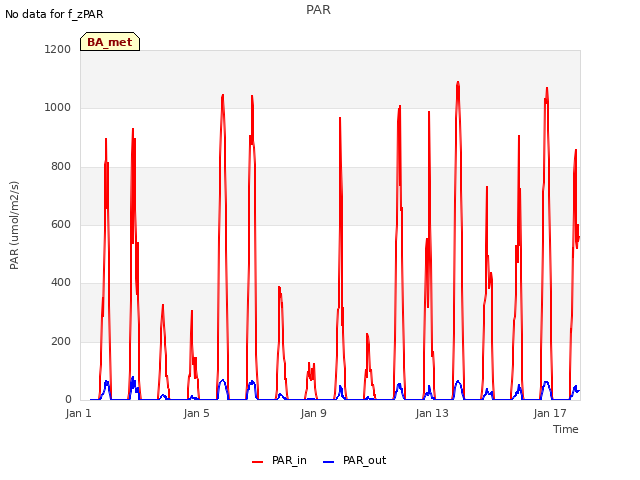

Explore the graph:PAR in a new window

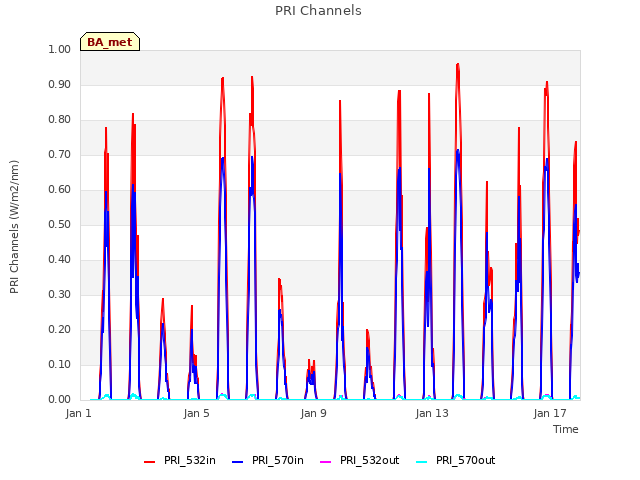

Explore the graph:PRI Channels in a new window

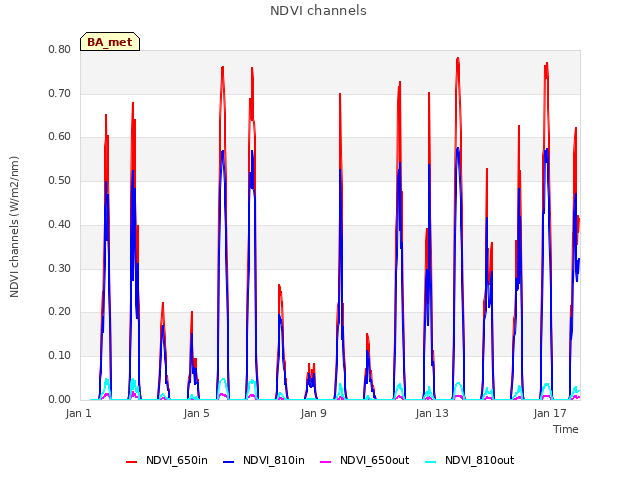

Explore the graph:NDVI channels in a new window

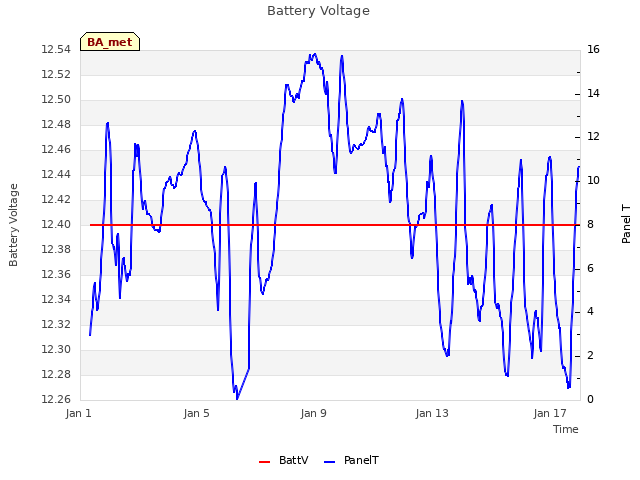

Explore the graph:Battery Voltage in a new window

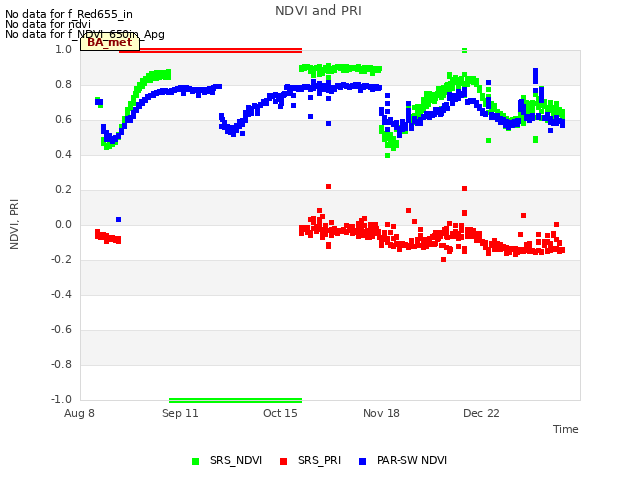

Explore the graph:NDVI and PRI in a new window

Explore the graph:Apogee NDVI in a new window

Explore the graph:FD Chamber A CO2 and Temp in a new window

Explore the graph:FD Chamber B CO2 and Temperature in a new window

Explore the graph:Surface Temperature in a new window

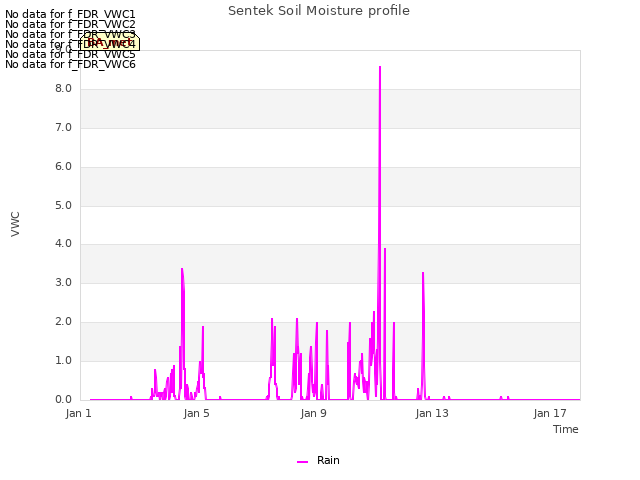

Explore the graph:Sentek Soil Moisture profile in a new window

Explore the graph:Sentek Soil Temperature profile in a new window

Explore the graph:Sentek Soil Salinity profile in a new window

Explore the graph:Forced Diffusion Soil CO2 Flux in a new window

No data found for BA_arable.
Can't check TATWBABCSB_cam
Can't check MBSWEEWPBCBA
2 BA_processed graphs found

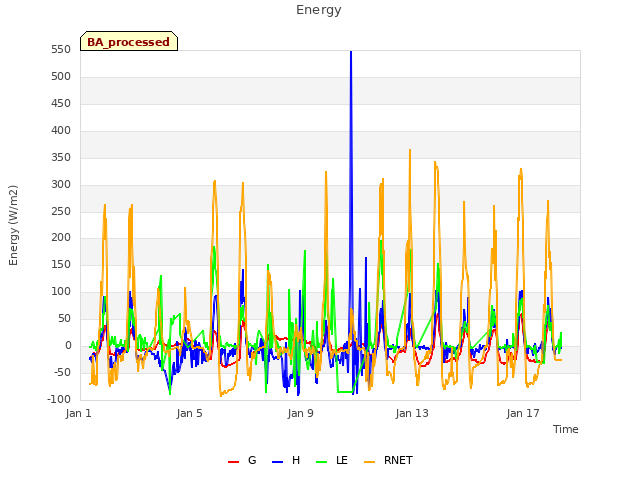

Explore the graph:Energy in a new window

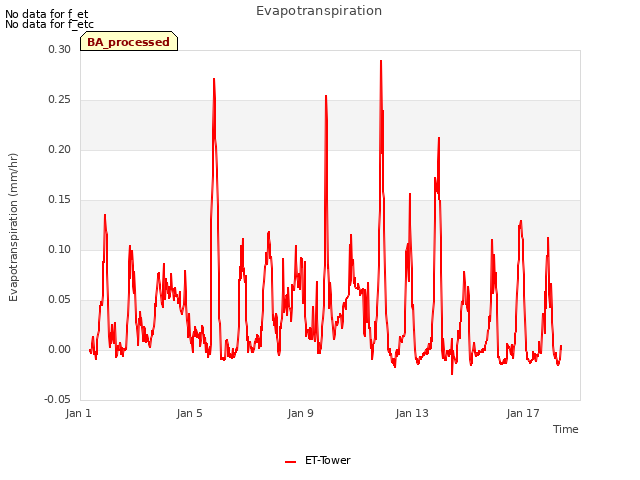

Explore the graph:Evapotranspiration in a new window

No data found for BA_adex.
