East End: 2017-01-17 12:25:00 (DOY 17)
Author: Daphne Szutu
Others: Elke Eichelmann, Kyle Hemes
Summary: Regular data collection, swapped sonic, water puddles in LI7500 box

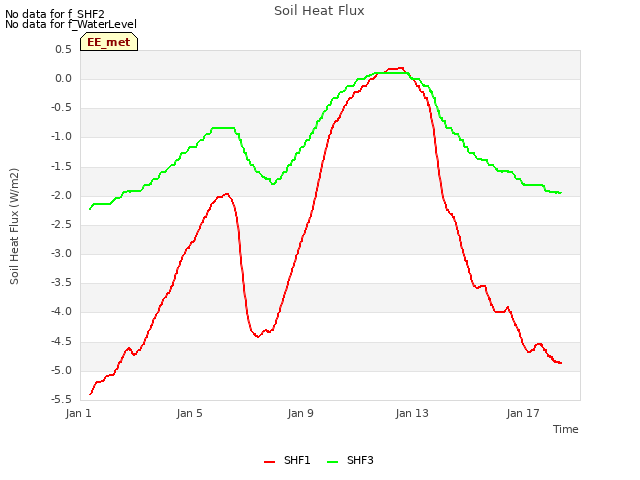

| We arrived at 12:25. It was cool, foggy, overcast. There was a lot of water in the LI7550 box, but the box was closed securely. A lot of water fell out when Kyle opened the box, and there was a lot pooled at the bottom of the box. Not sure where the water could have come in. The numbers seem fine and everything still seems to be working. Elke mopped up the water with rags. We switched out the Gill sonic anemometer: sn 153804 came down and sn 124215 went up. The new anemometer has upgraded firmware to correct for the W bug. We made sure the N-orientation of the anemometer was the same between the old and new sensor. I downloaded met data and camera data through TightVNC Viewer and downloaded GHG USB data. From the datalogger, SHFP(2) = NAN. The 7500 read: CO2 444.0 ppm H2O 355.0 mmol/m3 T 7.6 C P 102.1 kPa SS 97.0 --> 100.7 after cleaning The 7700 read: CH4 2.16 ppm RSSI 39.8 --> 85.5 after cleaning We left around 12:50. |
0 photos found
11 sets found

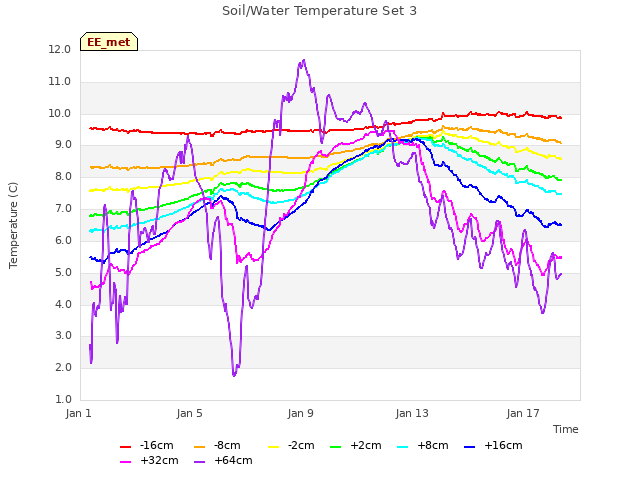

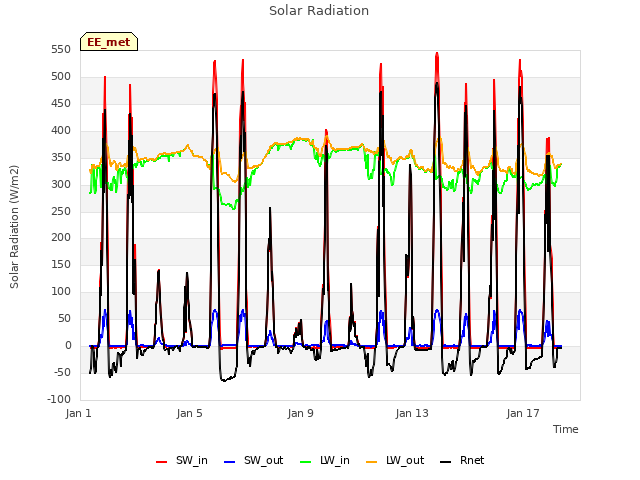

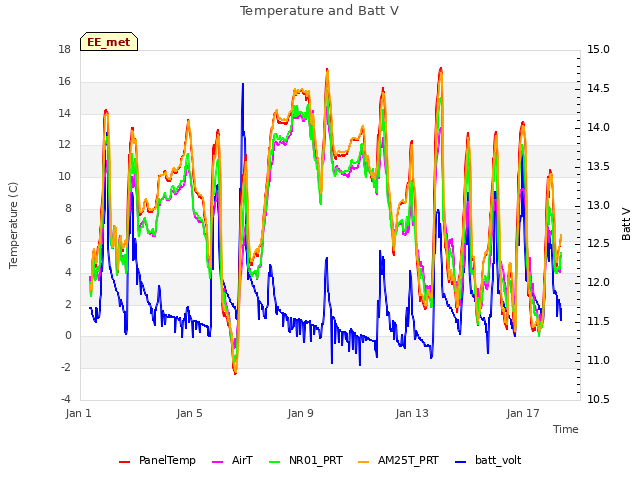

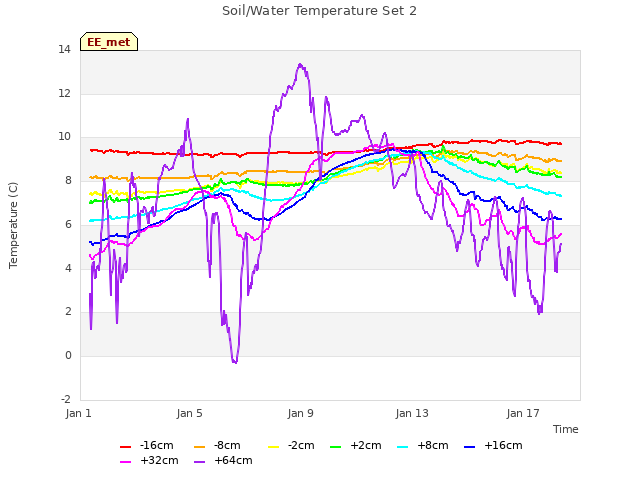

14 EE_met graphs found
Can't check EE_mixed

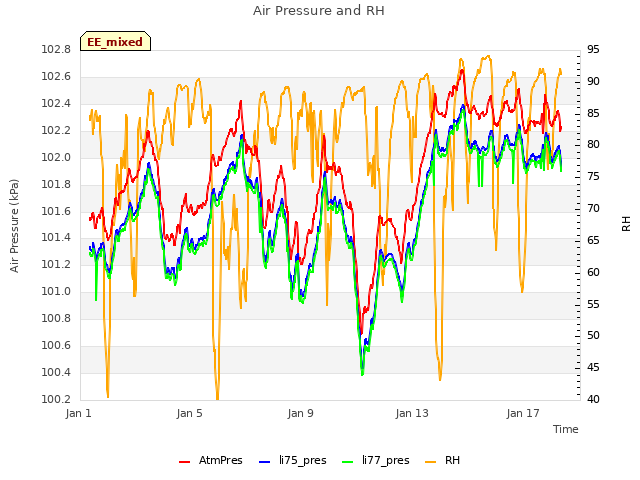

1 EE_mixed graphs found

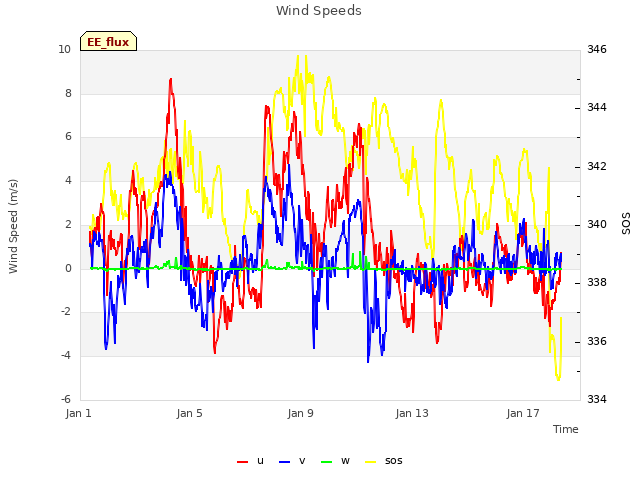

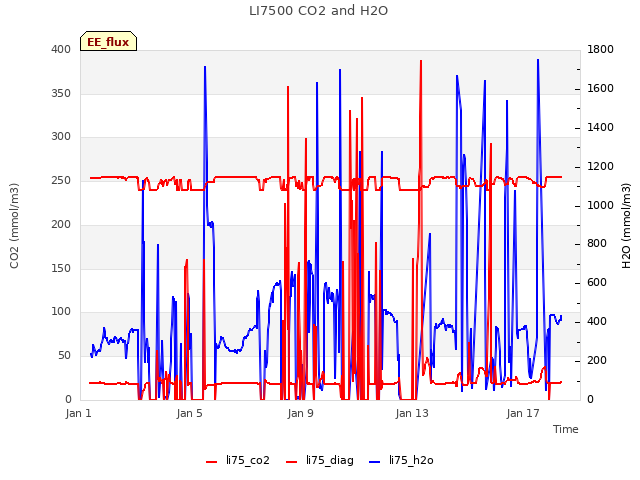

8 EE_flux graphs found
Can't check MBWPEESWGT_mixed
1 EE_cam graphs found
Can't check MBEEWPSWEPGT_cam
Can't check SIMBTWEE_met
Can't check EE_Temp
5 EE_Temp graphs found
Can't check EE_minidot
1 EE_minidot graphs found
Can't check MBSWEEWPBCBA

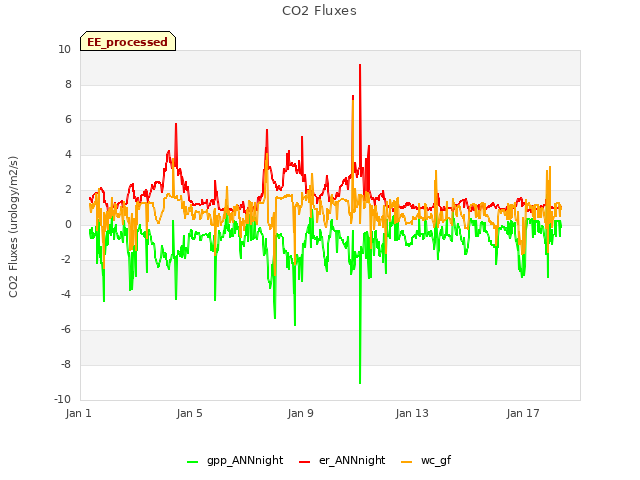

1 EE_processed graphs found
