Twitchell Alfalfa: 2016-08-12 10:40:00 (DOY 225)
Author: Alison Haddad
Others: Elke Eichelmann, Kyle Hemes

Summary: alfalfa recently cut, normal data collection, alfalfa around instruments already trimmed.

Arrived: 10:40. Alfalfa recently cut, removing the bales today. Sunny, warm, breezy, mostly clear sky: no clouds but a bit hazy.

Collected USB GHG data; collected camera data; collected met data from CR1000; collected rad data from CR10X; collected camera card: swapped CF card “TA” in and “TA” out; collected soil CO2.

Did soil respiration, spectral, and cleaned solar panels. Did not do veg height or clip plots because the alfalfa was just cut.

The vegetation around the met instruments had already been cut, probably by the Davis folks who have set up a surface renewal measurement system. Cut veg around solar panels.

LI7500 readings
CO2 390.91
H2O 643.8
T 25.77
P 101.42
ss 99.22

left: 11:10

Veg Height (cm): Visual estimate - Alfalfa just cut and baled, bales being removed
5, avg = 5, stdev = N/A

1 photos found

Bales to count
Bales to count

Graphs display:
7 sets found

Can't check TA_met
11 TA_met graphs found

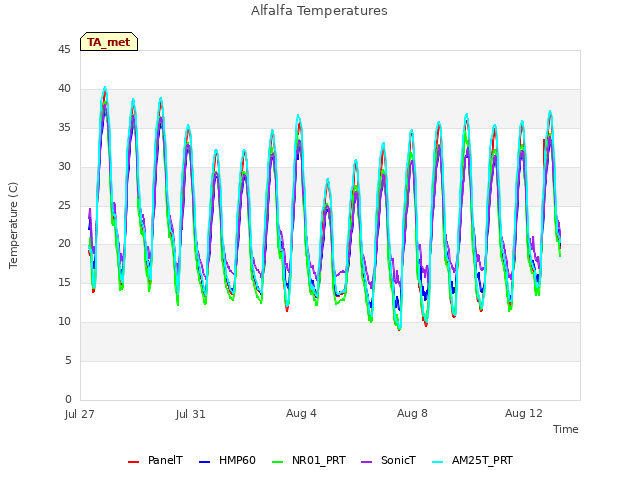

Explore the graph:Alfalfa Temperatures in a new window

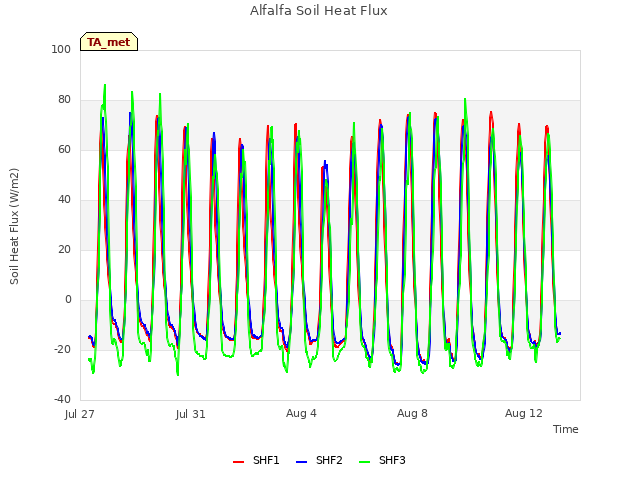

Explore the graph:Alfalfa Soil Heat Flux in a new window

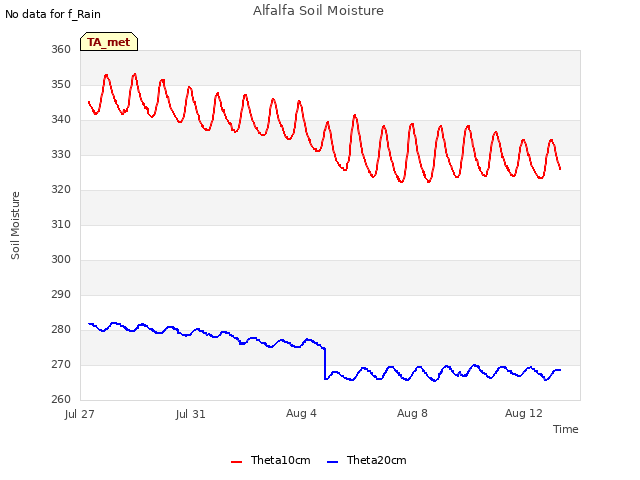

Explore the graph:Alfalfa Soil Moisture in a new window

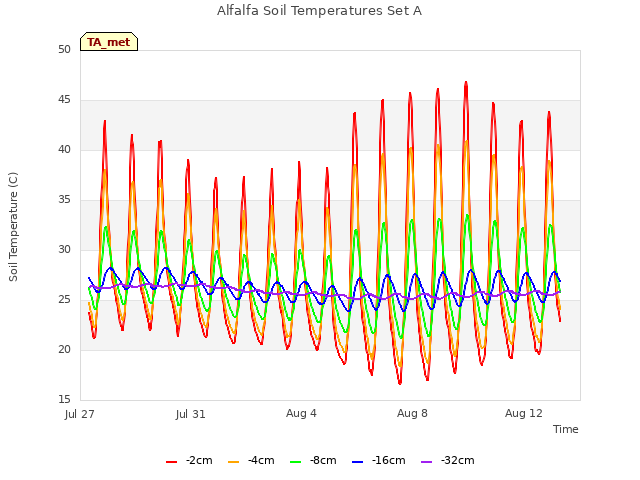

Explore the graph:Alfalfa Soil Temperatures Set A in a new window

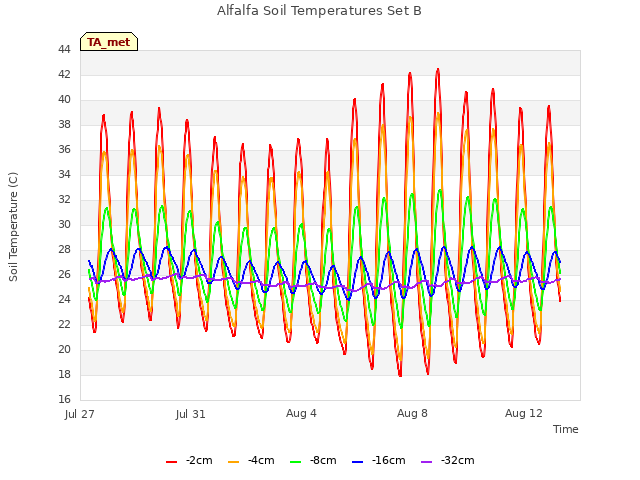

Explore the graph:Alfalfa Soil Temperatures Set B in a new window

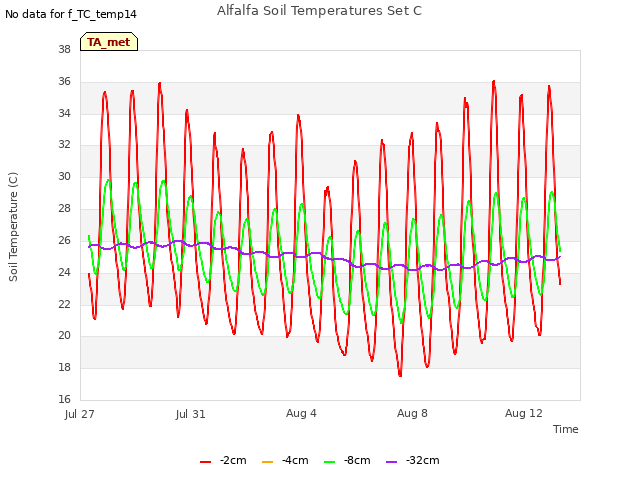

Explore the graph:Alfalfa Soil Temperatures Set C in a new window

Explore the graph:NDVI Narrow Band Radiation in a new window

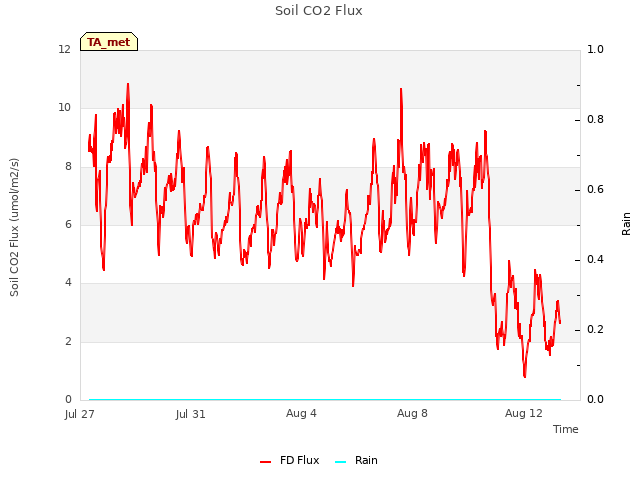

Explore the graph:Soil CO2 Flux in a new window

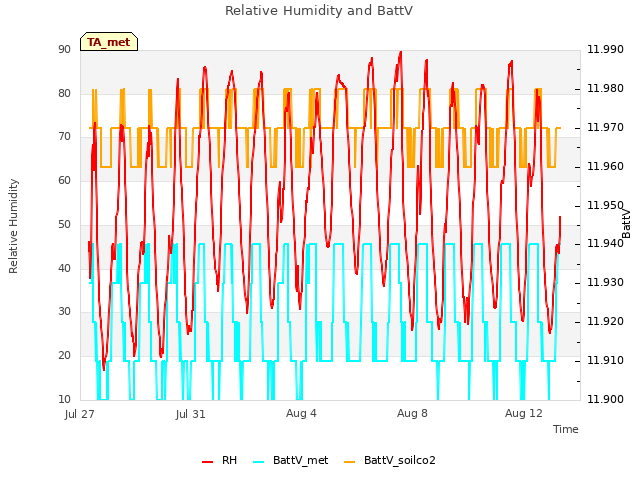

Explore the graph:Relative Humidity and BattV in a new window

Explore the graph:SRS NDVI and PRI in a new window

Explore the graph:PRI Narrow Band Channels in a new window

Can't check TA_rad
3 TA_rad graphs found

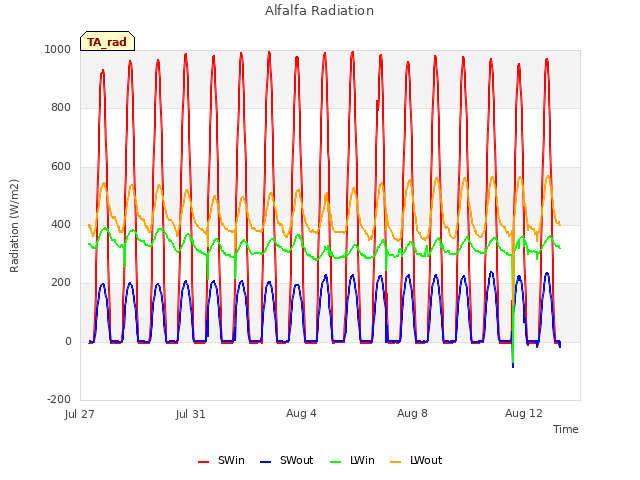

Explore the graph:Alfalfa Radiation in a new window

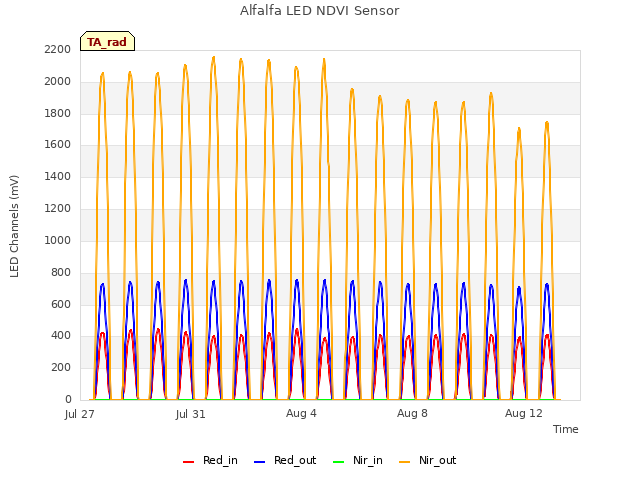

Explore the graph:Alfalfa LED NDVI Sensor in a new window

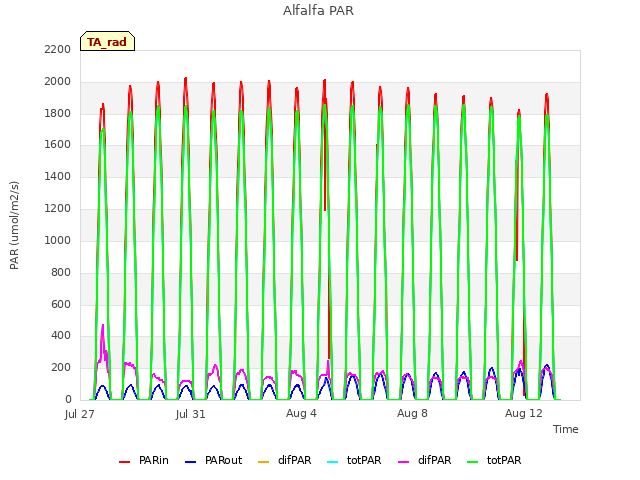

Explore the graph:Alfalfa PAR in a new window

Can't check TA_flux
5 TA_flux graphs found

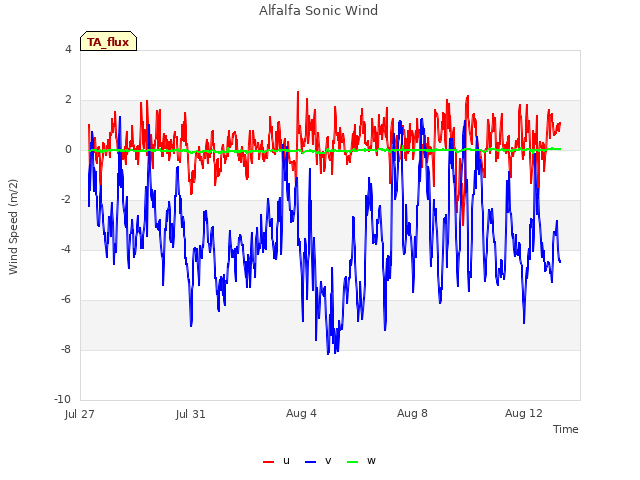

Explore the graph:Alfalfa Sonic Wind in a new window

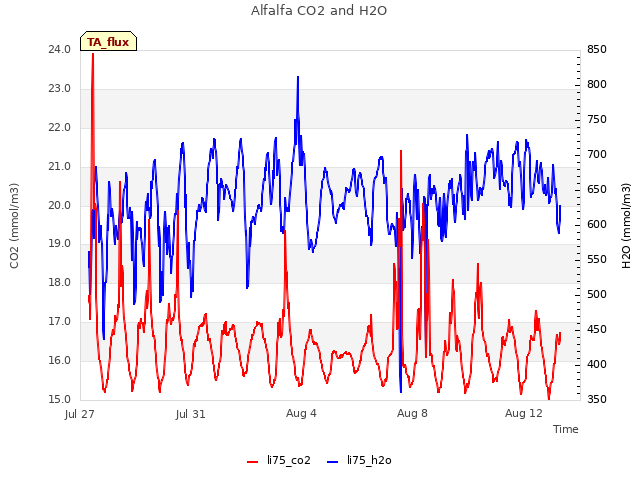

Explore the graph:Alfalfa CO2 and H2O in a new window

Explore the graph:Alfalfa Methane in a new window

Explore the graph:Alfalfa Pressure in a new window

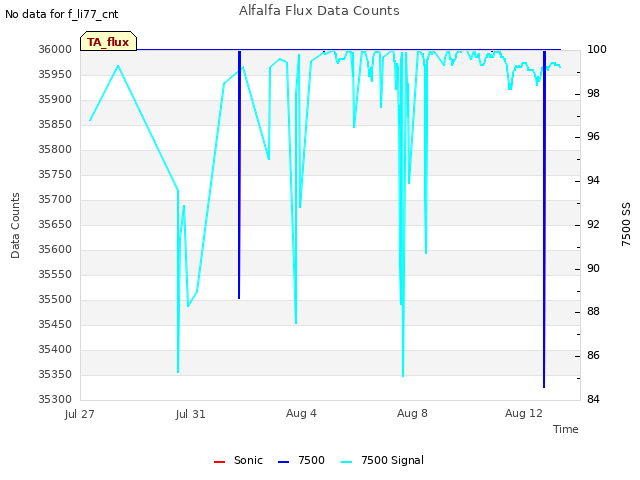

Explore the graph:Alfalfa Flux Data Counts in a new window

Can't check TA_soilco2
7 TA_soilco2 graphs found

Explore the graph:Set A Soil CO2 in a new window

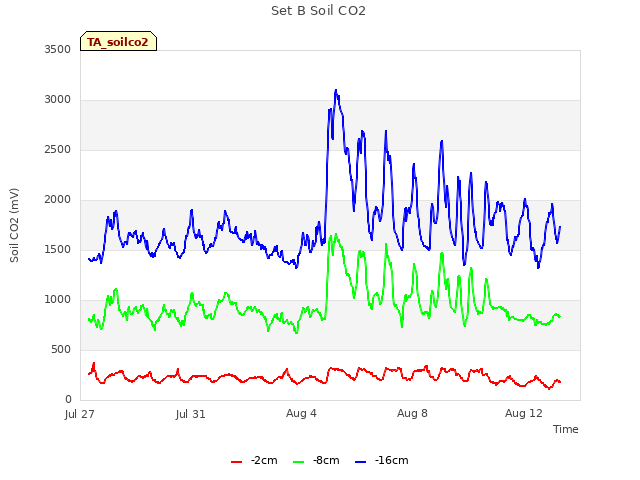

Explore the graph:Set B Soil CO2 in a new window

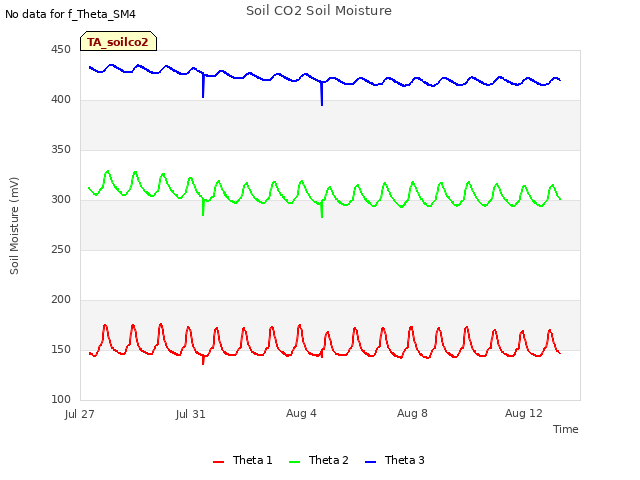

Explore the graph:Soil CO2 Soil Moisture in a new window

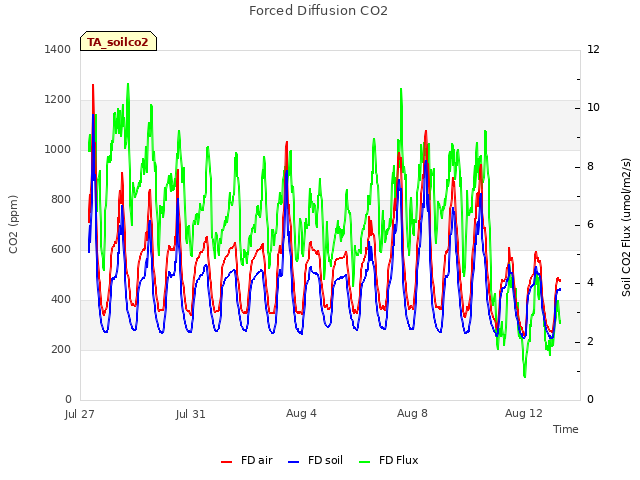

Explore the graph:Forced Diffusion CO2 in a new window

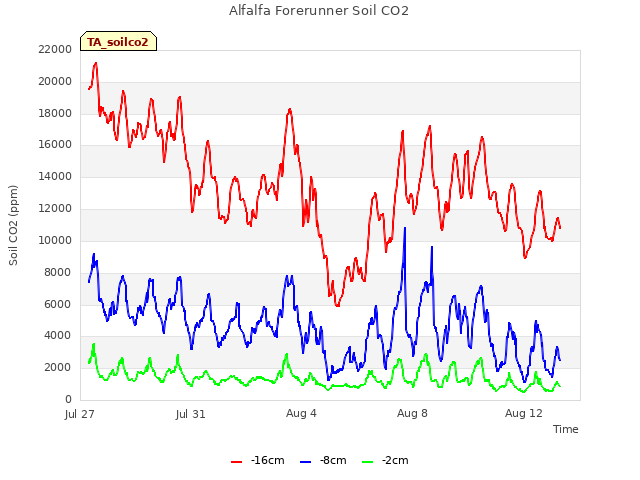

Explore the graph:Alfalfa Forerunner Soil CO2 in a new window

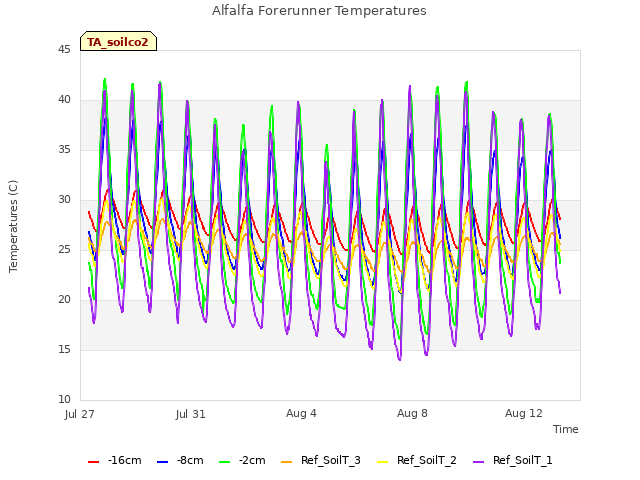

Explore the graph:Alfalfa Forerunner Temperatures in a new window

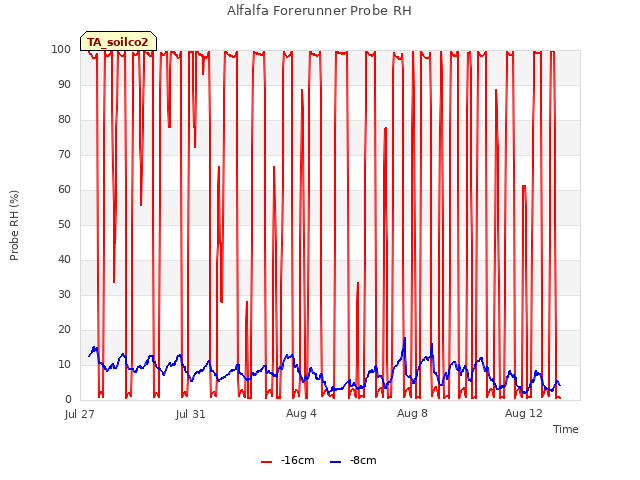

Explore the graph:Alfalfa Forerunner Probe RH in a new window

No data found for TA_arable.
1 TA_cam graphs found

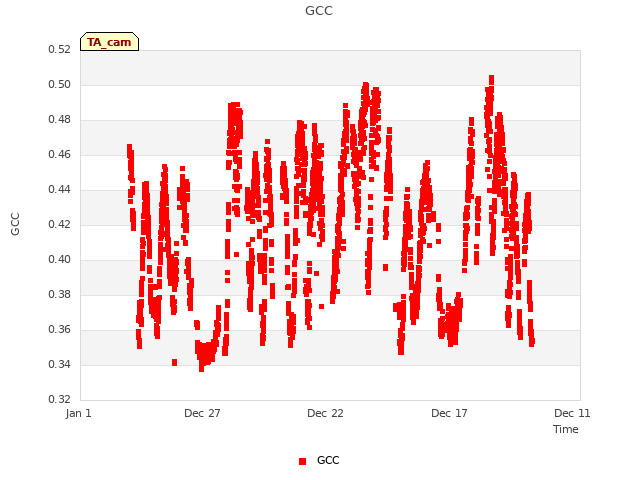

Explore the graph:GCC in a new window

Can't check TATWBABCSB_cam
