Twitchell Alfalfa: 2016-08-01 11:20:00 (DOY 214)
Author: Elke Eichelmann
Others: Kyle Hemes, Markus Reichstein
Summary: Normal data collection, forced diffusion chamber working.
| Arrived: 11:20. Sunny, breezy, hazy in distance, clear sky. Alfalfa growing but not yet flowering. Collected USB GHG data; collected camera data; collected met data; collected rad data from CR10X; collected camera card: swapped CF card “TA†in and “SI†out; collected soil CO2: two TCs not working, STC12 and STC14=NAN. Did soil respiration measurements, did vegetation height and clip plots. Veg height (cm): 26, 38, 44, 23, 49, 32, 37, 36, 39, 24, 39, 44, 31, 39, 39, 31, 35, 37, 51, 45. Did not do spectral as the spectrometer is currently broken. Could hear the forced diffusion chamber working. Radiation sensors were very dirty, so we cleaned them. LI7500 readings CO2 393.96 H2O 709.0 T 20.24 P 101.19 ss 100.7 Left: 12:05. |
Veg Height (cm): Tape measure from ground to top of plant
26, 38, 44, 23, 49, 32, 37, 36, 39, 24, 39, 44, 31, 39, 39, 31, 35, 37, 51, 45, avg = 37, stdev = 7.63
0 photos found
7 sets found
Can't check TA_met

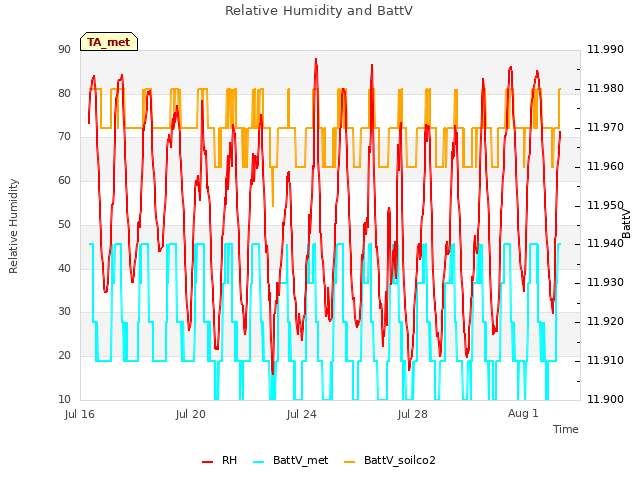

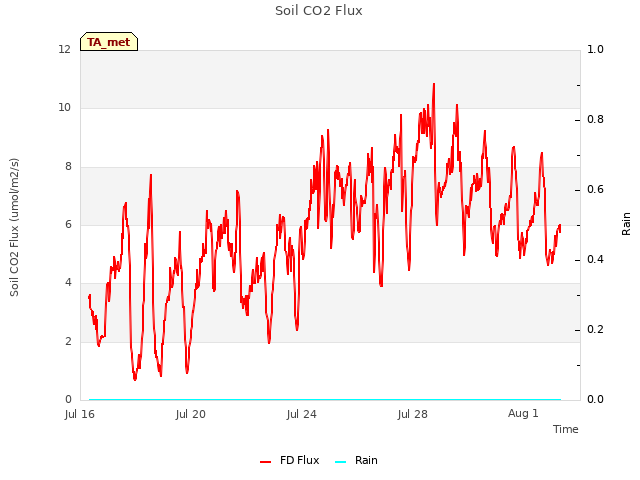

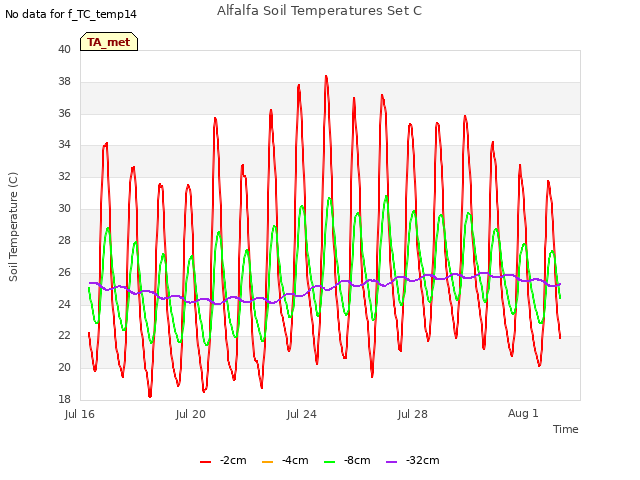

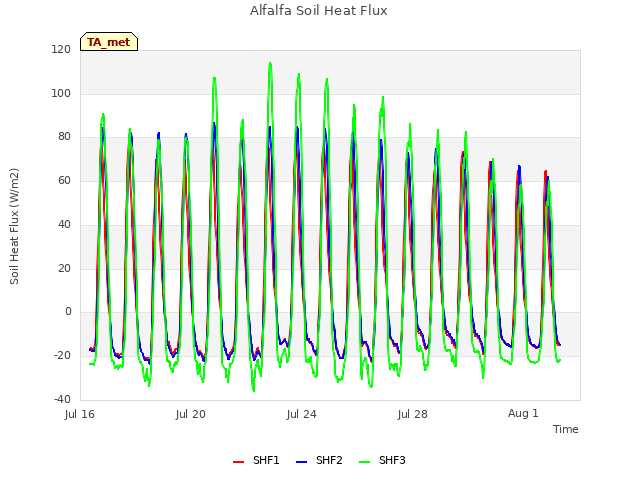

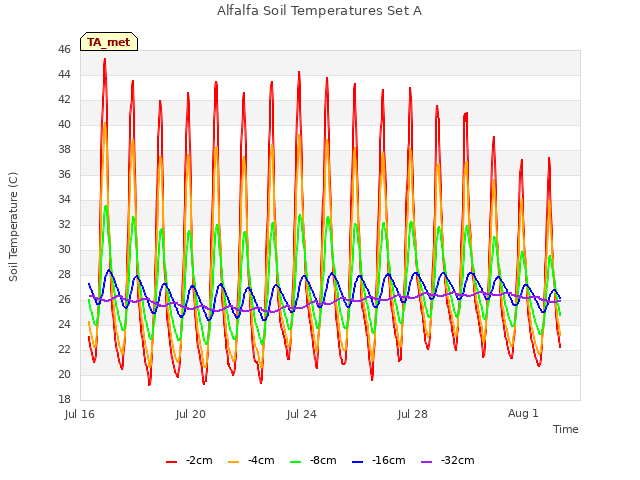

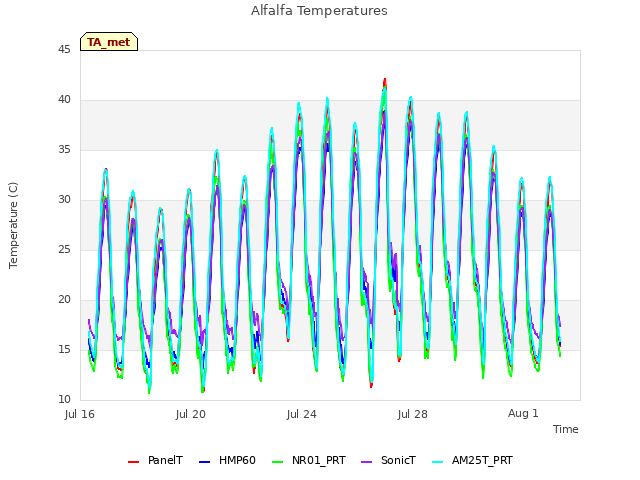

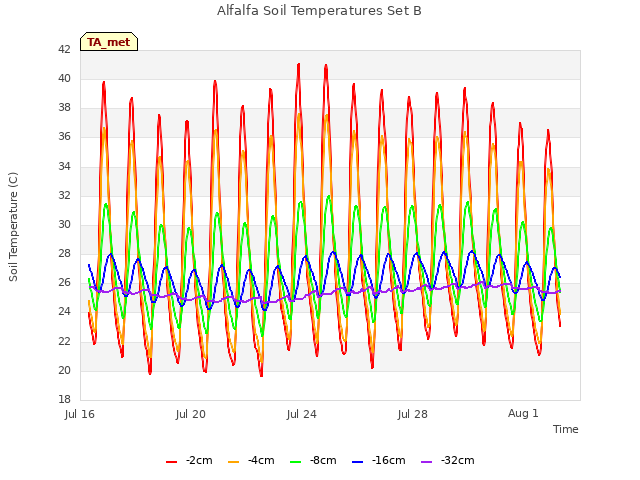

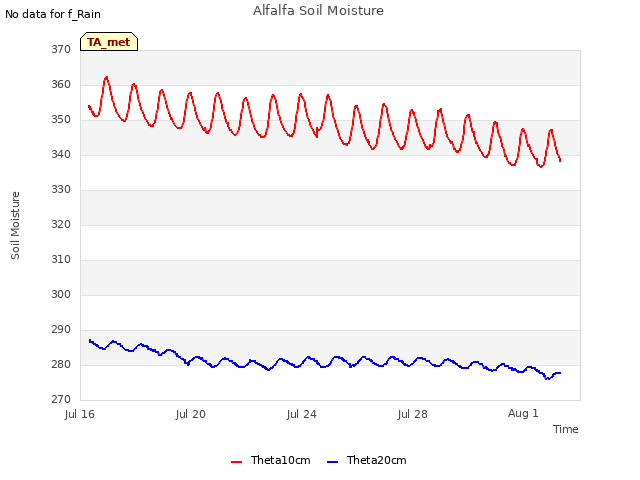

11 TA_met graphs found
Can't check TA_rad

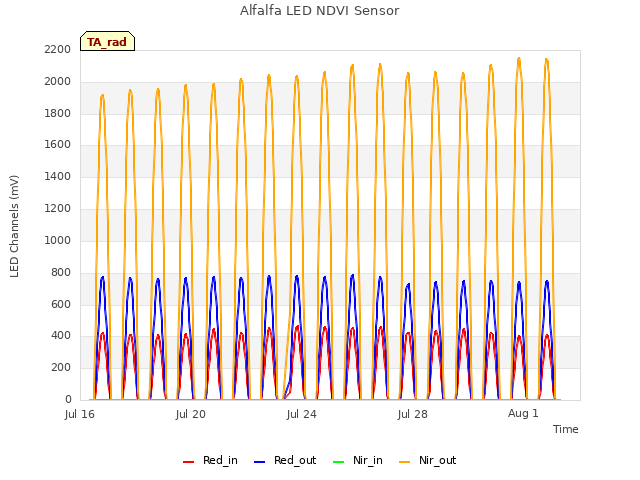

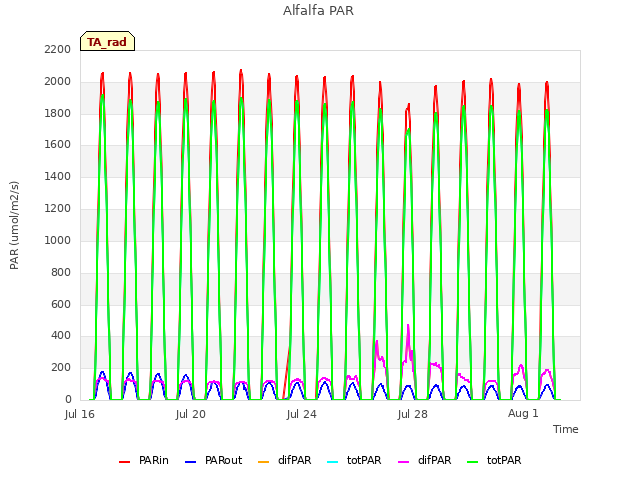

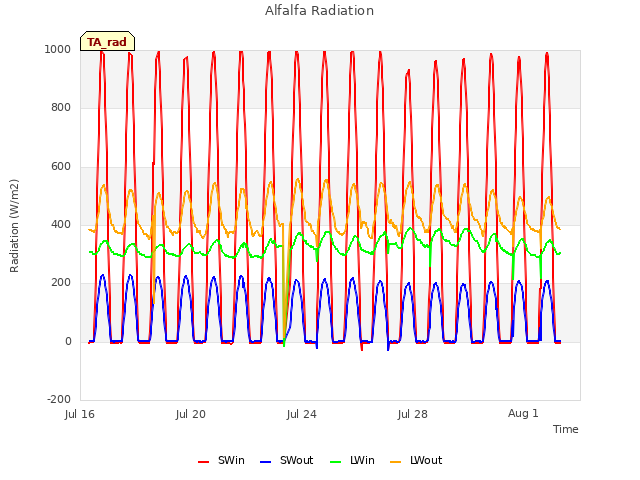

3 TA_rad graphs found
Can't check TA_flux

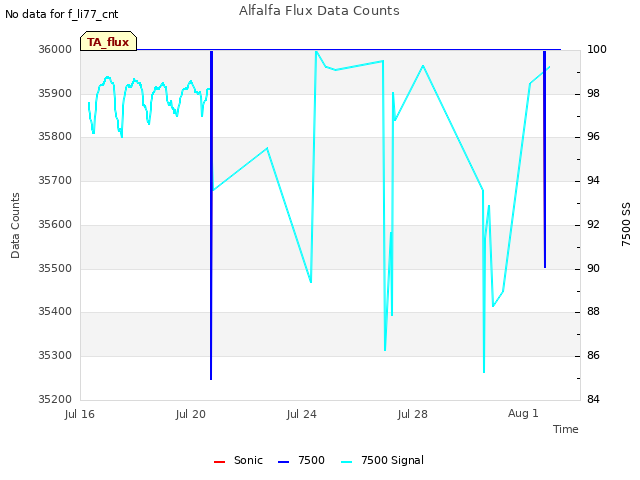

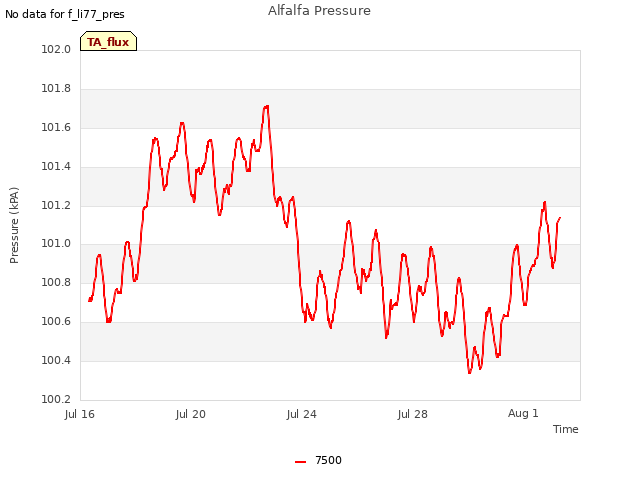

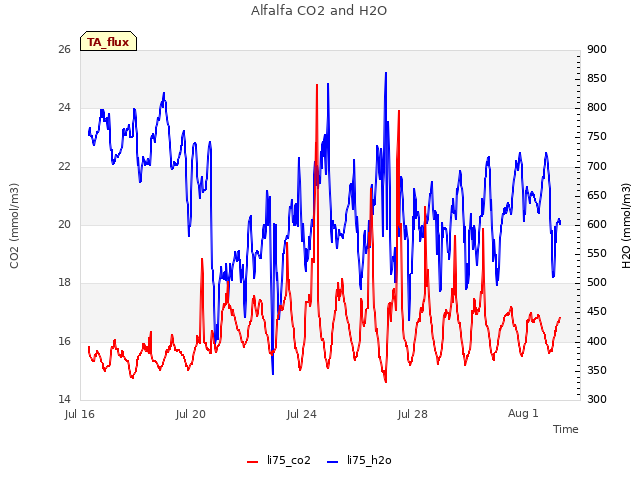

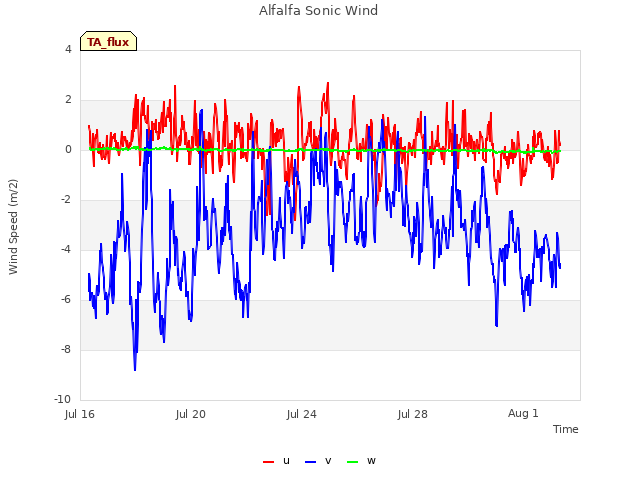

5 TA_flux graphs found
Can't check TA_soilco2

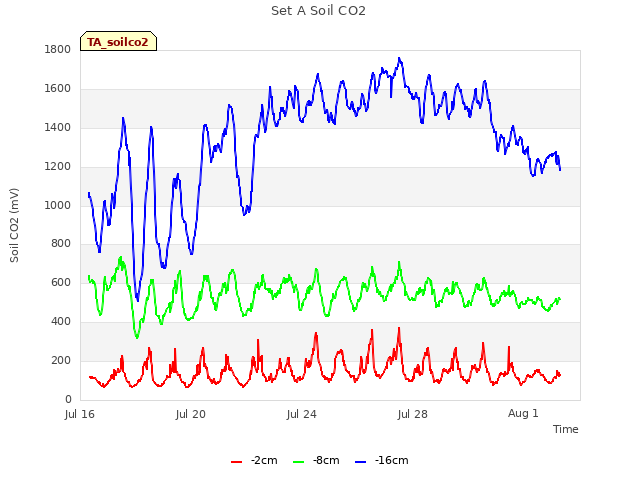

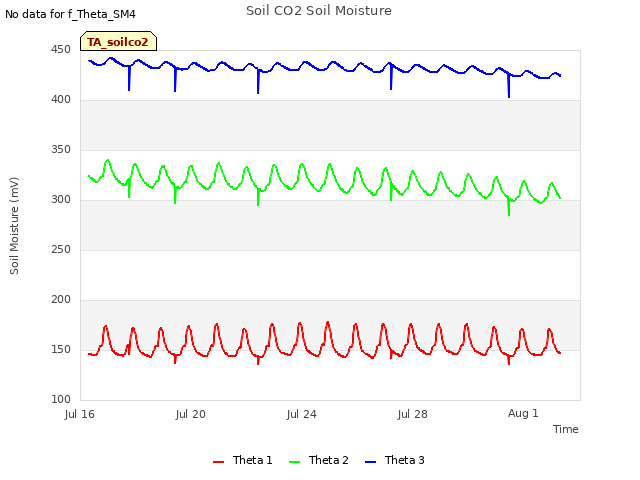

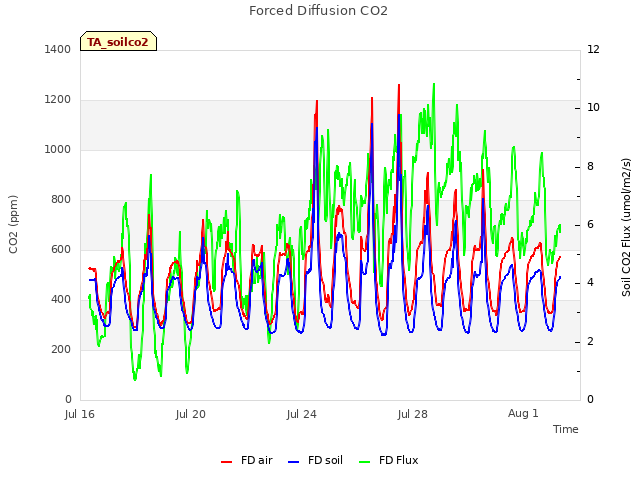

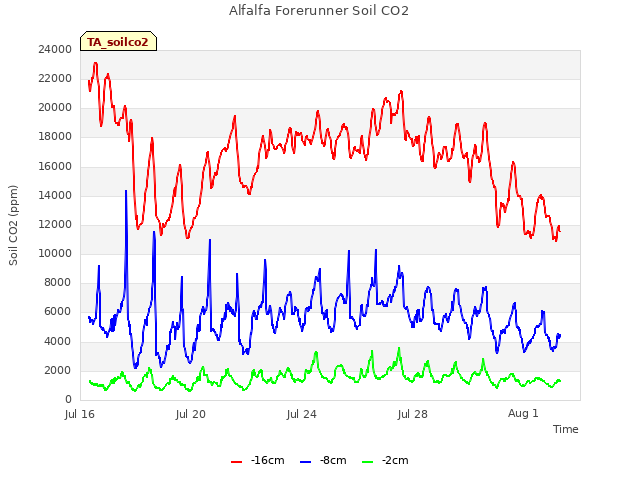

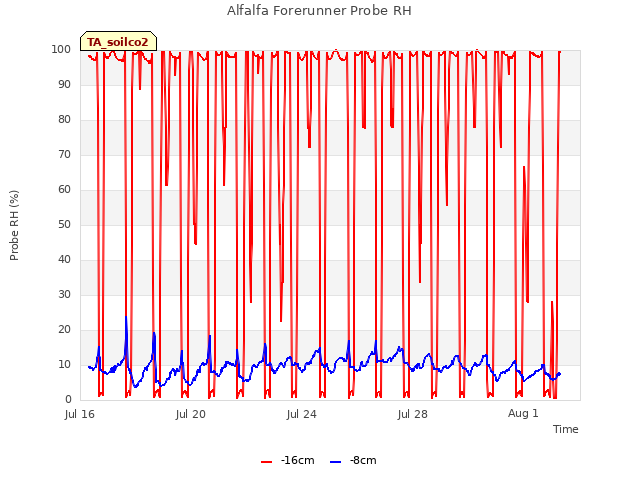

7 TA_soilco2 graphs found
No data found for TA_arable.

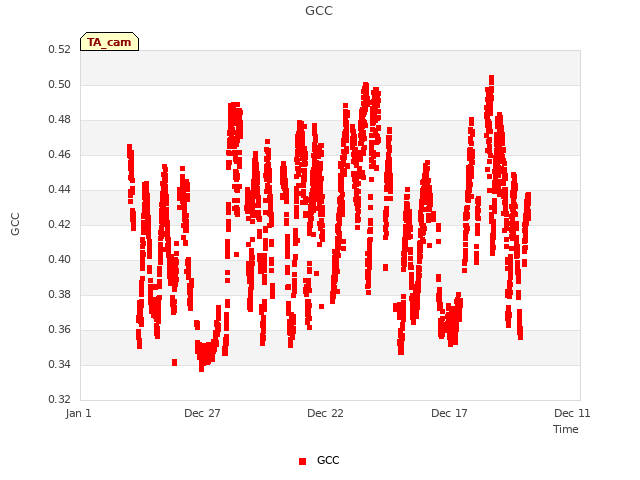

1 TA_cam graphs found
Can't check TATWBABCSB_cam
